Top Mounted Barn Door Hardware
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Learn more
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
Casson is not responsible for any damages or inconveniences resulting from the improper installation of the hardware.
- Made to Order | Review Returns Policy Here
Optional Accessories
Description

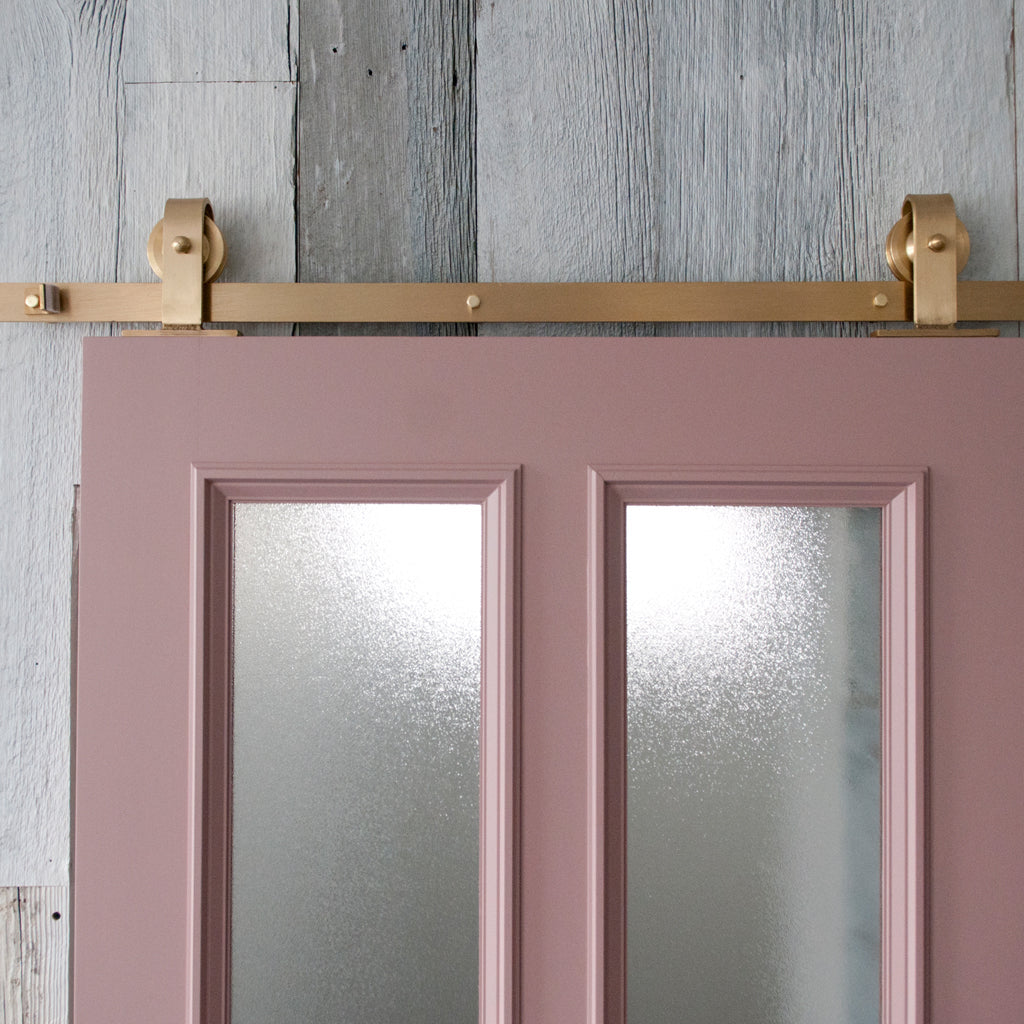

The Top Mounted Barn Door Hardware by 1925Workbench is a premium top-mount sliding door system showcasing heritage craftsmanship and exposed mechanisms. Tracks are custom-cut to exact length. Rated for doors up to 200 lbs.
Designed and manufactured in Toronto by 1925Workbench. Patented in Canada and the USA.
Tracks are custom-cut to your exact length. Contact us with the following for a quote:
- Style: Top Mount / Face Mount / Bi-Part
- Finish: Brass / Raw Steel / Stainless Steel / Black
- Length
- Drilling: Pre-drilled or Not drilled
Specifications
- Pre-Drilled vs. Not Pre-Drilled
- Pre-drilled holes are spaced evenly every 14.75"–17.25" along the track
- Pre-drilled tracks must be mounted on a backing piece to clear baseboards or moldings
- Not pre-drilled tracks require on-site drilling and can be installed directly to the wall if baseboards are flush with adequate blocking
- For Black Powder Coated "Not Pre-Drilled" orders, a hole is drilled 1.5" from each end for the powder coating process
- Track Length & Measuring
- Track length: order at least twice the width of the door plus a minimum 2" overlap on each side
- Door should be 4" wider than the opening (2" overlap per side) and large enough to cover any door casing
- Tracks over 93" ship in two pieces
- Recommended headroom: 8"–10" (minimum 6")
- Weight Capacity
- Rated for doors up to 200 lbs per pair of hangers
- Actual capacity varies depending on how the track is fastened to the wall
- Additional Components
- Door guides (floor or wall mount) included in kit — extra floor guides available separately
- Floor Guide: Bracket mounted on the floor at the bottom of the door
- Wall Guide: Mounts to baseboards or wall
- Price includes hardware only. Door and header piece not included.
Materials

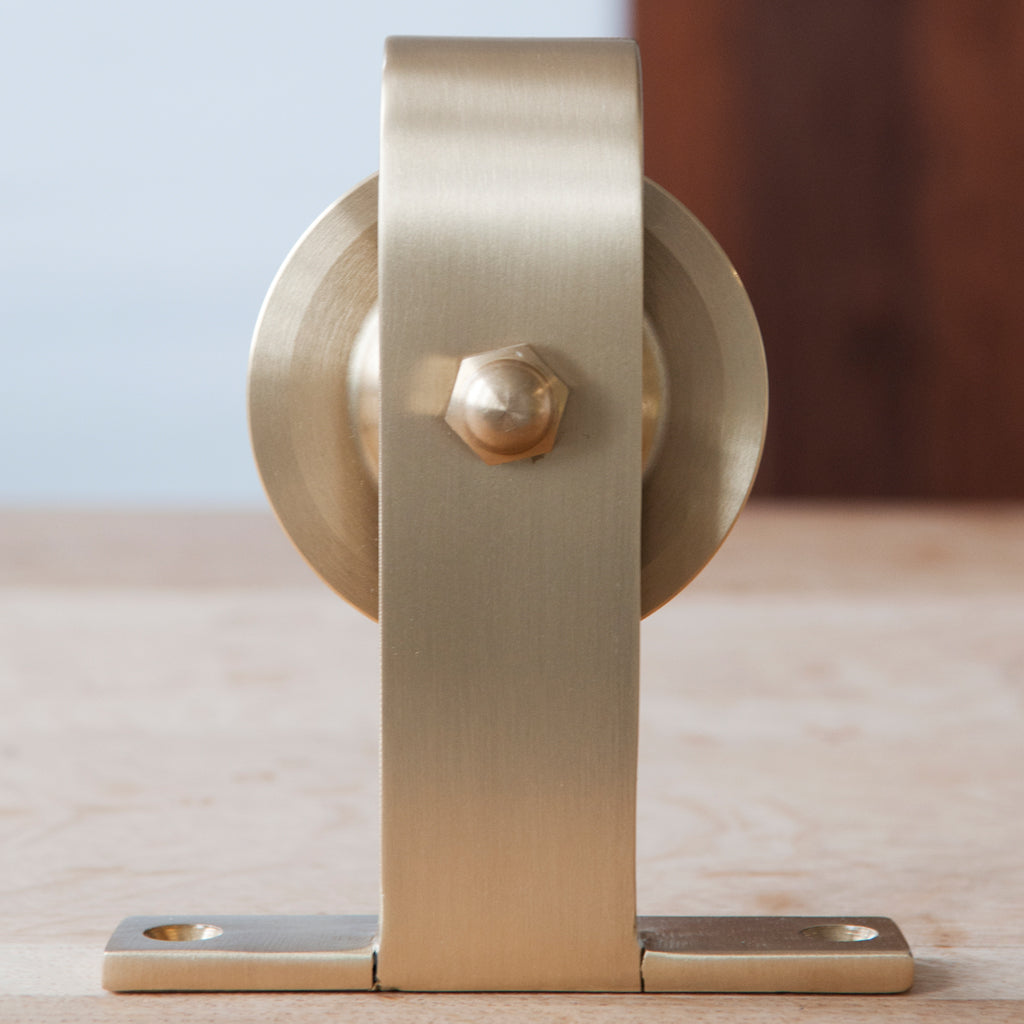

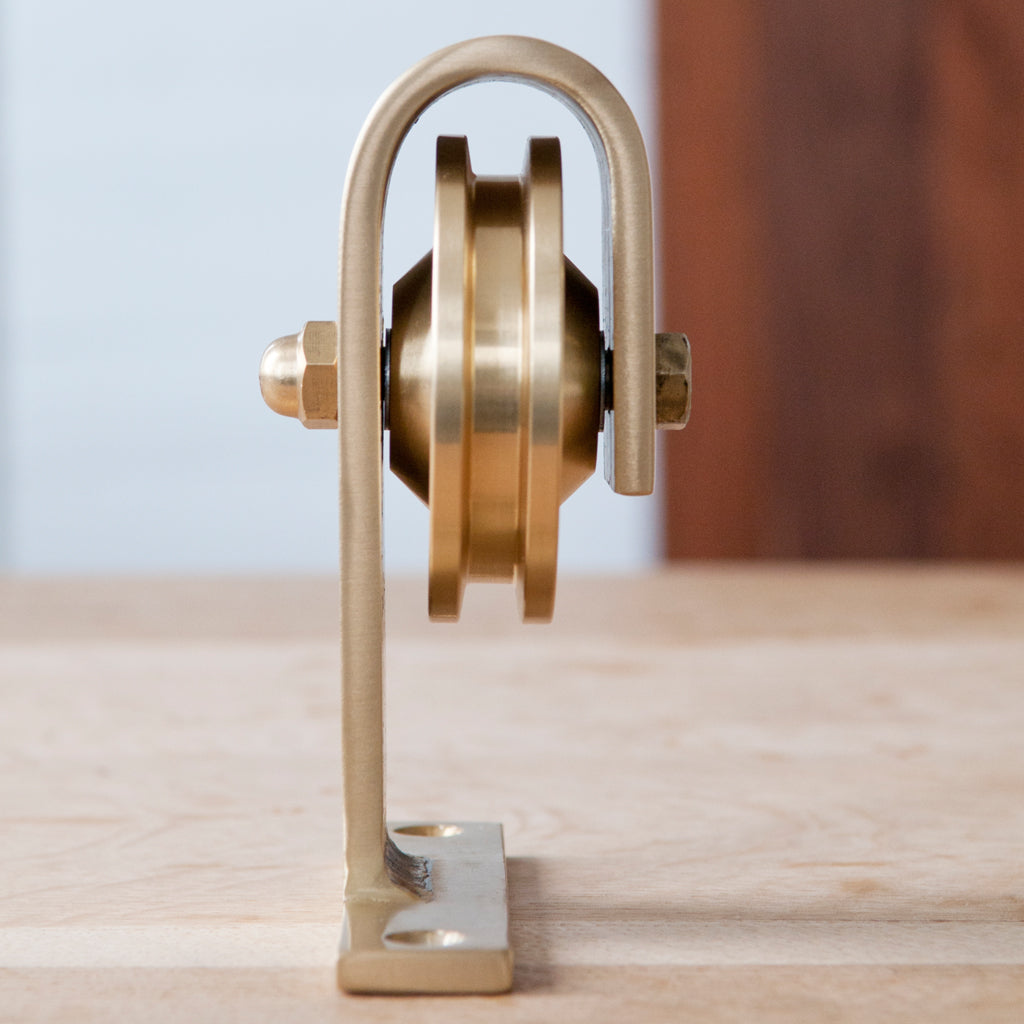

Crafted from solid brass, stainless steel, and hot rolled steel. High-quality solid brass rollers with double built-in ball bearings deliver smooth, quiet door motion.
Available Finishes
- Solid Brass (light oil coat — will develop patina over time)
- Stainless Steel (hand-brushed)
- Hot Rolled Steel (raw, minimal treatment)
- Matte Black (powder coated)
Suitable for outdoor applications — finishes will patina more quickly when exposed to the elements.
