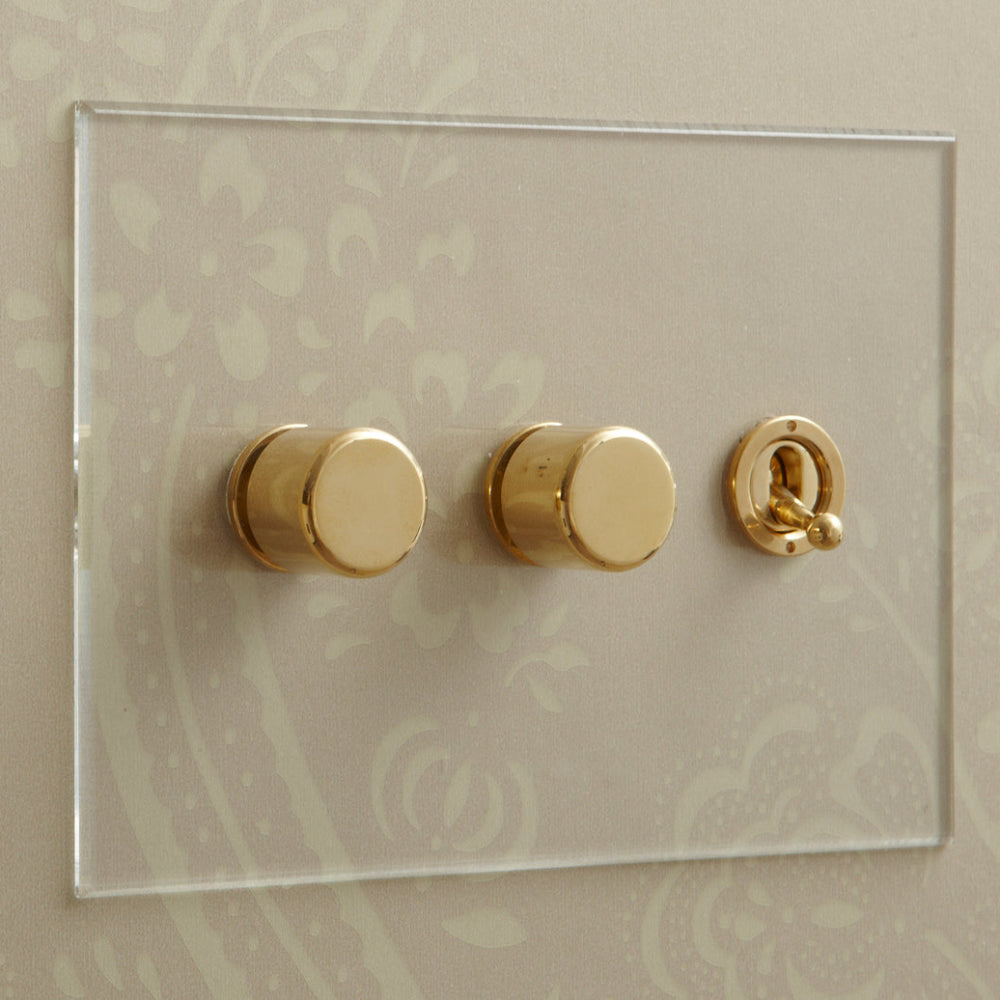

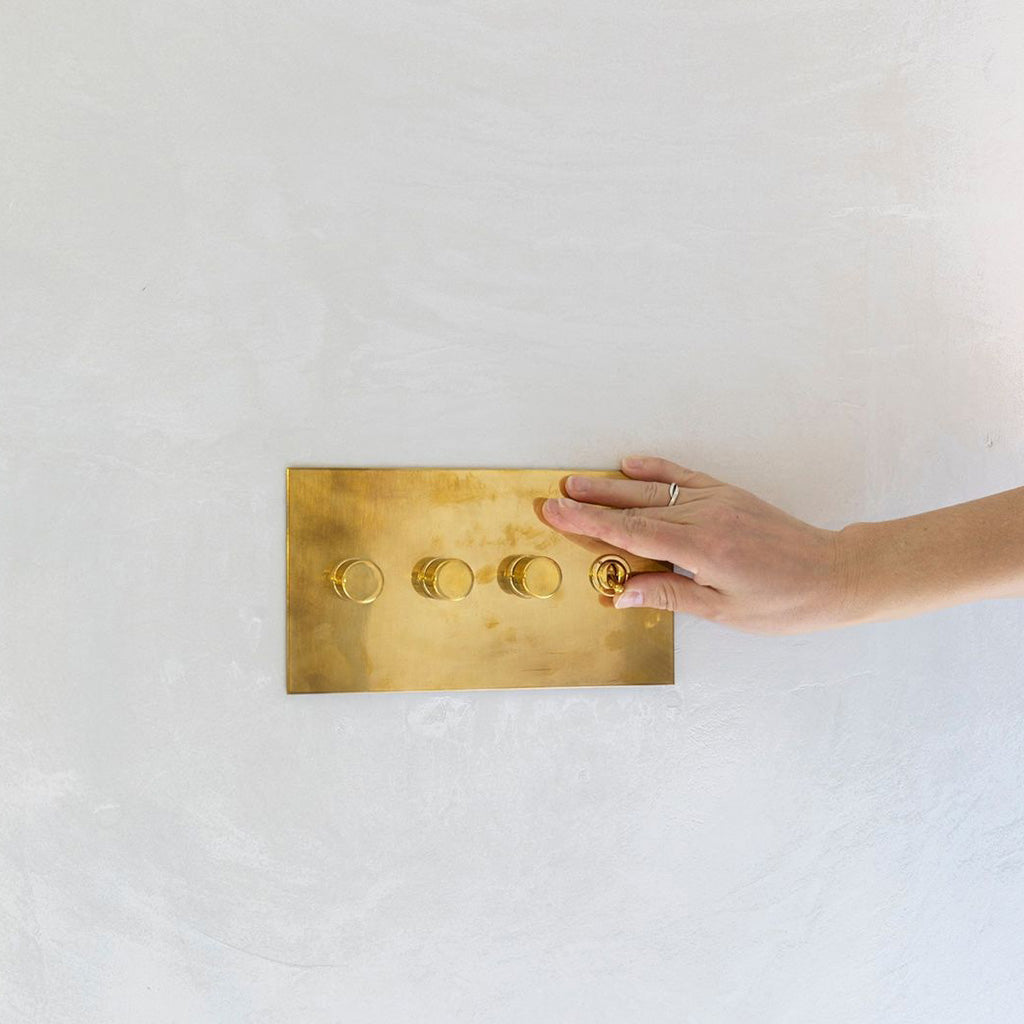

Experience the perfect fusion of functionality and classic design with Forbes & Lomax's Combination Rotary Dimmer and Toggle Switches. This elegant solution merges the timeless charm of 1930s brass and nickel switch designs with modern practicality. Each set features a smoothly adjustable rotary dimmer alongside a straightforward toggle switch, delivering both ease of use and a refined aesthetic.

Designed for versatility, these combination switches cater to diverse lighting needs. The rotary dimmer is capable of managing up to 120 watts of LED lighting, ensuring smooth control over your lighting ambiance.

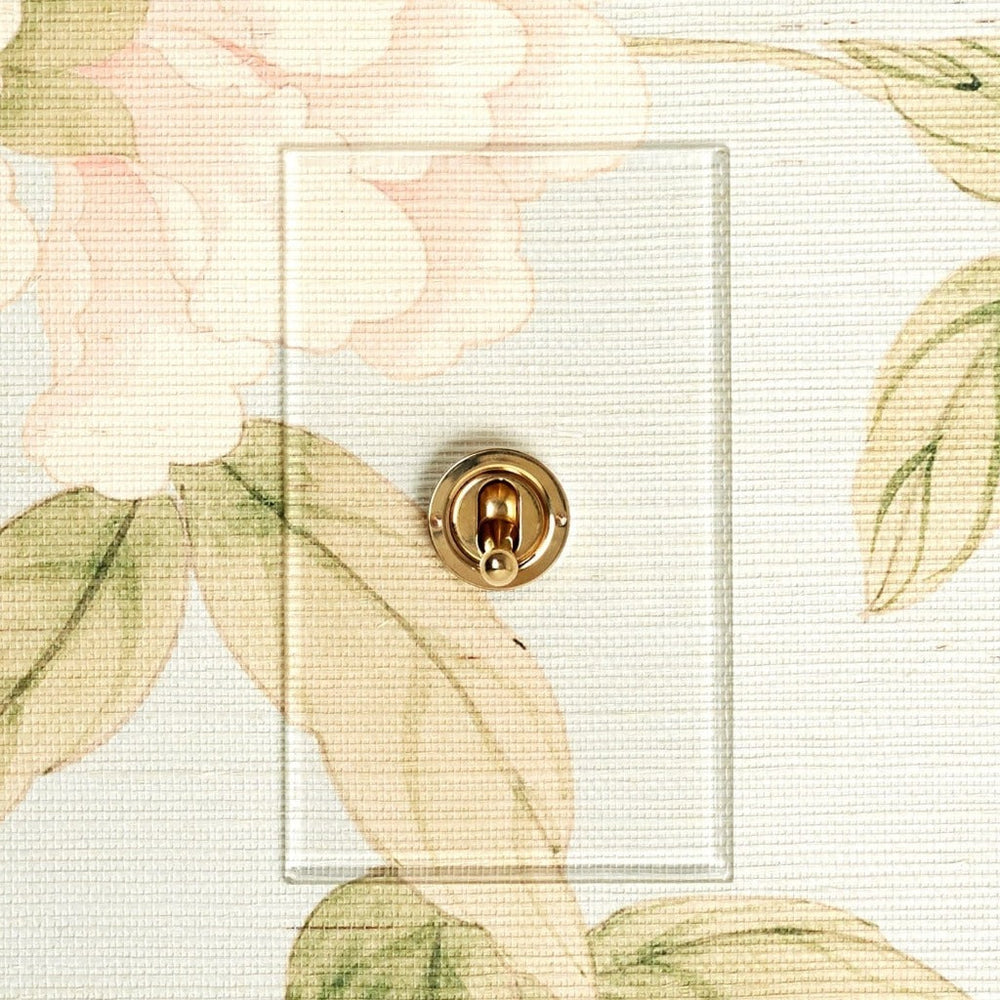

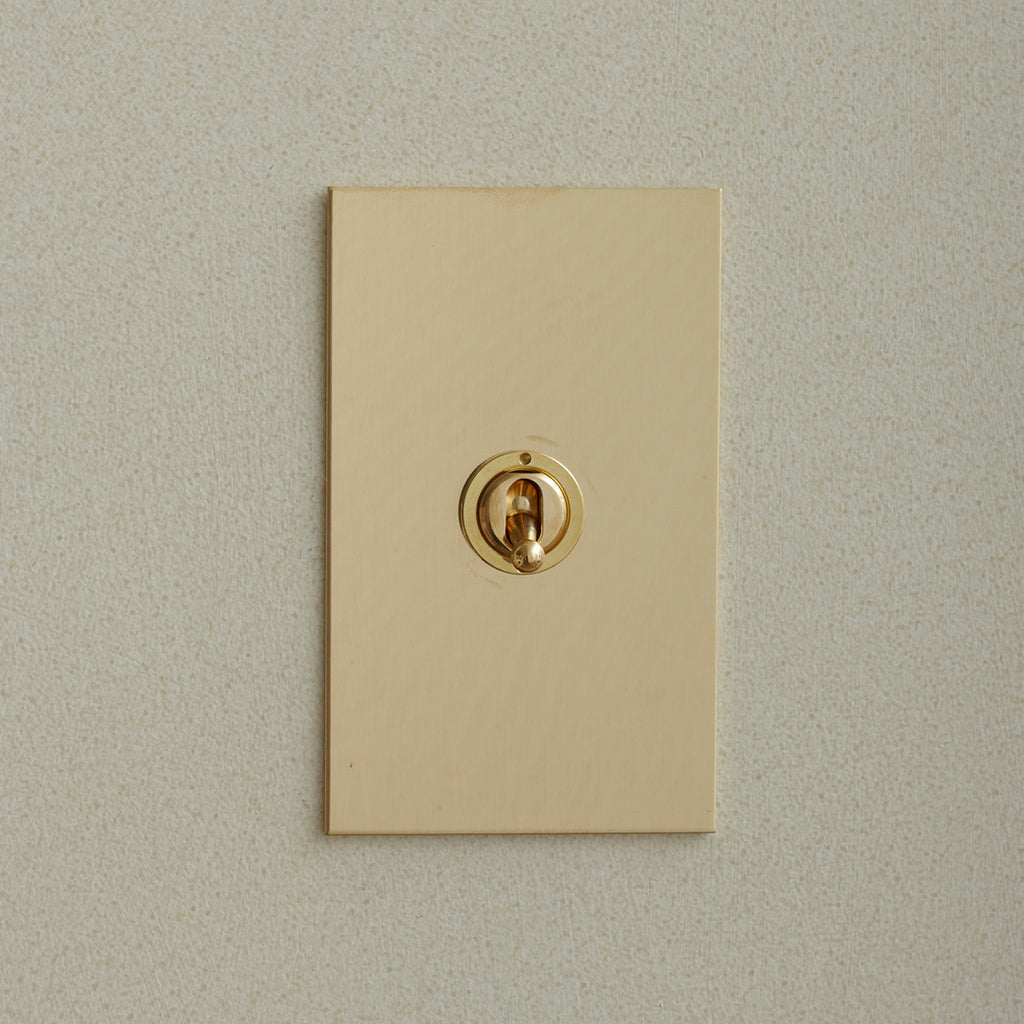

The robust toggle switches are available in both 3-way and single pole configurations, rated at 15 amps for reliable performance. Standard sets include 3-way Toggles, with the option to wire them as single-pole. Additionally, 4-way Toggles are available on request. It's important to note that in 3-way or 4-way circuits, dimming is possible from one location only, with the remaining switches functioning as non-dimming Toggles.

Toggles and Dimmers can be interchanged on the plates, allowing for customized configurations during installation to suit your specific needs.

To ensure the combination switch seamlessly integrates with your lighting system, we recommend providing your light specifications before purchase, especially for lights with higher wattages or unique requirements. This proactive step guarantees the switch operates effectively with your lighting setup.

For personalized configurations, email contact@cassonhardware.com any specifications/ plans/ schedules for a customized, efficient lighting solution tailored just for you.

Specifications

Switch Diameter: Ø 20 mm (0.79”)
Knob Diameter: Ø 20 mm (0.79”)

Plate Sizes:
1 Gang Plate: W 70 mm (2.76”) X H 115 mm (4.53”)
2 Gang Plate: 115 mm (4.53”) X 115 mm (4.53”)
3 Gang Plate: W 162 mm (6.38”) X 115 mm (4.53”)
4 Gang Plate: W 210mm (8.27”) X 115 mm (4.53”)

Reminder: For plates combining toggle switches and rotary dimmers, the layout of elements can be adjusted on-site during installation to suit your requirements.

Available for Line Voltage (For use in conventionally wired installations)
3-way, 15A (also works as Single-Pole)
LED: Max. 120W LED or 300W Incandescent/Halogen
Other options available by custom quote

Custom Quote Options:

Incandescent: Max. 500W Incandescent/Halogen
MLV Max. 600VA Magnetic Low Voltage Halogen
0-10V (Linear): Max. 20 0-10V Dimmable Drivers
Non-Dimming: Max. 720W Any load types (ON/OFF only)

See full Technical Specification sheets below.

Important Notes

Toggle switches conform to UL 20 and are certified to CSA C22.2 No.111.
Toggle Switches install into standard junction boxes but the boxes must be recessed below the finished wall surface by at least 1/8".
Rotary dimmers conform to UL 1472 and are certified to CSA C22.2 No.184.
LED dimmers are Forward Phase Triac dimmers, designed to control up to 120W of LED bulbs or 300W of incandescent bulbs.
Please review and ensure all certifications are applicable for your local code.
If unsure, please send our Sales Team full SPECS of lighting for a compatibility review.
Must be installed by a licensed electrician.

Areas of application: Light-duty Commercial, Residential

Material(s)

Unlacquered Polished Brass
Aged Brass
Nickel Silver
Brushed Stainless Steel
Antique Bronze
Lacquered Brushed Brass

Unlacquered Polished Brass and Aged Brass are living finishes that change colour over time. Unlacquered Polished Brass has a high-shine, polished look, while Aged Brass is treated to age faster. Lacquered Brushed Brass is a non-living finish and will not change colour.

Note: materials will slowly age or oxidize over time. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid use of chemical or alcohol based cleaners. Refer to the care guide below for best practices.

Product Downloads

Toggle Switch Product Sheet

Toggle Switch Installation Guide

Forbes and Lomax Brochure

Forbes and Lomax Care Guide

Optimizing The Performance Of Your Triac LED Dimmers

Circuity Visual Aid
