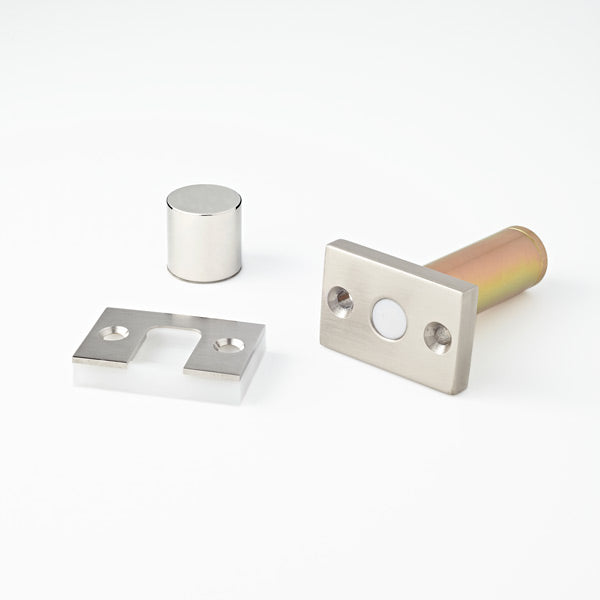

A couple of Ghostop Concealed Door Stop GS200 parts sitting on top of a white surface.
Ghostop Concealed Door Stop GS200
Ghostop Concealed Door Stop GS200

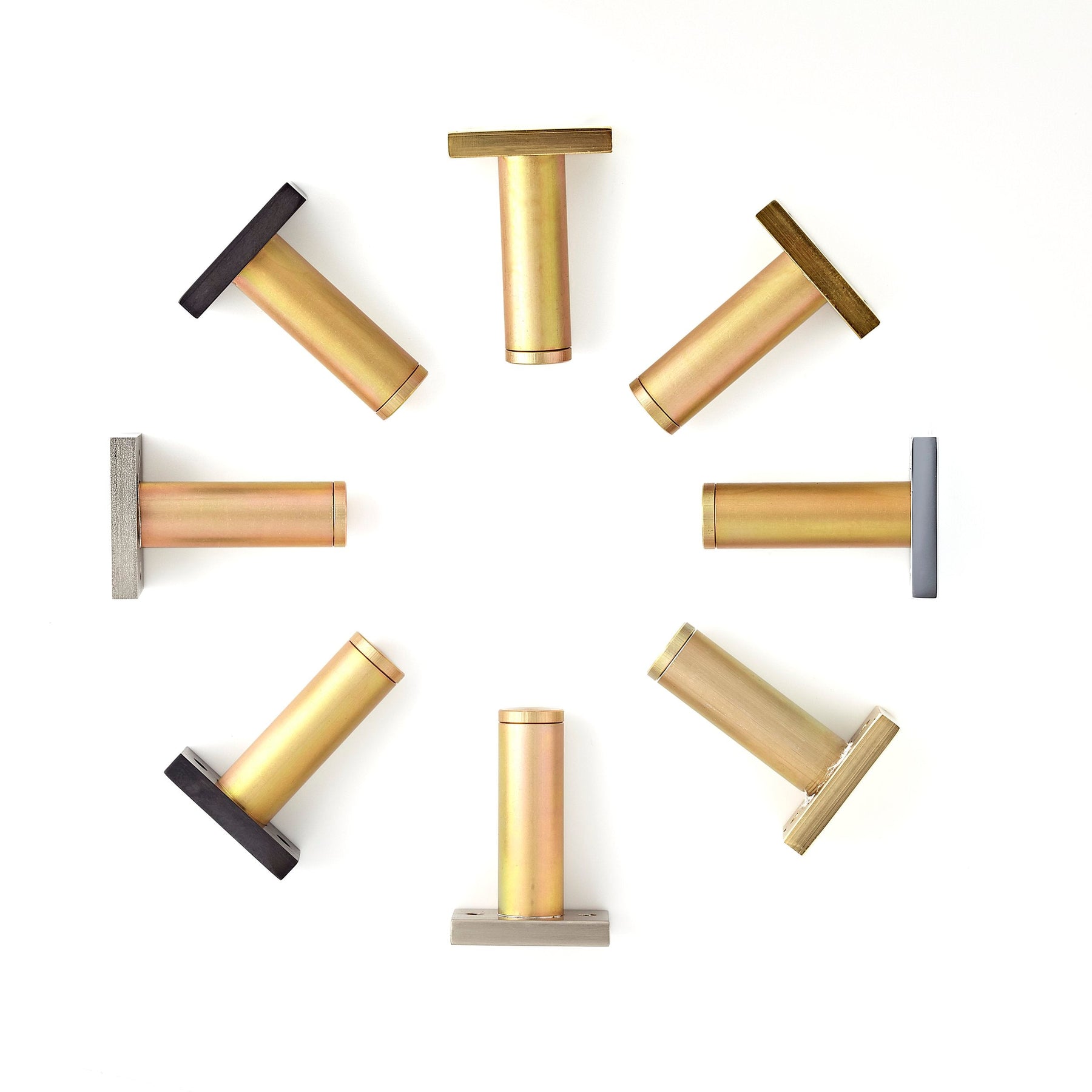

A group of Ghostop Concealed Door Stop GS200s arranged in a circle.

Ghostop Concealed Door Stop GS200

Original price $190.00 Discount price$130.00
/
Shipping calculated at checkout.
Finish
Backplate
  • Estimated Ship Date: 2-3 Days | Outgoing | Final Sale

Description

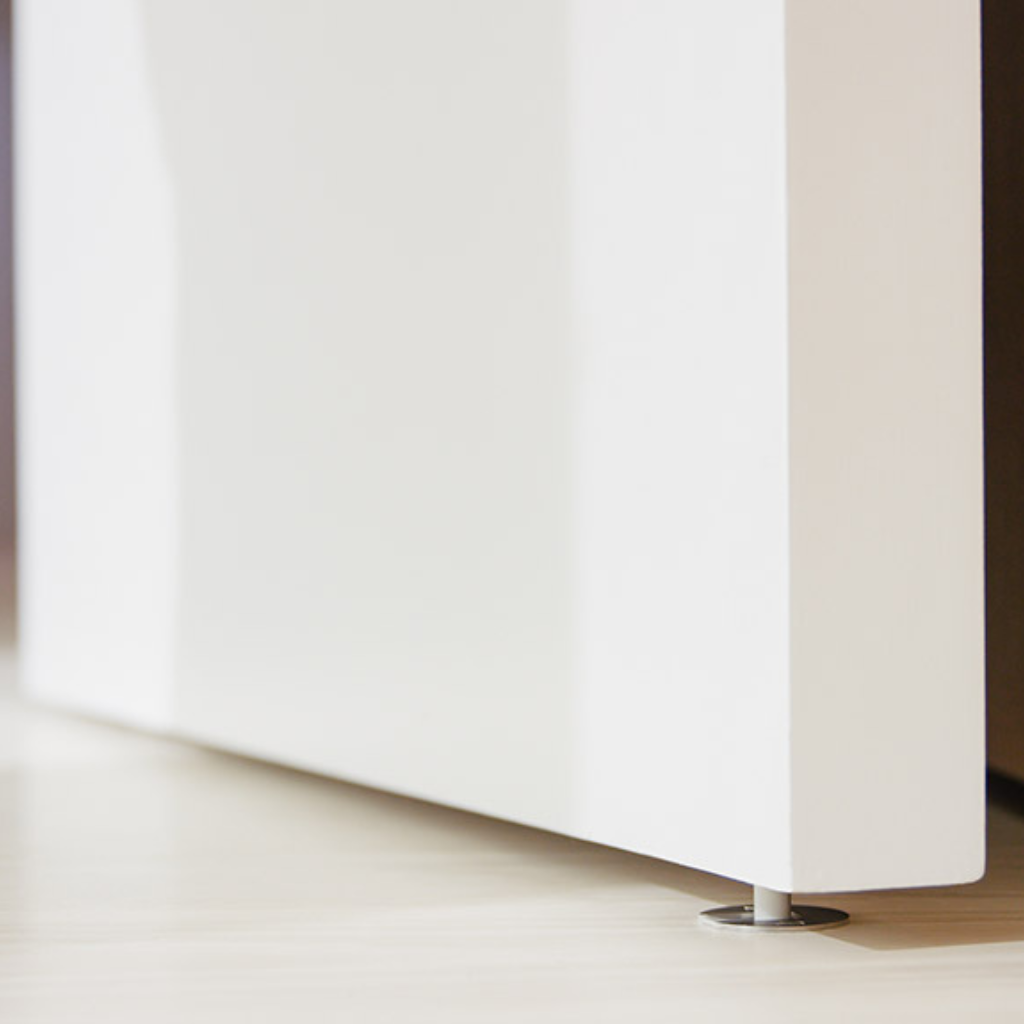

Ghostop’s GS200 Concealed Door Stop is a flush to the floor, secure magnetic stopping mechanism that is the combination of a drop down retracting pin that is installed in the jamb of the door and a magnetic catch that is embedded in the floor. This unique mechanical action alleviates tripping hazards, and makes this door stop virtually invisible to the eye, maintaining a sophisticated and modern detail. Ghostop is powered by a concealed rare-earth magnet to ensure exceptionally strong and smooth stop actions.

The Ghoststop GS200 can have positive stops in both open and closed positions by adding additional rectangular strike coverplates which can be sourced here.

Specifications



Strike Plate: 38.1 mm (1.5") X 25.4 mm (1") X 6.35 mm (0.25")
Pin Plate: 38.1 mm (1.5") X 25.4 mm (1") X 6.35 mm (0.25")
Pin Assembly: 61.9 mm (2.4375")
Maximum Door Undercut/Jamb Gap: 20.32 mm (.80")
Magnet: Concealed
Additional Strike Sets: Available separately here.



Installation Notes: Tile or Concrete Flooring

For optimal installation on tile or concrete flooring, we recommend integrating it into the subflooring, ensuring a seamless and straightforward process.

Installation Notes: Wood Flooring



When dealing with wood floors, this door stop can be effortlessly inserted after the finished flooring has been expertly installed.

    Material(s)

    Fabricated From:

    • Stainless Steel and Brass with Matte White powder coat finish
