Name: AHI 103 Door Lever Set
Brand: AHI
SKU: 103-SD-1 3/8 - 2in DT-630
Price: 102.0 CAD
Availability: InStock

$102.00

Shipping calculated at checkout.

1. Function

Single Dummy - Half Set

Double Dummy - Whole Set

Passage

Privacy

2. Finish — Satin Stainless Steel

Satin Stainless Steel

Matte Black

3. Backset

N/A

2 3/4"

2 3/8"

Quantity

Estimated Ship Date: BACKORDER: 4-8 weeks

Optional Accessories

Description
Function Overview
Specifications
Material(s)
Product Downloads

Description

The 104 Lever features a slim cylindrical form with clean, minimal lines. A larger version of the 103, it’s crafted from hollow stainless steel and balances refined utility with understated design. Available for interior door functions, this lever suits both residential and commercial settings.

Function Overview

Dummy (Half or Full Set)
Used for decorative or push/pull applications, such as closets or pantry doors.

Half Dummy Set
A single lever installed on one side of the door only. It is surface-mounted using a dummy mount and does not operate a latch.
Please note: In some cases, two half dummy sets may be used to create a double dummy configuration on doors without a bore hole.
Full Dummy Set
A pair of levers installed on both sides of the door to provide a symmetrical look. Full dummy sets are through-mounted using the existing bore hole, but have no latch or locking function.

Components Included:

Lever(s)
Dummy Adapter

Note:
Dummy sets are compatible with the Sugatsune Magnetic Latch.

Passage
Used for doors that latch but do not require a lock (e.g., hallways, closets).

Components Included:

Pair of Levers
Tubular Latch
Strike Plate

Privacy

Used for doors that lock from one side, such as bathrooms or bedrooms.

Components Included:

Pair of Levers with Push/Pull Pin Lock
Tubular Latch
Strike Plate

Specifications

Lever Dimensions: L 141 mm (5.56") x W 22 mm (0.87")
Door Thickness: Suitable for 1 3/8" - 2"
Thumb Turn: Push/Pull Pin on Rose

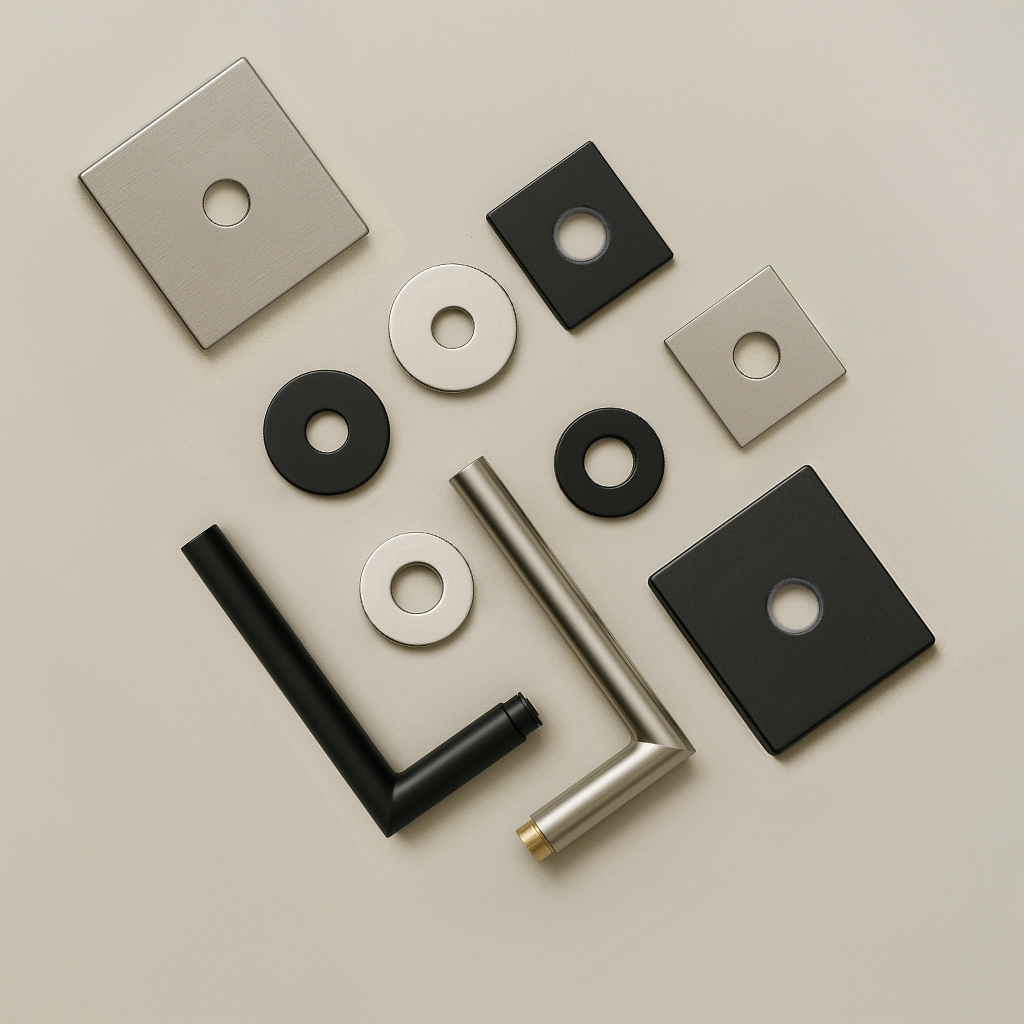

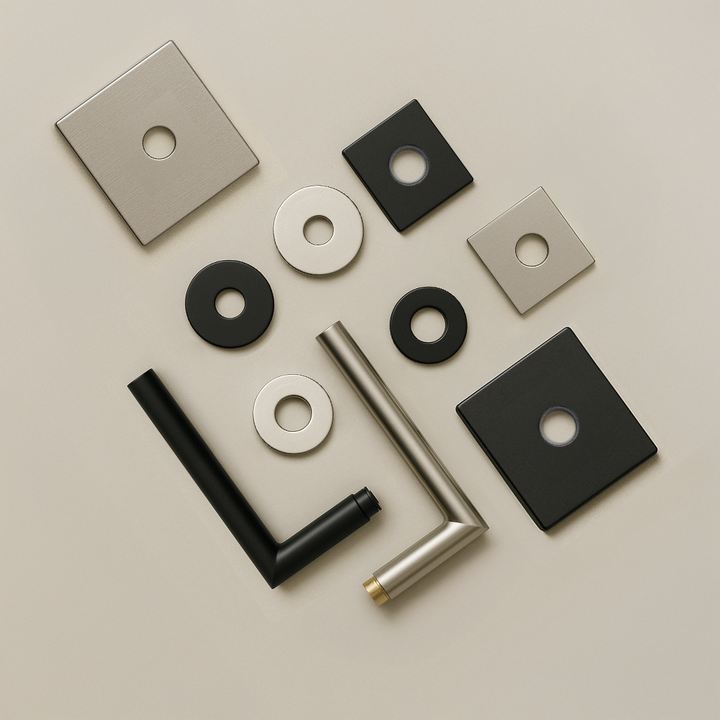

Rose Style:
- Circle SM
  Ø 52 mm (2 1/16") X D 11 mm (0.4")
  Suitable for Ø 19 mm (0.75") bore hole.
- Circle LG
  Ø 62 mm (2.44") X D 10 mm (0.3")
  Suitable for Ø 53.97 mm (2.12") bore hole.
- Square SM
  L 55 mm (2.16") X W 55 mm (2.16") X D 11 mm (0.4")
  Suitable for Ø 19 mm (0.75") bore hole.
- Square LG
  L 64 mm (2.5") X W 64 mm (2.5") X D 10 mm (0.5")
  Suitable for Ø 53.97 mm (2.12") bore hole.

Material(s)

Available in satin stainless steel, mirror-polish stainless steel and powder coated black.

Product Downloads

Door Lever No. 104 Product Sheet

Door Lever No.104 Installation Guide

Door Lever No.104 Heavy Duty Installation Guide
