AHI 157 Door Lever Set
AHI 157 Door Lever Set
AHI 157 Door Lever Set
AHI 157 Door Lever Set

AHI 157 Door Lever Set

Original price$133.00
/
Shipping calculated at checkout.
1. Function
2. Finish
3. Backset
  • Estimated Ship Date: Satin Stainless Steel 1-3 weeks | Powder Coated finishes 3-6 weeks

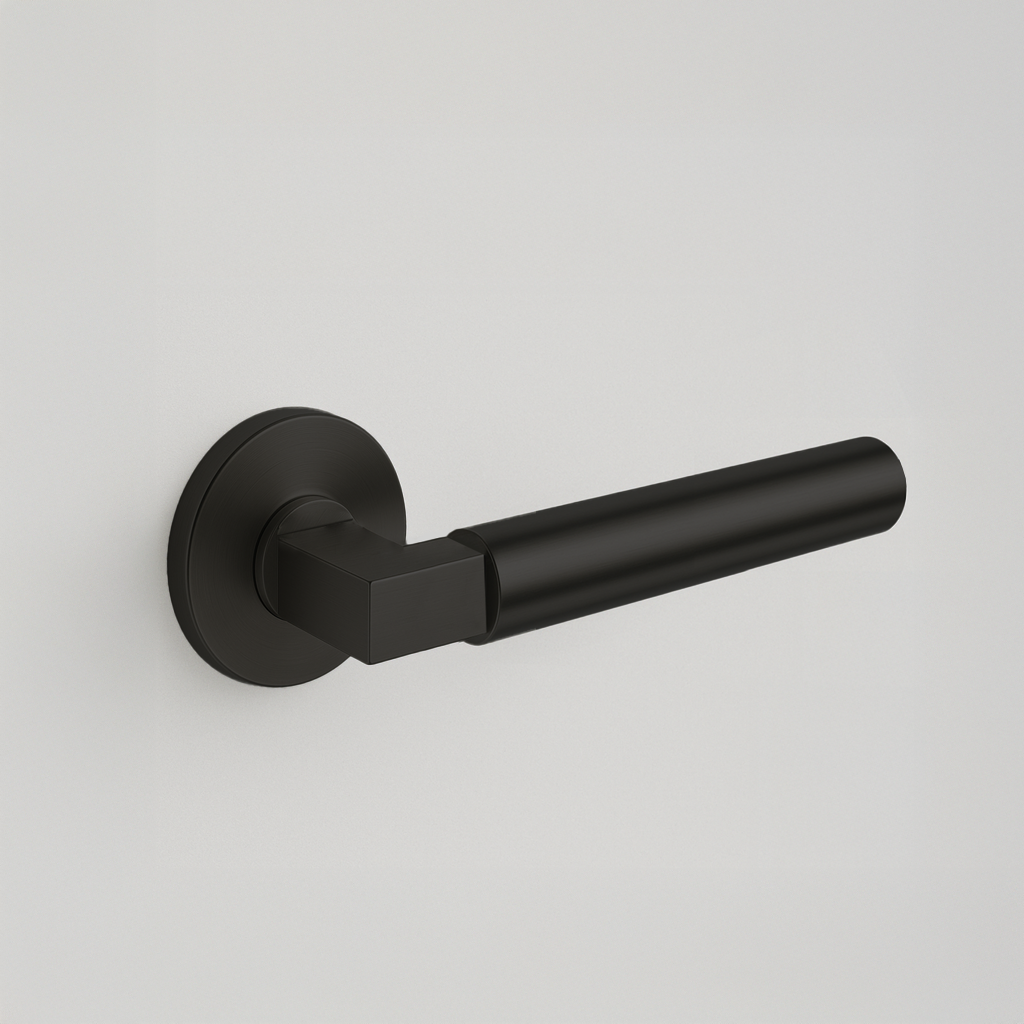

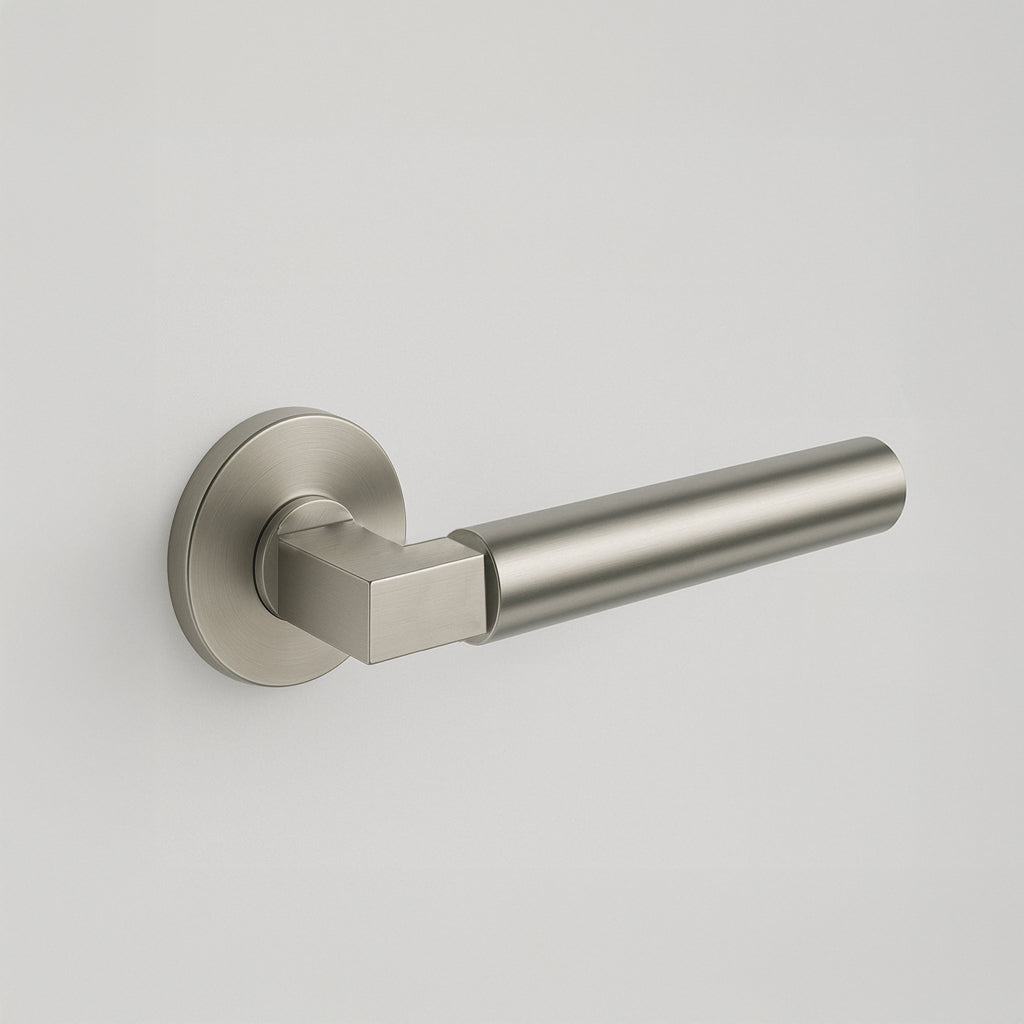

The 157 lever features a series of intersecting cylindrical forms, combining varied surface textures and precise joinery. Crafted from solid stainless steel, it brings visual depth and a sculptural quality to contemporary interiors. Suitable for interior doors in both residential and commercial settings.

Dummy (Half or Full Set)
Used for decorative or push/pull applications, such as closets or pantry doors.

  • Half Dummy Set
    A single lever installed on one side of the door only. It is surface-mounted using a dummy mount and does not operate a latch.
    Please note: In some cases, two half dummy sets may be used to create a double dummy configuration on doors without a bore hole.
  • Full Dummy Set
    A pair of levers installed on both sides of the door to provide a symmetrical look. Full dummy sets are through-mounted using the existing bore hole, but have no latch or locking function.

Components Included:

  • Lever(s)
  • Dummy Adapter

Note:
Dummy sets are compatible with the Sugatsune Magnetic Latch.


Passage
Used for doors that latch but do not require a lock (e.g., hallways, closets).

Components Included:

  • Pair of Levers
  • Tubular Latch
  • Strike Plate

Privacy

Used for doors that lock from one side, such as bathrooms or bedrooms.

Components Included:

  • Pair of Levers with Push/Pull Pin Lock
  • Tubular Latch
  • Strike Plate
  • Lever Dimensions: L 132 mm (5.2") x W 23 mm (0.87")
  • Door Thickness: Suitable for 1 3/8" - 2"
  • Thumb Turn: Push/Pull Pin on Rose
  • Rose Style:
    •  Circle SM:
      Ø 52 mm (2 1/16") X D 11 mm (0.4")
      Suitable for Ø 19 mm (0.75") pre drilled bore hole.
    • Circle LG:
      Ø 62 mm (2.44") X D 10 mm (0.3")
      Suitable for Ø 53.97 mm (2.12") pre drilled bore hole.
    • Square SM:
      L 55 mm (2.16") X W 55 mm (2.16") X D 11 mm (0.4")
      Suitable for Ø 19 mm (0.75") pre drilled bore hole.
    • Square LG:
      L 64 mm (2.5") X W 64 mm (2.5") X D 10 mm (0.5")
      Suitable for Ø 53.97 mm (2.12") pre drilled bore hole.

Available in satin stainless steel, mirror-polish stainless steel and powder coated black.
