Outlets by Forbes & Lomax — Metal

SKU: TRDUP/USA/NIC/LA

Plate
Fittings Finish
Outlet Insert Finish
Device Type
Price
Price $195.00
/
Shipping calculated at checkout.

Description

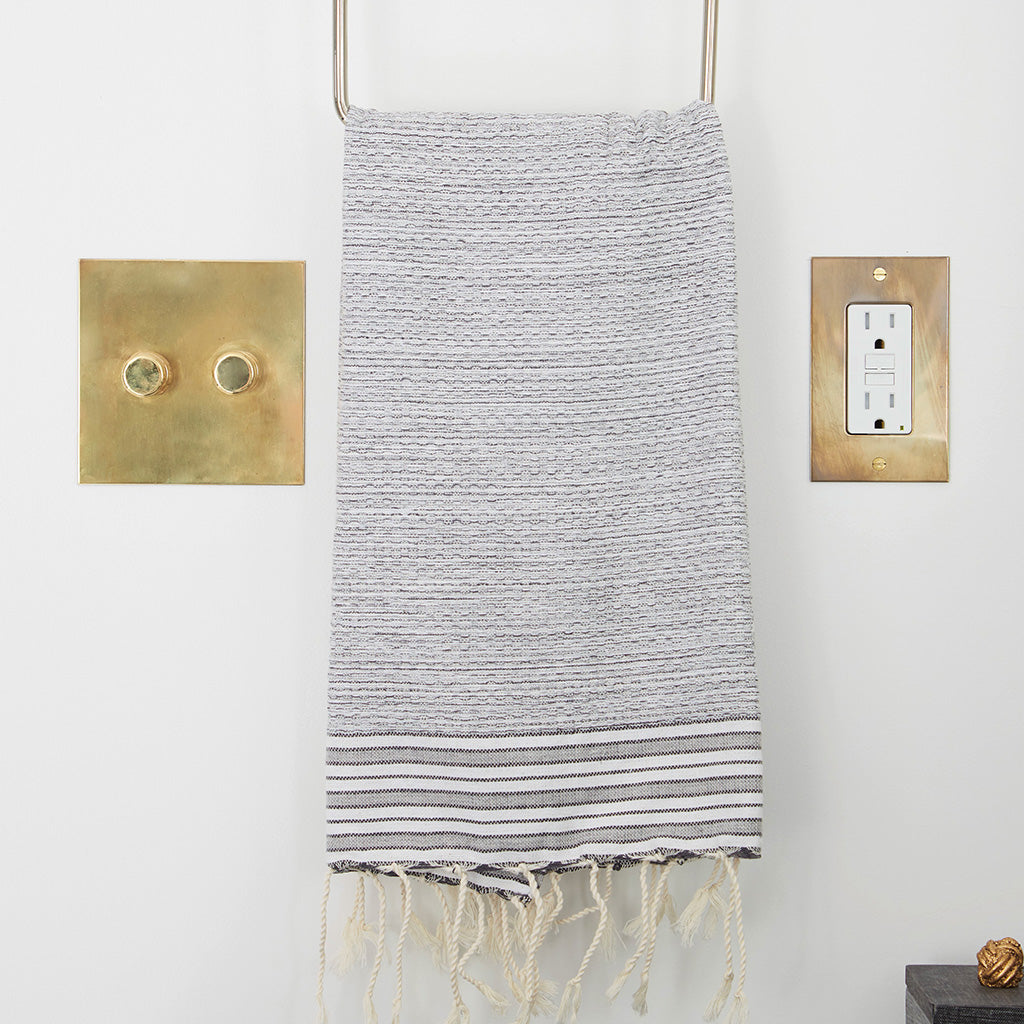

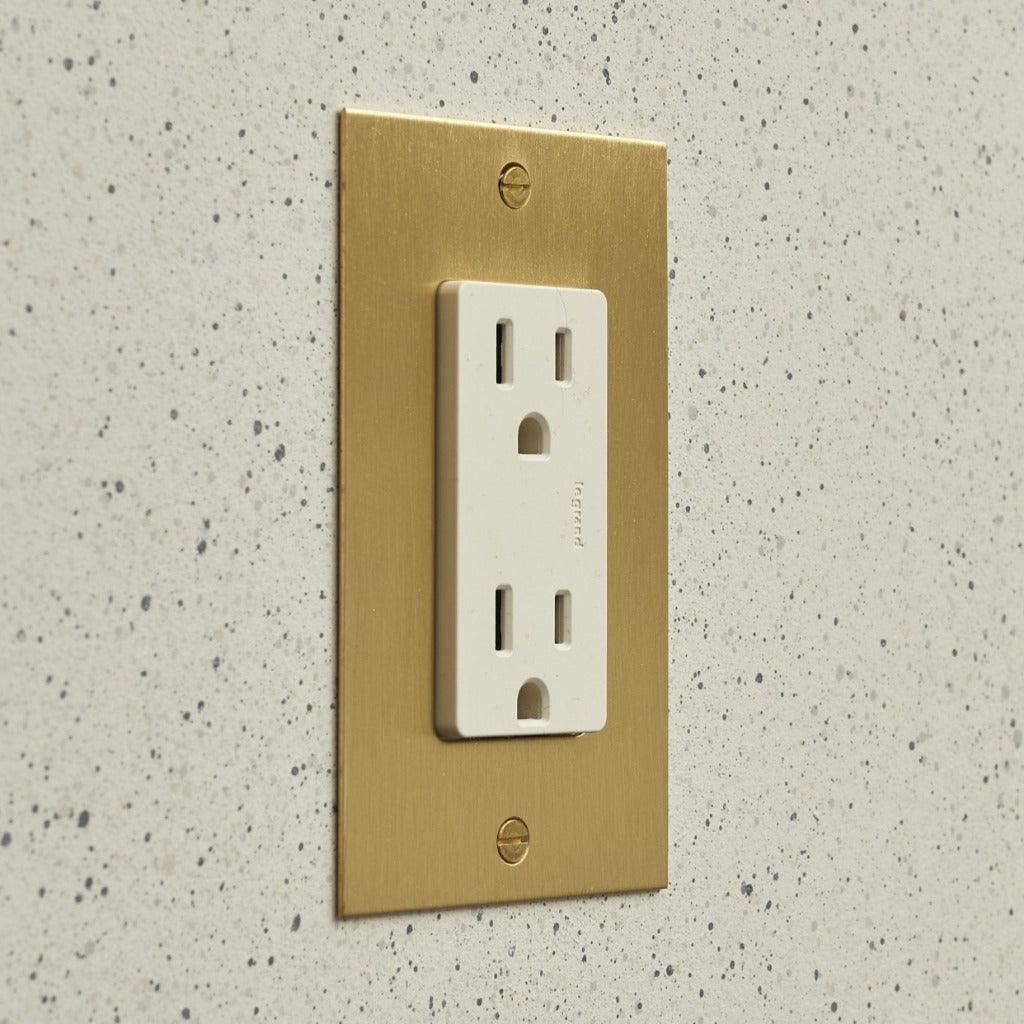

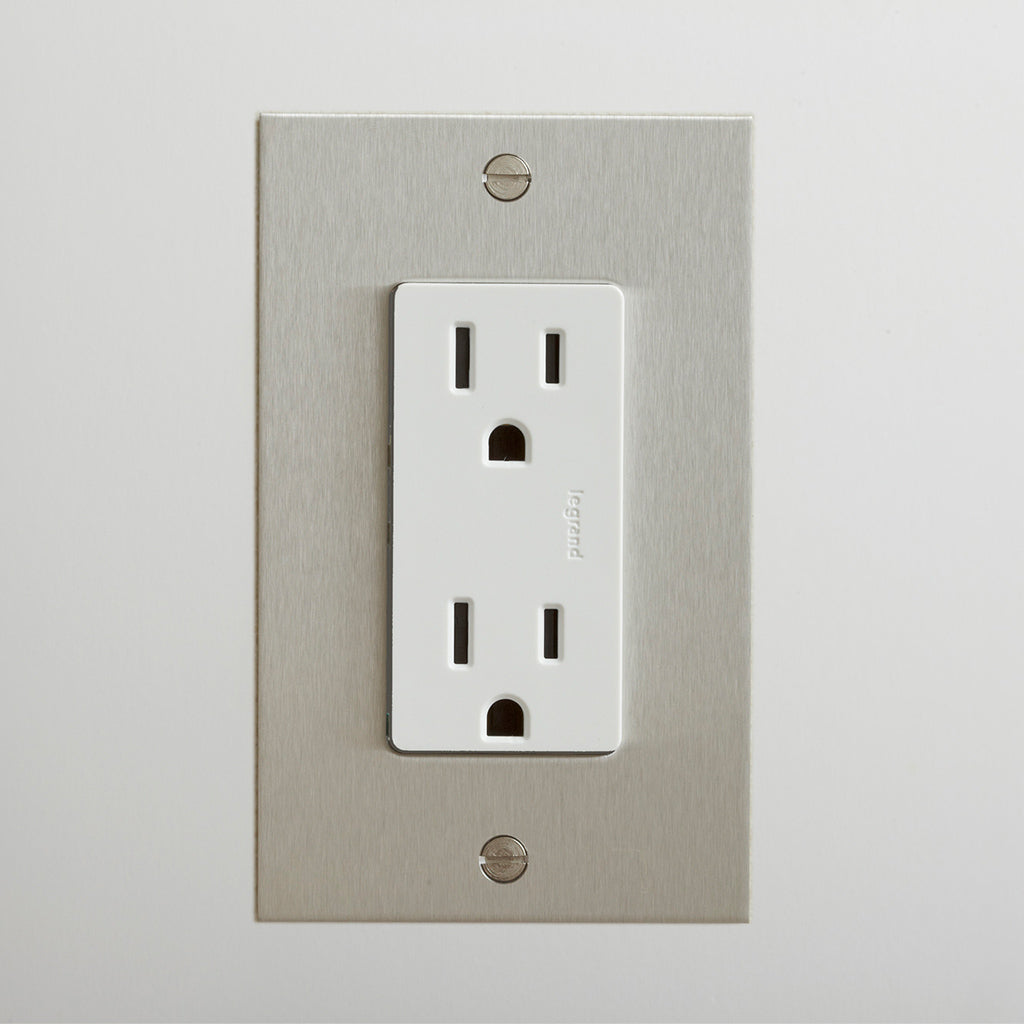

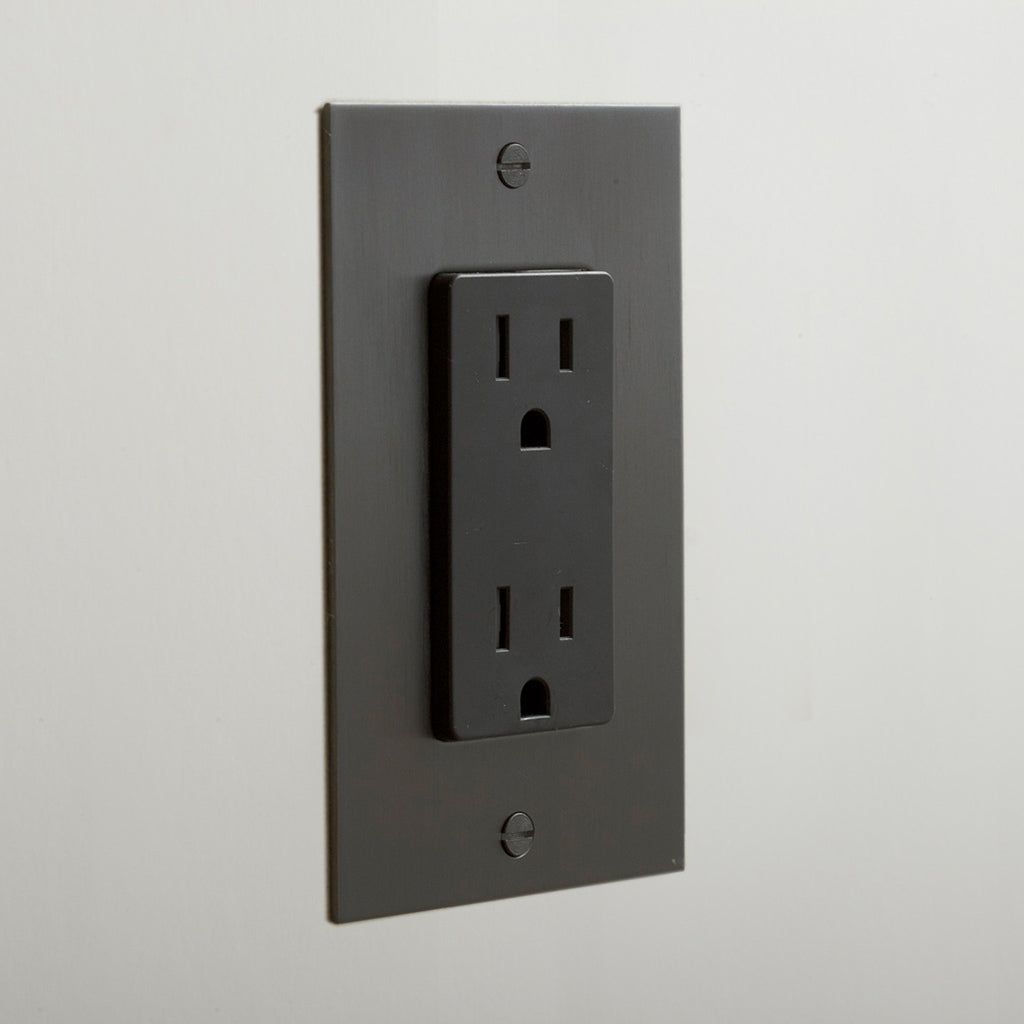

The Metal Outlet by Forbes & Lomax is a North American receptacle on a solid metal plate, finished by hand. Plate and screws are supplied in the same finish.

Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.

FAQ
  • Can I order online? Yes, if you know the gang count, the device type and your insert colour, and the plate is 2 gang or under.
  • What should I confirm? Junction box depth. A two inch deep box is recommended, and your electrician will know what is there.
  • When should I request a custom quote? Phone, data or cable TV inserts, 3 gang or more, mixed plates, or anything you are unsure about should be confirmed by our sales team in order to ensure compliance and compatibility. Please reach out to us at contact@cassonhardware.com.
  • Can I install it myself? No. Line voltage, licensed electrician only.

Full specifications and installation requirements are below.

Outlet Options
Model Gang Availability
Duplex (tamper resistant) 1 and 2 gang Order online
Duplex GFCI (tamper resistant) 1 and 2 gang Order online
USB / Power 1 and 2 gang Order online
Phone (RJ11) 1 and 2 gang Made to order
Data (Cat 5 or Cat 6) 1 and 2 gang Made to order
Cable TV (F Type Coax) 1 and 2 gang Made to order

Outlets, toggle switches, rotary dimmers and push buttons can be mixed on the same plate. Multi-gang plates are supplied to accommodate as many devices as required. Contact us with your device schedule for anything beyond the configurations above.

Insert Colours

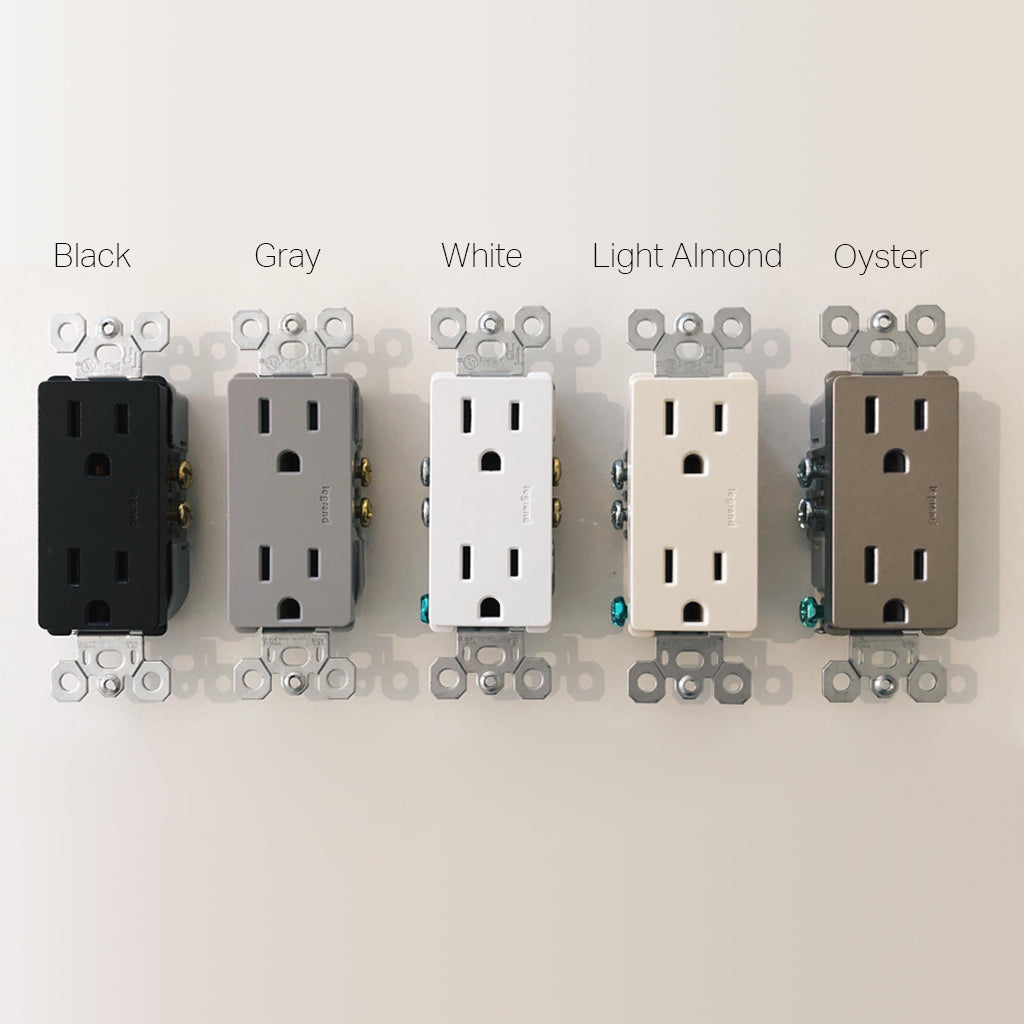

Inserts are available in Black, Gray, White, Light Almond and Oyster. Insert colour is chosen separately from the plate finish and does not have to match it.

  • Oyster: not available with Phone, Data or Cable TV inserts.
  • Gray: not available with USB-C.

Plate widths for each gang count are listed under Specifications below.

Electrical Ratings
  • Supply: line voltage, for conventionally wired installations.
  • Circuit rating: 20 amp, accommodating standard 15 amp plugs.
  • Tamper resistance: the Duplex and Duplex GFCI receptacles are tamper resistant as supplied.
Installation
  • Electrician: must be installed by a licensed electrician, in accordance with appropriate electrical codes and regulations.
  • Junction box depth: recessed at least 1/8" below the finished wall surface so the plate sits flat. A two inch deep box is recommended for ease of installation. Refer to the Junction Box Assembly Diagram below.
  • Existing boxes: check the recess depth before ordering.
  • Wall box: do not paint or paper over it, in case the outlet needs to be accessed later.
  • Areas of application: light-duty commercial, residential.
Requesting a Quote

Plates of 3 gang or more, mixed device plates, and Phone, Data or Cable TV inserts are quoted by our sales team. Send the following to contact@cassonhardware.com and we will price it against your schedule.

  • Model and gang count for each position
  • Insert colour
  • Finish
  • Whether the plate combines outlets with switches, dimmers or push buttons
  • Junction box depth on site
Specifications

Plate Sizes

All plates are 4.53" (115 mm) high and 1.8 mm thick.

Gang Plate Width Availability
1 Gang 2.76" (70 mm) Order online
2 Gang 4.53" (115 mm) Order online
3 Gang 6.38" (162 mm) Made to order
4 Gang 8.27" (210 mm) Made to order
5 Gang 10.08" Made to order
6 Gang 11.89" Made to order
7 Gang 13.70" Made to order
8 Gang 15.51" Made to order

Larger multi-gang plates are made to order. Contact us with your device schedule for a quote.

Materials
  • Plate: solid metal, finished by hand. Plate and screws are supplied in the same finish.

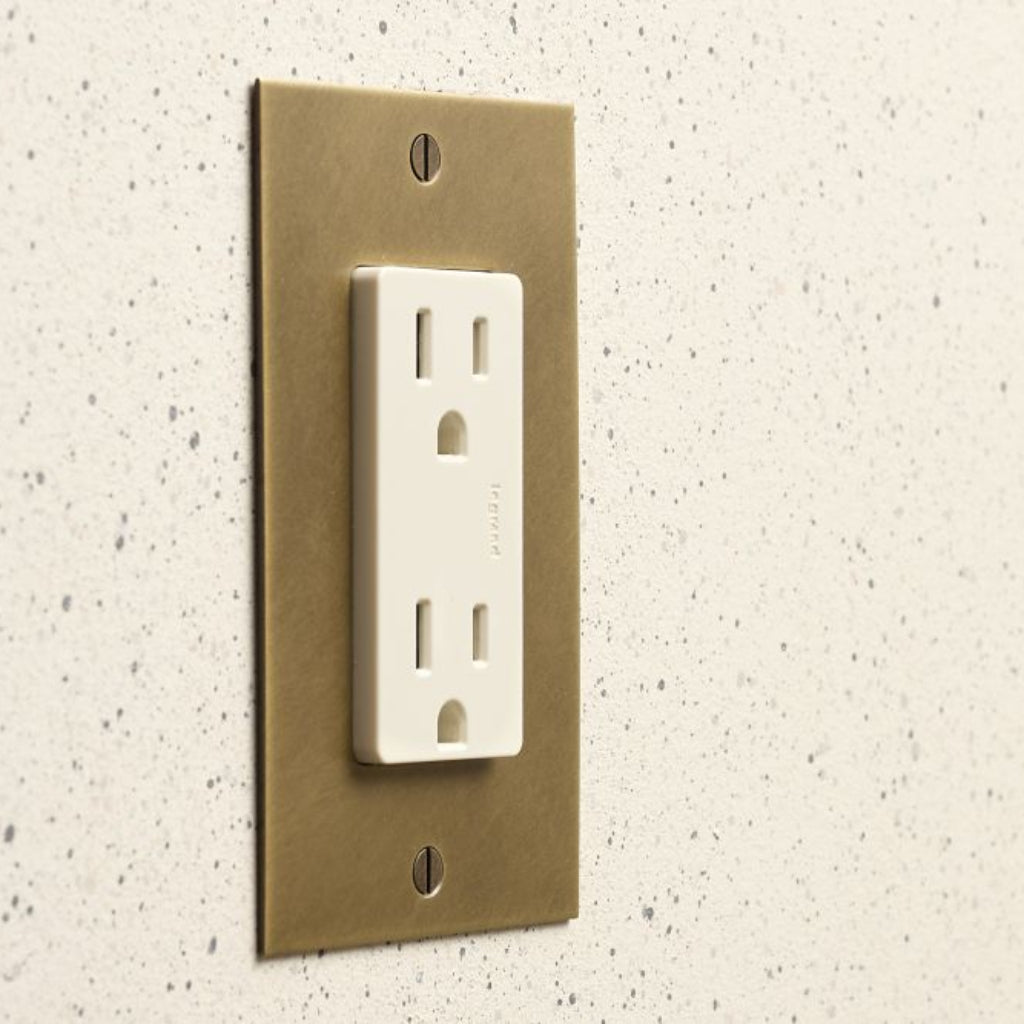

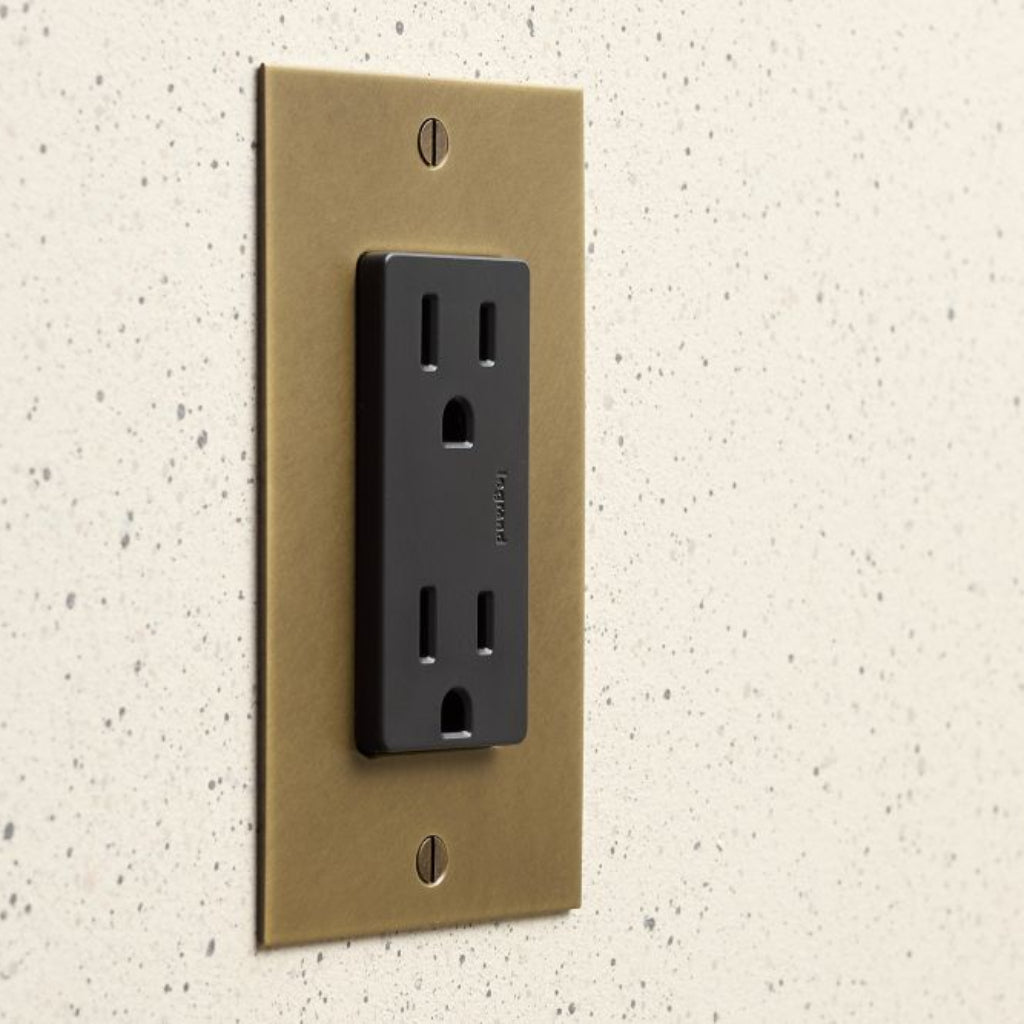

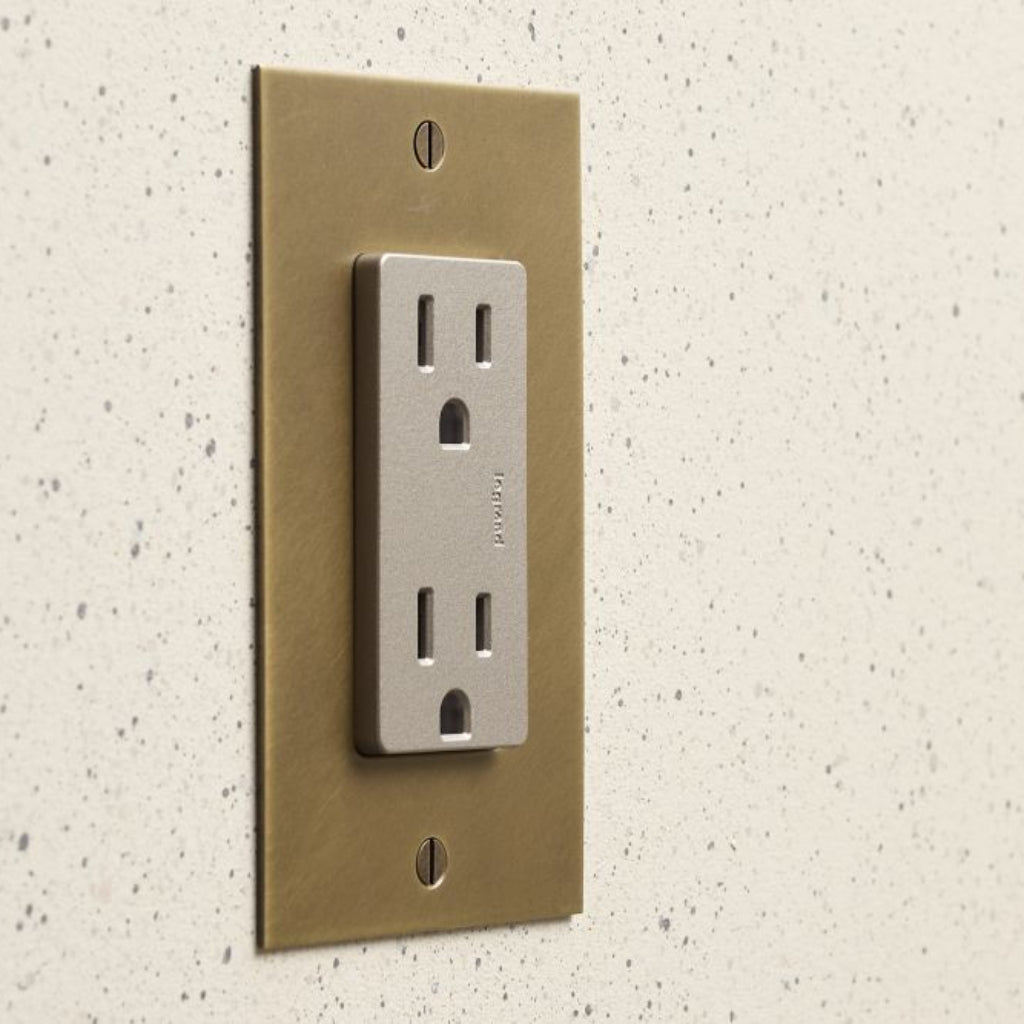

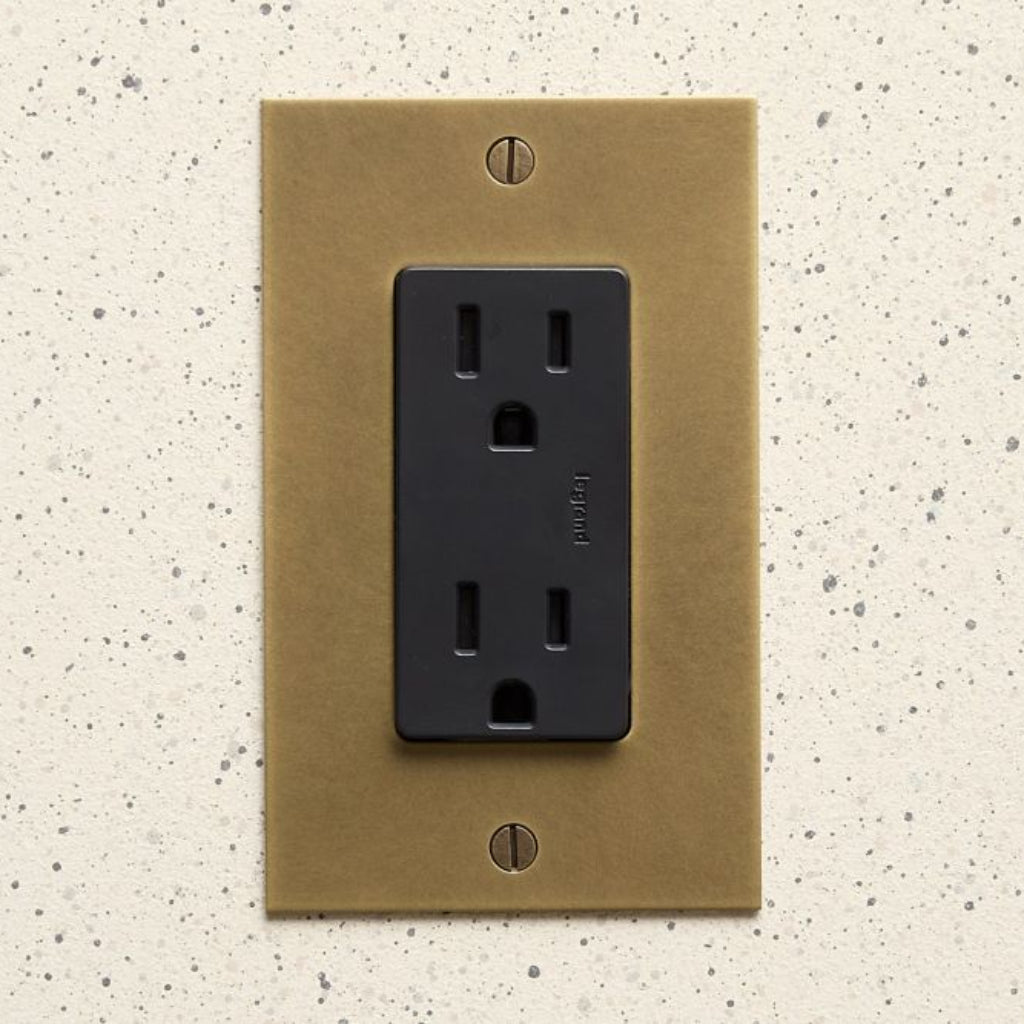

  • Aged Brass: a plate finish only. Forbes & Lomax do not make Aged Brass fittings, so the screws are supplied unlacquered brass and patina alongside the plate rather than matching on arrival.
  • Living finishes: Unlacquered Polished Brass and Aged Brass darken and develop a patina with handling and exposure. This is intended and not a defect, and variation between pieces is normal.
  • Lacquered finishes: Nickel Silver, Brushed Stainless Steel, Antique Bronze, Lacquered Brushed Brass and Matte Brass hold a consistent colour and will not change.
  • Matte Brass: carries a baked lacquer coating that resists fingerprints.
  • Care: wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.

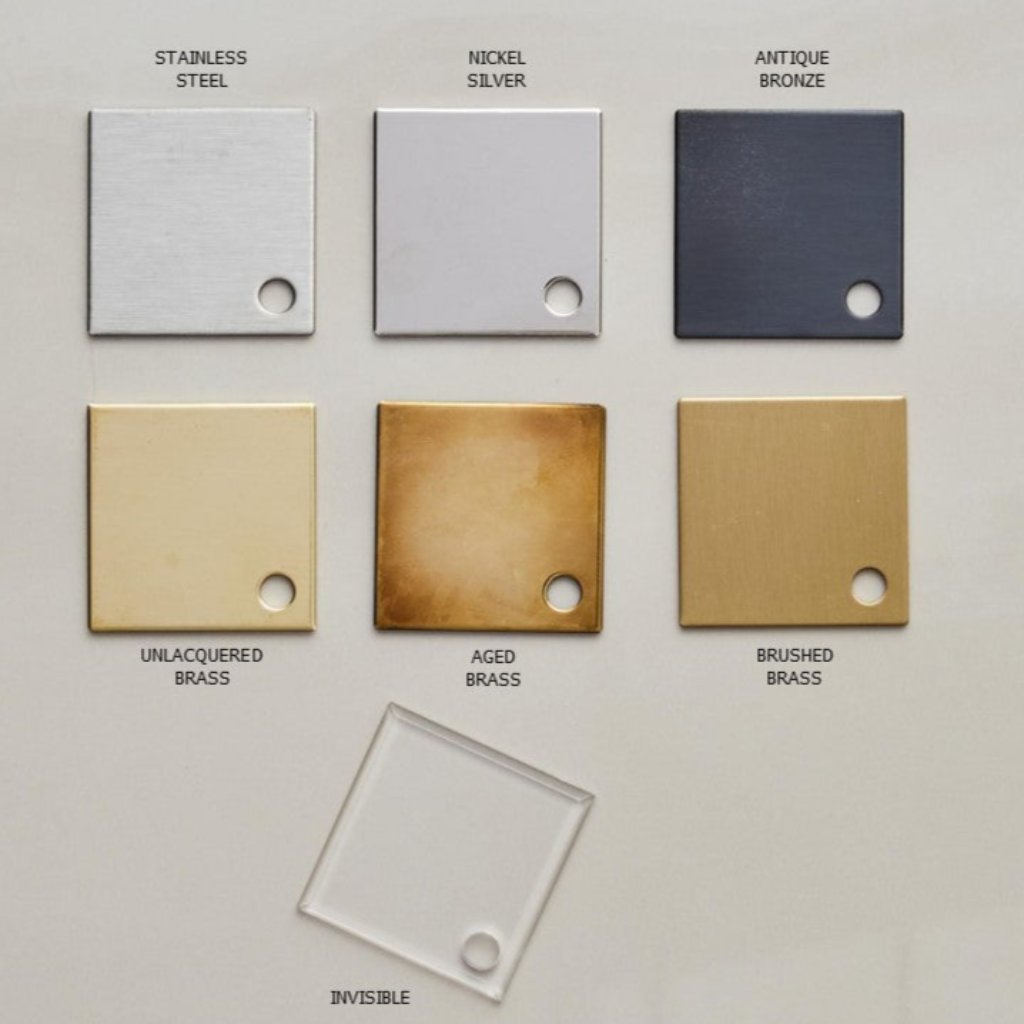

Available Finishes

  • Unlacquered Polished Brass
  • Aged Brass (plate finish only)

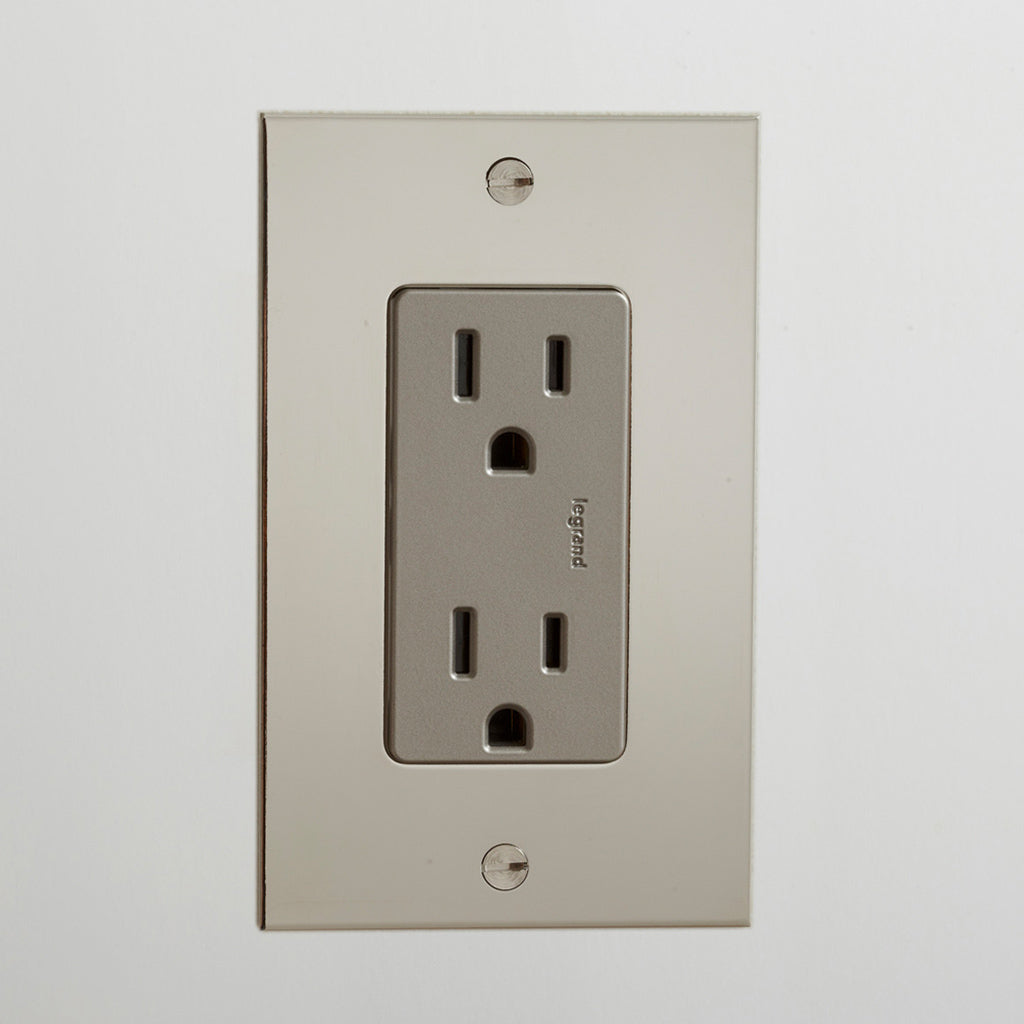

  • Nickel Silver
  • Brushed Stainless Steel
  • Antique Bronze

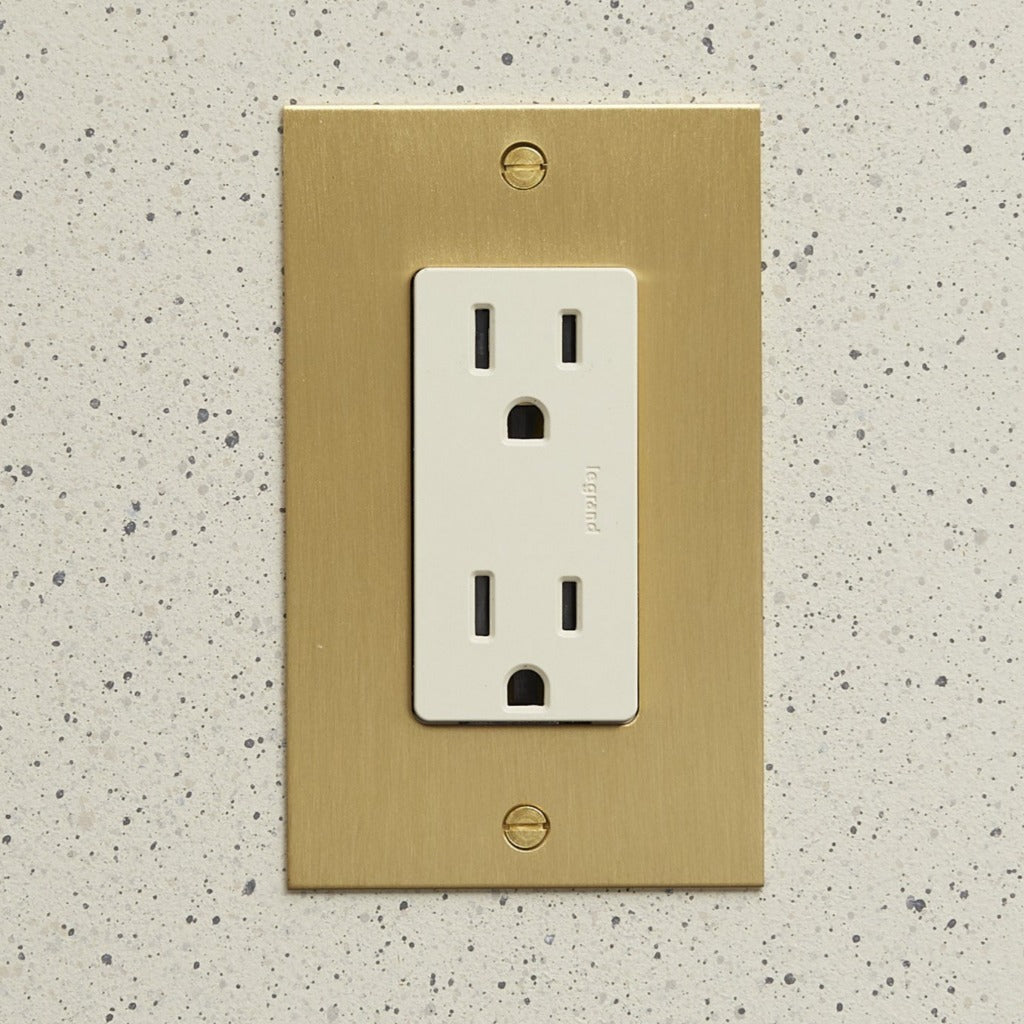

  • Lacquered Brushed Brass
  • Matte Brass
Certifications & Standards
  • Wall-plates: conform to UL 514D, certified to CSA C22.2 No. 42.
  • Outlets: conform to UL 498, certified to CSA C22.2 No. 42.

Review and ensure all certifications are applicable for your local code.

Product Downloads
Authenticity

Copyright Notice. This text belongs to Casson Hardware Specialties, Toronto, first published at cassonhardware.com. Any other site showing it has copied it without authorization and is not affiliated with Casson Hardware Specialties. Casson Hardware sells online only at cassonhardware.com, and orders placed elsewhere will not be fulfilled.

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
