Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Verum Privacy Mortise Lock

Finish — Satin Chrome

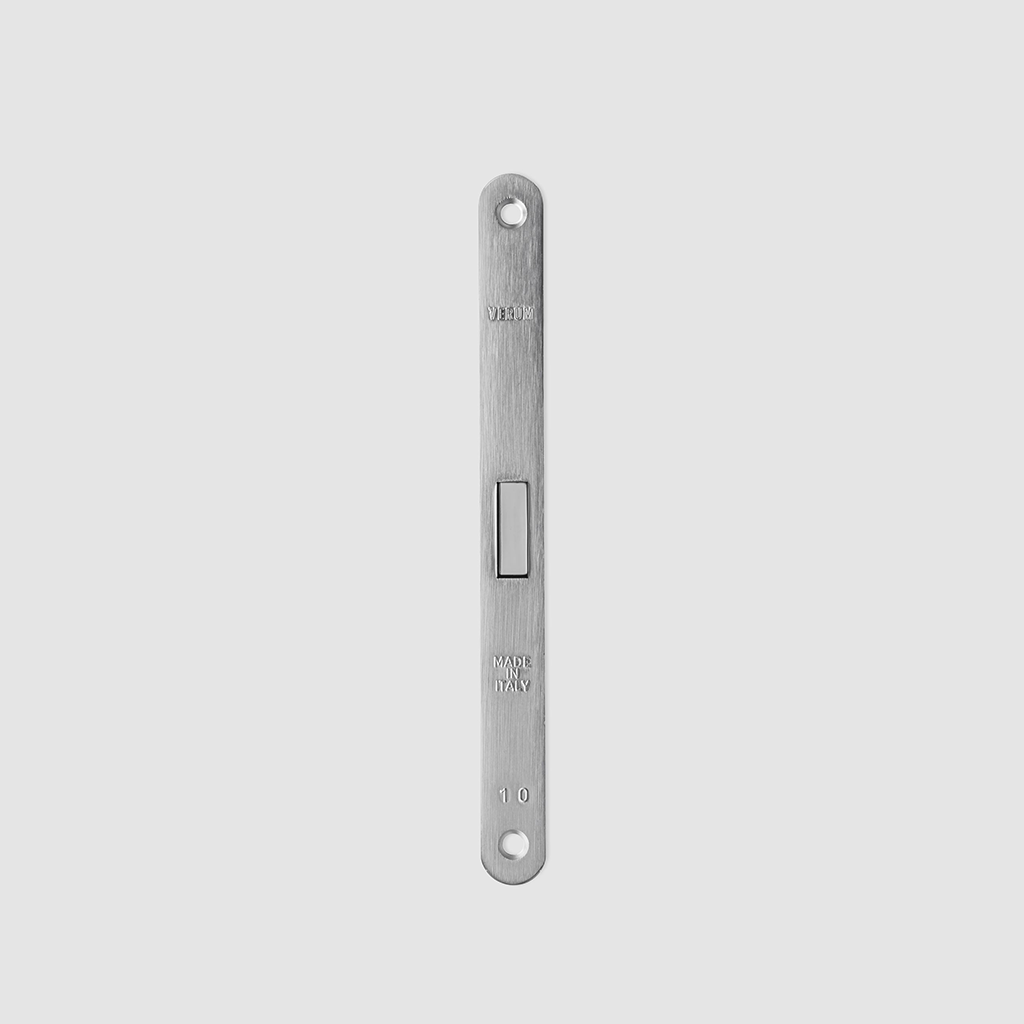

Satin Chrome

Black Painted

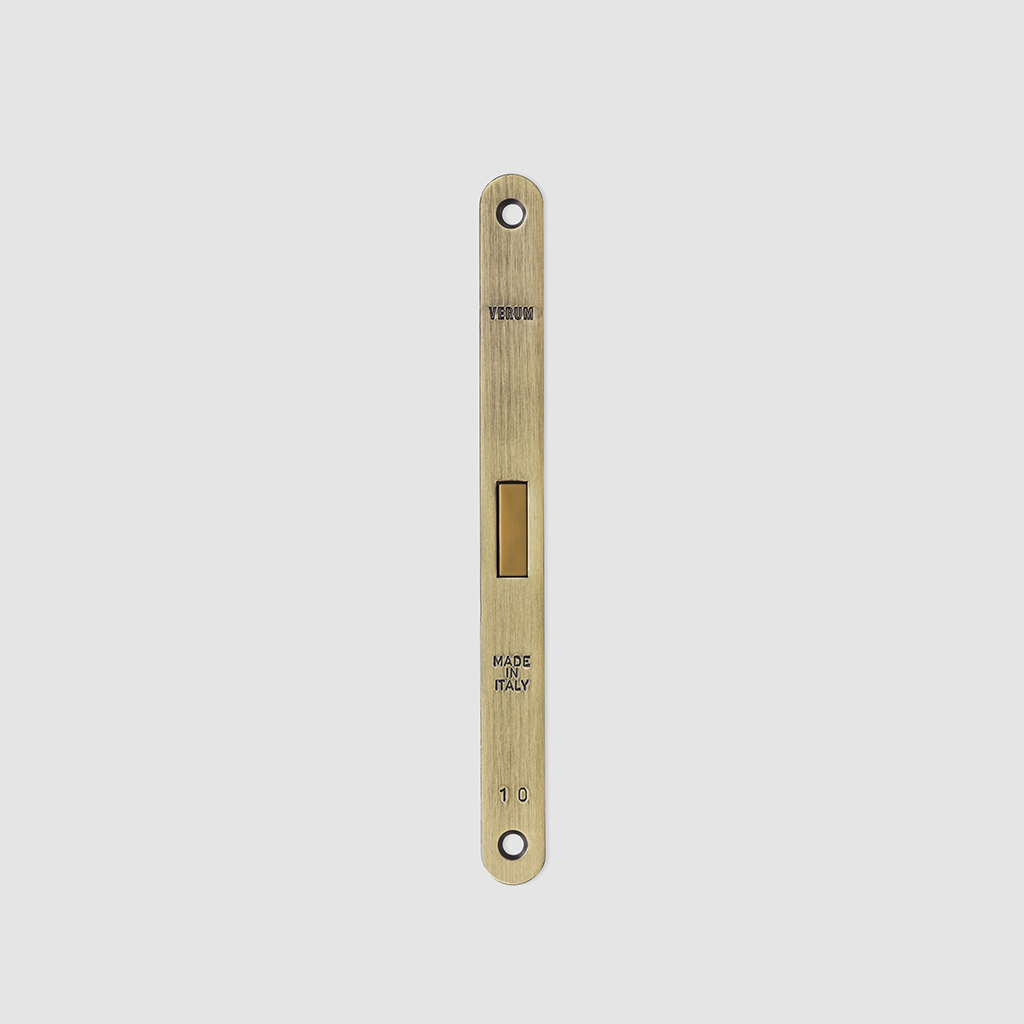

Yester Bronze

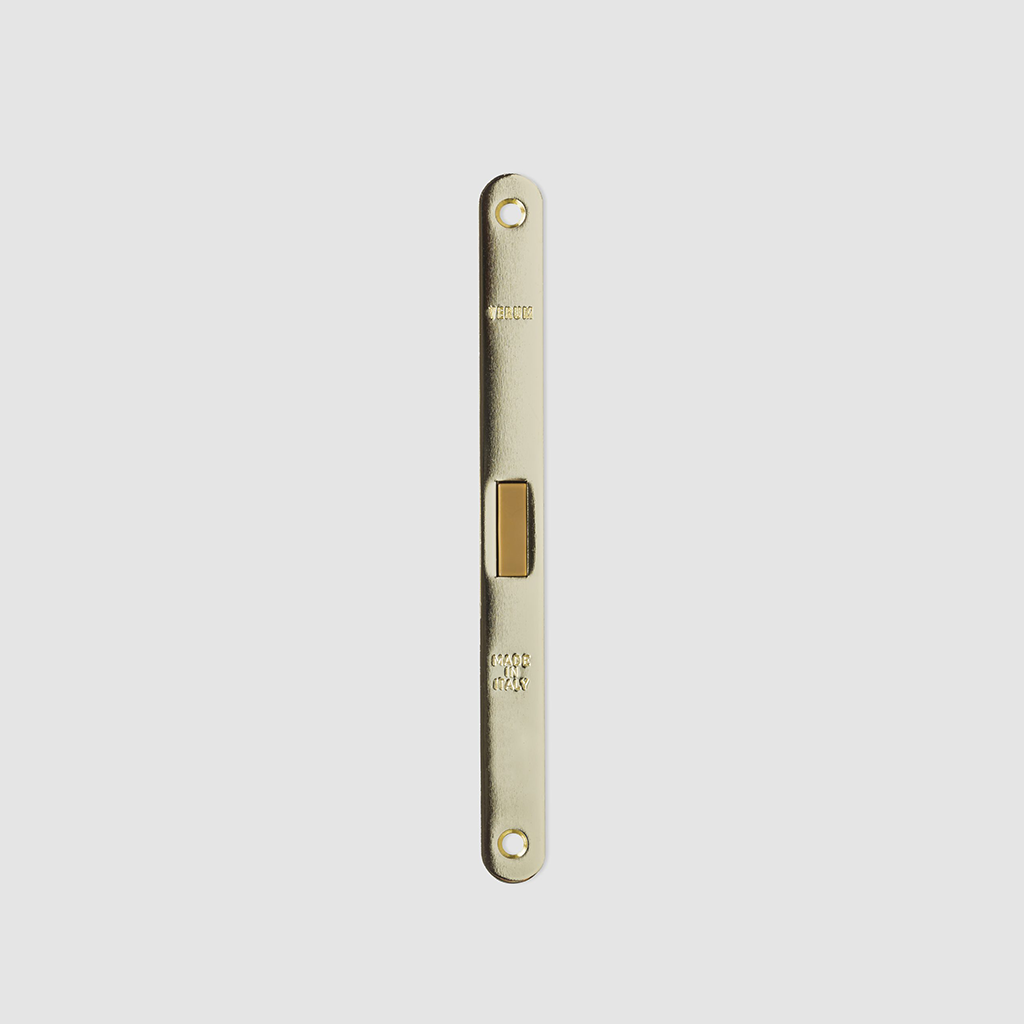

Brass Plated

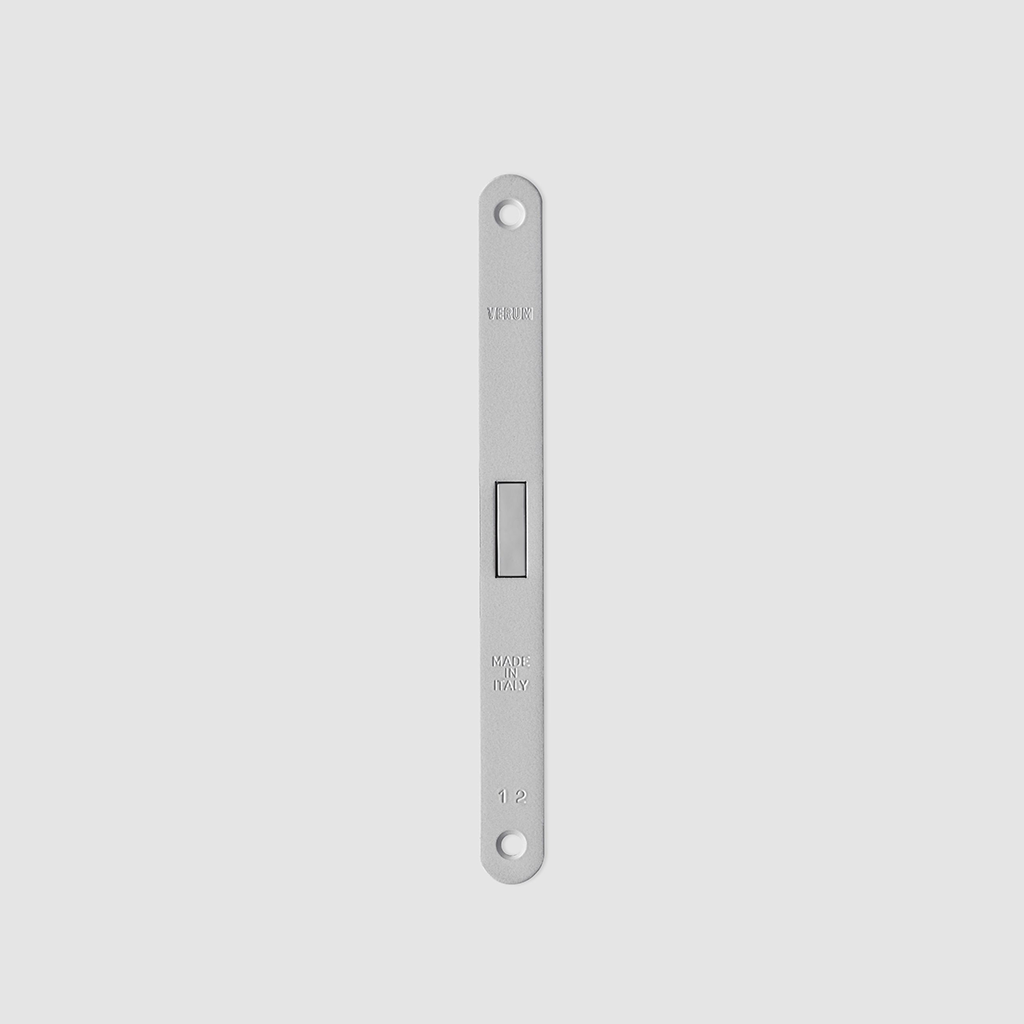

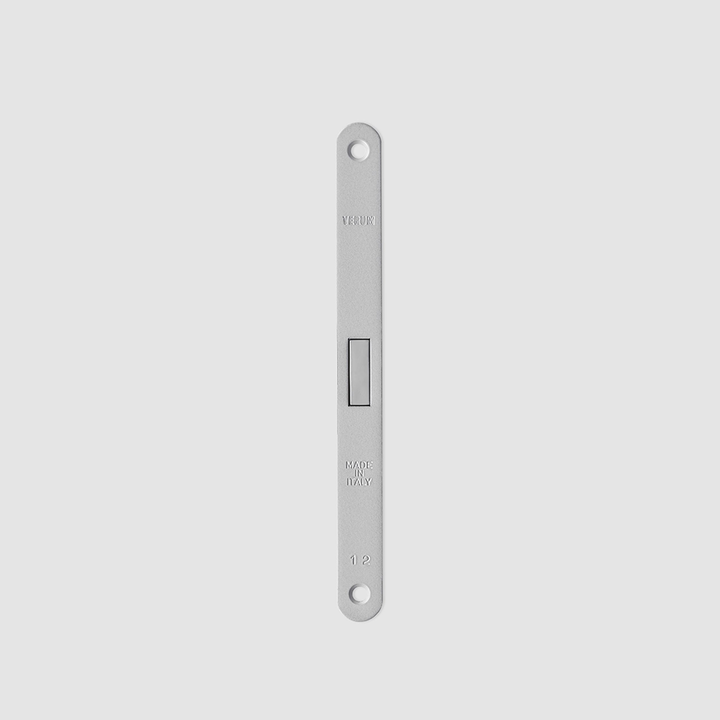

Silver Painted

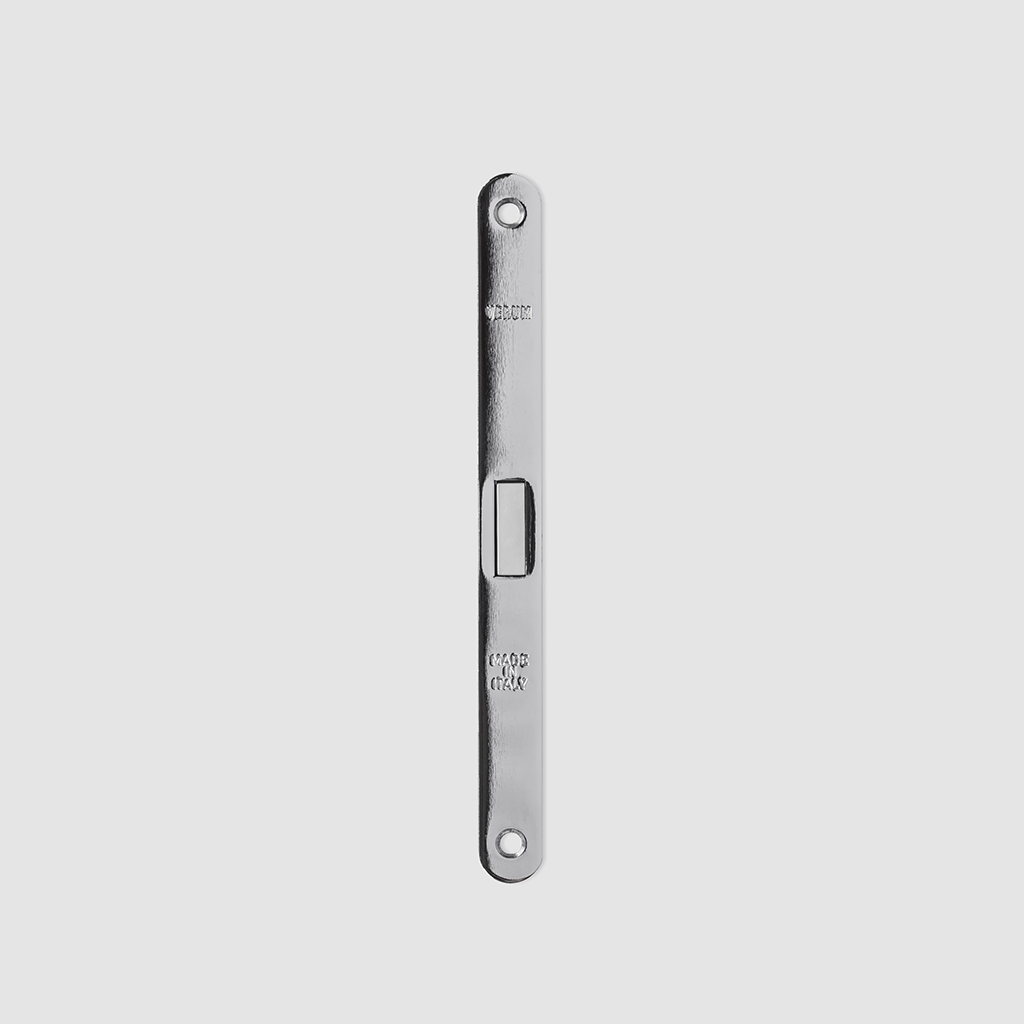

Polished Chrome

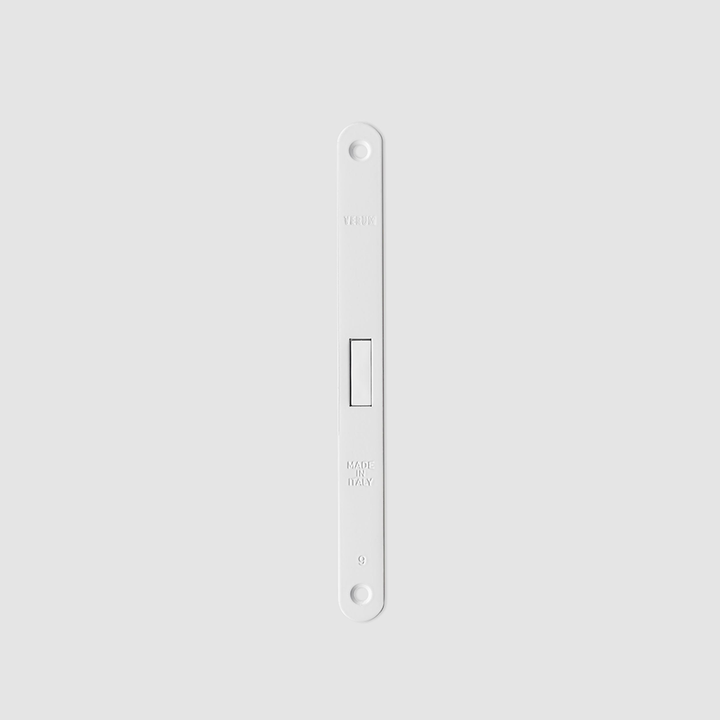

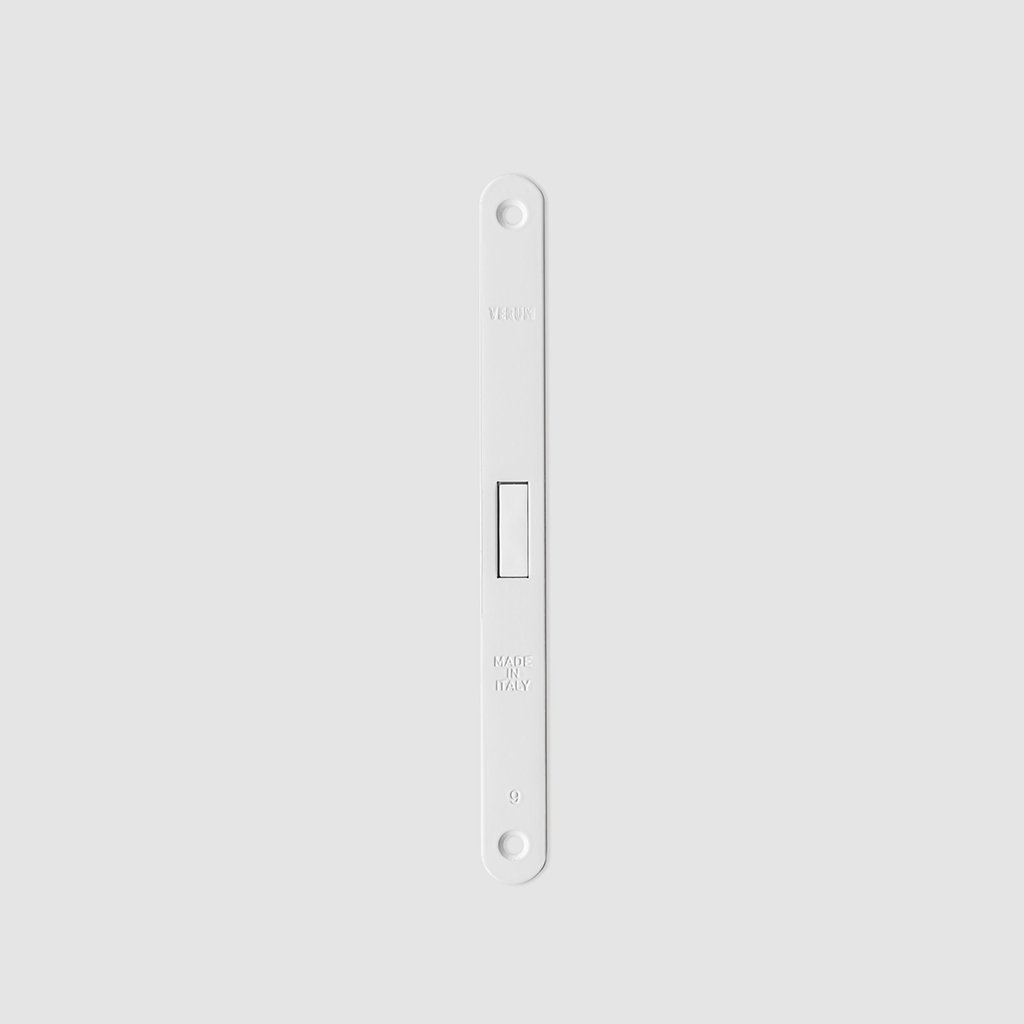

White Painted

COMPONENT ONLY

Related Complete Sets

Description

A discreet and functional privacy solution designed for the Nuda collection.

This mortise latch is manufactured by Verum and purpose-built for compatibility with the Nuda lever series. Featuring an 8 mm hub for the lever and a 6 mm hub for the privacy turn, it supports both Passage and Privacy functions. Precision-crafted in Italy, it offers smooth performance and a clean, minimal profile, in keeping with the refined aesthetic of the collection.

Specifications

Hub size: 8 mm (lever), 6 mm (privacy turn)
Backset: 50 mm (1.97")

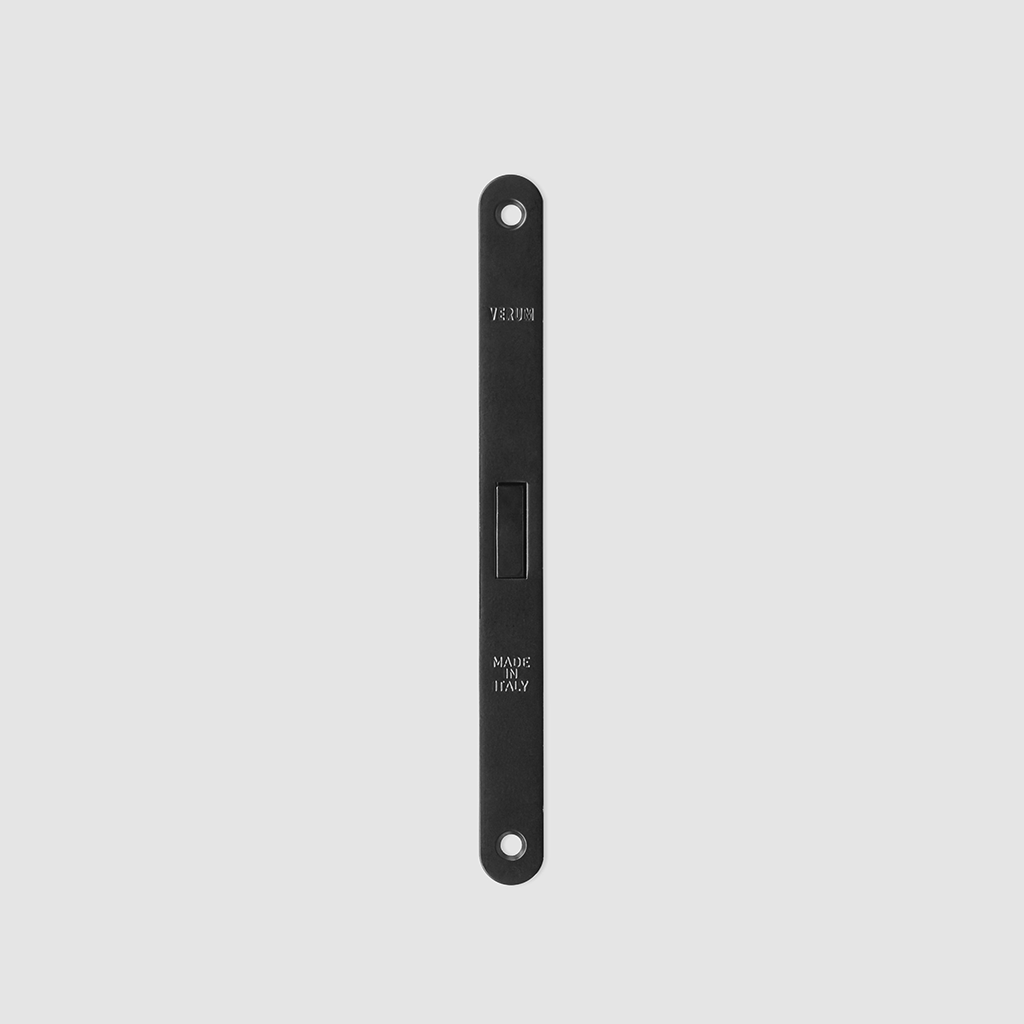

Faceplate dimensions: 18 x 194 mm (0.71" x 7.64")
Case dimensions: 80 x 101 mm (3.15" x 3.98")
Latch bolt projection: 14 mm (0.55")
Privacy spindle hole: 6 mm (0.24")
Lever spindle hole: 8 mm (0.31")
Made in Italy

Material(s)

Steel body with integrated components
Faceplate: Stainless steel/ Available in 7 finish plate options

Compatible Products

Nuda Lever Set
Verum Privacy Turn Set

Function

Supports Passage or Privacy door functions
Designed for use with thumb turn and emergency release sets

Product Downloads

Technical Drawing – Privacy Mortise Latch
