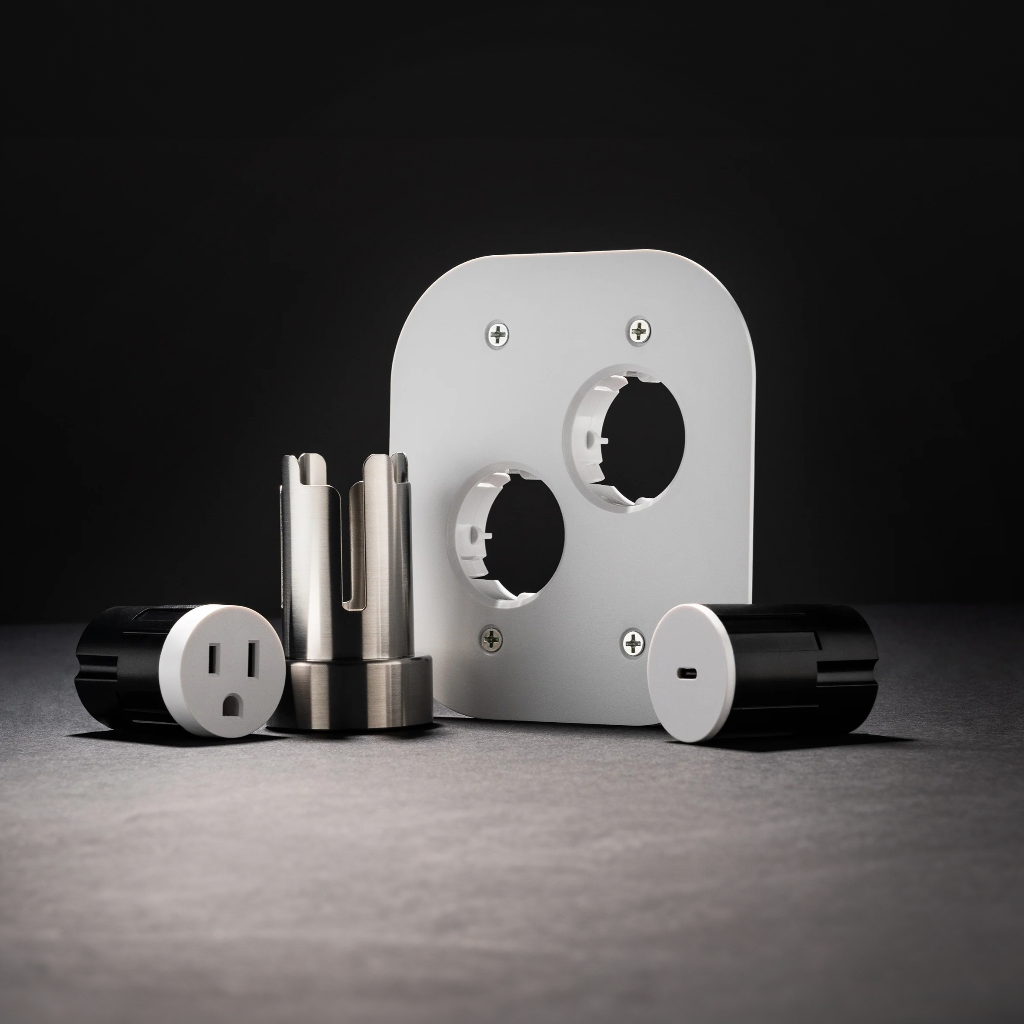

The Bocci 22 System is a modular, flush-mounted solution for power and data that integrates directly into your surface—no visible cover plates, just a seamless finish. Each component locks into a cylindrical mounting plate designed for installation in drywall, tile, wood, stone, or other materials.

Thoughtfully engineered for precision and minimalism, the 22 System supports a variety of configurations. Use the configurator below to select the ideal components based on your surface, layout, and functional needs.

Don’t let standard cover plates disrupt your vision. The Bocci 22 System offers a refined, flush alternative that lets your backsplash, millwork, or stonework speak for itself.

UL-listed for use in Canada and the U.S.

Drywall Configuration Overview

1. Mounting Surface:
Drywall

2a. Device Configuration:
Single or Double Device

2b. Device Orientation:
Side-by-side Narrow / Wide / Diagonal

3. Faceplate Colour:
Standard: White / Almond / Grey / Black
Heritage: Ice / Khaki / Forest / Oxblood / Dove / Carob*
*Please note, the heritage colours are only available in Outlets and USB-C.

4. Device Type:

Outlets: 15A (120V), 20A High Amperage (120V)

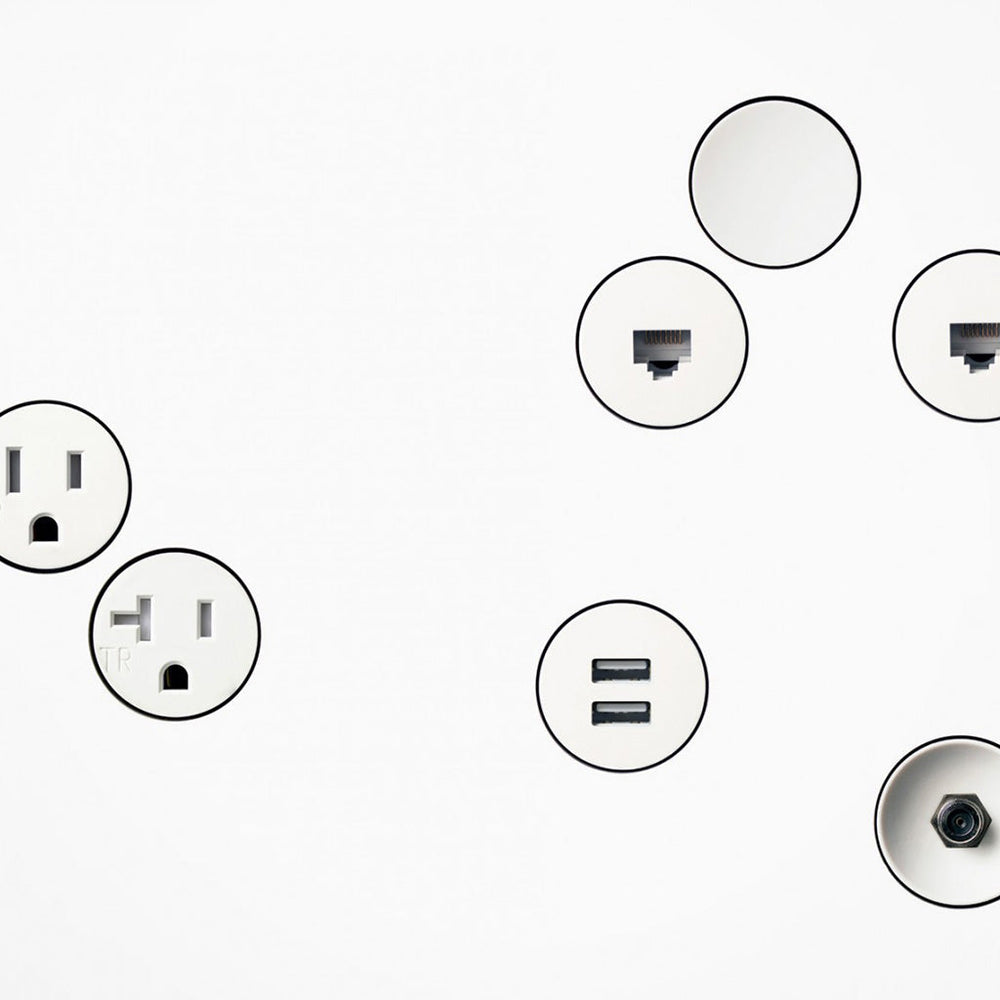

USB / Media: USB-A, USB-C, HDMI
Data & Control (Request Quote): RJ45 CAT6A, RJ12, F Connector, Smart Home Keypad

Non-Drywall Configuration Overview

1. Mounting Surface:

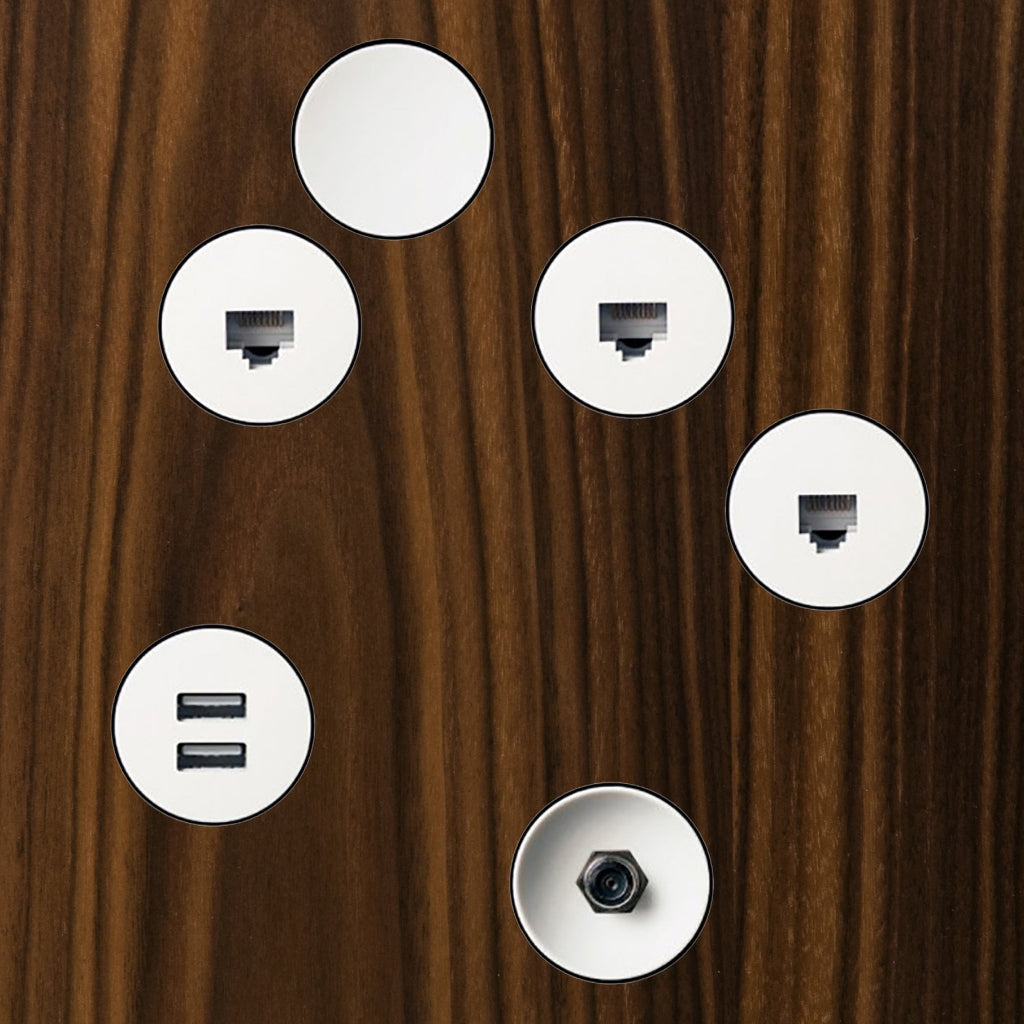

Wood / MDF / Corian / Stone / Tile / Plaster

2a. Device Configuration:
Single or Double Device

2b. Device Orientation:
Side-by-side Narrow / Wide / Diagonal

3. Mounting Surface Thickness (Required for non-drywall only)

Short (6.35mm – 12.7mm): Mounting plate must be set 12.7mm behind the surface
Medium (12.7mm – 19.05mm): Mounting plate must be set 19.05mm behind the surface
Long (19.05mm – 31.75mm): Mounting plate must be set 31.75mm behind the surface

Tip: Measure from the finish face to the back of the substrate. If unsure, round up. View Barrel Depth Guide (PDF)

4. Faceplate Colour:
White / Almond / Grey / Black
Heritage: Ice / Khaki / Forest / Oxblood / Dove / Carob

5. Device Type:

Outlets: 15A (120V), 20A High Amperage (120V)
USB / Media: USB-A, USB-C, HDMI
Data & Control (Request Quote): RJ45 CAT6A, RJ12, F Connector, Smart Home Keypad

Tools & Accessories:

Removal Tool (Required: 1 per project)
Wood / MDF / Corian / Stone: Router Template for Double Device
Tile / Plaster: Trim Cap (1 per device)

Specifications

Ø 34 mm (1.3")
Certified: UL-listed to U.S. safety standards 498 and 514D, the 22 System is approved for both Canadian and American installations.
GFCI Code Requirements: To comply with GFCI code, a GFCI breaker must be installed elsewhere along the circuit in an accessible, hidden location. This breaker must be purchased independently.
Tamper Resistant: Designed to enhance safety and prevent unauthorized access or interference
Finishes:
Standard: White (RAL 9016), Black (RAL 9017), Almond (RAL 1013) and Grey (RAL 7038)

Heritage: Ice (Light Blue/ Pantone 2155), Khaki (Olive Green/ Pantone 451), Forest (Dark Green/ Pantone 7735), Oxblood (Dark Red/ Pantone 7629), Dove (Medium Grey/ Pantone 2333), Carob (Brown/ Pantone 7554)

Product Downloads

General Information

Certification

Bocci 22 cUL Certificate (PDF)

Installation Instructions

Planning Guides

Material Selection Guide (Multi-Material)
Determine the correct mounting plate based on surface material.
Barrel Depth Selection Guide
Choose the correct barrel length based on thickness.
Component Removal Guide

Technical Drawings

Component Data Sheets

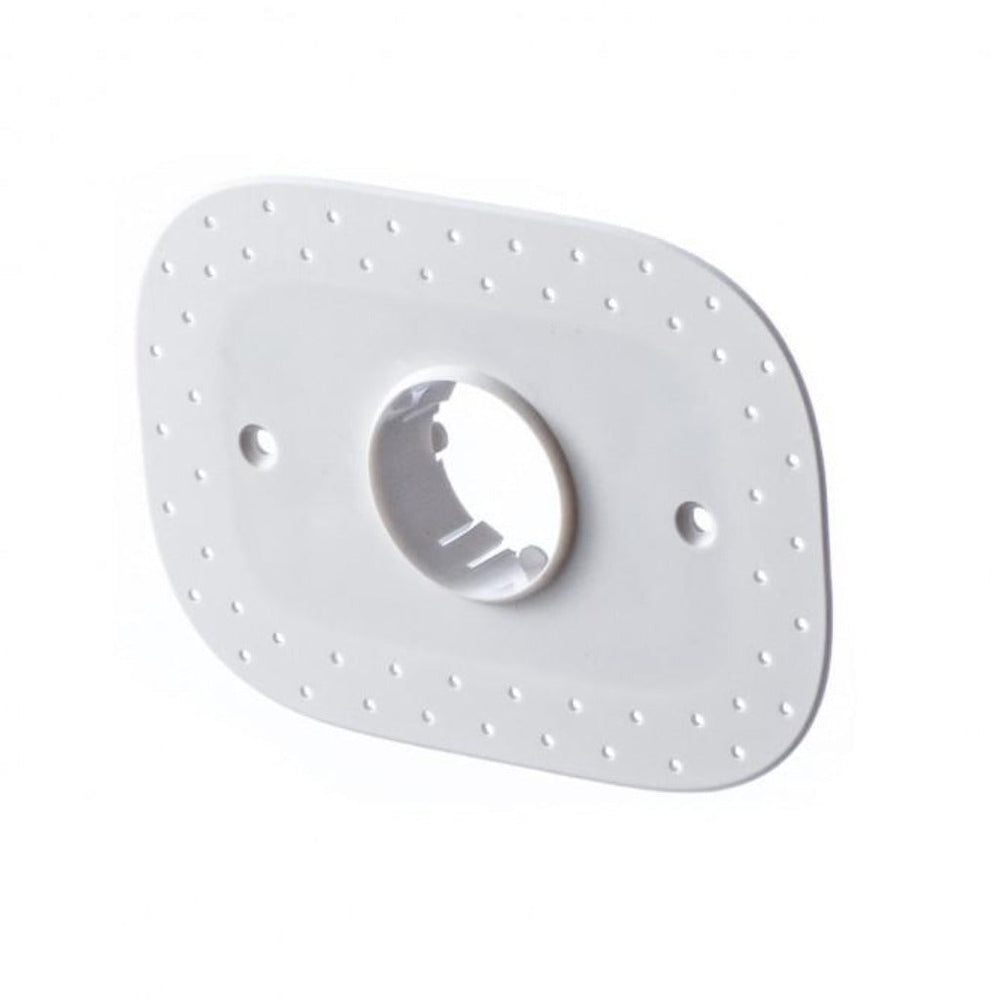

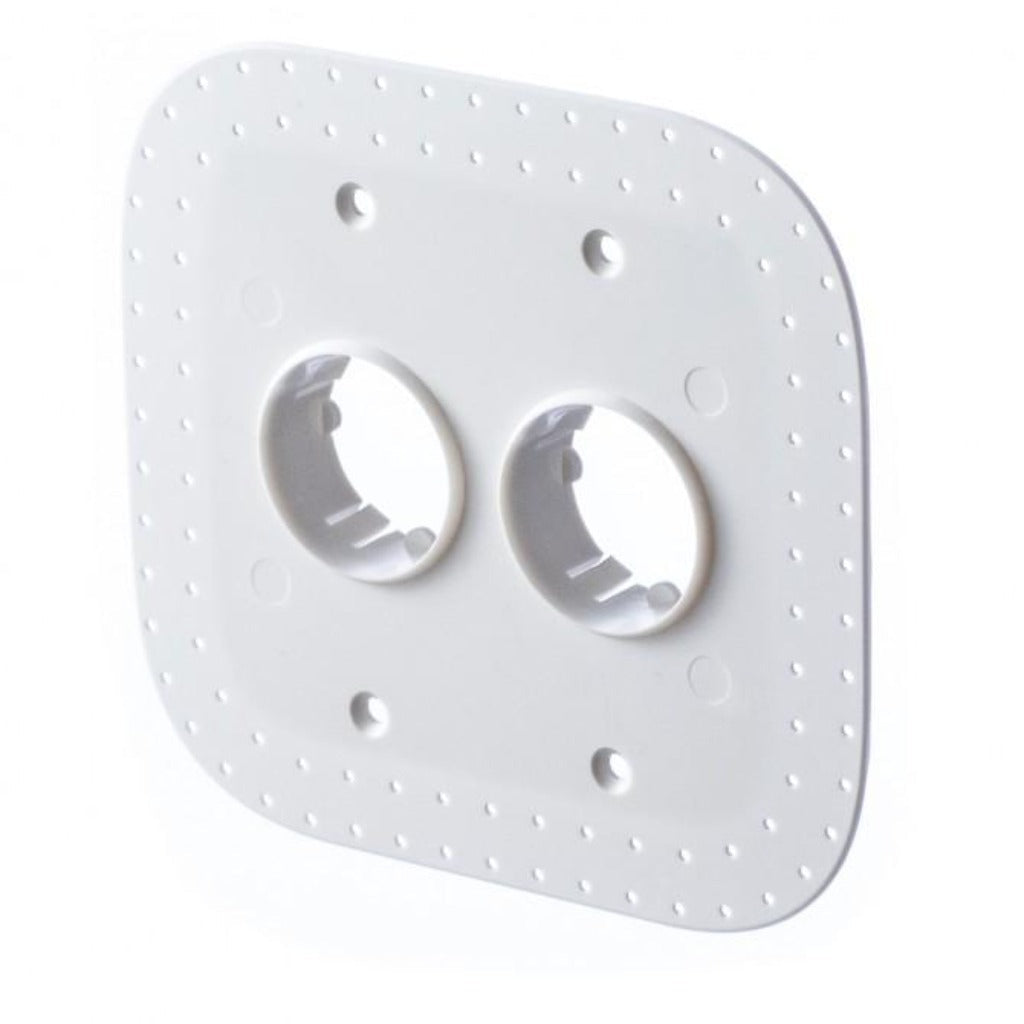

Mounting Plates: Drywall

Mounting Plates: MDF / Wood / Stone / Tile / Corian

Devices: Standard

Devices: Request Quote

Tools & Accessories

Installation Videos

Multi-Material Install
Step-by-step guide for tile, plaster, Corian, or other mixed surfaces.

Drywall Install
Clean installation into drywall using standard Bocci 22 components.
