Bocci 22: Alternate Material Mounting
- Estimated Ship Date: 1-2 weeks
OPTIONAL TOOLS
Additional tools may be needed based on installation material. Please review here.
Need Help?
See the guide for optimal material depth selection here.
- Description
- Important Notes
- Length Selection
- Specifications
- Optional Component Configurations
- Product Downloads
- Installation Instruction Video
- Order Guide
- FAQ
- Finish Samples
Bocci 22: Alternate Material Mounting Electrical Outlets provide a flush electrical solution, delivering the cleanest and most minimal look for your home. These outlets are suitable for installation in Wood, MDF, Corian, Stone, Tile, and similar materials. If mounting into drywall, please select our Bocci 22: Drywall Mounting solution.
The 22 System mounting plates and devices are compatible with conventional junction boxes and wiring systems. Cylindrical devices lock securely into a receiving system embedded within a sheet of finish material. The result is a fully assembled system with components that sit flush with the surrounding wall surface, without visible cover plates.
Please Note: Not all finish and shape variants have corresponding images available for preview online.
- Removal Tool: A single removal tool is required for all installations and is sold separately here.
- Wet Material Installations: If mounting into plaster, concrete, tile/grout, or mortar, one trim cap per component must be added. Sold separately here.
- GFCI Code Requirements: To comply with GFCI code, a GFCI breaker must be installed elsewhere along the circuit in an accessible, hidden location. This breaker must be purchased independently.

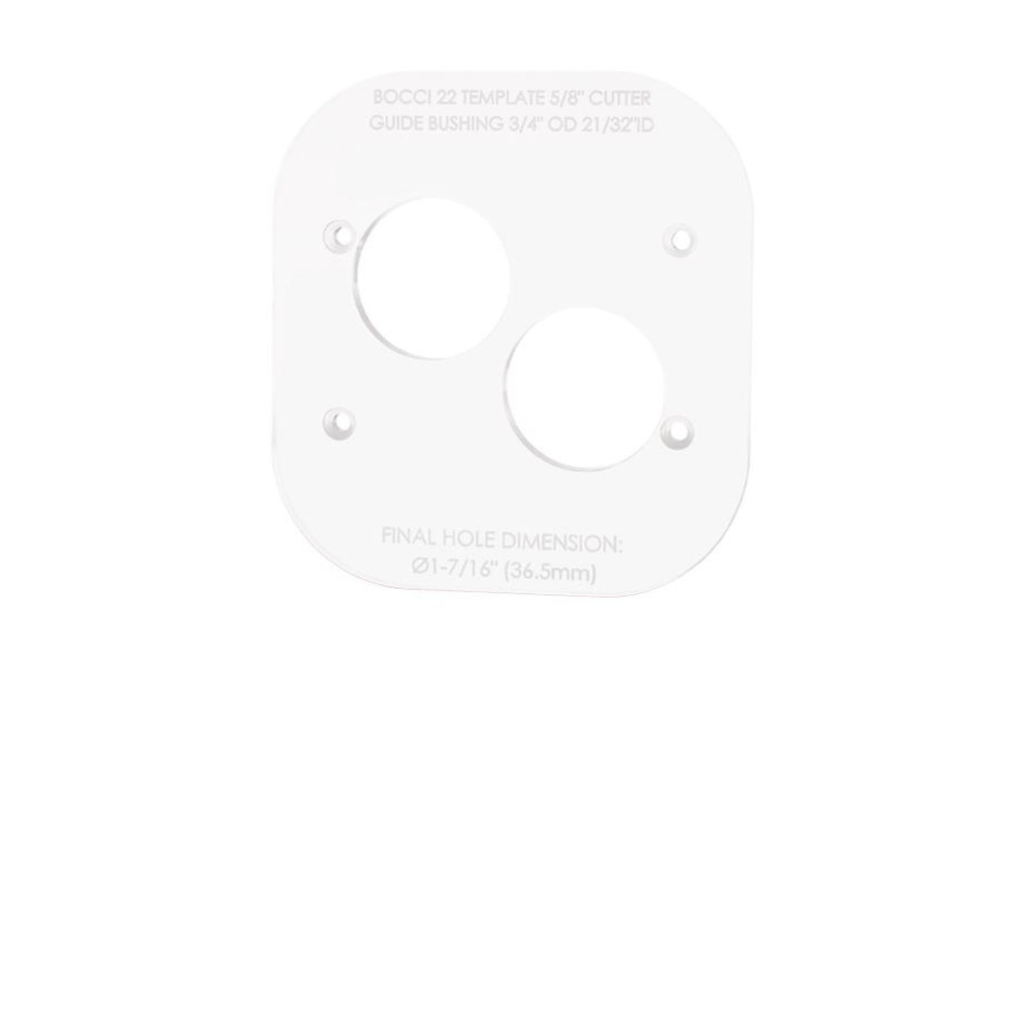

- Router Template: Optional when using a router to fabricate both Linear and Random Configurations. Sold separately here.
For optional component configurations, please contact us. See the list below for available options.
Proper installation requires careful measurement of the total depth, including the finish material, substrate, and adhesives. Please select the appropriate kit based on your material depth:
SHORT
6.35mm (0.25") - 12.7mm (0.5")
- Designed for material depths up to 0.5" (12.7mm).
- The mounting plate must be positioned exactly 12.7mm behind the finished surface.
- If the total depth exceeds this measurement, the material must be milled or adjusted to ensure the junction box and mounting plate are correctly positioned.
MEDIUM
12.7mm (0.5") - 19.05mm (0.75")
- Accommodates material depths up to 0.75" (19.05mm).
- The mounting plate must be positioned exactly 19.05mm behind the finished surface.
- For depths exceeding this measurement, the backing material must be adjusted to align the junction box and mounting plate properly.
LONG
19.05mm (0.75") - 31.75mm (1.25")
- Designed for material depths up to 1.25" (31.75mm).
- The listed depth dimensions indicate the precise positioning of the mounting plate, which must be installed 31.75mm behind the finished surface.
- If the total depth exceeds 31.75mm, the backing material must be cut or milled to move the junction box and mounting plate forward by the required distance.
For additional guidance, please refer to our installation instructions and depth guide.
- Ø 34 mm (1.3")
- Certified: cUL to comply with CSA standards
- Tamper Resistant: Designed to enhance safety and prevent unauthorized access or interference
- Finishes: White (RAL 9016), Black (RAL 9017), Almond (RAL 1013) and Grey (RAL 7038)
The below items can be used to replace the standard electrical outlet or add alternative functionality, such as data ports, USB connections, or HDMI inputs. Please contact our sales team to request a quote for these configurations.
- 22.3.2 On/off switch, regular barrel only
- 22.3.3 RJ12 Telephone
- 22.3.5 F connector (cable)
- 22.3.6 Intelligent control, regular barrel only
- 22.3.7 Outlet 15A 120V
- 22.3.8 Outlet 20A 120V
- 22.3.9 CAT6 (data)
- 22.3.10 USB
- 22.3.12 HDMI

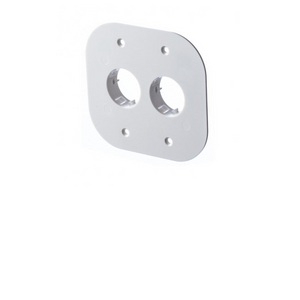

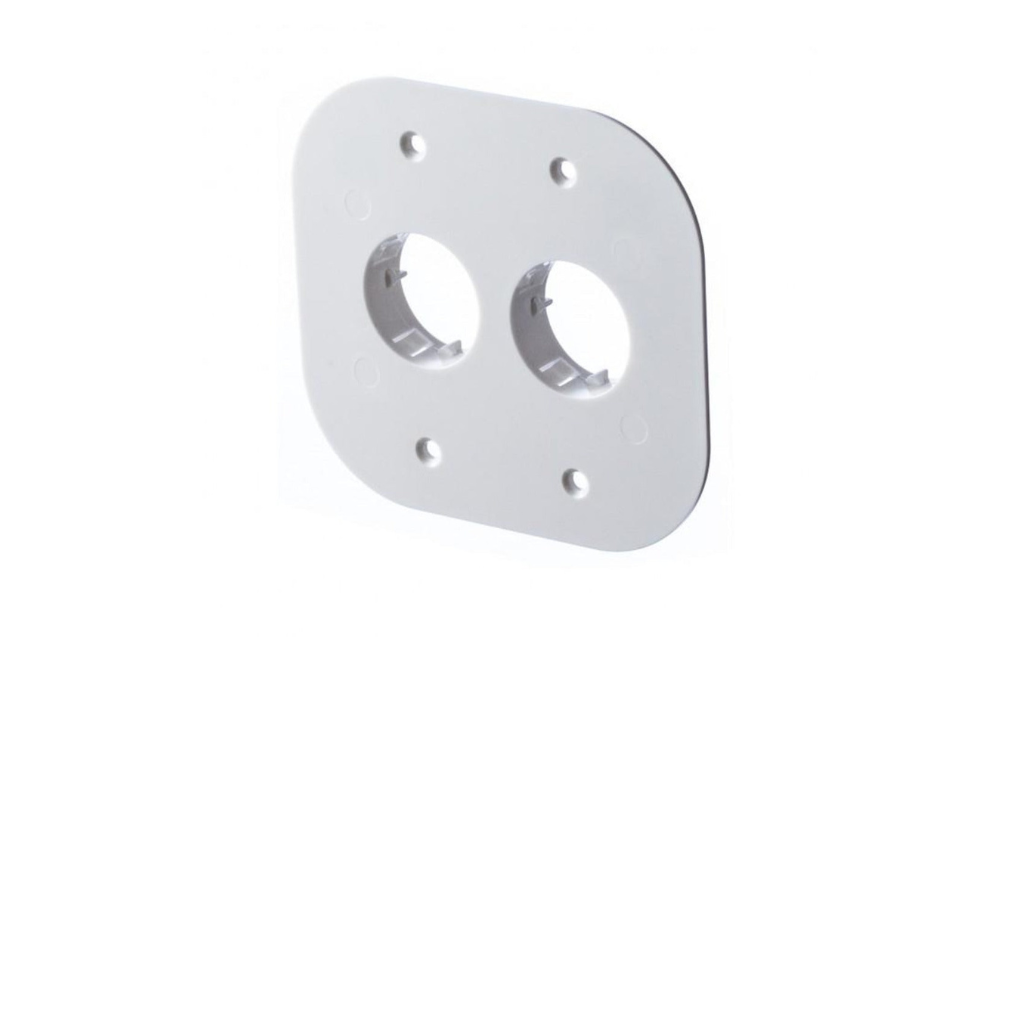

Mounting Plates
When ordering custom configurations, mounting plates will be selected separately:
General Information
Certificates
Installation Instructions
Bocci 22 Alternate Installation Instructions
Guides and Help
Bocci 22 Alternate Selection Guide
Bocci 22 Alternate Barrel Length
Technical Drawings
To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:
1. WHERE IS IT BEING INSTALLED?
2. WHAT TYPE OF MOUNTING PLATE DO YOU WANT?
- Single
- Double Linear: For vertical or horizontal mounting
- Double Random: Set on an angle
3. WHICH COMPONENT DO YOU NEED?
- Amp 15A or 20A (confirm with your electrician if you're unsure)
- If going into an alternate (ex. stone) substrate, which length do you need? Read this chart to help you determine which length is right for your project All found on the product page and linked here
- Select Finish (black/white/almond)
4. DO YOU WANT TO BUY AS A FINISHED KIT OR INDIVIDUALLY AS PARTS?
- Kit
- Parts
- Additional Components Sold Separately
- Plaster or Tile Trim Cap: Required for installation in wet material (plaster, concrete tile/grout, mortar, etc.)
- Removal Tool: Required for all Bocci 22 installations
- Double Alternate Material Universal Router Template: Optional for Alternate Material installations when using a router to fabricate both linear and diagonal Bocci layouts.
How do I Install?
View our Drywall installation video or Alternate installation video or download the installation instructions in the Product Downloads Section above.
Is the Bocci 22 System UL approved?
Yes, the 22 System is CE compliant and UL certified. The 22 System is designed following UL standards 498 and 514D and the National Electrical Code (NEC 2020, NFPA 70).
Please view the 22 System UL certification here.
What surfaces / materials can I install the Bocci 22 System in to?
Any surface; from drywall to millwork, concrete, tile, stone, glass, etc. There are two assembly options, one appropriate for drywall and one appropriate for all other surfaces.
What colour options do they come in?
Bocci 22 System comes in white, almond and black. View colour options
Do they come in custom colours?
For larger volumes, Bocci can sometimes work on custom colours or finishes to match your surface. Please contact us for more information.
Are the outlets tamper resistant?
Yes, 22 System outlets are tamper resistant and bear the "TR" marking on the outlet face.
What junction box should I use?
Standard depth junction boxes are compatible with 22 System mounting plates. Junction boxes must have two screen holes (one at the top and one at the bottom) in the middle plane from the two edges. The spacing between these two screw holes should be 83 mm (+/- 0.5 mm).
Which component size do I choose for installation into alternate materials?
Please see the alternate selection chart to guide you through determining which option would work best for your individual site needs.
Does Bocci have a GFI/GFCI outlet?
While we Bocci 22 does not offer a GFCI outlet, code can be reached by using the TR outlet in conjunction with an independently sourced GFCI remotely installed in the panel. Please consult with a certified electrician for more information.
Do I need an installation (removal) tool?
Yes, an installation tool is required for all 22 System installations to access the junction box wiring. Our 22.1 installation tool is compatible with all component depths.
Can I combine a line volatage and low voltage components on the same mounting plate?
You can mix the components as long as your junction box is equipped with a “permanent barrier” or listed divider. The raceway system to access the junction box should also be separated. For more information please refer to the National Electric Code (NEC 2008: Article 800.133 Exception #1 and Article 620.36).
What do I use the 22.3.6 Keypad Control for?
This is a minimalist keypad control for use with smart home systems, performing functions as programmed through your home automation system via a CAT5 connection.
Does the Bocci 22 collection have a dimmer?
While a dimmer is not offered at this time, our 22.3.6 keypad can be programmed to control the dimming function in conjunction with a smart home system.
Shop finish samples HERE.
