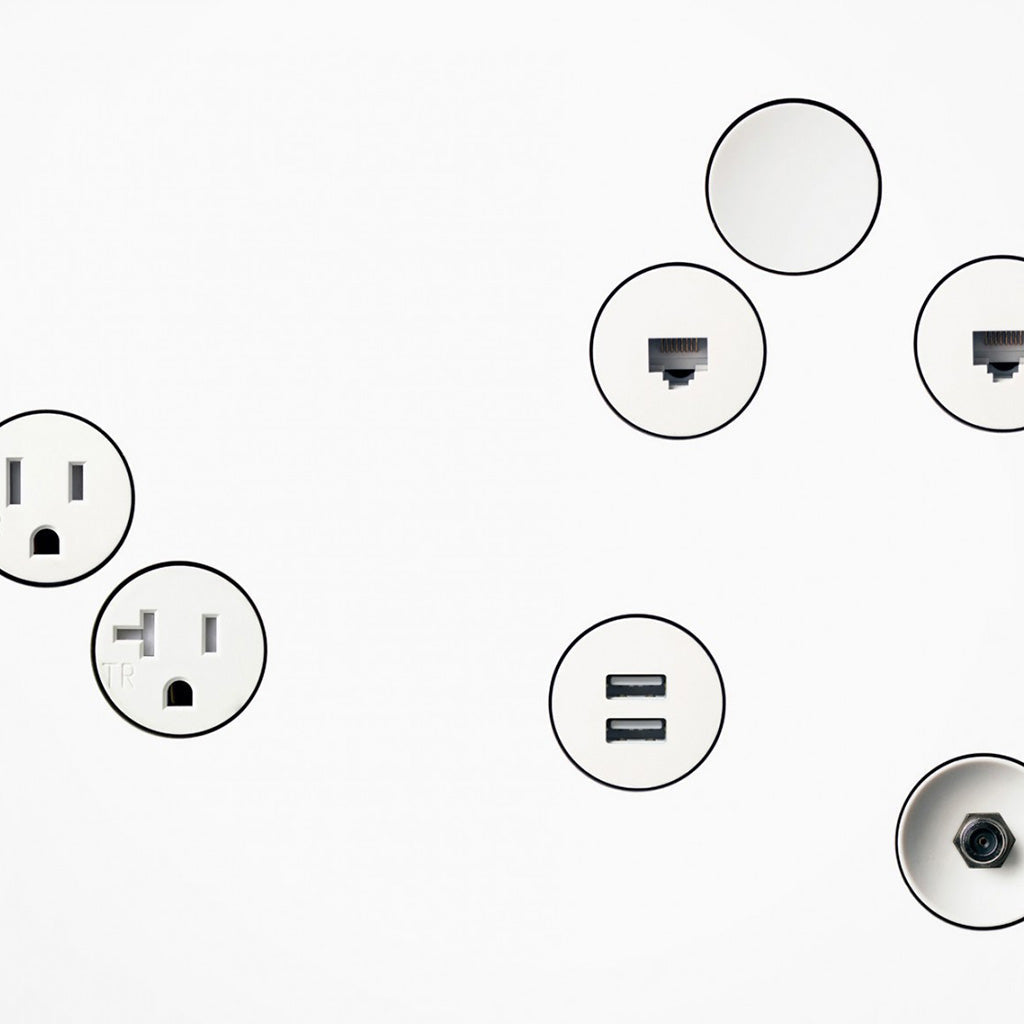

The Bocci 22 system is a complete suite of interior surface accessories that challenge the traditional cover plate concepts.
Bocci Components sold individually to build your own package. Pair with mounting plates, available separately here.
*FAQ & ORDER GUIDE TABS AT THE BOTTOM OF THE PAGE*
Certified: cUL to comply with CSA standards.
Mounting Plates:
Mounting plates available separately here.
22.1.5 - Single Alternate Mounting Plate
22.1.7 – Double Alternate Mounting Plate
22.2.1 - Single Drywall Mounting Plate
22.2.2 - Double Linear Drywall Mounting Plate
Components:

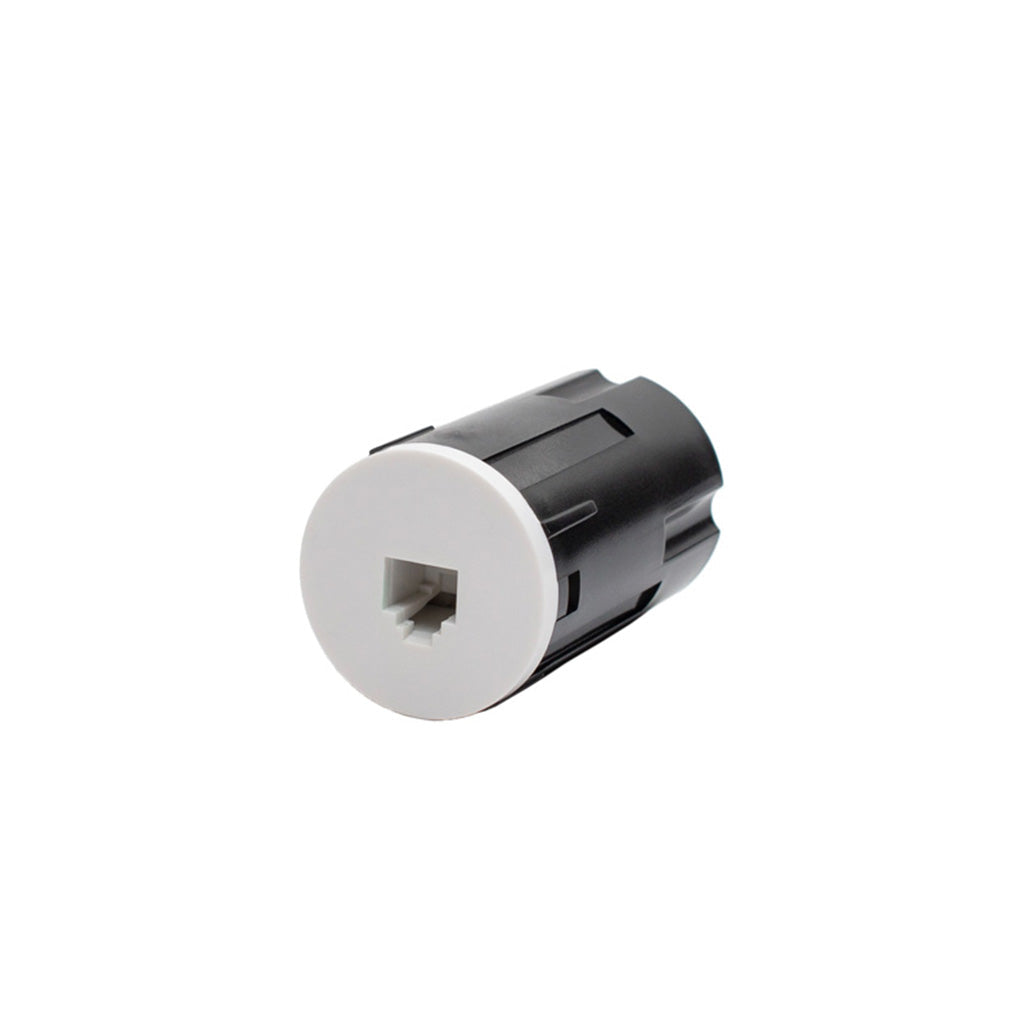

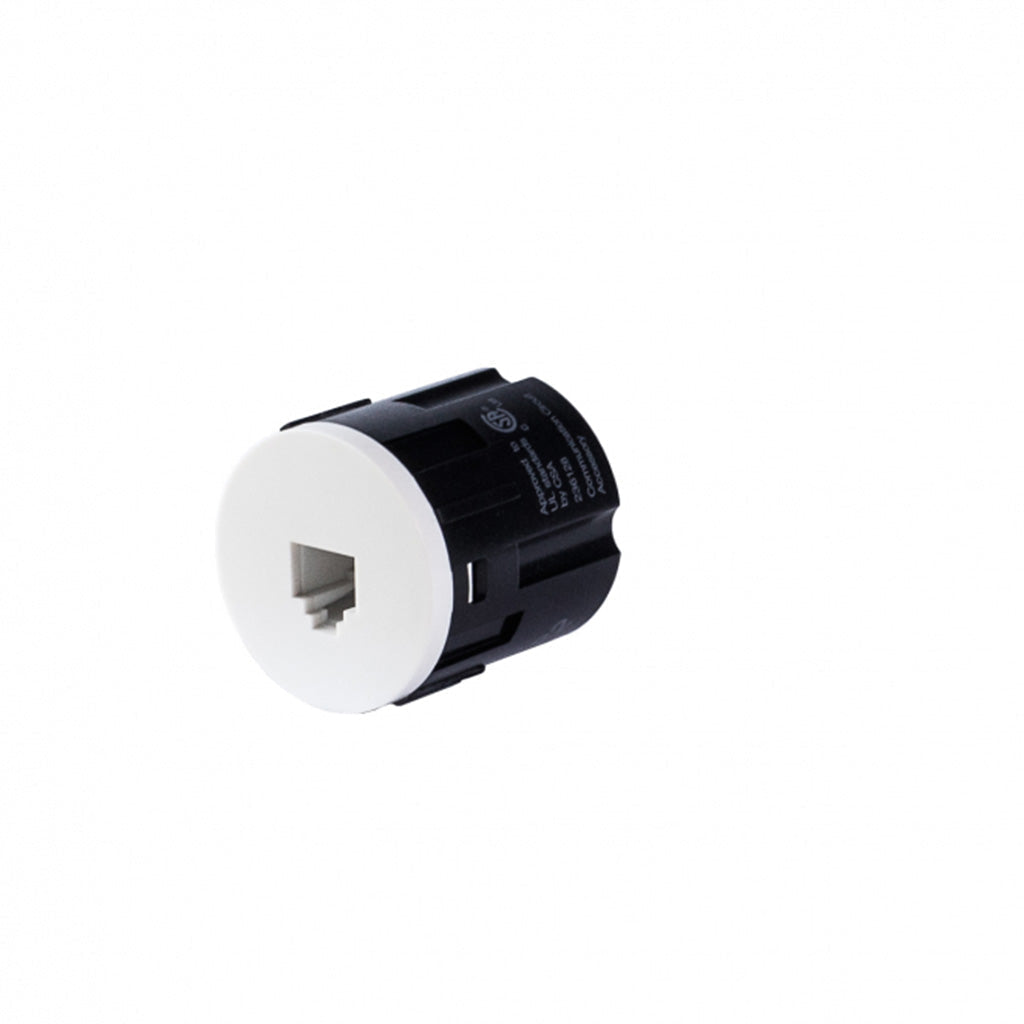

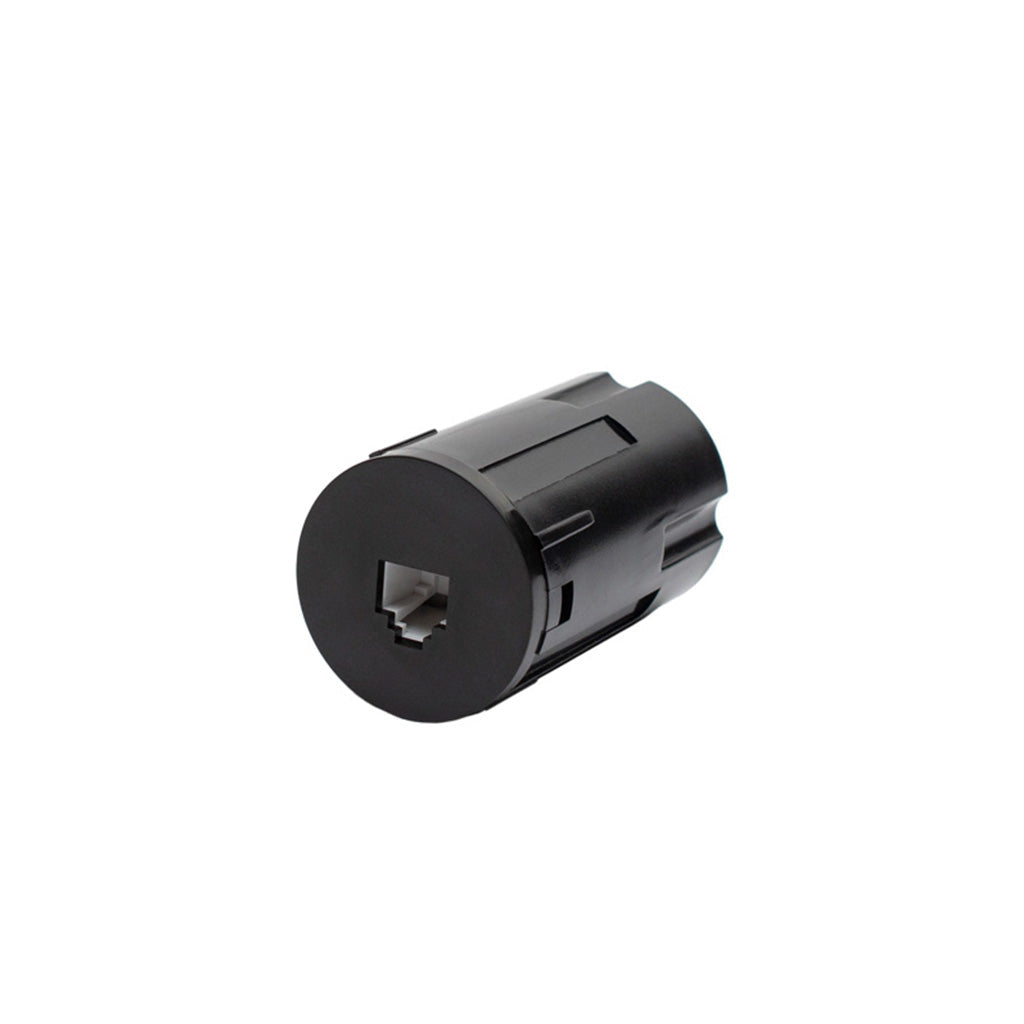

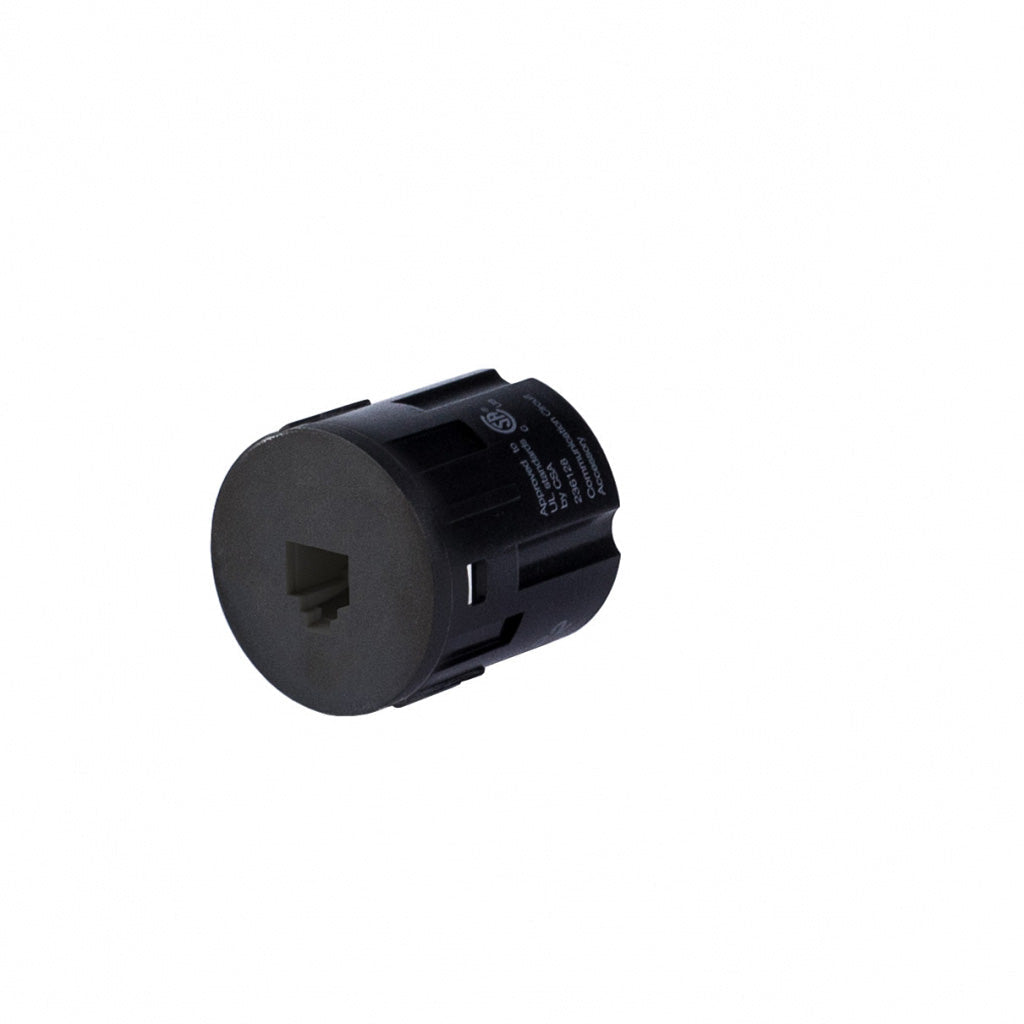

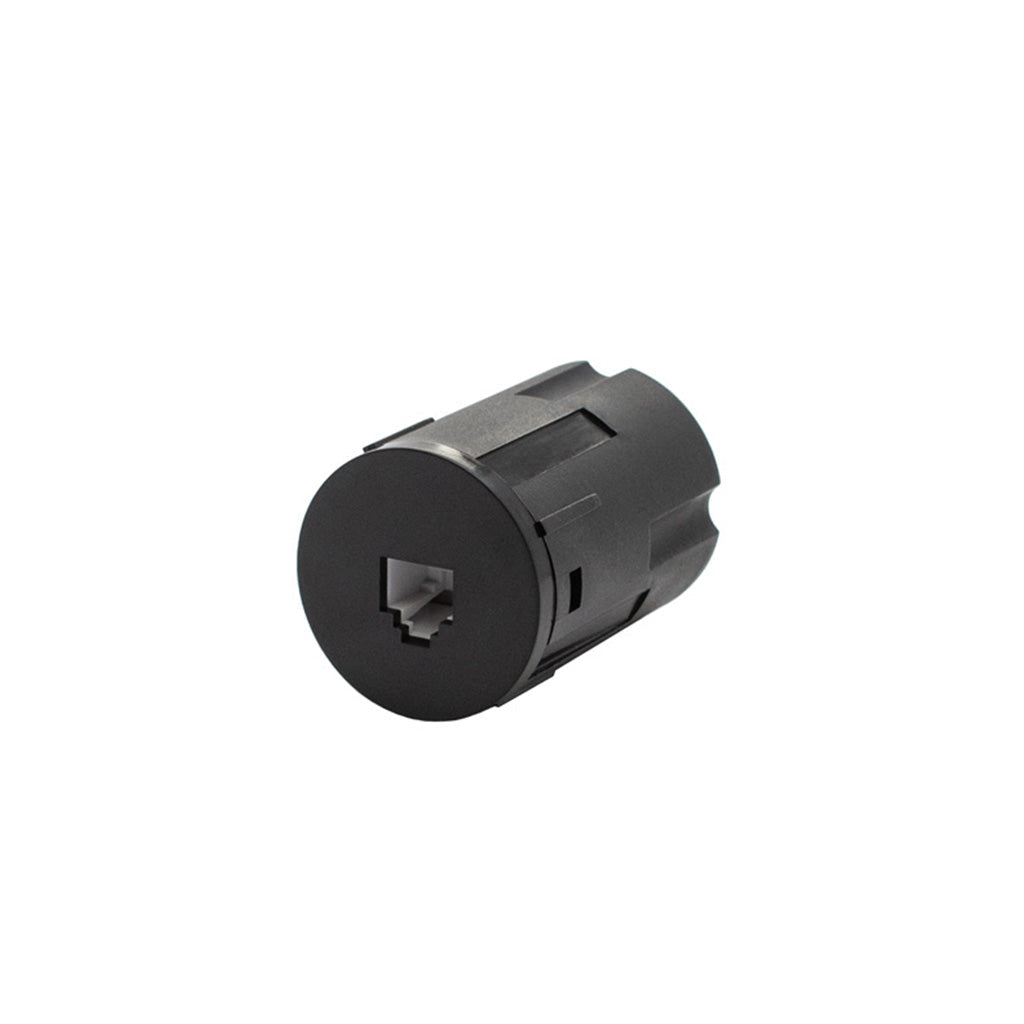

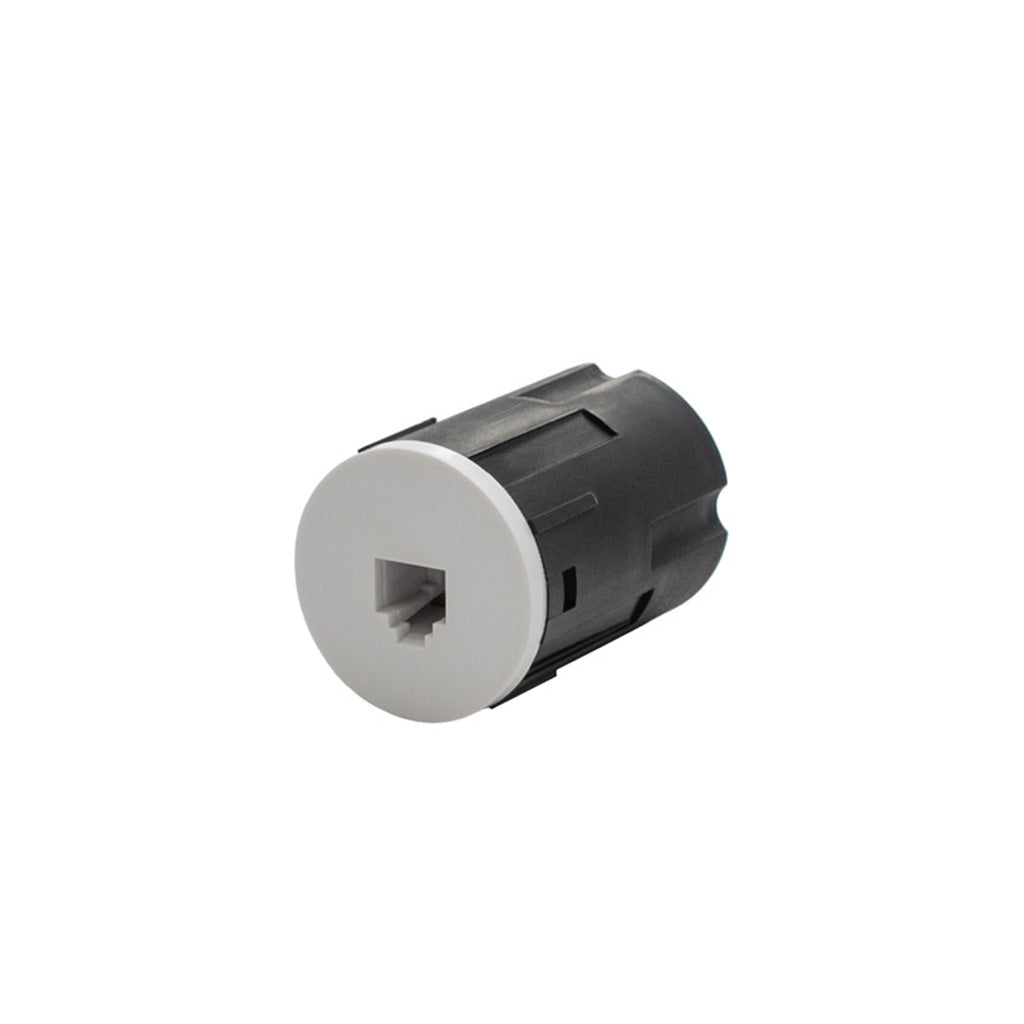

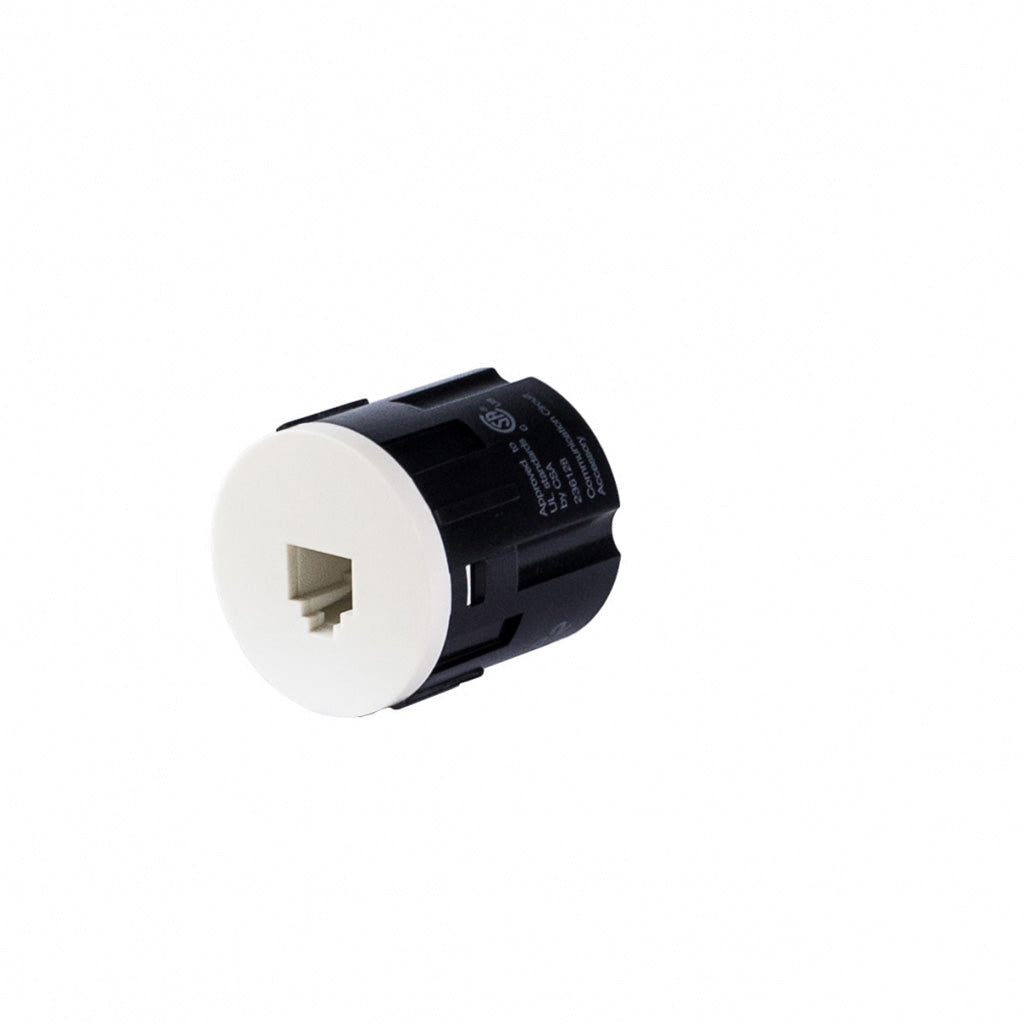

22.3.3 RJ12 Telephone, regular barrel
22.3.3M RJ12 Telephone, medium barrel
22.3.3L RJ12 Telephone, long barrel

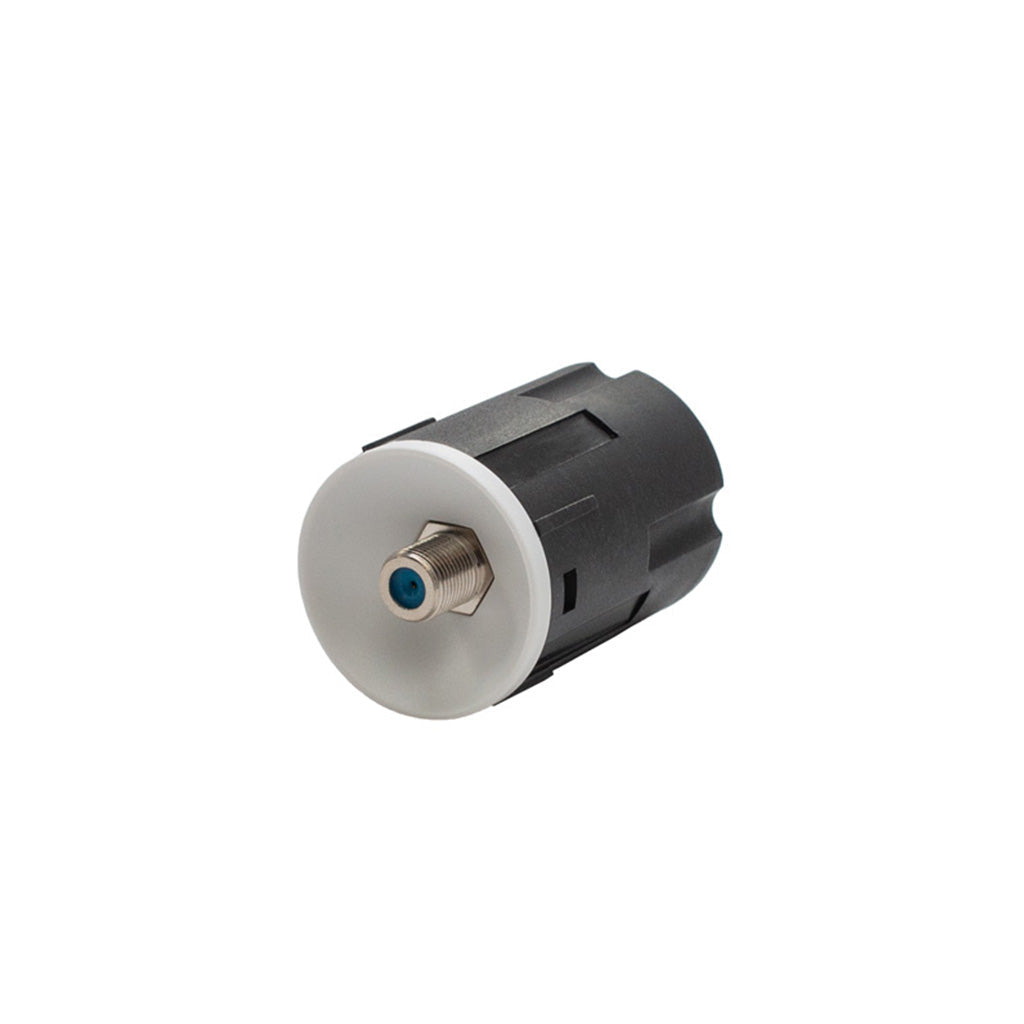

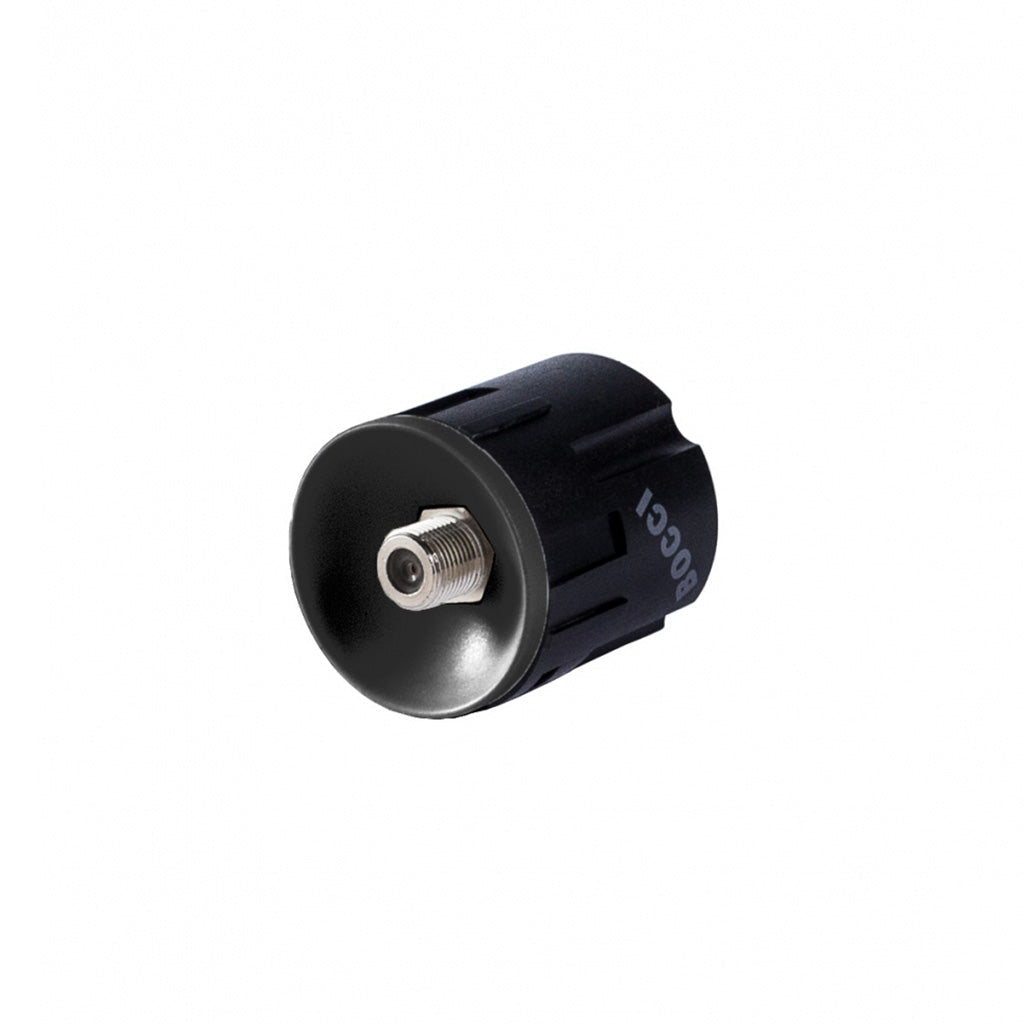

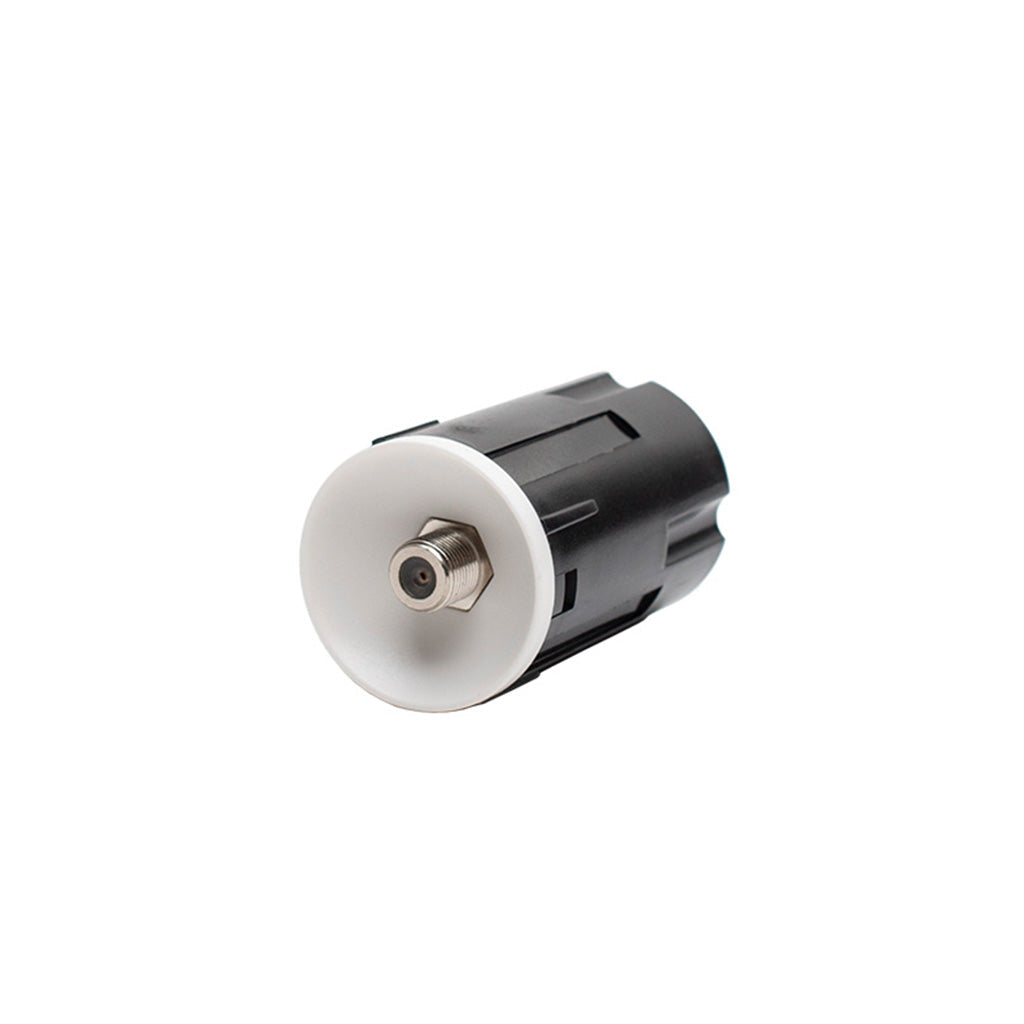

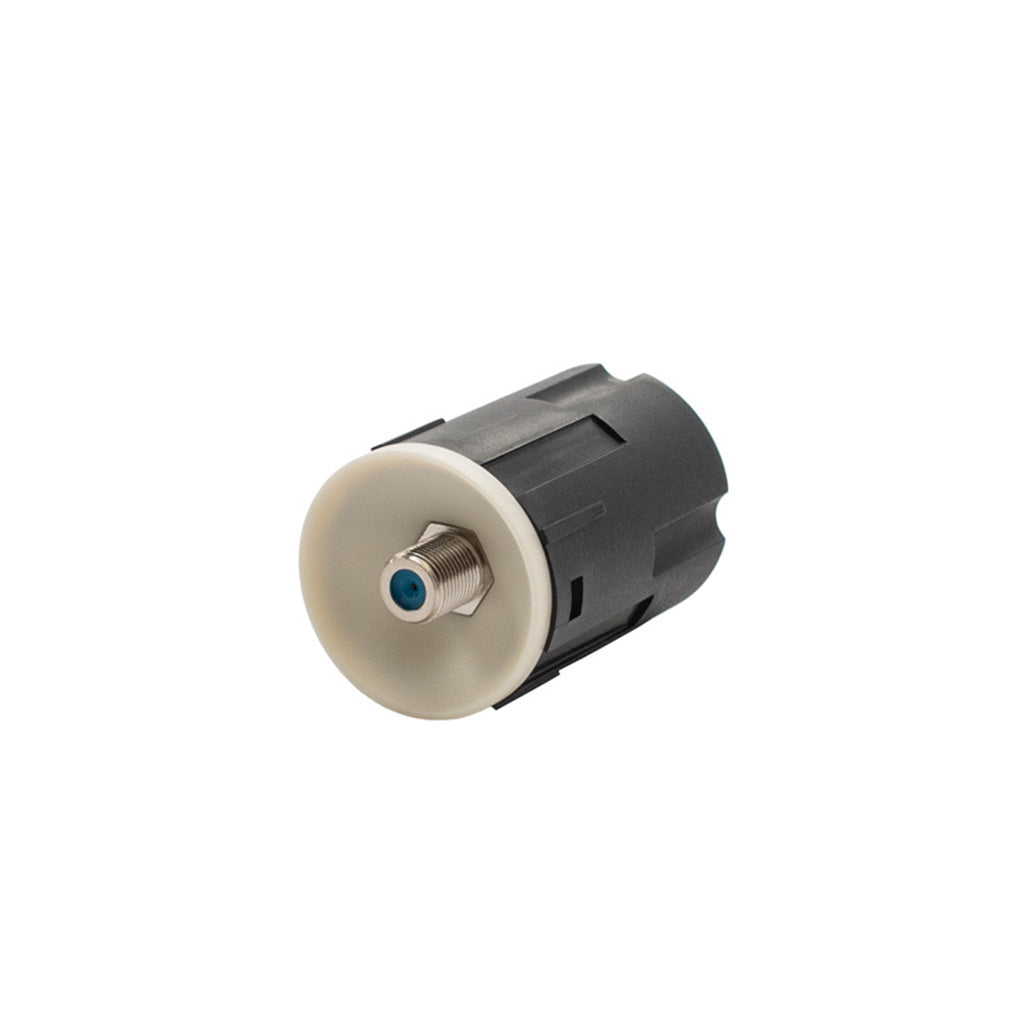

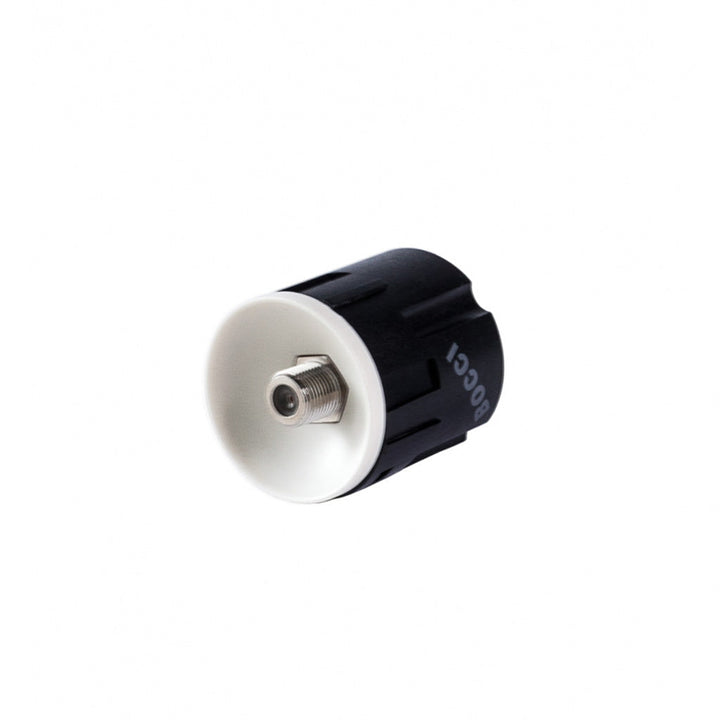

22.3.5 F connector (cable), regular barrel
22.3.5M F connector (cable), medium barrel
22.3.5L F connector (cable), long barrel

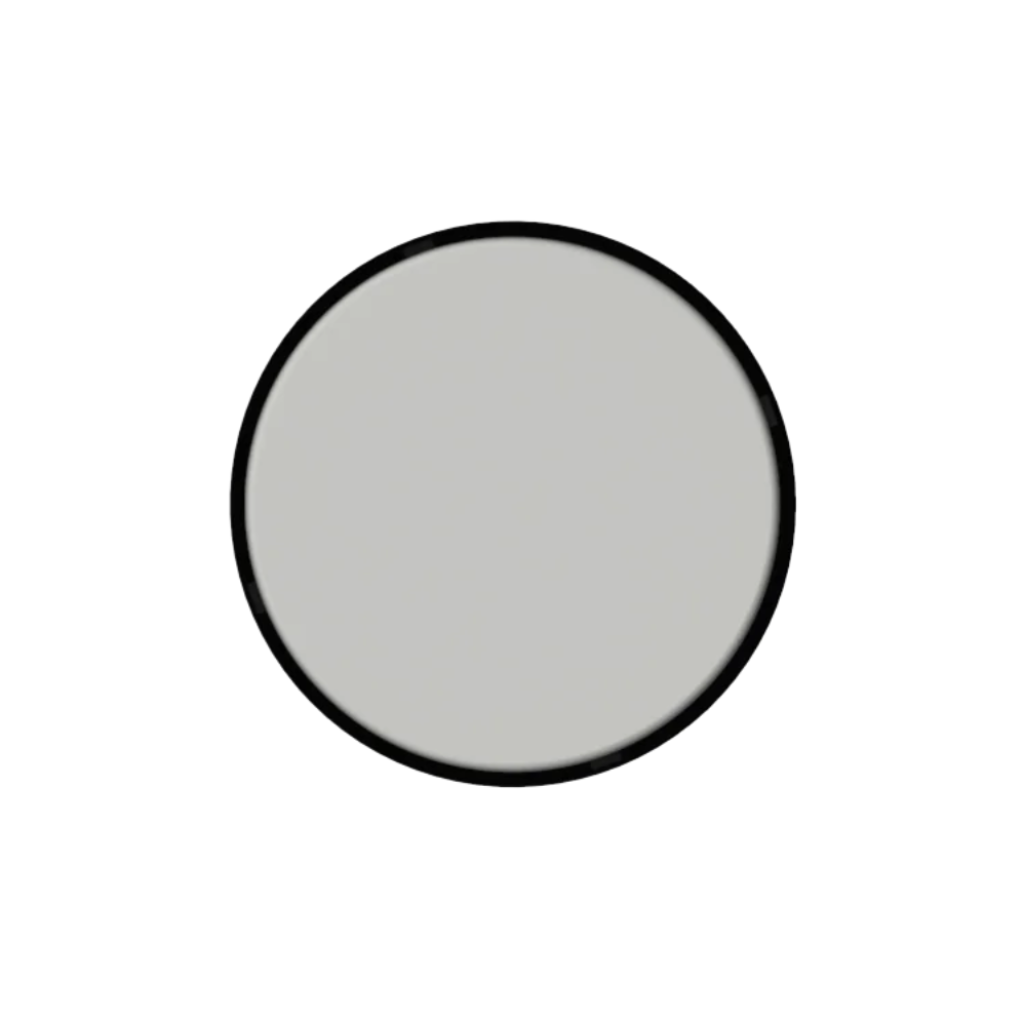

22.3.6 Intelligent control, regular barrel only

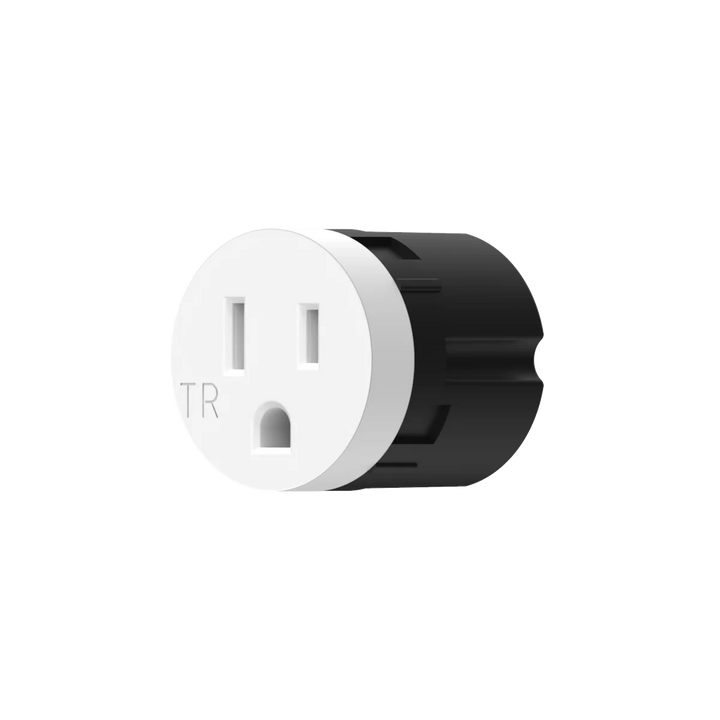

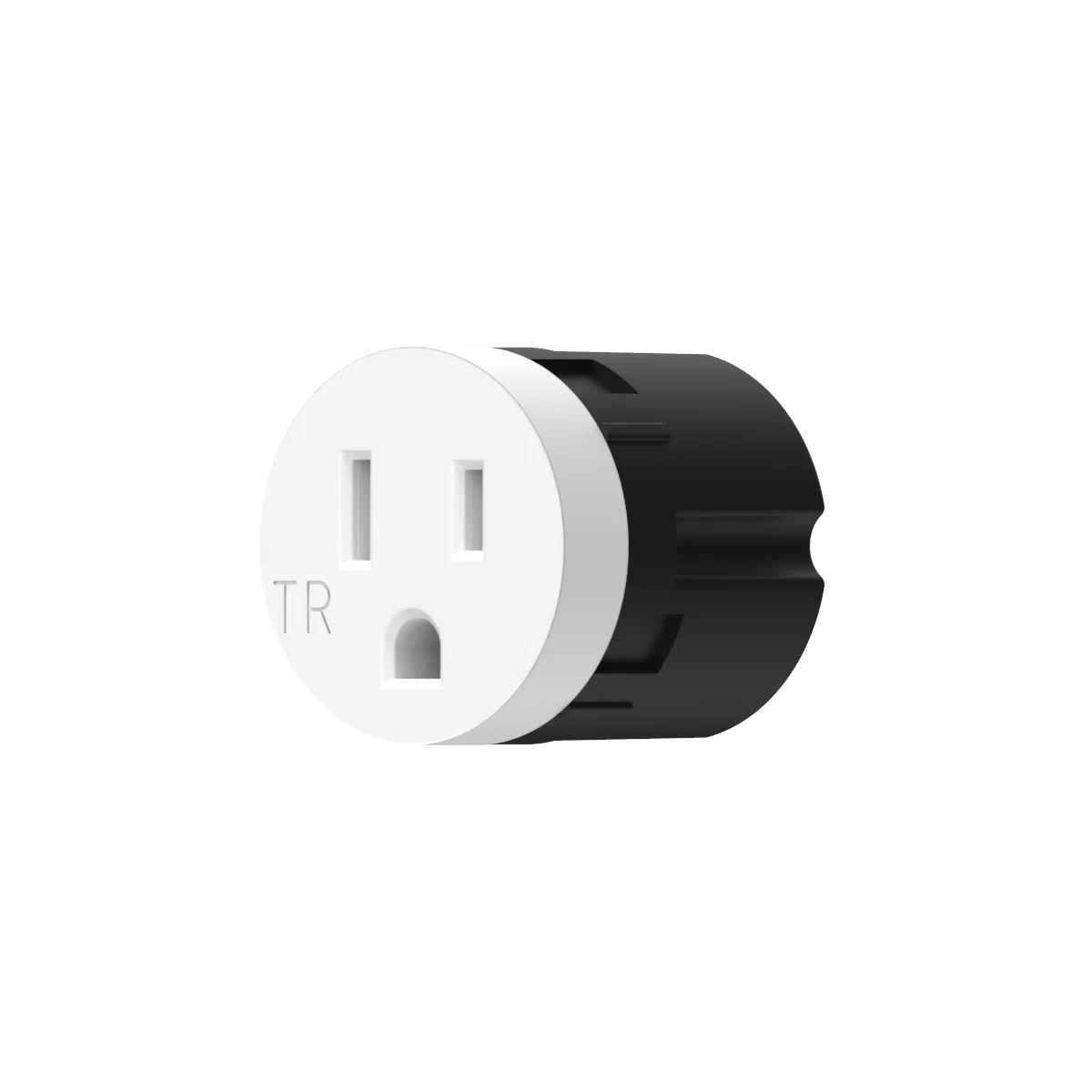

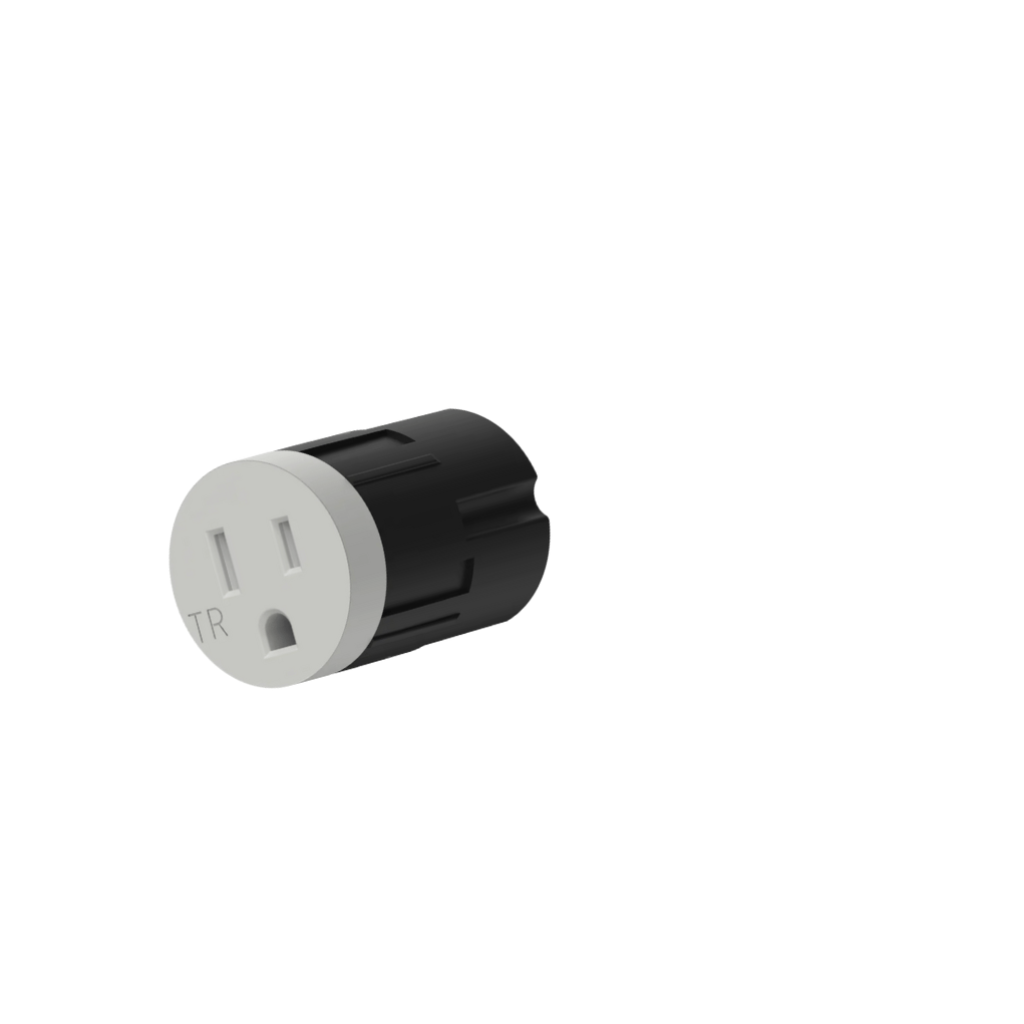

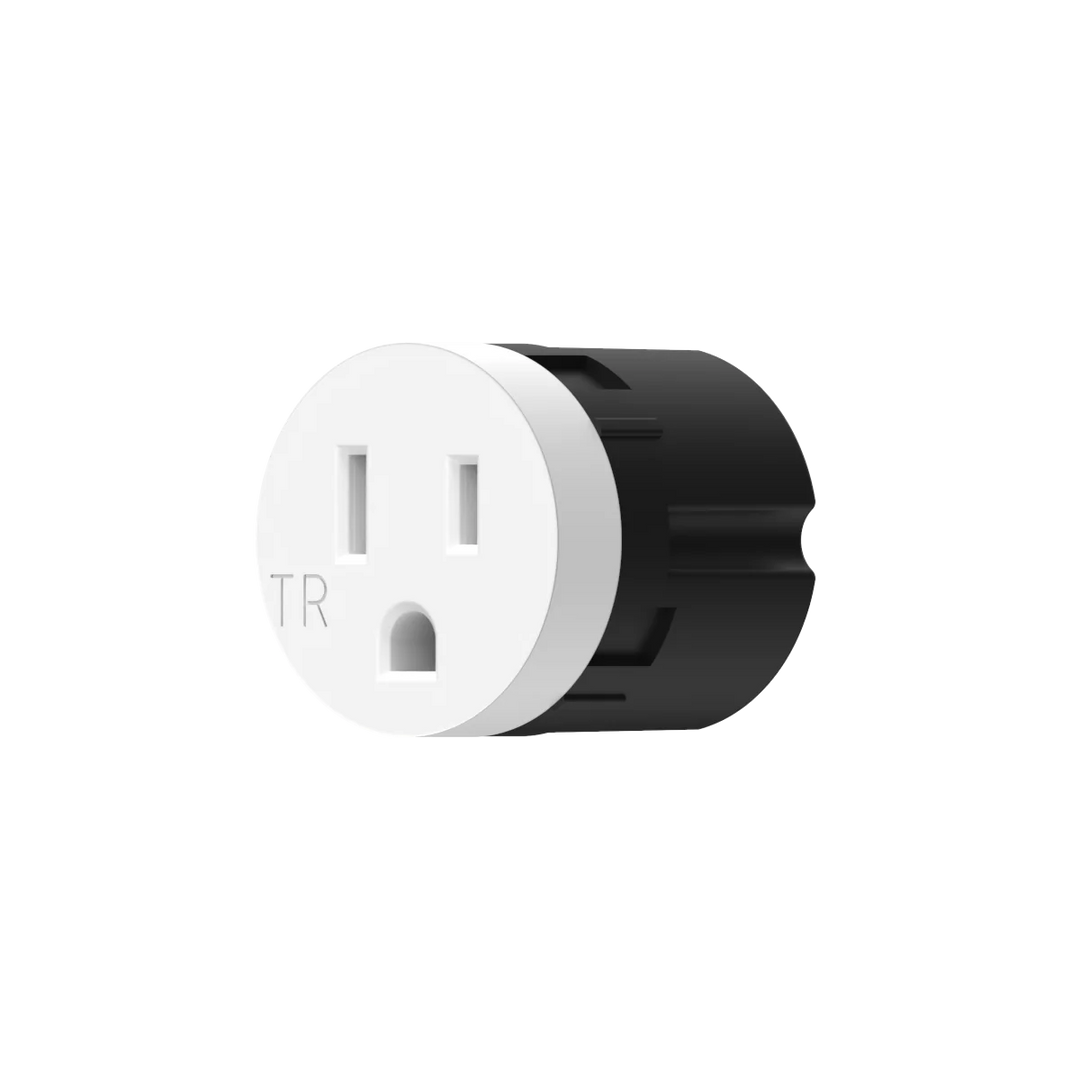

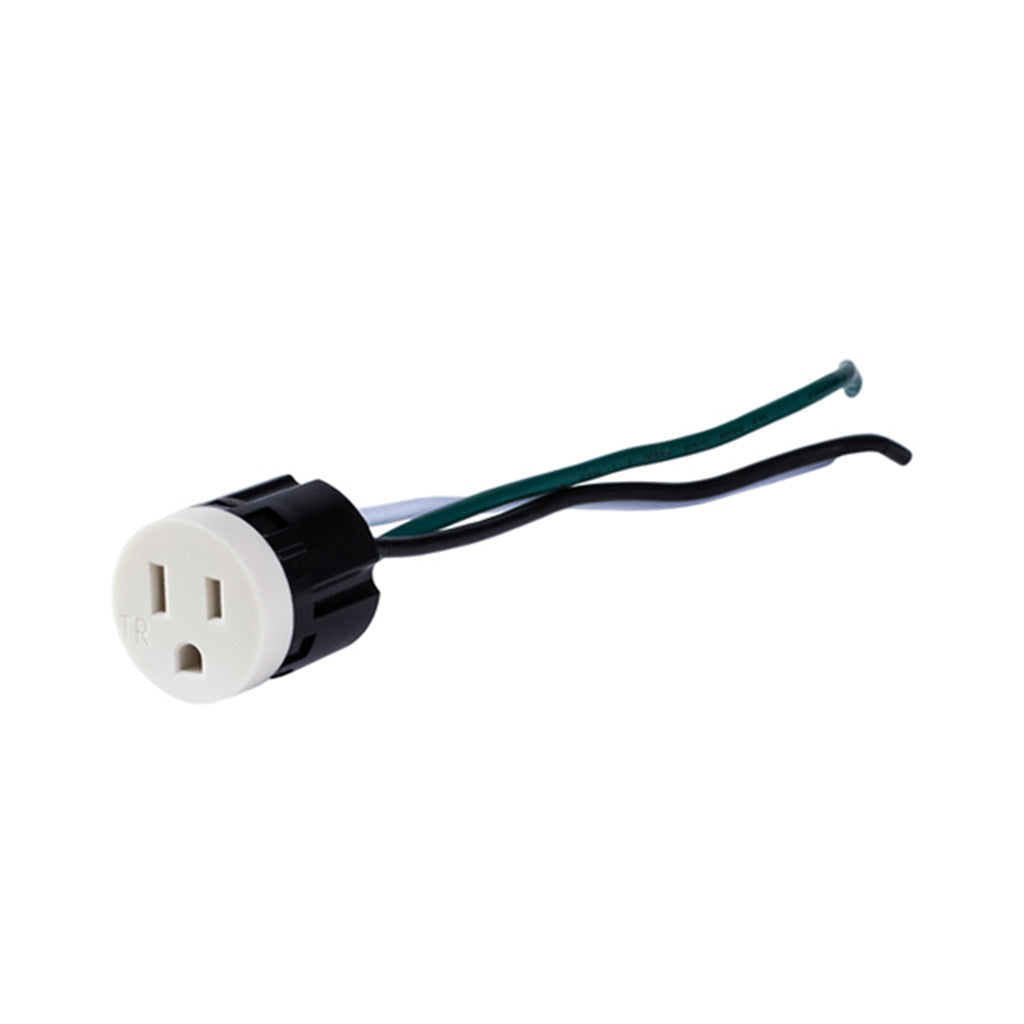

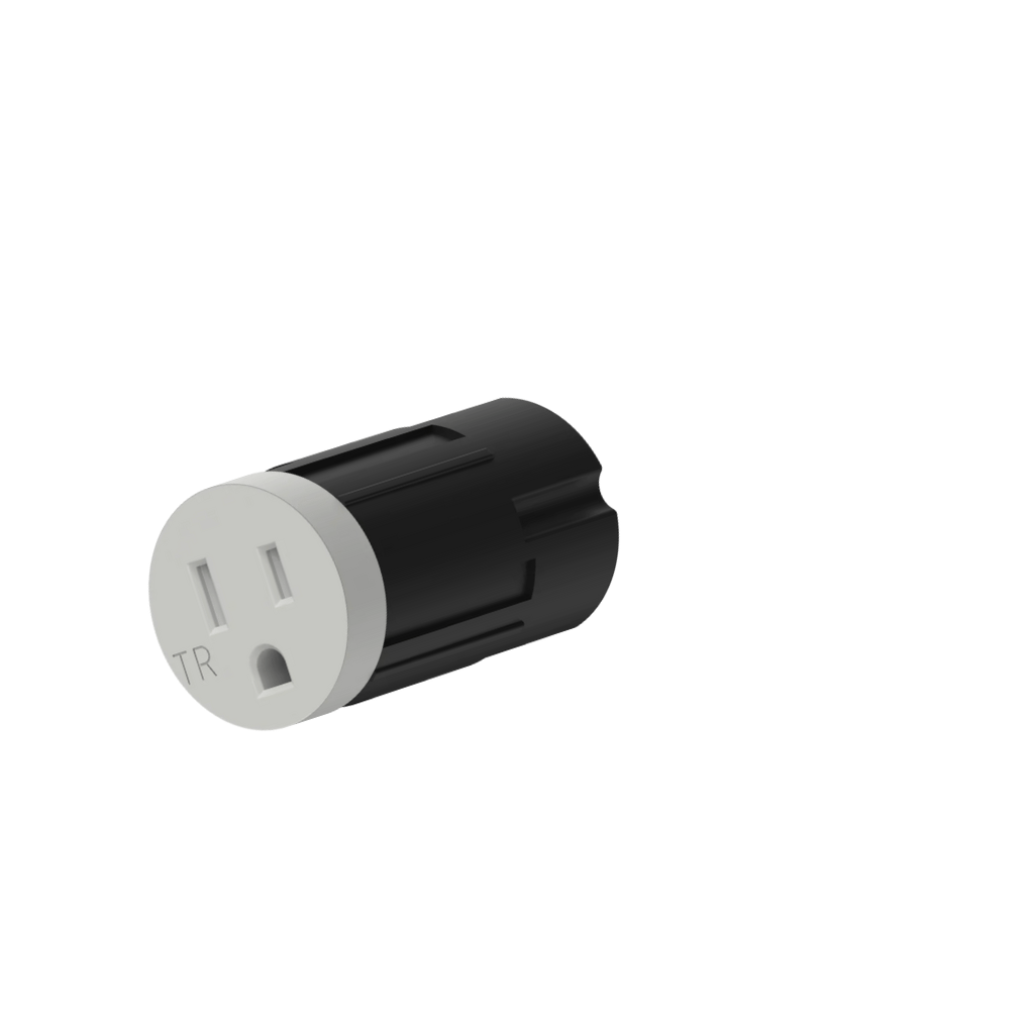

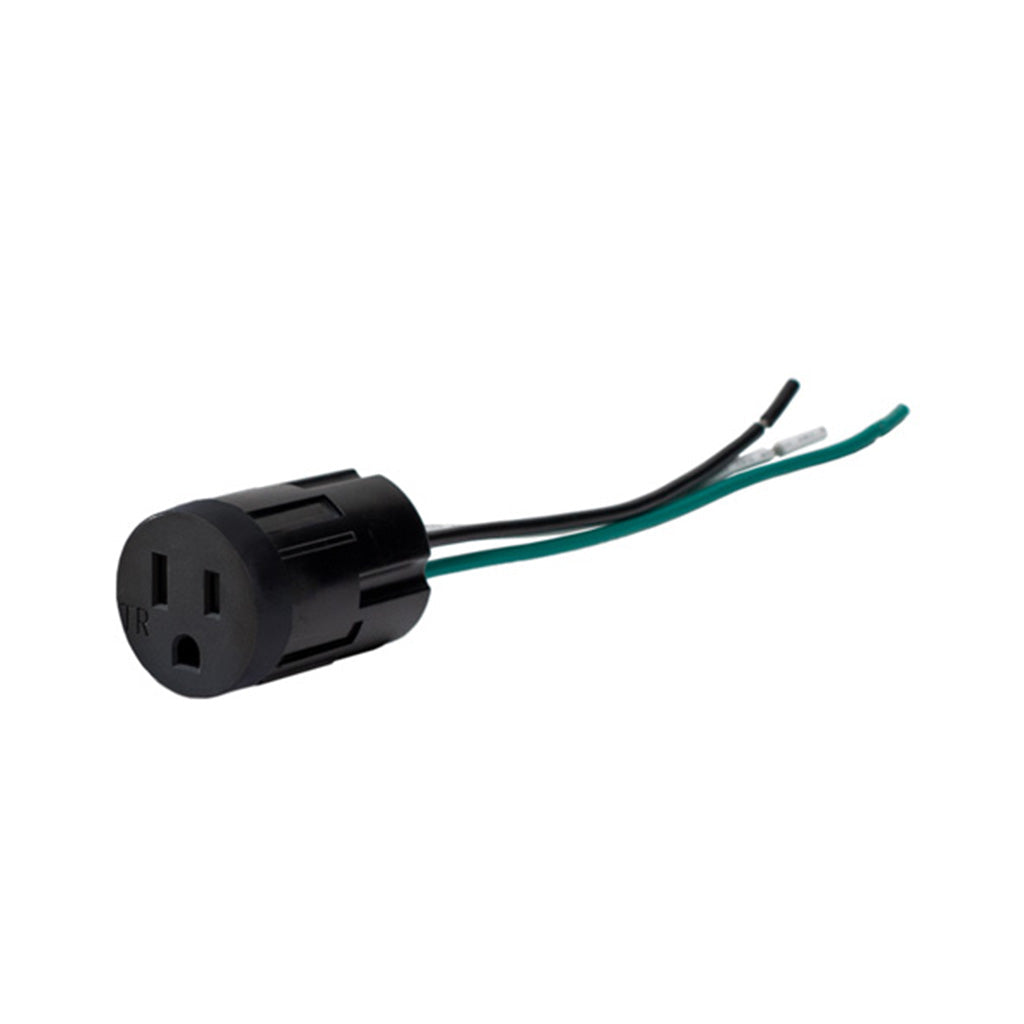

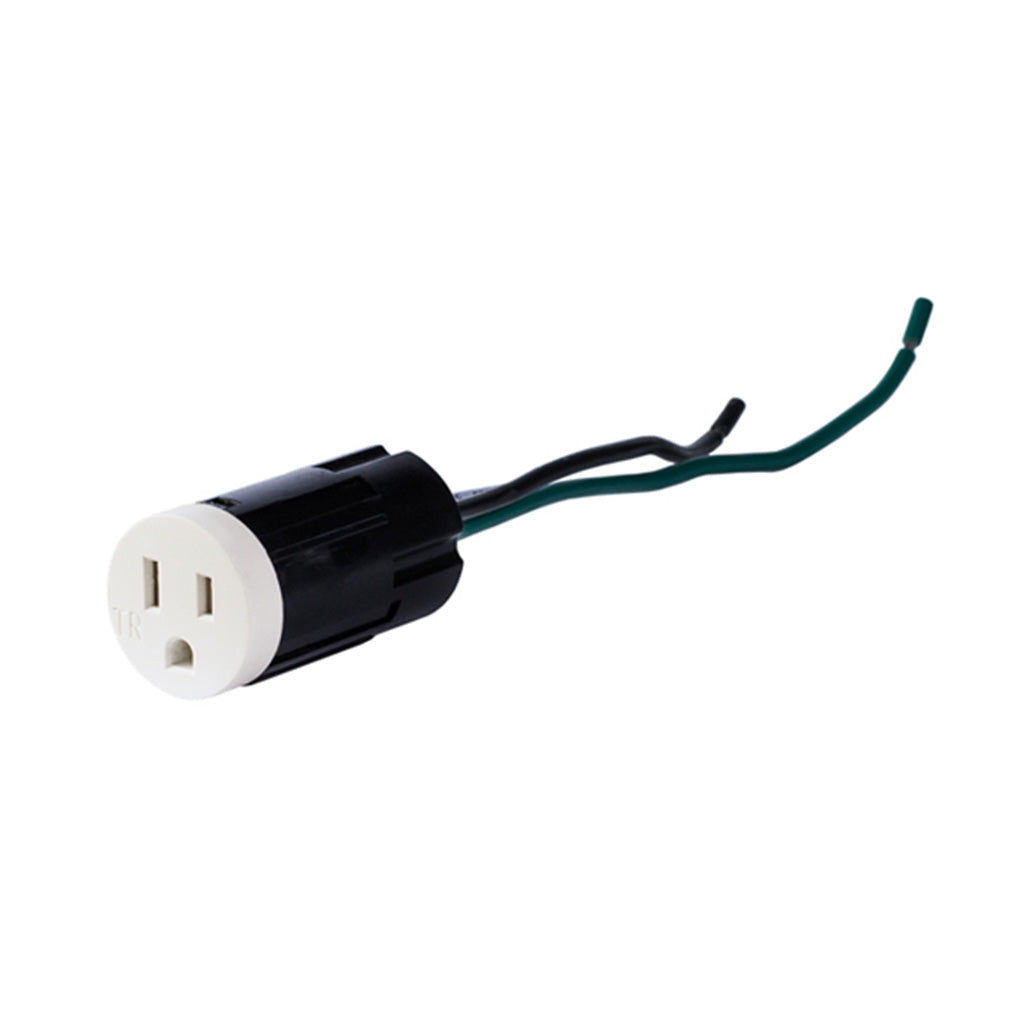

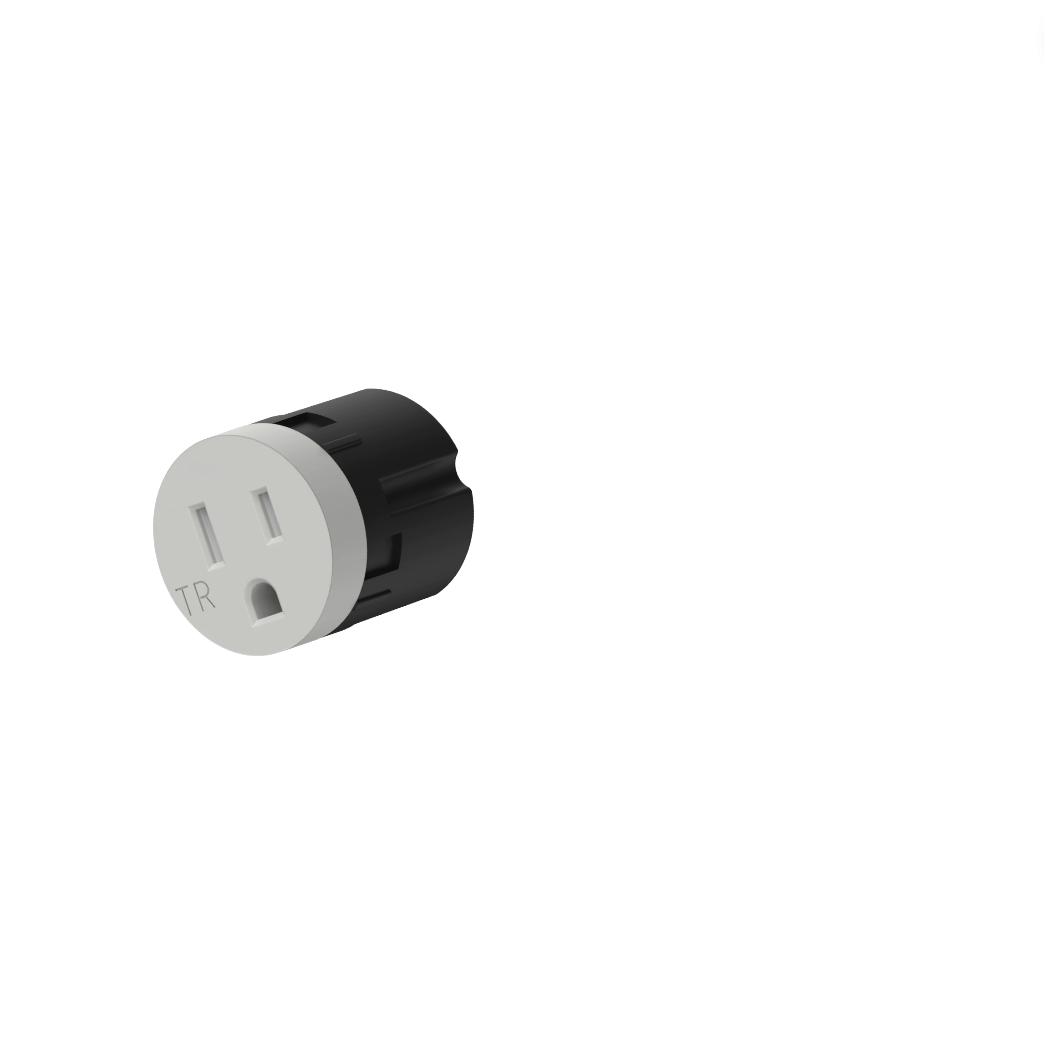

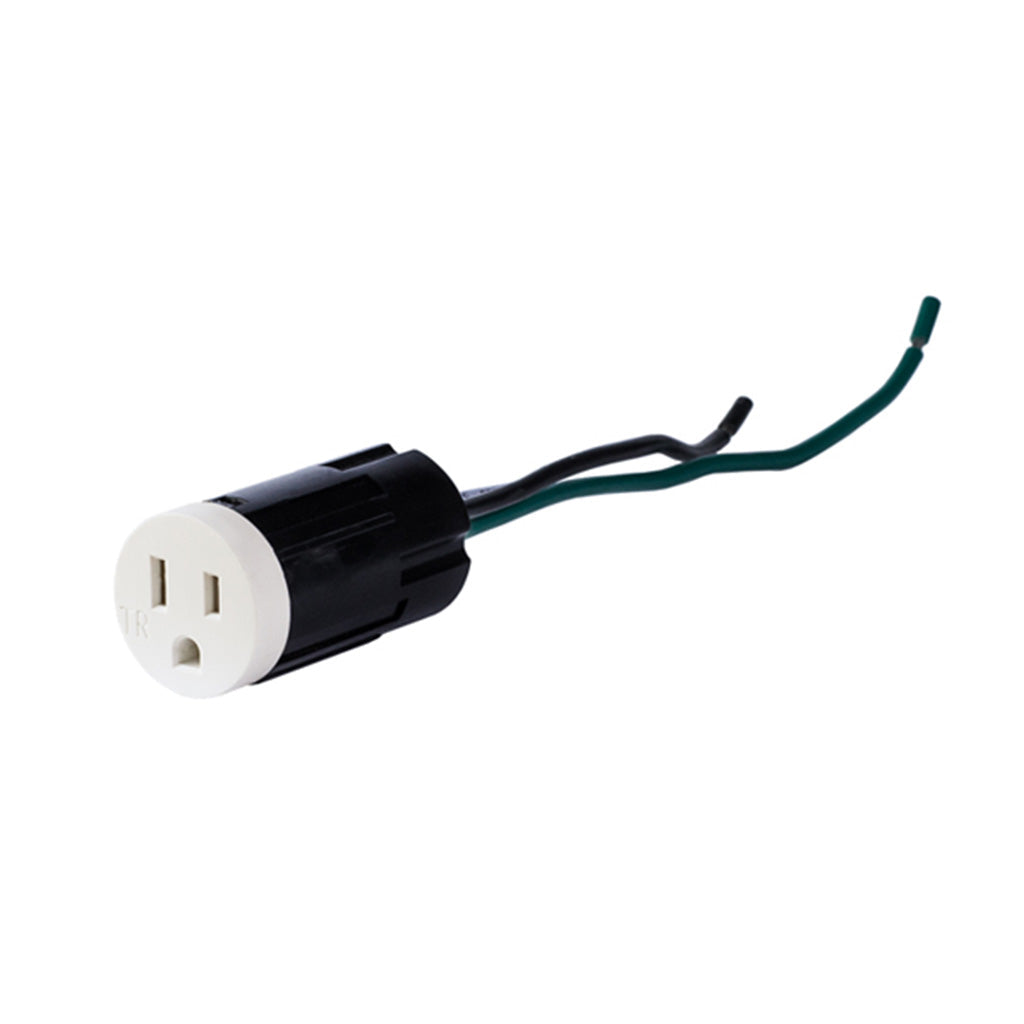

22.3.7 Outlet 15A 120V, tamper resistant, regular barrel
22.3.7M Outlet 15A 120V, tamper resistant, medium barrel
22.3.7L Outlet 15A 120V, tamper resistant, extended barrel

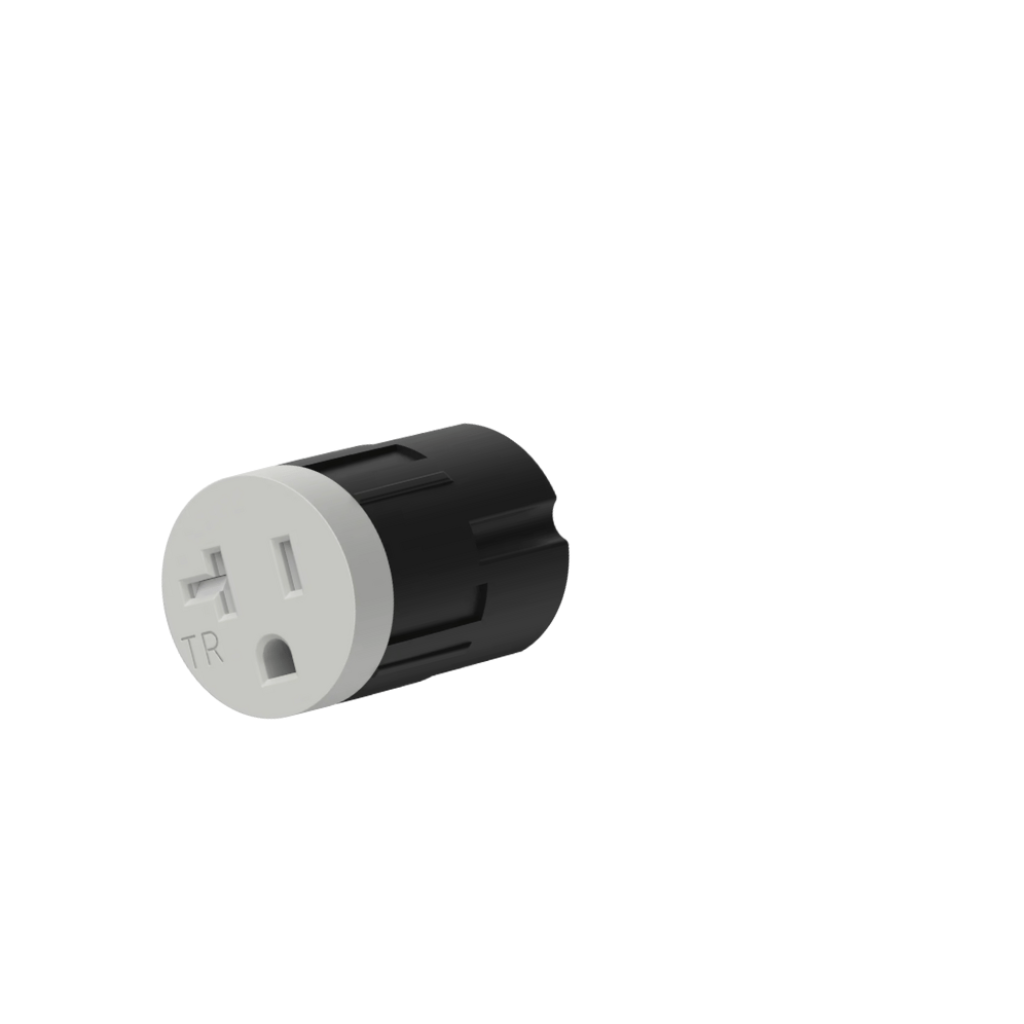

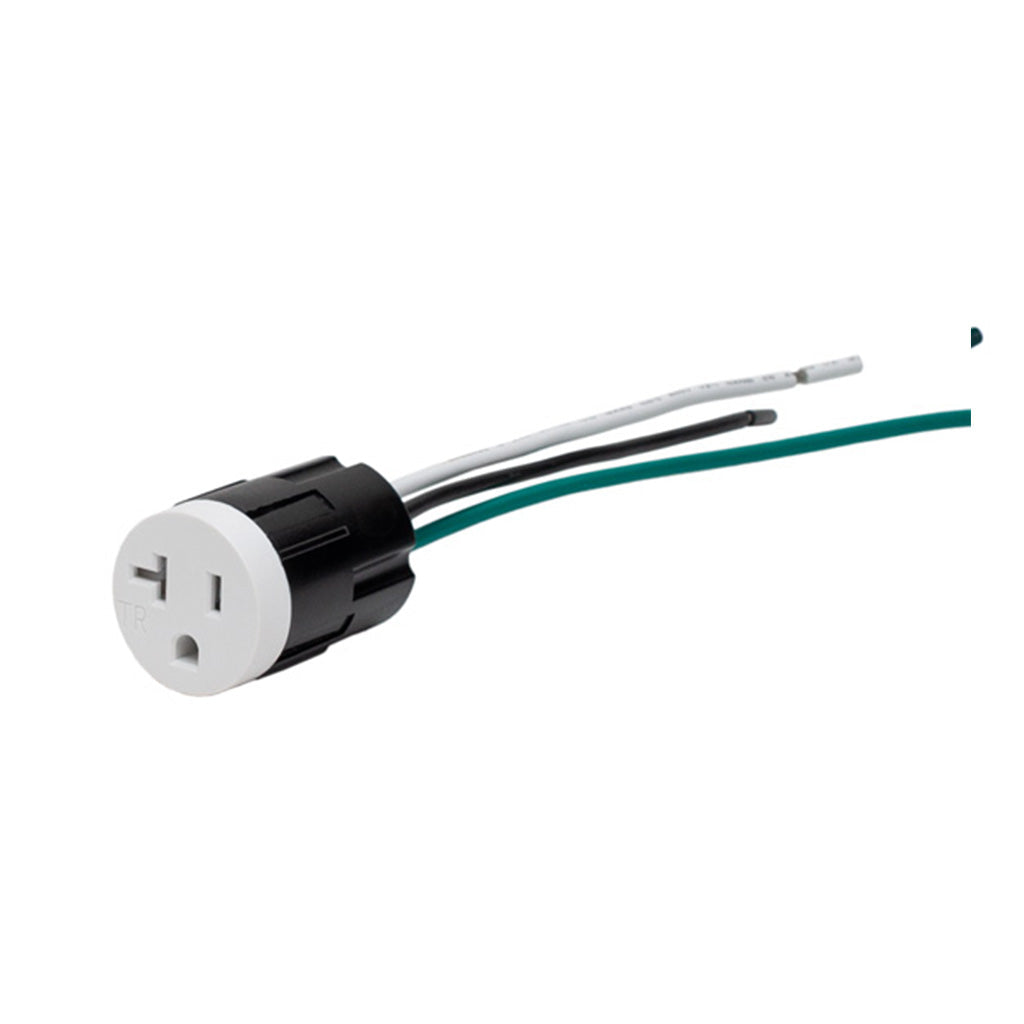

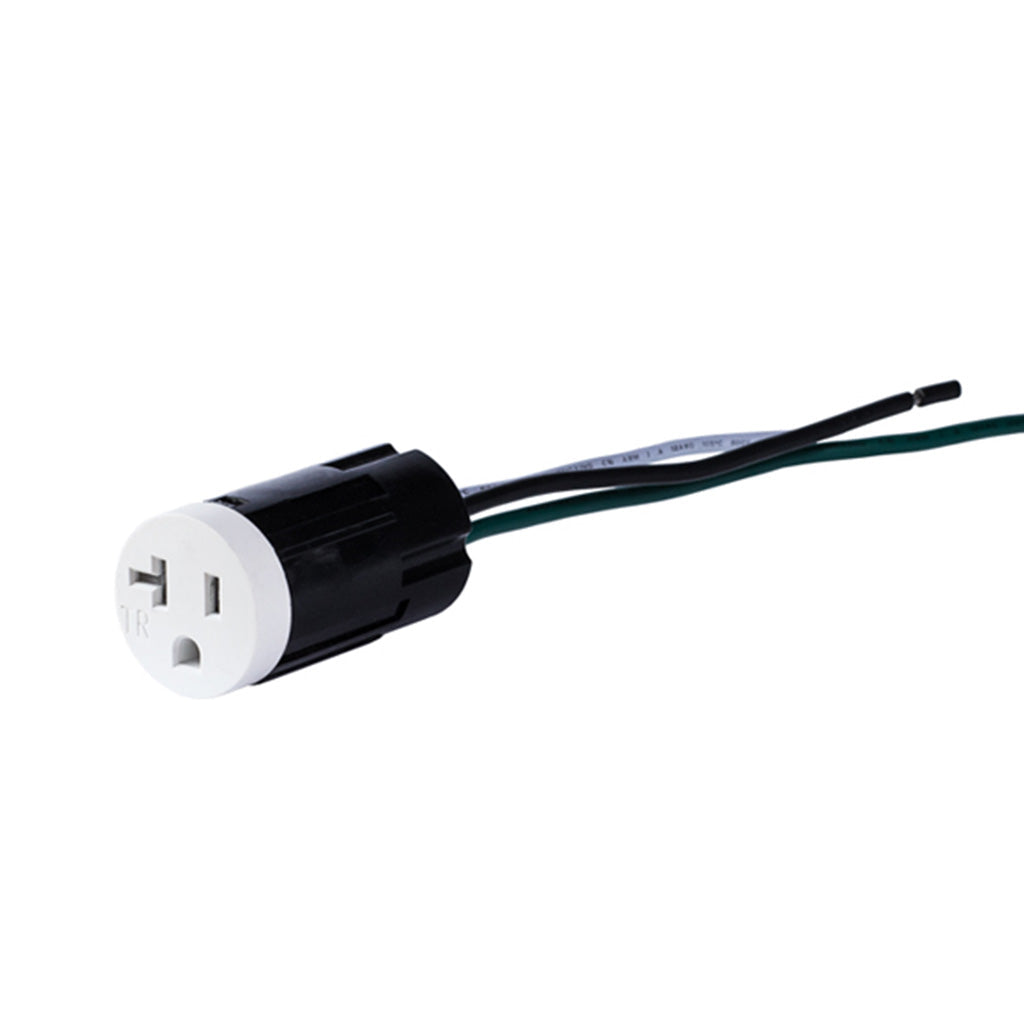

22.3.8 Outlet 20A 120V, tamper resistant, regular barrel
22.3.8M Outlet 20A 120V, tamper resistant, medium barrel
22.3.8L Outlet 20A 120V, tamper resistant, extended barrel

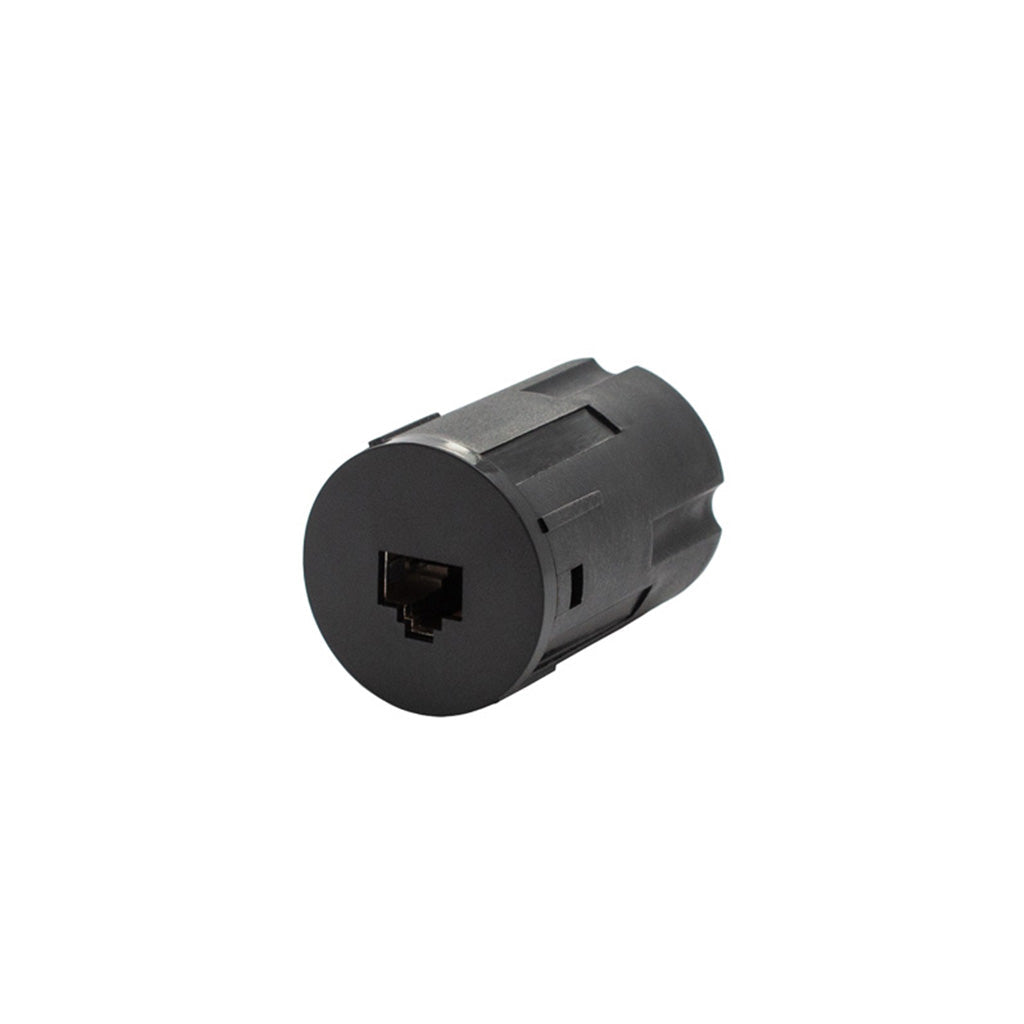

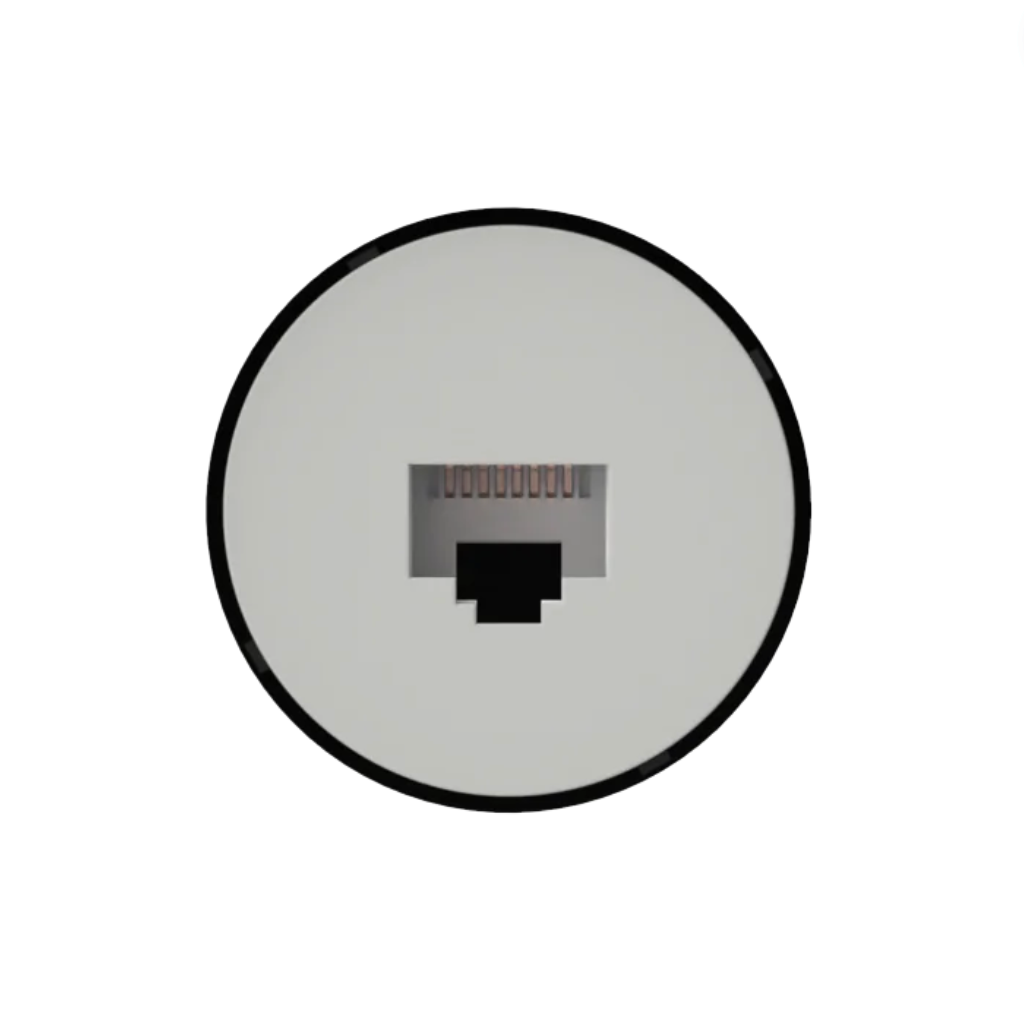

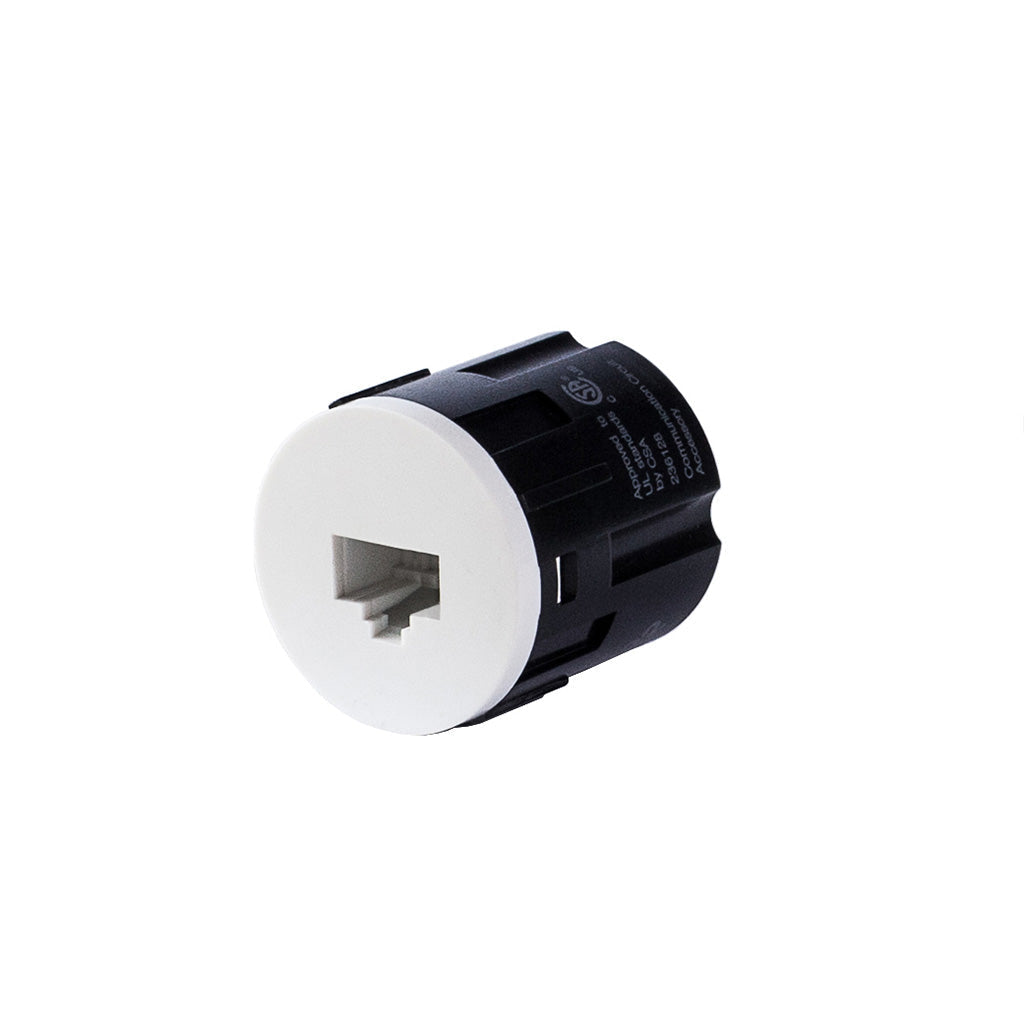

22.3.9 CAT6 (data), regular barrel
22.3.9M CAT6 (data), medium barrel
22.3.9L CAT6 (data), long barrel

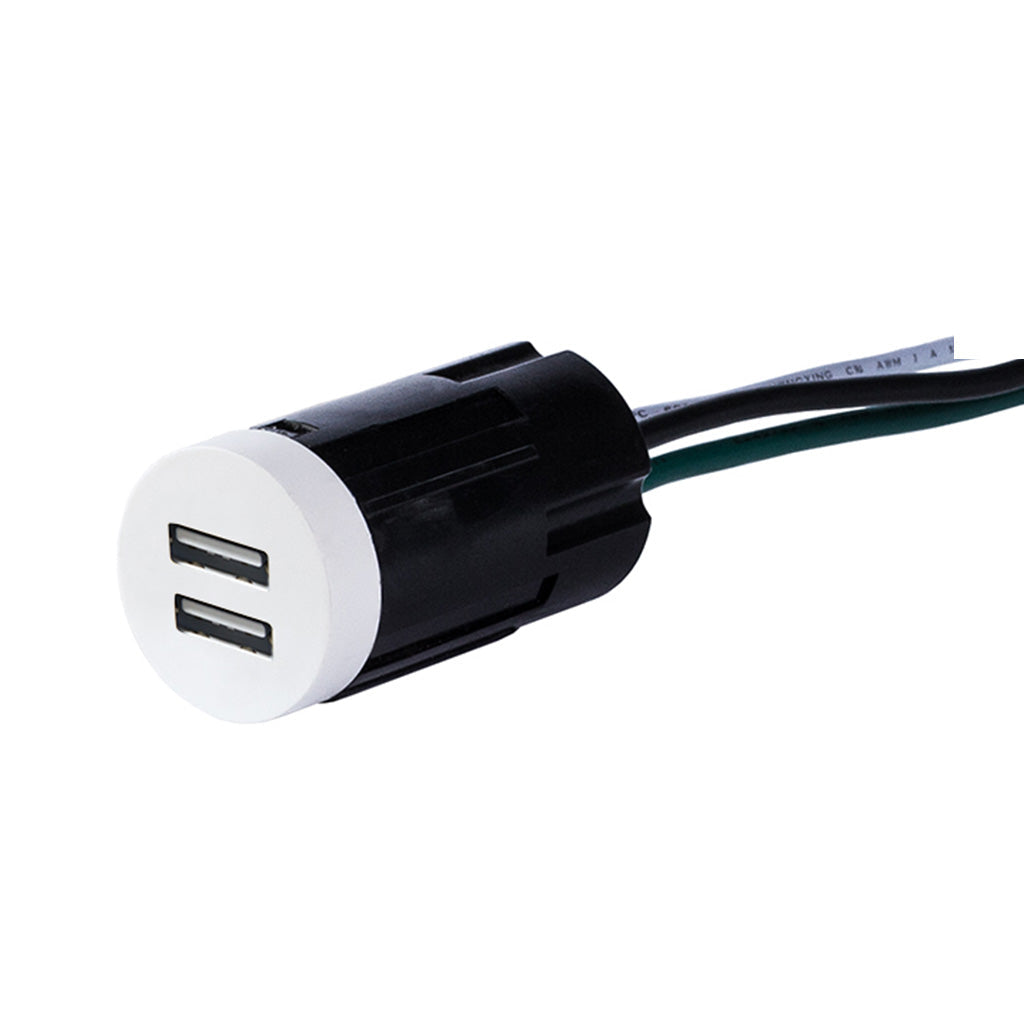

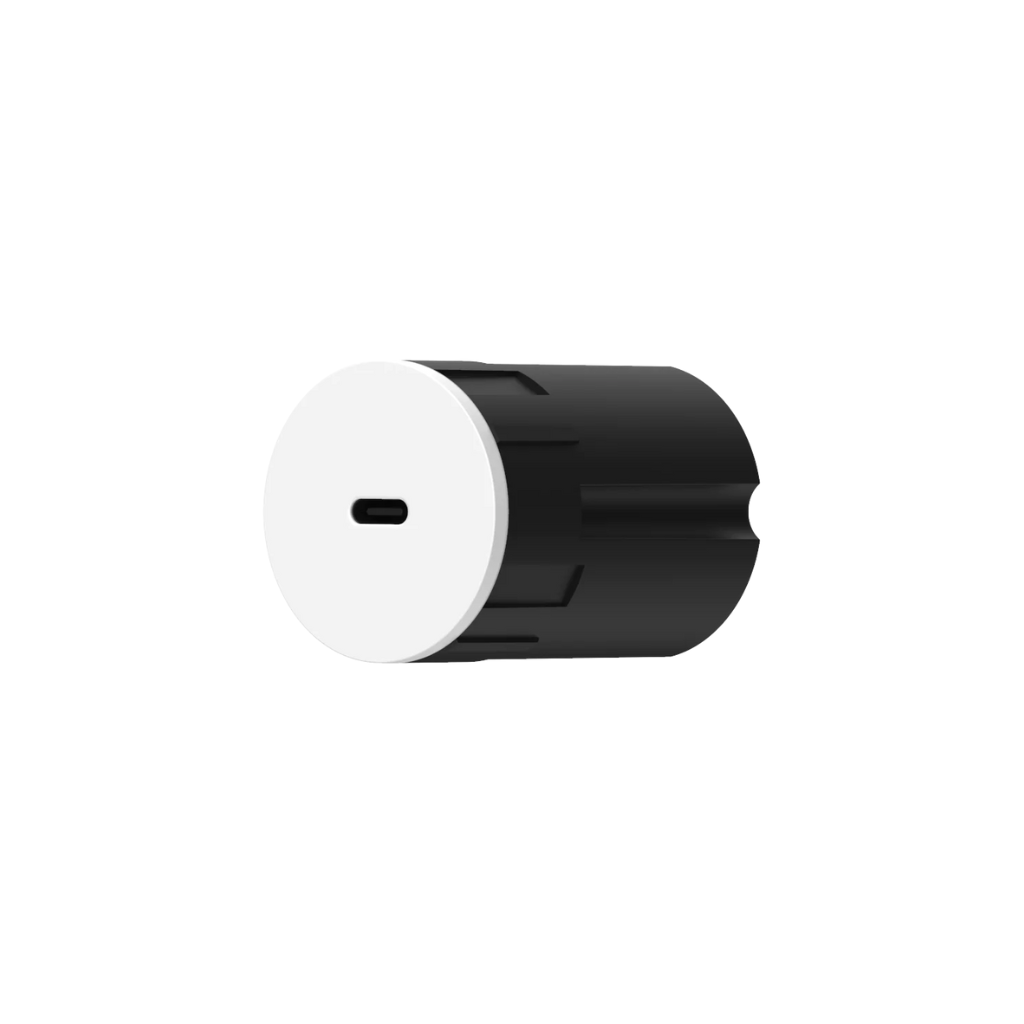

22.3.10 USB, regular barrel
23.3.10L USB, long barrel (8-12 week back order)

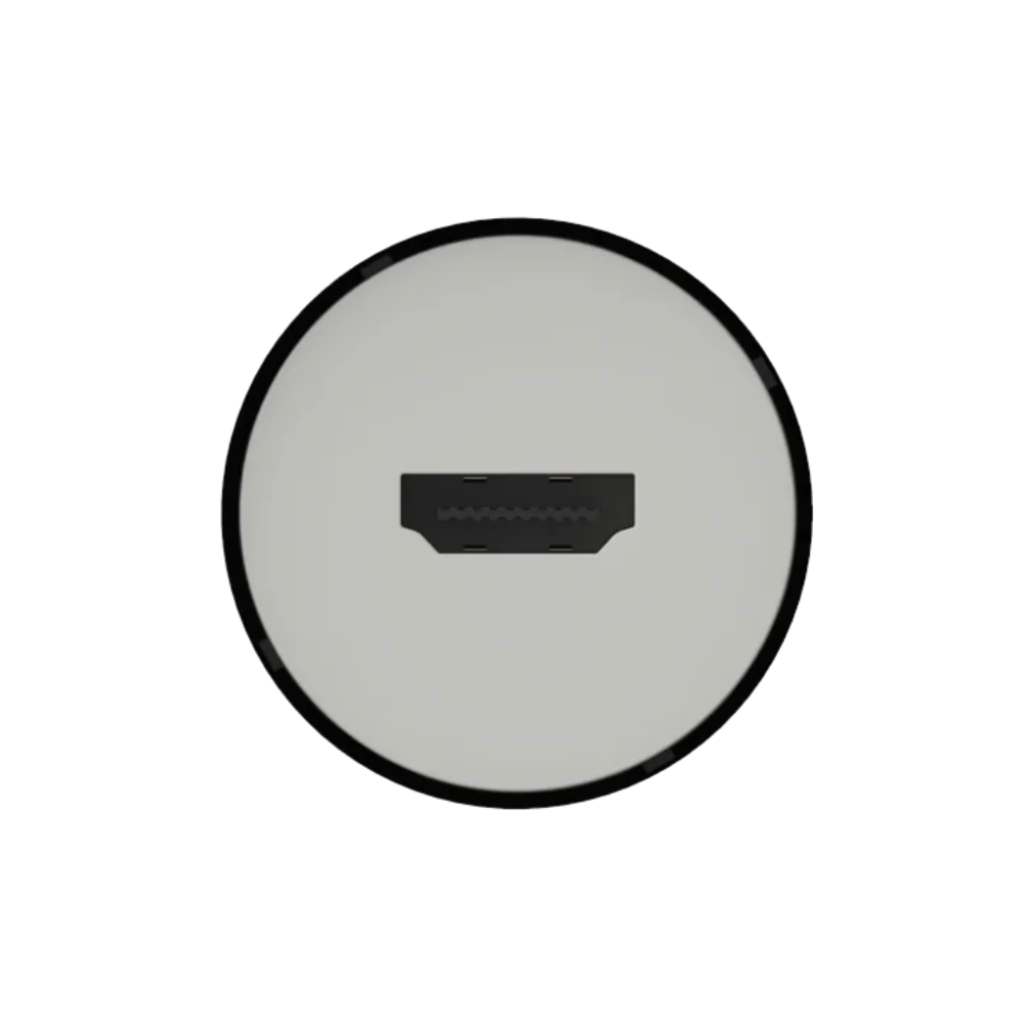

22.3.12 HDMI, regular barrel
22.3.12M HDMI, medium barrel
22.3.12L HDMI, long barrel
See full Technical Specification sheets below.
Polycarbonate casing, electrical components.
Available in three finishes:
Black RAL 9017
Almond RAL 1013
White RAL 9016
Grey RAL 7038
To determine which Bocci items are best for your application, please review the following questions and watch these videos for both Drywall and Alternate Installation:
View our Drywall installation video or Alternate installation video or download the installation instructions in the Product Downloads Section above.
Yes, the 22 System is CE compliant and UL certified. The 22 System is designed following UL standards 498 and 514D and the National Electrical Code (NEC 2020, NFPA 70).
Please view the 22 System UL certification here.

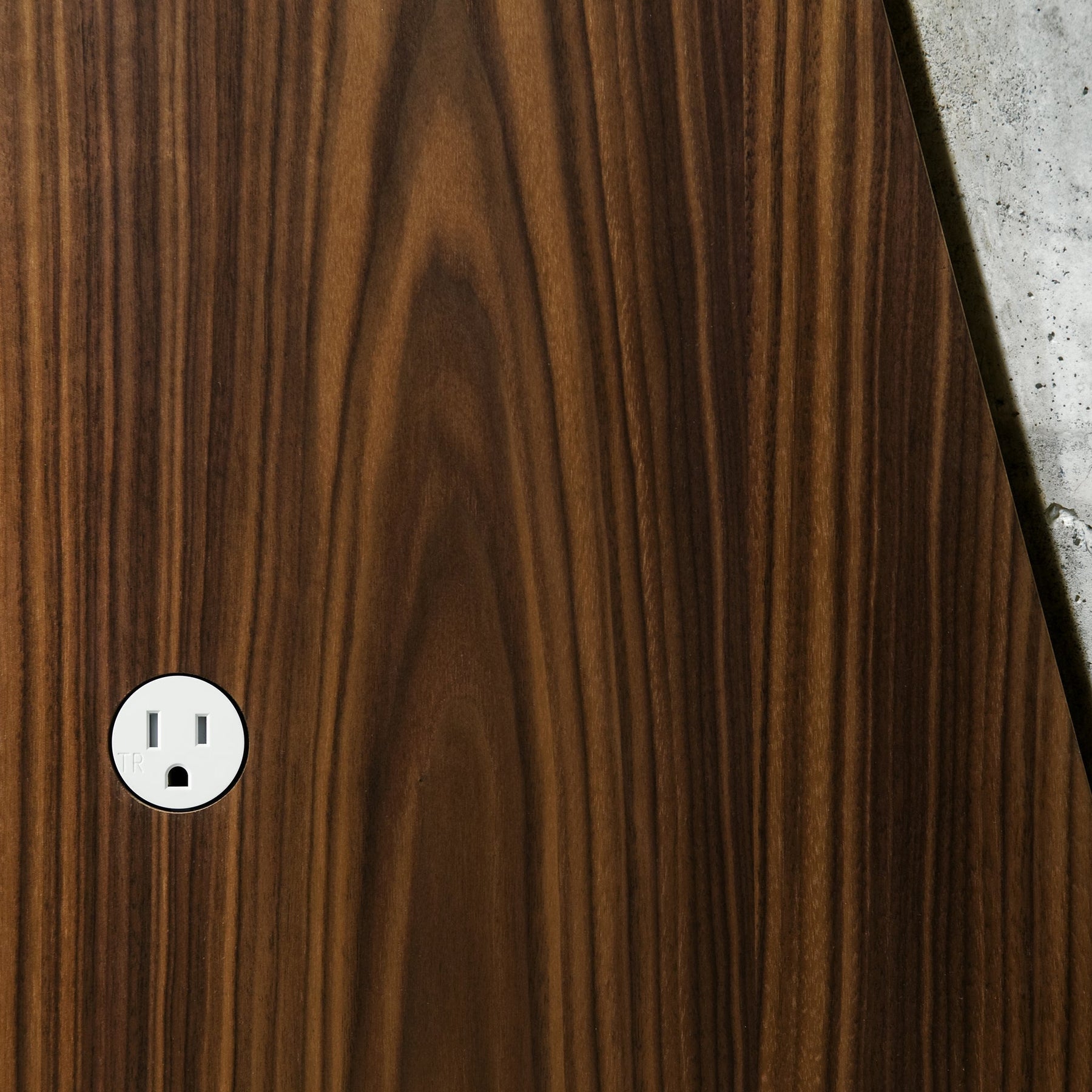

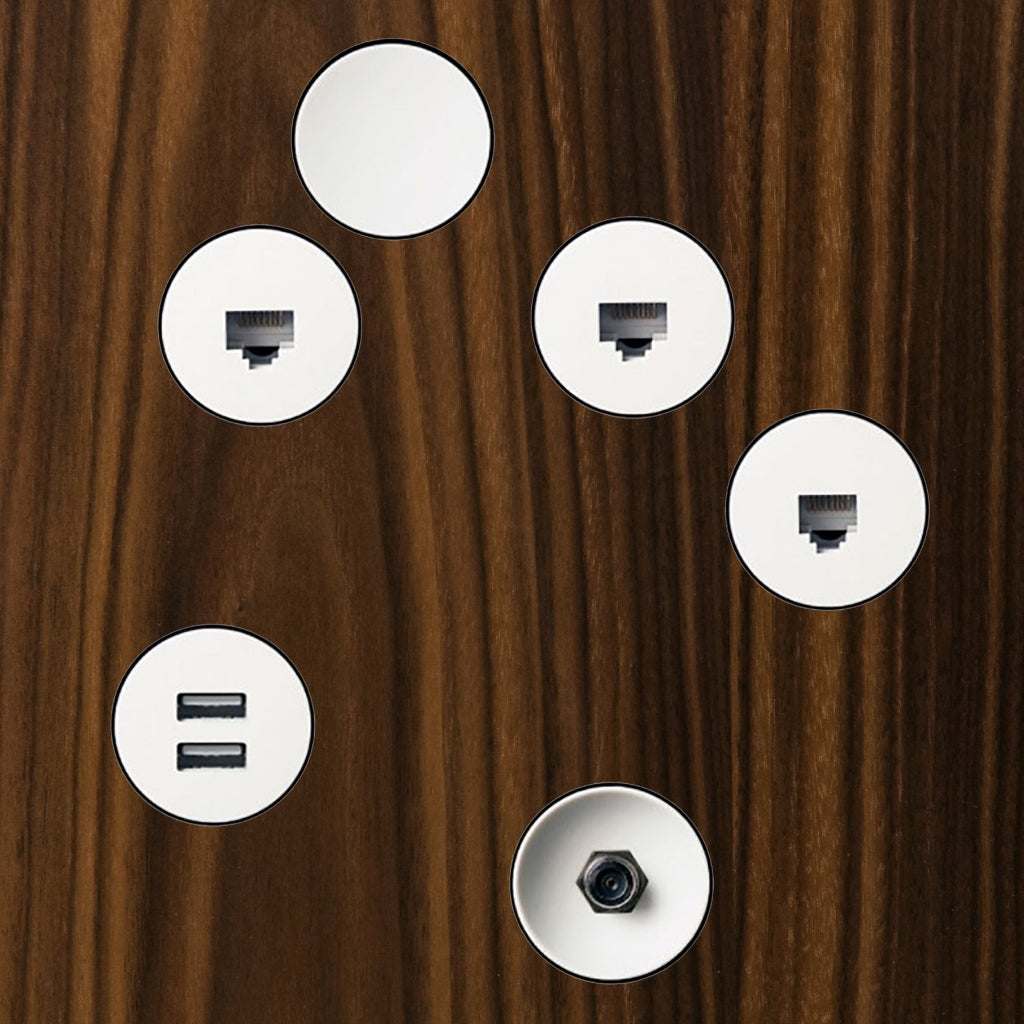

Any surface; from drywall to millwork, concrete, tile, stone, glass, etc. There are two assembly options, one appropriate for drywall and one appropriate for all other surfaces.
Bocci 22 System comes in white, almond and black. View colour options
For larger volumes, Bocci can sometimes work on custom colours or finishes to match your surface. Please contact us for more information.

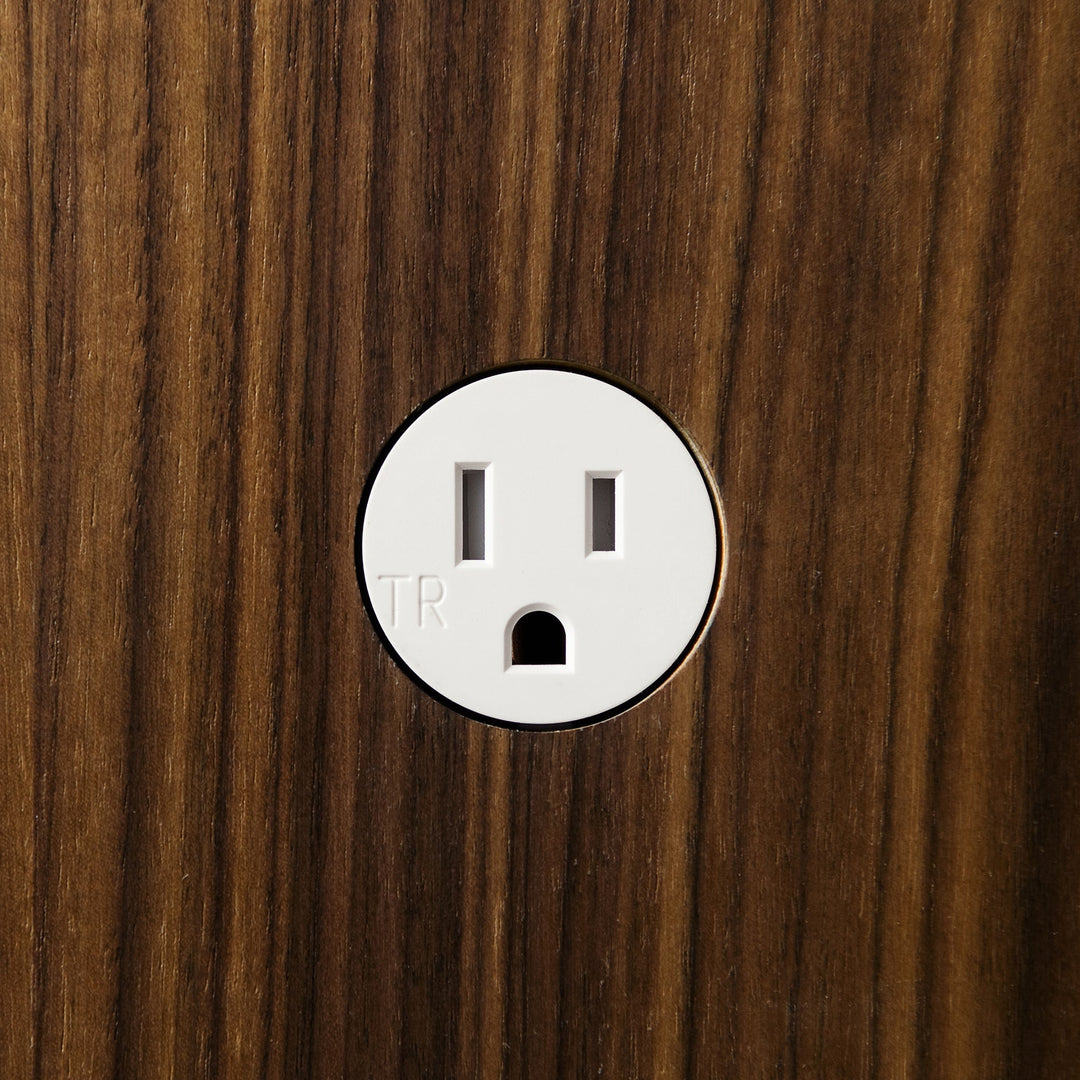

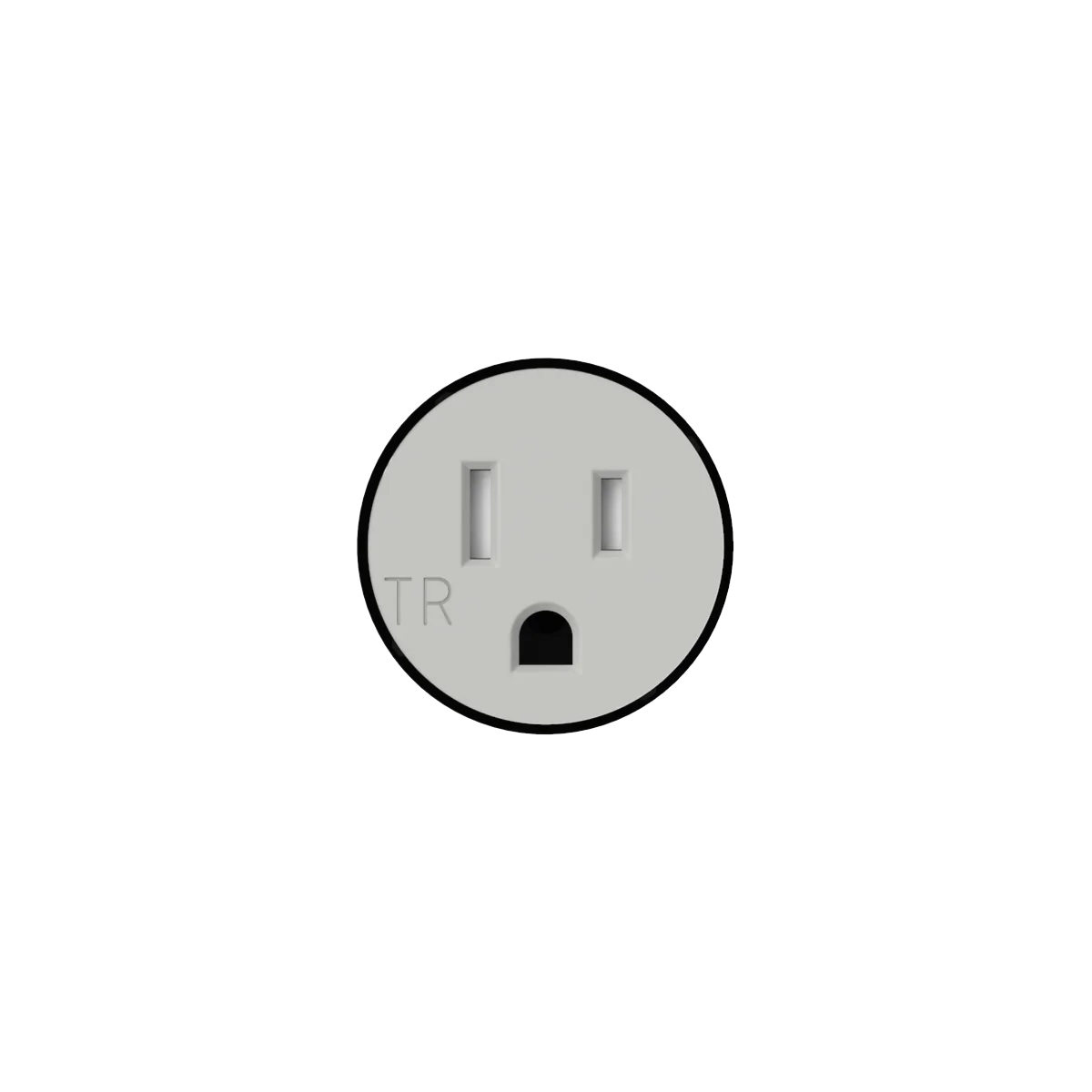

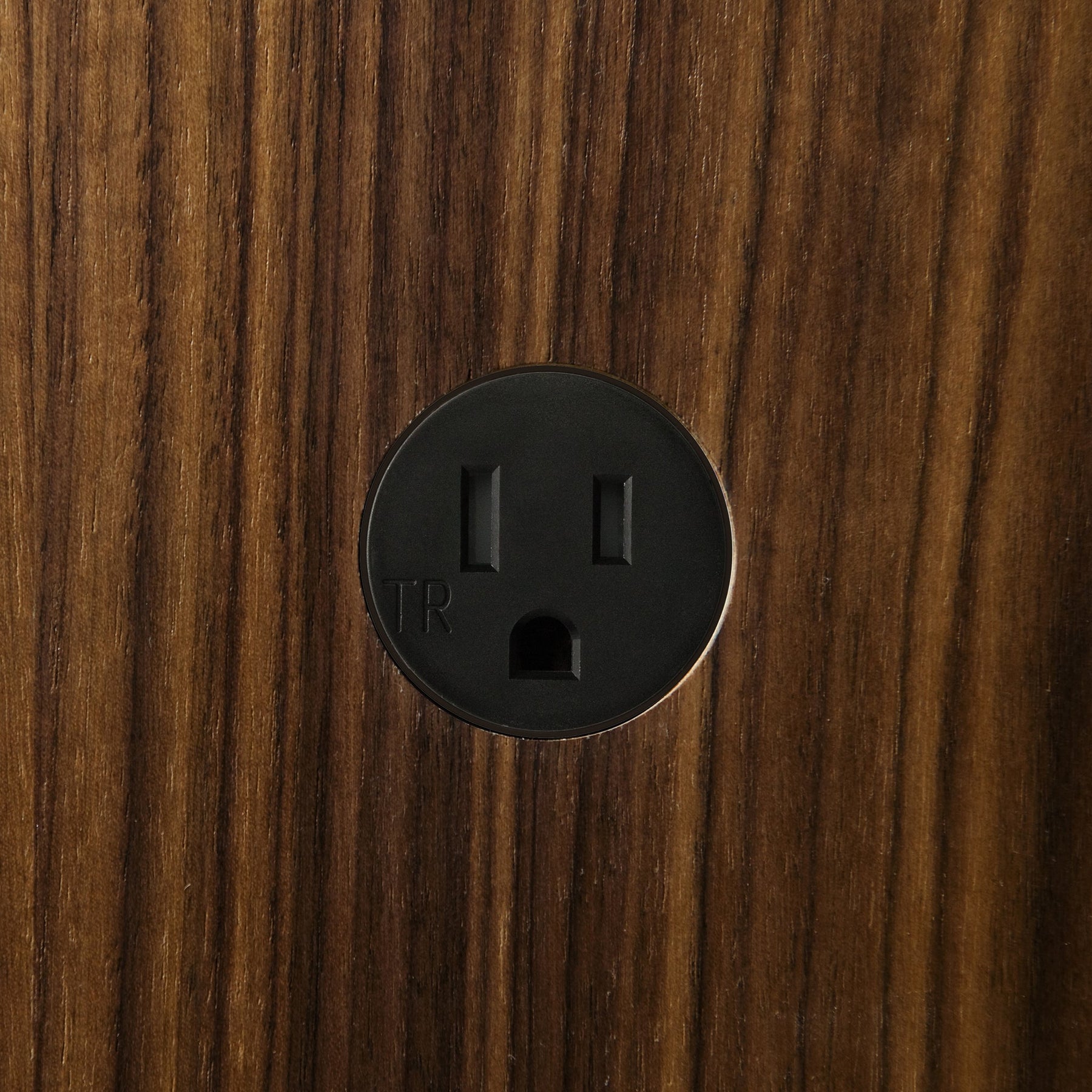

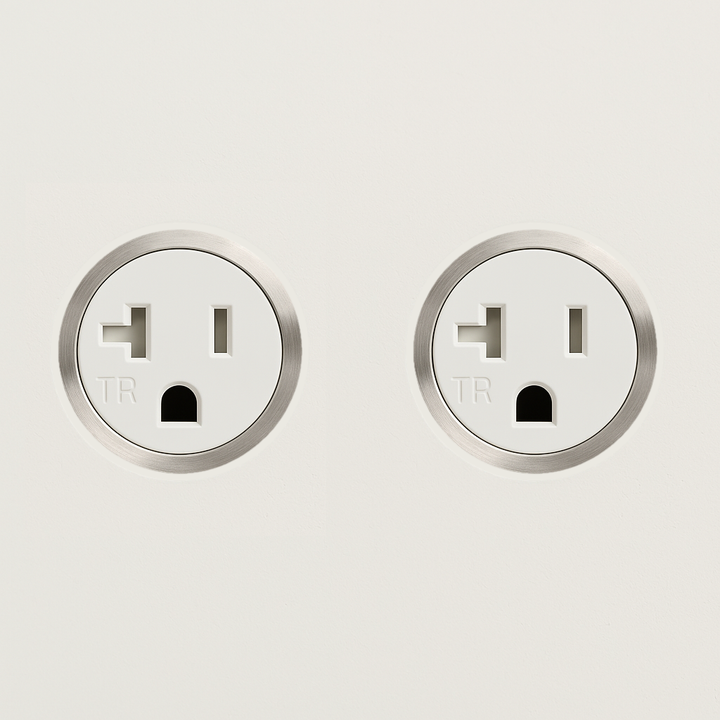

Yes, 22 System outlets are tamper resistant and bear the "TR" marking on the outlet face.
Standard depth junction boxes are compatible with 22 System mounting plates. Junction boxes must have two screen holes (one at the top and one at the bottom) in the middle plane from the two edges. The spacing between these two screw holes should be 83 mm (+/- 0.5 mm).
Please see the alternate selection chart to guide you through determining which option would work best for your individual site needs.
While we Bocci 22 does not offer a GFCI outlet, code can be reached by using the TR outlet in conjunction with an independently sourced GFCI remotely installed in the panel. Please consult with a certified electrician for more information.
Yes, an installation tool is required for all 22 System installations to access the junction box wiring. Our 22.1 installation tool is compatible with all component depths.
You can mix the components as long as your junction box is equipped with a “permanent barrier” or listed divider. The raceway system to access the junction box should also be separated. For more information please refer to the National Electric Code (NEC 2008: Article 800.133 Exception #1 and Article 620.36).

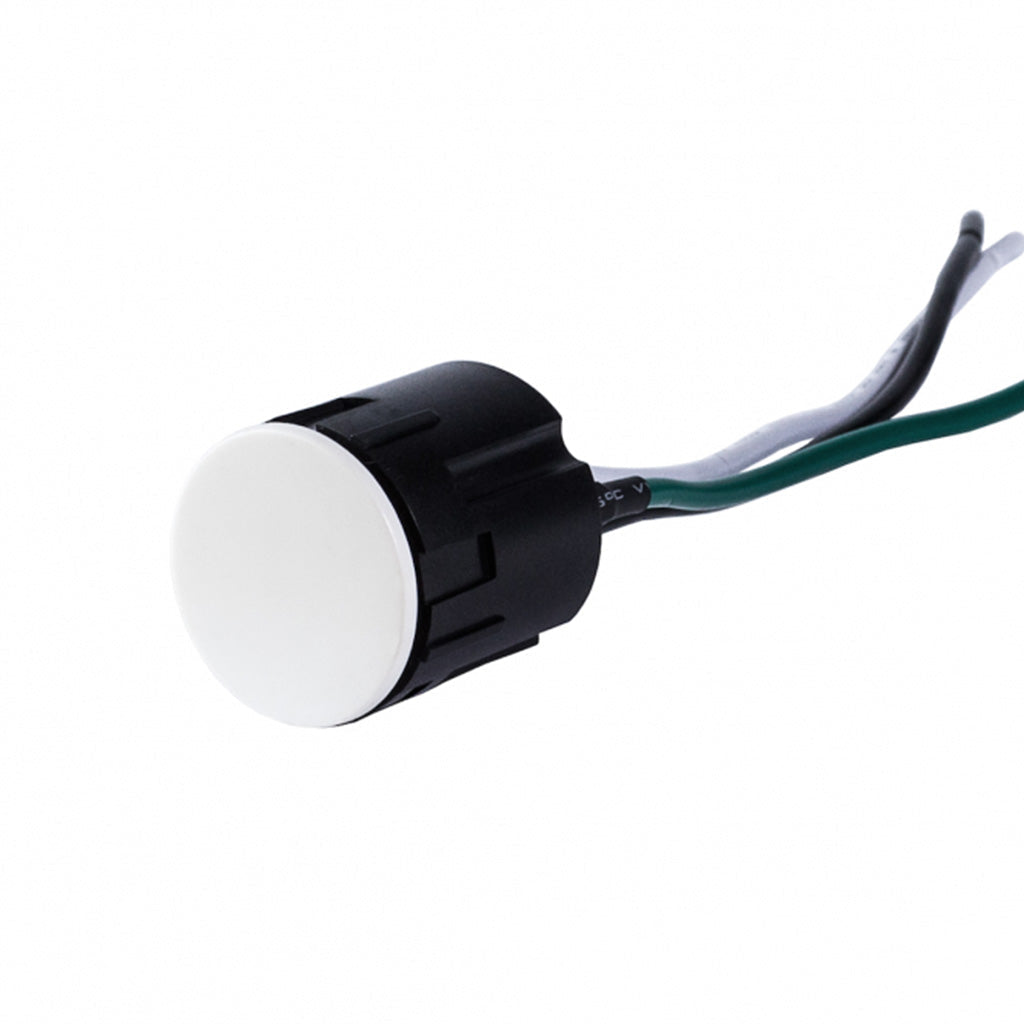

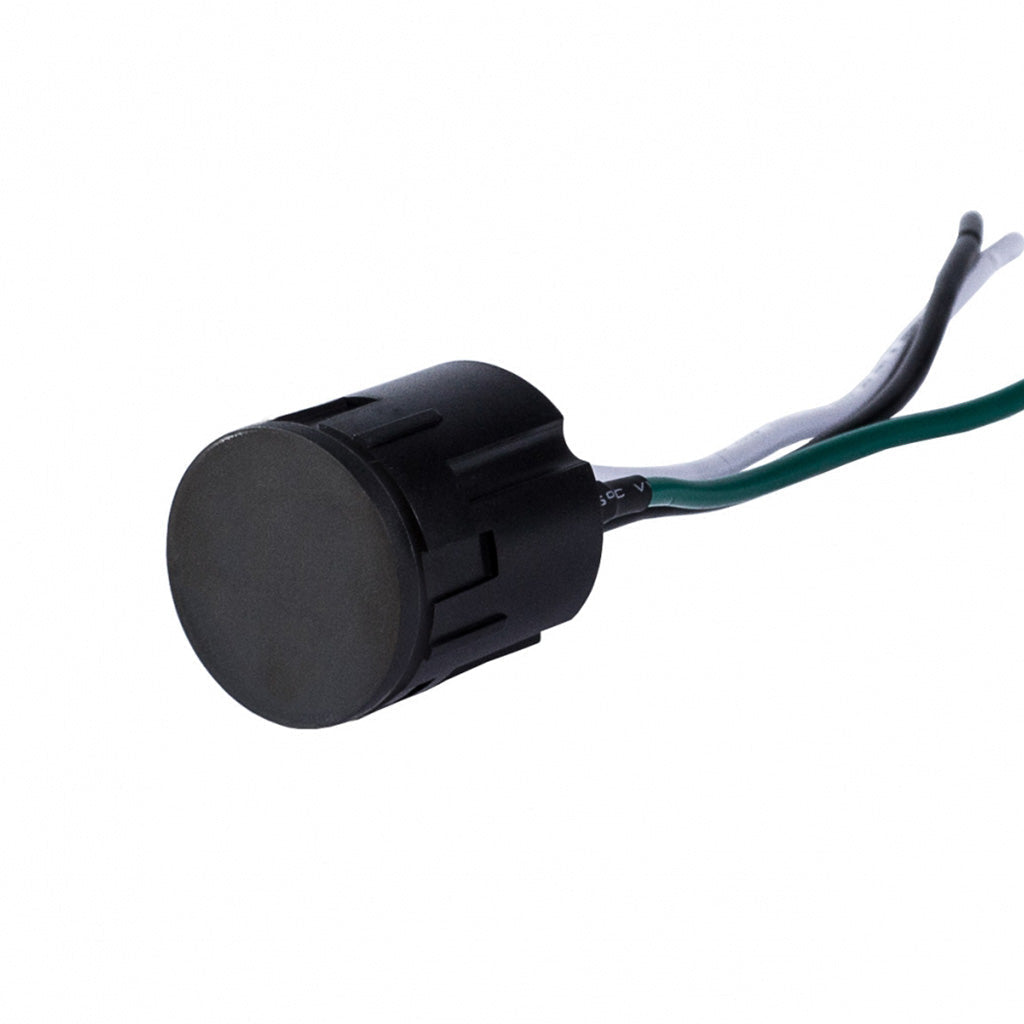

This is a minimalist keypad control for use with smart home systems, performing functions as programmed through your home automation system via a CAT5 connection.
While a dimmer is not offered at this time, our 22.3.6 keypad can be programmed to control the dimming function in conjunction with a smart home system.
Shop finish samples HERE.
