Touchless wall-mounted tap system crafted from marine-grade stainless steel for seamless integration and long-term performance.

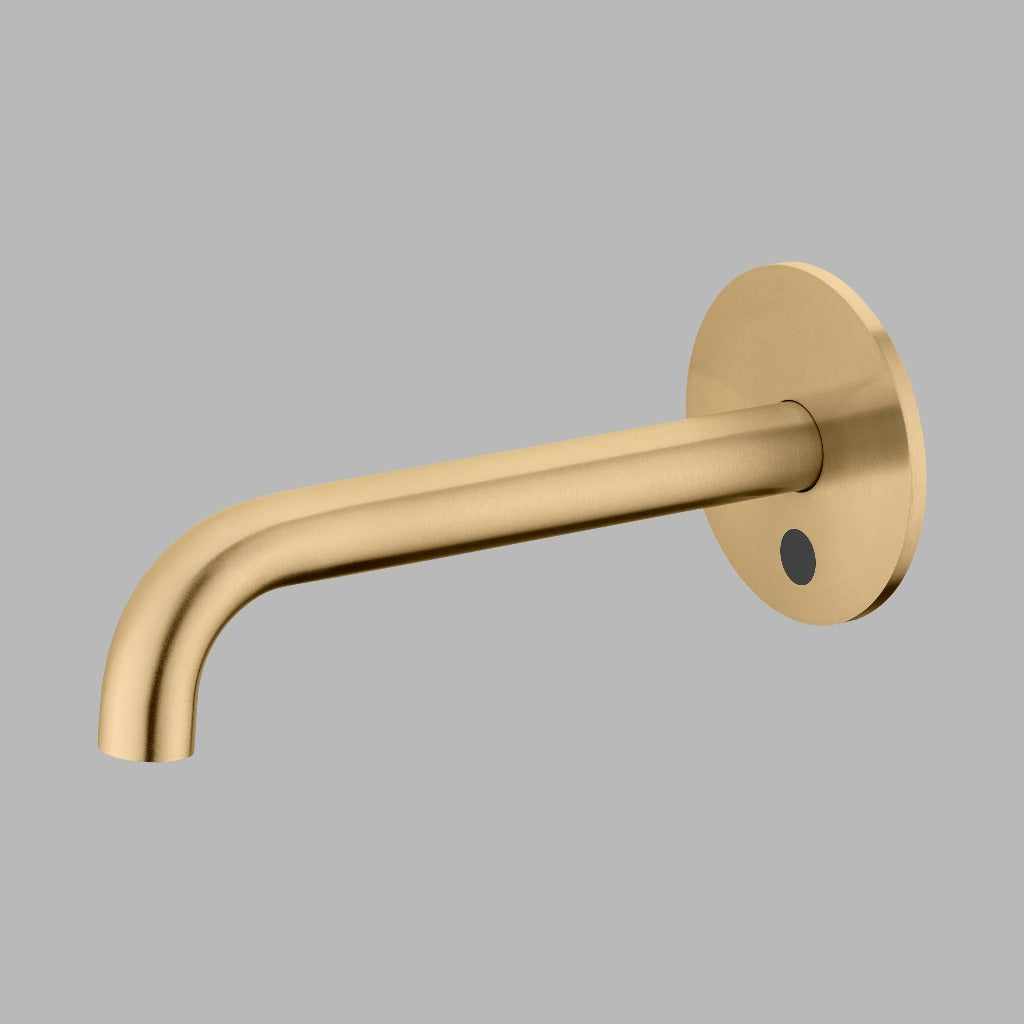

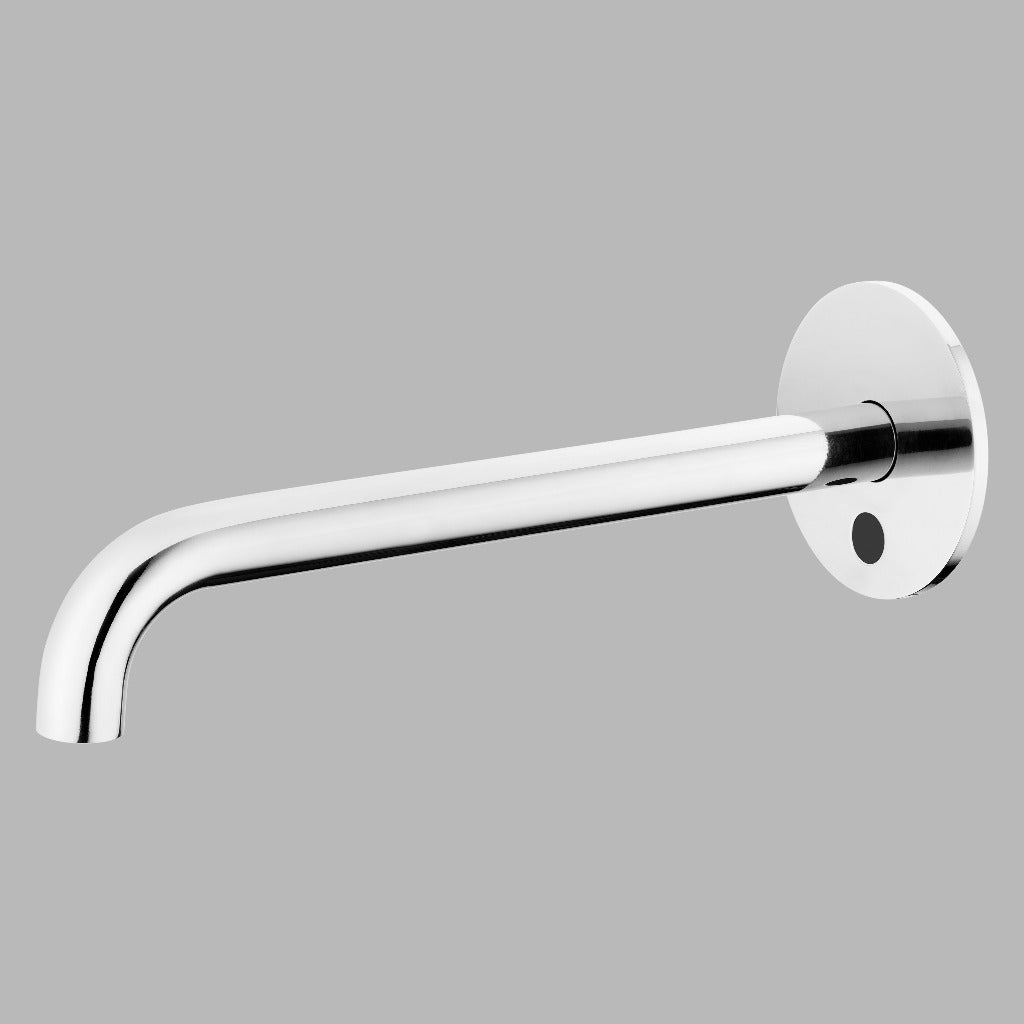

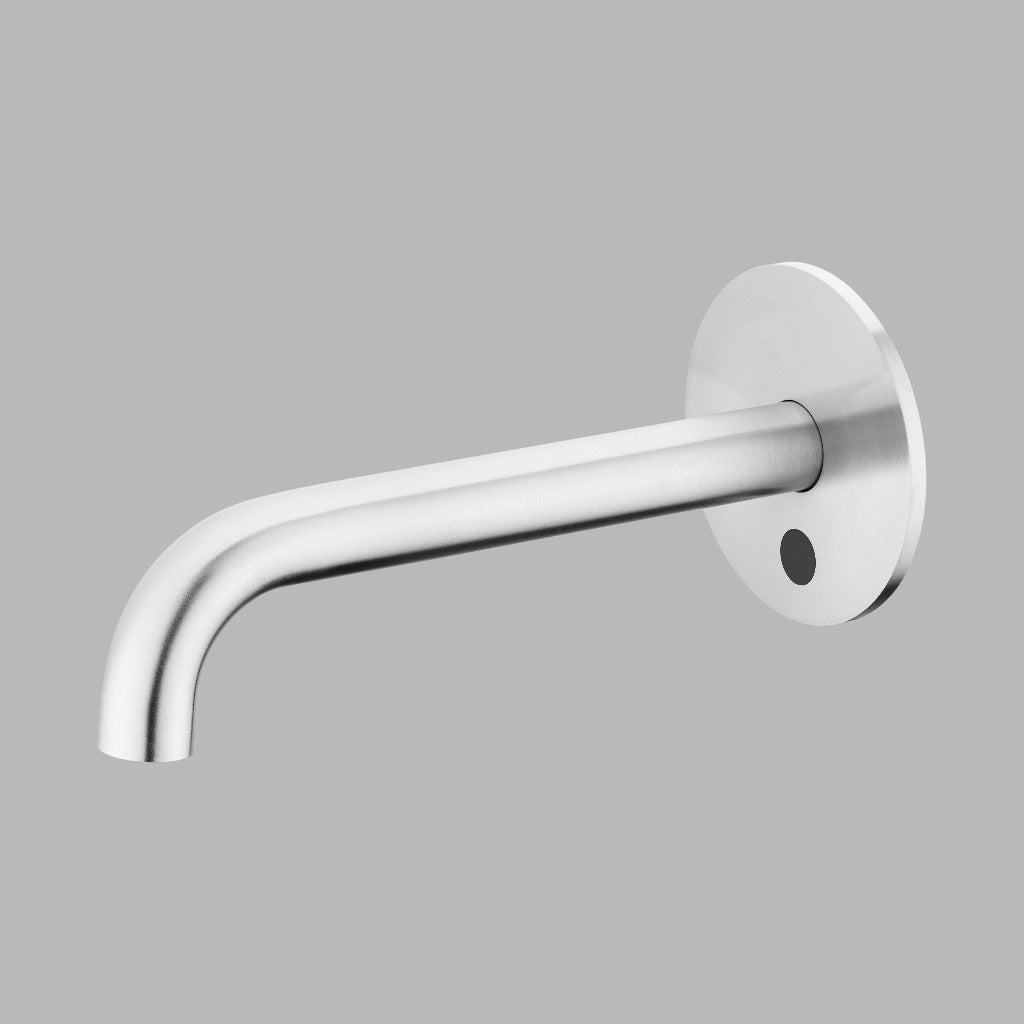

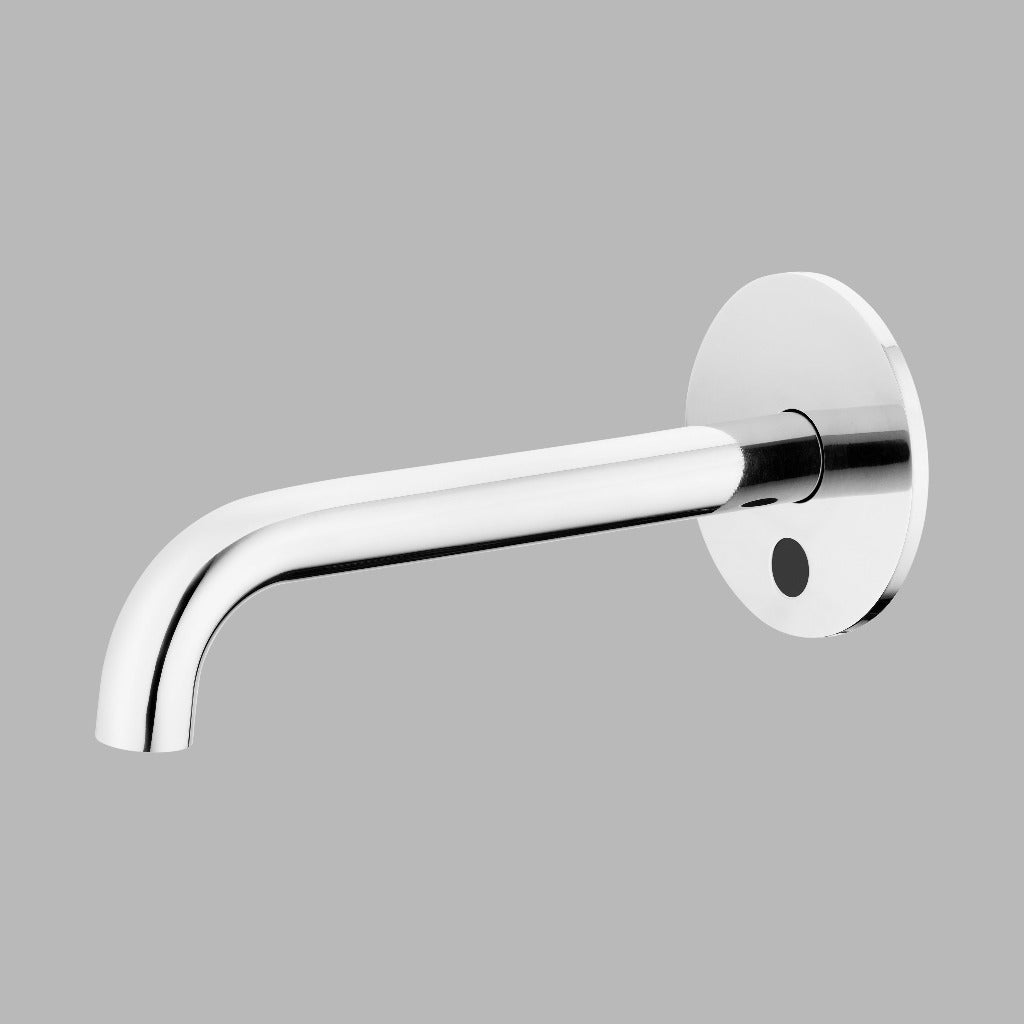

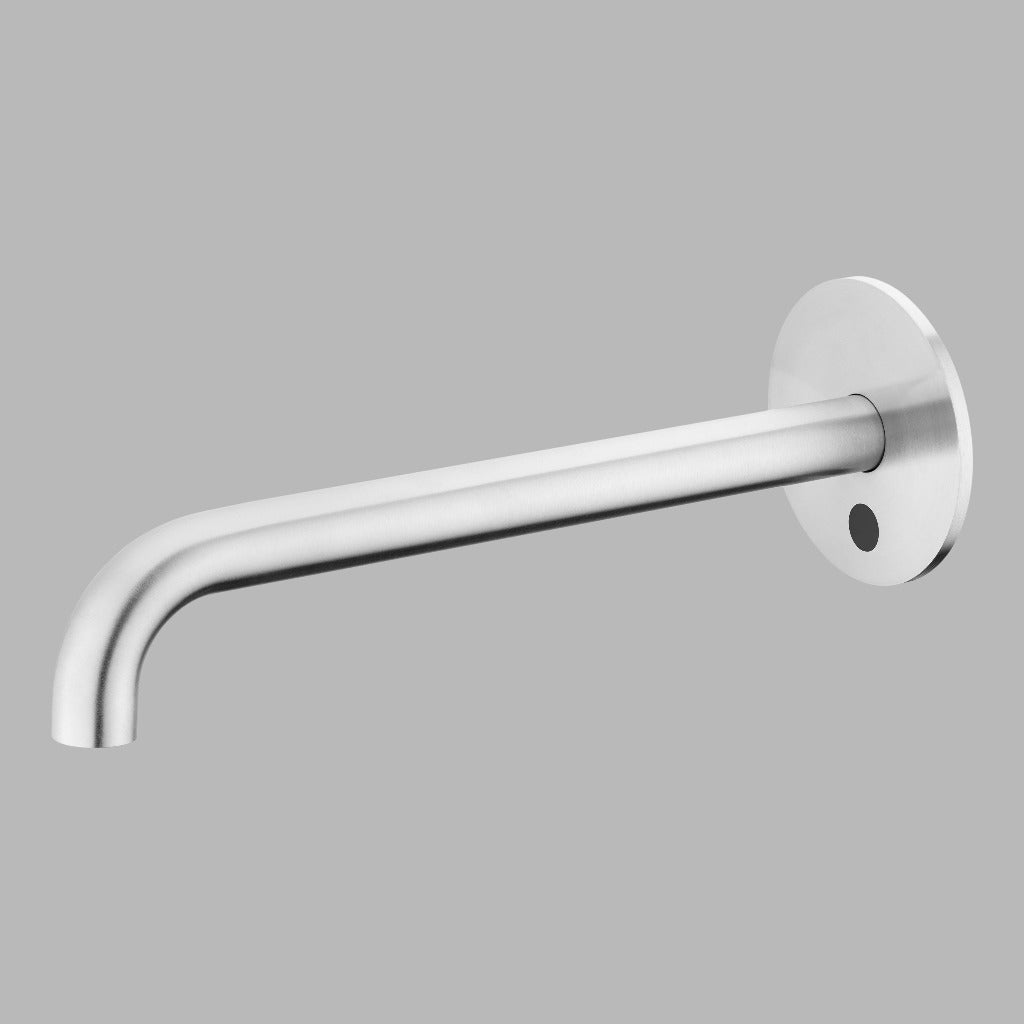

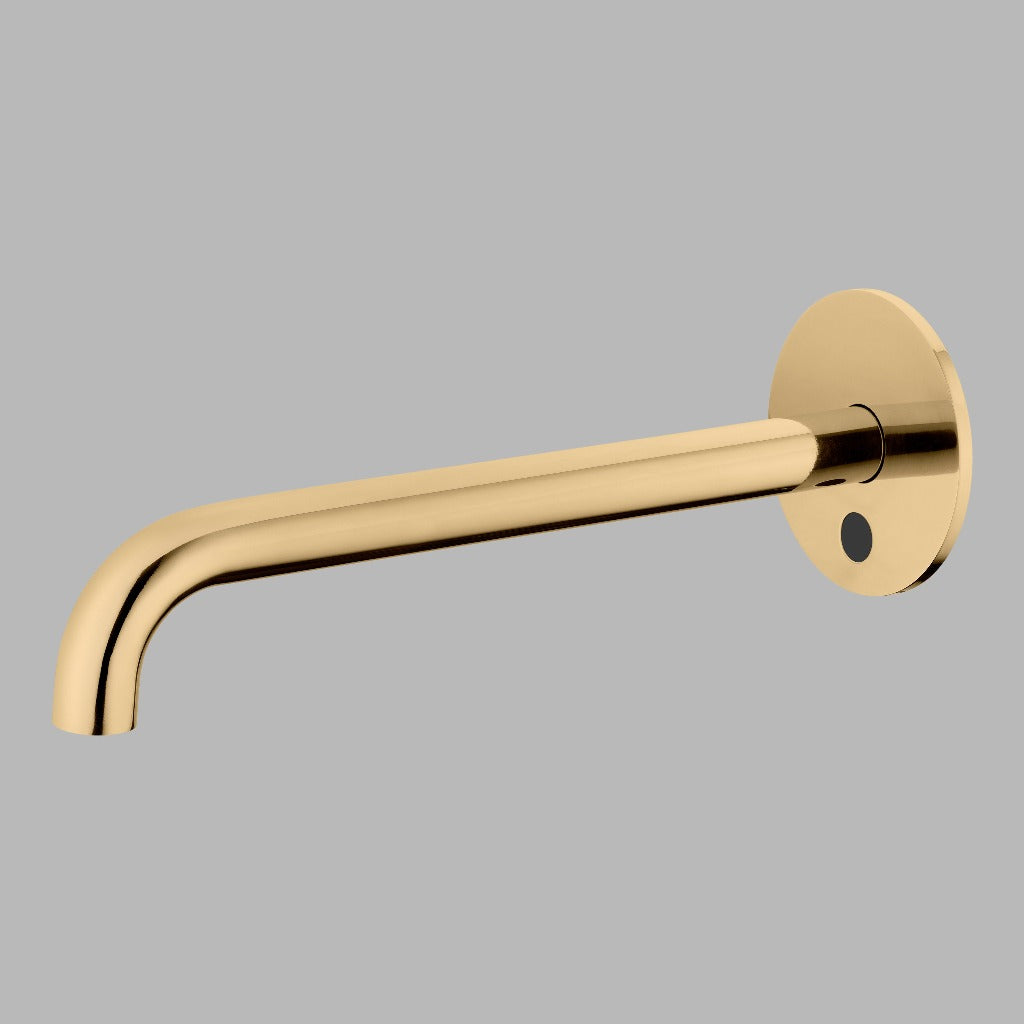

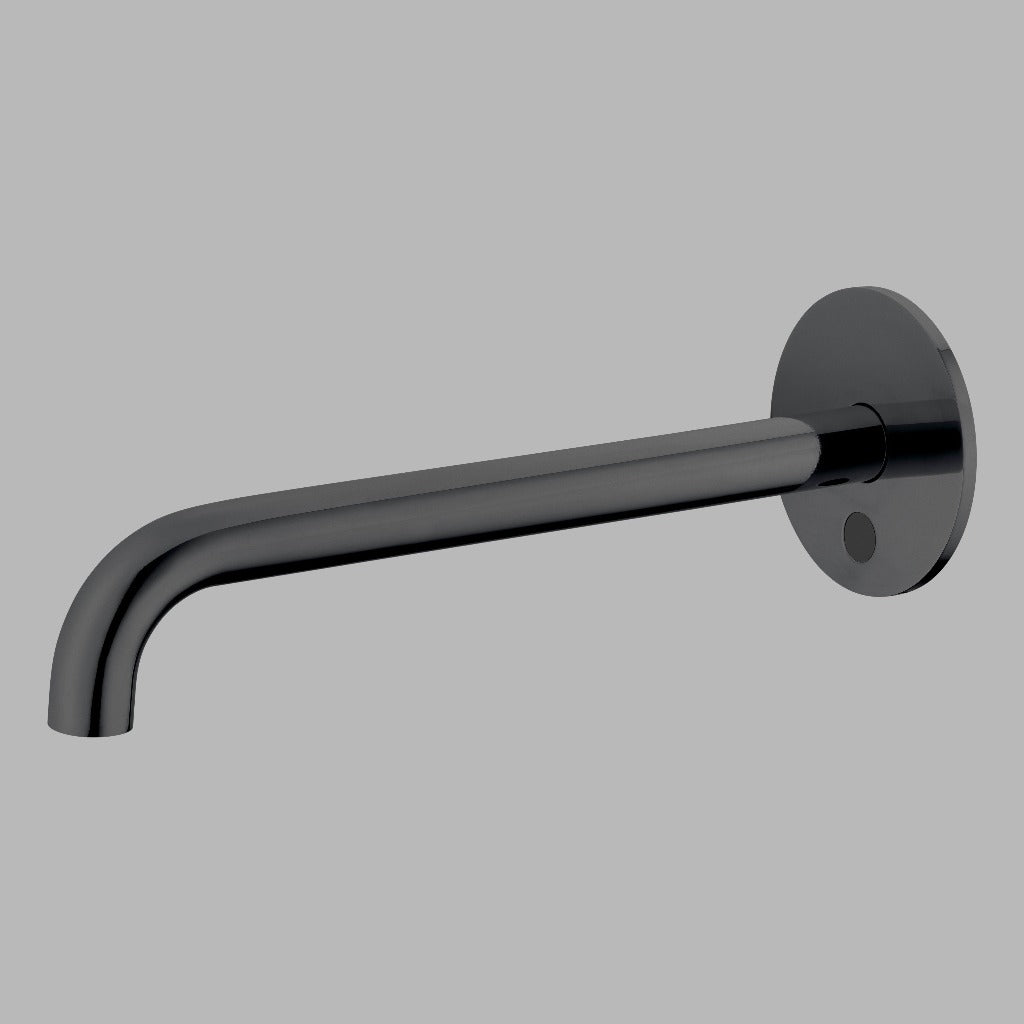

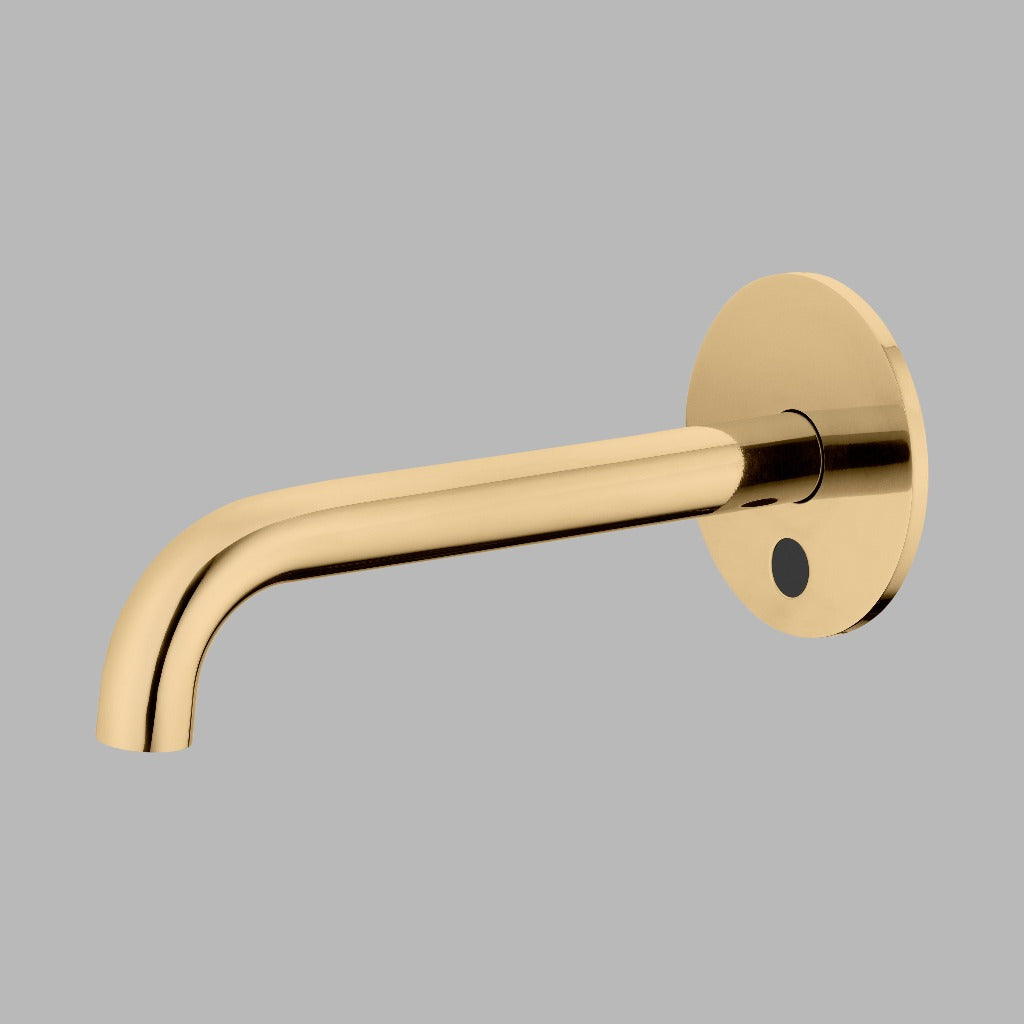

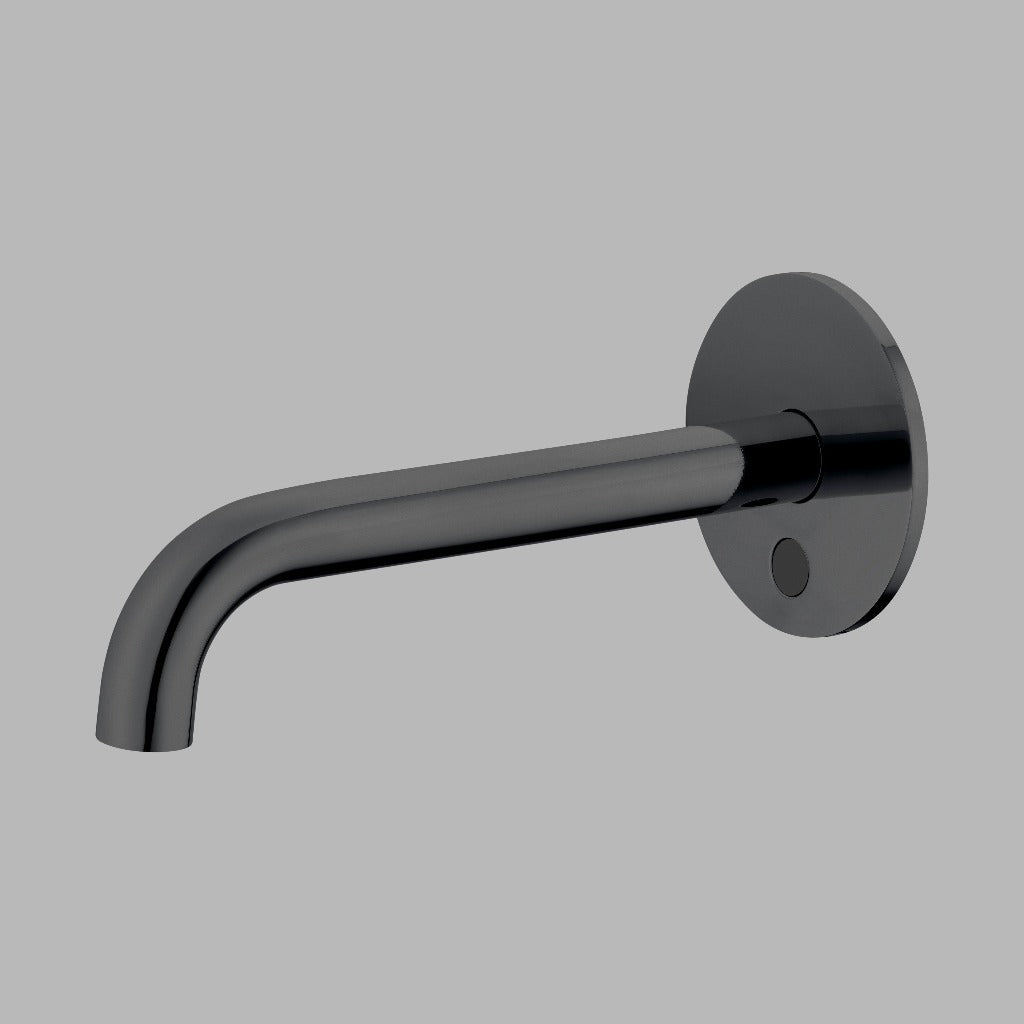

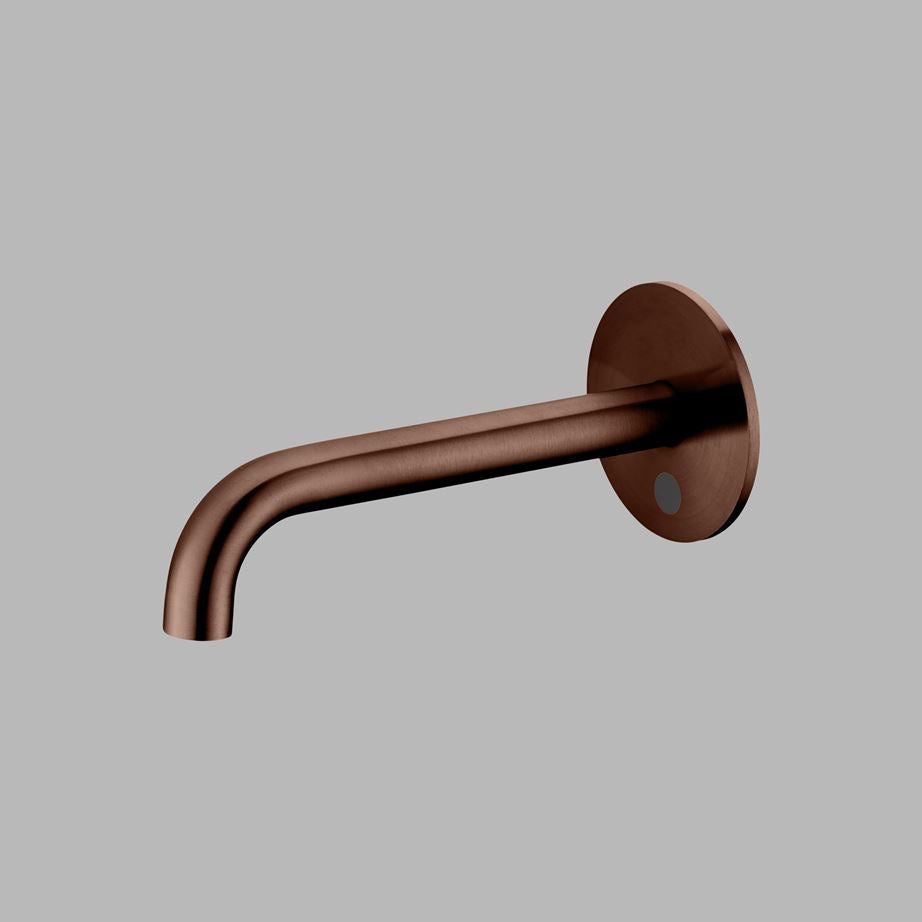

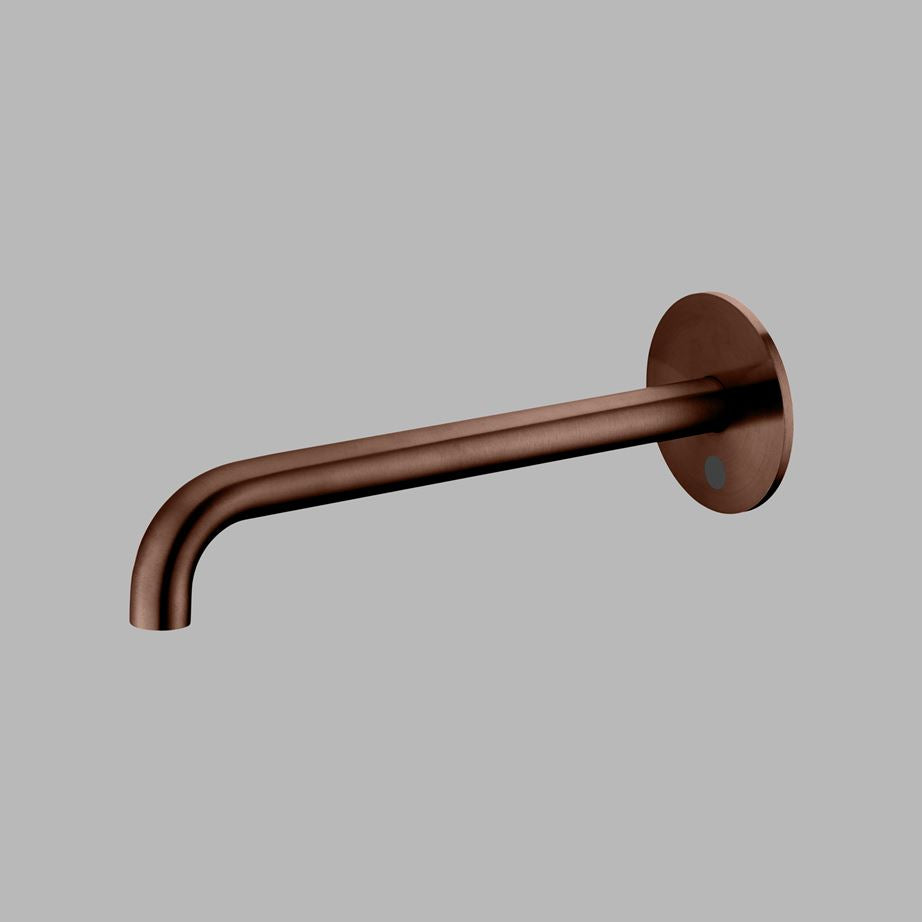

The Qtoo Wall-Mounted Sensor Tap delivers precise, hands-free functionality within a minimalist, architectural form. Available in two projection lengths, the fixed cylindrical spout features an integrated infrared (IR) sensor housed within a Ø90 mm rose—creating a fully built-in aesthetic that aligns with other Qtoo fixtures.
Engineered for high-use environments, Qtoo sensor taps are crafted from AISI 316 marine-grade stainless steel to resist corrosion, humidity, and harsh cleaning agents. Each system includes a concealed control box and can be paired with optional matching drain and siphon components for a complete installation.
Designed by Hans Thyge & Co for d line. Lead-free, NSF/ANSI 61 certified, and backed by a 10-year warranty.
Made in Europe.
- Sensor Spout – Ø90 mm rose with 190 mm or 250 mm projection
- QSF01 – Flexbox (sensor control module)
- Flexbox Power Hook-Up with plug
- QS3400 – 1/2" Rough-In Connector
- 2 × BD8002GN – 1/2" NPT to GN Adapters (for North American supply lines)
- QA1150 – Hygiene+ Push Drain: Sealed, side-diverting drain reduces water pooling and bacterial buildup.
- QA1250 – Hygiene+ Fixed Open Drain: Fixed horizontal grate-style drain with removable cover.
- QA1100 – Standard Push Drain: Classic push-to-open/close mechanism with vertical flow.
- QA1200 – Standard Fixed Drain: Fixed vertical grate-style drain with removable cover.
- QA1400 – P-Trap: Chrome-plated brass bottle trap, recommended for exposed plumbing.
-
Available Projections:
- 190 mm (7.5")
- 250 mm (9.8")
- Rose Diameter: Ø90 mm (3.5")
- Fixed spout with built-in aerator
- Recommended Clearance: Min. 140 mm (5.5") from aerator to basin waste
- Sensor Detection Distance: 50–250 mm
- Flow Rate: Max. 1.3 gpm (5.0 L/min)
- Comfort Timeout: 2 seconds
- Security Timeout: 30 seconds
- Automatic Rinse: Deactivated by default
-
Battery Life (6 x AA):
- 20 activations/day ≈ 8.4 years
- 150 activations/day ≈ 4.6 years
- Low Battery Warning: LED blink every 5 seconds (10-day alert)
- Max Working Pressure: 8 bar
- Control Module: Flexbox QSF01 with integrated temperature adjustment
- Lead-free compliant
- Marine-Grade Stainless Steel (AISI 316)
- Lead-Free & Antibacterial
-
Finishes:
- Polished Stainless Steel
- Satin Stainless Steel

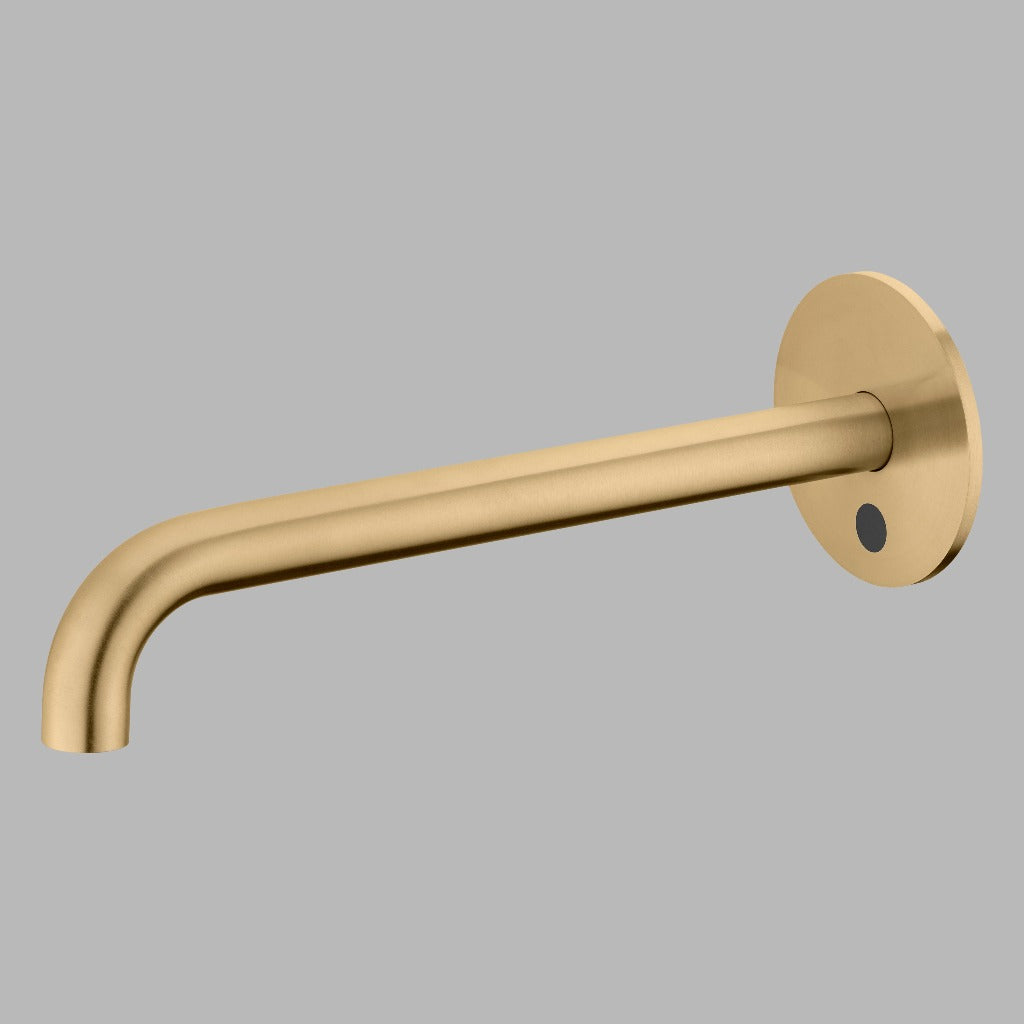

- PVD Satin Brass
- PVD Polished Brass
- PVD Satin Black
- Matte Black
- NSF/ANSI 61 Certified for Water Purity
- CSA B125.1 (2018) and ASME Compliant
- Leakage-tested to 15 bar
- 10-Year Product Warranty
- 5-Year PVD Finish Warranty
- Made in Europe
