Name: Sugatsune Concealed Door Damper
Brand: Sugatsune
SKU: LDD-V100-DBR-L
Price: 185.0 CAD
Availability: InStock

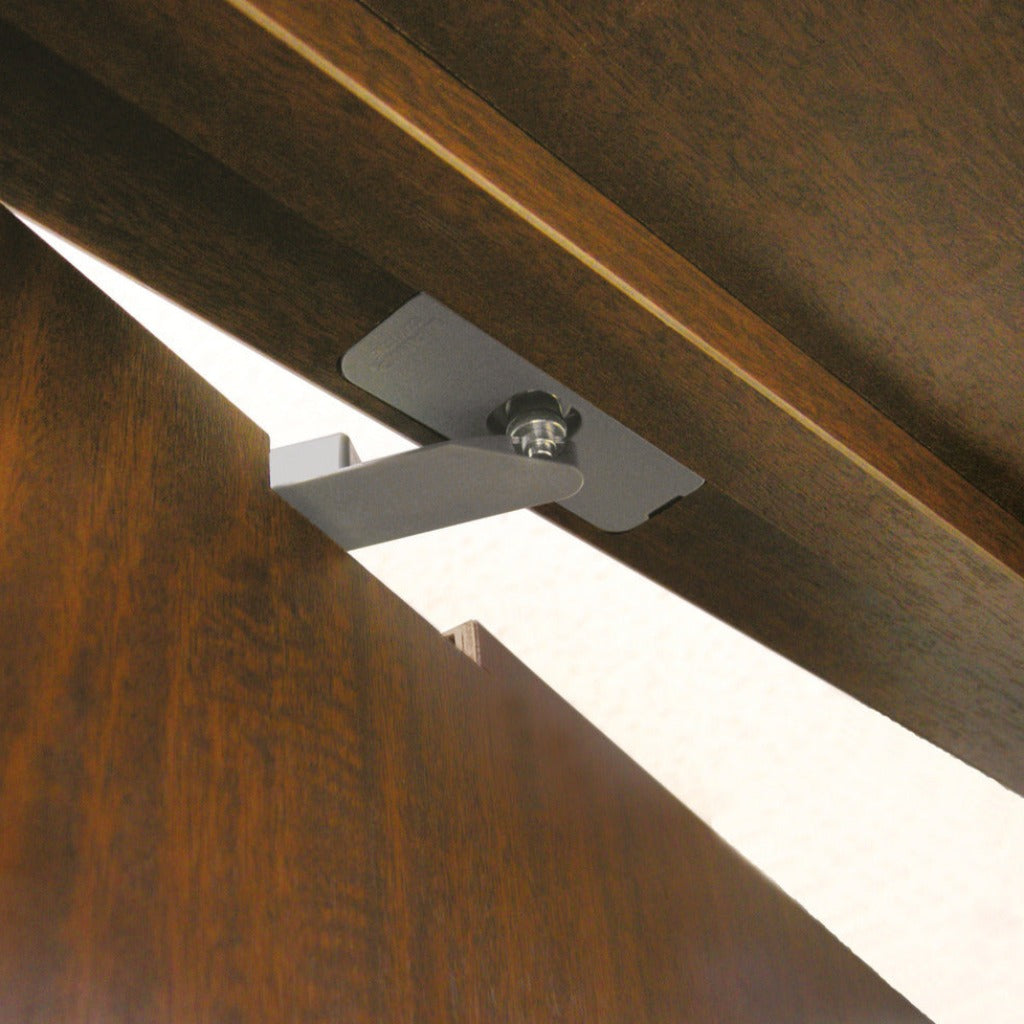

a close up of a ceiling fan on a wooden ceiling.

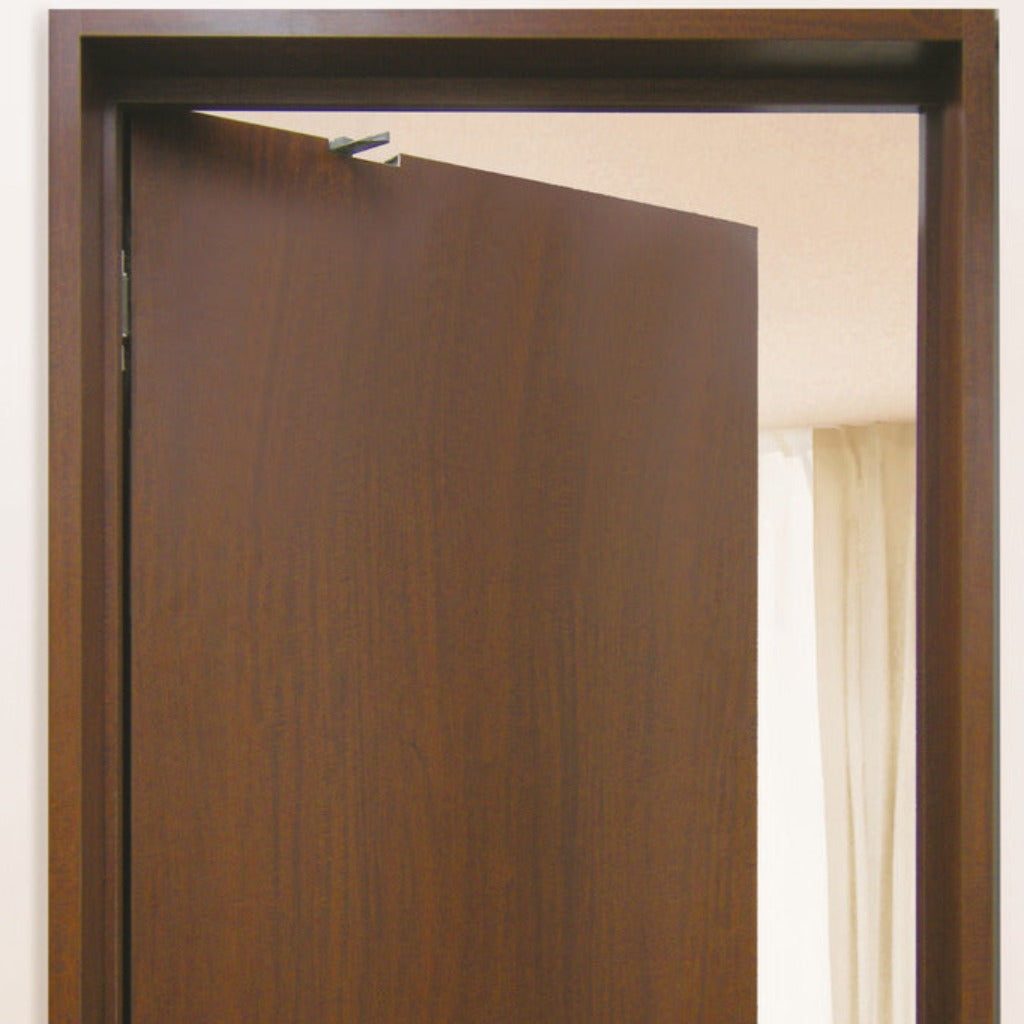

A close up of a Sugatsune wooden door with a window in the background.

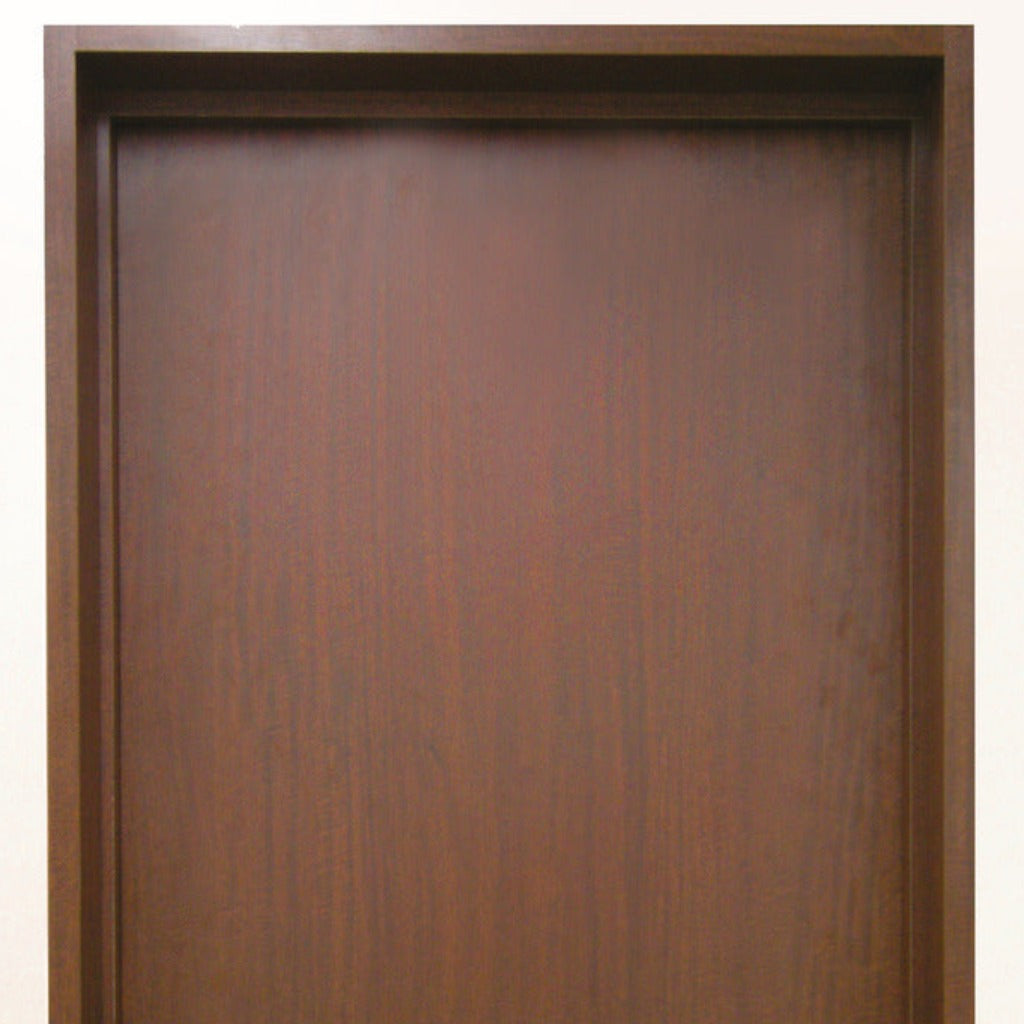

A Sugatsune Concealed Door Damper with a white wall in the background.

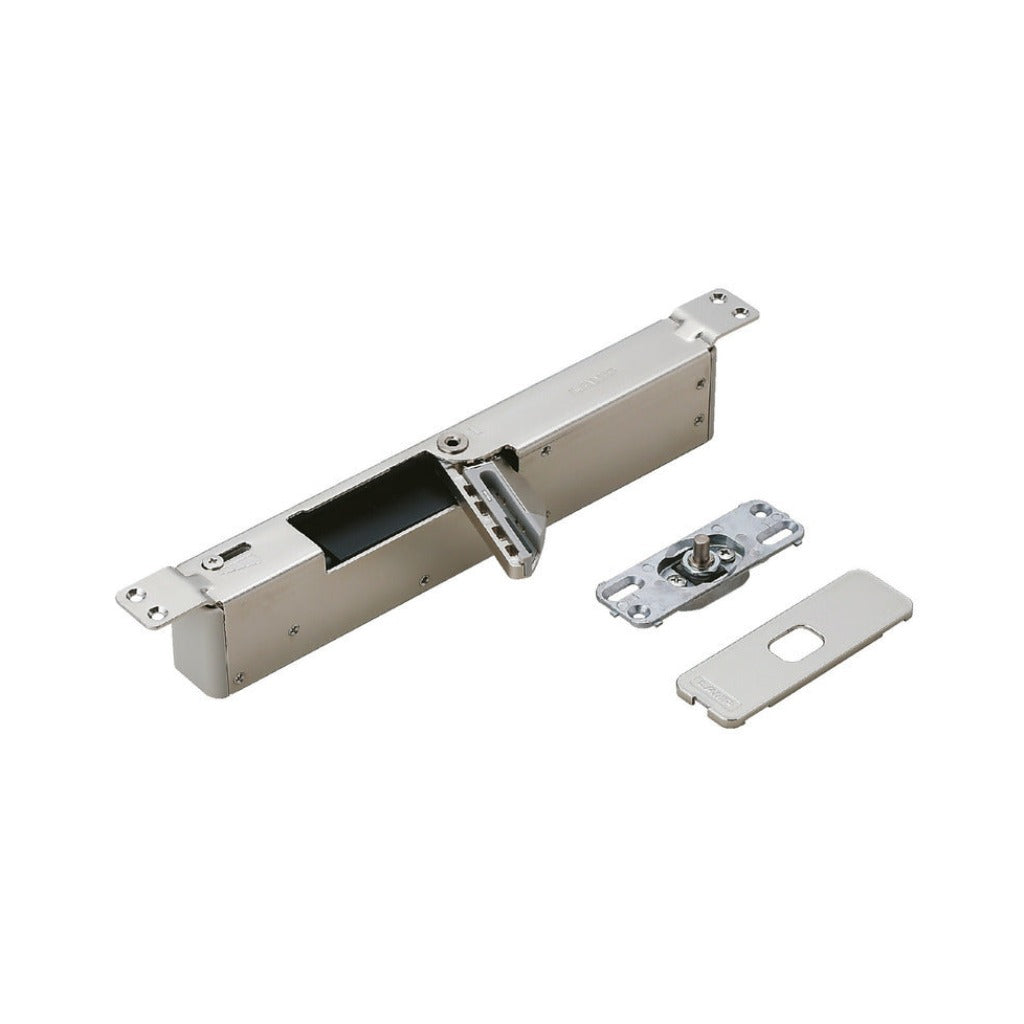

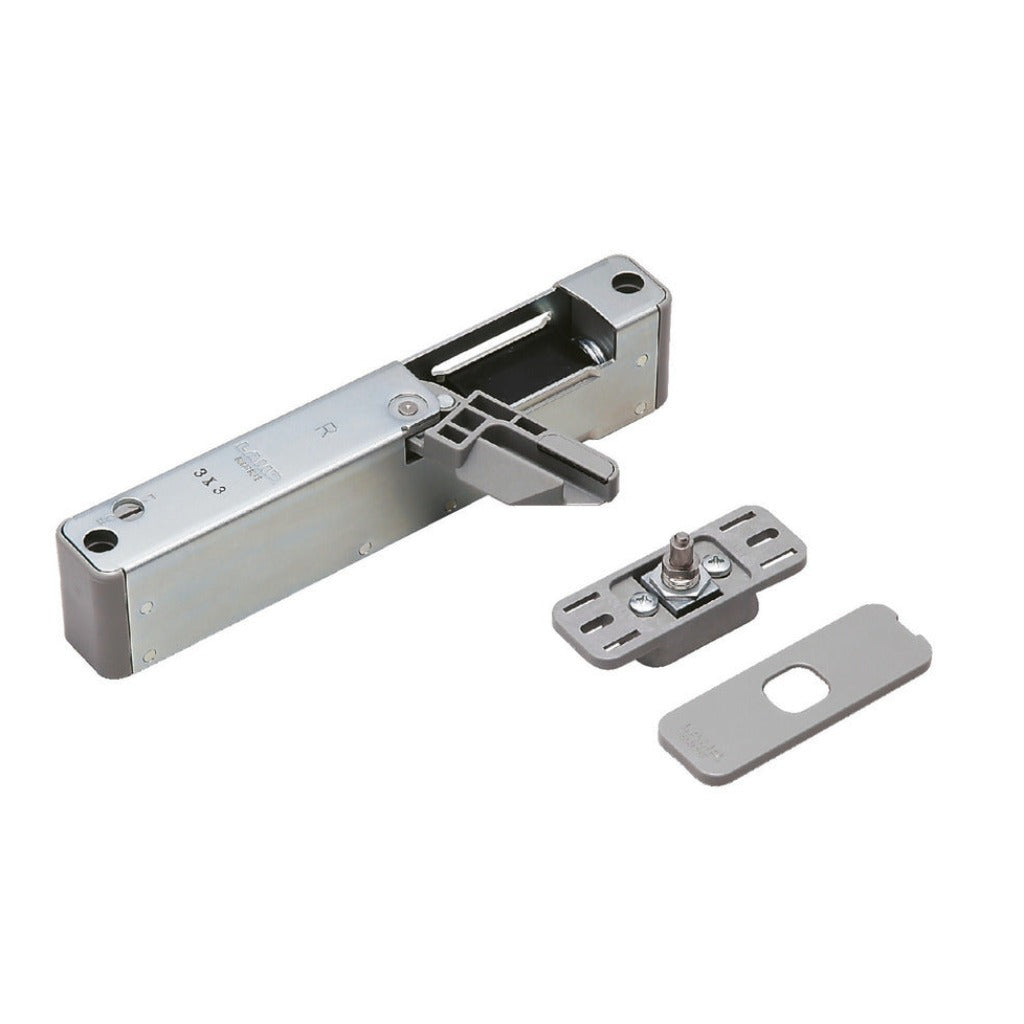

An image of a Sugatsune Concealed Door Damper handle and latch.

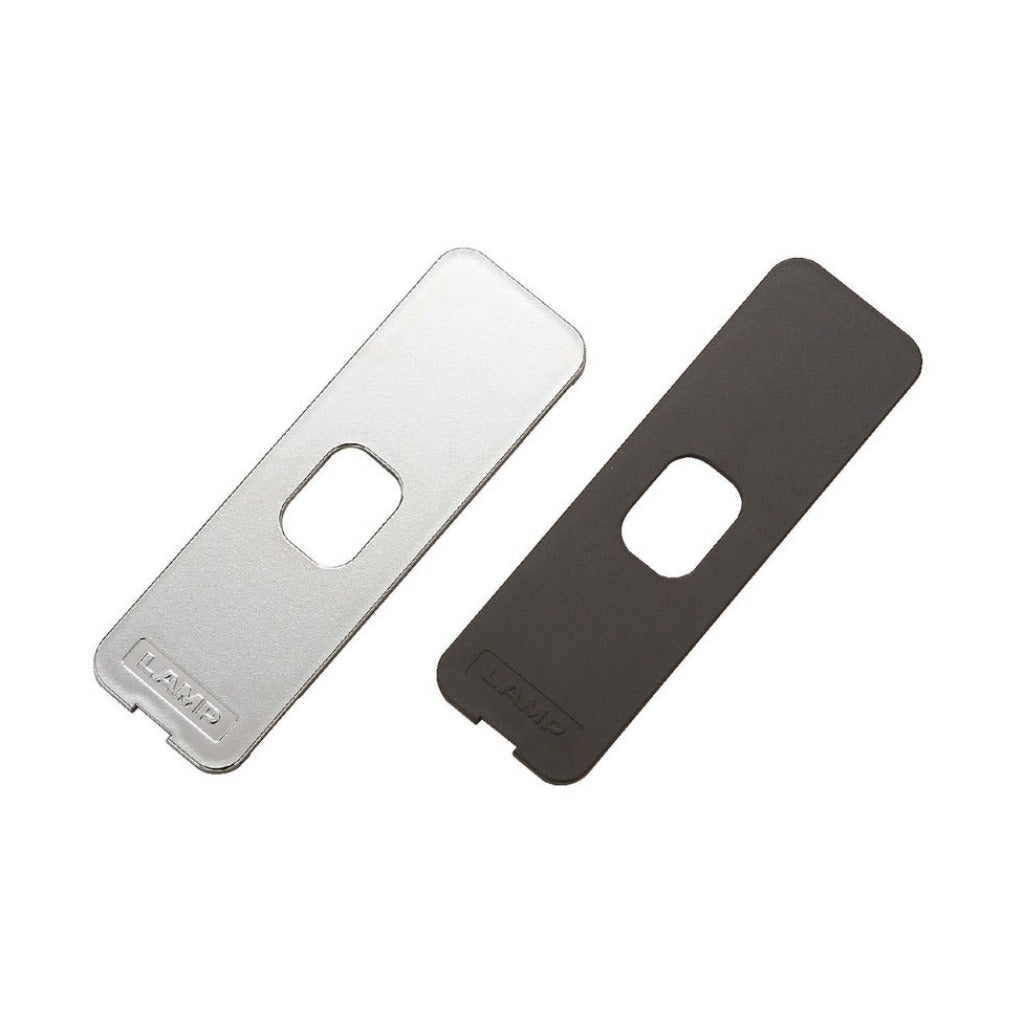

a white and black phone case sitting next to each other.

01Finish:Dark Brown

Dark Brown

Nickel

02Handing:Left Handed

Left Handed

Right Handed

03Door Weight:88-220 lbs

88-220 lbs

33-88 lbs

Price

$185.00

Shipping calculated at checkout.

Pairs With

The Sugatsune Concealed Door Damper by Sugatsune is a concealed soft-close mechanism designed for flush installation within the door frame. It provides silent, controlled door closing without visible springs or external hardware. The counter plate allows 3-way adjustment (vertical, horizontal, and depth), and closing speed is adjustable after installation.

Available in two models for different door weights.

LDD-V
Door thickness: min. 33 mm (1.29")
Door width: max. 900 mm
Door weight: 33 lbs (15 kg) – 88 lbs (40 kg)
LDD-V100
Door thickness: 40 mm (1.57") – 60 mm (2.36")
Door width: max. 900 mm (35.43")
Door weight: 88 lbs (40 kg) – 220 lbs (100 kg)

Steel, polyacetal, PBT.

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
