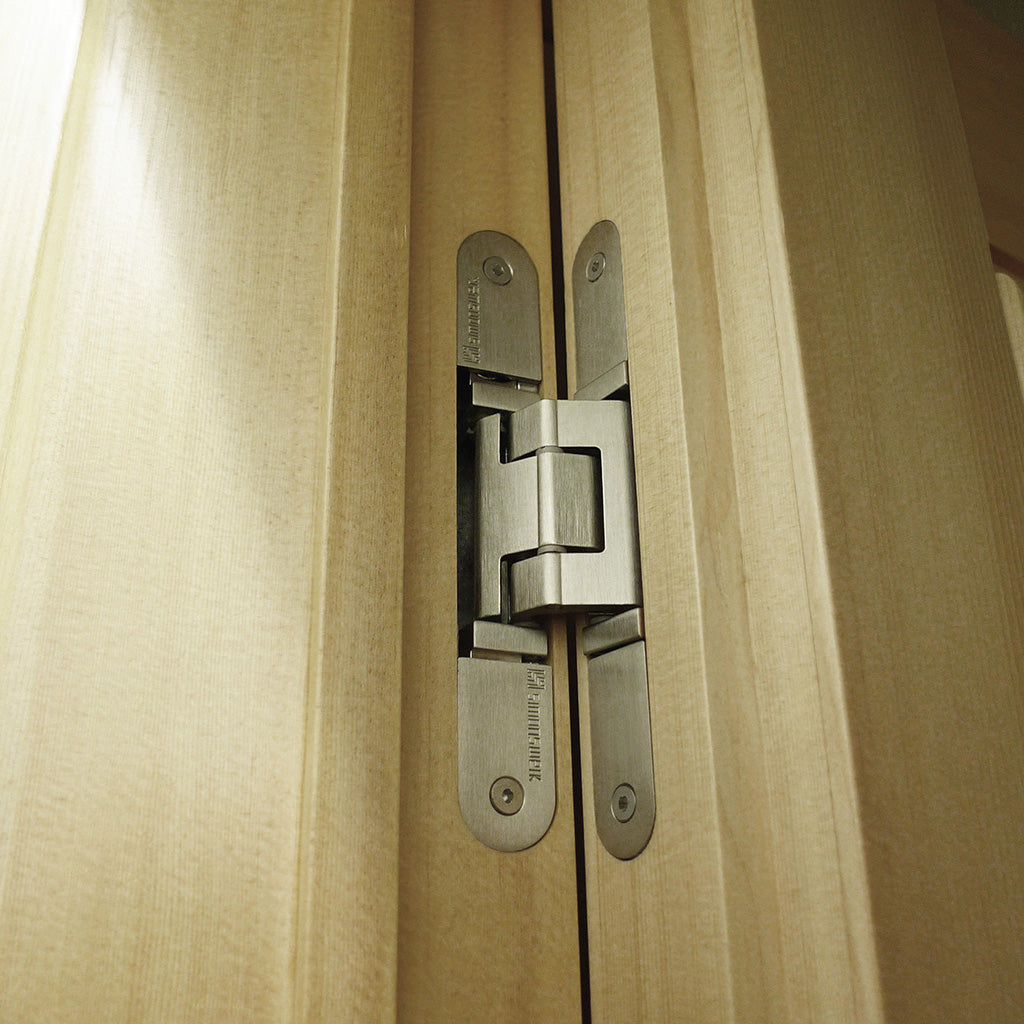

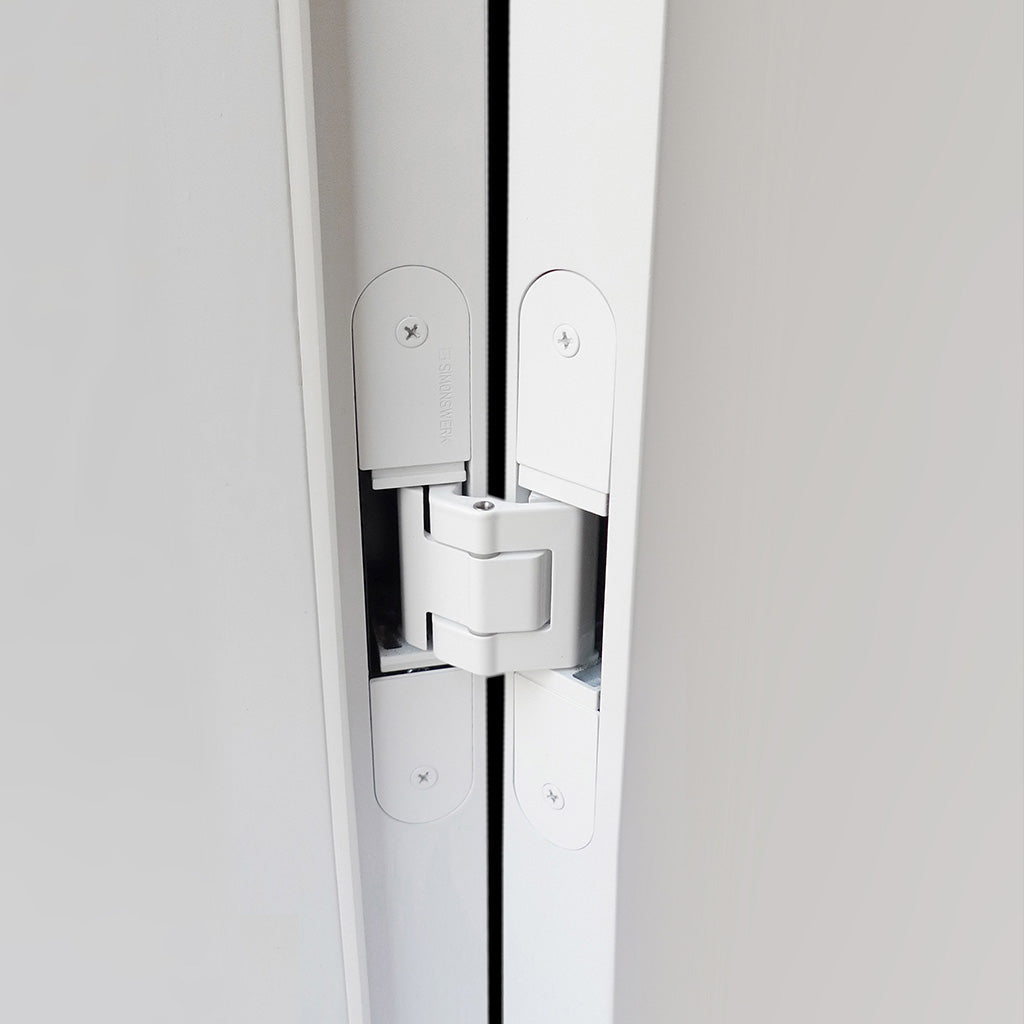

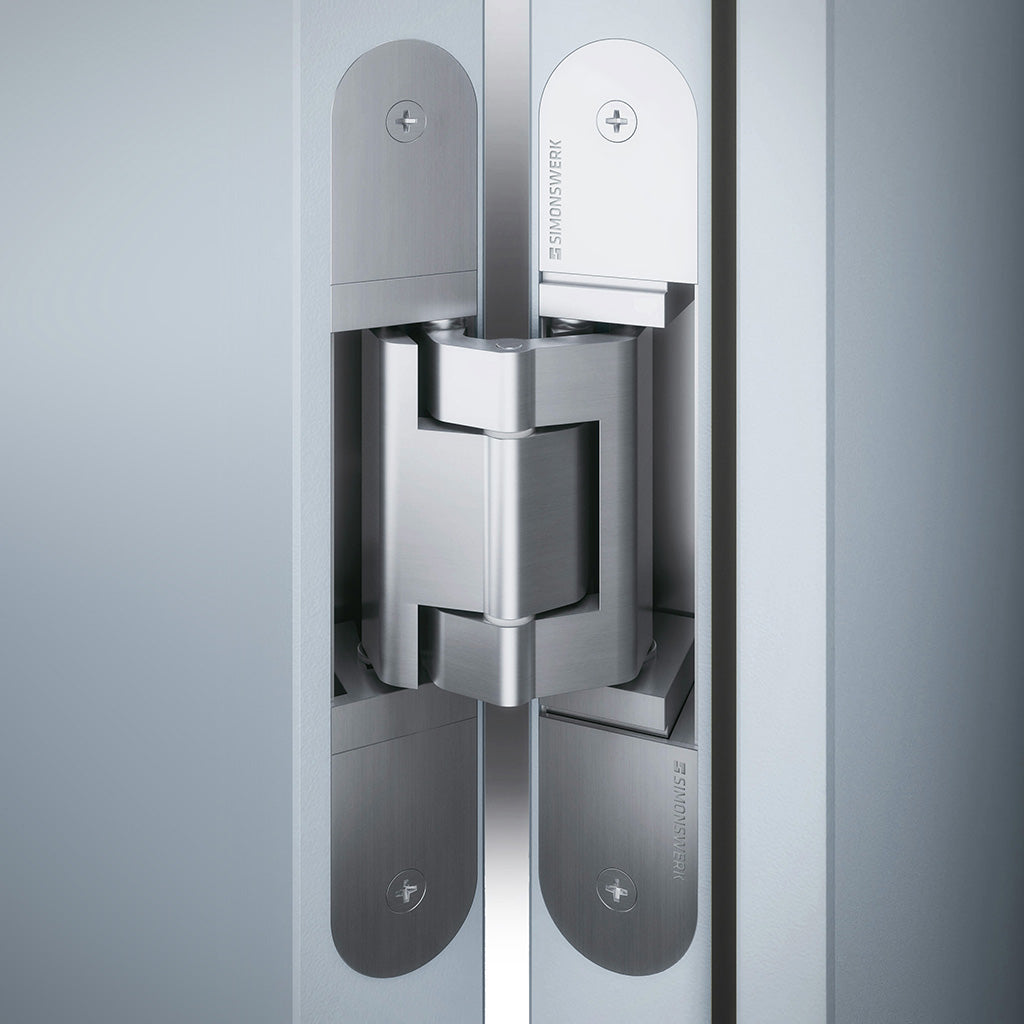

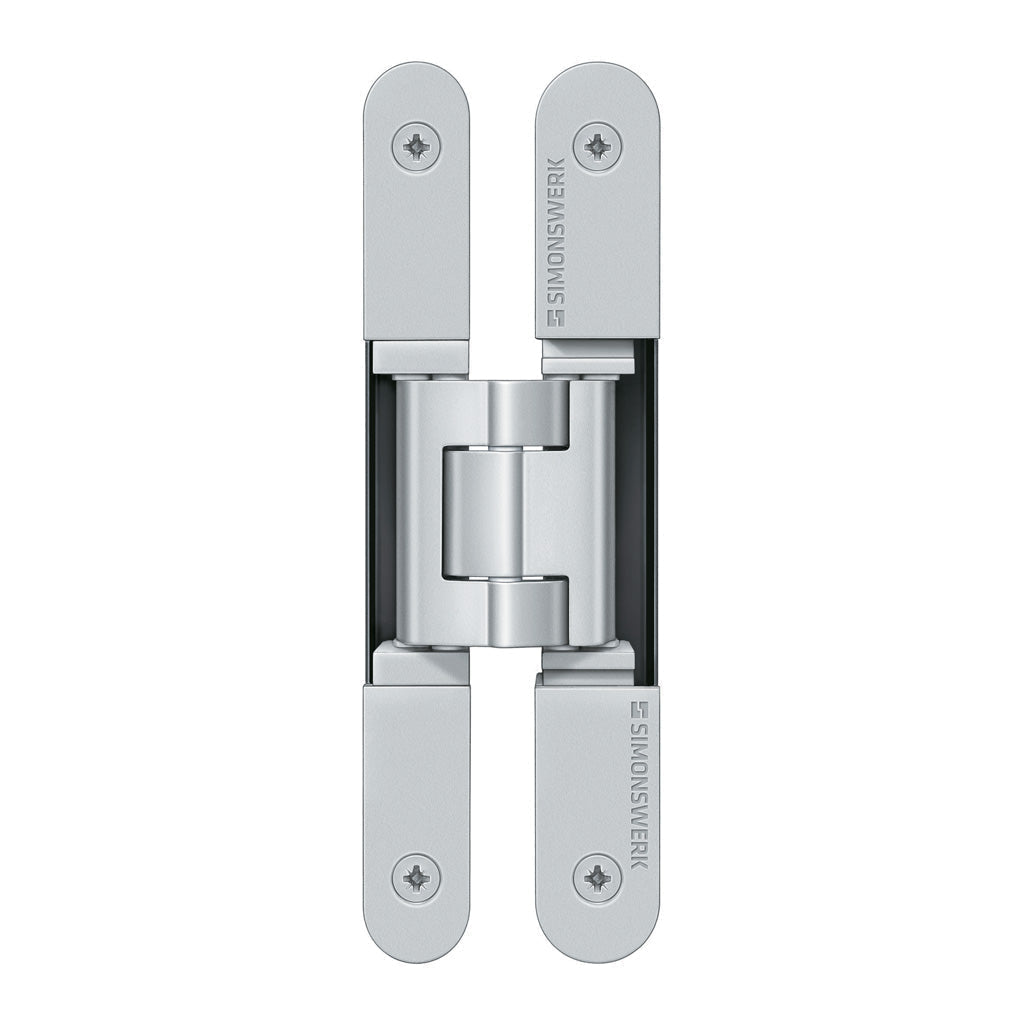

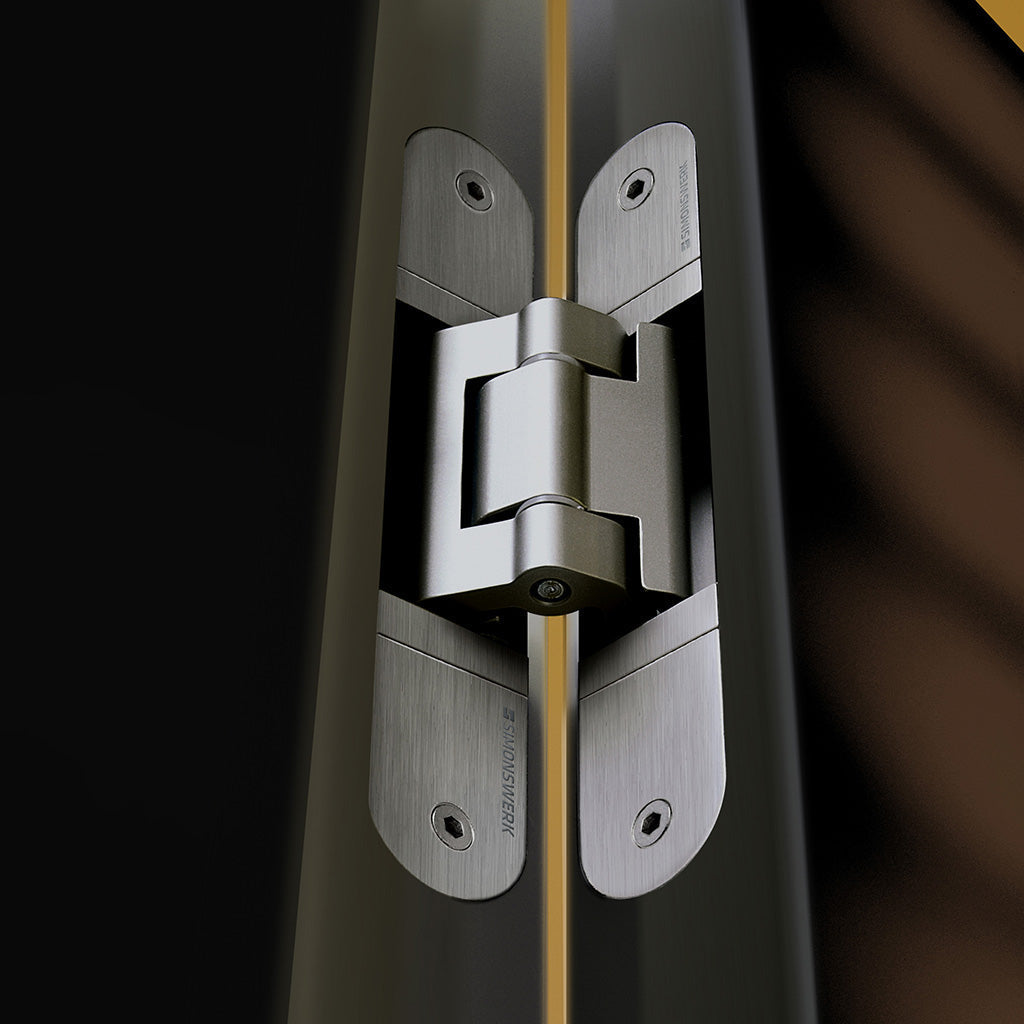

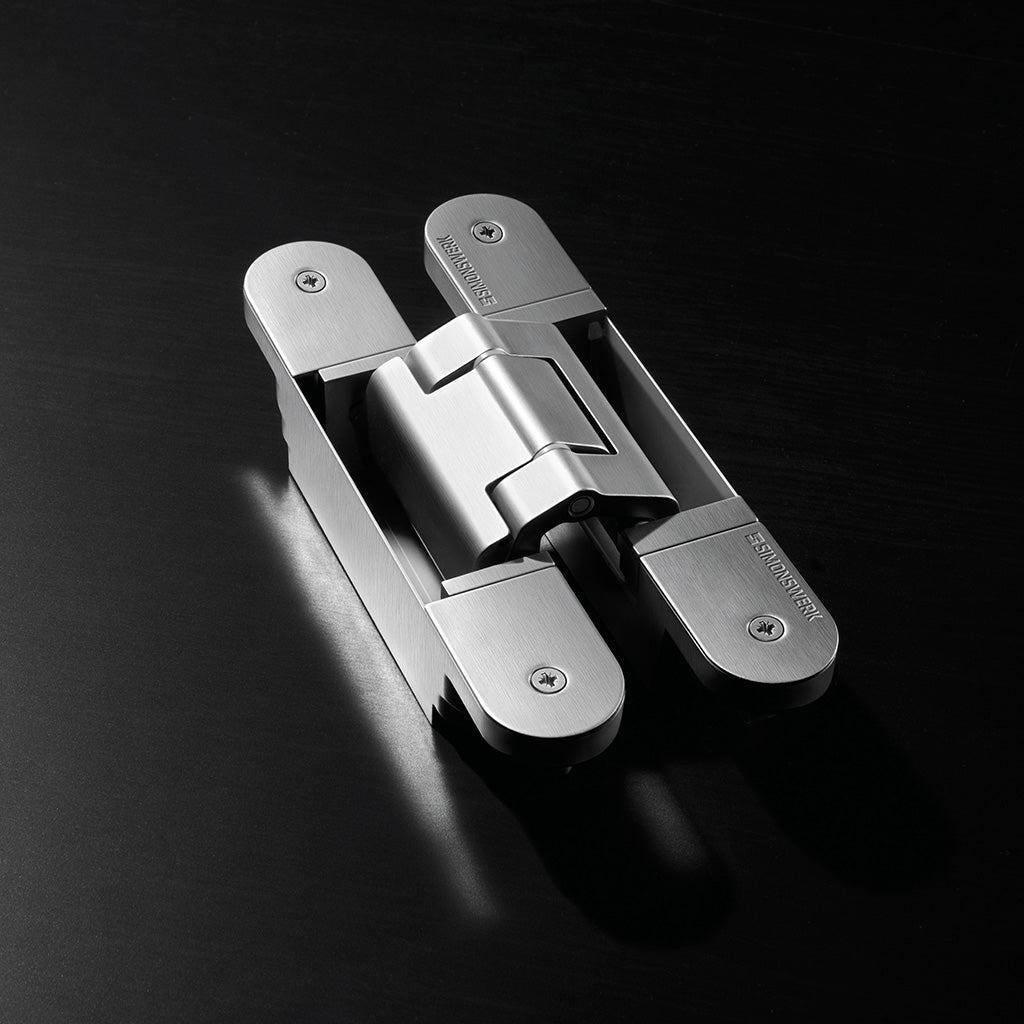

The TECTUS® TE 240 3D by Simonswerk is a concealed hinge for premium flush doors in residential applications. Easily adjustable in three dimensions using a hex key — the sideways-closed hinge body creates a homogeneous mortise appearance when the door is closed. Maintenance-free bearings rated for 1,000,000 cycles under full load.
Made in Germany.
Specifications
- Frame part: H 155 mm (6.1") x W 21 mm (0.82") x D 24 mm (0.94")
- Leaf part: H 155 mm (6.1") x W 18 mm (0.7") x D 27 mm (1.06")
- Minimum door thickness: 25 mm (1")
- Router bit diameter: 16 mm
- 3D adjustment: side ±3.0 mm, height ±3.0 mm, compression ±1 mm
- Load capacity (2 hinges): 60 kg
- Opening angle: 180°
- 10-year warranty
- Rated for up to 1,000,000 cycles
For unrebated and rebated flush doors. Compatible with wood, steel, and aluminum frames. Router templates sold separately.
Can be paired with Ghostop Concealed Door Stop for automatic holding positions.
Materials

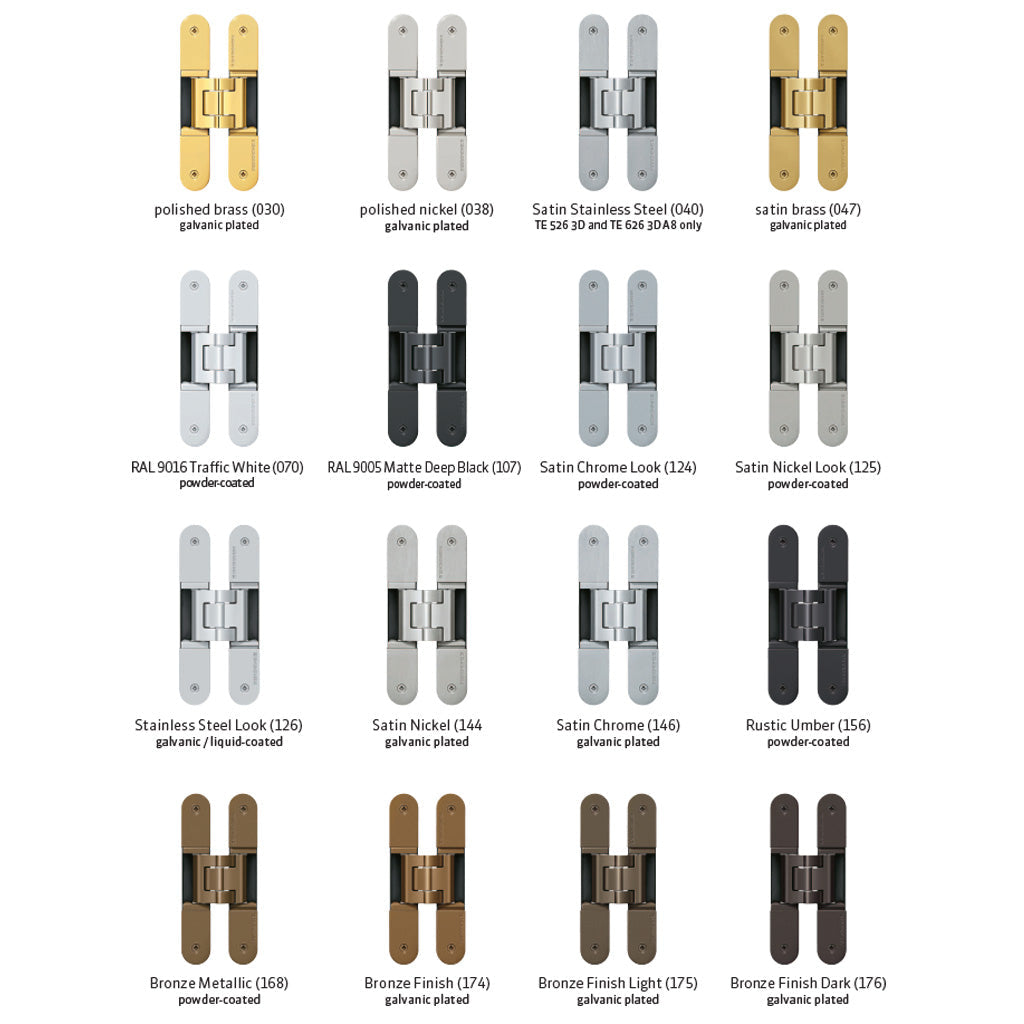

Available Finishes (16 options)
