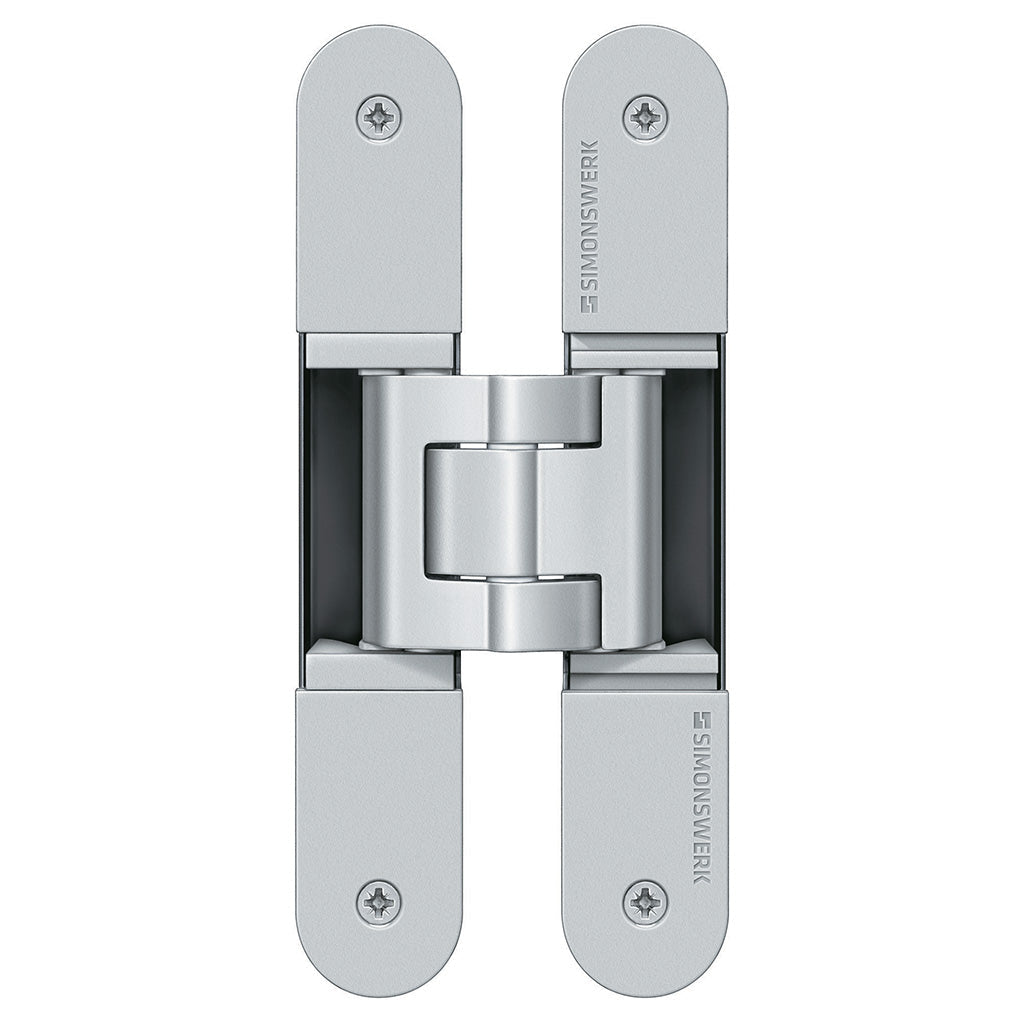

A pair of Tectus stainless steel door hinges TE 340 3D for Residential and Heavy-Duty Doors on a white background.

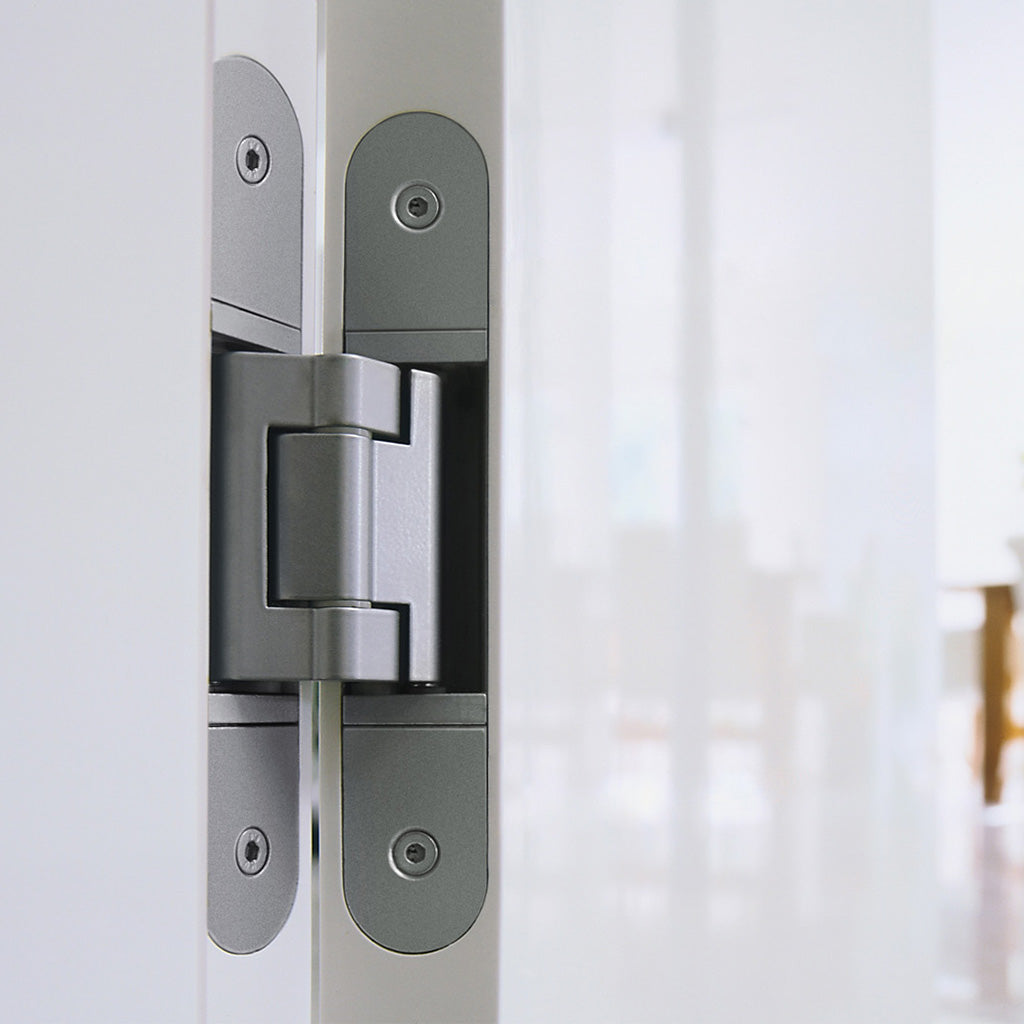

A close up of a Tectus TE 340 3D door handle on a door.

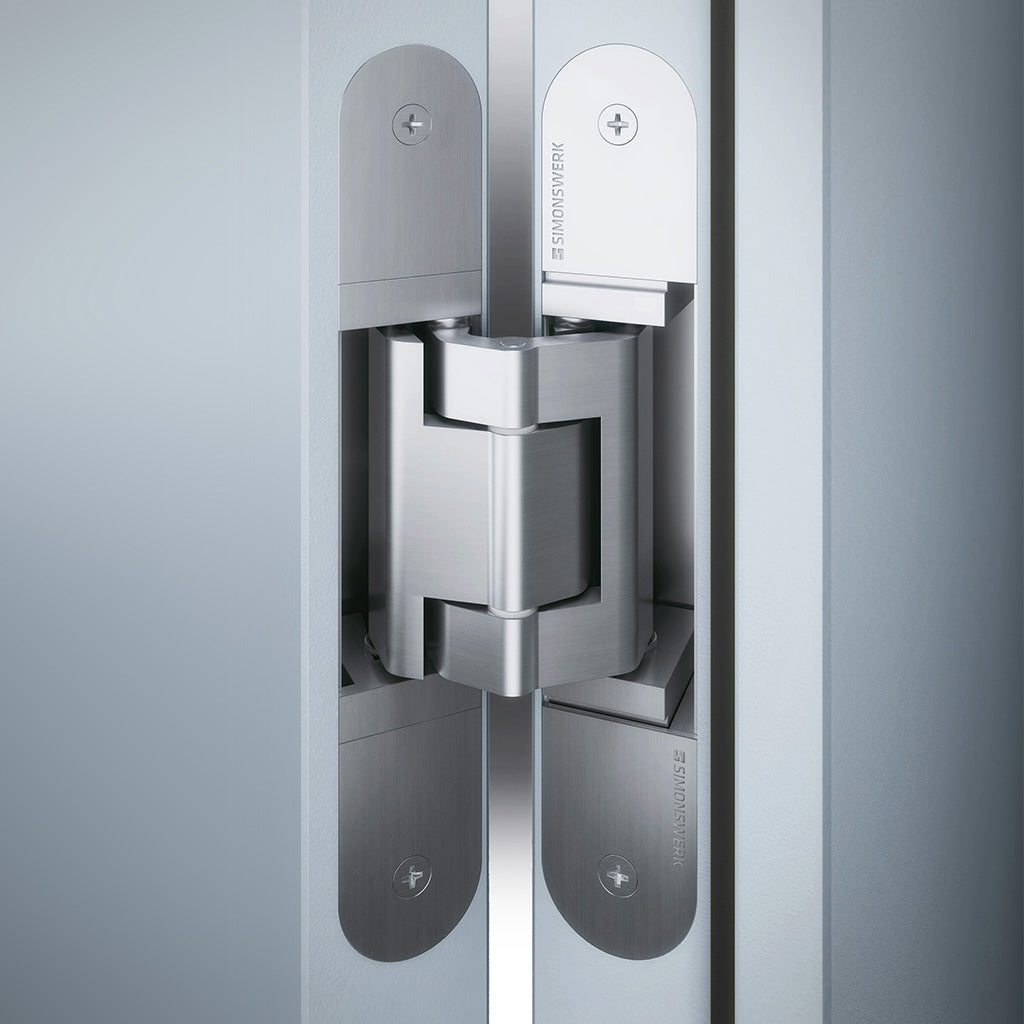

A close up of a Tectus TE 340 3D for Residential and Heavy-Duty Doors metal door handle.
A bunch of different types of Tectus TE 340 3D door handles for residential and heavy-duty doors.
A drawing of a bathroom with a Tectus TE 340 3D for Residential and Heavy-Duty Doors toilet and sink.

Tectus TE 340 3D for Residential and Heavy-Duty Doors

Original price$380.00
/
Shipping calculated at checkout.
Finish
  • Estimated Ship Date: 3-6 weeks

Made in Germany, TECTUS® is a comprehensive concealed hinge system for premium flush doors. Easily adjustable, Simonswerk's TECTUS® hinges bring an unparalleled level of performance, precision and control. The hinges can be easily adjusted and aligned into the wood, steel or aluminum frame by using the provided hex key. Tectus hinges TE 340 3D hinges are for unrebated residential and commercial heavy-duty doors and have a sideways closed hinge body for a homogeneous mortise appearance. The maintenance-free bearings have a test rate of 1,000,000 cycles under full load and can be seamlessly integrated into a variety of settings.

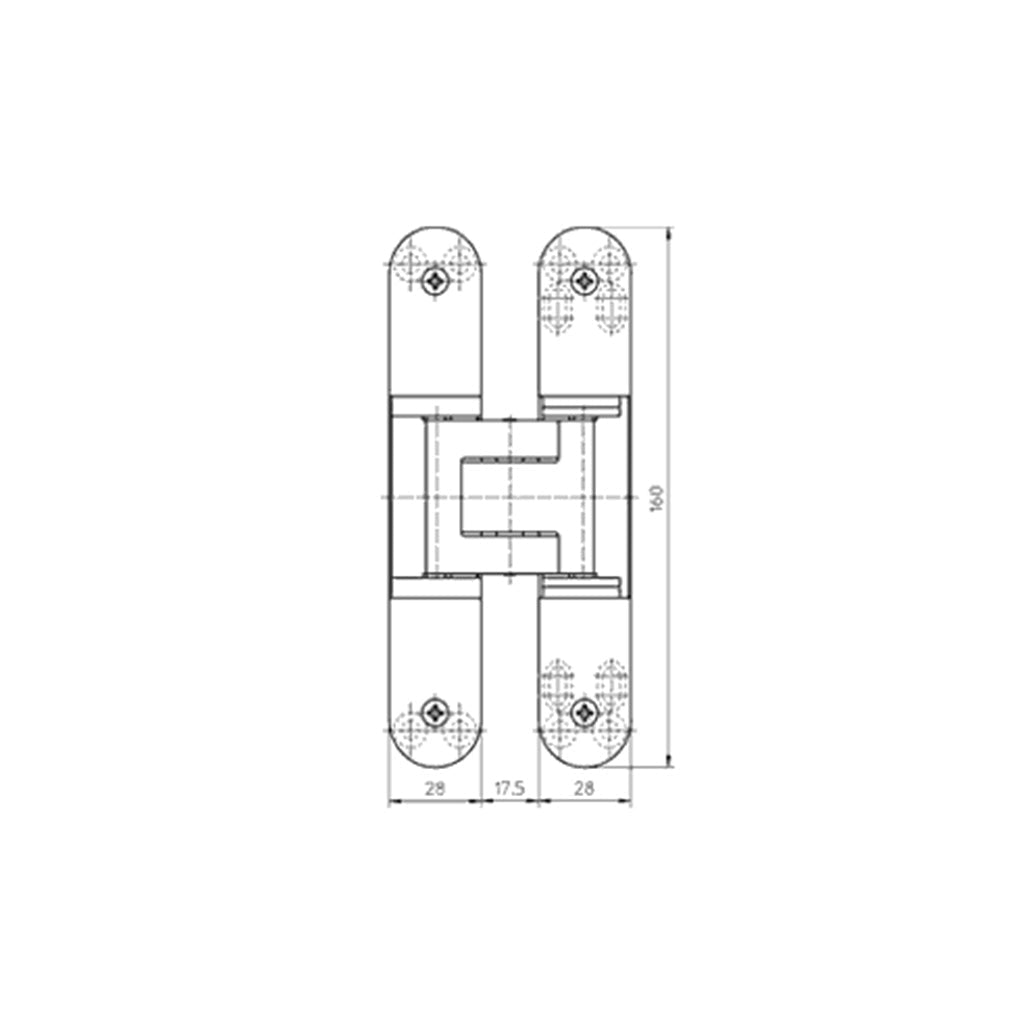

  • Frame: H 155 mm (6.1)" X W 21 mm (0.82") X D 24 mm (0.94")
  • Leaf: H 155 mm (6.1") X W 18 mm (0.7") X D 27 mm (1.06")
  • Minimum Door Thickness:  25 mm (1")
  • Router Bit Diameter: 16 mm
  • 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm)
  • Load capacity for 2 hinges:  60,0 kg
  • Overall length: 155,0 mm
  • Width (door part): 18,0 mm
  • Width (frame part): 21,0 mm
  • Cutter diameter: 16,0 mm
  • Opening angle: 180°
  • 10-year warranty
  • Rated for up to 1 million cycles
  • Can be paired with Ghostop Concealed Door Stop for automatic holding positions
Router templates for installation are sold separately.

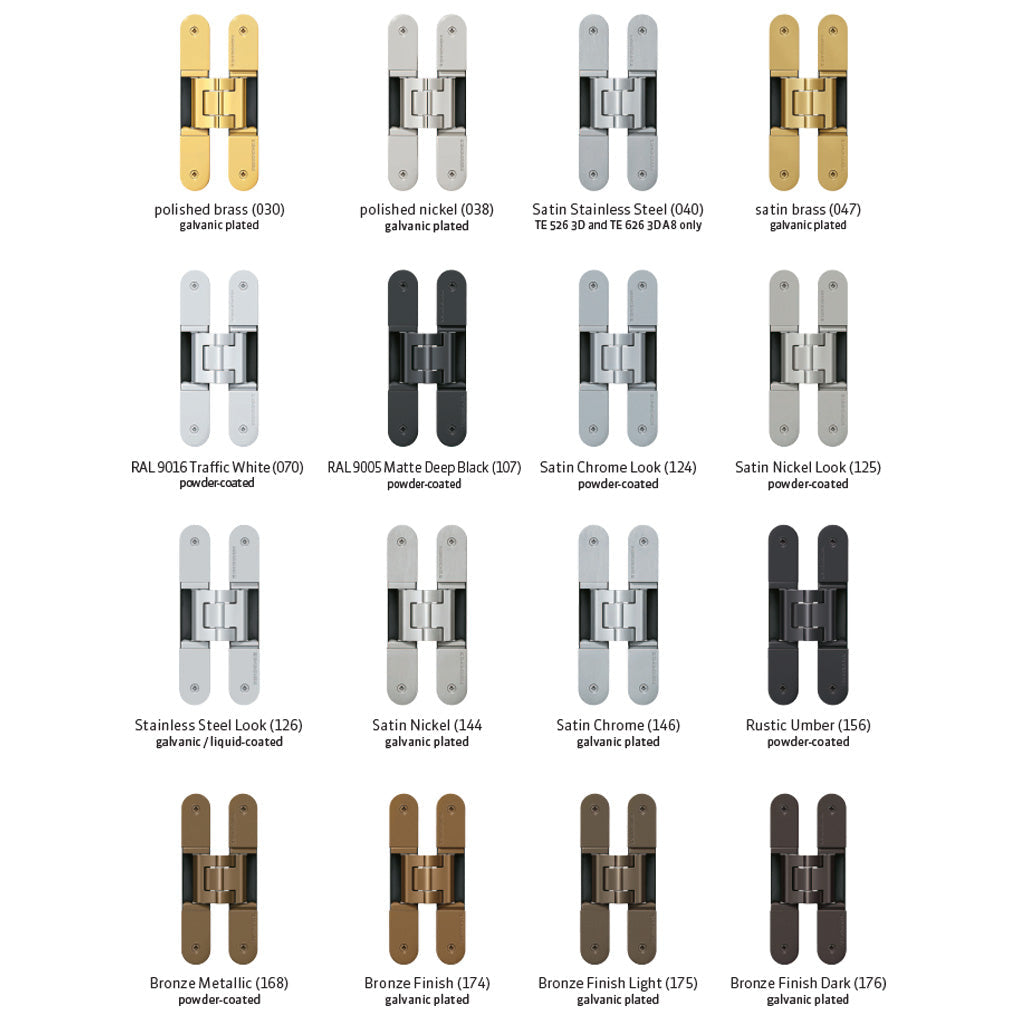

Available in 16 finish options:

  • Rustic Umber
  • Traffic White RAL 9016
  • Matte Deep Black RAL 9005
  • Satin Chrome Look
  • Satin Nickel Look
  • Satin Stainless Steel Look
  • Satin Nickel
  • Polished Nickel
  • Satin Brass
  • Polished Brass
  • Satin Chrome
  • Polished Chrome
  • Bronze Metallic
  • Bronze Finish
  • Bronze Finish Light
  • Bronze Finish Dark
