Name: Xinnix 240V Frameless Door System
Brand: Xinnix
SKU: X240-MV2100-1230-L/A24.0/3/00BB/FU 910
Price: 1105.0 CAD
Availability: InStock

$1,105.00

Door Leaf Size

910 X 2015 mm

710 X 2015 mm

810 X 2015 mm

Handing

Left Push

Left Pull

Right Push

Right Pull

Function

Passage

Privacy

Quantity

LEAD TIME: 6-8 weeks | Made to Order

Description

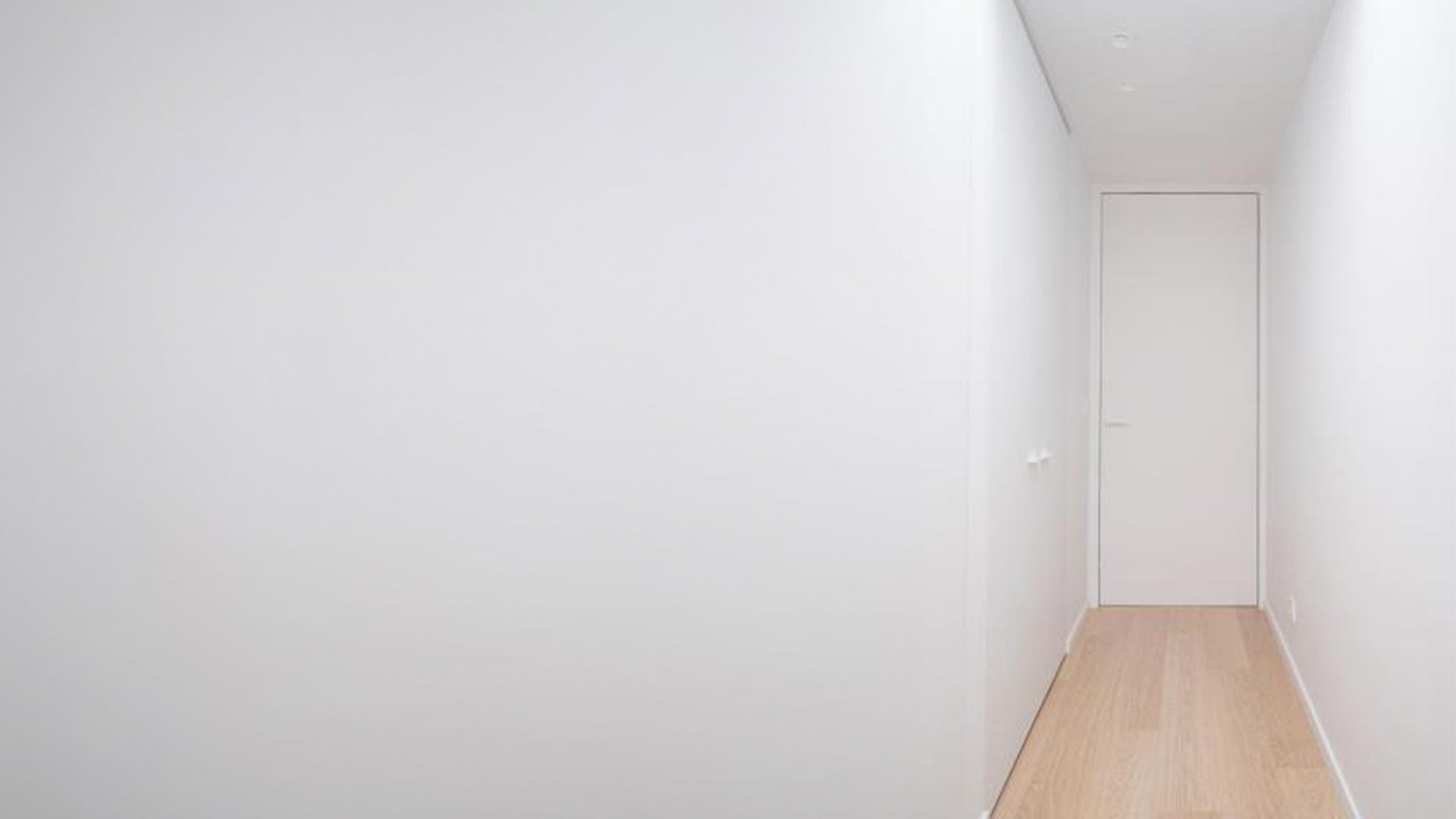

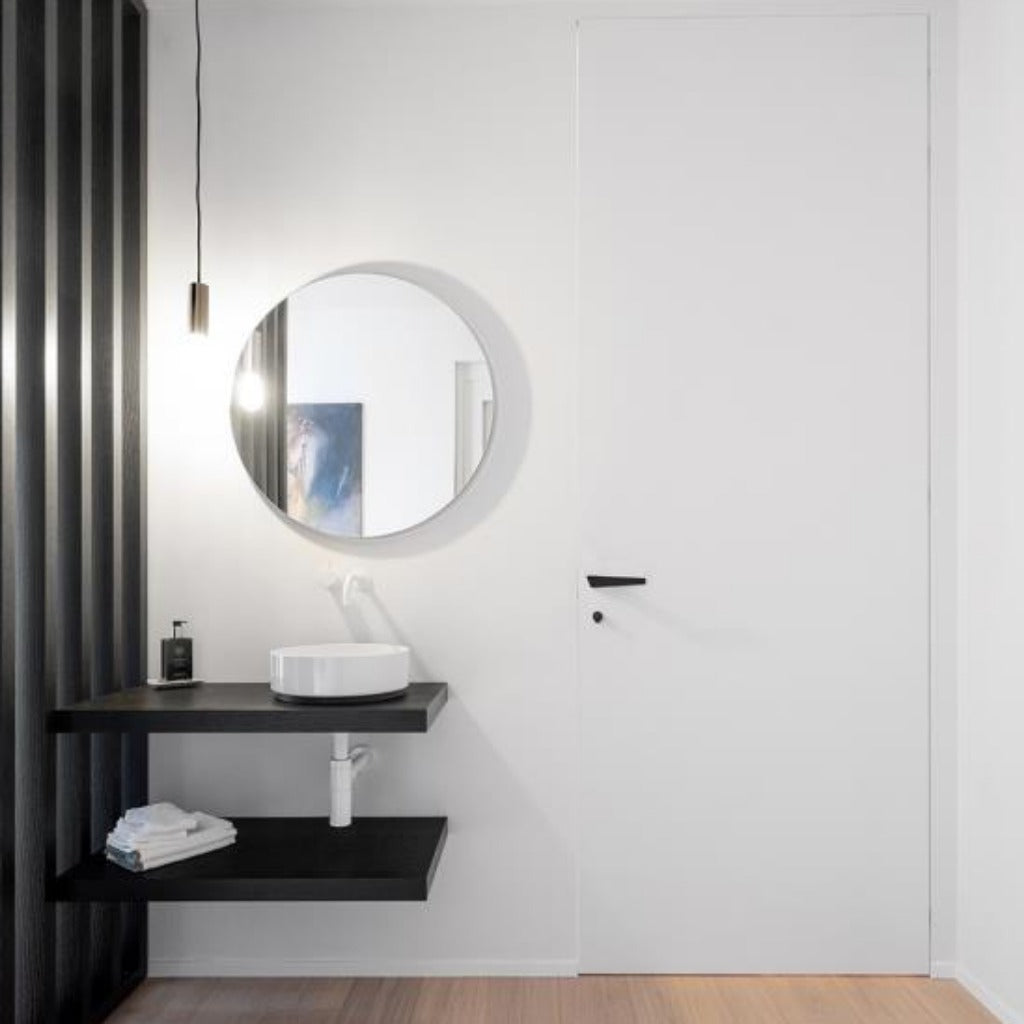

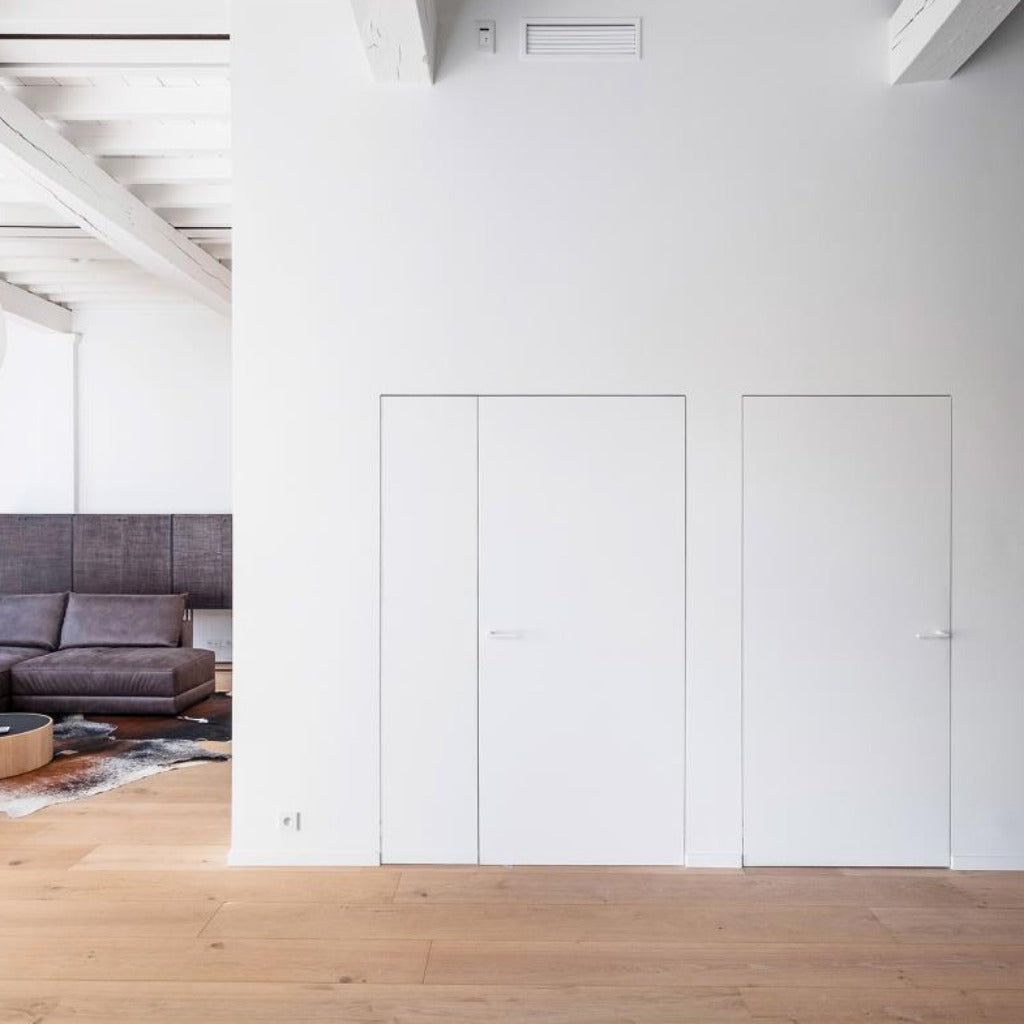

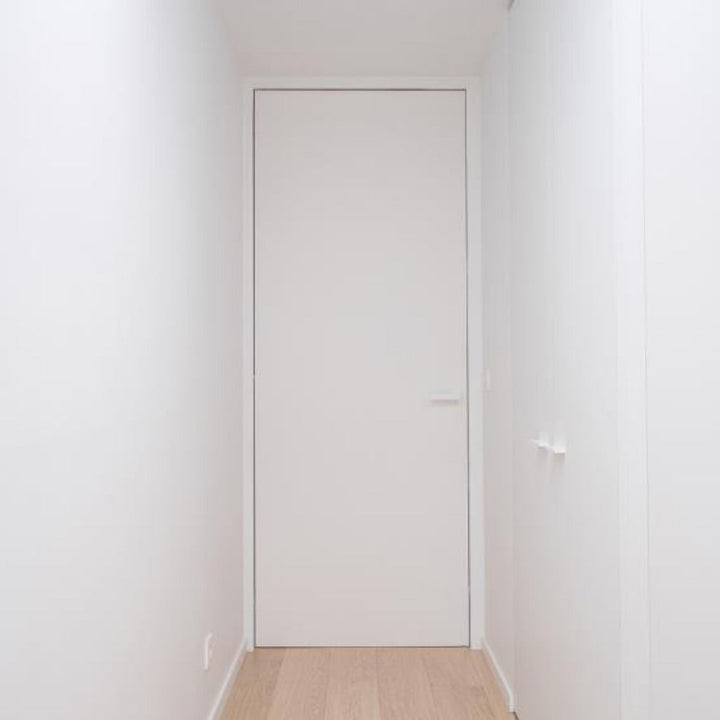

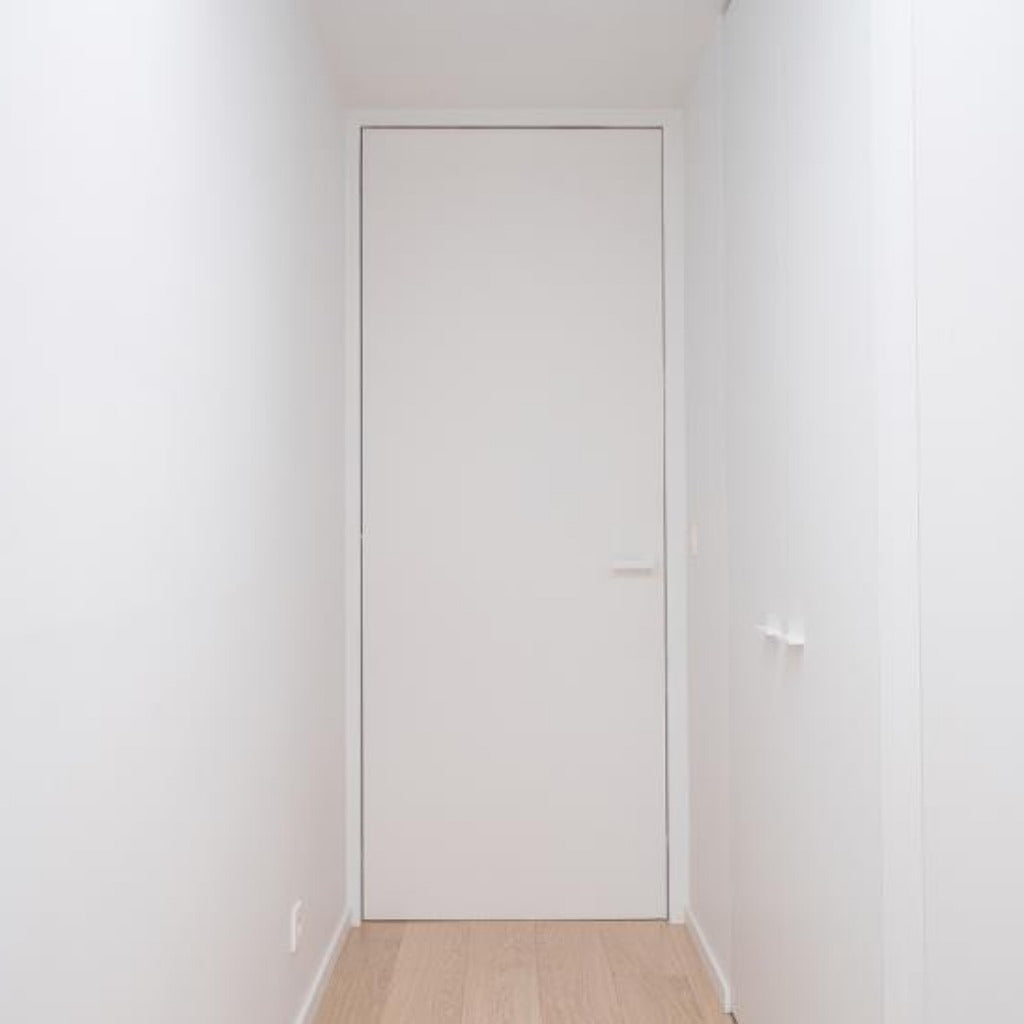

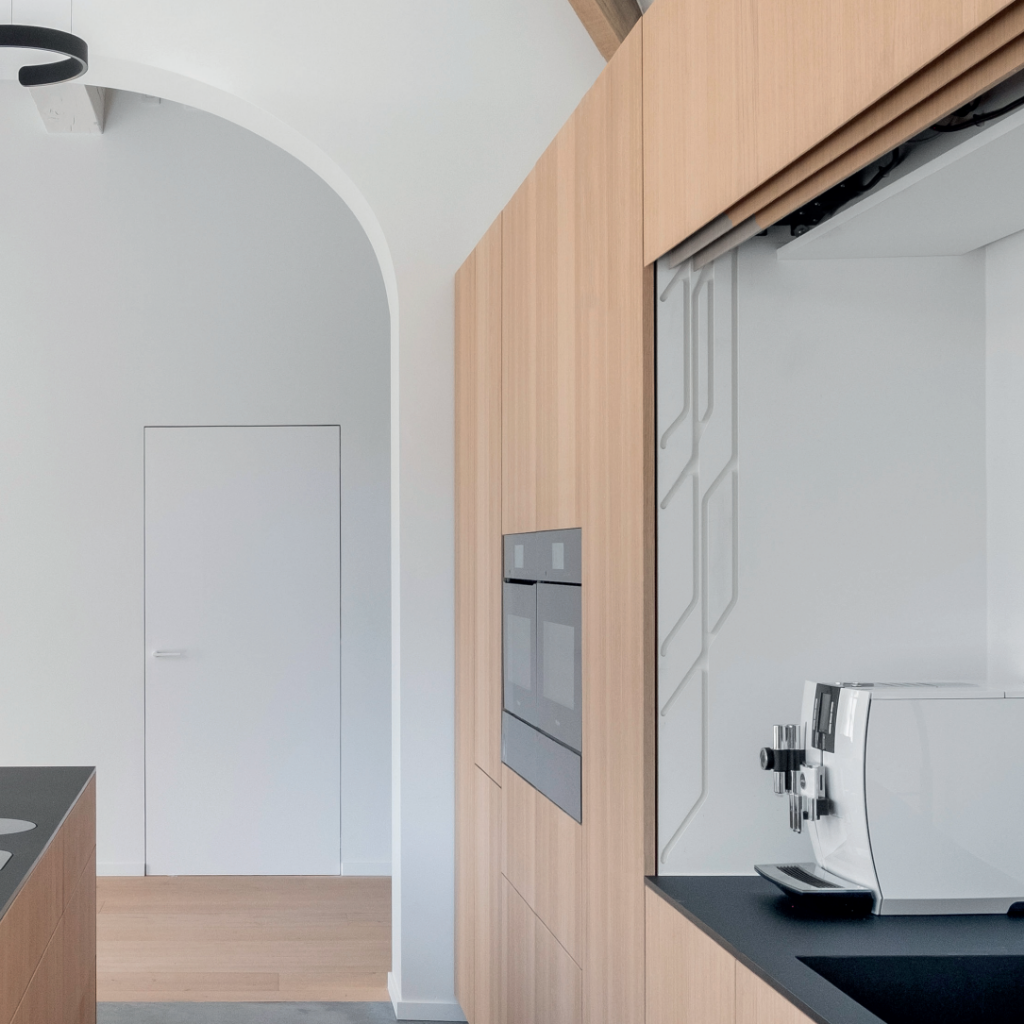

Experience the elegance of the Xinnix Frameless Door System, expertly crafted for seamless integration into any wall. Its innovative flush face design allows doors to blend with the wall's color, creating a discreet and timeless aesthetic. Made in Belgium, Xinnix combines design with functionality.

This system features an aluminum frame and includes hardware such as 3D adjustable hinges, a magnetic lock, and noise-reducing gaskets. Door levers are not included and specified separately.

Selecting the handing for Xinnix doors involves choosing the direction of opening from the primary side. See handing guide.

Specifications

Available Sizes:

Width: 710 mm (28") / 810 mm (32") / 910 mm (36")
Height: 2015 mm (80")

Required Wall Thickness:

Minimum: 75 mm (3")
See installation guides for corner bead requirements.

Fire Rating: EUR certified, CAN & USA certification pending

Areas of Application: Residential

Sound Insulation: Integrated gaskets

Door Closers: Optional (available upon request)

Door Leaf Requirements

Note: We provide dimensions, but do not supply door leaf.

Size: See door leaf specifications document.
Thickness: 50 mm (1.97") for Push, 40mm (1.57") for Pull. See Handing Guide.
Material: Solid Core, Wood.

We recommend working with a professional installer.

Components Included In System

Aluminum Frame (White Primed, RAL9016SA30)
3D Adjustable A24 Hinges
Euro Magnetic Mortise Latch
Please note, door levers are not included in system and are sold separately.

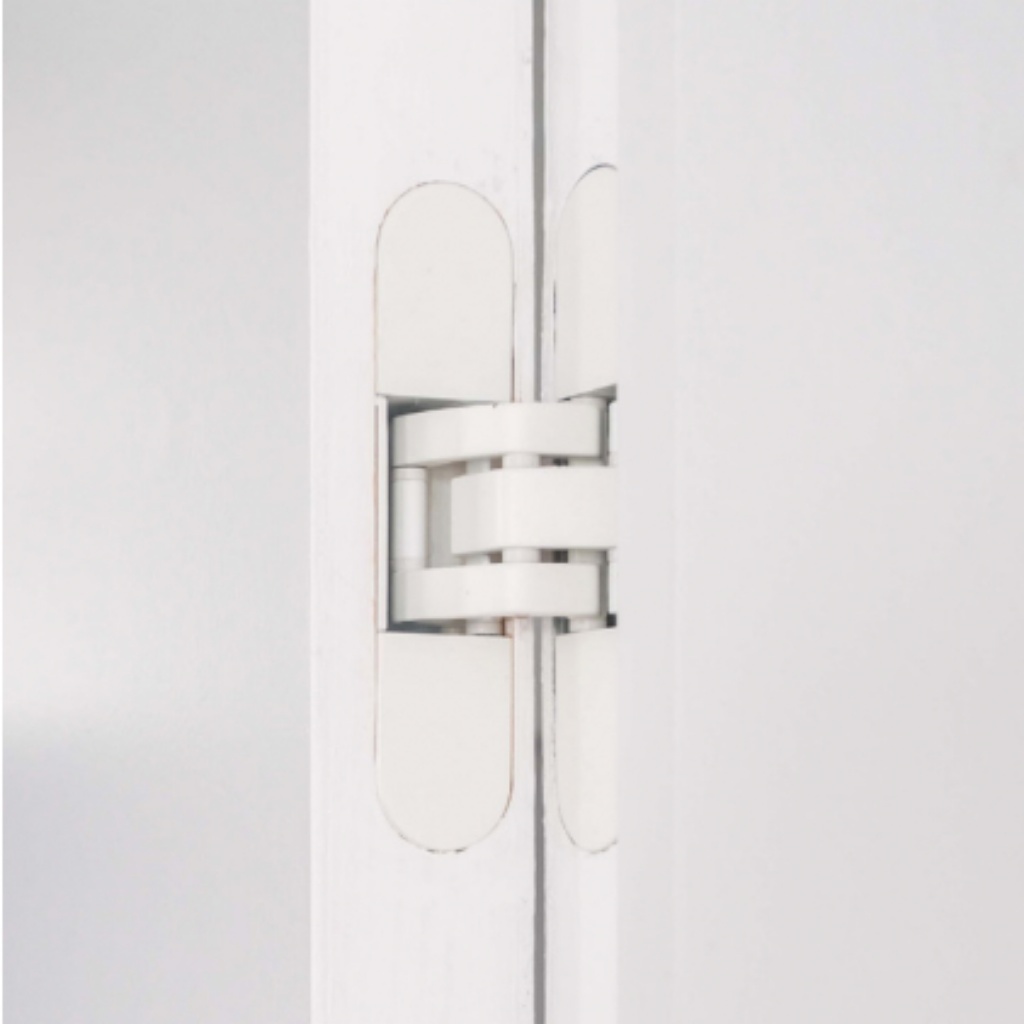

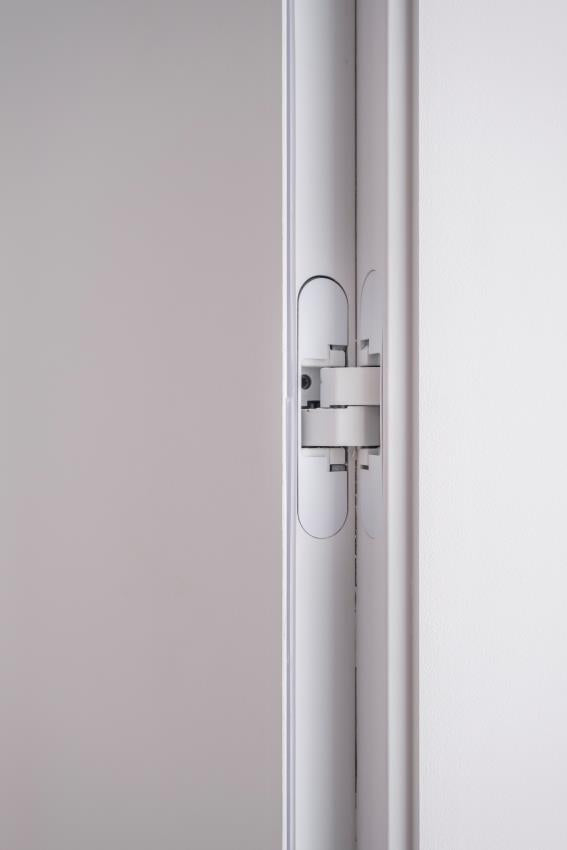

A24 Hinge Features

Reversible (Left/Right)
180° Opening Angle
Concealed, 3D-Adjustable
Load Capacity: 60kg (3 hinges), 80kg (4 hinges)
Standard Finish: White

Reversible Magnetic Lock Specifications

Dimensions: 120X22 mm
Types: Passage D70, Privacy D73
Counter Strike Size: I97 (22 X 82 mm)
Standard Finish: Satin Stainless Steel

Installation Video

Product Downloads
