Description

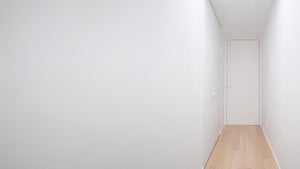

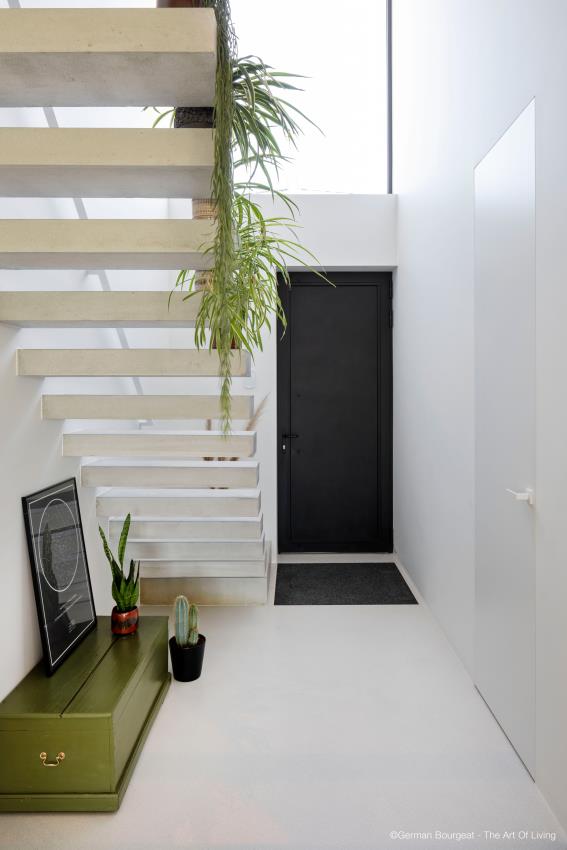

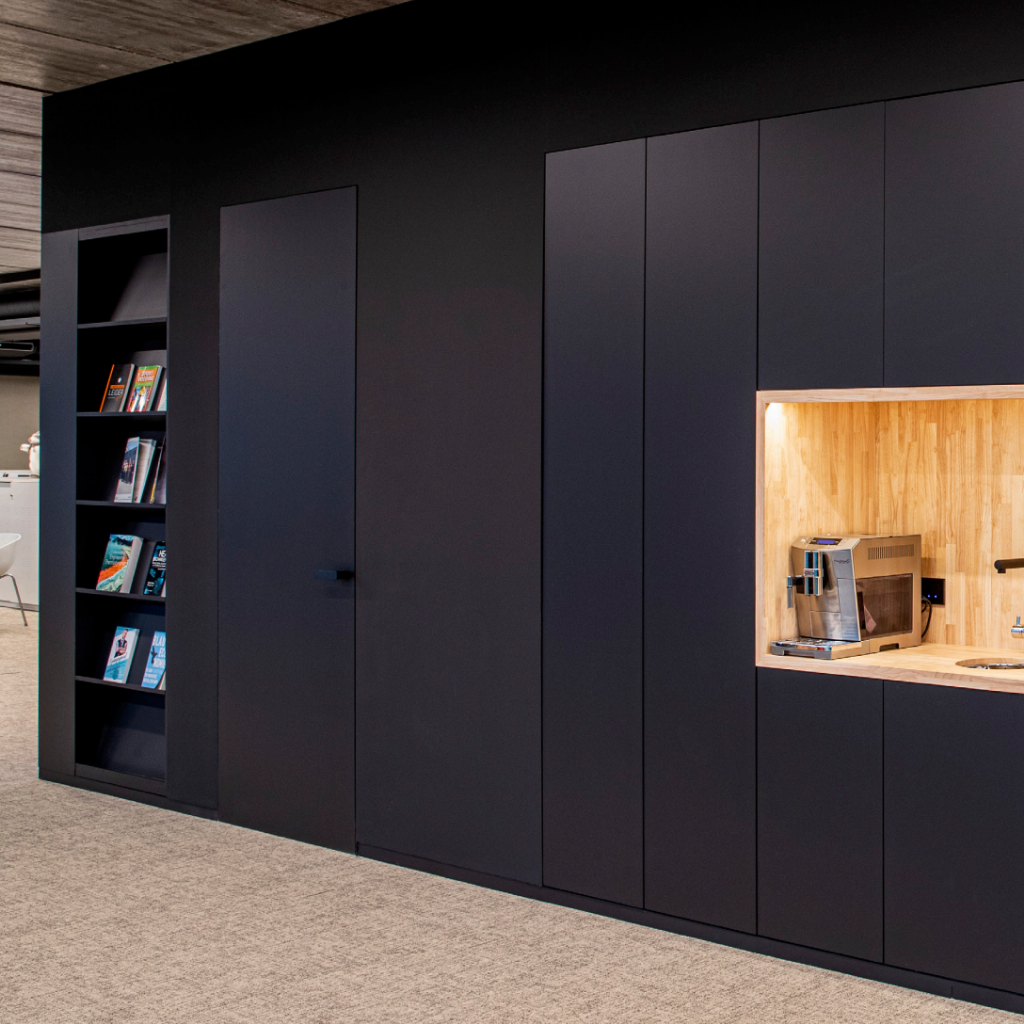

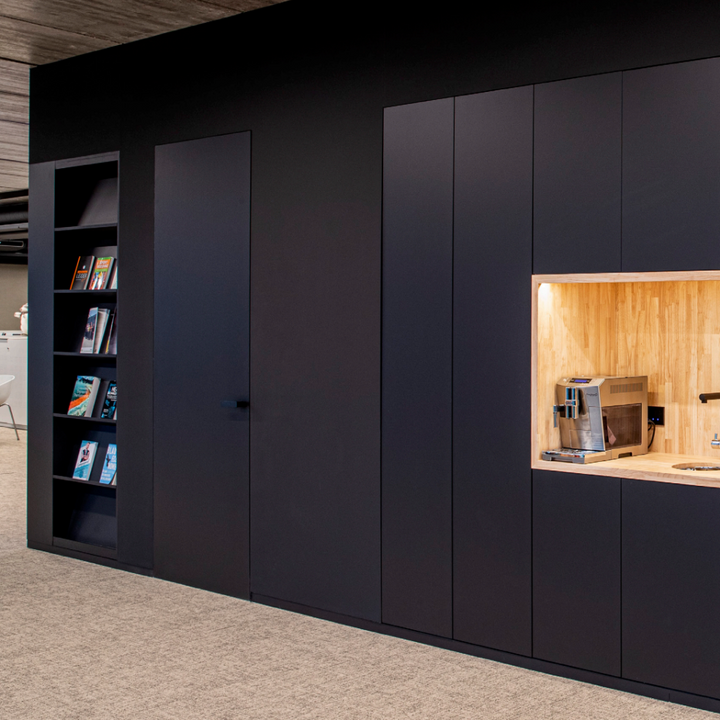

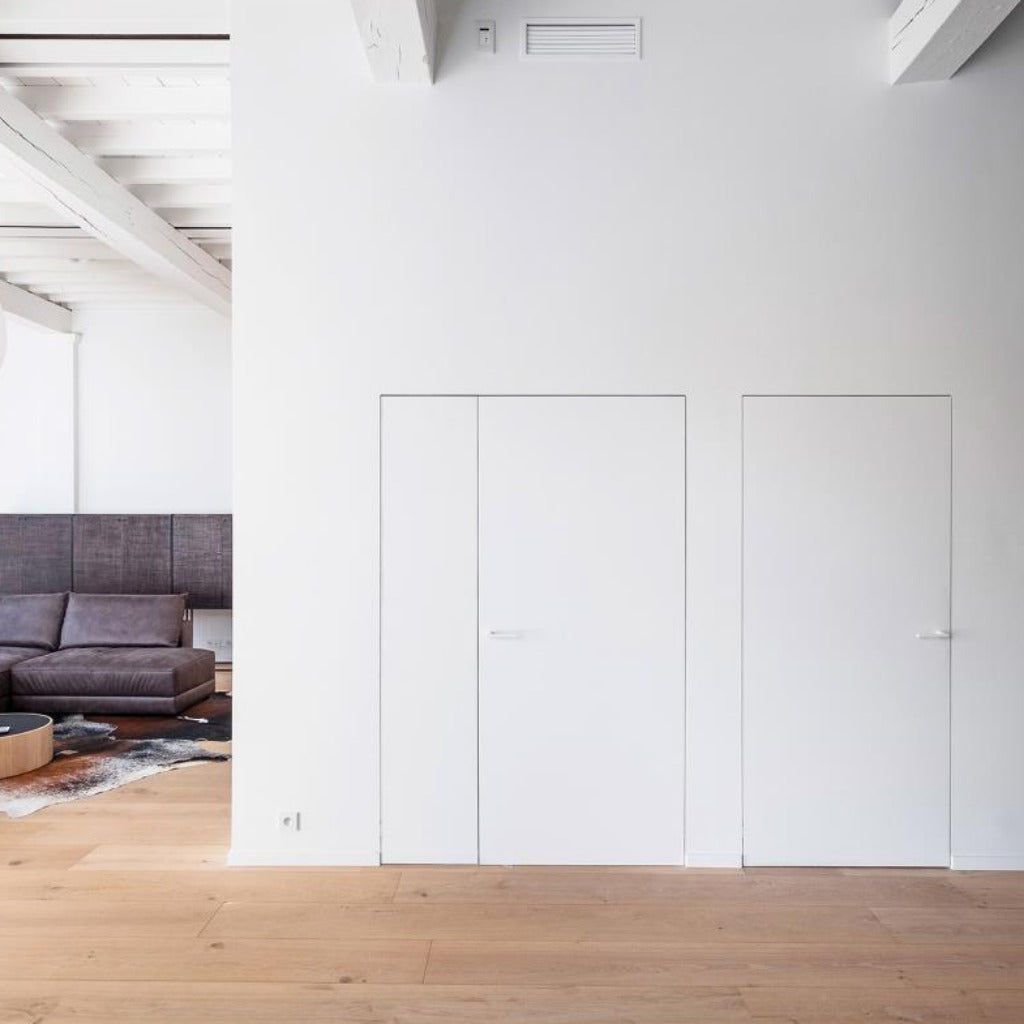

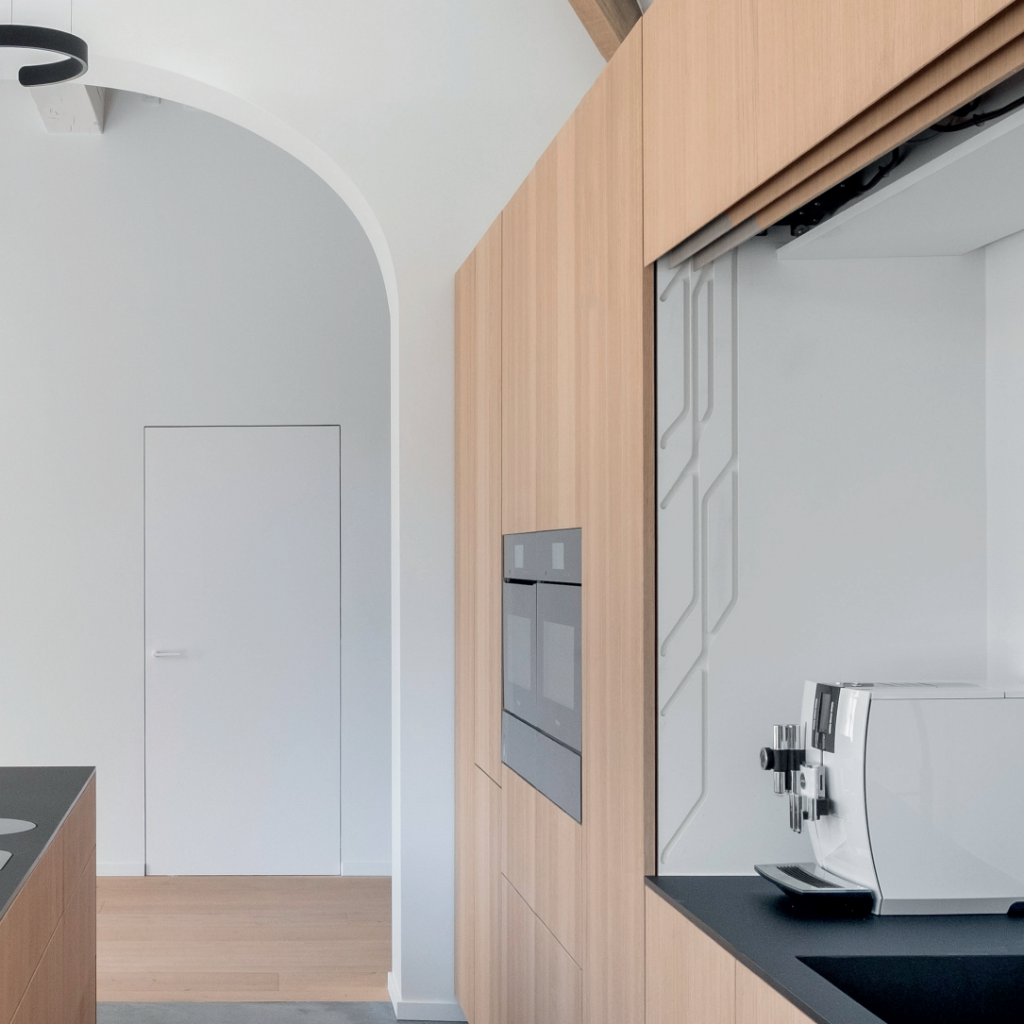

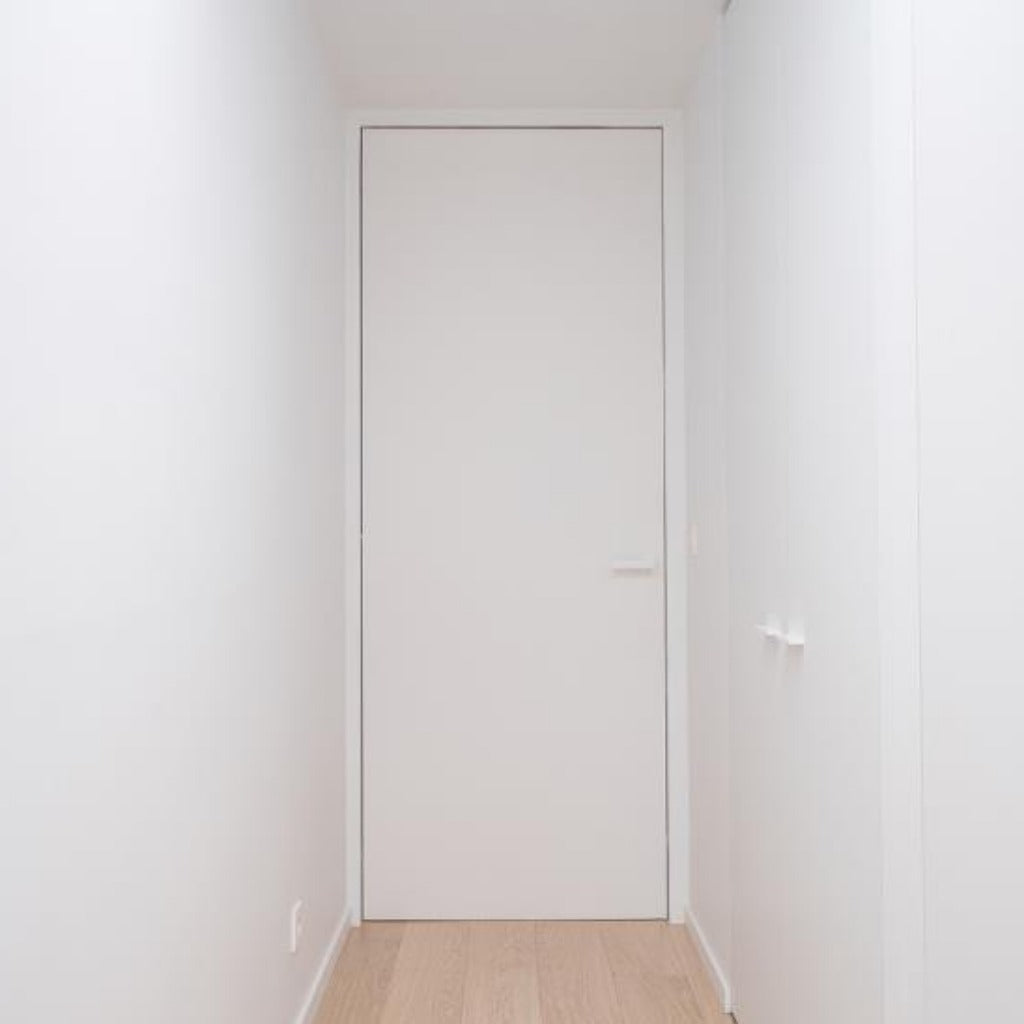

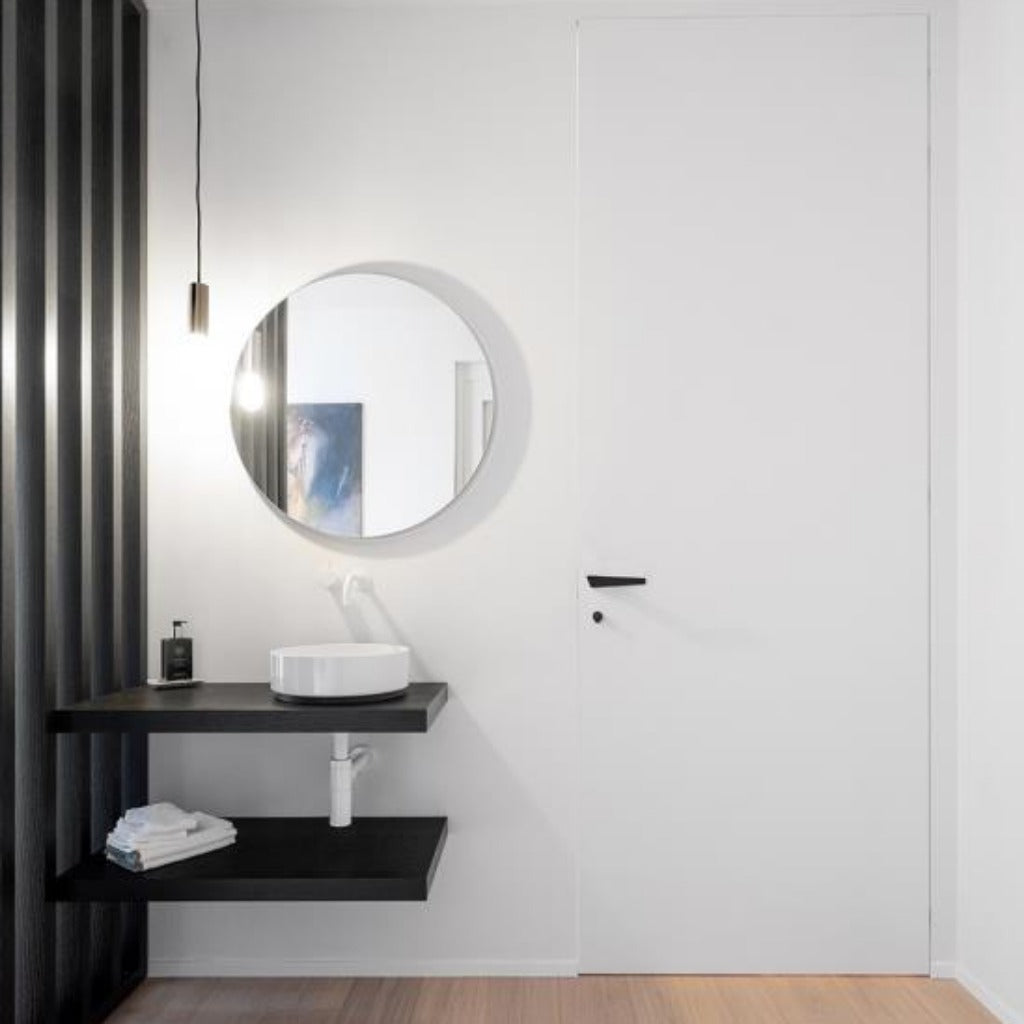

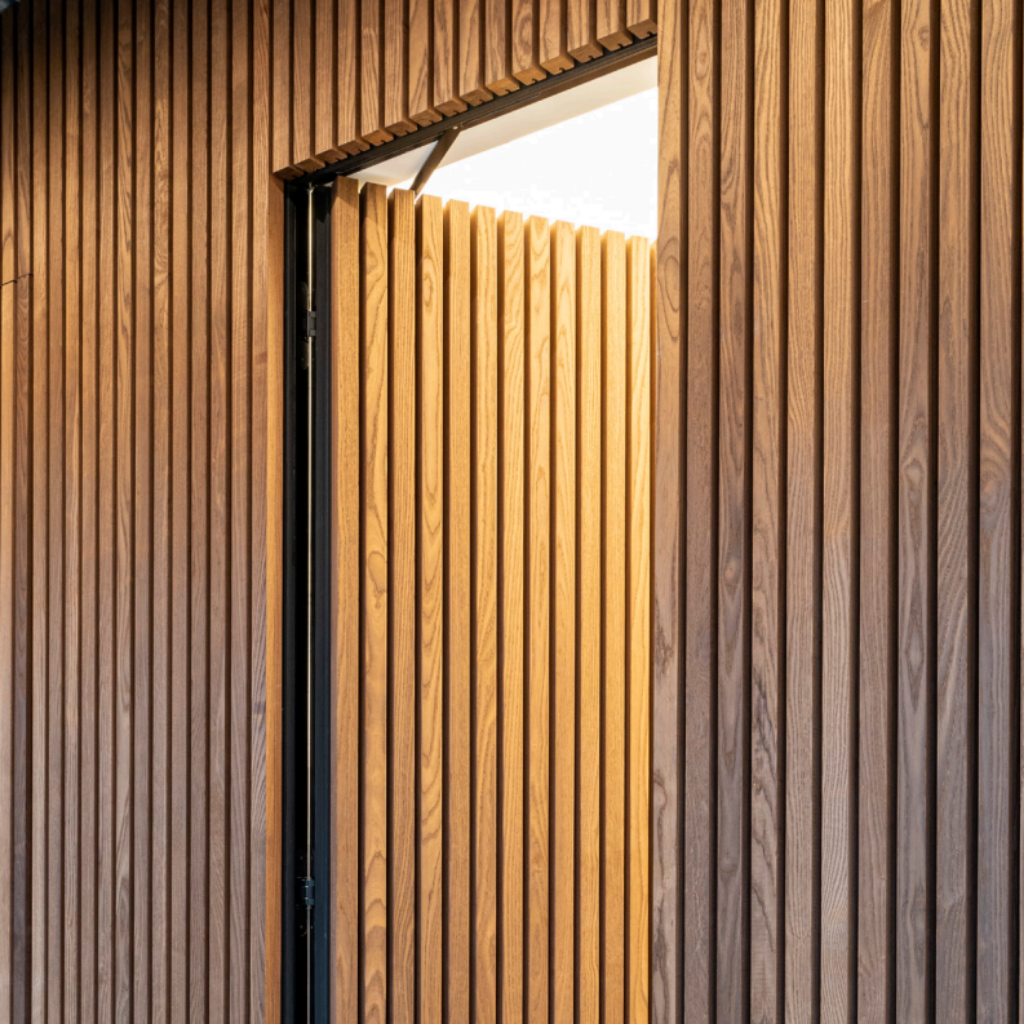

The Frameless Door System by Xinnix is a concealed aluminium door frame designed for seamless wall integration. The flush-face construction allows the door to match the wall's colour and finish, creating a discreet, invisible-door aesthetic. Made in Belgium. Door panel and door levers are not included and must be specified separately.
The system includes an aluminium frame, 3D adjustable concealed hinges, a euro magnetic mortise latch, and noise-reducing gaskets. Selecting handing involves choosing the opening direction from the primary side — see handing guide.
Specifications
- Widths: 710 mm (28"), 810 mm (32"), 910 mm (36")
- Height: 2015 mm (80")
- Minimum Wall Thickness: 75 mm (3")
- Fire Rating: EUR certified (CAN & USA certification pending)
- Sound Insulation: Integrated gaskets
- Application: Residential
- Door Closers: Optional, available upon request
- Installation: Professional installation recommended. See installation guides for corner bead requirements.
Components Included
- Aluminium frame — white primed (RAL 9016 SA30)
- 3D adjustable A24 concealed hinges
- Euro magnetic mortise latch
Door panel, door levers, and thumb turns are not included and must be specified separately.

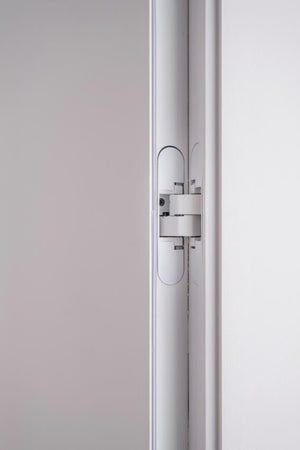

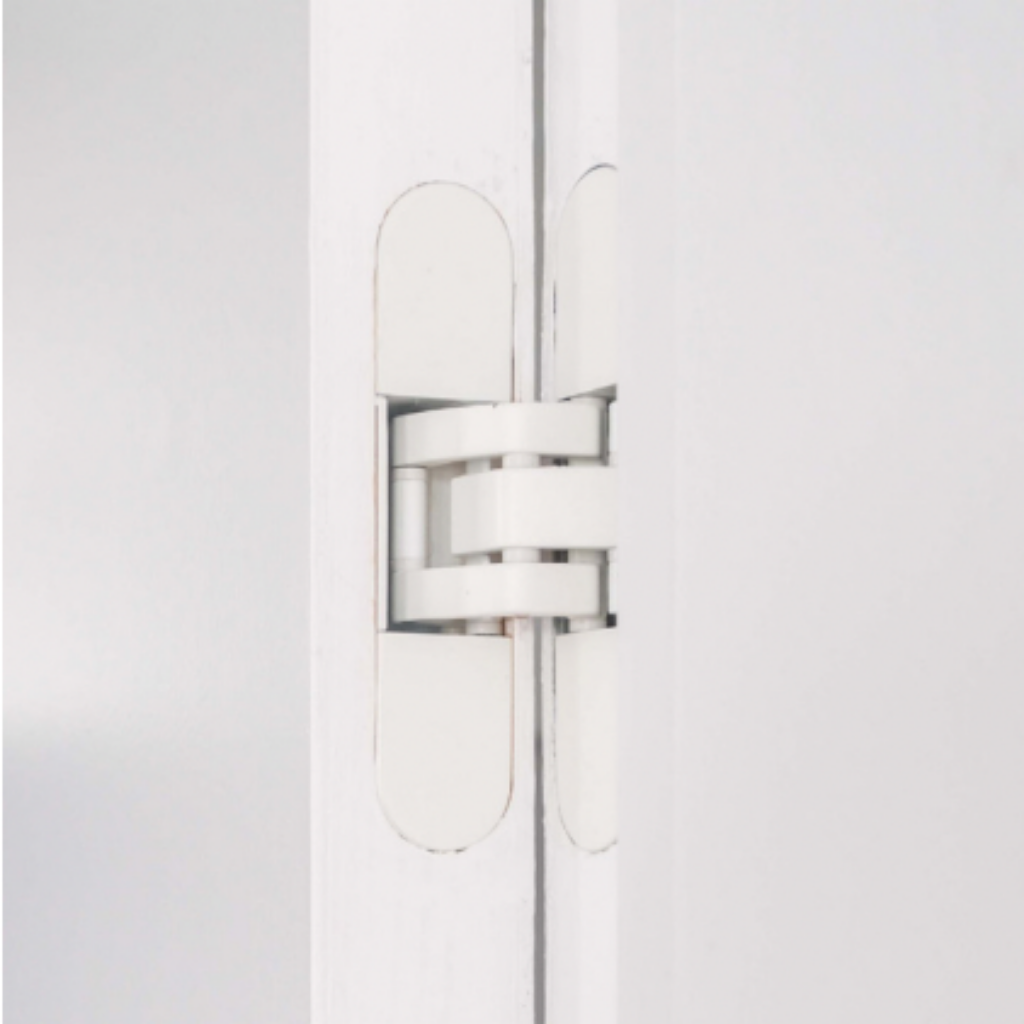

A24 Hinge
- Reversible — left/right
- Opening angle: 180°
- 3D adjustable, fully concealed
- Load capacity: 60 kg (3 hinges), 80 kg (4 hinges)
- Standard finish: White

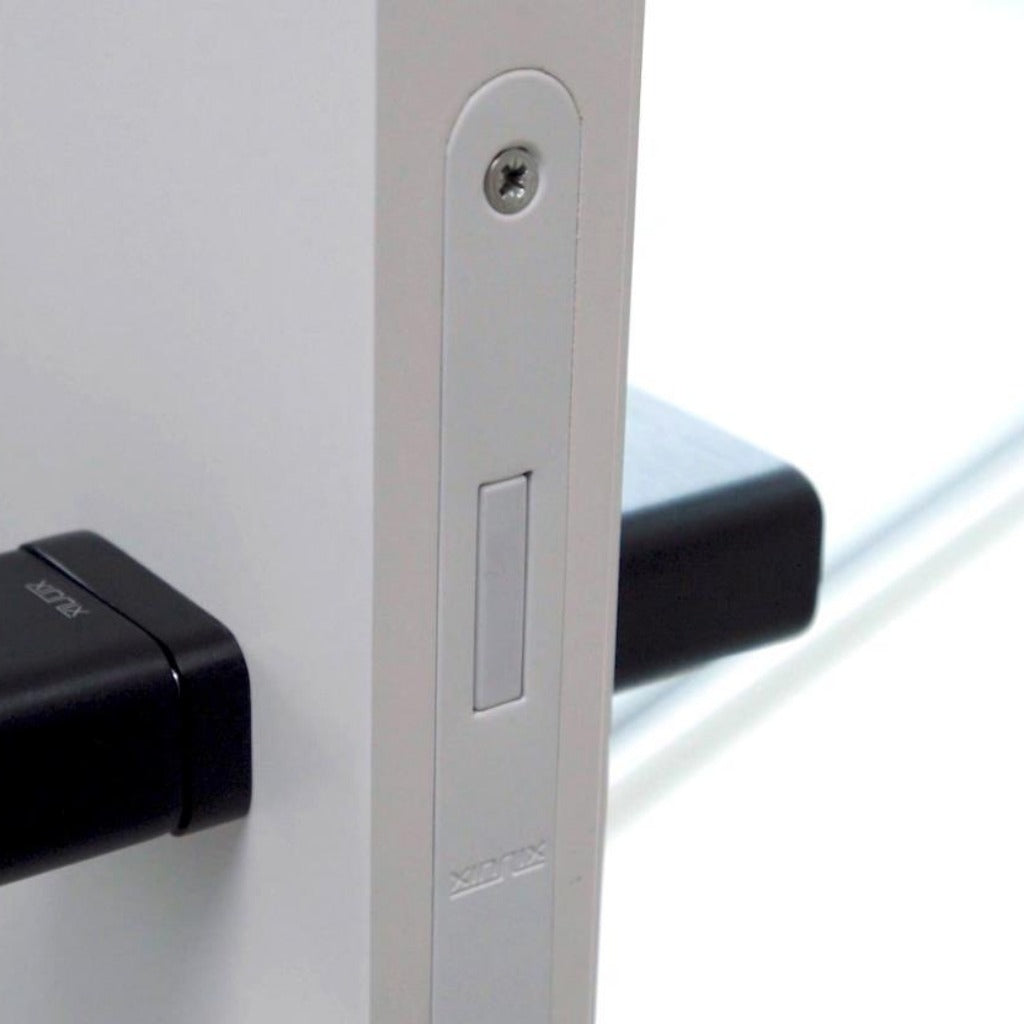

Magnetic Mortise Latch
- Dimensions: 120 × 22 mm
- Types: Passage D70, Privacy D73
- Counter strike: I97 — 22 × 82 mm
- Standard finish: Satin Stainless Steel
Materials
Aluminium frame, white primed as standard. Door levers and hardware sold separately — see the door levers collection.
Product Downloads
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
