Top Mounted Bi-Part Barn Door Hardware

SKU: bi-part-barn-door-hardware-top-mount-Brass-6'-Pre-Drilled

Finish
Track Length
Drilling
Price
Original price$1,476.00
/
Shipping calculated at checkout.
Description

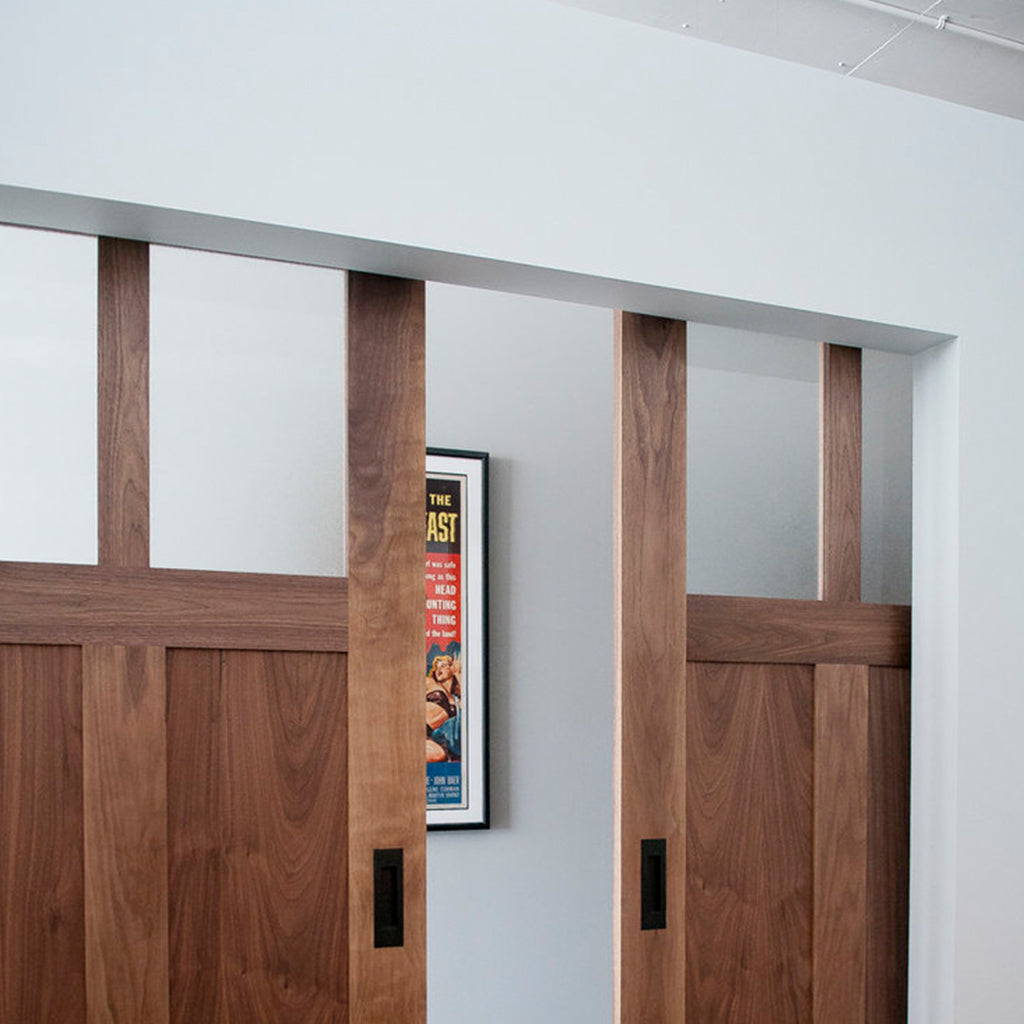

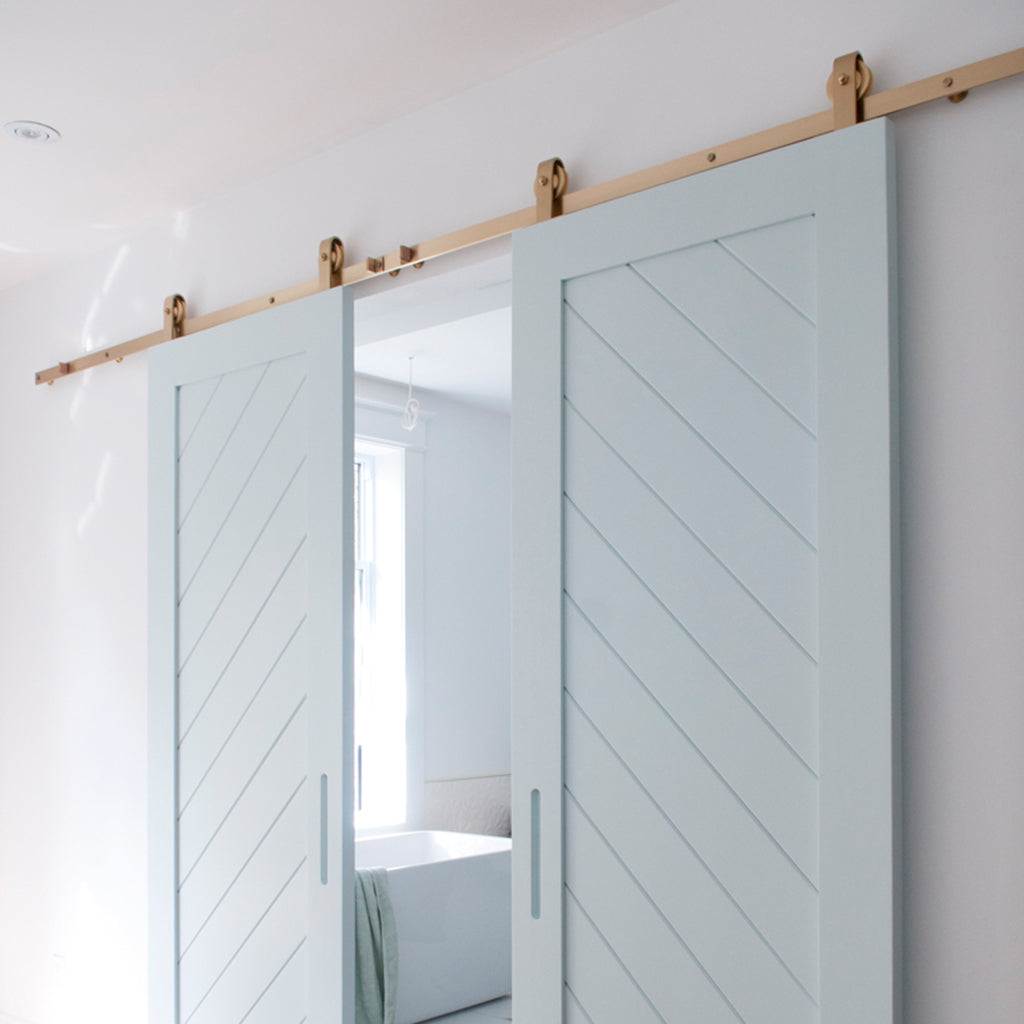

The Bi-Part Barn Door Hardware (Top Mount) by 1925Workbench is a dual-door sliding system in solid brass and steel that operates along a single continuous track. Two doors slide in opposite directions for opening and meet seamlessly at the centre when closed. Top-mount configuration.

For layouts requiring greater flexibility, a Bypass configuration is also available.

Designed and manufactured in Toronto by 1925Workbench. Patented in Canada and the USA.

Tracks are custom-cut to your exact length. Contact us with the following for a quote:

  • Style: Top Mount / Face Mount / Bi-Part
  • Finish: Brass / Raw Steel / Stainless Steel / Black
  • Length
  • Drilling: Pre-drilled or Not drilled
Specifications
  • Weight Capacity
  • Rated for doors up to 200 lbs per pair of hangers (actual capacity varies by wall structure and mounting method)
  • Pre-Drilled vs. Not Pre-Drilled
  • Pre-drilled holes spaced every 14.75"–17.25" along the track
  • Pre-drilled tracks must be mounted on a backing piece to clear baseboards or mouldings
  • Not pre-drilled tracks can install directly to the wall if baseboards are flush and adequate blocking is present
  • For Black Powder Coated "Not Pre-Drilled" orders, a 1.5" hole is drilled at each end for hanging during the coating process
  • Track Length & Measuring
  • Track length: order at least twice the width of the door plus a minimum 2" overlap on each side
  • Door should be 4" wider than the opening (2" overlap per side) and large enough to cover any door casing
  • Tracks over 93" ship in two pieces
  • Recommended headroom: 8"–10" (minimum 6")
  • Additional Components
  • Floor Guide — a small bracket mounted at the base of the door for alignment. Highly recommended. Available in Slot Guide or Clamp Guide styles.
  • Price includes hardware only. Door and header piece not included.
Materials

Crafted from solid brass, stainless steel, and hot rolled steel. High-quality solid brass rollers with double built-in ball bearings deliver smooth, quiet door motion.

Available Finishes

  • Solid Brass (light oil coat — will develop patina over time)
  • Stainless Steel (hand-brushed)
  • Hot Rolled Steel (raw, minimal treatment)
  • Matte Black (powder coated)

Suitable for outdoor applications — finishes will patina more quickly when exposed to the elements.

Product Downloads
Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
