AHI 103 Door Lever Set

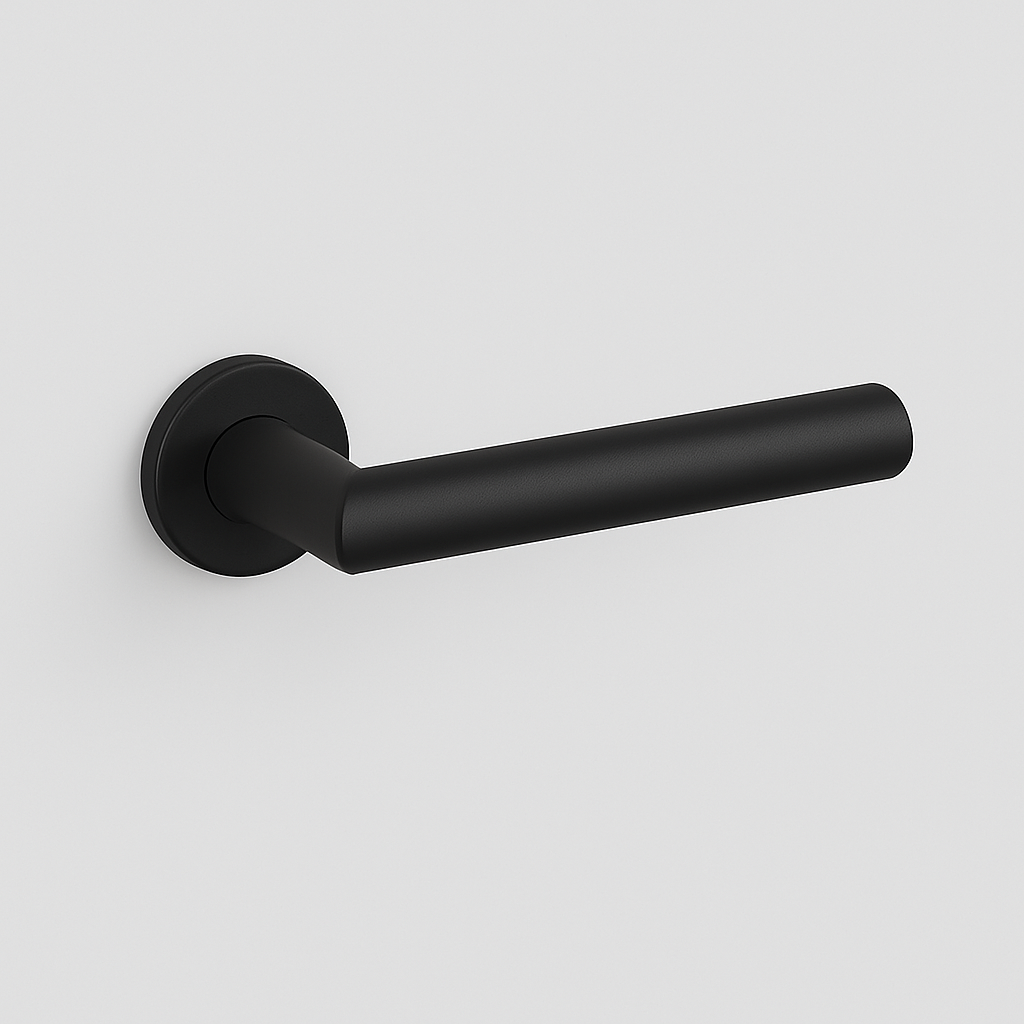

The AHI 103 Door Lever by AHI is a slim cylindrical lever crafted from hollow stainless steel, offering clean minimal lines and a refined utilitarian profile. A smaller version of the AHI 104, it balances understated design with practical function for interior doors in both residential and commercial settings.

Available in passage, privacy, and dummy configurations. Four rose styles (two circular, two square) allow coordination with standard and oversized bore preparations.

• Lever Dimensions: L 141 mm (5.56") × W 19 mm (0.75")
• Door Thickness: 1 3/8" – 2"

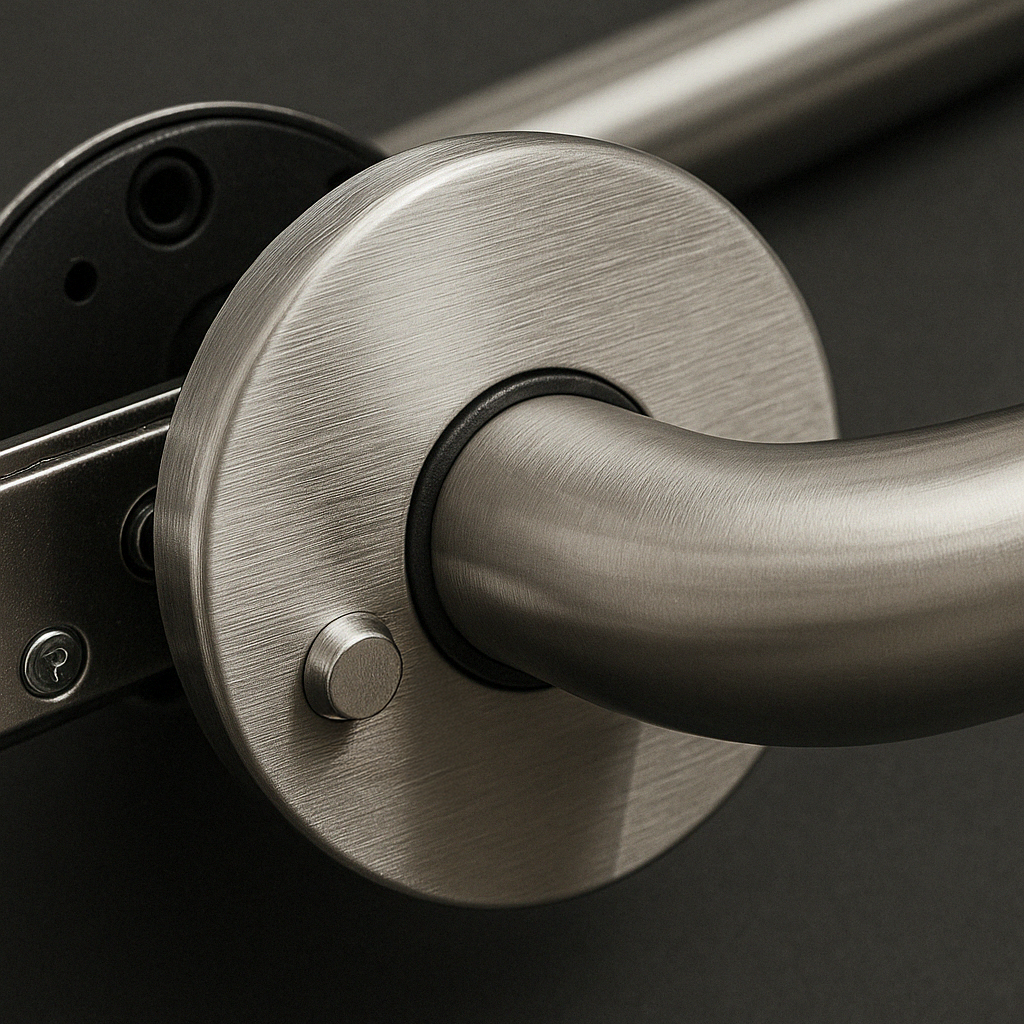

• Thumb Turn: Push/pull pin on rose

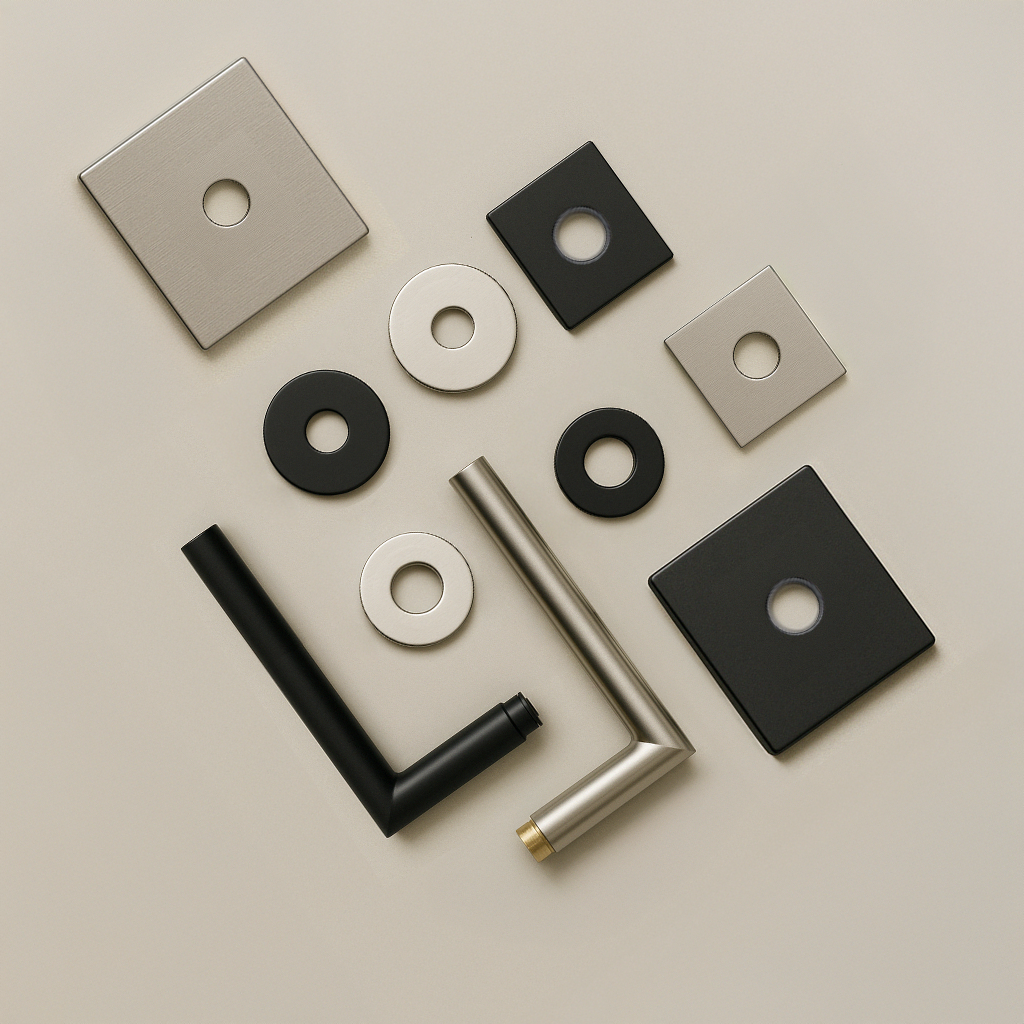

• Rose Options:

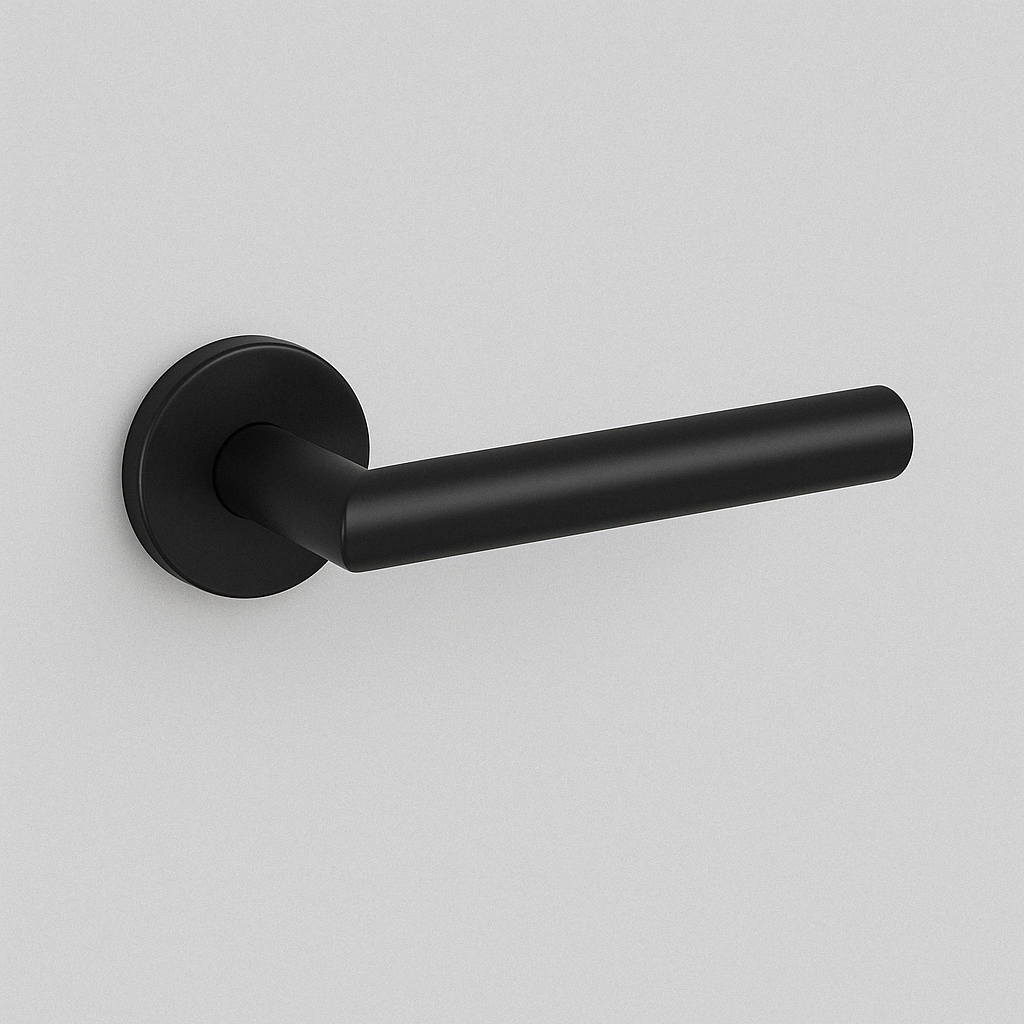

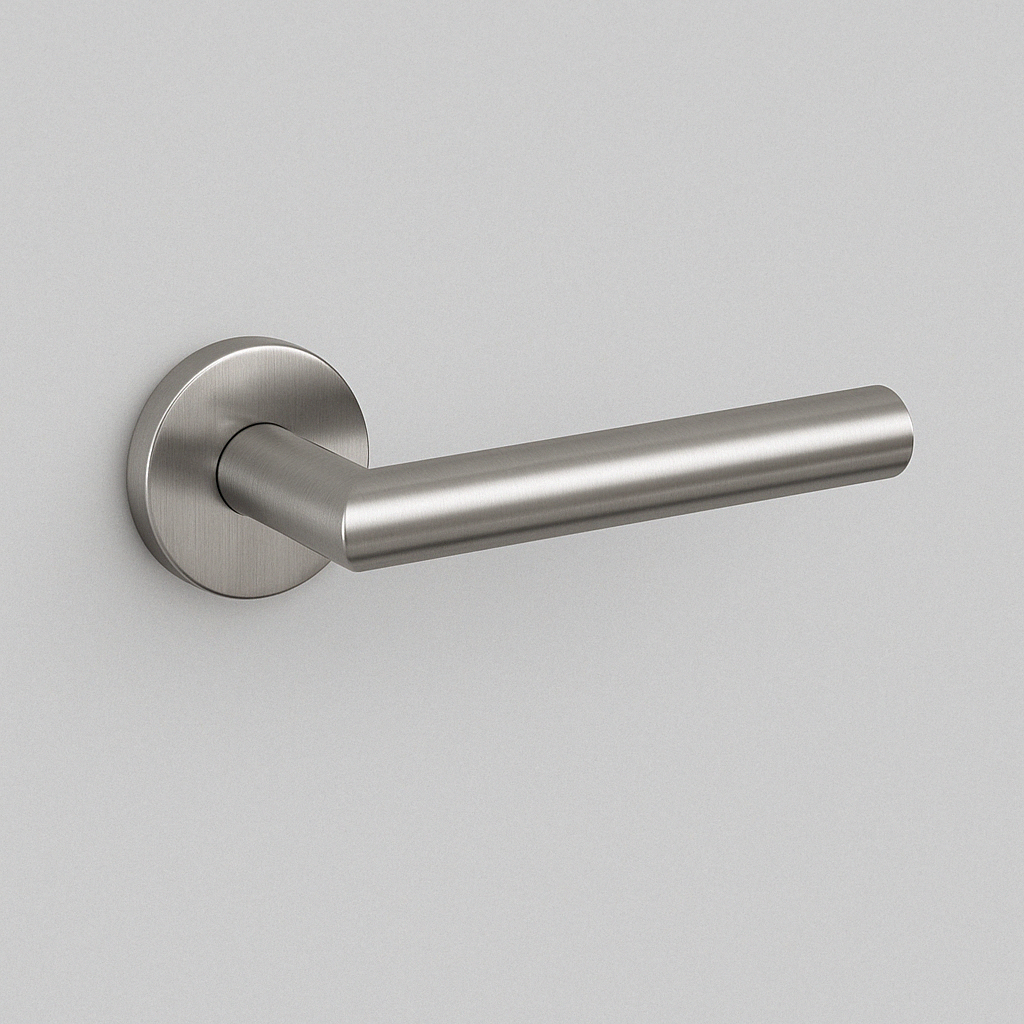

  • Rose 200 (Circle SM): Ø 52 mm (2 1/16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 201 (Circle LG): Ø 62 mm (2.44") × D 10 mm (0.3") · Fits Ø 53.97 mm (2.12") bore hole

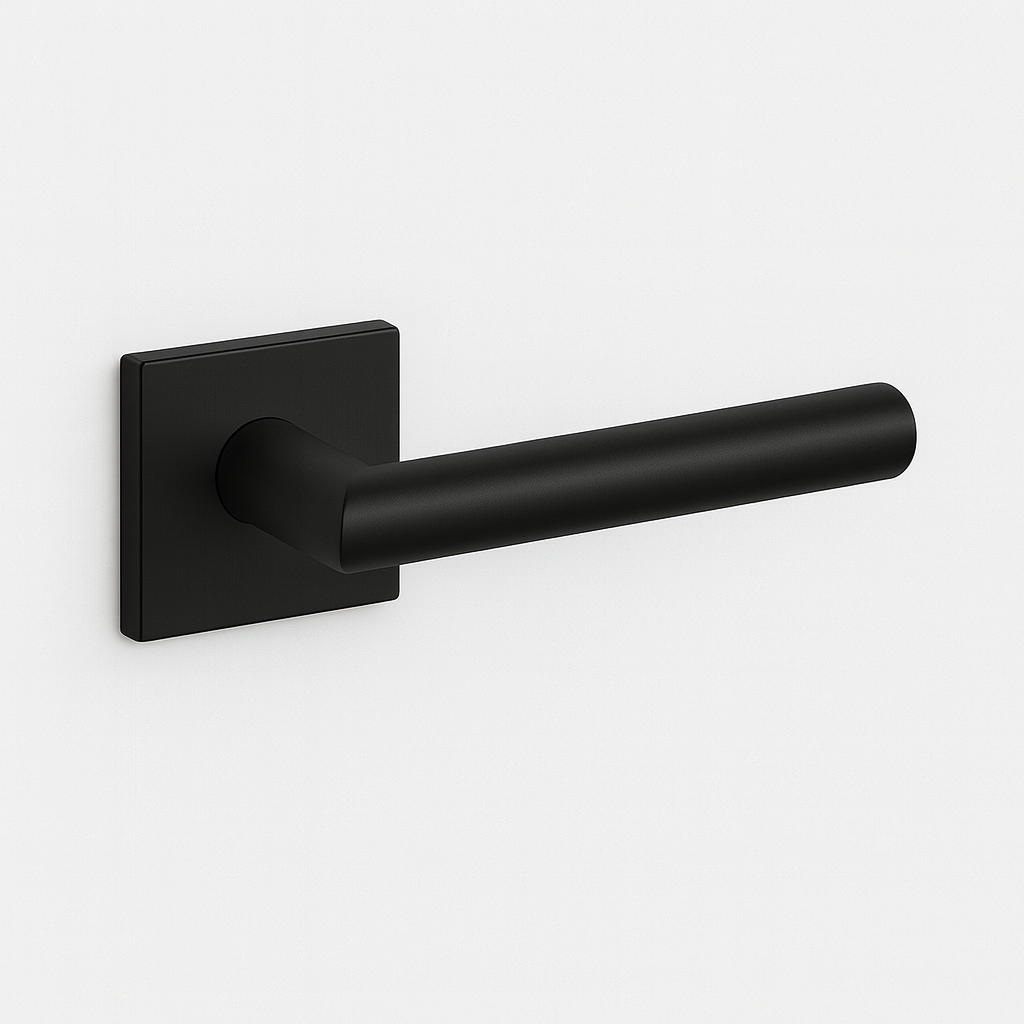

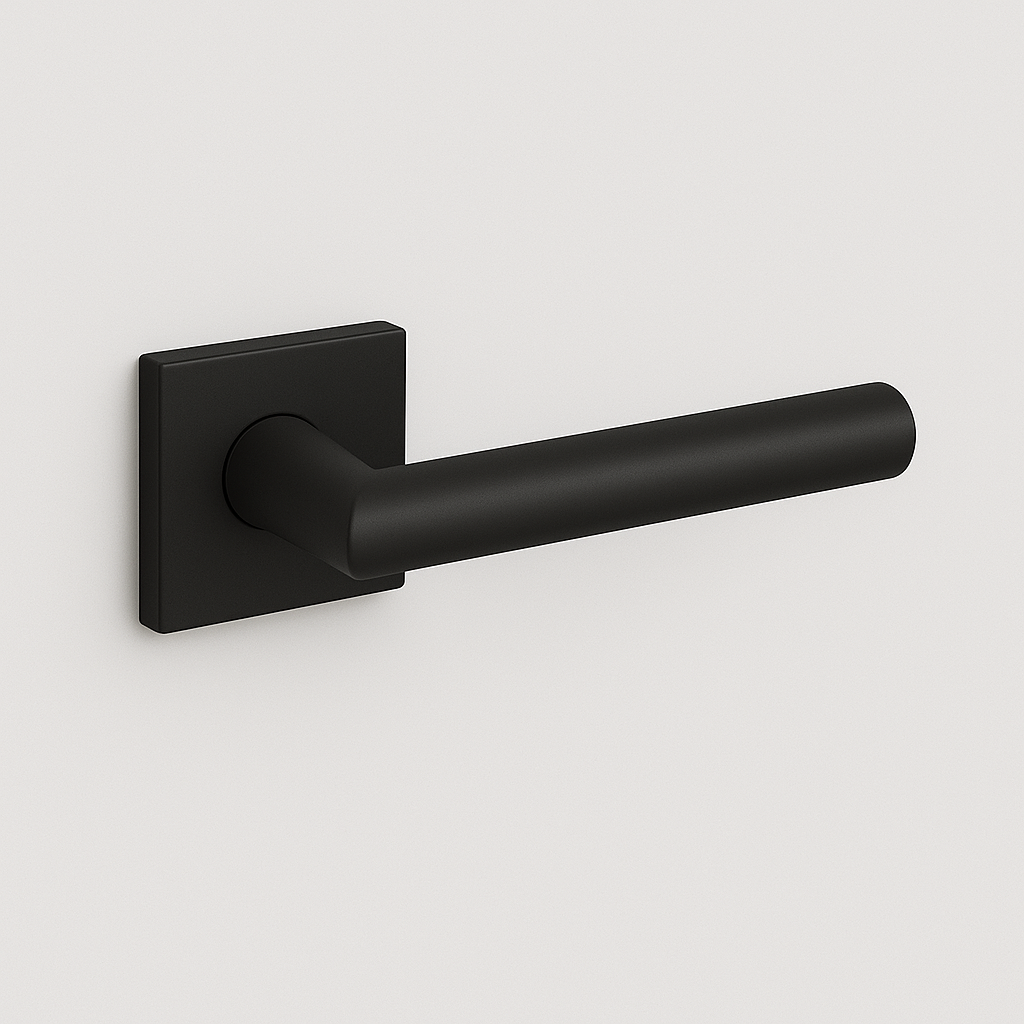

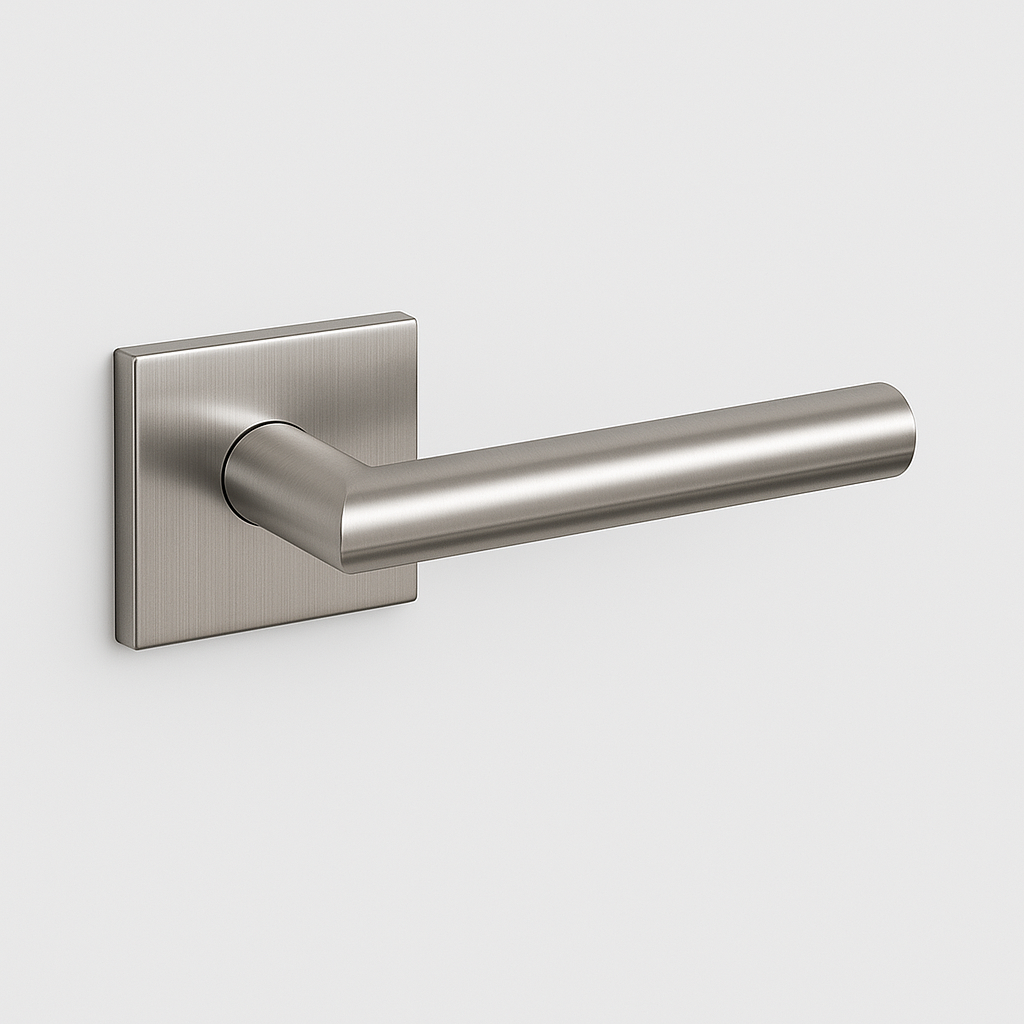

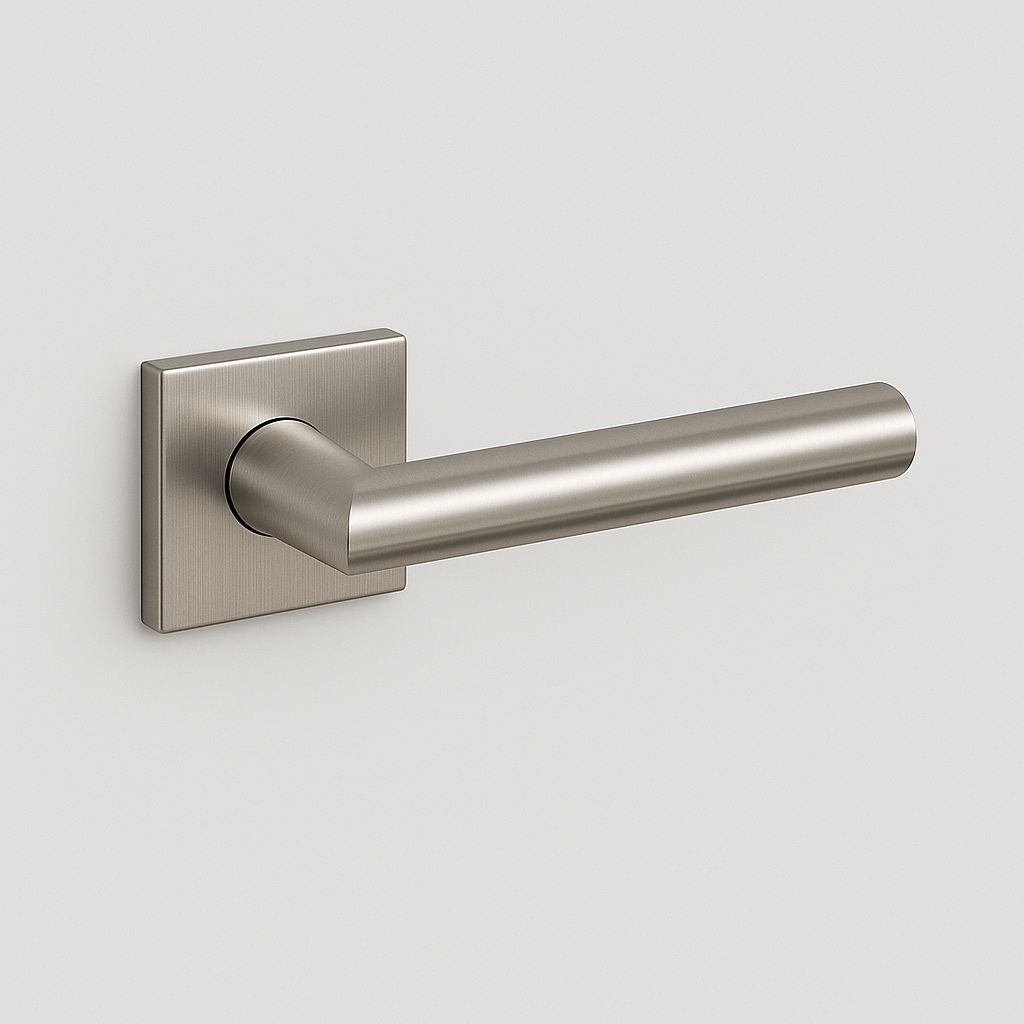

  • Rose 203 (Square SM): 55 mm × 55 mm (2.16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 204 (Square LG): 64 mm × 64 mm (2.5") × D 10 mm (0.5") · Fits Ø 53.97 mm (2.12") bore hole

Hollow stainless steel construction.

Available Finishes

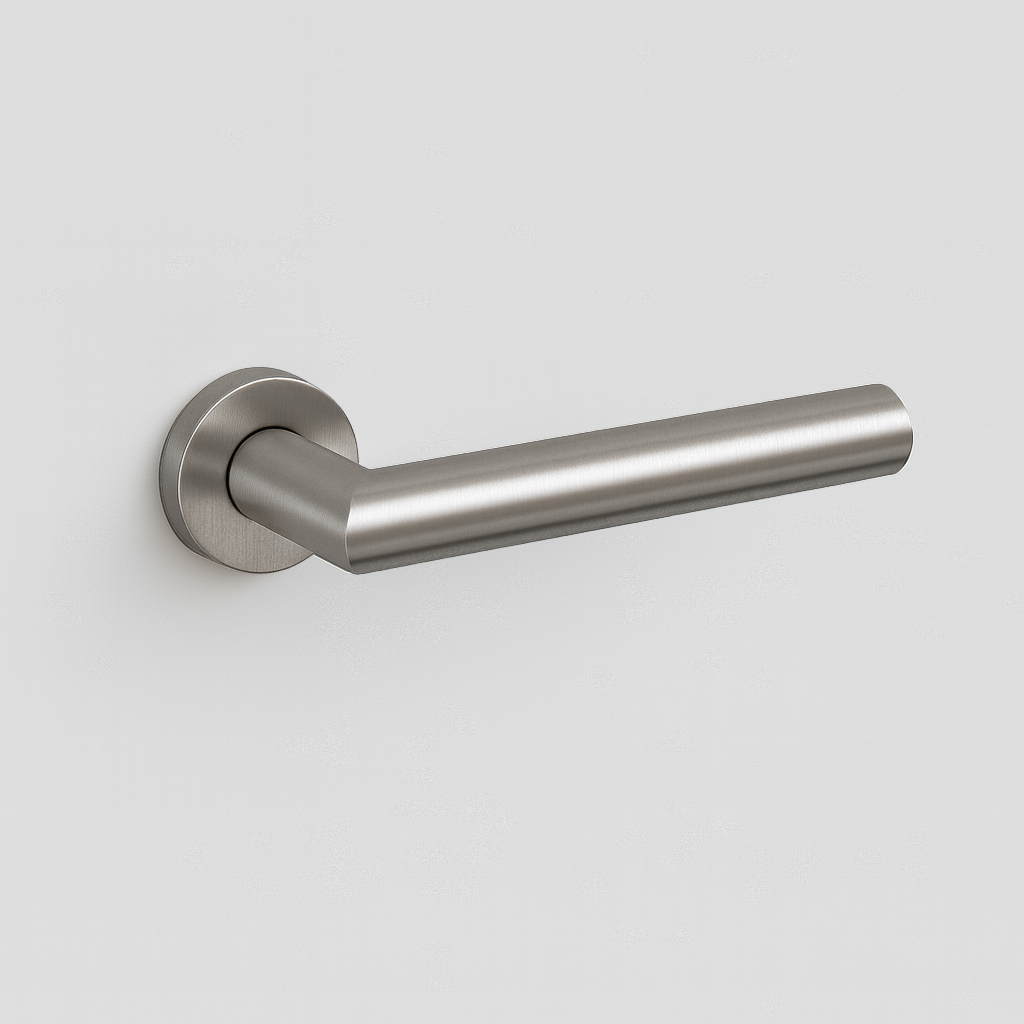

• Satin Stainless Steel
• Mirror-Polish Stainless Steel
• Powder Coat

Product Sheets

• Rose 200
• Rose 201
• Rose 203
• Rose 204

Installation & Care

• Door Lever No.103 Installation Guide
• Door Lever No.103 Heavy Duty Installation Guide

Sold as a complete tubular latch set — all components required for installation are included. AHI door hardware is compatible with standard pre-bored doors.

Function

Passage — interior doors that latch but do not lock (hallways, closets, pantries).

• Pair of levers
• Tubular latch
• Strike plate

Privacy — doors that lock from one side with a push/pull pin and emergency release (bathrooms, bedrooms).

• Pair of levers with push/pull pin lock
• Privacy bolt
• Strike plate

Dummy — decorative or push/pull applications (closets, pantry doors). Available as half or full set:

• Half Dummy — a single lever installed on one side of the door, surface-mounted using a dummy mount. Non-operating. Two half dummy sets may be combined to create a double dummy configuration on doors without a bore hole.
• Full Dummy — a pair of levers installed on both sides for a symmetrical look. Through-mounted using the existing bore hole. Non-operating.

Dummy components included: lever(s) and dummy adapter. Compatible with the Sugatsune Magnetic Latch.

Door compatibility: Installs into standard pre-bored doors using a tubular latch.
