Face Mounted Barn Door Hardware

The Barn Door Hardware (Face Mount) by 1925Workbench is a single-door sliding track system in solid brass, stainless steel, or hot rolled steel. Heritage craftsmanship with exposed mechanisms — functional and elegant. Face-mount configuration.

Designed and manufactured in Toronto by 1925Workbench. Patented in Canada and the USA.

Tracks are custom-cut to your exact length. Contact us with the following for a quote:

• Style: Top Mount / Face Mount / Bi-Part
• Finish: Brass / Raw Steel / Stainless Steel / Black
• Length
• Drilling: Pre-drilled or Not drilled

• Weight Capacity
• Rated for doors up to 200 lbs per pair of hangers (actual capacity varies by wall structure and mounting method)
• Pre-Drilled vs. Not Pre-Drilled
• Pre-drilled holes spaced every 14.75"–17.25" along the track
• Pre-drilled tracks must be mounted on a backing piece to clear baseboards or mouldings
• Not pre-drilled tracks can install directly to the wall if baseboards are flush and adequate blocking is present
• For Black Powder Coated "Not Pre-Drilled" orders, a 1.5" hole is drilled at each end for hanging during the coating process
• Track Length & Measuring
• Track length: order at least twice the width of the door plus a minimum 2" overlap on each side
• Door should be 4" wider than the opening (2" overlap per side) and large enough to cover any door casing
• Tracks over 93" ship in two pieces
• Recommended headroom: 8"–10" (minimum 6")
• Custom Finishes
• For custom powder coating, a 5/16" diameter hole is drilled at each end of the track for fabrication (both "Drilled" and "Non-Drilled" orders). For Single Track Bypass: 1" from the end; for other hardware: 1.5" from the end.
• Additional Components
• Door guides (floor guide or wall guide) included in the kit. Extra floor guides available separately.
• Floor Guide — bracket on the floor at the base of the door to keep it in place
• Wall Guide — mounts to baseboards or directly to the wall
• Price includes hardware only. Door and header piece not included.

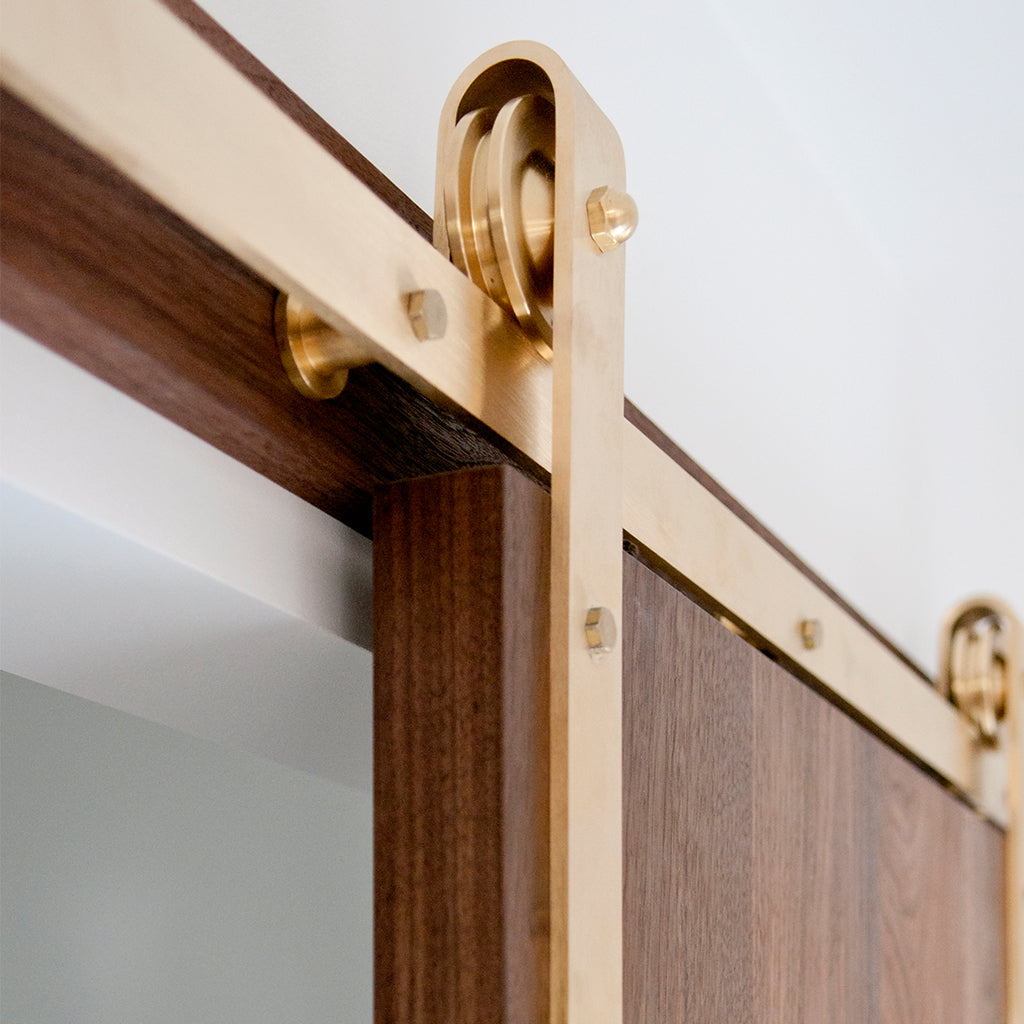

Crafted from solid brass, stainless steel, and hot rolled steel. High-quality solid brass rollers with double built-in ball bearings deliver smooth, quiet door motion.

Available Finishes

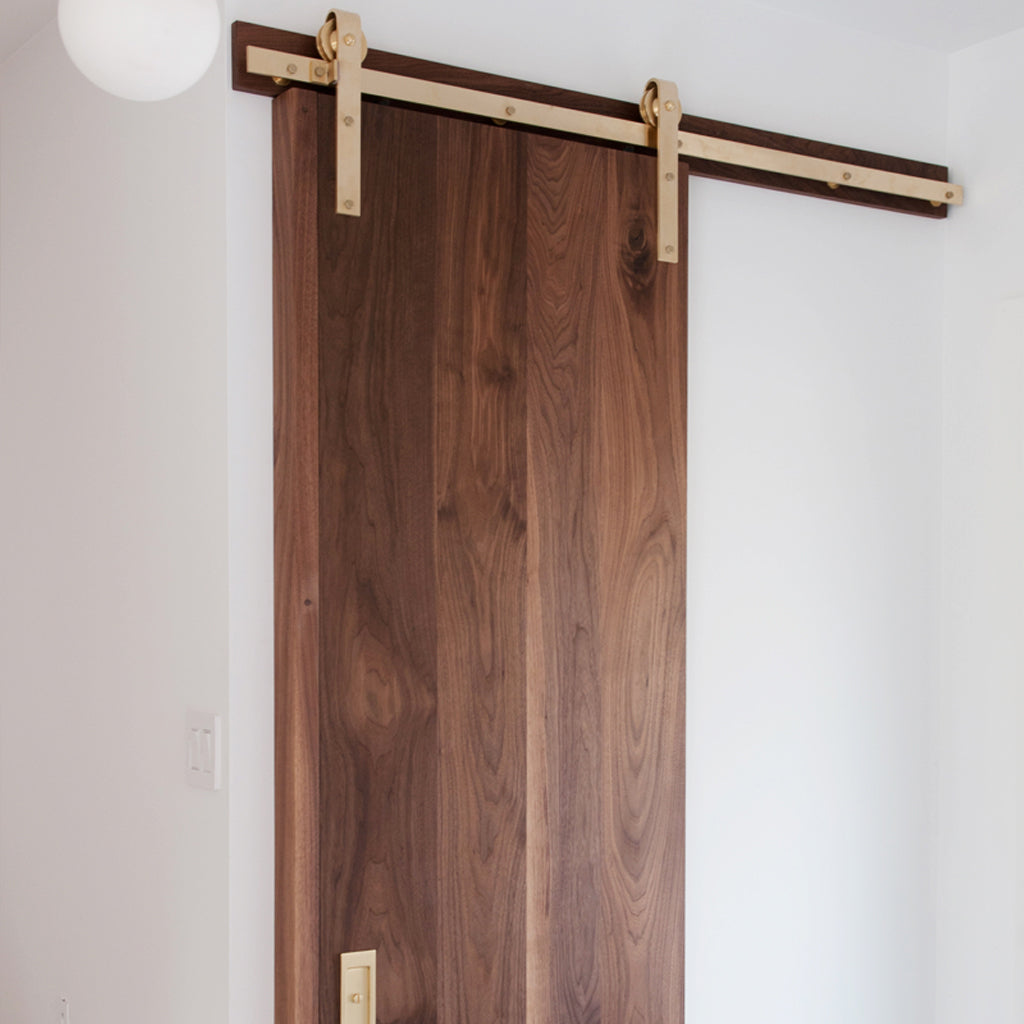

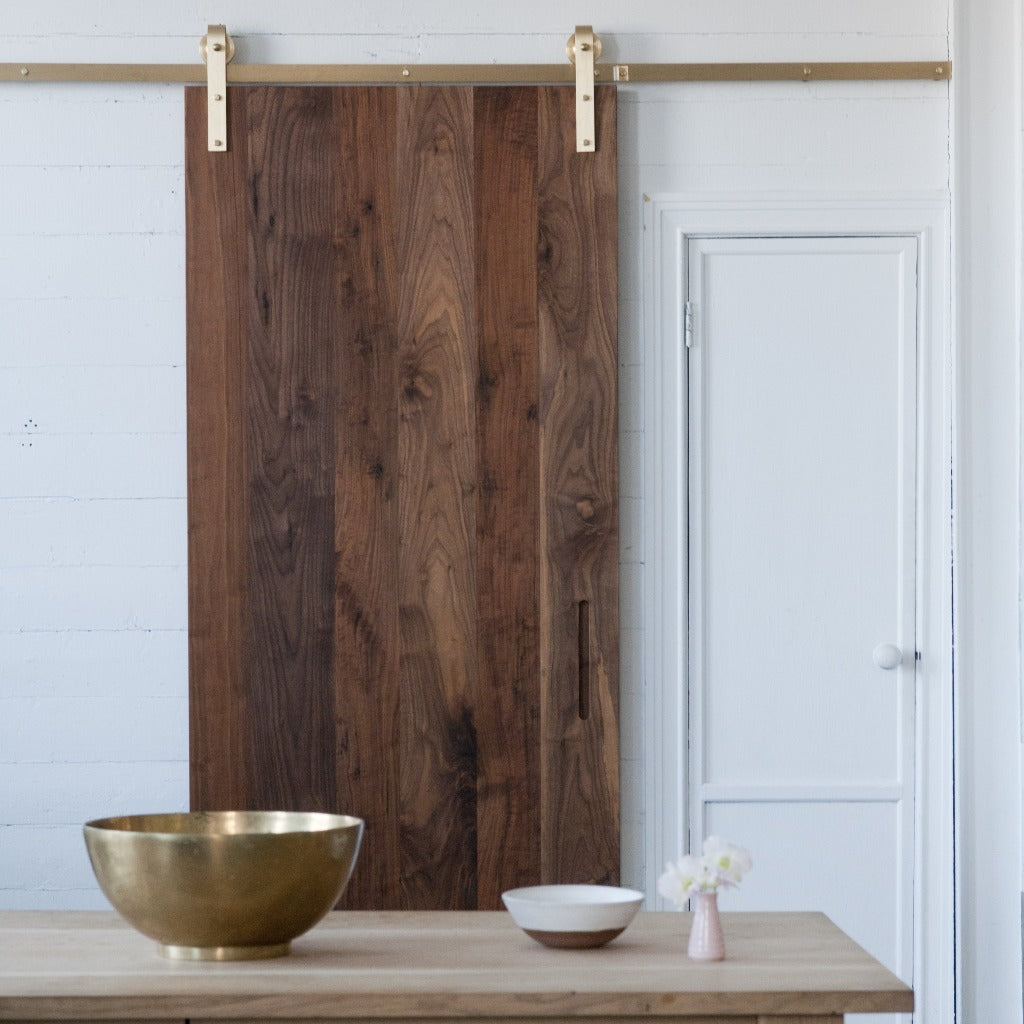

• Solid Brass (light oil coat — will develop patina over time)

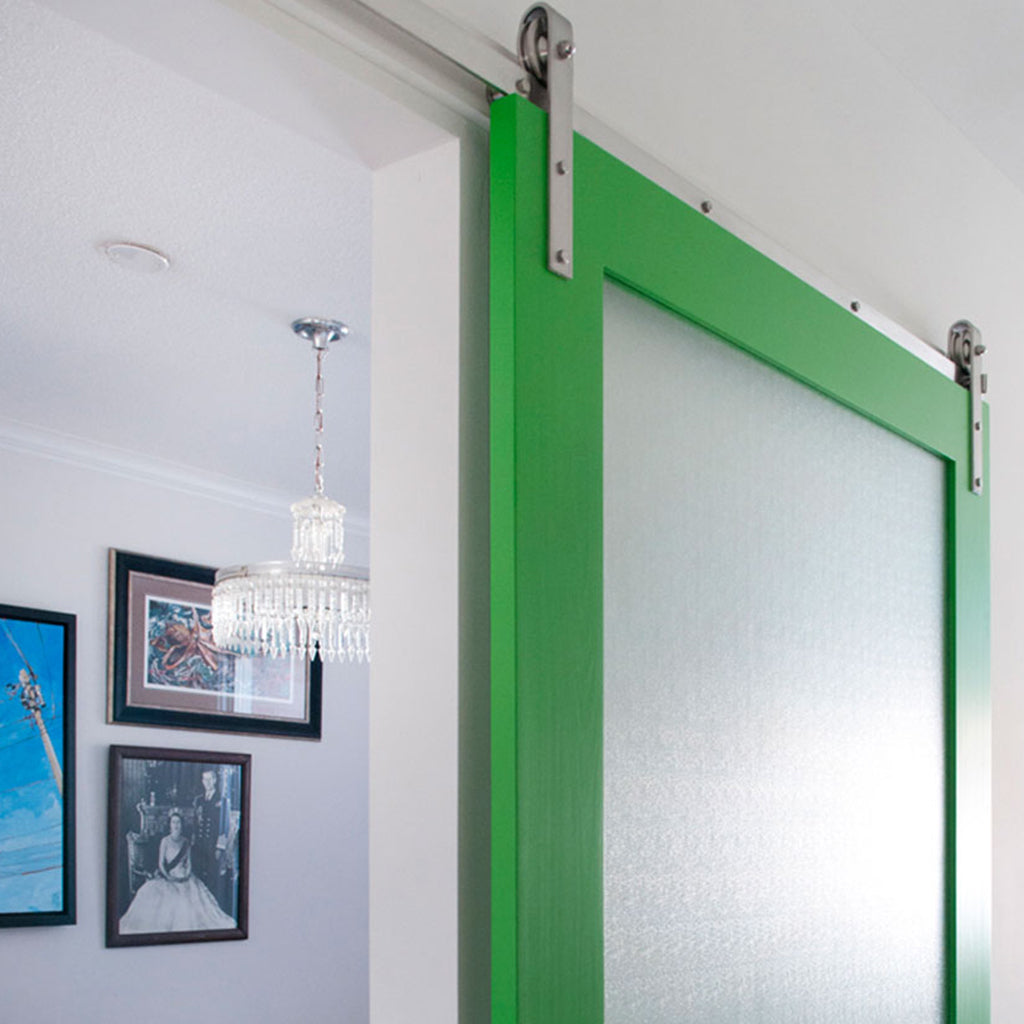

• Stainless Steel (hand-brushed)

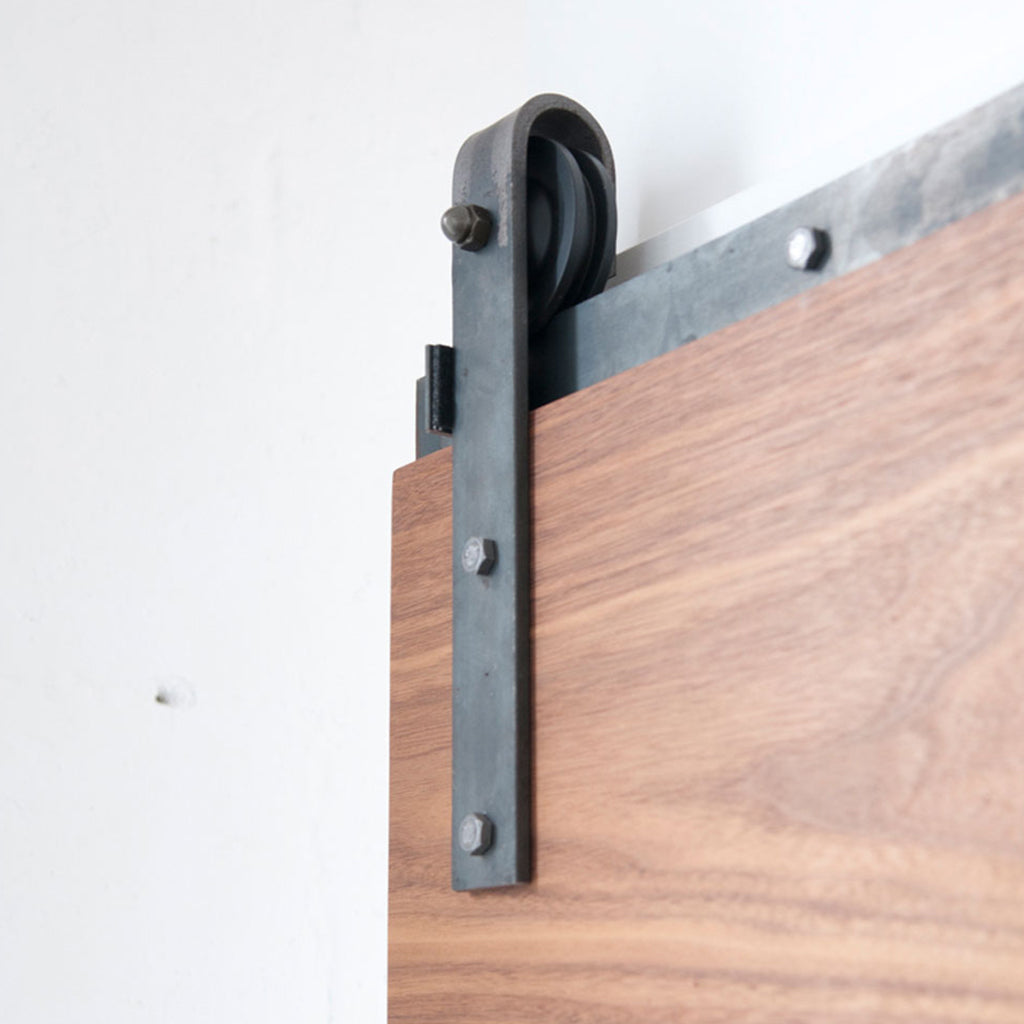

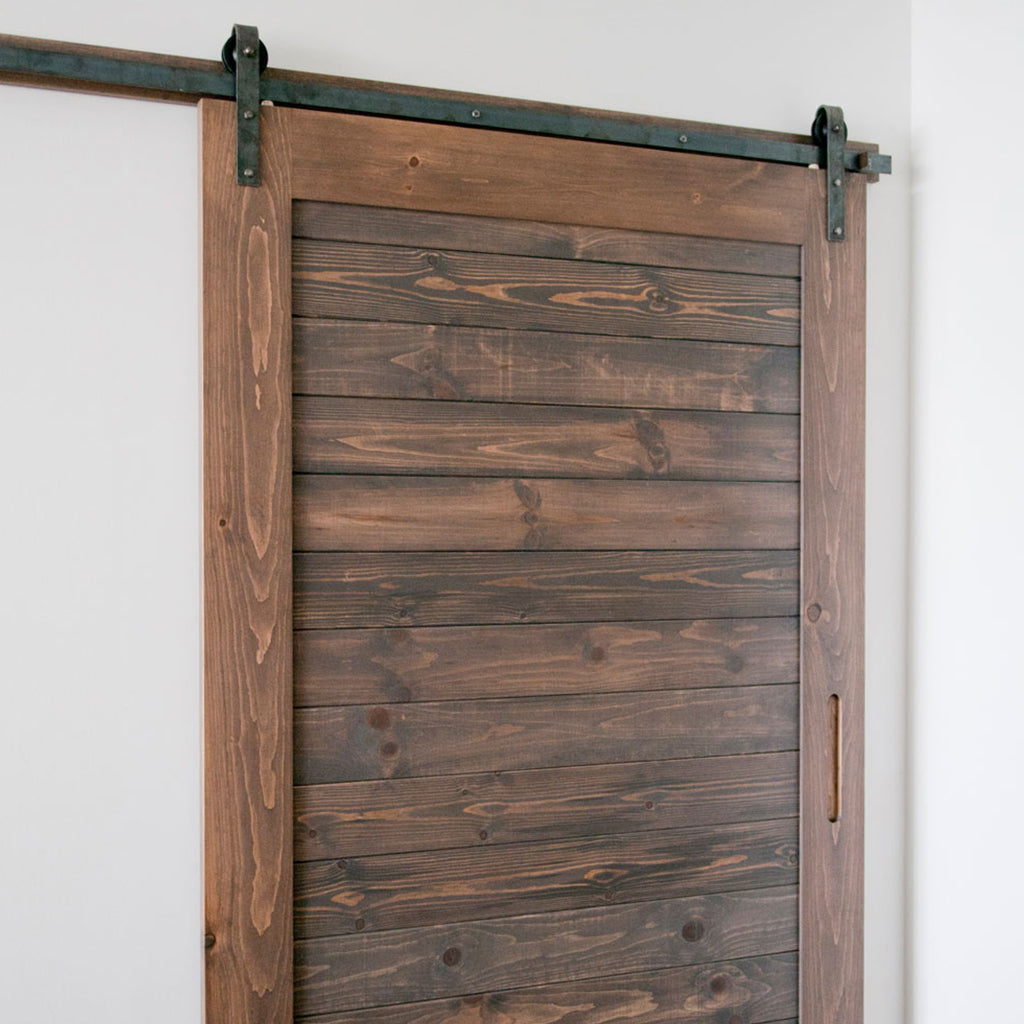

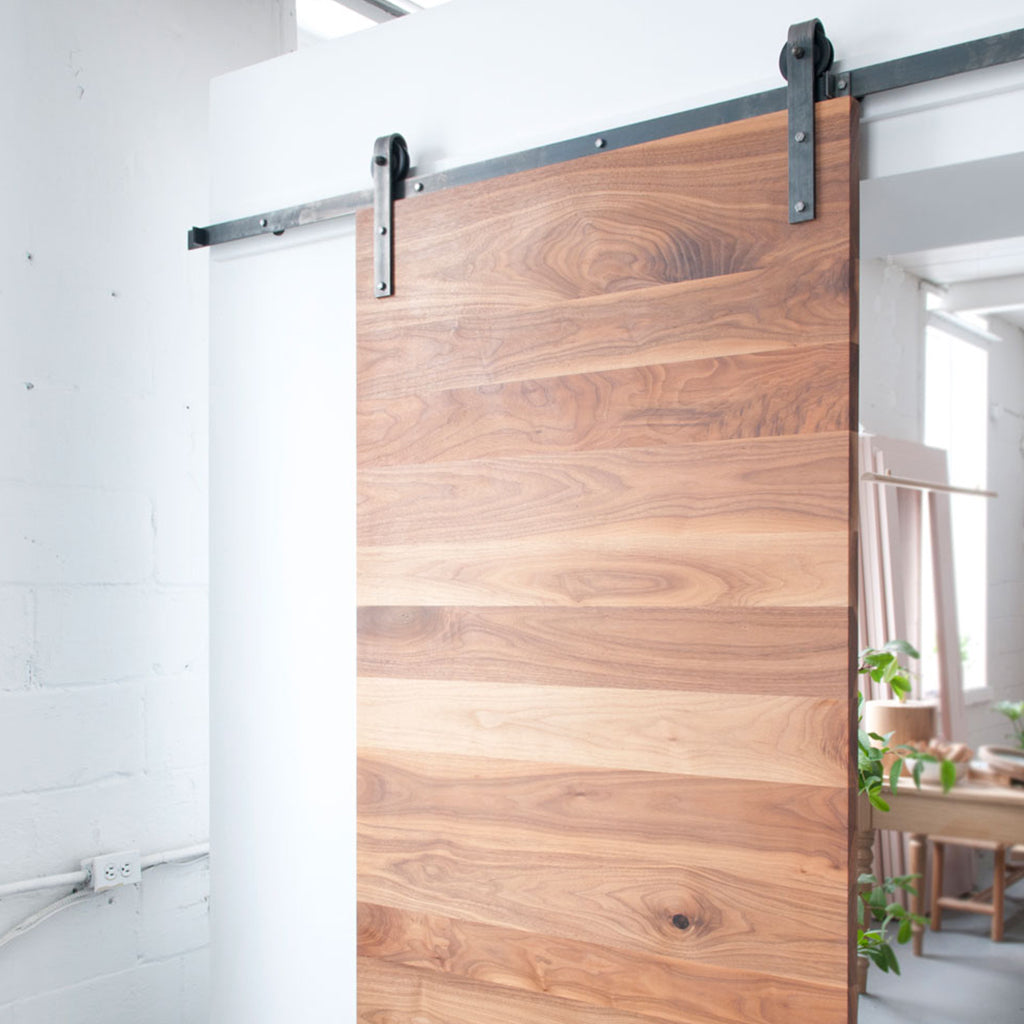

• Hot Rolled Steel (raw, minimal treatment)

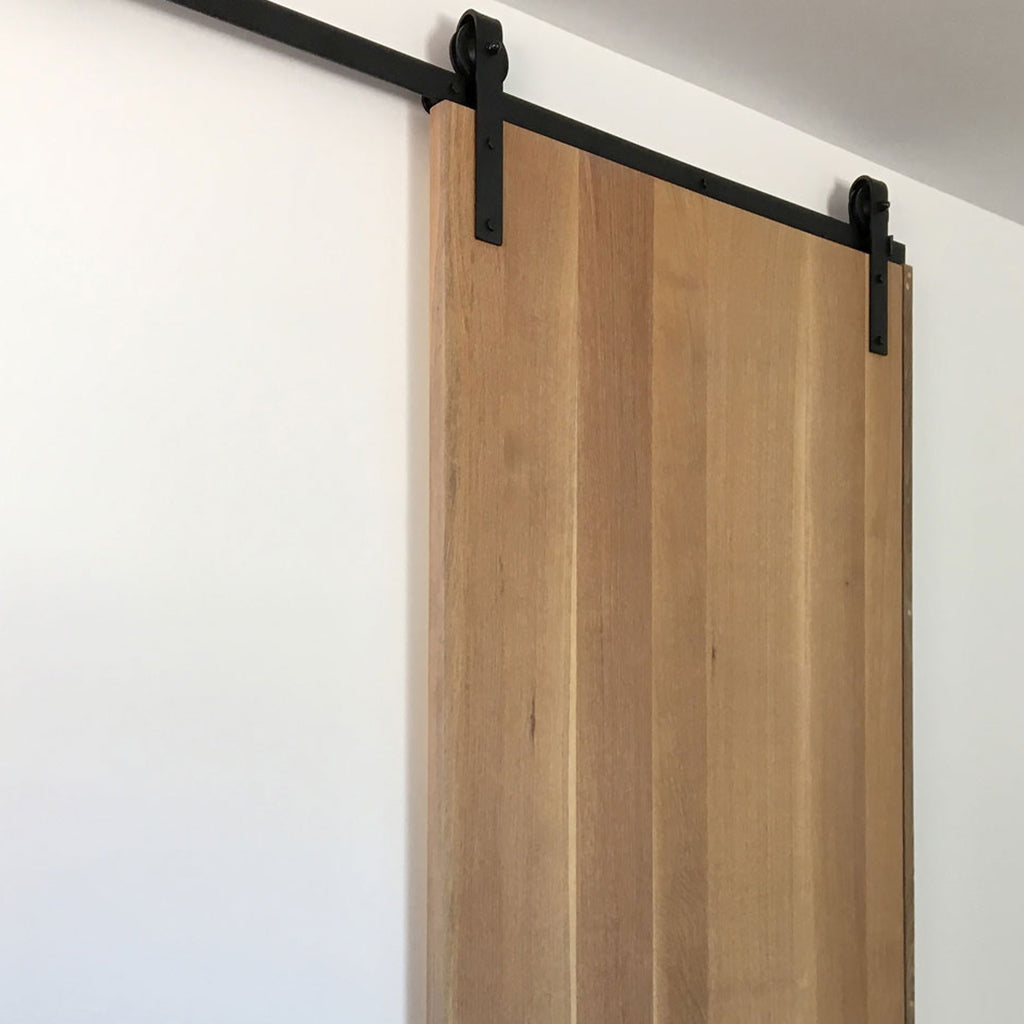

• Matte Black (powder coated)

Suitable for outdoor applications — finishes will patina more quickly when exposed to the elements.

• Face Mount Installation Guide (PDF)
• Face Mount Specifications (PDF)
