AHI 135 Door Lever Set

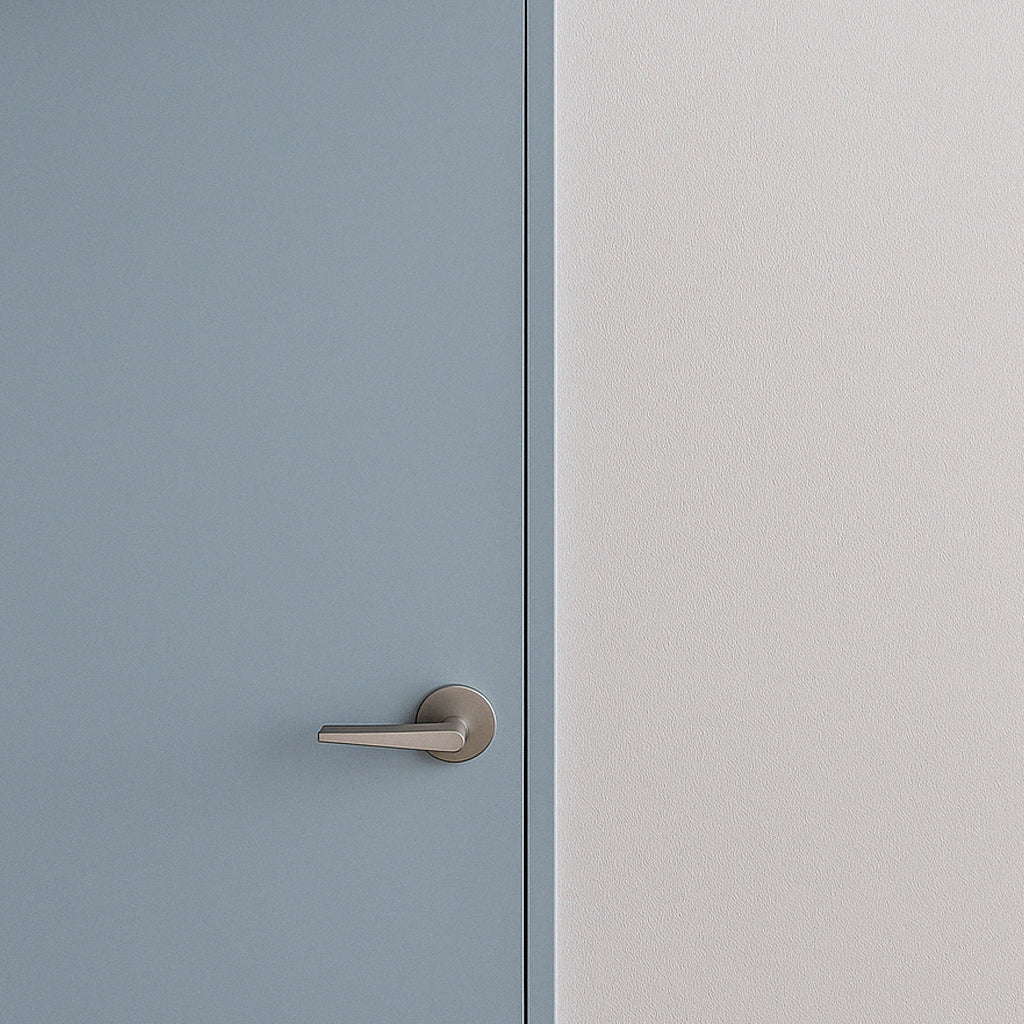

The AHI 135 Door Lever Set by AHI is a solid stainless steel door lever with a modern tapered handle and angular edges that provide a comfortable grip. Its visually dynamic profile suits both residential and commercial interior doors.

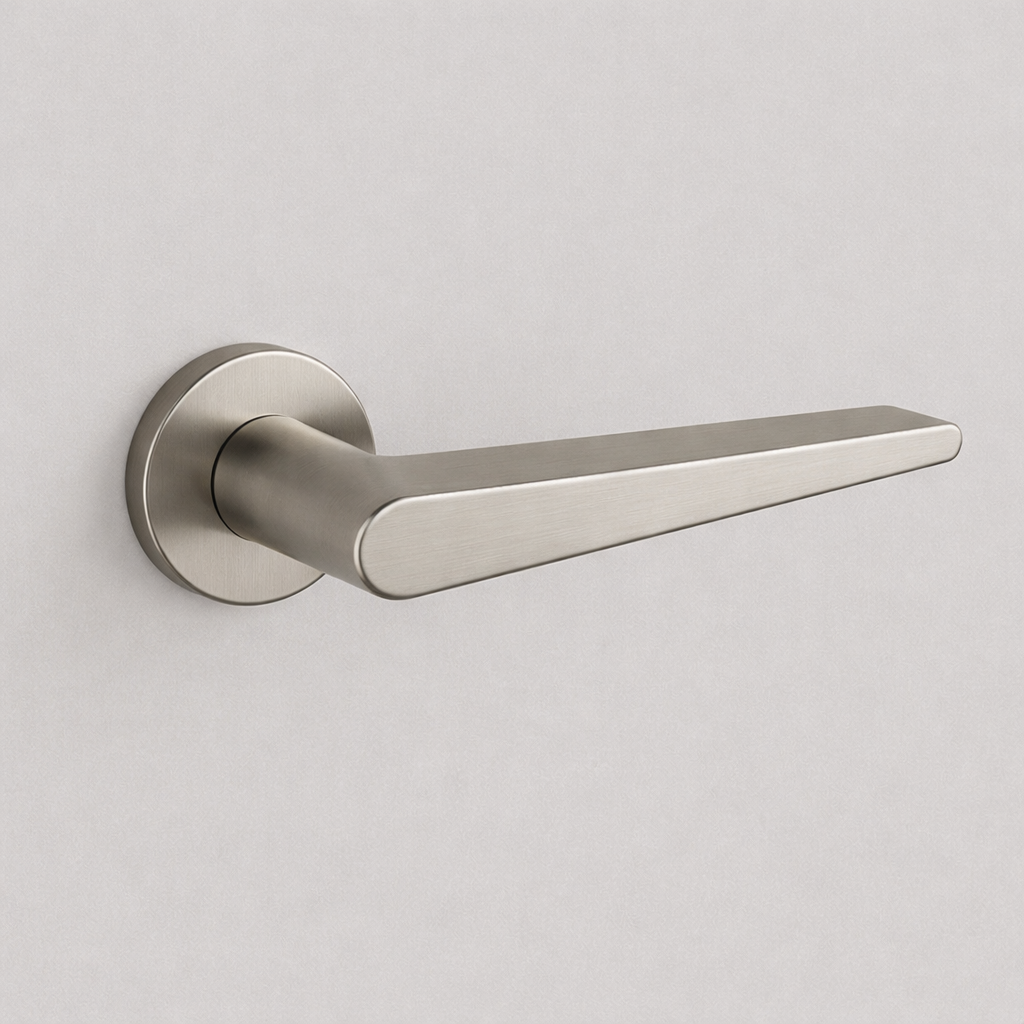

Available in passage, privacy, and dummy configurations. Sold as a complete set with all required mounting components for the selected function.

• Lever Dimensions: L 127 mm (5.1") × W 20 mm (0.78")
• Door Thickness: 1 3/8" – 2"

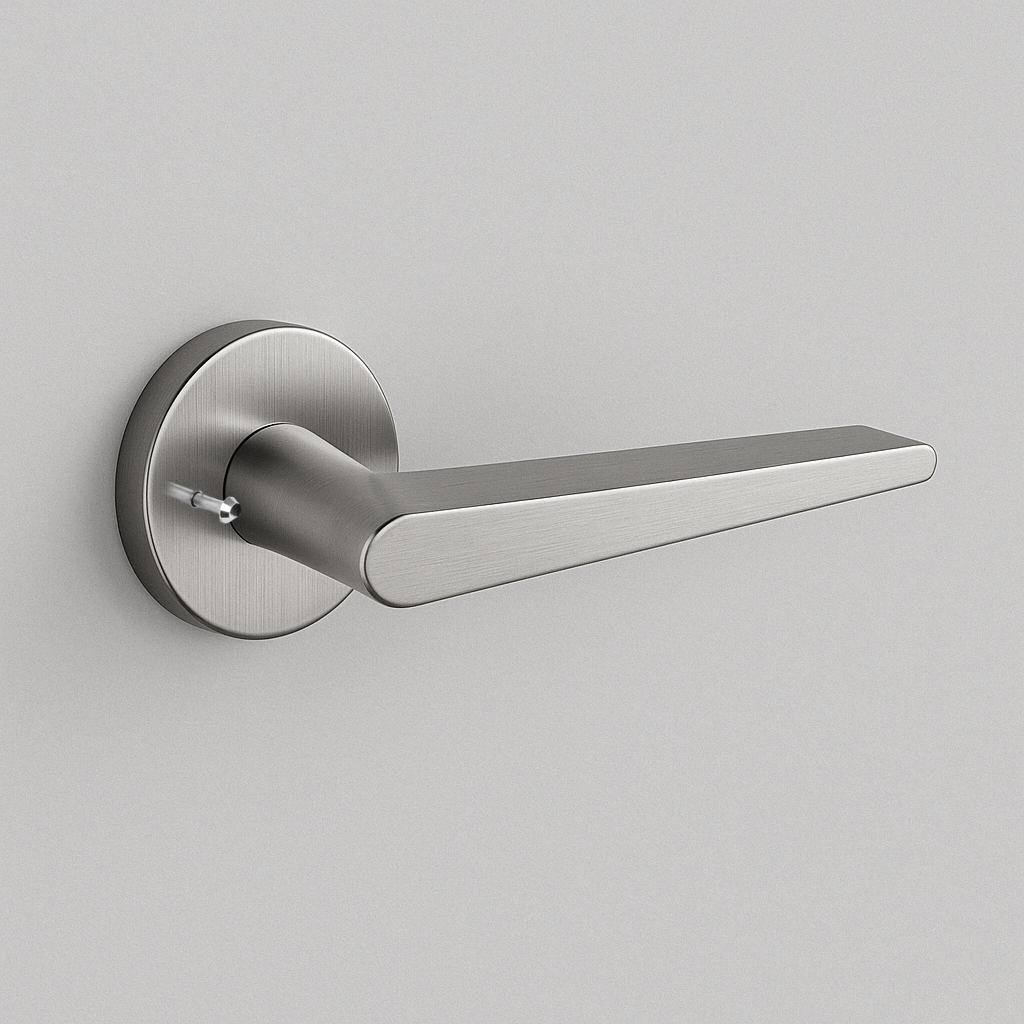

• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM: Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG: Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole

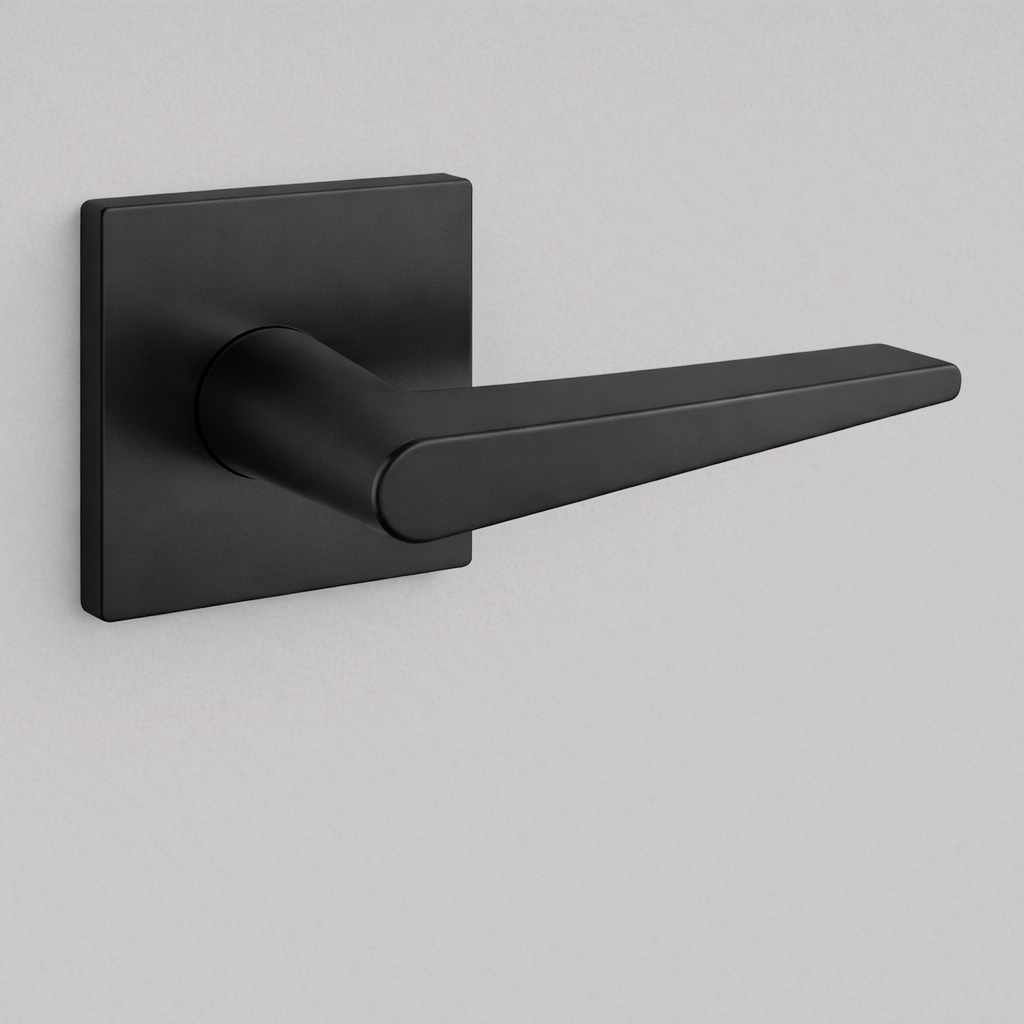

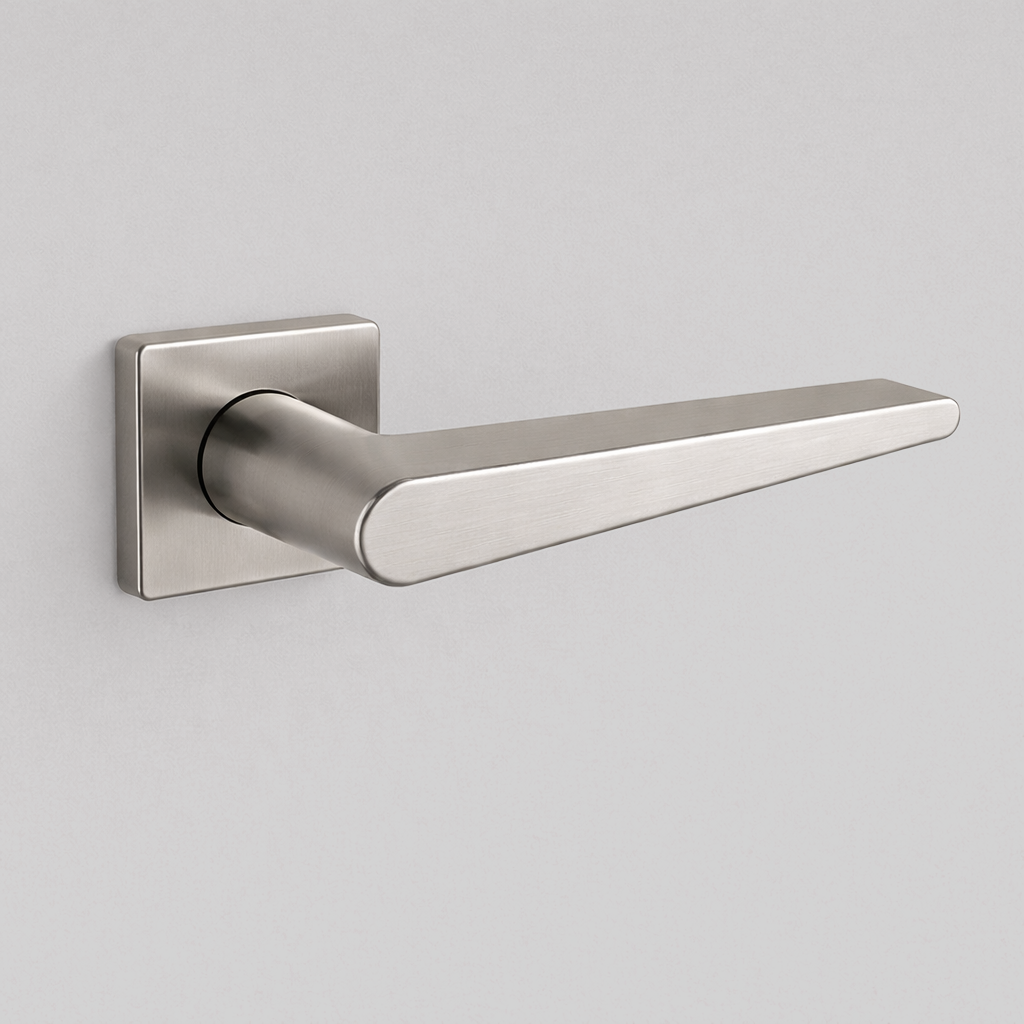

  • Square SM: 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG: 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Solid stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

• Door Lever No. 135 Product Sheet (JPG)
• Door Lever No. 135 Drawing (PDF)
• Installation Guide (PDF)
• Heavy Duty Installation Guide (PDF)
• Rose 200 Drawing (PDF)
• Rose 201 Drawing (PDF)
• Rose 203 Drawing (PDF)
• Rose 204 Drawing (PDF)
