Knud Pull Straight Handle for Single Sided Doors
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Learn more
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
Casson is not responsible for any damages or inconveniences resulting from the improper installation of the hardware.
- d line door pulls require additional components for specific applications. Please review all selections above to ensure the proper fittings are included in your order.
Optional Accessories
Description

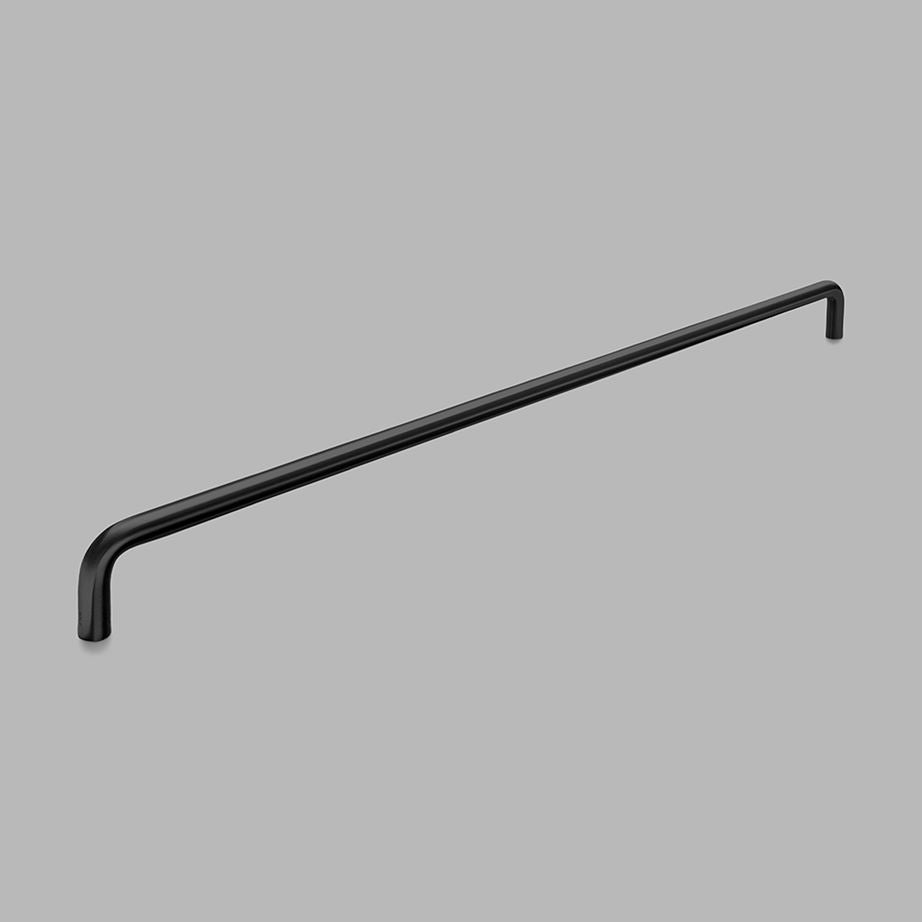

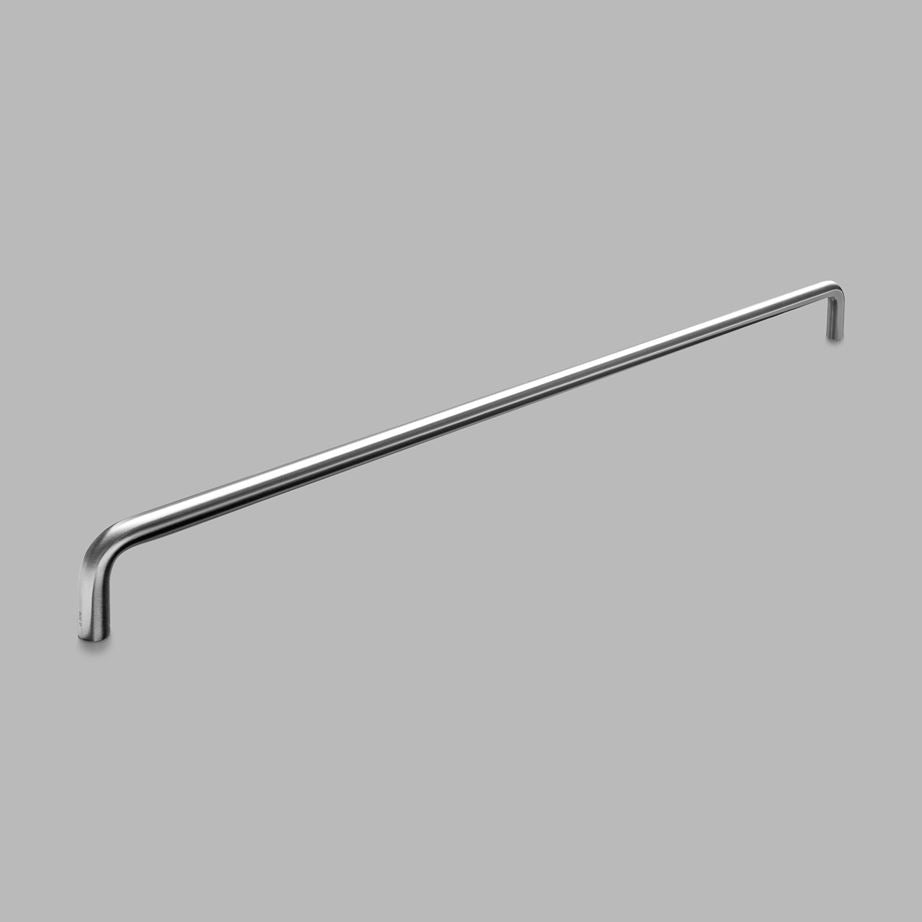

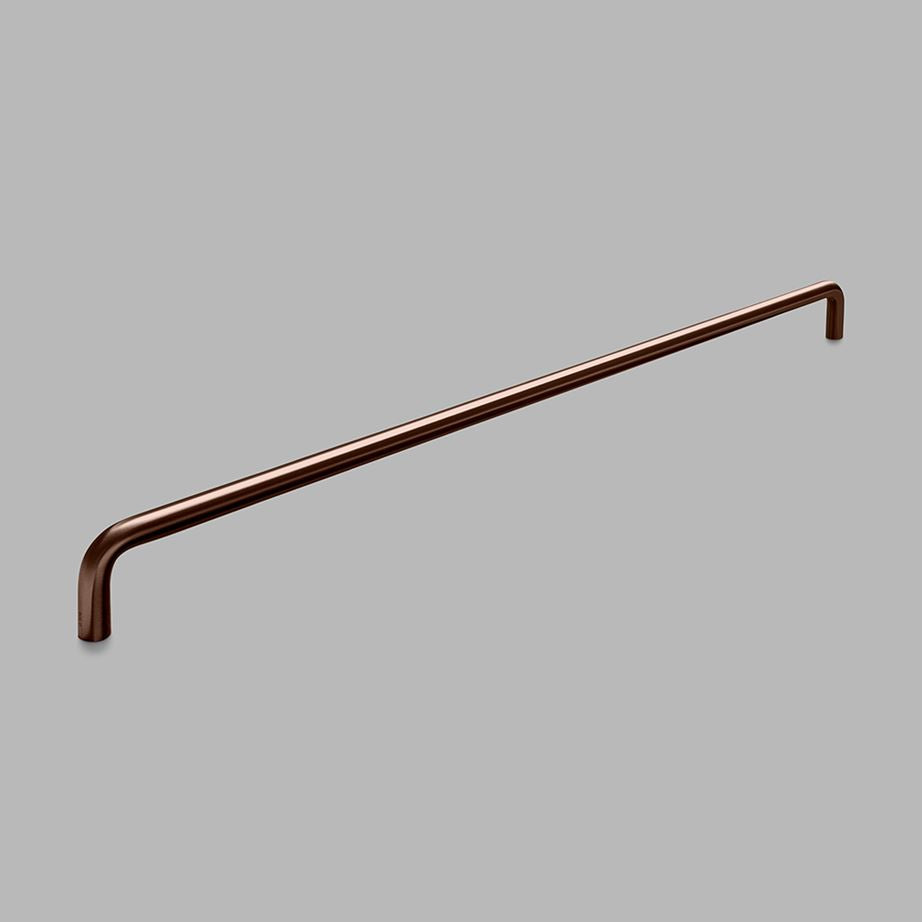

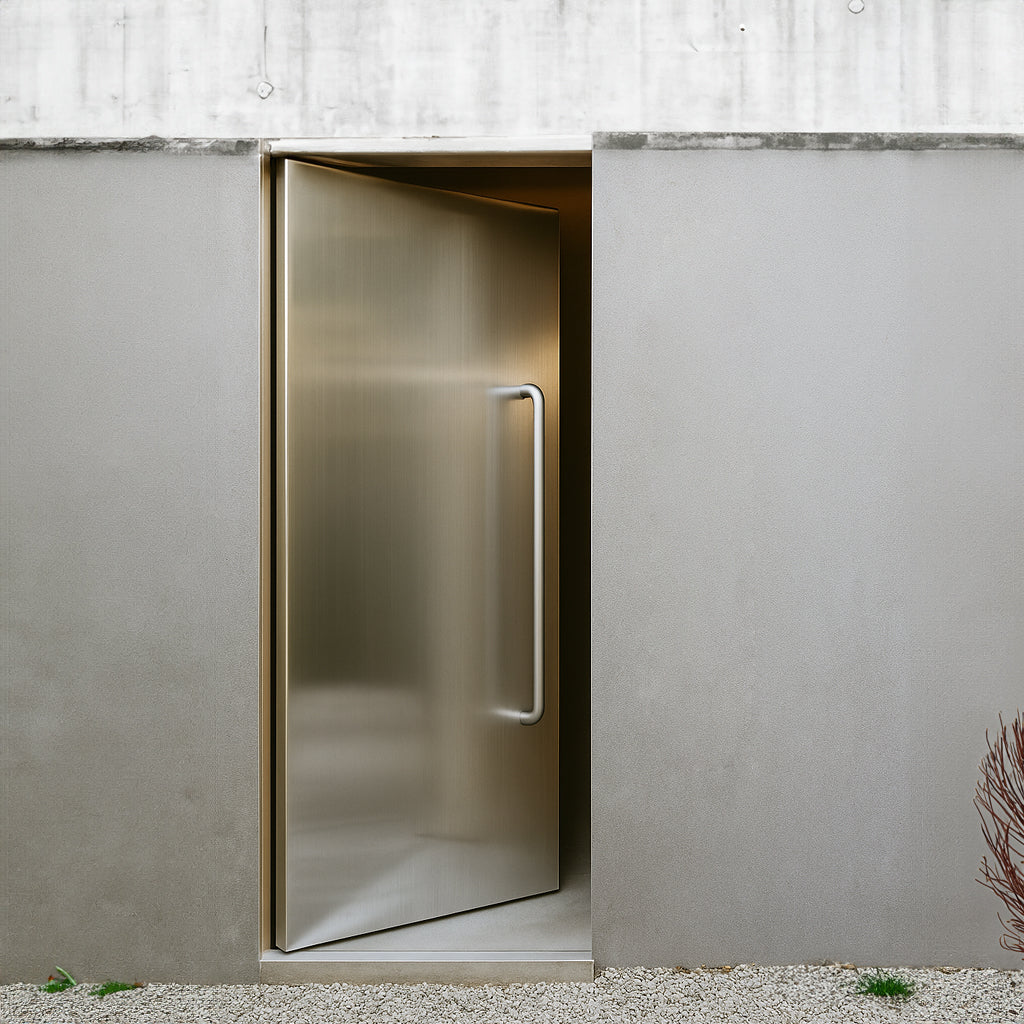

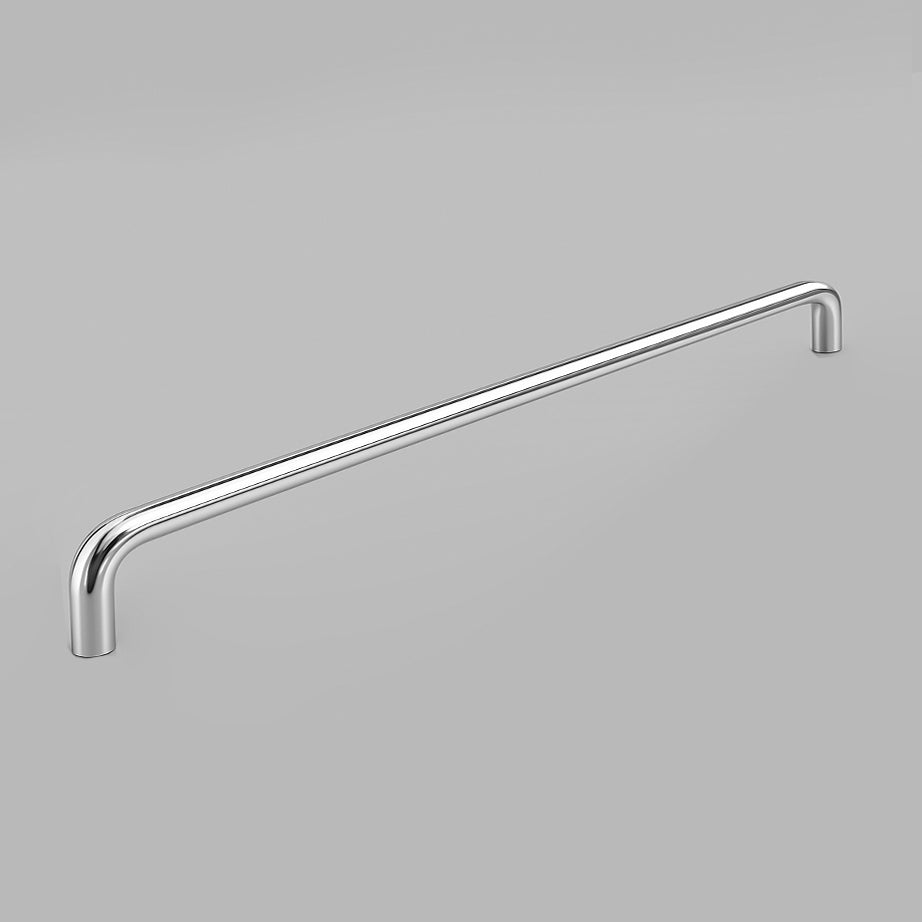

The Knud Straight Door Pull by d line is a stainless steel door pull handle with a clean, linear profile, designed for entrance doors and interior doors in residential, commercial, and hospitality environments. Part of the Knud Holscher Collection — meticulously hand-finished in Europe for enduring performance.
Available in two diameters and multiple center-to-center options.
Specifications
- Ø 25 mm (0.98"): CC 300 mm (11.8") or CC 650 mm (25.5")
- Ø 32 mm (1.26"): CC 300 mm (11.8") or CC 650 mm (25.5")
Mounting
- Single Sided Door Pull: Ø 25 mm secured with M10 screw; Ø 32 mm secured with M12 screw — both using twin pin / pig nose through bolt for a clean reverse side. Select door thickness to ensure appropriate screw length.
- Double Sided Door Pull: Available upon request.
Materials
Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).
Additional Finishes (Available Upon Request)
- PVD Satin Brass
- PVD Satin Bronze
- PVD Satin Black
- Polished versions
- X-BAC antimicrobial coating
Product Downloads
Finish Overview & Samples
2025 Updated d line Finish Swatches
- AISI 316 Satin Stainless Steel
- AISI 316 Polished Stainless Steel
- PVD Satin Brass
- PVD Satin Black
- Powder Coated RAL Black 9005
