Description

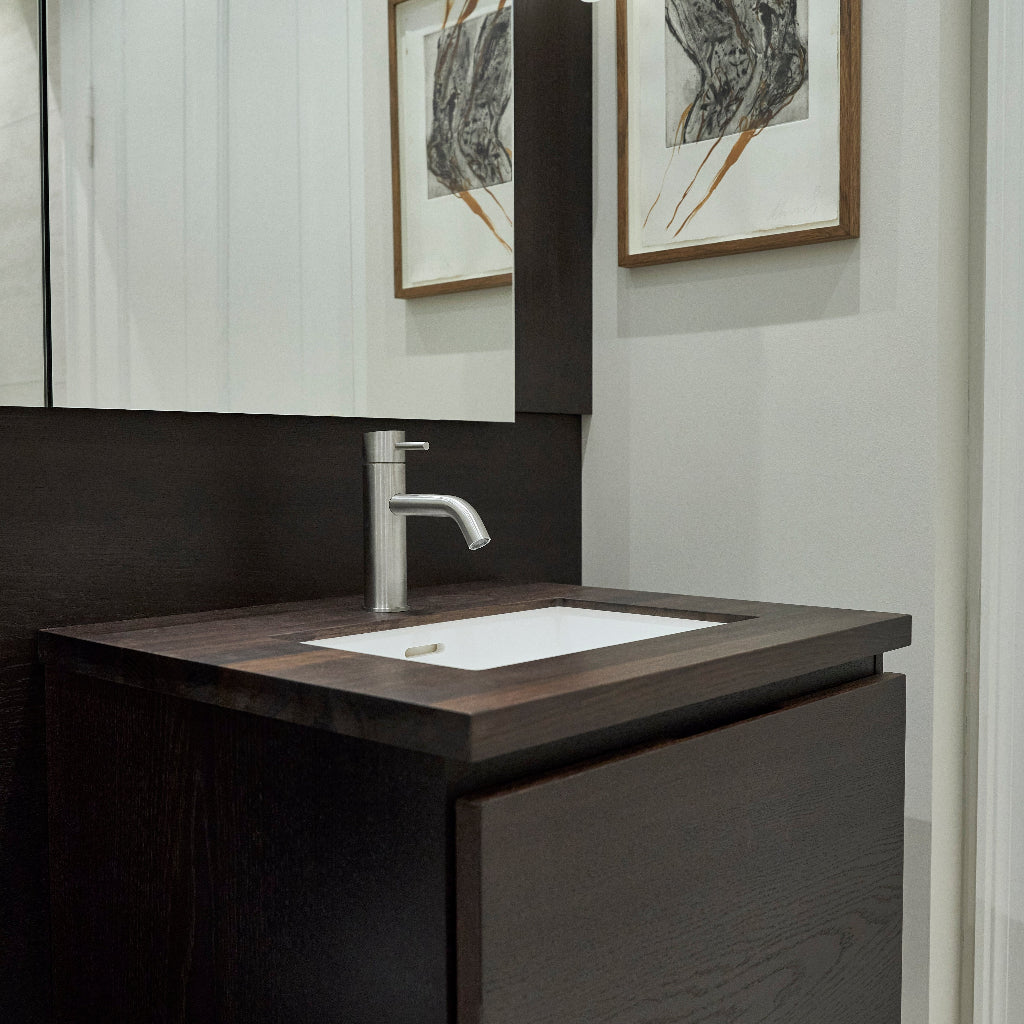

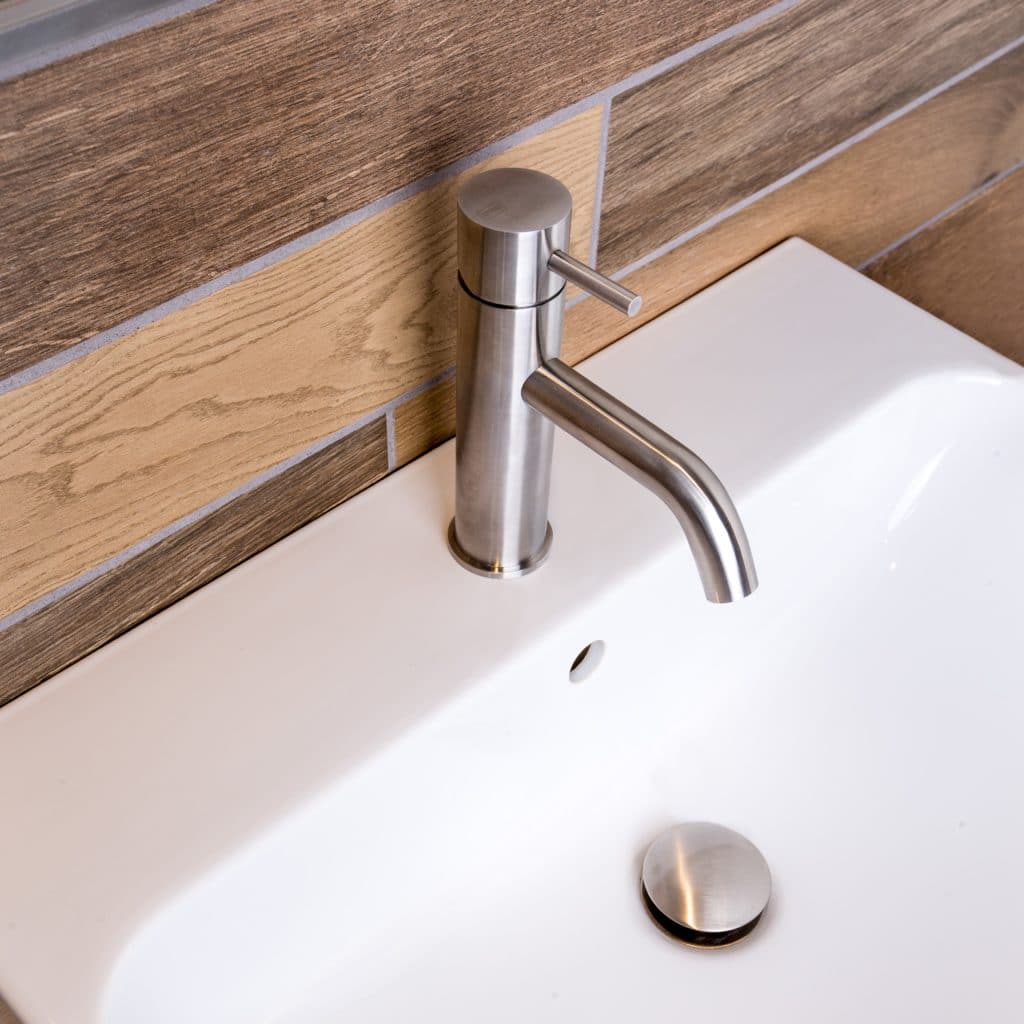

The Qtoo Single-Hole Faucet by d line is a top-mounted tap system crafted from AISI 316 marine-grade stainless steel. Available in three height and projection options — a compact fixed model and two taller swivel models — for a range of residential and commercial applications from powder rooms to kitchens. Lead-free, corrosion-resistant, and NSF/ANSI 61 certified.
Each tap includes NPT adapters for North American compatibility and can be paired with matching drain and siphon components for a cohesive, fully integrated setup. Designed by Hans Thyge & Co for d line. Made in Europe.

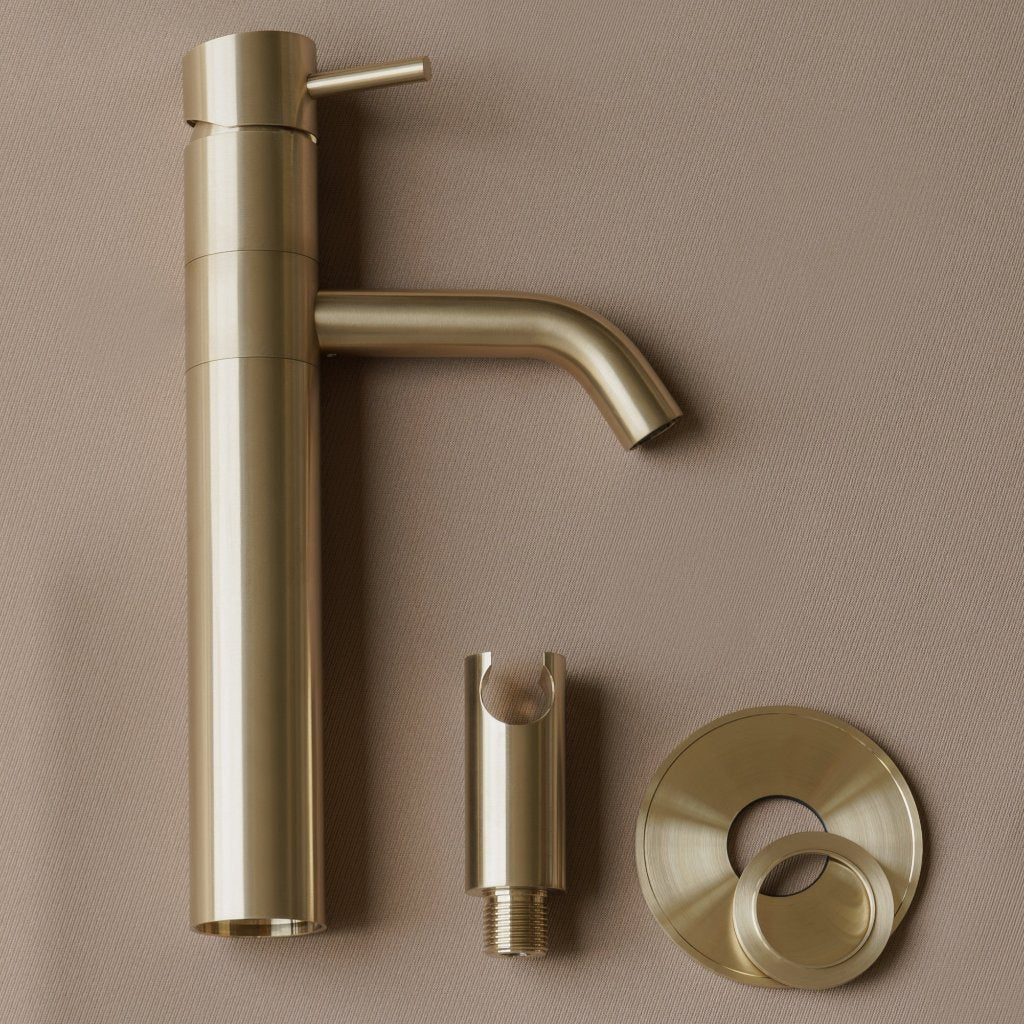

System Components

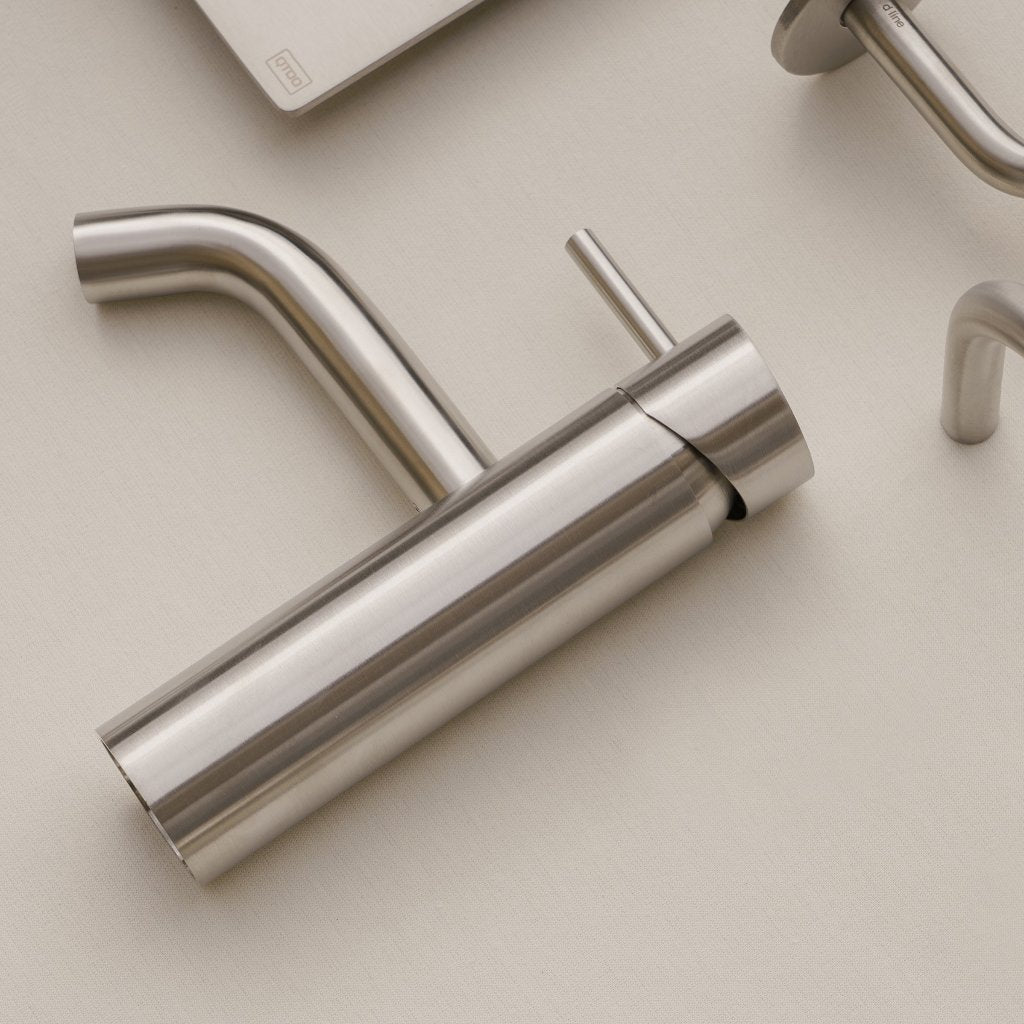

- Single-hole top-mounted faucet (fixed or swivel, depending on model)
- 2 × 9.5 mm (3/8") flexible supply lines
- Built-in aerator
- 2 × BD8002GN 1/2" NPT adapters for North American plumbing
Optional Components
- QA1150 Hygiene+ Push Drain — diverts water sideways to reduce bacteria buildup
- QA1250 Hygiene+ Fixed Open Drain — grate-style, stays open for continuous flow
- QA1100 Standard Push-Open Drain — seals with a push, classic design
- QA1200 Standard Fixed Open Drain — simple fixed grate with no closure
- QA1400 P-Trap — minimalist wall-mounted p-trap in matching finish
Model Options

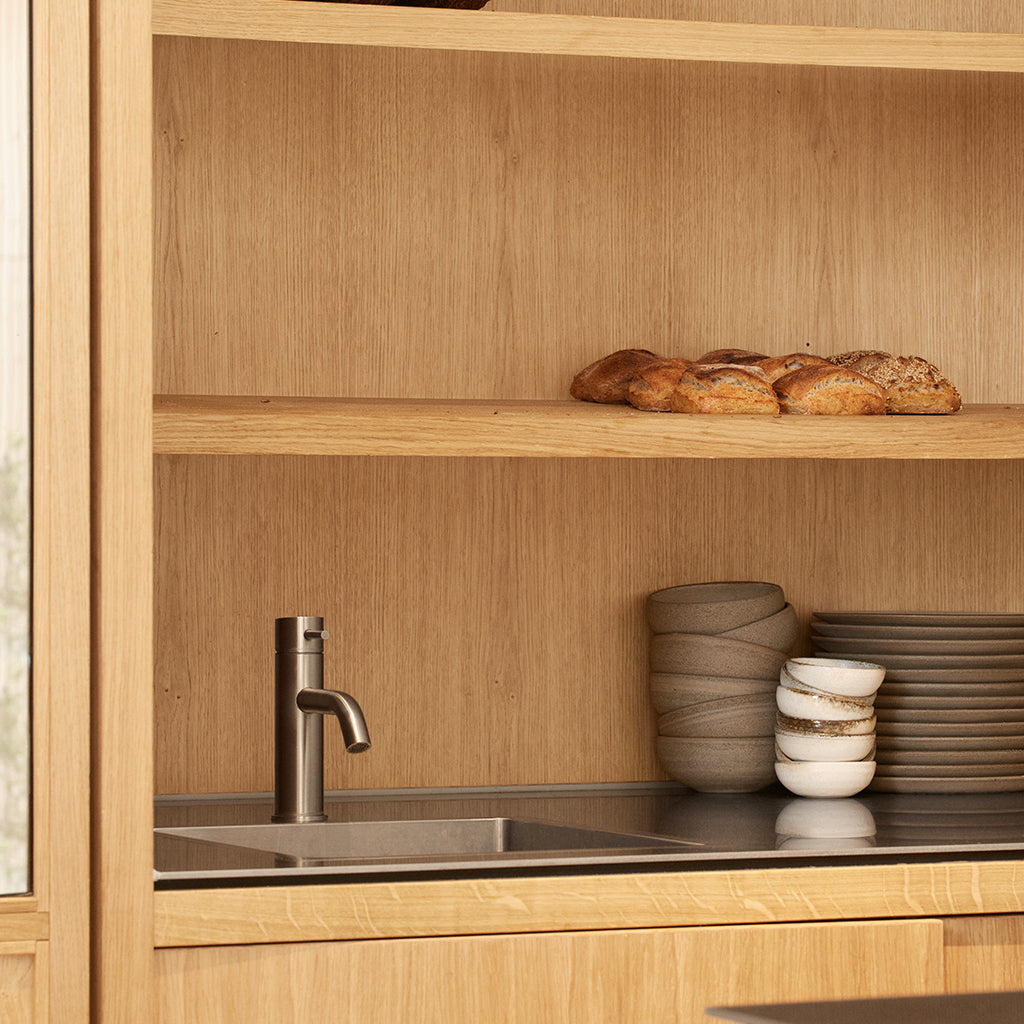

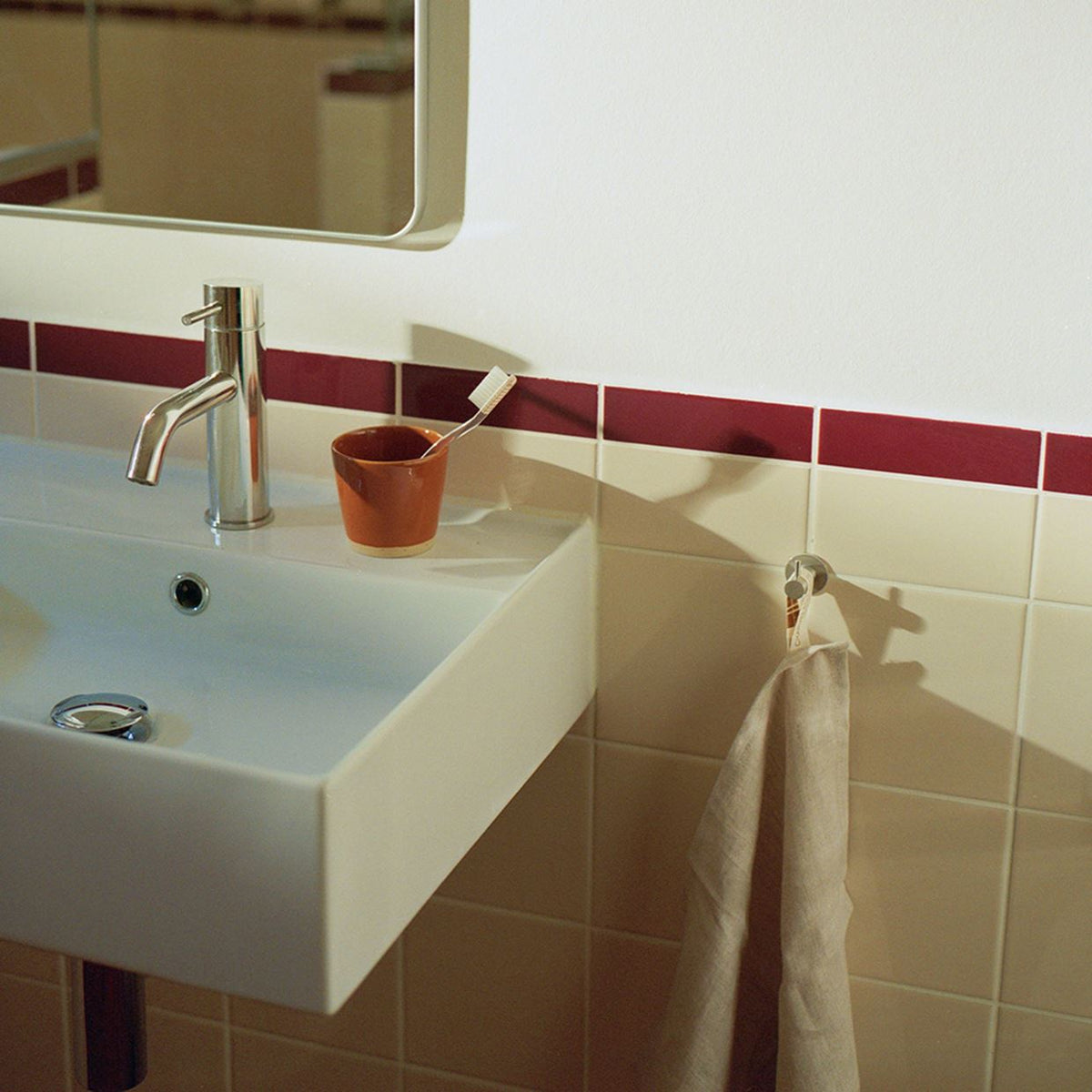

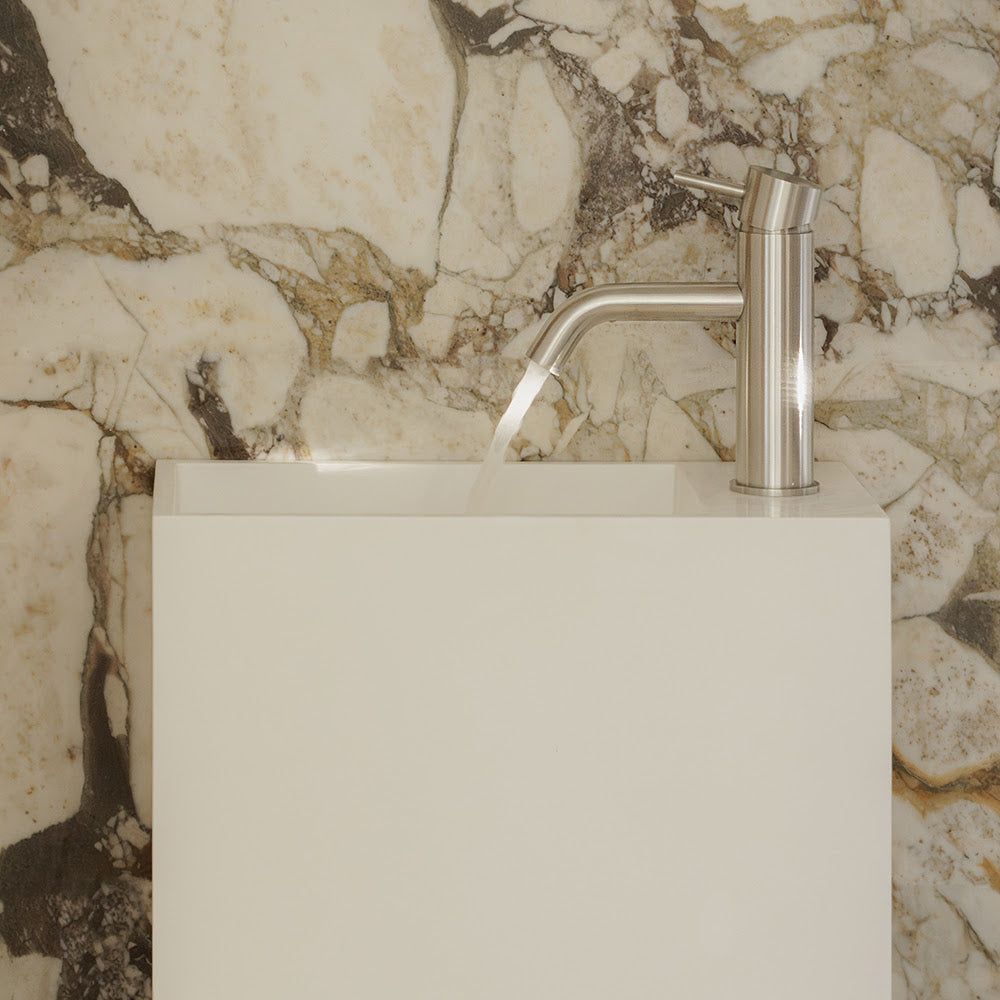

- Standard (Fixed): 178 mm (7") height × 130 mm (5.1") projection — non-swivel

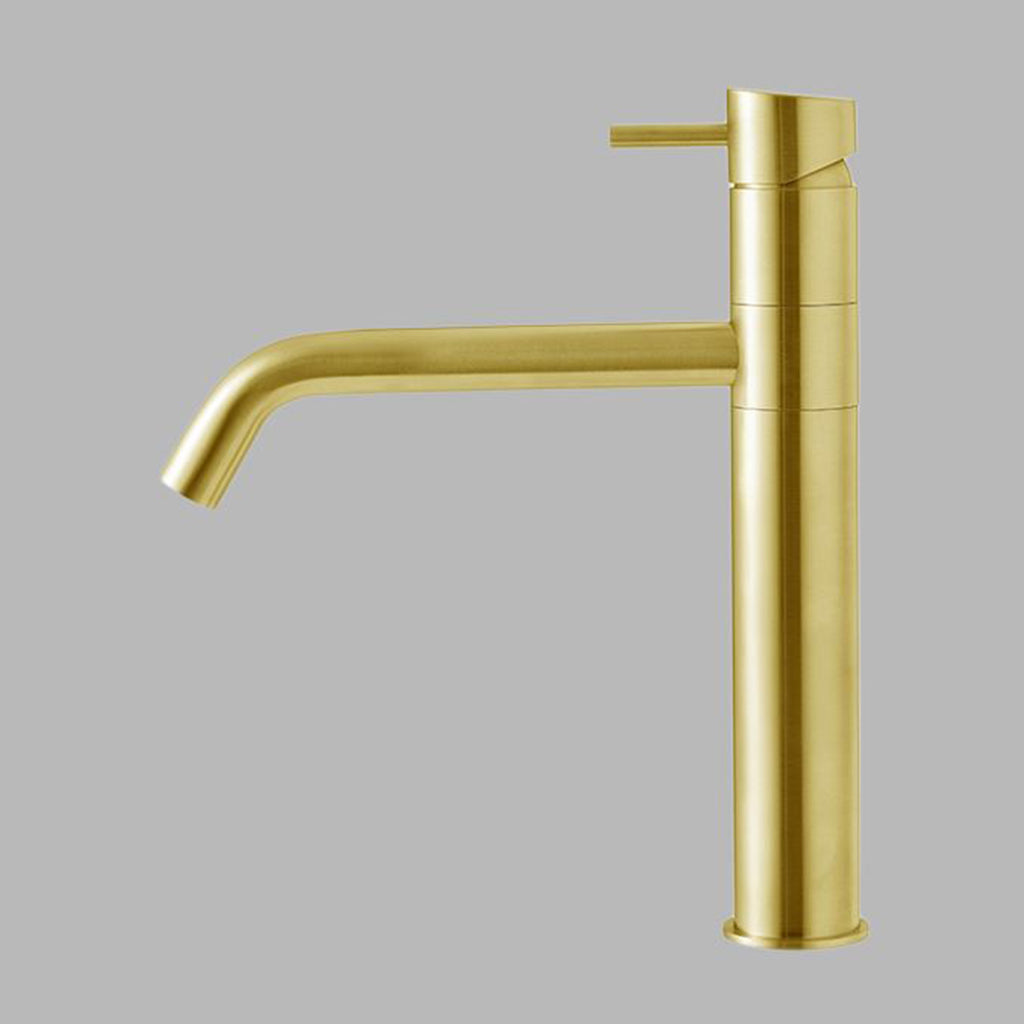

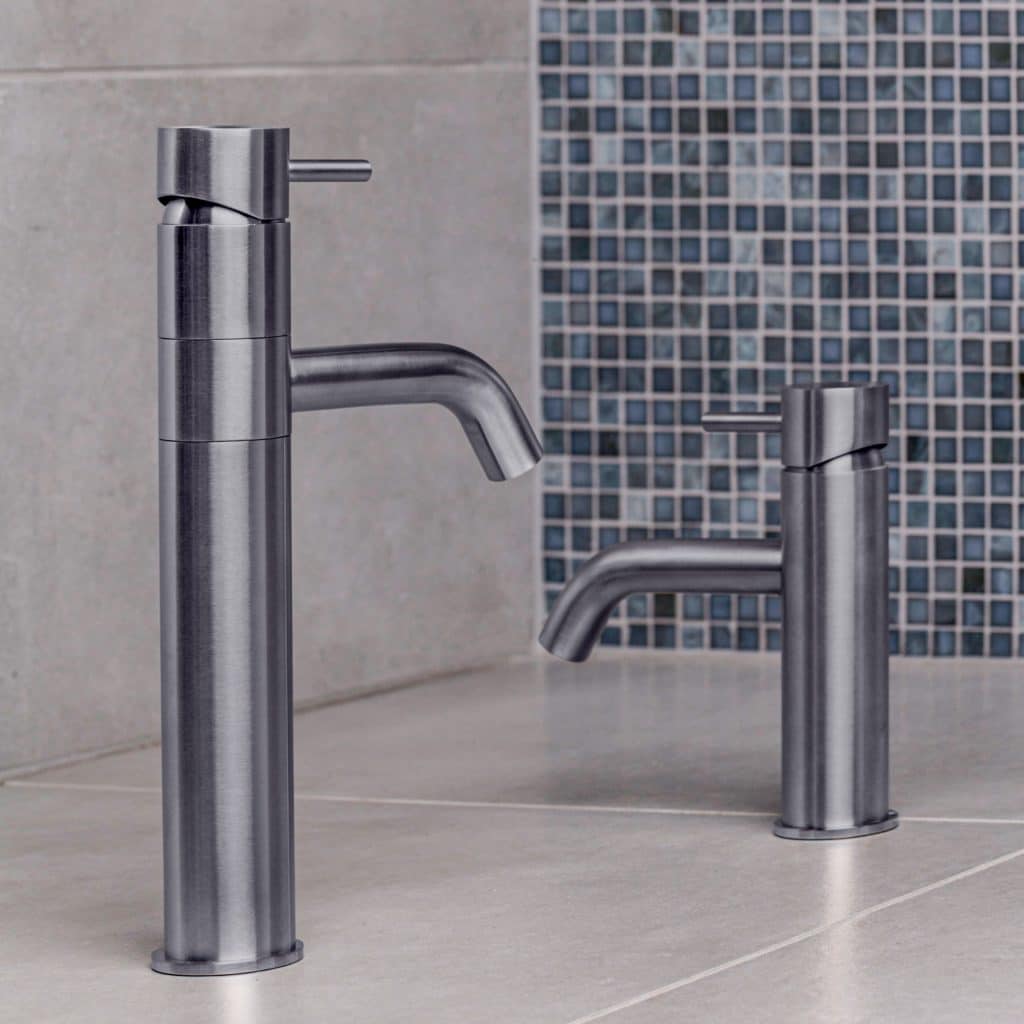

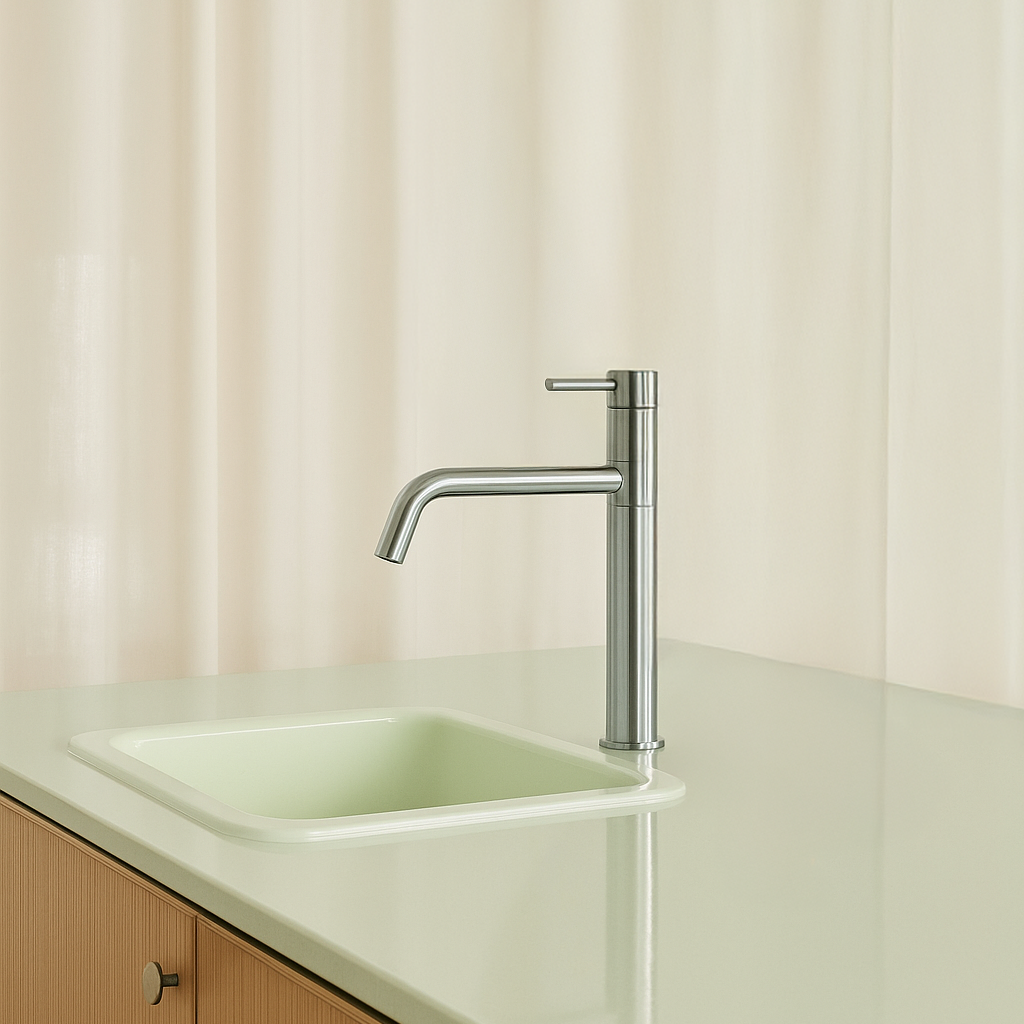

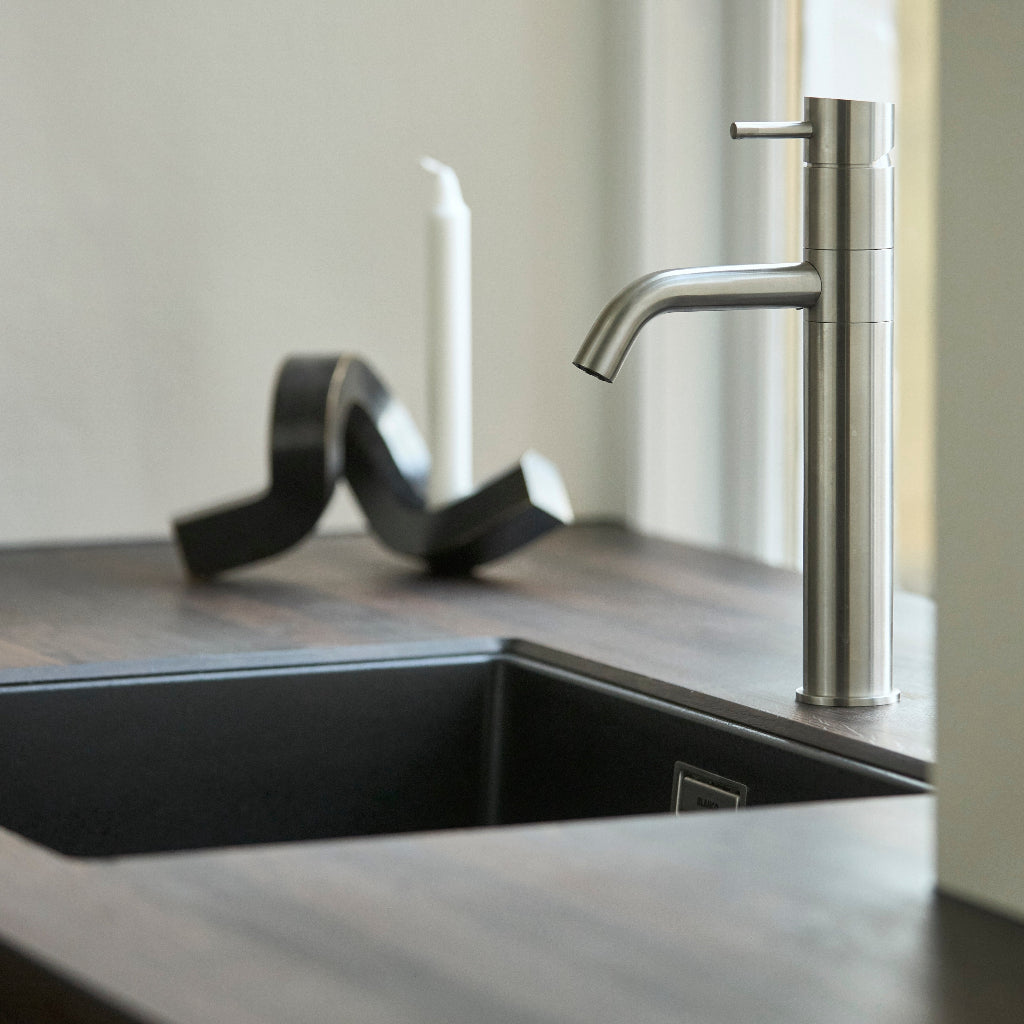

- Tall (Swivel): 280 mm (11") height × 130 mm (5.1") projection — swivels at spout
- Tall Extended (Swivel): 280 mm (11") height × 210 mm (8.3") projection — swivels at spout
Specifications
- Height to aerator: 69 mm (2.7")
- Built-in aerator
- Max flow rate: 1.3 gpm (5.0 L/min)
- Lead-free compliant
Installation must be completed by a professional plumber.
Materials

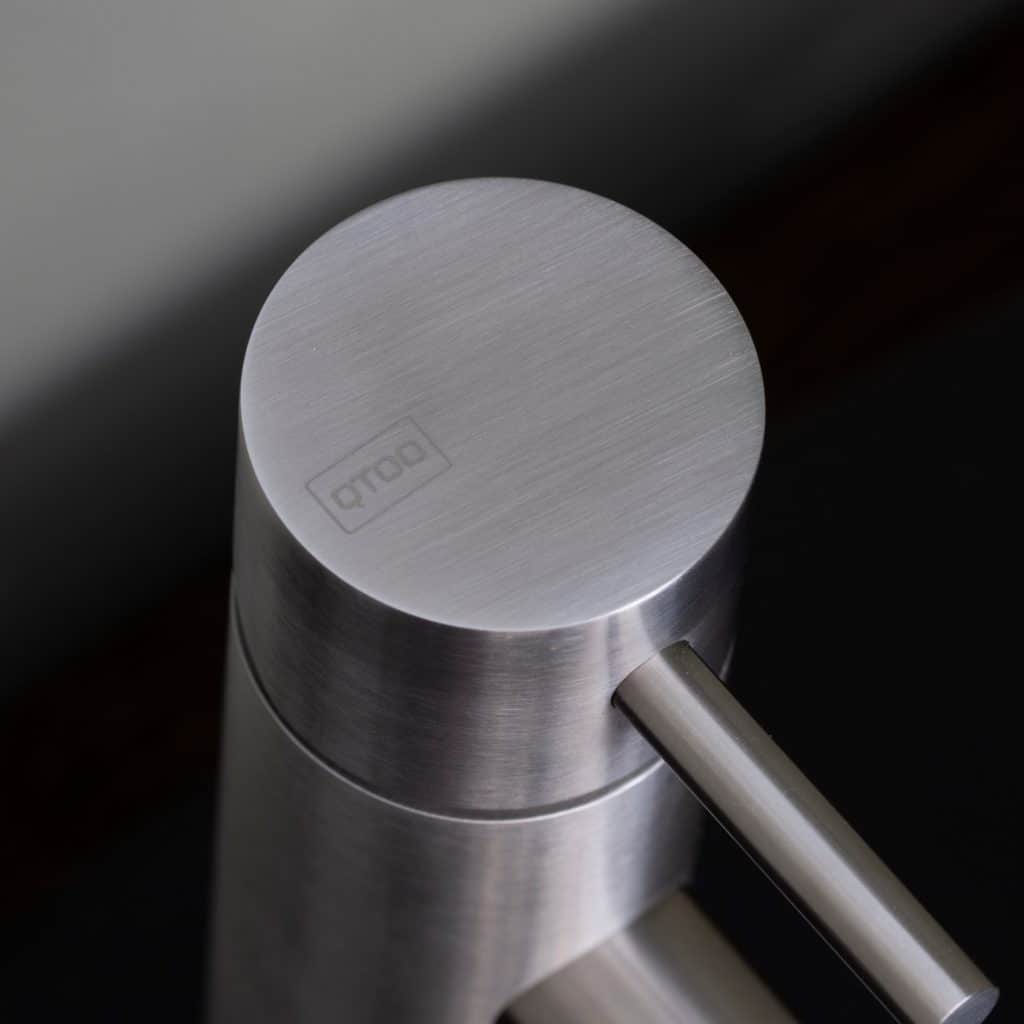

Marine-grade stainless steel (AISI 316). Lead-free and allergy-friendly.
Available Finishes

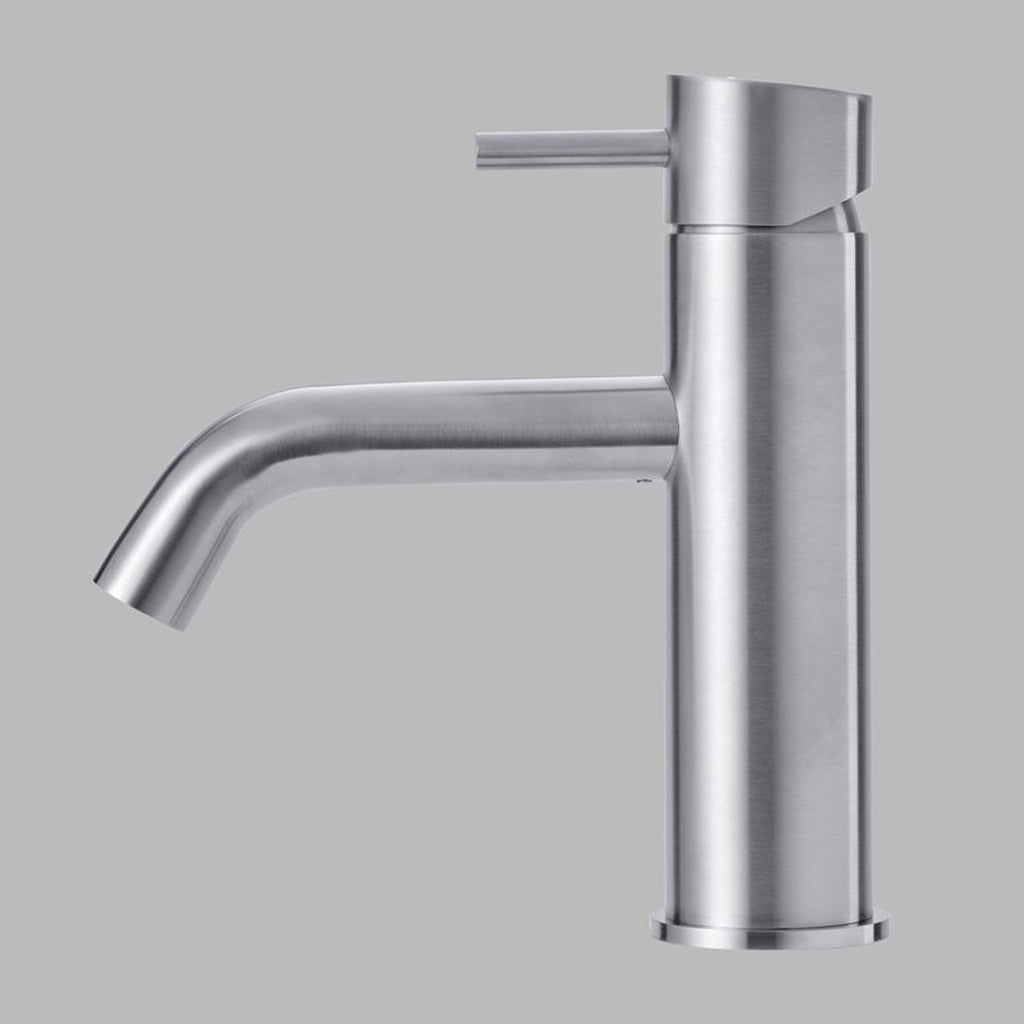

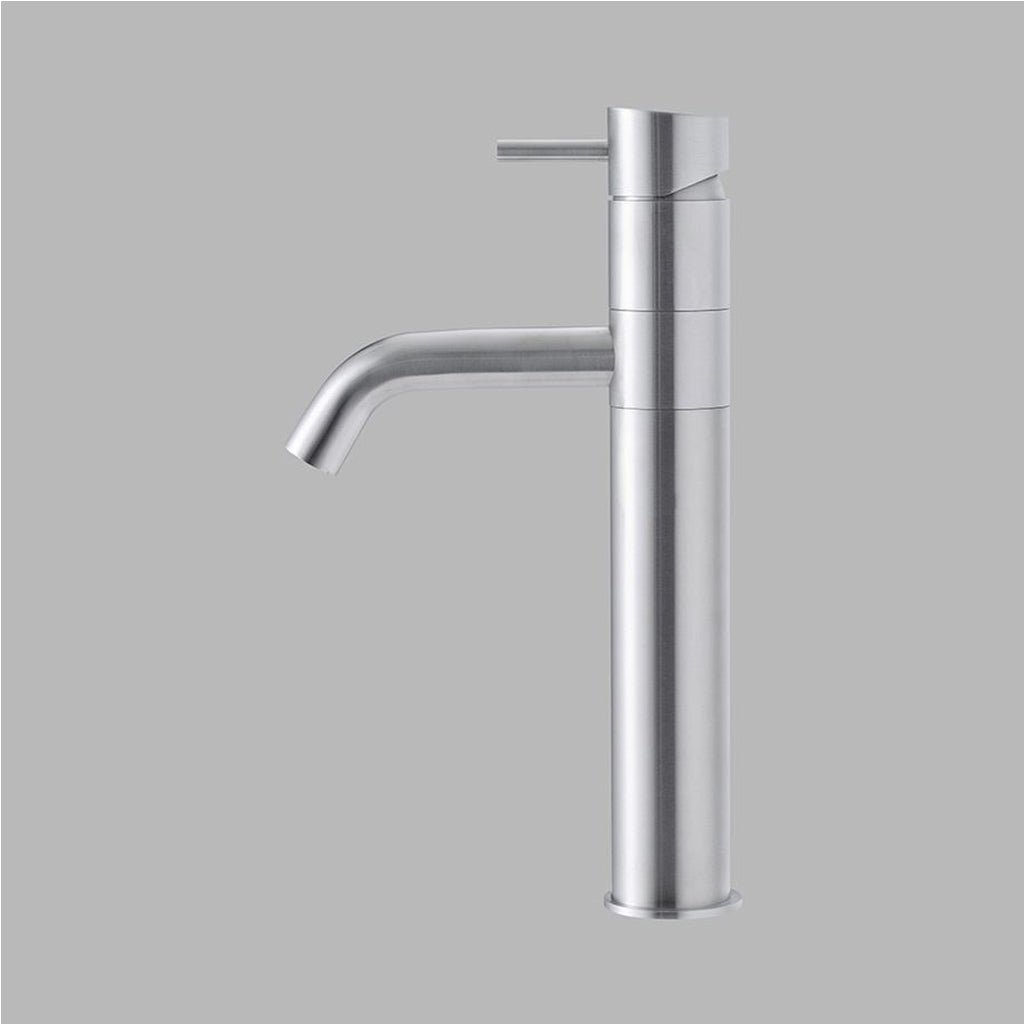

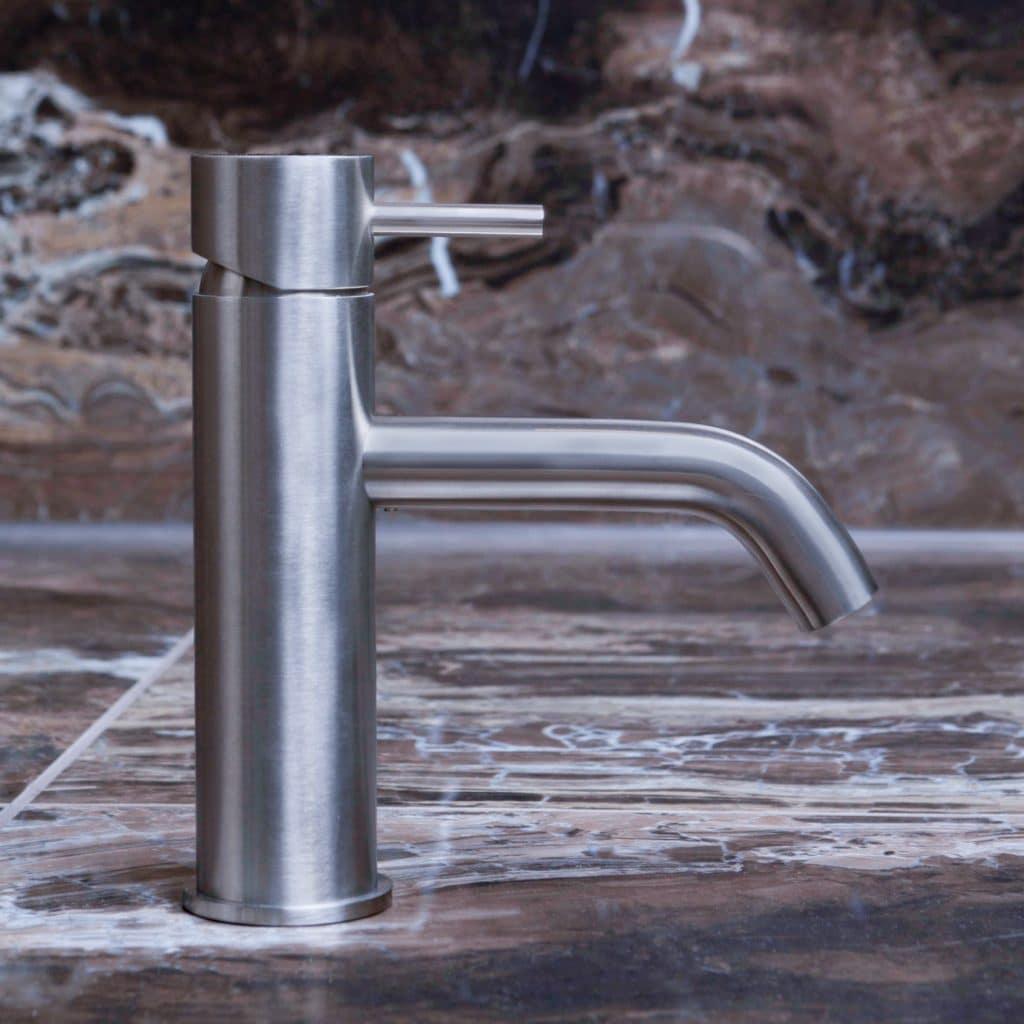

- Satin Stainless Steel

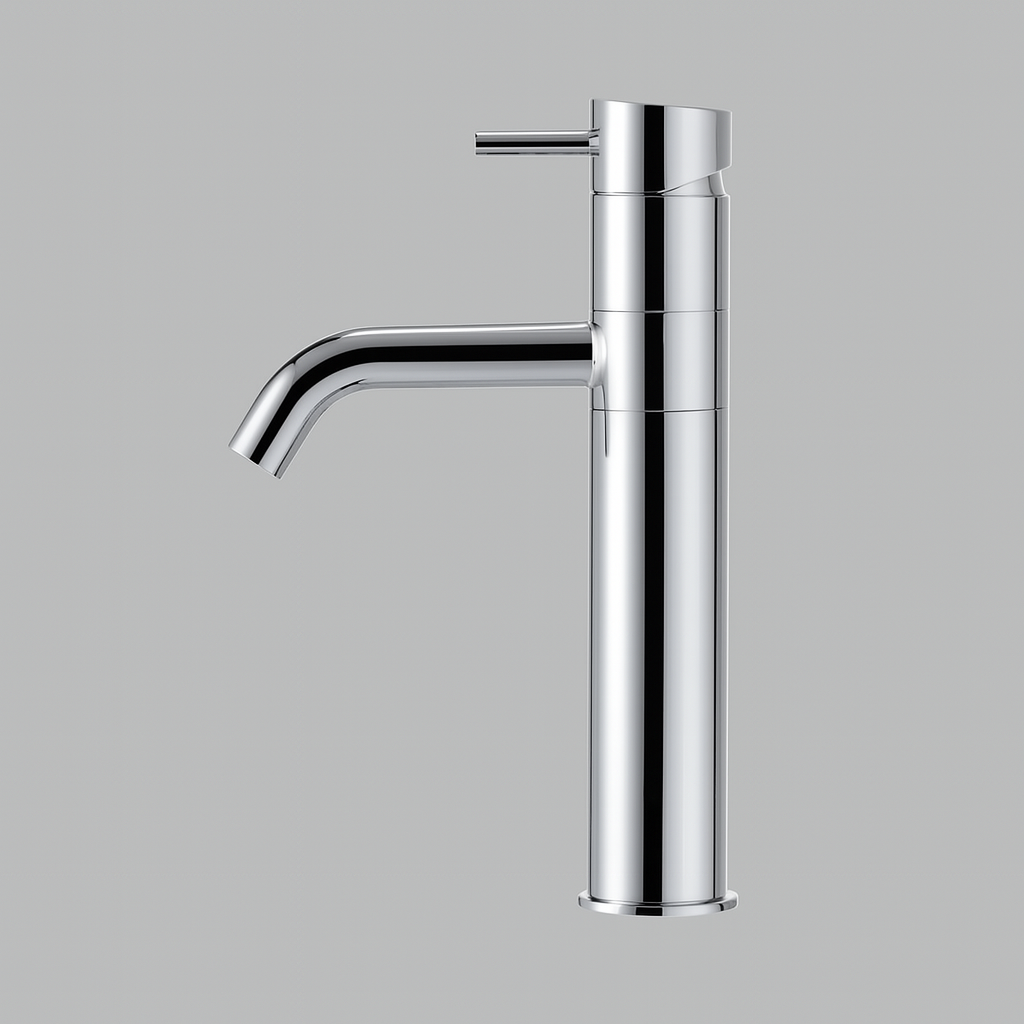

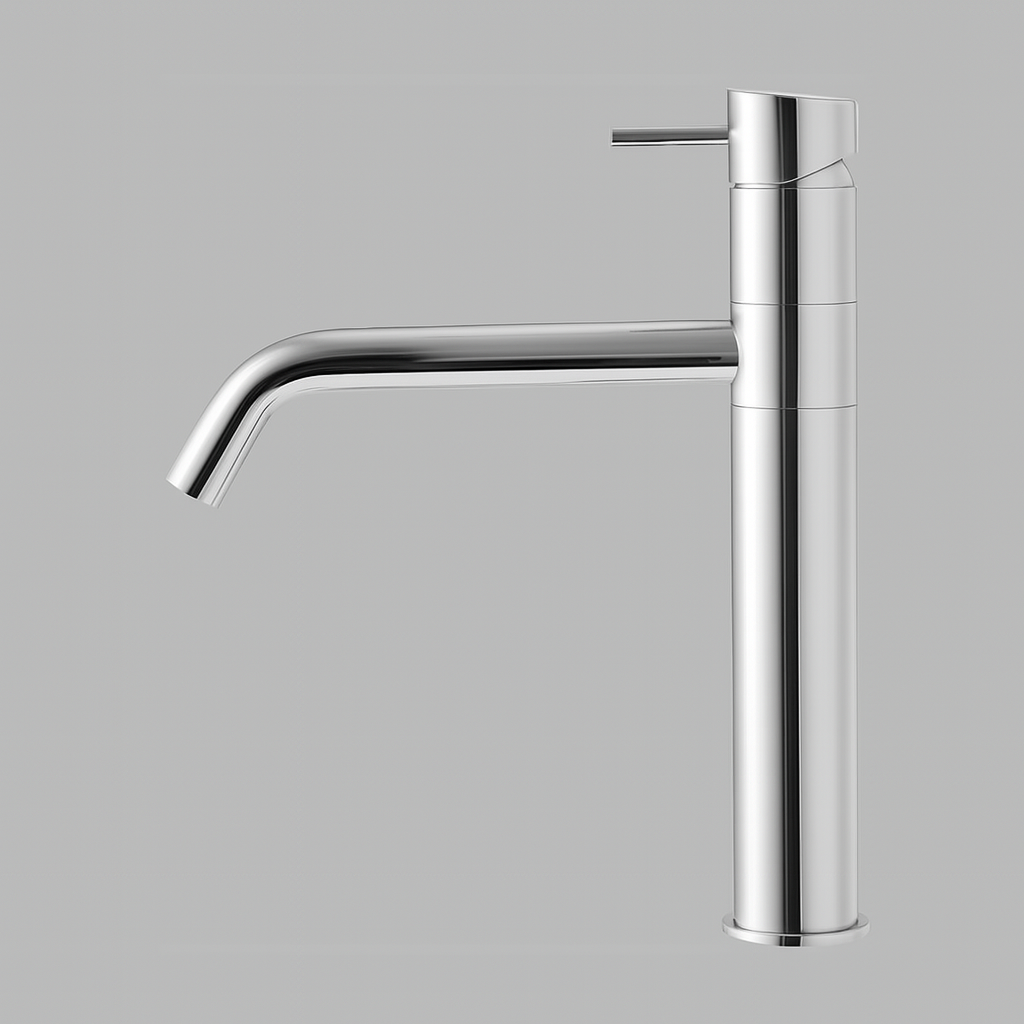

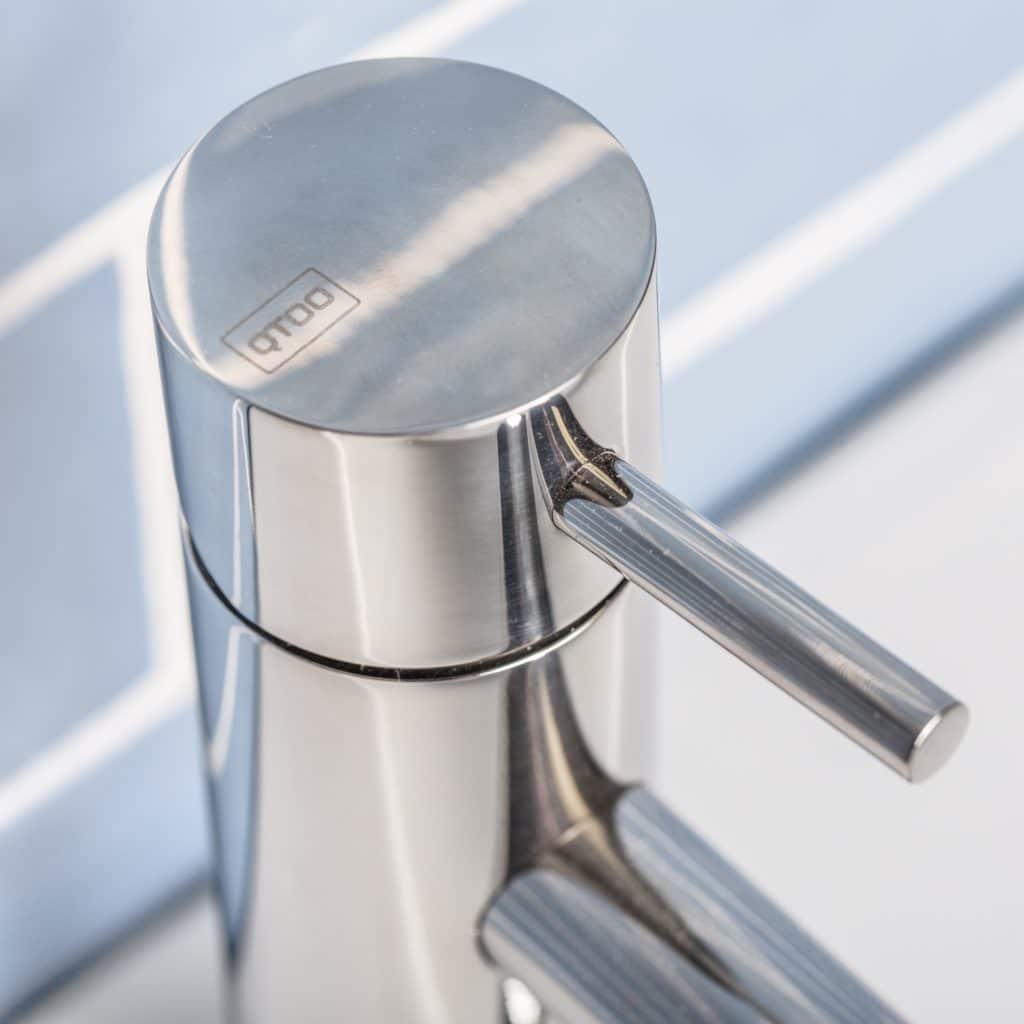

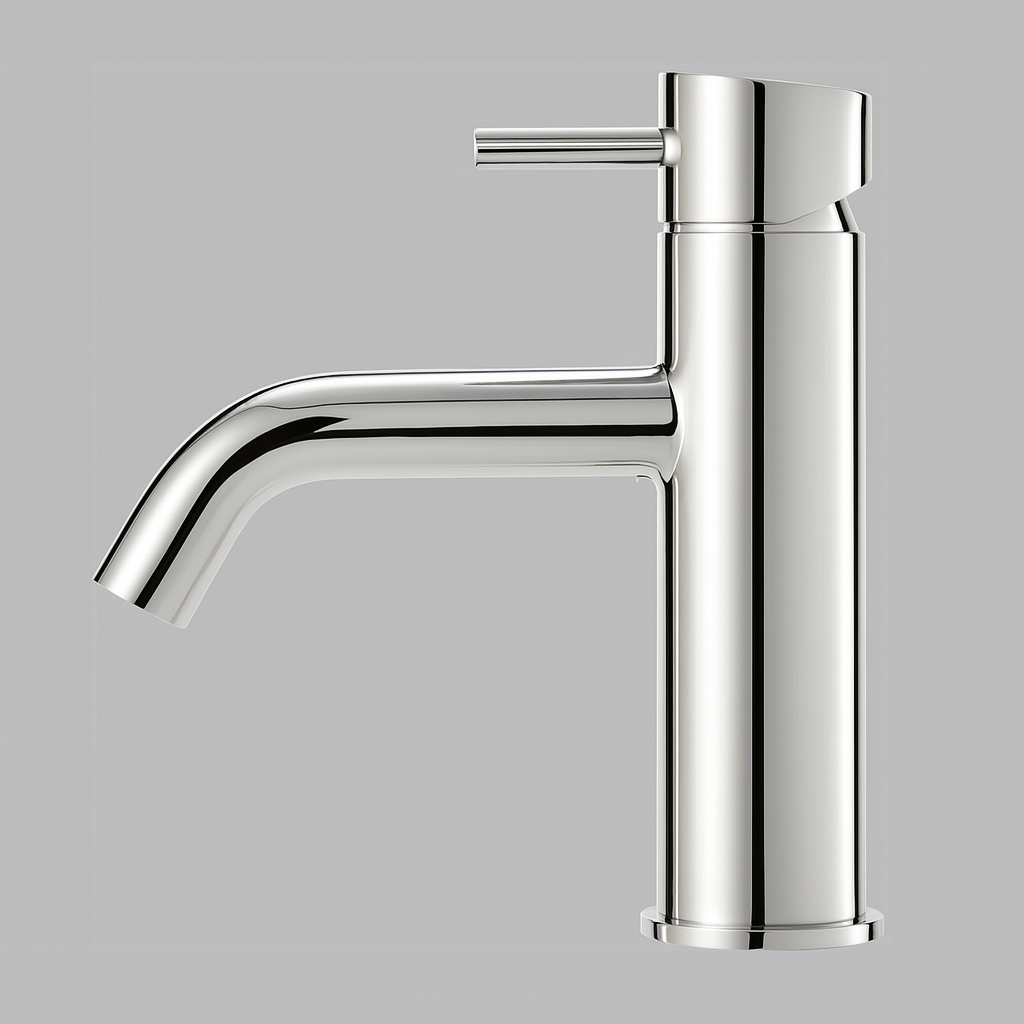

- Polished Stainless Steel

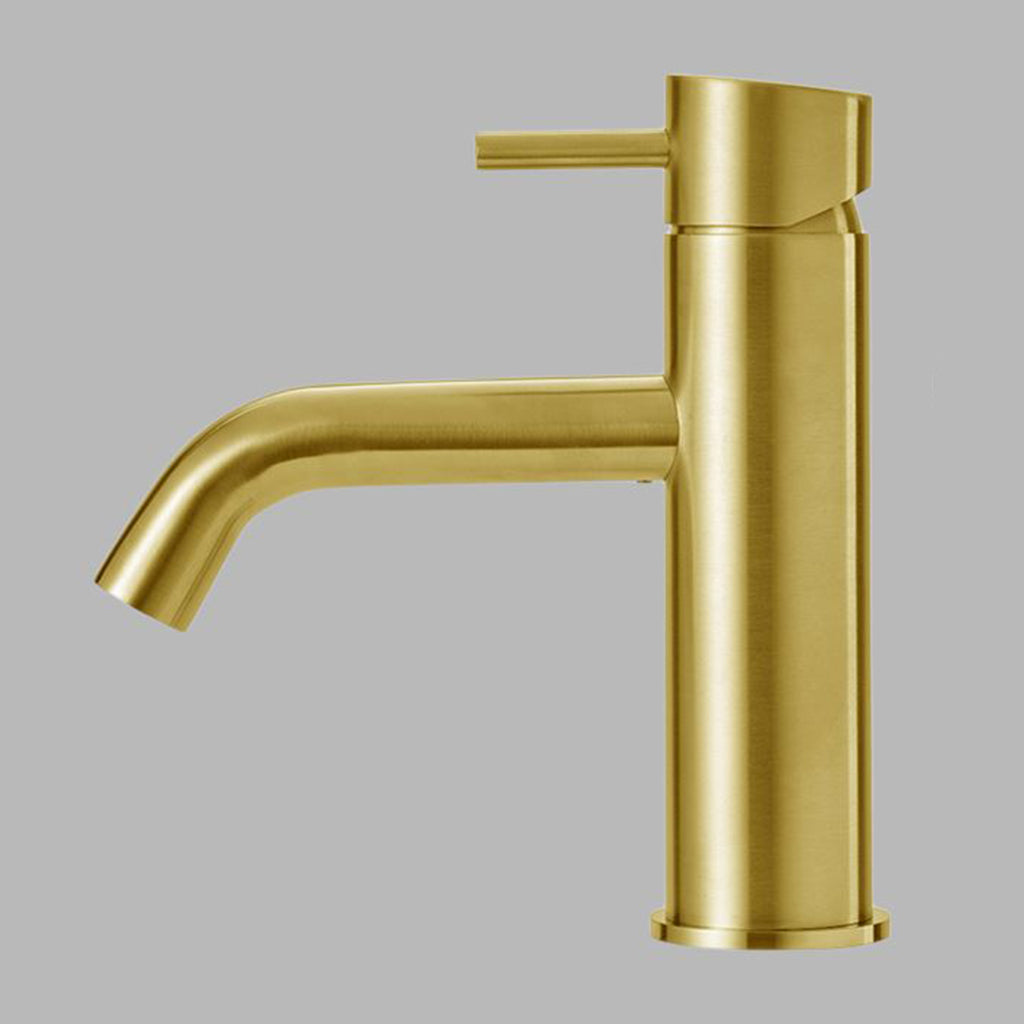

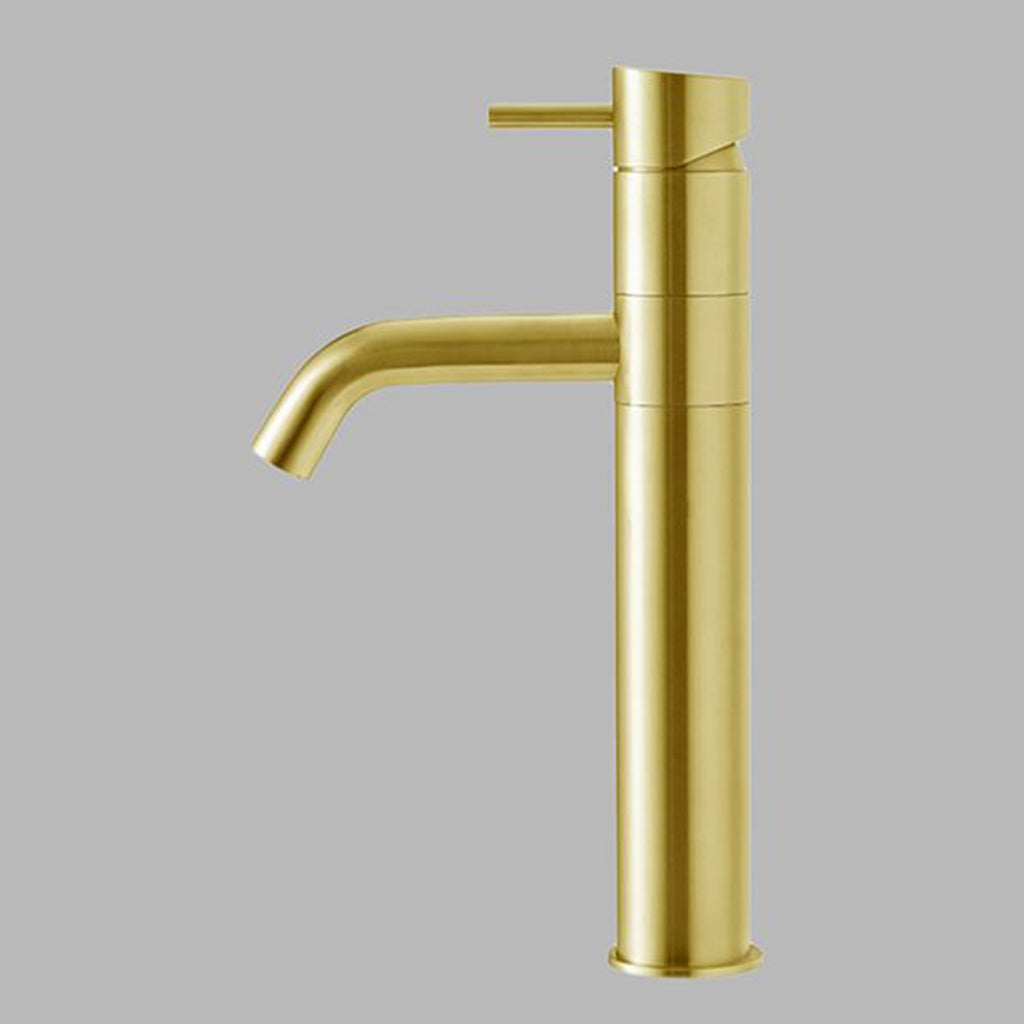

- PVD Satin Brass

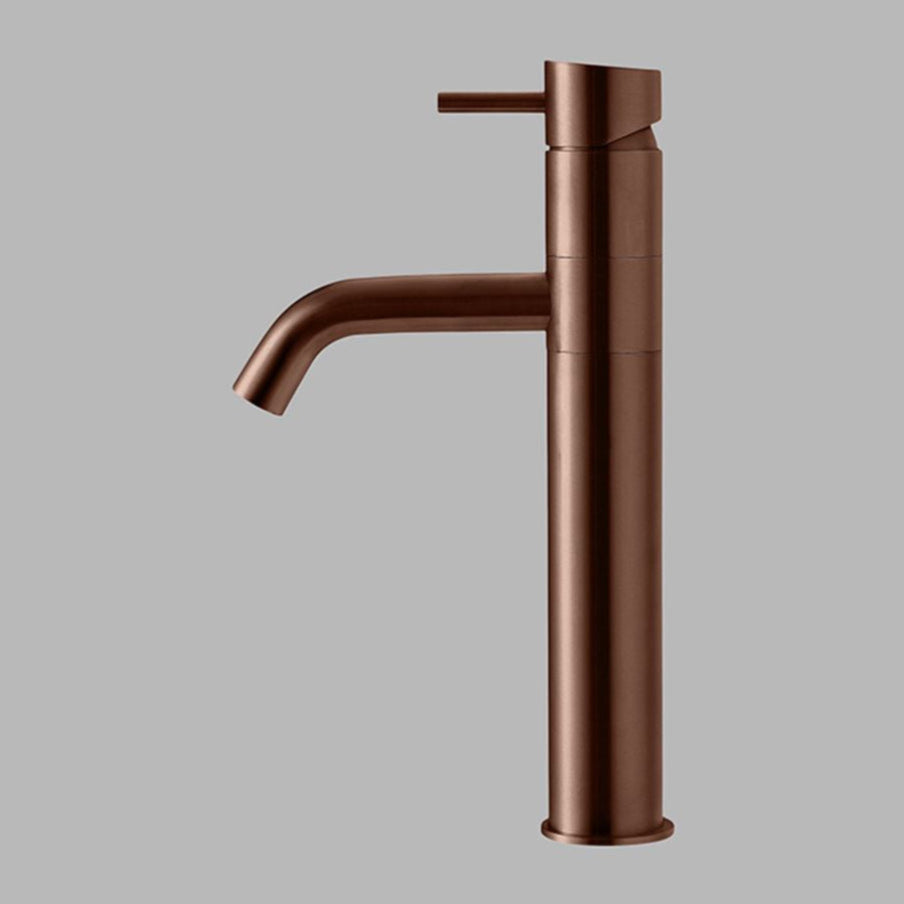

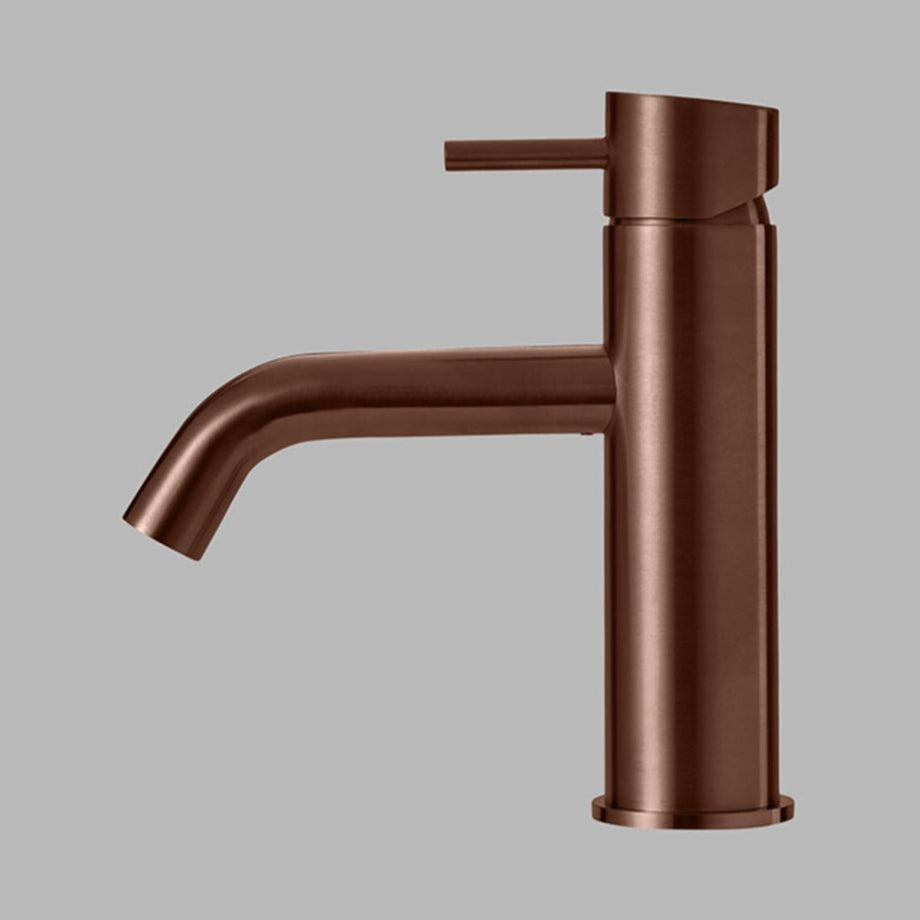

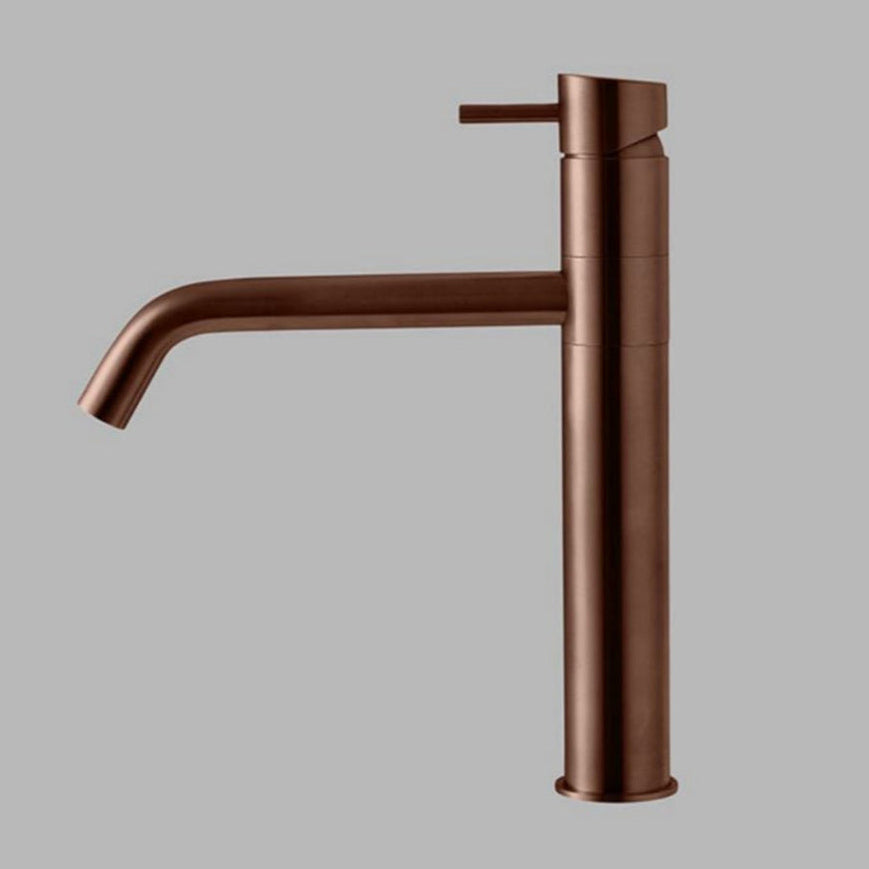

- PVD Satin Bronze

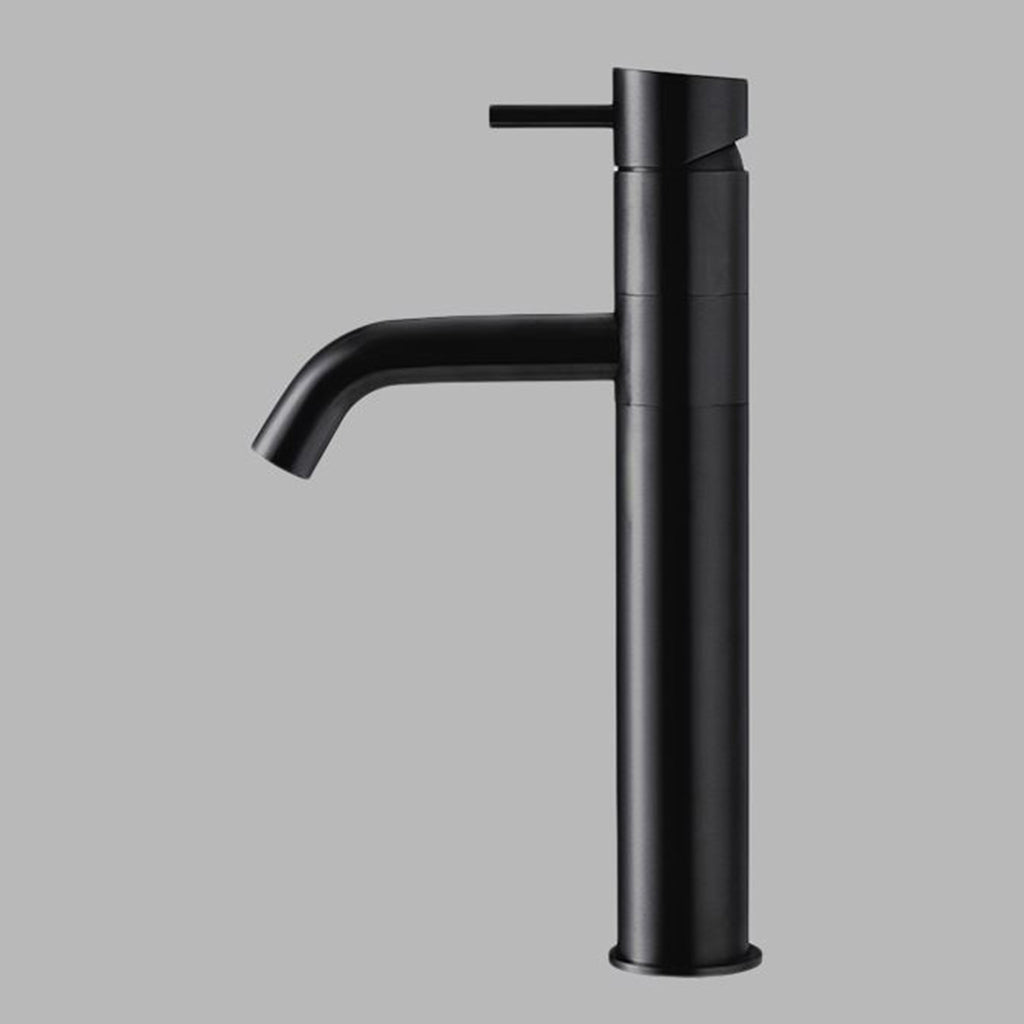

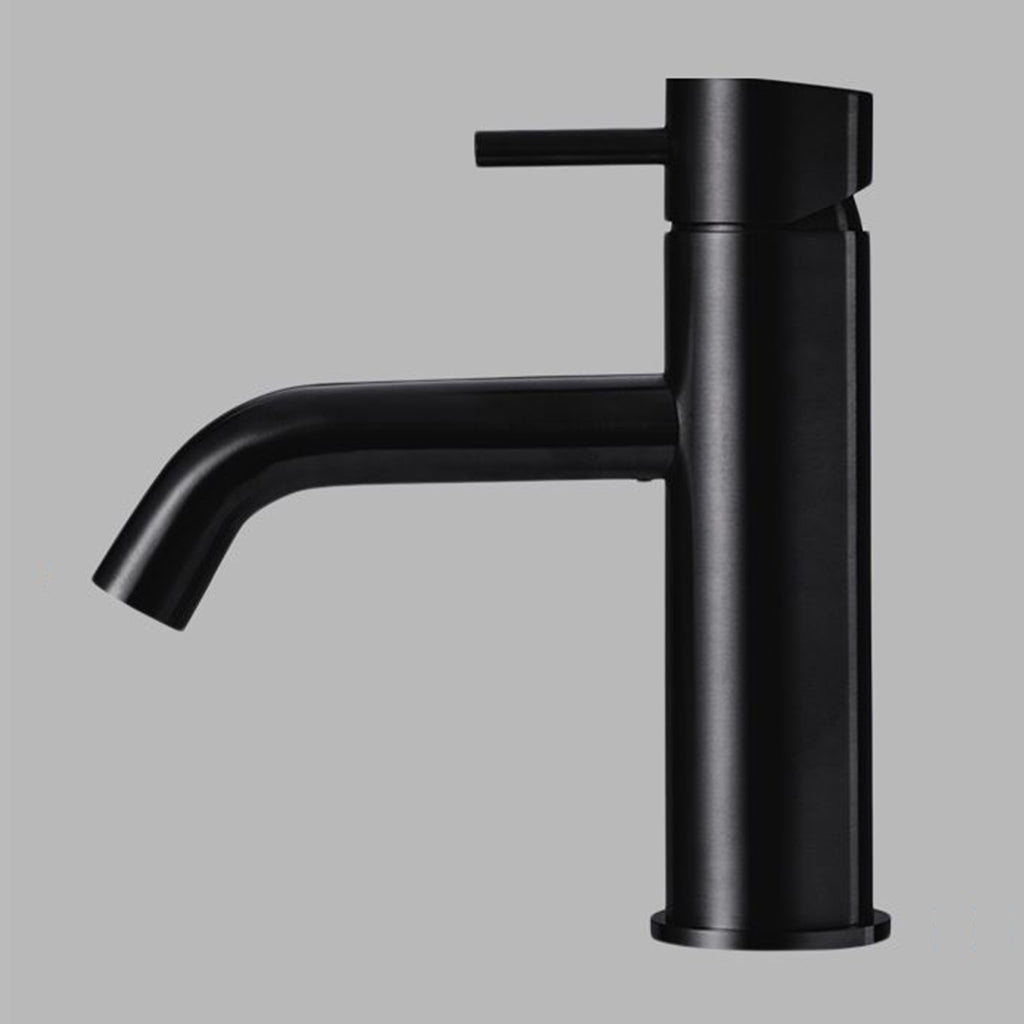

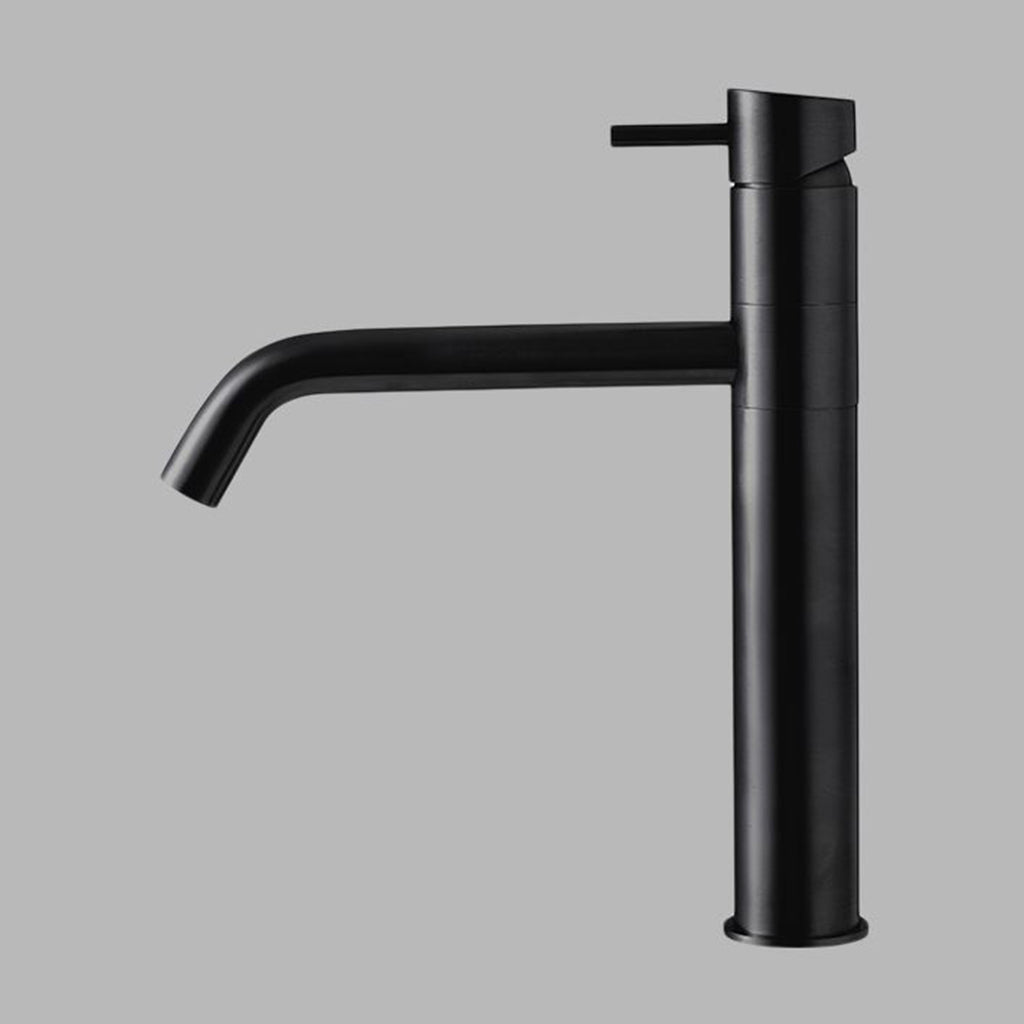

- PVD Satin Black
Certifications
- NSF/ANSI 61 Certified
- CSA B125.1 (2018) and ASME Compliant
- Leak-tested to 15 bar
- 10-Year Warranty on mechanical parts
- 5-Year Warranty on PVD finishes
Related Products
Product Downloads
For the complete collection, download the catalogue here.
Product Sheets
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
