FritsJurgens System One Pivot Hinge Set

FritsJurgens

SKU: ST.One.40.G.R.SS

$1,515.00

Shipping calculated at checkout.

1. Configuration: 40 mm Backset

40 mm Backset

70 mm Backset

Top Pivot Reversed

2. Floor Plate: Round

Round

Square

Flush Round

Flush Square

3. Finish: Stainless Steel

Stainless Steel

Black

Quantity

The FritsJurgens System One is a concealed pivot hinge system for narrow-profile pivot doors. At just 18 mm in height, the bottom pivot installs entirely within the door, leaving the face clean. The system provides 360° free-swing rotation with no hold positions and no self-closing mechanism, and supports door weights up to 500 kg. Compatible with door frames for single-acting applications.

Available in three configurations: 70 mm (pivot point adjustable from 70 mm to center), 40 mm (pivot point fixed at 40 mm), and Top Pivot Reversed (TP-R). All versions are Class G only and support doors up to 500 kg.

Each System One set ships as a complete kit. Top pivot type and floor plate style are selected at time of order.

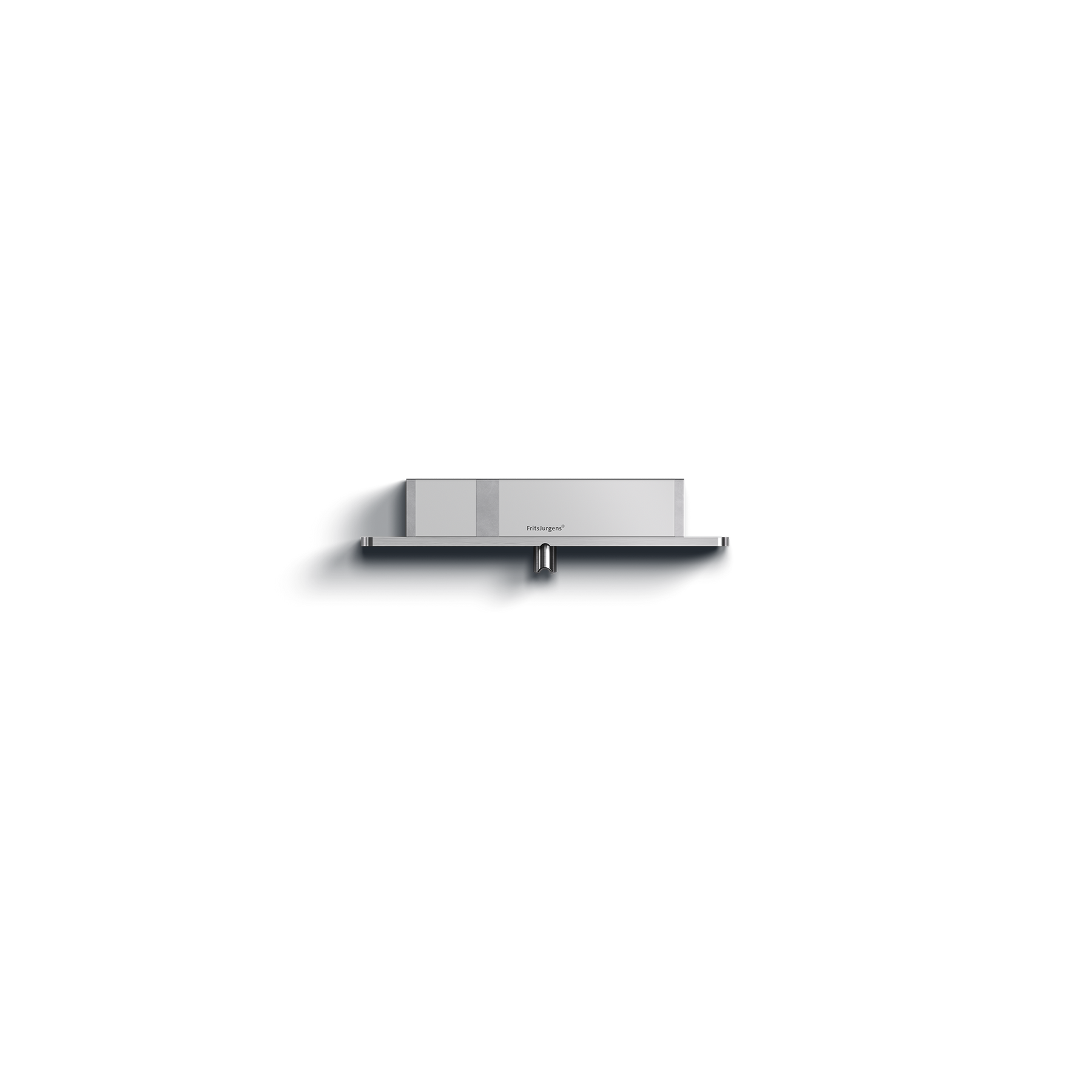

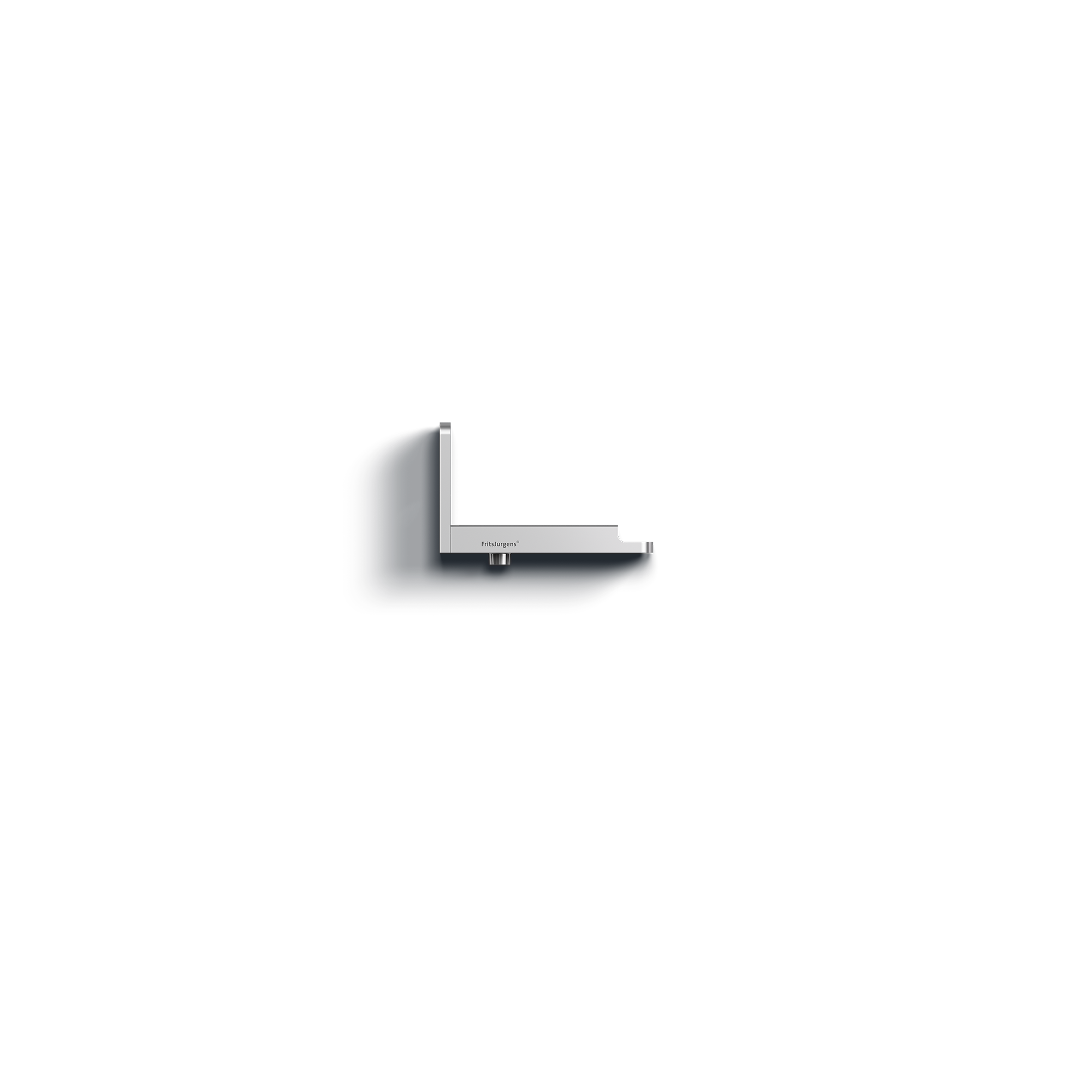

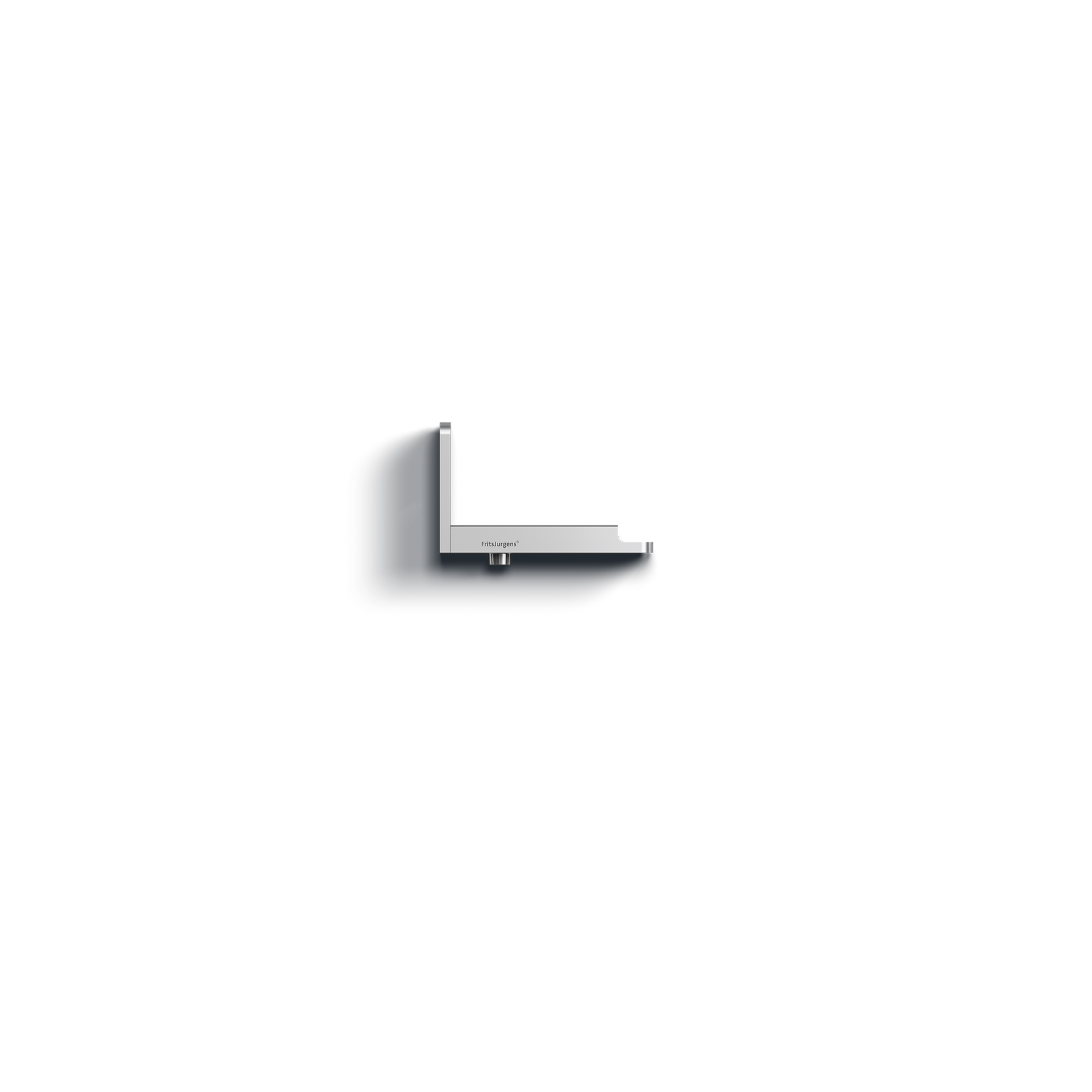

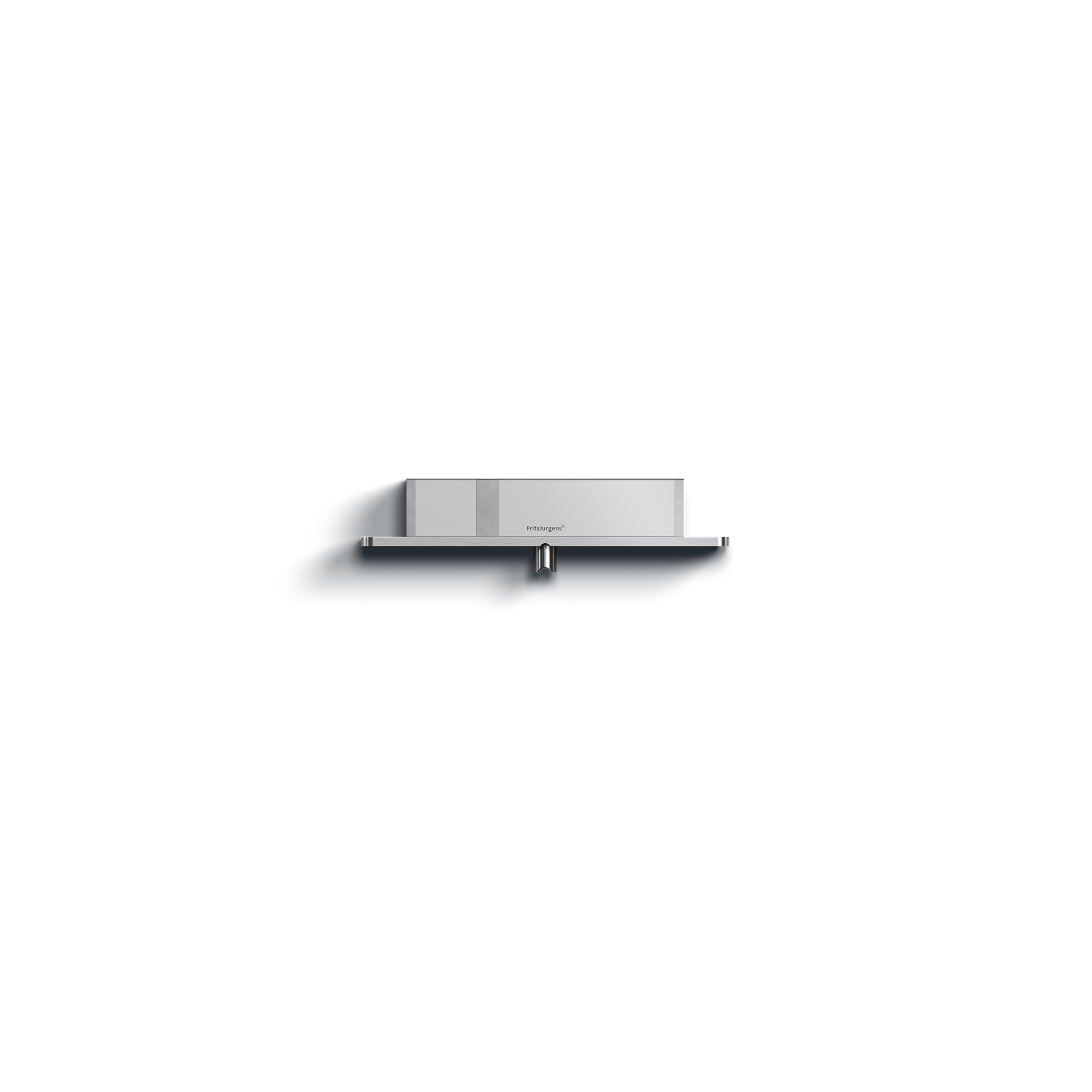

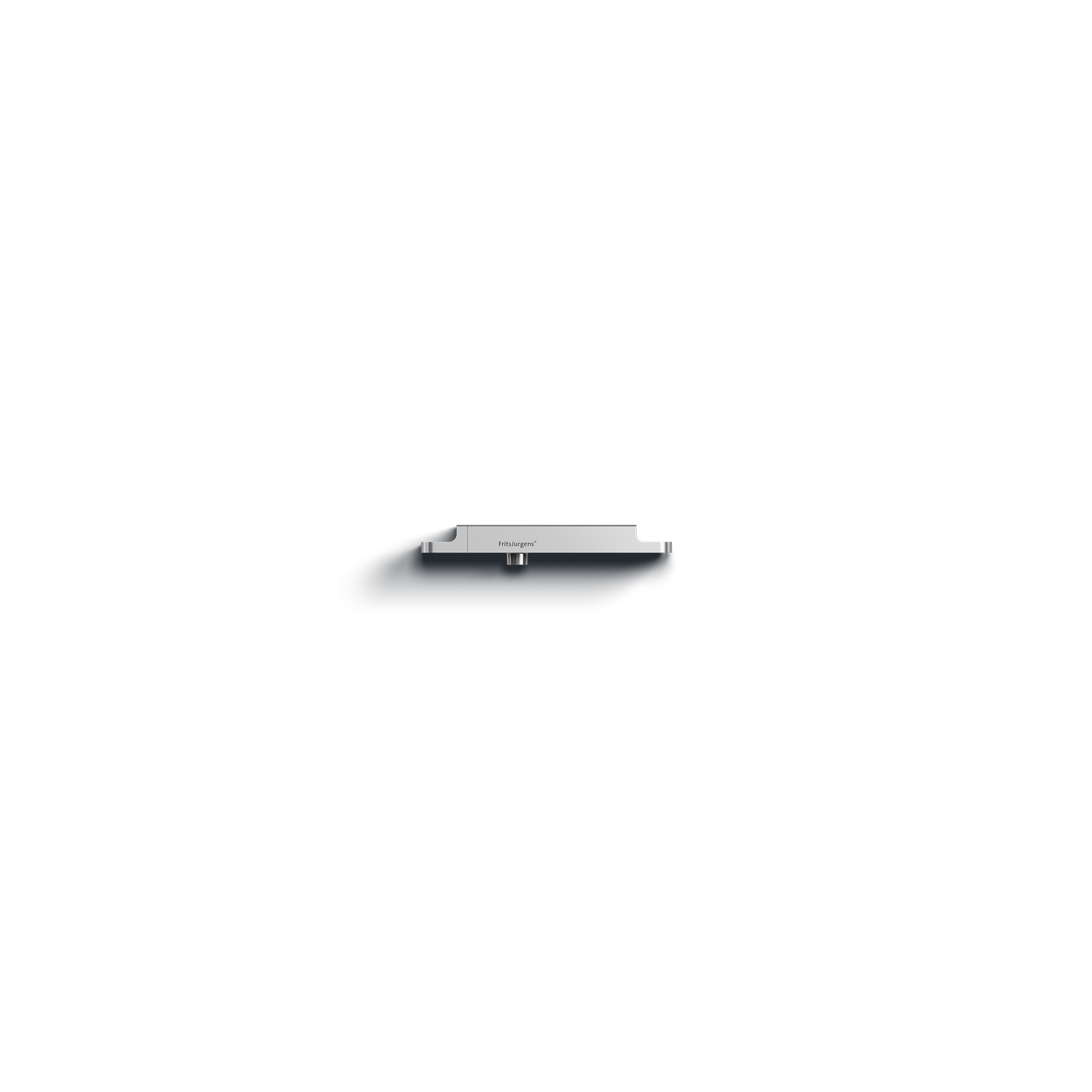

Bottom pivot — installed inside the door; controls rotation
Top pivot (Regular, Cable Grommet, or Reversed) — anchors the door between floor and ceiling
Ceiling plate — receives the top pivot pin (standard top pivot) or Receiver — milled into top of door (Top Pivot Reversed)
Floor plate — supports the door at the base; surface-mounted or recessed into the sill

70 mm: Pivot point adjustable from 70 mm from the door edge to center placement. Compatible with Top Pivot 70 mm Class G. No cover plates on the bottom pivot.
40 mm: Pivot point fixed at 40 mm from the door edge. Compatible with Top Pivot 40 mm Class G. Cover plates available in stainless steel or black.
Top Pivot Reversed (TP-R): Pivot mechanism mounted in the head jamb or ceiling instead of the top of the door. Only a small receiver is milled into the door's top edge, allowing thinner frames and larger glass openings. Cover plates are magnetic and available in stainless steel, black, or white.

The top pivot anchors the door to the ceiling or head jamb. System One is compatible with three top pivot types — choose based on your installation conditions and door design.

Top Pivot	Installed In	Best For	Cable Entry
Top Pivot Regular	Top of door	Standard installations — narrow-profile pivot doors with a ceiling plate above	No
Top Pivot Cable Grommet	Top of door	Doors requiring wiring for integrated lighting, electronic locks, or access control. Ø7.5 mm cable passage.	Yes
Top Pivot Reversed (TP-R)	Head jamb or ceiling	Glass doors requiring minimal frame width; exterior doors with a head jamb; middle-placement doors where ceiling-side adjustment is preferred	Yes (standard)

With Top Pivot Reversed, no system needs to be housed in the top of the door — only a small receiver is milled into the door's top edge. This allows thinner frames and larger glass openings, which pairs naturally with System One's minimal 18 mm bottom pivot. The TP-R pin rotates downward into the receiver during installation, and all adjustment is done from inside the door opening. Cover plates are magnetic and available in stainless steel, black, or white.

All floor plates mount 8 mm into the floor and are compatible with underfloor heating. Surface-mounted plates sit on top of the floor with short anchor pins. Flush/inset plates recess into the sill and are required when drop seals are used.

Round	Ø80 × 9 mm. Surface-mounted. Radial adjustment ±2.5°. Stainless steel or black.
Square	80 × 40 × 9 mm. Surface-mounted. Stainless steel or black.
Round Inset Flush	80 × 40 × 11 mm. Recessed into sill. No radial adjustment. Stainless steel only.
Square Inset Flush	80 × 40 × 11 mm. Recessed into sill. No radial adjustment. Stainless steel only.

Top gap: 4–10 mm (ceiling to top of door)
Bottom gap: 11 mm with surface-mounted floor plates; 7 mm with flush/recessed floor plates
Side gaps: Variable — dependent on door thickness, door width, and pivot point position. Calculate project-specific dimensions at fritsjurgens.com/gap-calculator.

Hardened stainless steel and anodized aluminum
Finishes: Stainless steel; Black PVD coated stainless steel (surface-mounted floor plates only)

Bottom pivot height	18 mm
System weight	0.36 kg
Bottom pivot dimensions — 70 mm	162 × 32 × 18 mm
Bottom pivot dimensions — 40 mm	140 × 32 × 85 mm
Top pivot dimensions — 70 mm Class G	171.5 × 32 × 44 mm
Top pivot dimensions — 40 mm Class G	151.5 × 32 × 85 mm
Top Pivot Reversed (TP-R)	240 mm width; mortised to same depth as 70 mm/40 mm top pivots; min. backset 130 mm
Pivot point — 70 mm	Adjustable, 70 mm from edge to center
Pivot point — 40 mm	Fixed at 40 mm from edge
Door weight capacity	Up to 500 kg (Class G)
Door acting	Revolving (360°), double-acting (180°), single-acting (90°)
Hold positions	None
Self-closing	No
Min. door thickness	40 mm
Floor penetration	8 mm
Ceiling penetration	18 mm
Top gap	4–10 mm
Bottom gap	7 mm (flush plates) / 11 mm (surface plates)
Pin diameter	Ø15 mm
Cable grommet	Ø7.5 mm (Cable Grommet top pivot)
Guarantee	2 years

Milling space required in the door is always larger than the component footprint. Refer to FritsJurgens milling drawings before fabrication. Side gap dimensions must be calculated per project using the Gap Calculator linked above.

To ensure accurate configuration, please have the following details ready:

Configuration: 40 mm Backset, 70 mm Backset, or Top Pivot Reversed (TP-R)
Door weight (System One is Class G only — supports up to 500 kg)
Door width and height
Door thickness (minimum 40 mm)
Door material
Top pivot type: Regular, Cable Grommet, or Reversed
Floor plate: Round, Square, Flush Round, or Flush Square
Finish: Stainless Steel or Black

System One Overview

40 mm Pivot — Milling & Mounting Manual

Class G (up to 500 kg / 1,102 lbs)

70 mm Pivot — Milling & Mounting Manual

Class G (up to 500 kg / 1,102 lbs)

Top Pivot Reversed

Accessories

Inspiration

FritsJurgens Inspiration Catalog 2026

FritsJurgens pivot systems are concealed inside the door and floor, with no visible frame or overhead closer. All systems use a bottom pivot, top pivot, ceiling plate, and floor plate. The right system depends on your door weight, whether you need self-closing, and how much control you want over door movement.

Compare Systems

	System ONE	System M+	System FX
Door weight	Up to 500 kg (Class G)	20 – 500 kg (8 weight classes)	20 – 500 kg (3 weight classes)
Self-closing	No	Yes	No
Movement control	Free swing	Damper Control, 30° Speed Control, Latch Control	Free swing with hold positions at 0°, 90°, 180°, 270°
Acting	Single, double, or revolving (360°)	Single or double	Single, double, or revolving (360°)
Pivot point	Side or middle (40 mm or 70 mm)	Side or middle (40 mm or 70 mm)	Side or middle (40 mm or 70 mm)
Cover plates	Available on 40 mm variants	Available on 40 mm variants	Available on 40 mm variants
Best for	Pivot doors that stay where you put them — no self-closing, no hold positions	Residential and commercial doors requiring controlled, self-closing movement	Doors requiring defined hold positions without a self-closing mechanism

How to Choose

System ONE is a free-swing pivot with no self-closing and no hold positions. The door stays wherever it is left. Supports doors up to 500 kg with full 360° revolving capability. The simplest system in the FritsJurgens line — ideal when no closing force or position control is needed.

System M+ is the full-control system. Self-closes from up to 125°, with adjustable damping on opening and closing, a 30° slow-close zone, and Latch Control to ensure proper latching. Supports doors from 20 kg to 500 kg across eight weight classes. The right choice for most residential and commercial applications.

System FX combines free-swing movement with strong hold positions at 0°, 90°, 180°, and 270°. Opens in both directions and supports 360° revolving, but does not self-close. Suited to passages and open-plan spaces where the door needs to stay open.

All systems require milling into the door for the bottom pivot body. Floor plate options are shared across systems and can be surface-mounted or recessed into the sill.

Not sure which system fits your project? Contact us with your door dimensions and application details.

System ONE System M+ System FX

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
