What FritsJurgens pivot hinge systems does Casson Hardware carry?

Casson Hardware carries the full FritsJurgens pivot hinge range, including System One, System M, System 3, System 38, and System 65 — covering the manufacturer's full weight class spectrum.

What is the difference between FritsJurgens System One, System M, System 3, and System 38?

The systems differ by maximum door weight, width, and feature set. System One is FritsJurgens' lighter residential standard, with System M, System 3, and higher numbers supporting progressively heavier doors. Casson Hardware lists exact load capacity on every product page.

What weight class does each system support?

FritsJurgens systems support doors from standard residential weights up to oversized doors above 500 kg, depending on the system. Exact ratings are confirmed on each product page.

Are FritsJurgens systems serviceable after installation?

Yes. FritsJurgens pivot systems are engineered to be serviceable for the life of the building, with maintenance and adjustment supported through Casson Hardware's specification team.

Does Casson Hardware ship FritsJurgens pivot hinges across Canada?

Yes. Casson Hardware ships FritsJurgens pivot hinges to all Canadian provinces and territories from our Toronto warehouse, with delivery to the United States also available.

Where can I buy FritsJurgens pivot hinges in Canada?

Casson Hardware is a Canadian retailer and specifier for FritsJurgens, available to order pivot hinge systems online at cassonhardware.com or specified through our project team.

About FritsJurgens

FritsJurgens pivot systems are engineered in the Netherlands and trusted by architects and door makers worldwide. Fully concealed inside the door and floor, every system eliminates visible hardware without compromising on control. Three systems cover every application, from simple interior doors to oversized architectural pivots weighing up to 500 kg.

Find Your System

FREE SWING

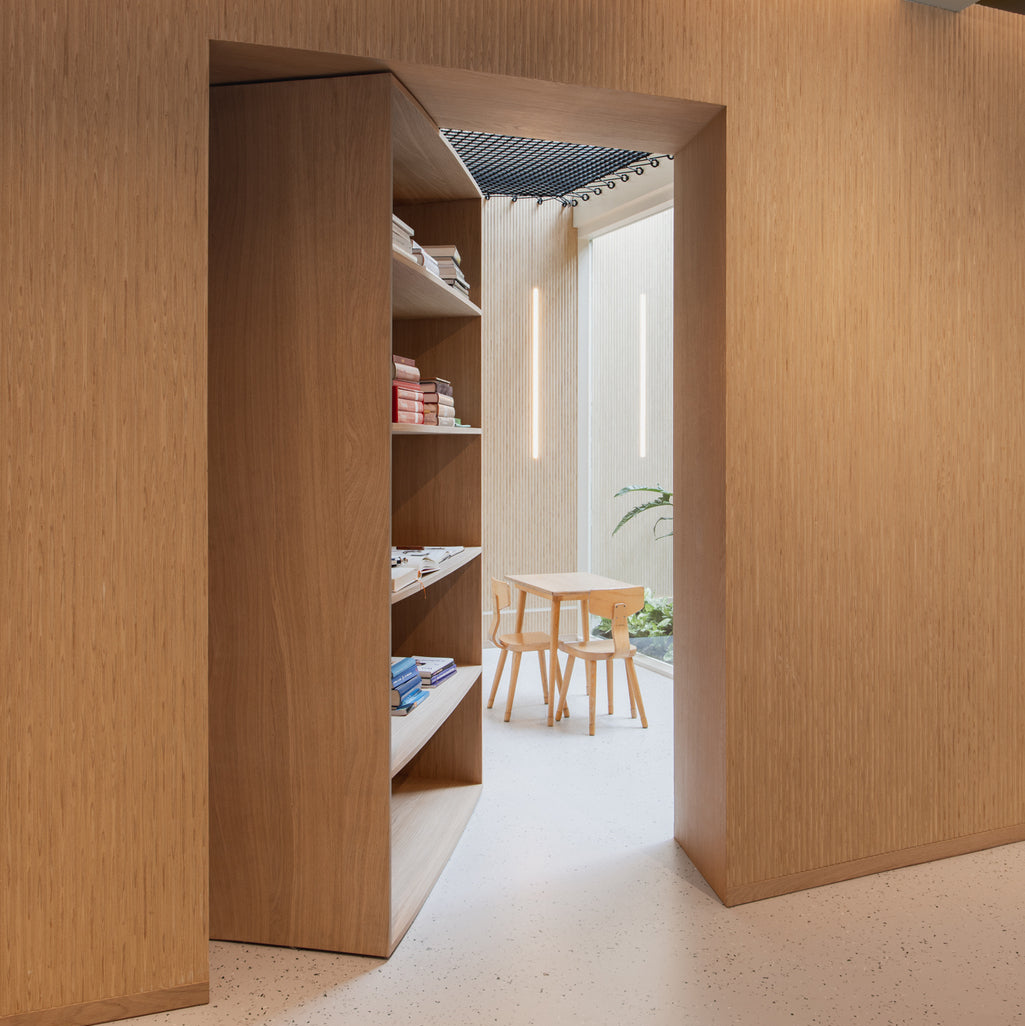

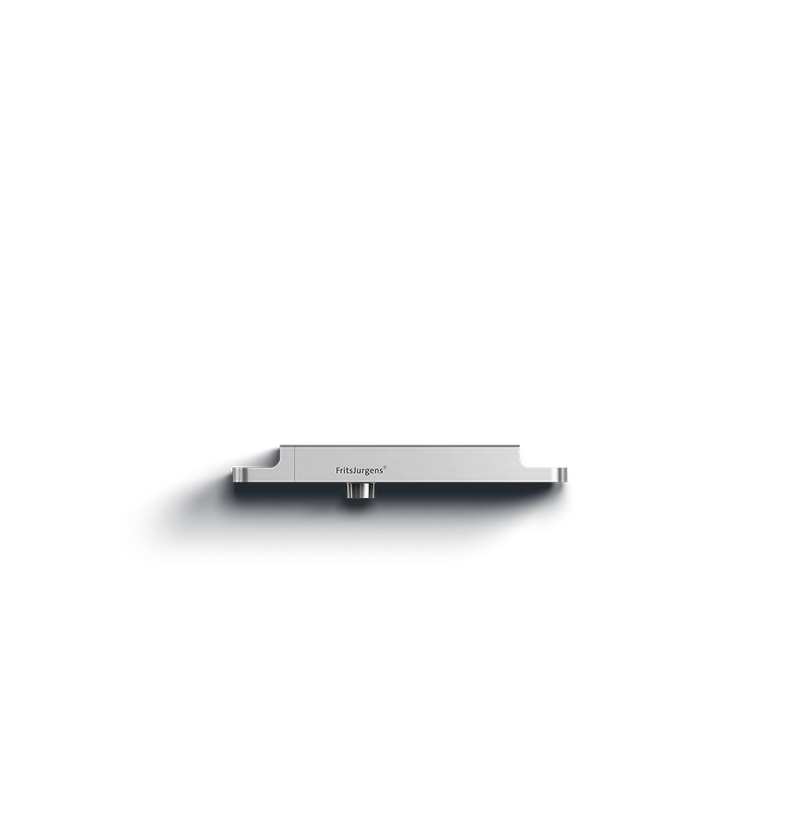

System ONE

The Single Action System

Up to 500 kg · Single-acting

For interior doors where self-closing is not required. The door swings freely and stays where it is left — simple, reliable, and straightforward to install.

Shop System ONE

Hold-Open

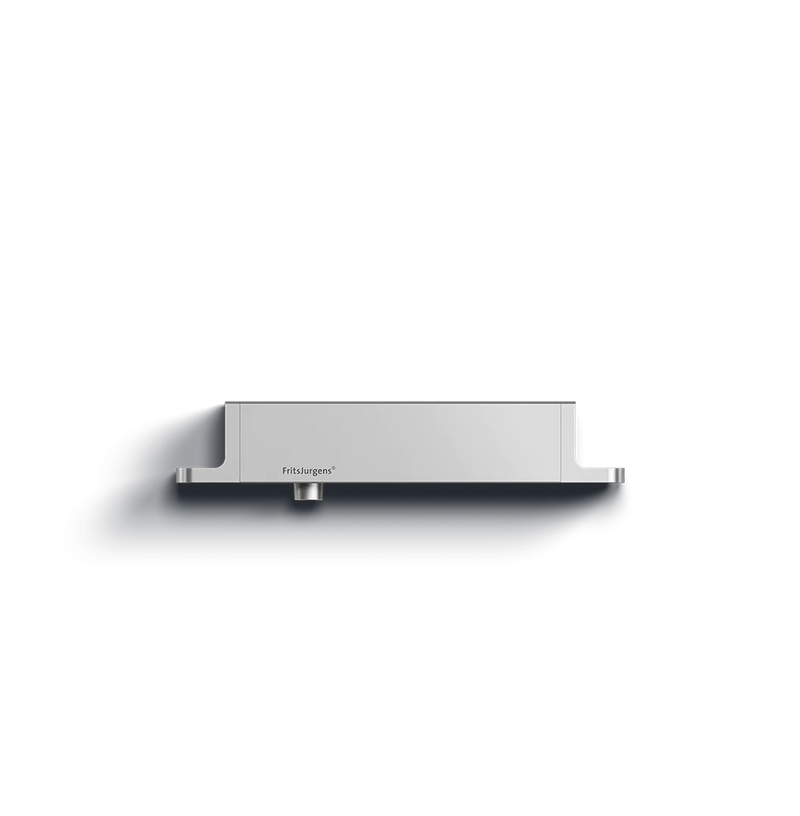

System FX

The Hold-Open System

Up to 500 kg · Single or double-acting

For doors that need to stay open at set positions without a self-closing mechanism. Opens in both directions and holds — suited to passages where resistance-free movement is a priority.

Shop System FX

Self-Closing

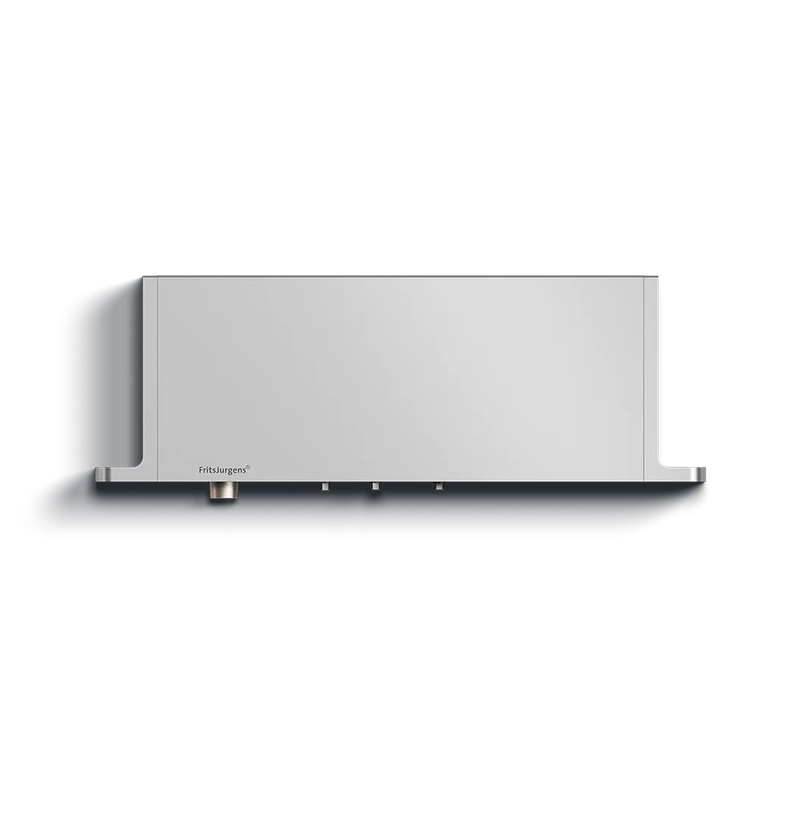

System M+

The Full Control System

20 – 500 kg · Single or double-acting

For residential and commercial doors requiring controlled, self-closing movement. Fully adjustable damping on opening and closing, 30° Speed Control, and Latch Control ensure the door performs exactly as specified.

Shop System M+

Which System Is Right for You?

FritsJurgens makes three pivot systems. Each is fully concealed inside the door and floor. The difference is in how the door moves — and how much control you need over that movement.

See Full Comparison

	System ONE	System FX	System M+
Door weight	Class G: up to 500 kg	Class A: 20 – 119 kg Class C: up to 209 kg Class G: up to 500 kg	Class A: 20 – 119 kg Class B: up to 159 kg Class C: up to 209 kg Class D: up to 279 kg Class E: up to 349 kg Class F: up to 429 kg Class G: up to 500 kg
Self-closing	No	No	Yes
Movement	Free swing, no hold positions	Free swing (between 10° and 80°) with hold positions	Damper Control, 30° Speed Control, Latch Control
Rotation	Revolving: 360° Double-acting: 180° Single-acting: 90°	Revolving: 360° Double-acting: 180° Single-acting: 90°	Double-acting: 180° Single-acting: 90°
Pivot point	70 mm: side to middle 40 mm: side	70 mm: side to middle 40 mm: side	70 mm: side to middle 40 mm: side
40 mm backset	Fixes the pivot point as close to the door edge as possible, maximising clear opening width. The right choice for narrower doors, openings where every millimetre of clearance matters, or projects requiring ADA-compliant clear widths from a standard door slab. Available on all three systems.
70 mm backset	The standard and most common choice. The pivot point can be positioned anywhere from 70 mm to the centre of the door, offering greater flexibility for a wide range of door widths and frame configurations. If you are unsure which backset to specify, start here. Available on all three systems.
Best for	A pivot door that stays where you put it. No mechanism to configure, no closing force to manage. Full 360° revolving capability.	Passages and open-plan spaces where the door needs defined hold positions — open, closed, or in between.	Doors that need to close themselves, every time — with adjustable control over exactly how they do it.

Not sure which system fits your door? Use the FritsJurgens configurator to find the right system for your specifications.

Configure Your System

Documentation & Resources

Spec sheets, milling manuals, technical data sheets, and accessory documentation for every FritsJurgens pivot system.

Browse Documents

System M+ Spec Sheet

System M+Spec Sheet
