Description

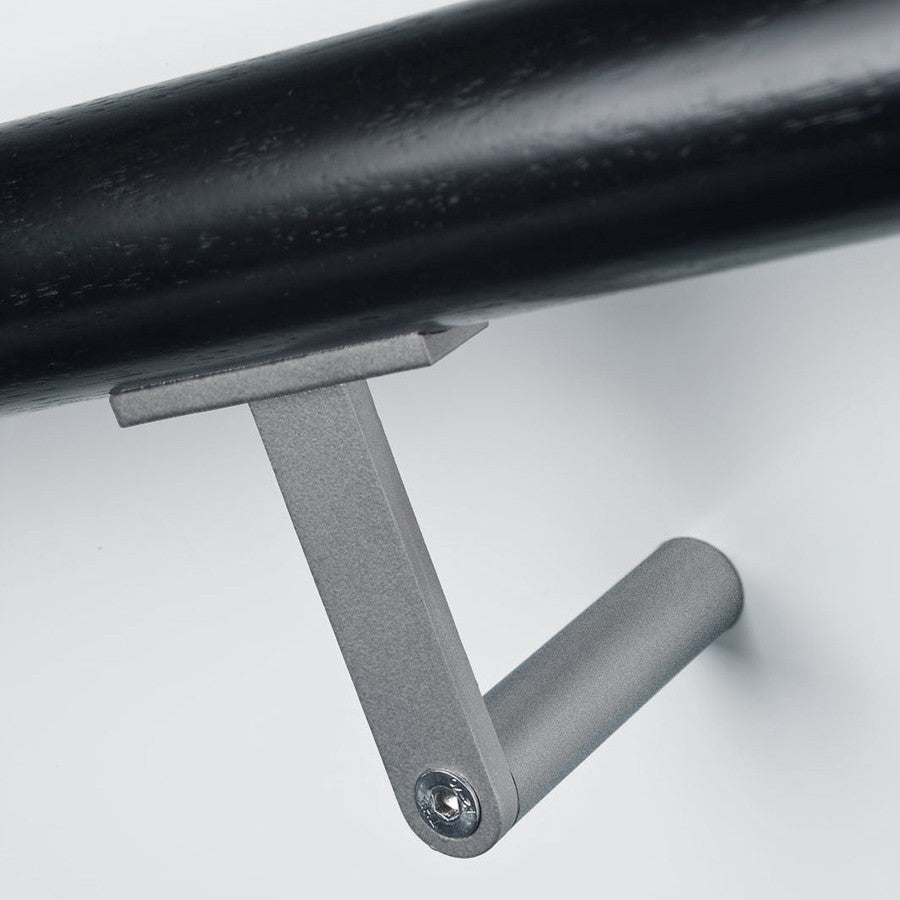

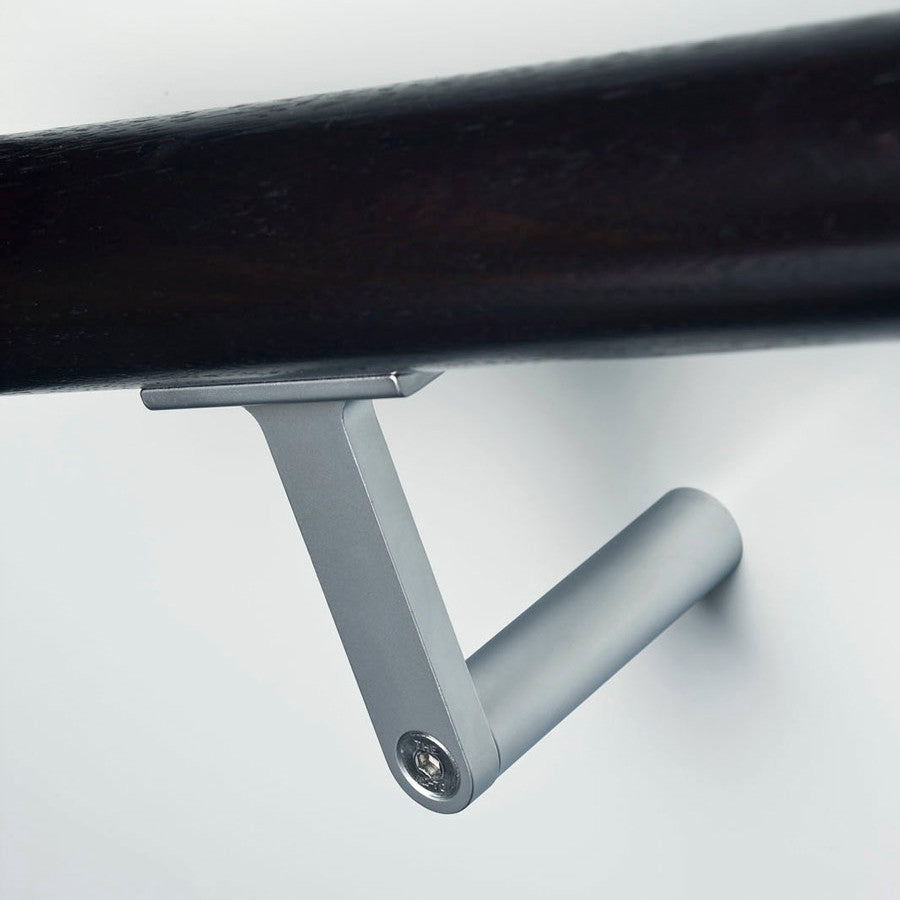

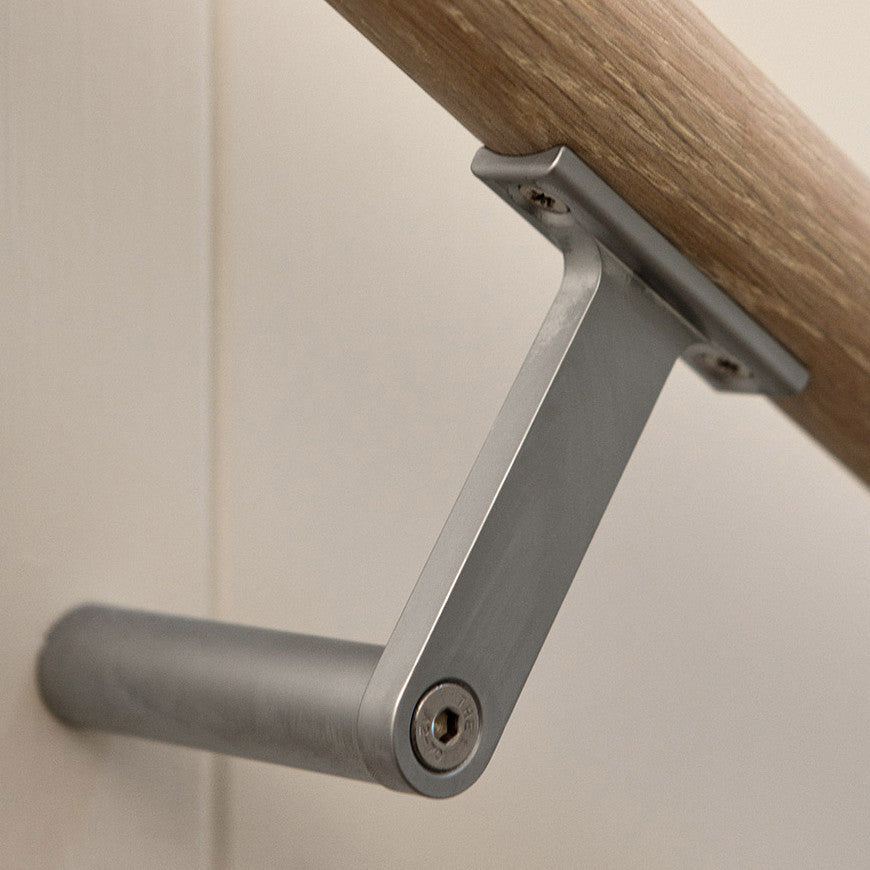

The HB 510 Handrail Bracket by Halliday Baillie is machined from solid stainless steel, suitable for exterior and marine applications or where corrosion resistance is required. Features a round support post with a linear attachment bracket. Intended for use with 1-1/4" to 2" diameter wood handrails. For alternate finishes, see the HB 500 in aluminum alloy.
Made in New Zealand.
Specifications

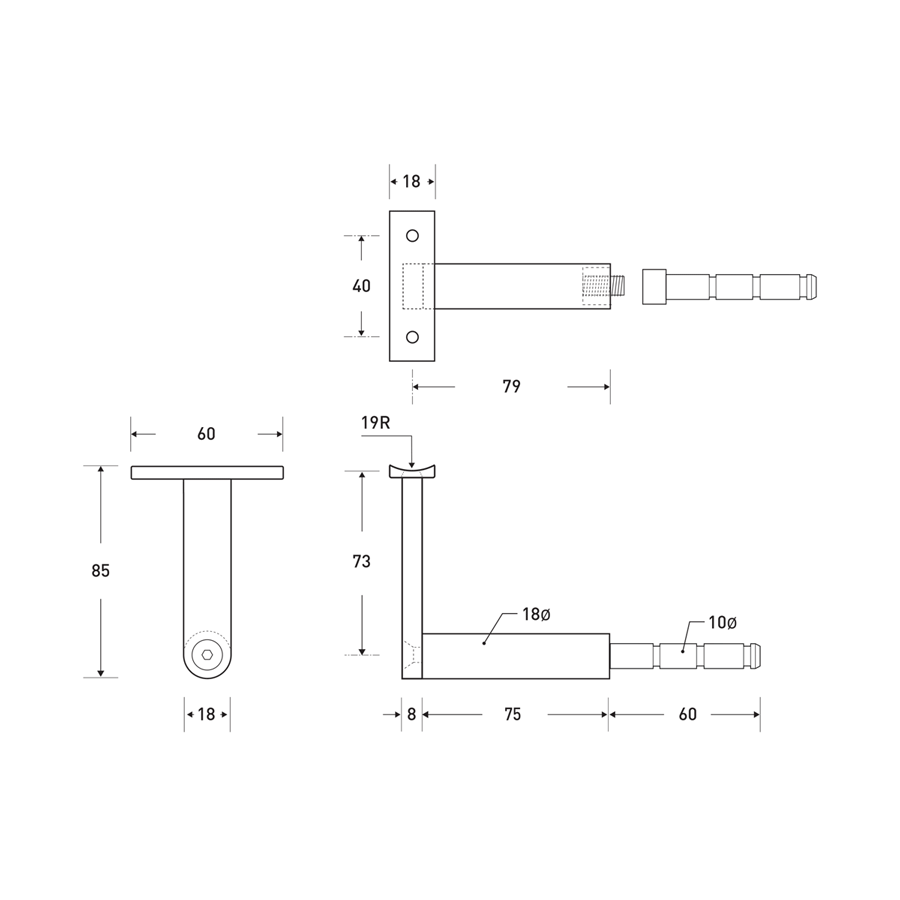

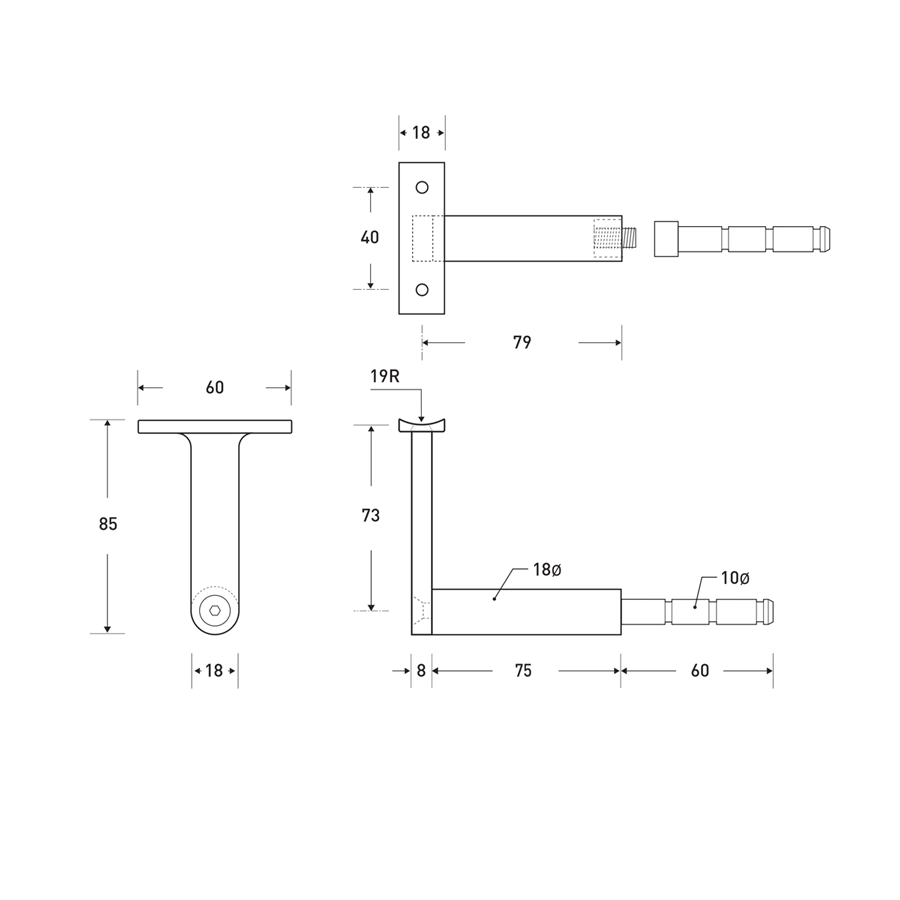

- L 83 mm (3.26") x H 73 mm (2.87") x W 18 mm (0.7")
- Maximum spacing: 800 mm (31.50")
- All fasteners included; epoxy sold separately
Optional Accessories
- Glass Fixing Kit 512 for HB 510 — for exterior installations on glass or panel material, sold separately
Materials
Solid grade 316 stainless steel with stainless steel fasteners.
Product Downloads
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
