Price
Ships in
4-8 weeks
Pairs With
Description

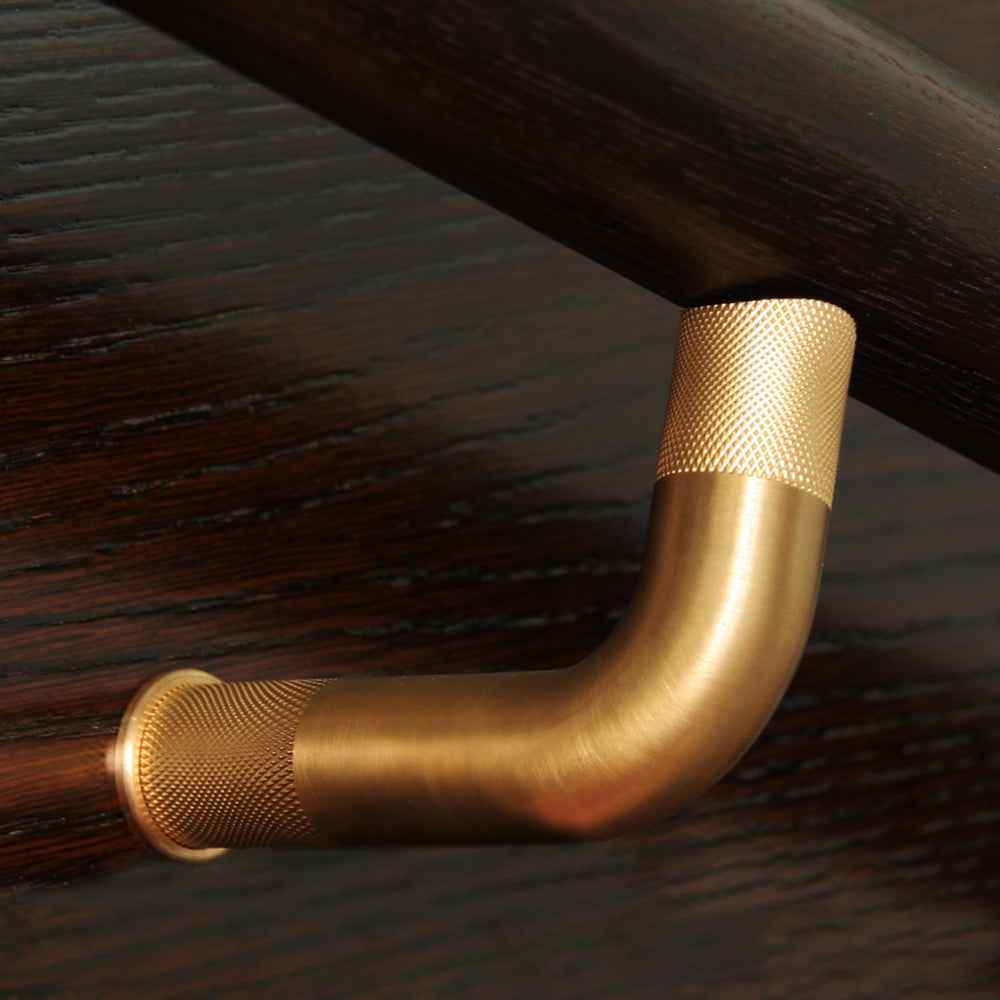

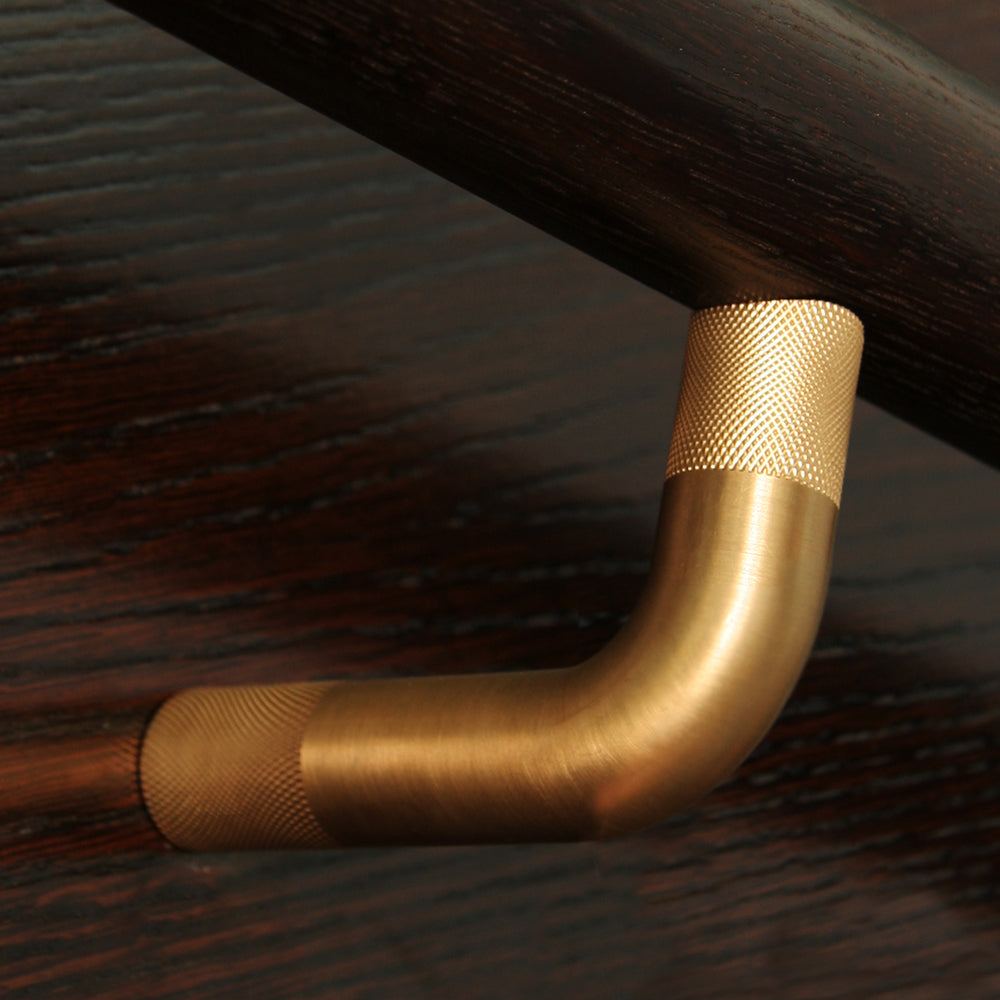

The HB 580 Handrail Bracket by Halliday Baillie is a solid bronze stair rail bracket with custom lathe knurling at each end. Milled from a single piece of bronze and designed to age gracefully over time. Includes a solid bronze rose — installation of the rose is optional depending on your aesthetic.
Made in New Zealand.
Specifications
- Dimensions: D 100 mm (4") × H 70 mm (2-3/4") × W 22 mm (0.9")
- Designed for 50 mm balustrades (accommodates 40–60 mm)
- Minimum spacing: 600 mm (23.6")
- Maximum spacing: 800 mm (31.5")
- Suitable for exterior applications
- Includes all fasteners including anchor for masonry and wood-framed gypsum board walls (epoxy not included)
Materials
Solid bronze. Available as raw unlacquered bronze only — will develop a natural patina over time.
Product Downloads
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
