Name: SA Wall and Glass Mounted Brackets
Brand: Componance
SKU: SA-WALL-SS
Price: 177.0 CAD
Availability: InStock

glass and wall mounted brackets by componance

01Mounting:Wall

Wall

Glass

02Finish:Stainless Steel

Stainless Steel

Black

White

Price

$177.00

Shipping calculated at checkout.

Pairs With

The SA Wall and Glass Mounted Brackets by Componance are stainless steel handrail brackets available for wall and glass applications. Modern lines with a balance of strength and graceful delicateness.

Complementing square glazing standoffs for glass mounting (1-1/2" & 2" lengths) available here.

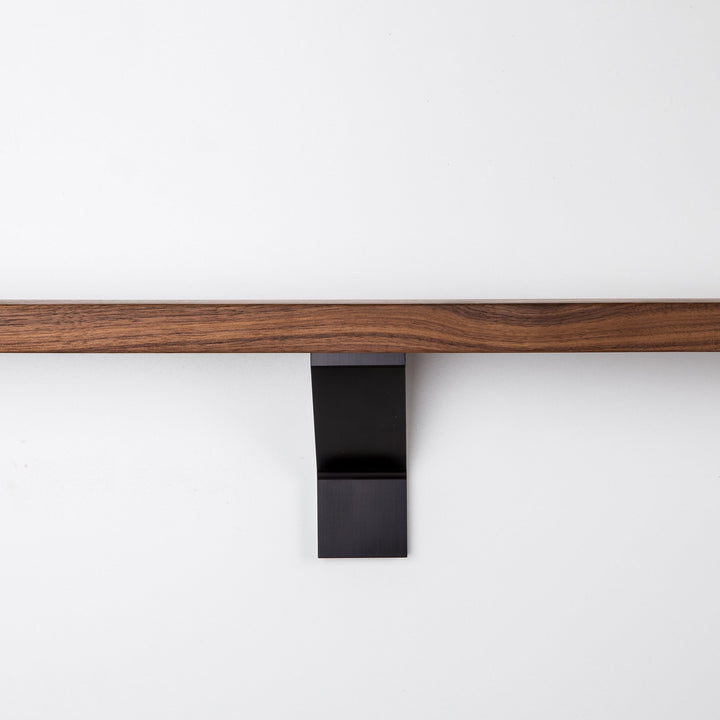

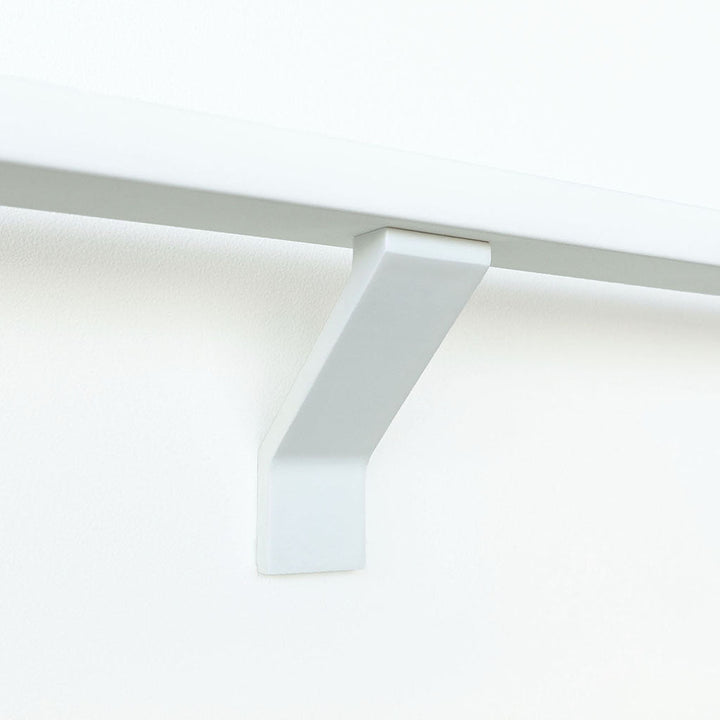

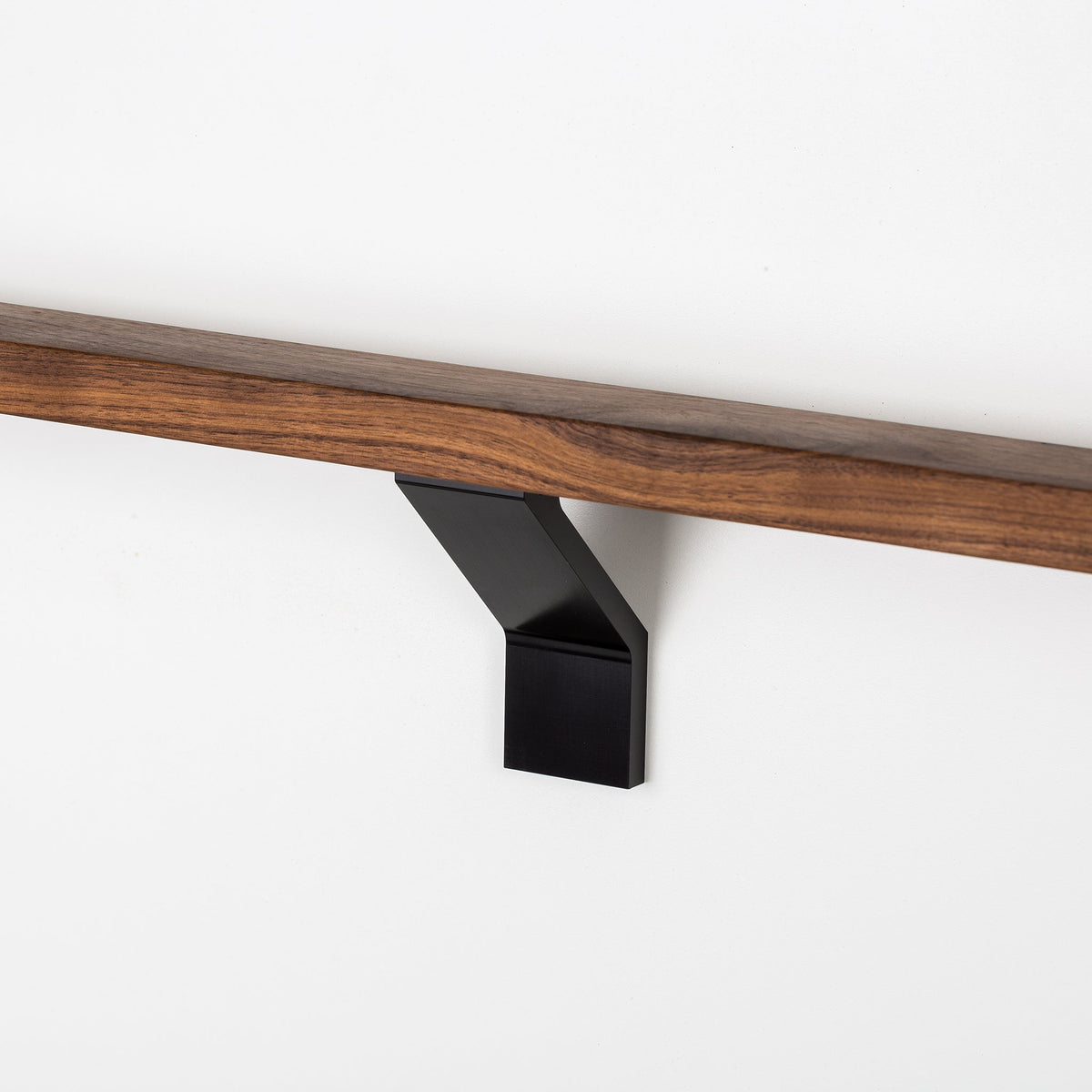

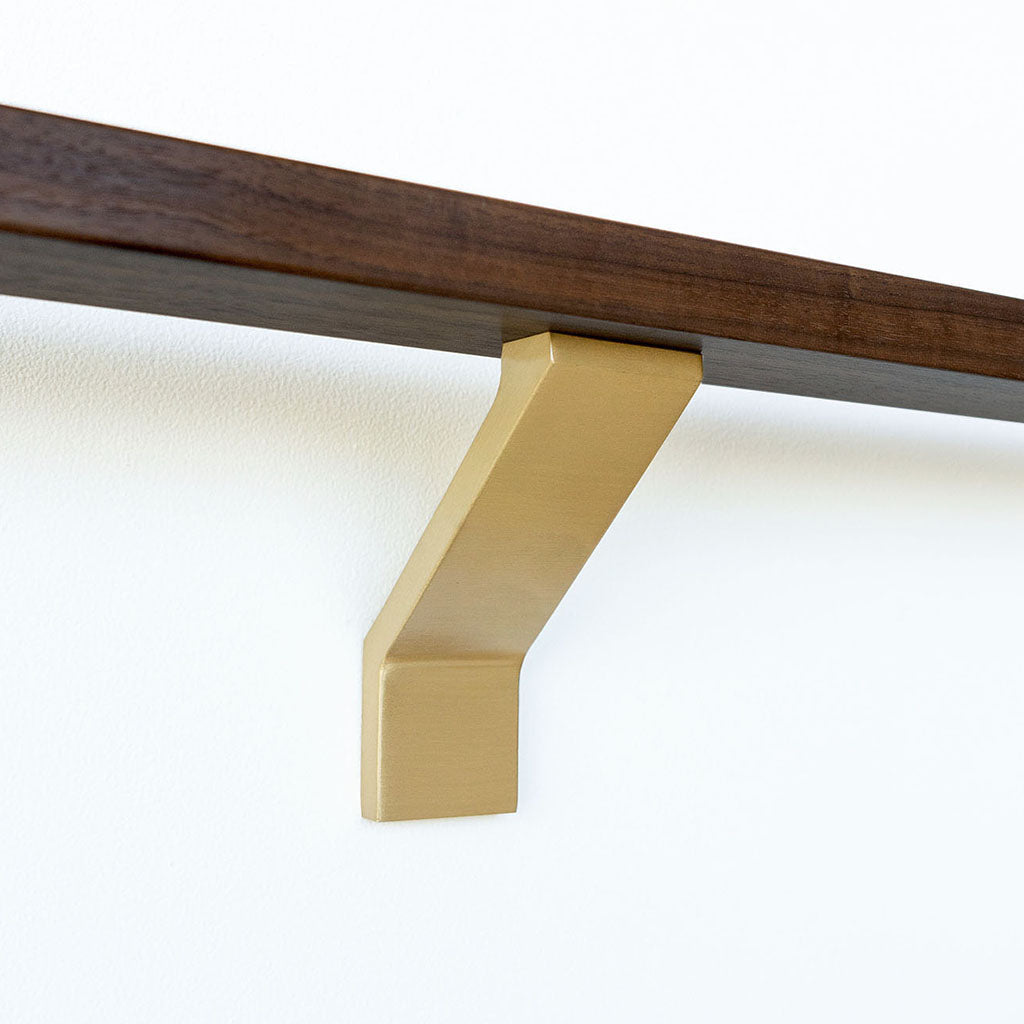

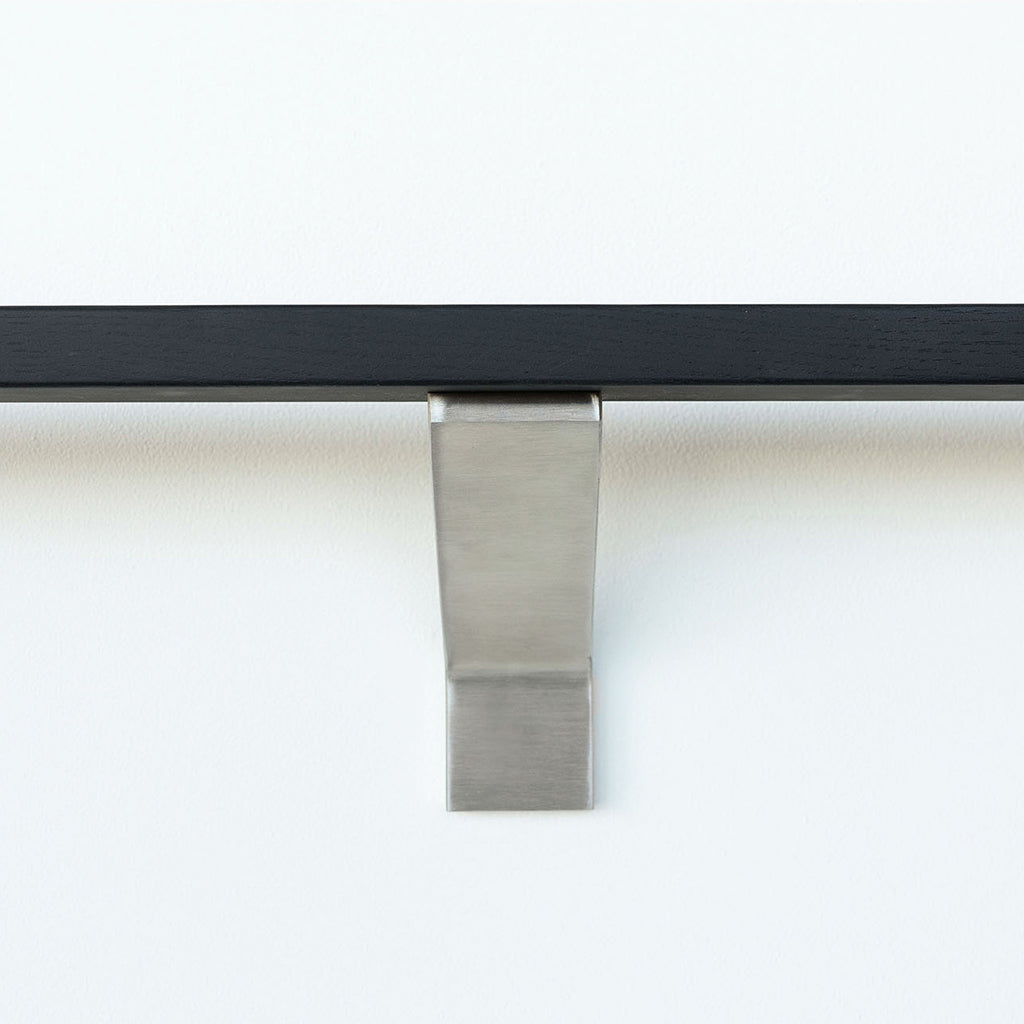

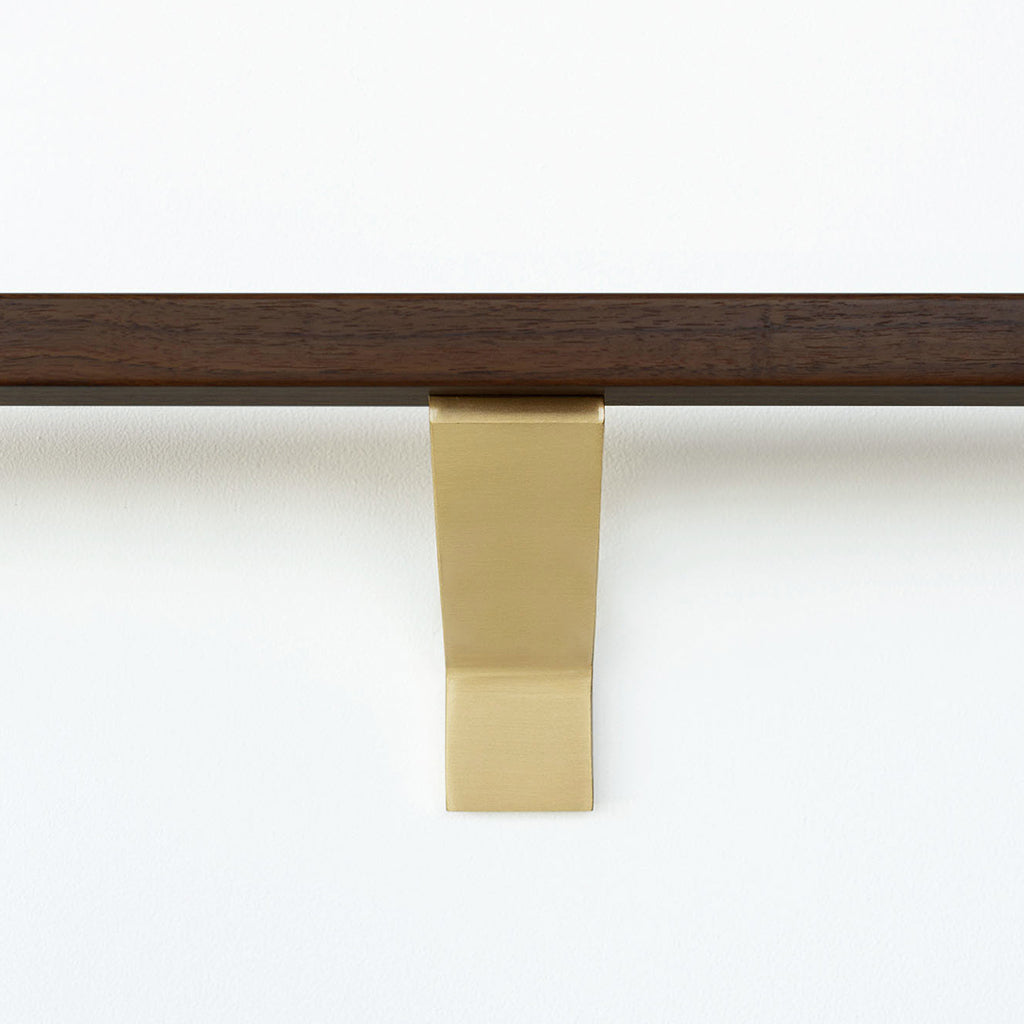

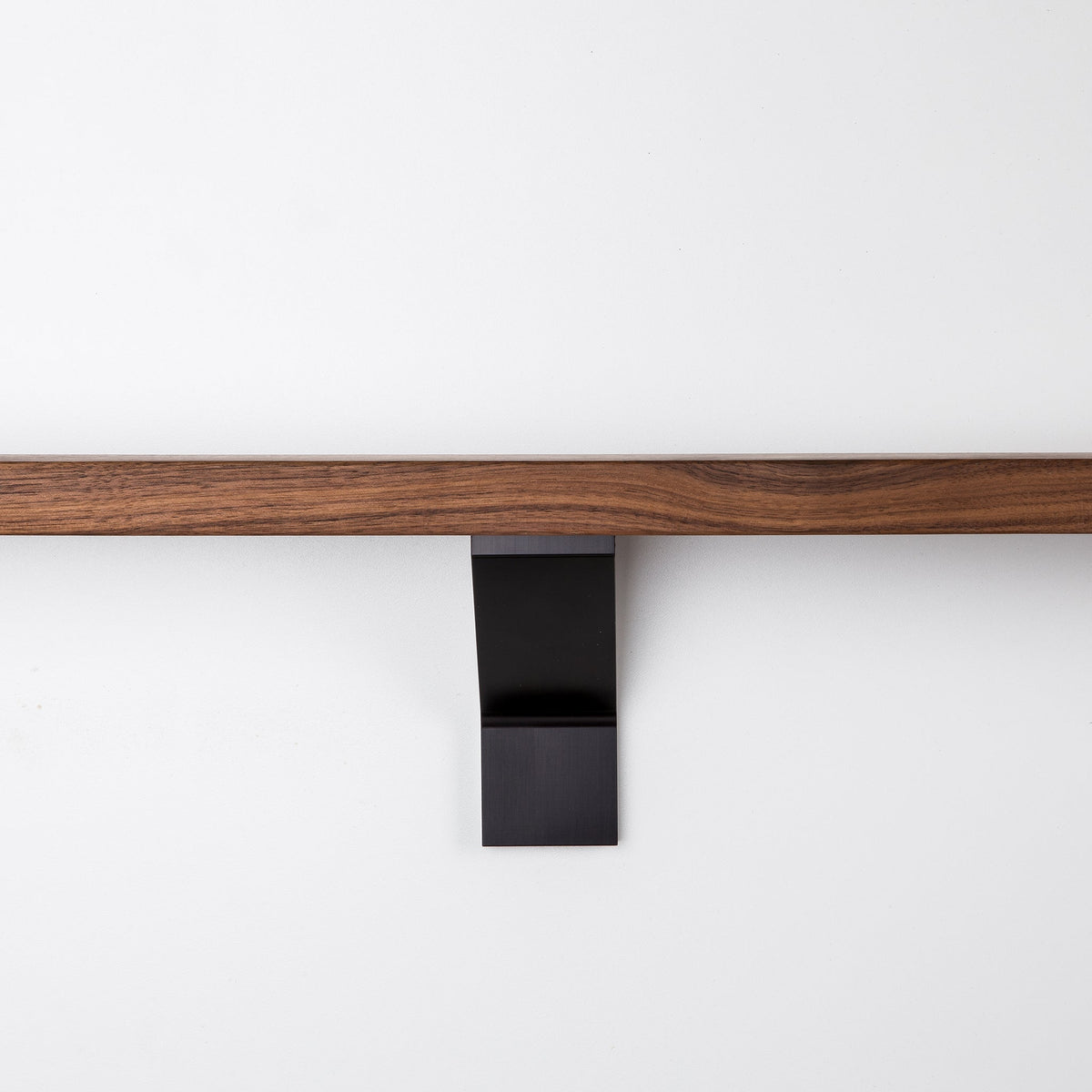

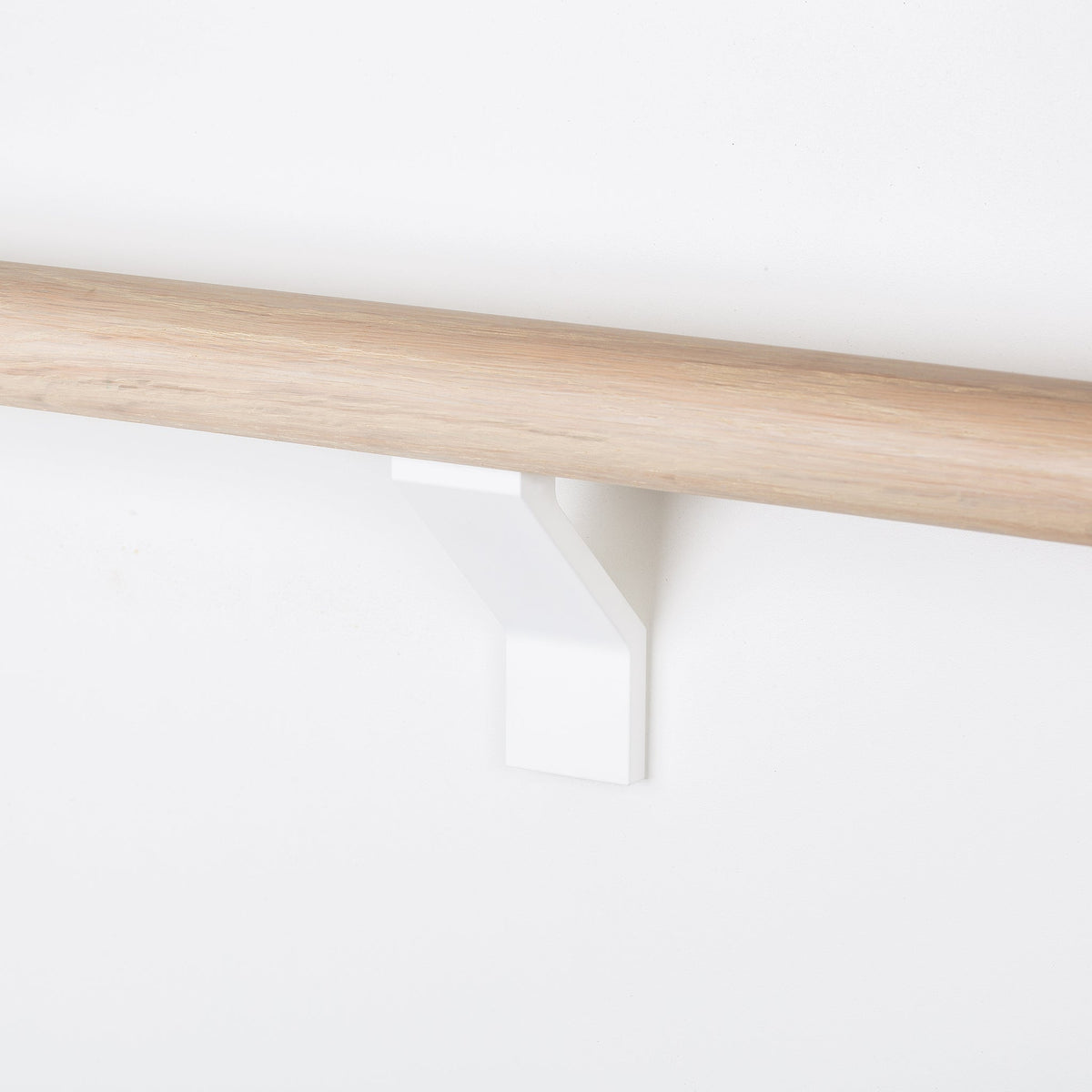

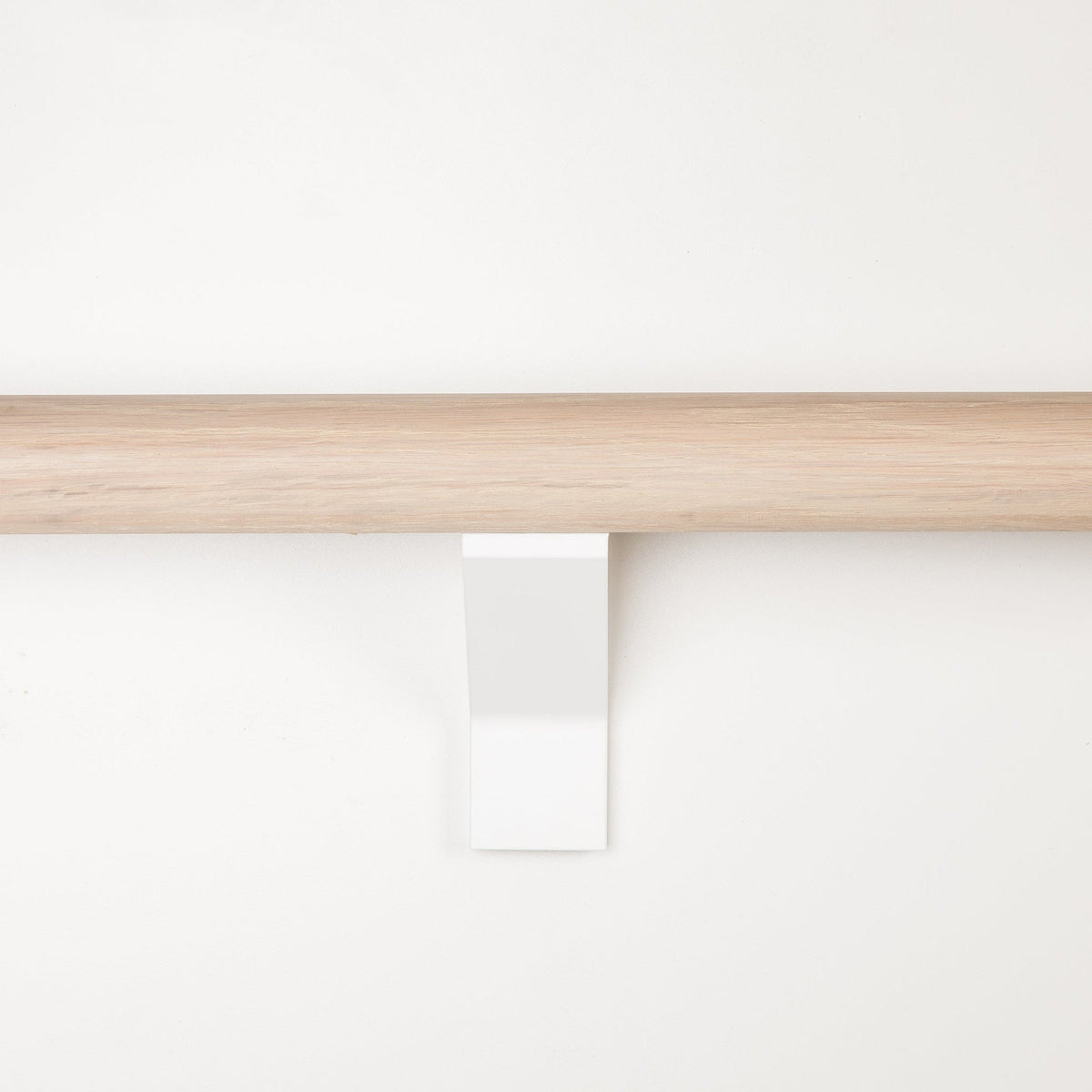

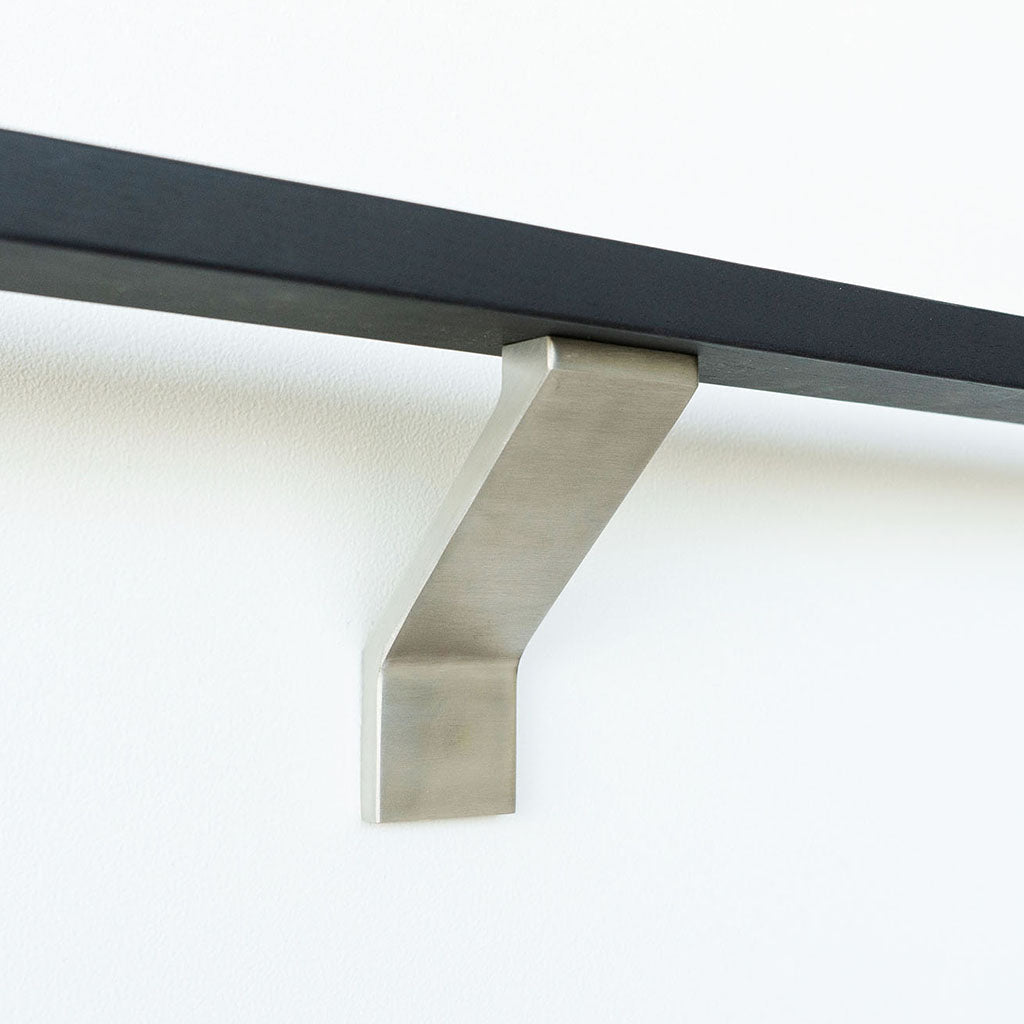

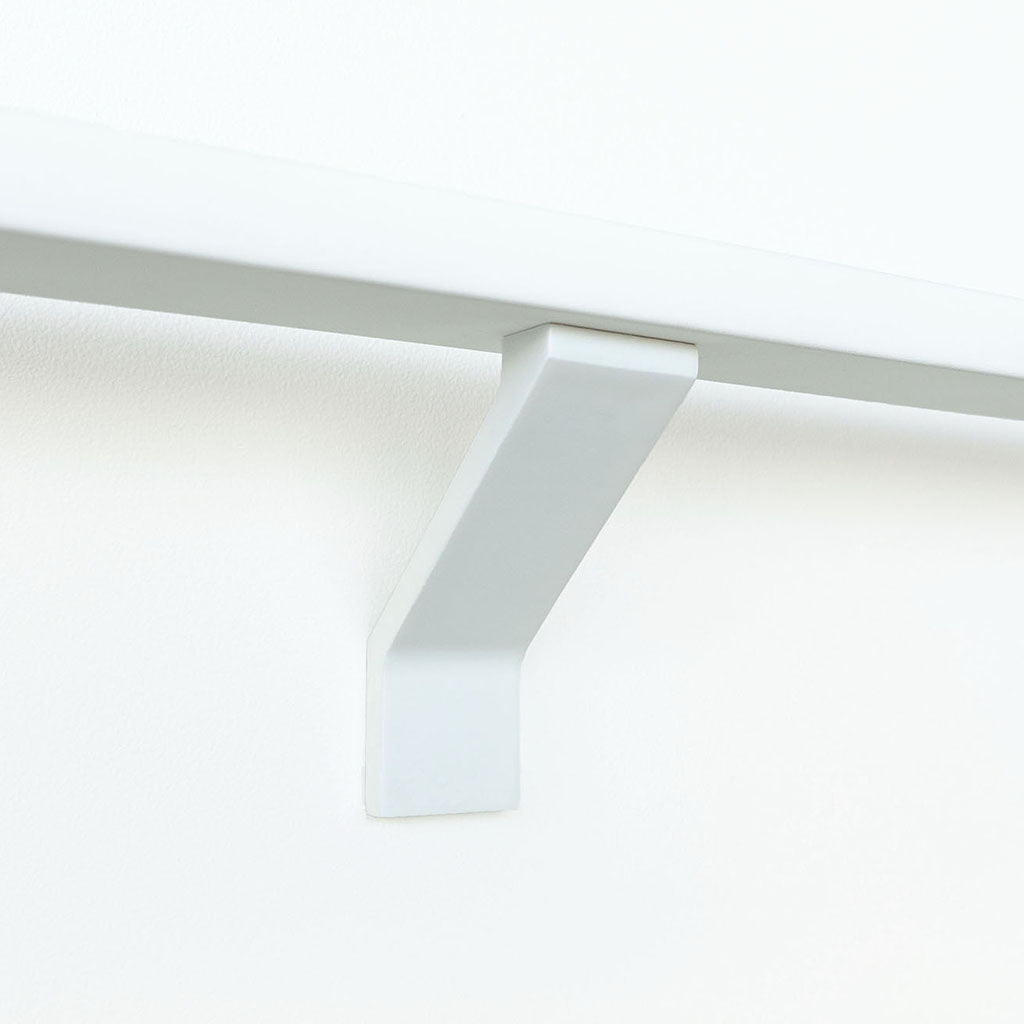

Wall Mount

Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 74.6 mm (2.9")
Minimum 38 mm (1.5") solid backing, wood stud, or concrete required for anchoring
Suggested spacing: 1220 mm (4'-0")
Includes all fasteners except 2 #10 flat head wood screws

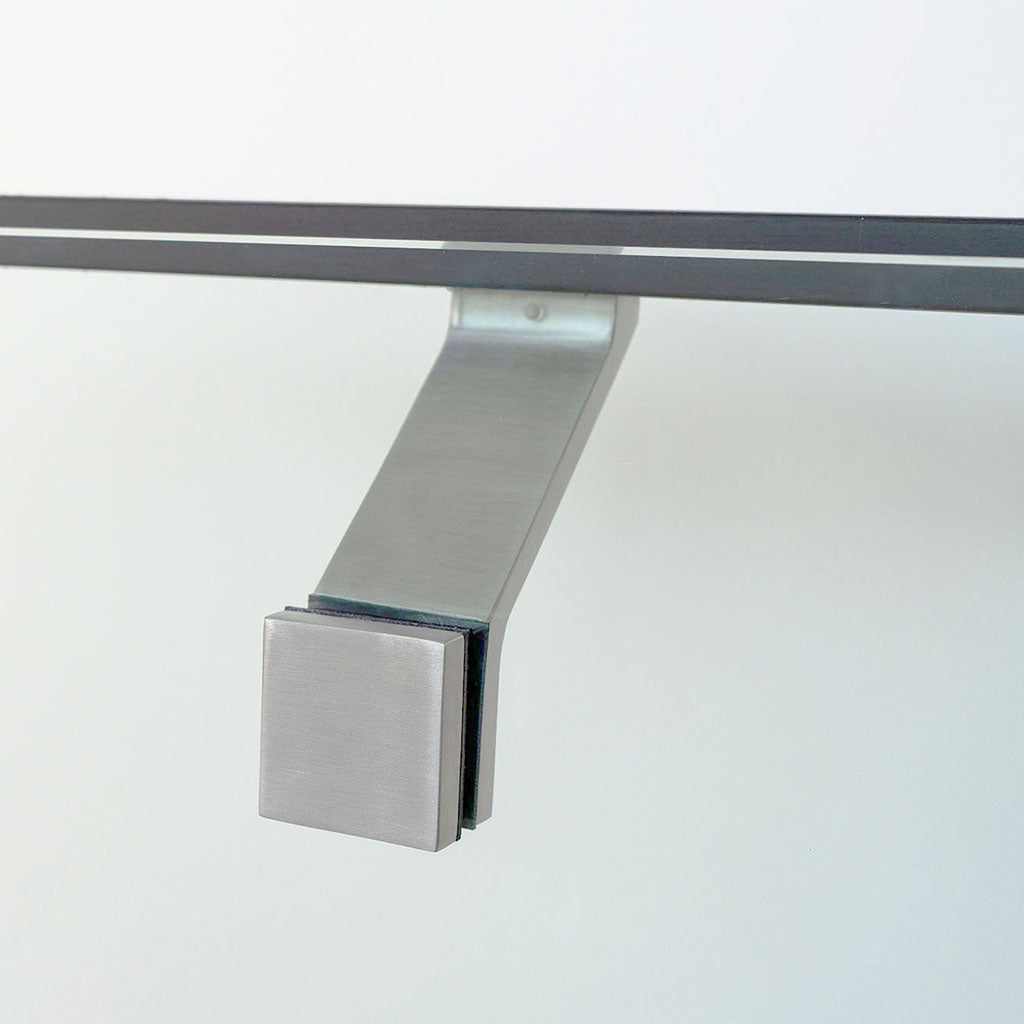

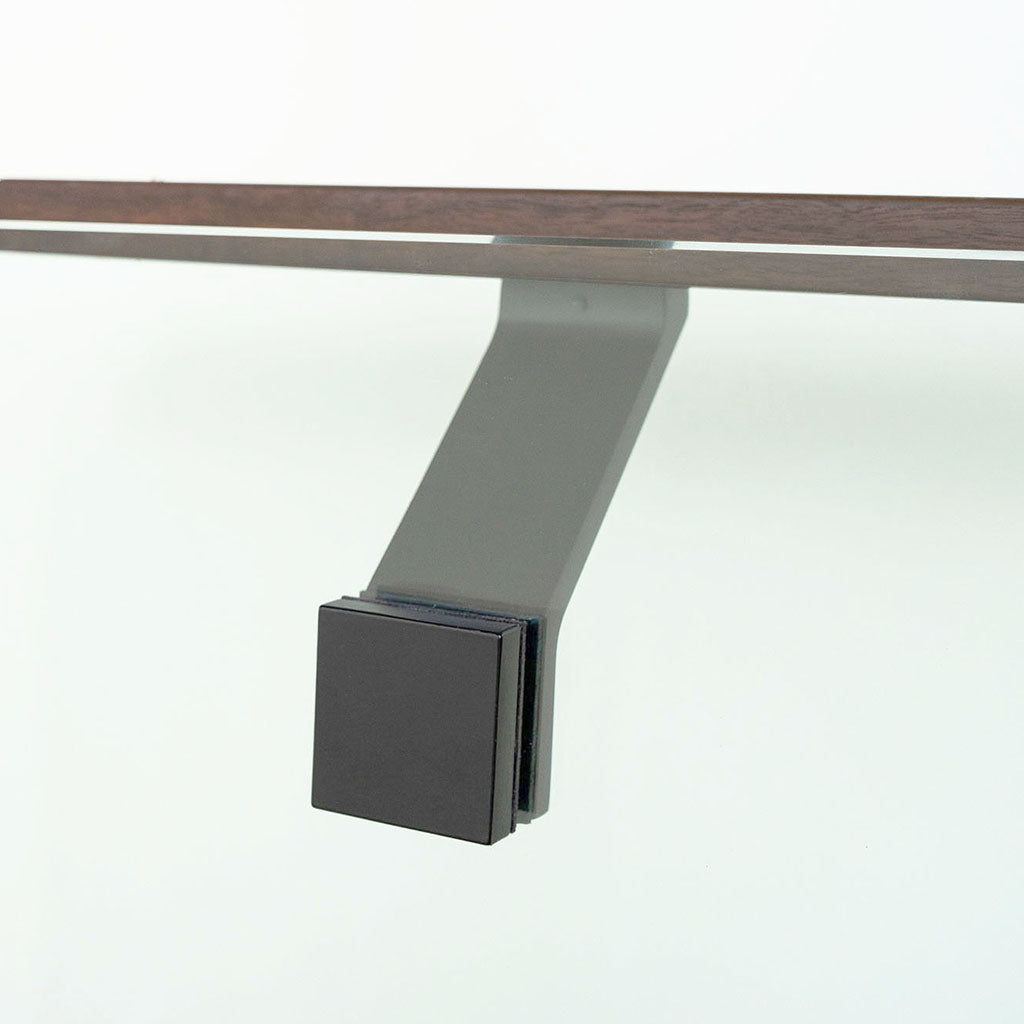

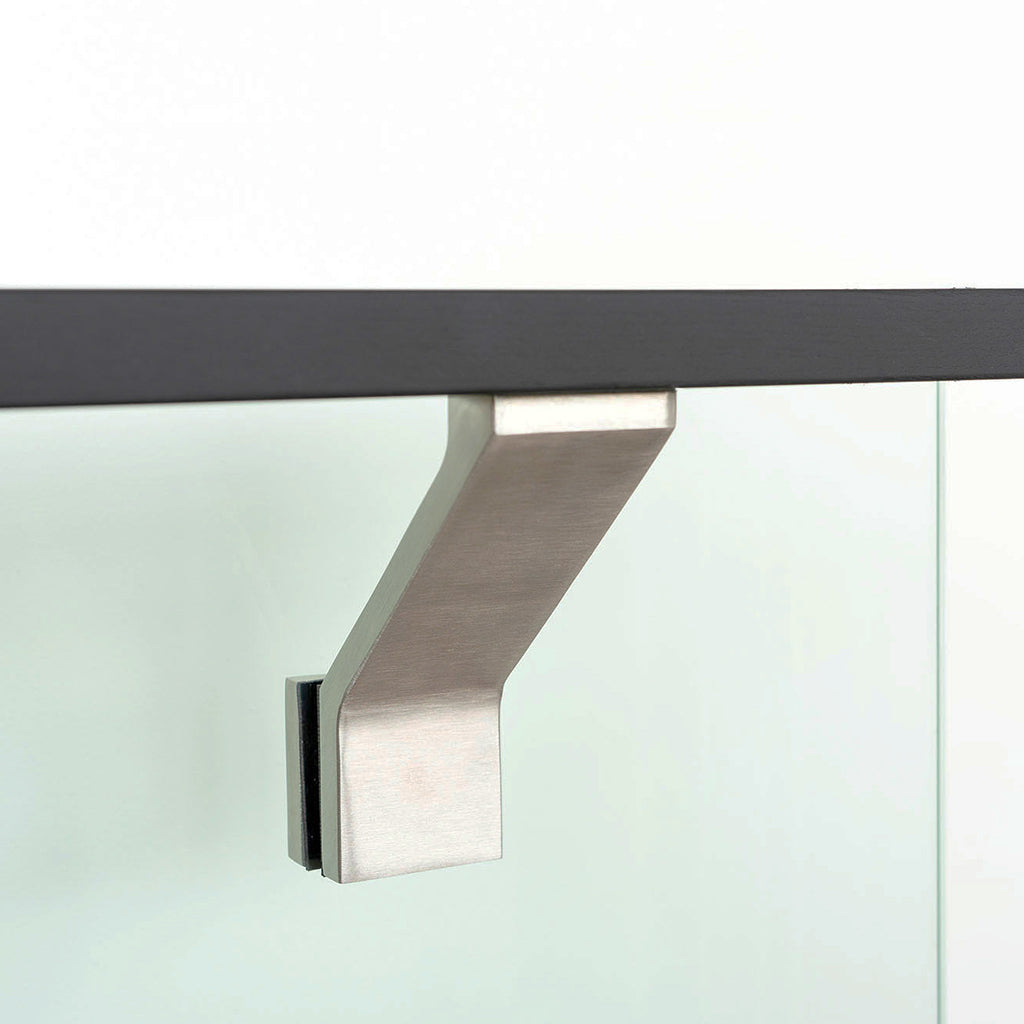

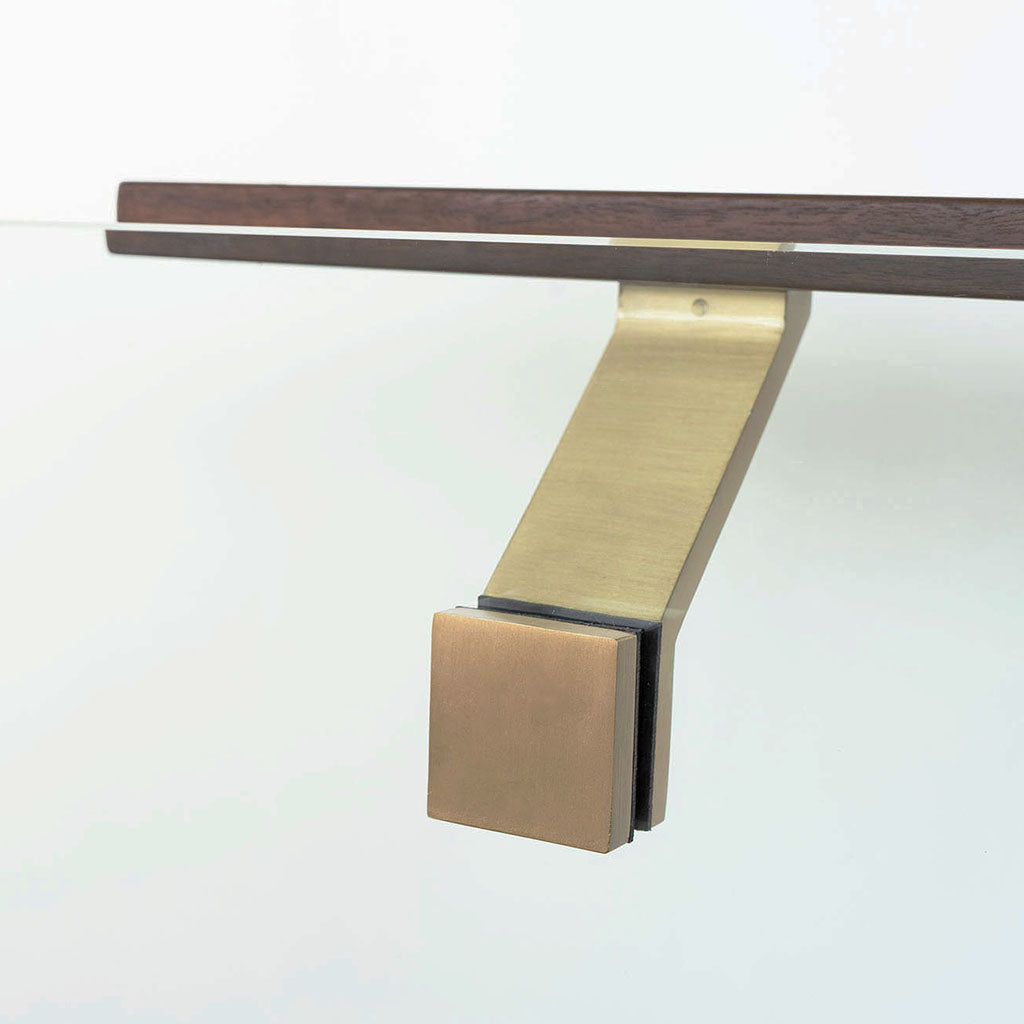

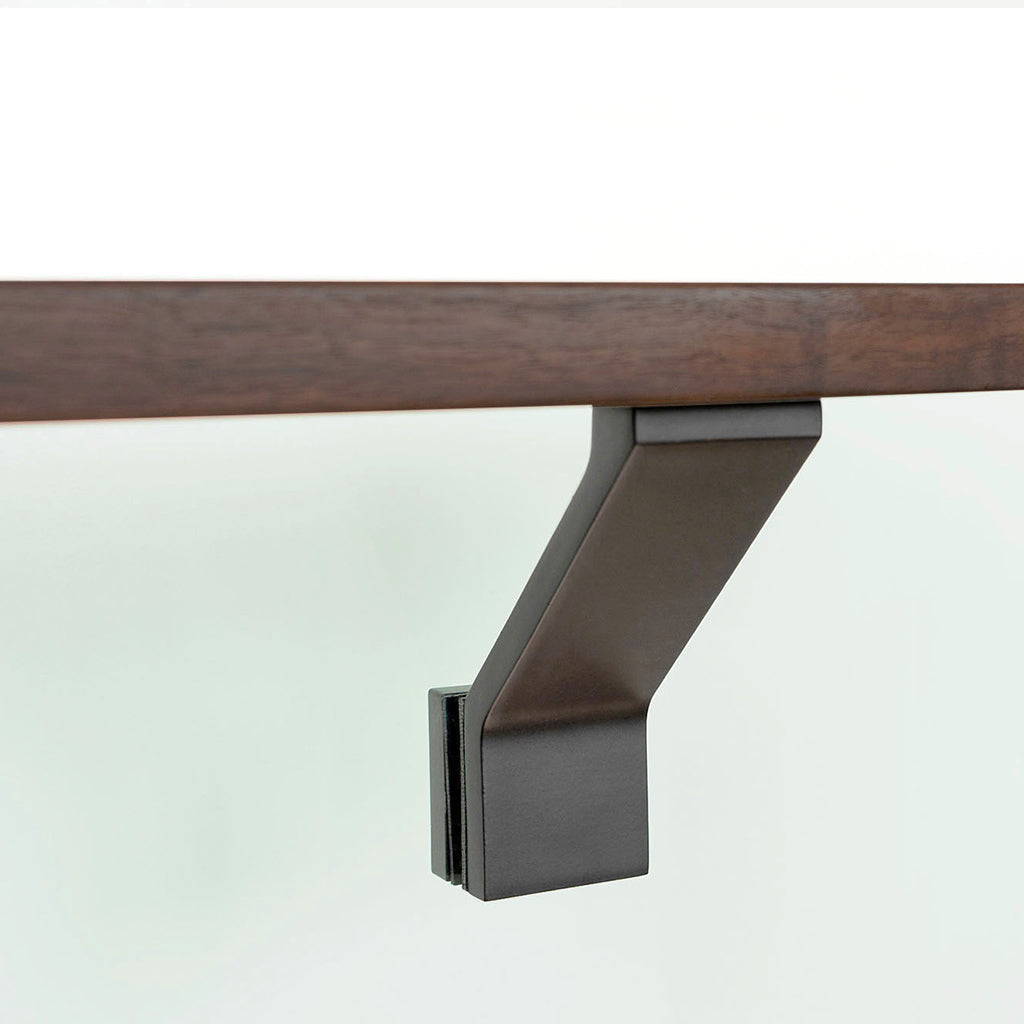

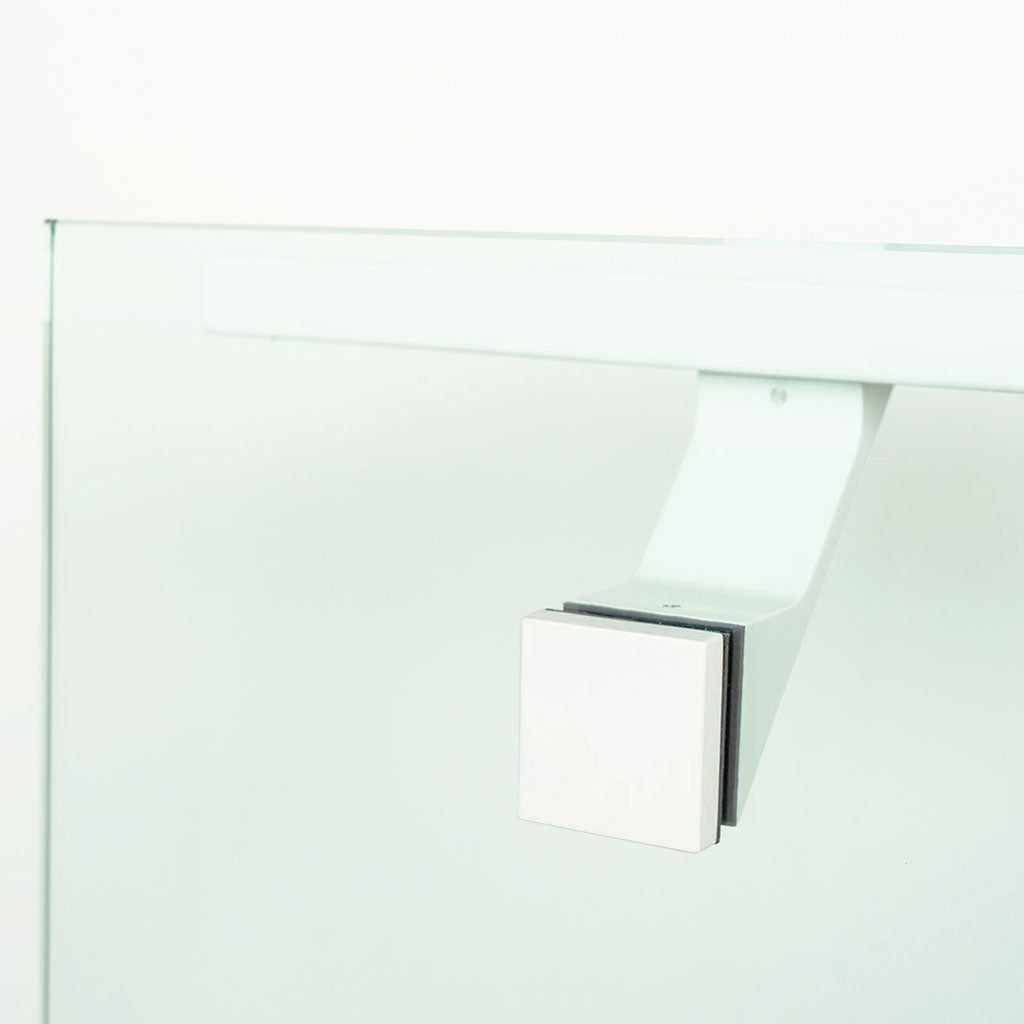

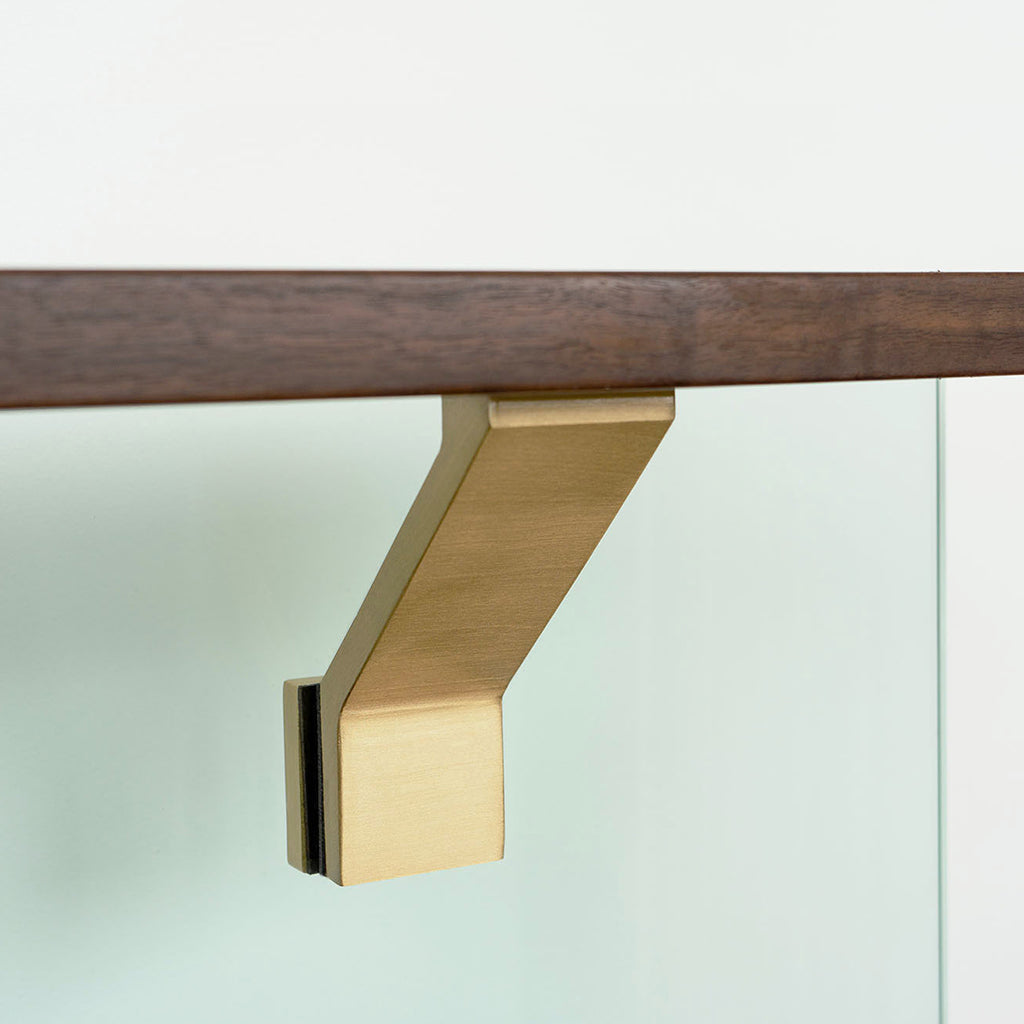

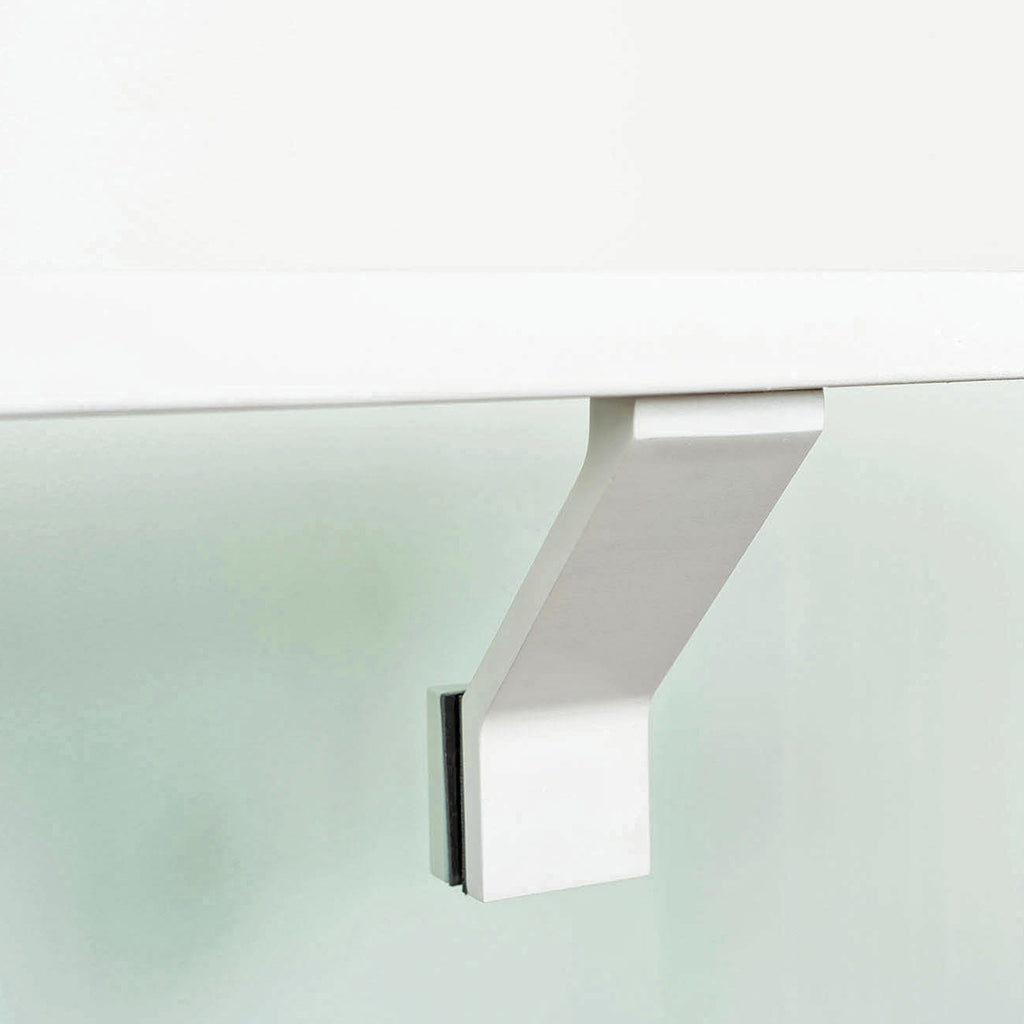

Glass Mount

Dimensions: W 44.5 mm (1.8") x H 117 mm (4.6") x D 76.2 mm (3")
Requires 19 mm (0.75") diameter hole in glass — specify glass thickness when ordering
Suggested spacing: 1220 mm (4'-0")
Includes all fasteners except 2 #10 flat head wood screws

304 stainless steel

Available Finishes

Brushed Stainless Steel
Powder Coated Black
Powder Coated White

Wall Mount

Glass Mount

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
