AHI 152 Door Lever Set
- Estimated Ship Date: Satin Stainless Steel 1-3 weeks | Powder Coated finishes 3-6 weeks
Optional Accessories
- Description
- Function Overview
- Specifications
- Material(s)
- Product Downloads

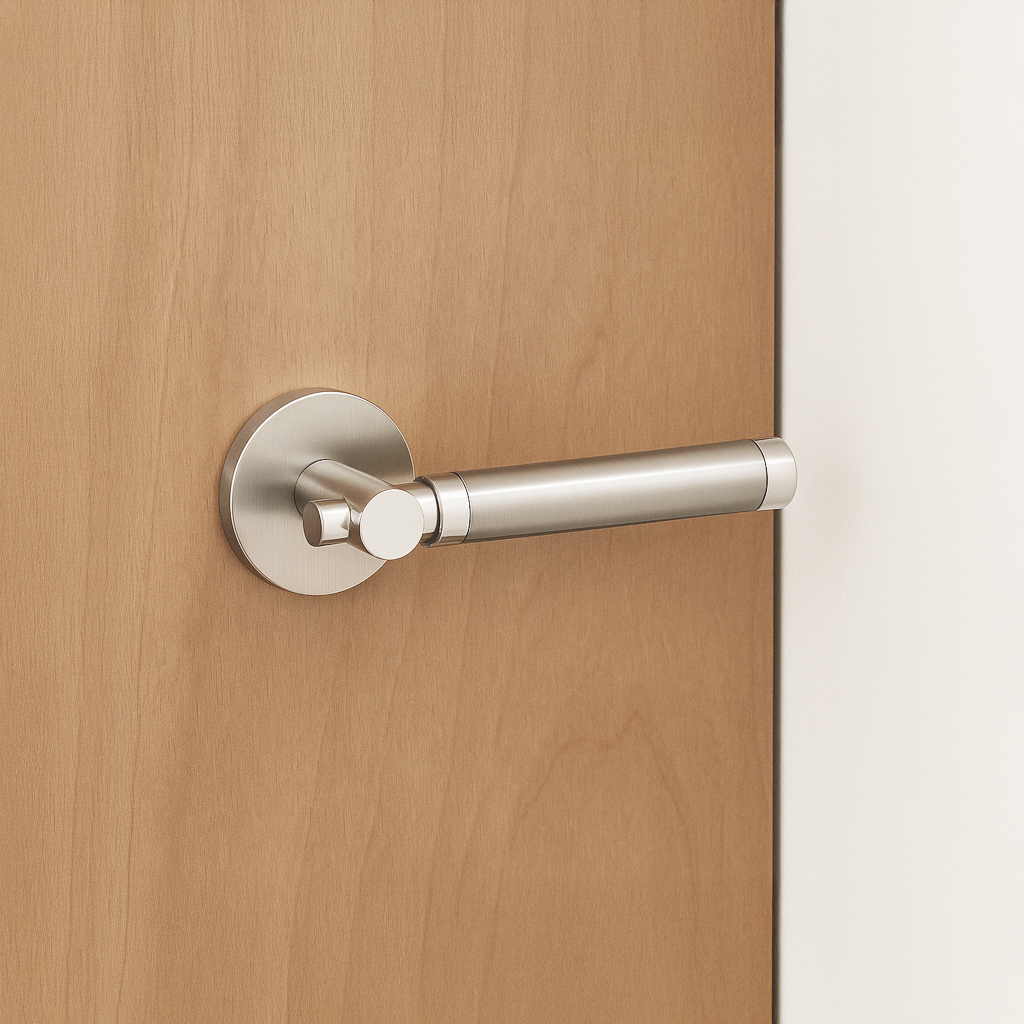

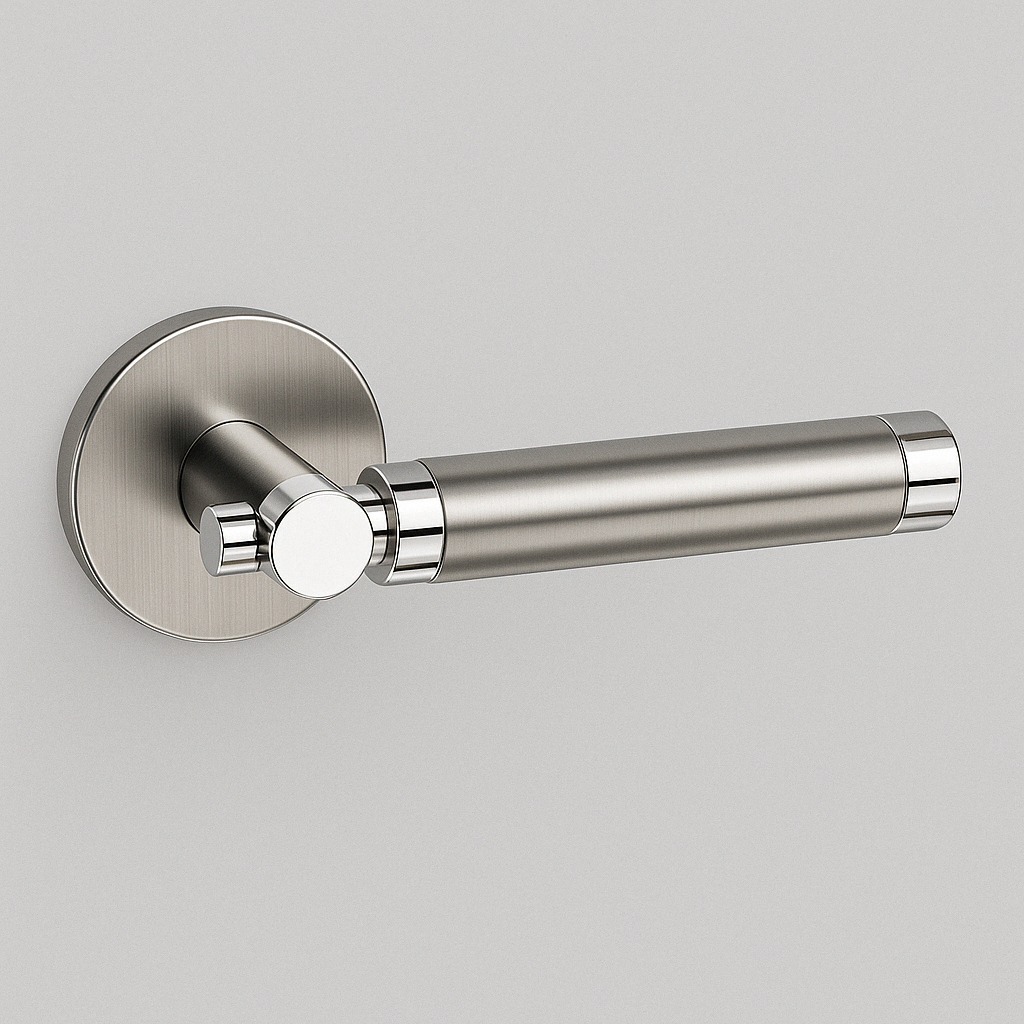

The 152 lever features a series of intersecting cylindrical forms, combining varied surface textures and precise joinery. Crafted from solid stainless steel, it brings visual depth and a sculptural quality to contemporary interiors. Suitable for interior doors in both residential and commercial settings.
Dummy (Half or Full Set)
Used for decorative or push/pull applications, such as closets or pantry doors.
-
Half Dummy Set
A single lever installed on one side of the door only. It is surface-mounted using a dummy mount and does not operate a latch.
Please note: In some cases, two half dummy sets may be used to create a double dummy configuration on doors without a bore hole.
-
Full Dummy Set
A pair of levers installed on both sides of the door to provide a symmetrical look. Full dummy sets are through-mounted using the existing bore hole, but have no latch or locking function.
Components Included:
- Lever(s)
- Dummy Adapter
Note:
Dummy sets are compatible with the Sugatsune Magnetic Latch.
Passage
Used for doors that latch but do not require a lock (e.g., hallways, closets).
Components Included:
- Pair of Levers
- Tubular Latch
- Strike Plate
Privacy
Used for doors that lock from one side, such as bathrooms or bedrooms.
Components Included:
- Pair of Levers with Push/Pull Pin Lock
- Tubular Latch
- Strike Plate
- Lever Dimensions: L 130 mm (5.2") x W 20 mm (0.75")
- Door Thickness: Suitable for 1 3/8" - 2"
- Thumb Turn: Push/Pull Pin on Rose
-
Rose Style:
-
Circle SM: AHI Rose 200
Ø 52 mm (2 1/16") X D 11 mm (0.4")
Suitable for Ø 19 mm (0.75") pre drilled bore hole. -
Circle LG: AHI Rose 201
Ø 62 mm (2.44") X D 10 mm (0.3")
Suitable for Ø 53.97 mm (2.12") pre drilled bore hole. - Square SM: AHI Rose 203
L 55 mm (2.16") X W 55 mm (2.16") X D 11 mm (0.4")
Suitable for Ø 19 mm (0.75") pre drilled bore hole. - Square LG: AHI Rose 204
L 64 mm (2.5") X W 64 mm (2.5") X D 10 mm (0.5")
Suitable for Ø 53.97 mm (2.12") pre drilled bore hole.
-
Circle SM: AHI Rose 200

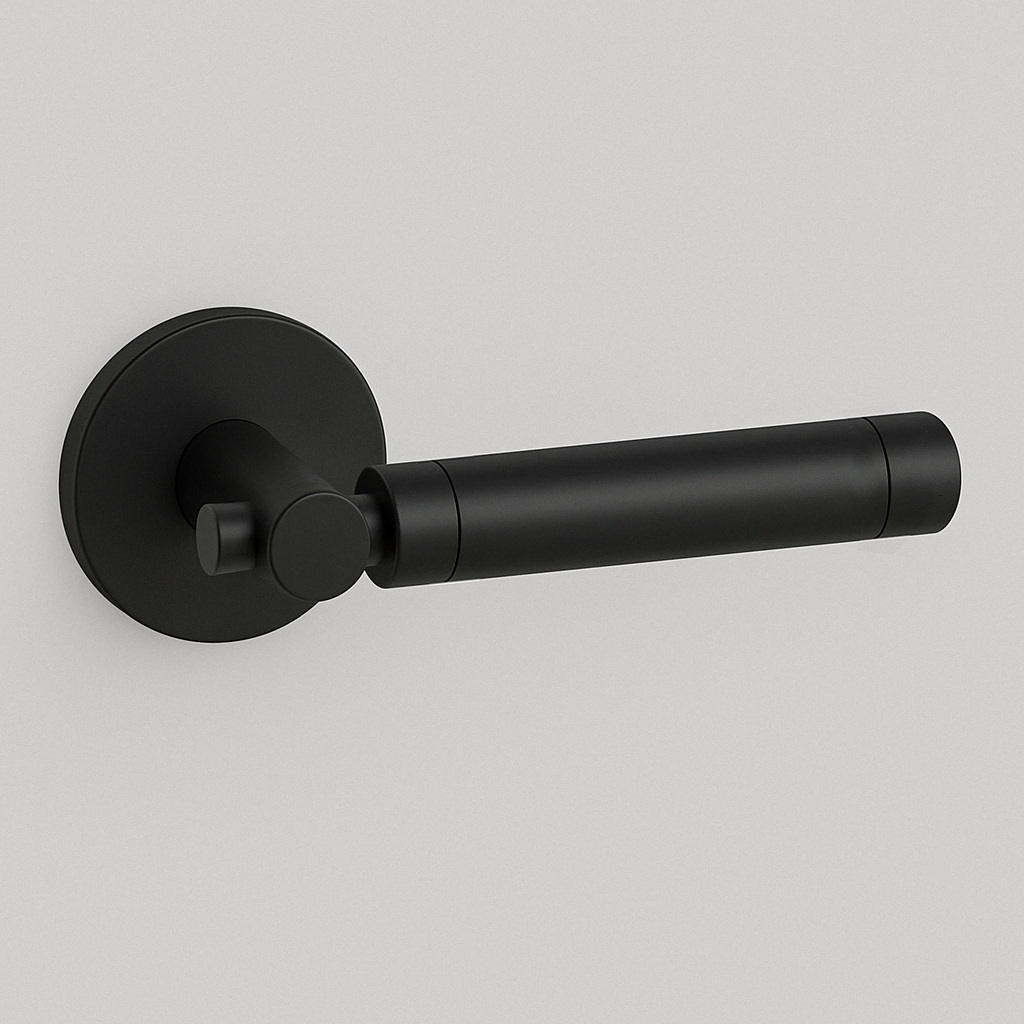

Available in satin stainless steel, mirror-polish stainless steel and powder coated black.
