Name: BASICS LBWC50 Indicator Thumb Turn and Release
Brand: Formani
SKU: 1501T020INXXU
Price: 158.0 CAD
Availability: InStock

$158.00

Shipping calculated at checkout.

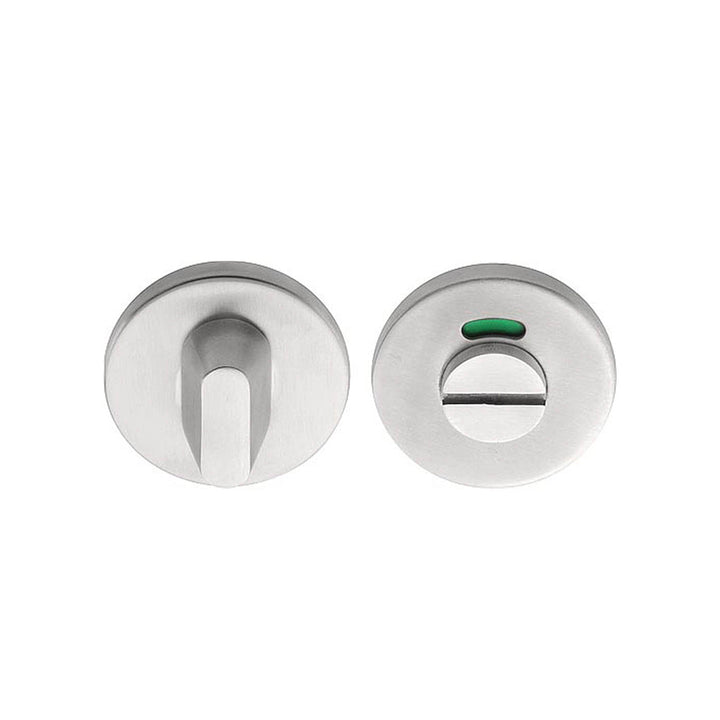

Finish — Satin Stainless Steel

Satin Stainless Steel

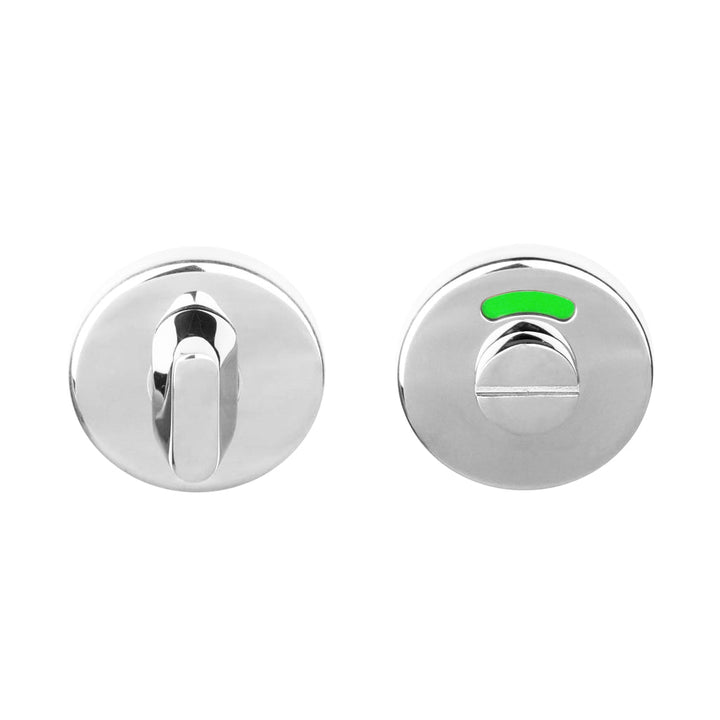

Polished Stainless Steel

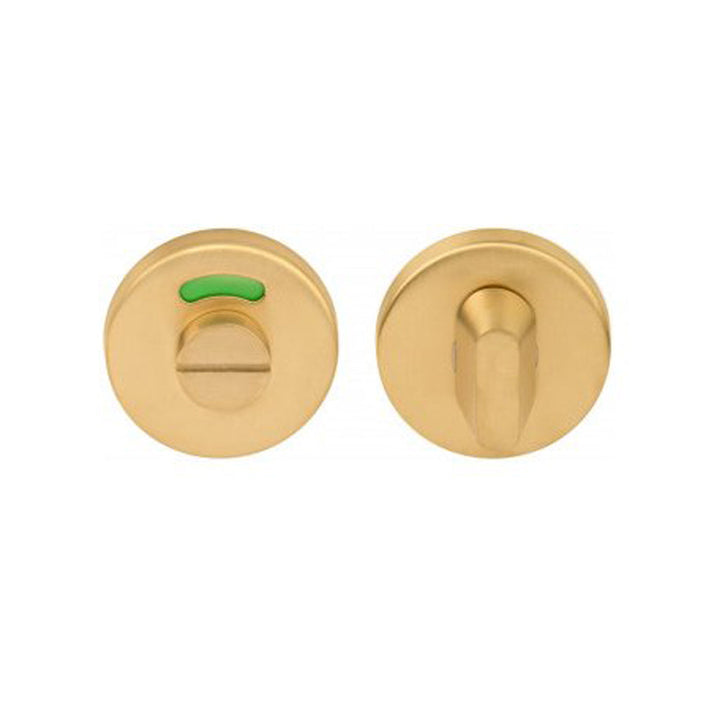

PVD Satin Gold

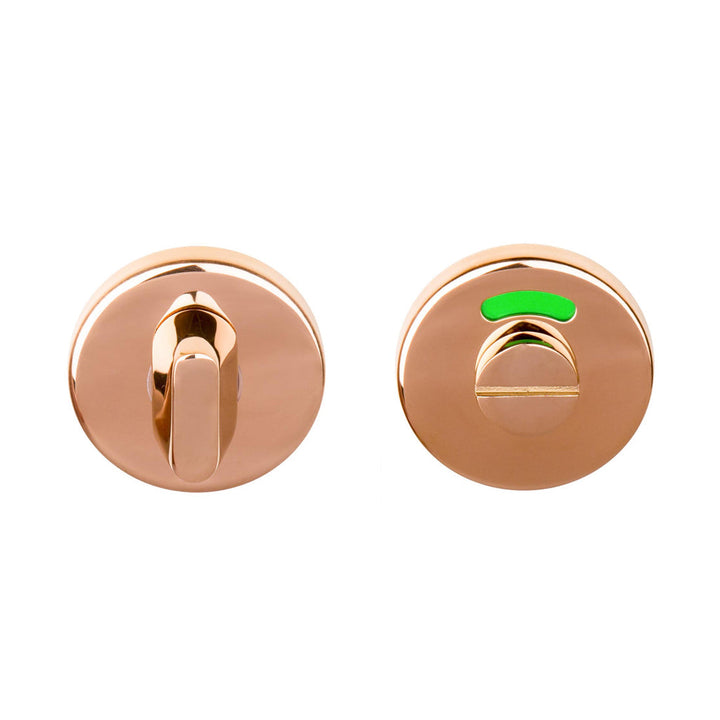

PVD Polished Copper

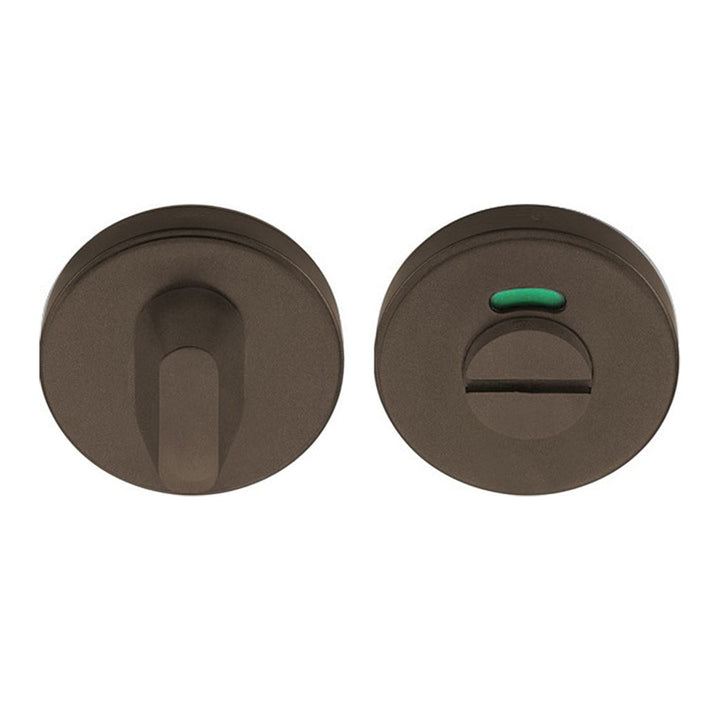

PVD Bronze

PVD Gunmetal

White

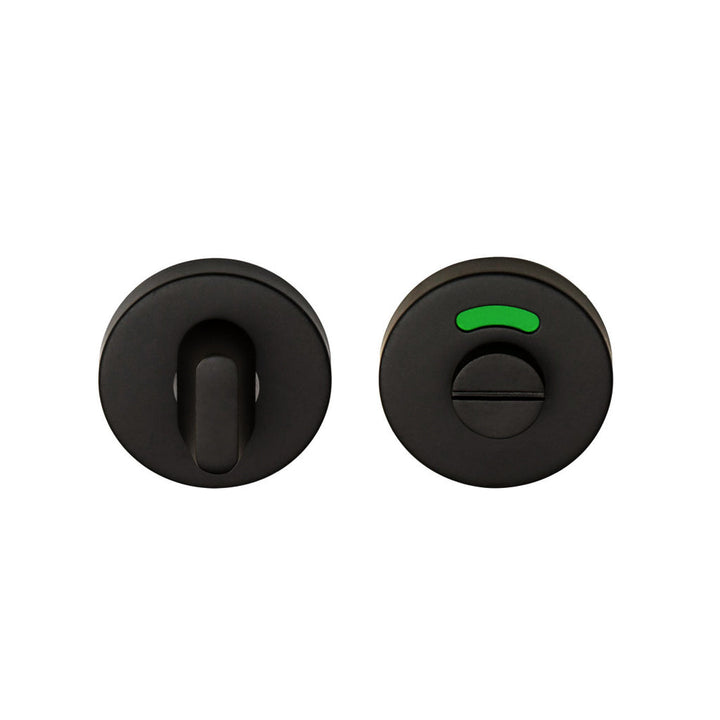

Satin Black RAL 9004

Quantity

CONTACT TO REQUEST QUOTE

Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.

Estimated Ship Date: 5-8 weeks

Optional Accessories

Specifications
Material(s)
Product Downloads
Finish Samples
Additional Components

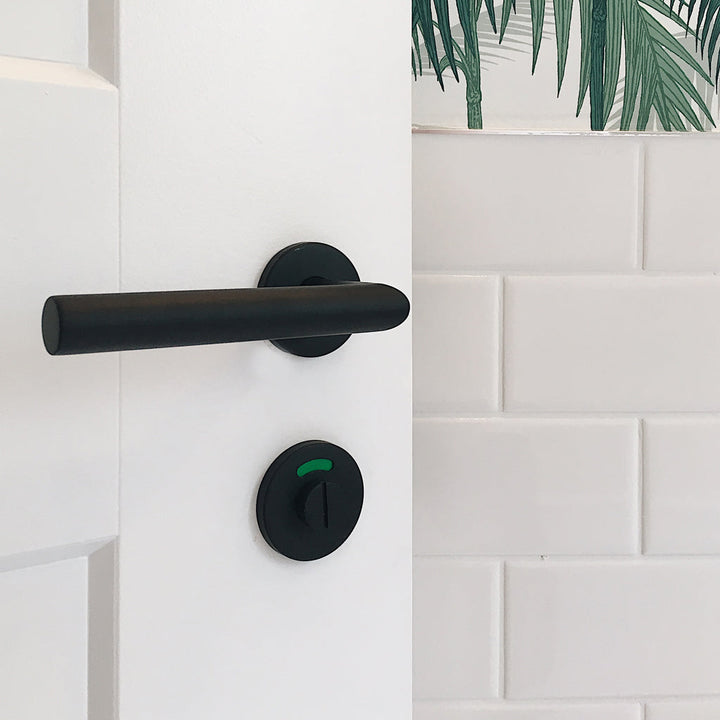

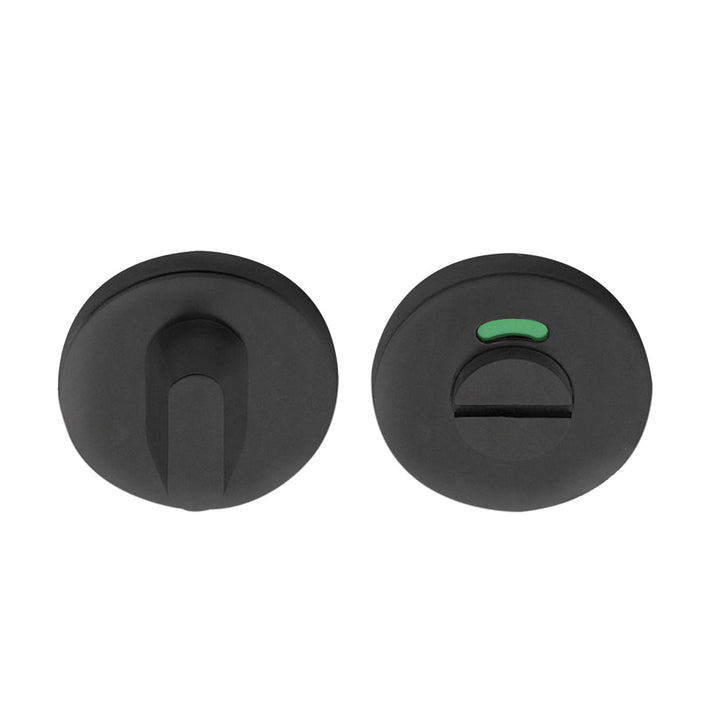

The LBWC50 is a thumb turn and release with vacant / engaged (red / green) indicator comes is a timeless piece of door hardware available in a variety of finishes. This model pairs exclusively with European mortise door locking mechanisms.

BASICS is a full collection of hardware and accessories for doors, window, and furniture/ cabinetry fittings and just about everything in between.

See link(s) below in Product Downloads for full catalogue offerings.

Specifications

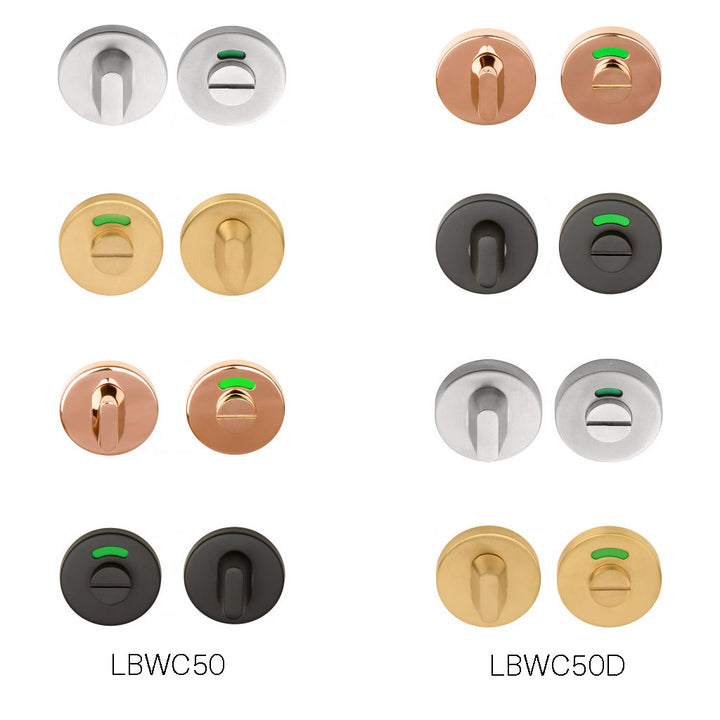

LBWC50: Ø 52 mm (2.0") X D 6 mm + varies
LBWC50D: Ø 52 mm (2.0") X D 10 mm + varies
Use with any Door Lever or Knob from the Basics collection

Compatible Latch: Euro Mortise WC Privacy Lock only
*Please note, this Thumb Turn is unavailable with North American tubular locks

Spindle: UNIVERSAL spindle (5mm w/ 6, 7, 8mm converters)

5 mm Spindle pairs with Tubular Mechanisms
8 mm Spindle pairs with Euro Mortise Mechanisms
NA is when no indicator and universal spindle size is provided

NOTE:

Standard 5mm on square spindle.
Available with sleeves if needed to accommodate locks that have privacy hubs from 5 to 8mm.
North American mortise locks will need to be modified to a 5mm square or 'star' hub.

Material(s)

Finish Options:
Satin Black RAL 9004
Satin Stainless Steel
PVD Satin Stainless Steel
Polished Satin Steel
PVD Gunmetal
PVD Satin Gold
PVD Polished Copper

PVD finishes bond to the metal surface creating a layer that greatly improves durability, superior corrosion-resistance, and the appearance and performance over time. PVD is an exemplary option for exterior and/or coastal application when available.

Product Downloads

LBWC50 Cutsheet
BASICS Full Catalogue
Formani Care and Maintenance

Finish Samples

Shop finish samples HERE.

Additional Components
