Description
The HB Flush Pull Series by Halliday Baillie is a comprehensive range of flush pulls with concealed fixing — no exposed screws. Available in multiple sizes, from compact pulls for joinery to oversized pulls for tall pivot and bi-fold doors.
Sold individually. For double-sided use, install one pull on each side. If installing on a pocket door, pair with the HB 680 Push Button Edge Pull. For sliding door privacy, see the HB 690 Privacy Set. Made in New Zealand.

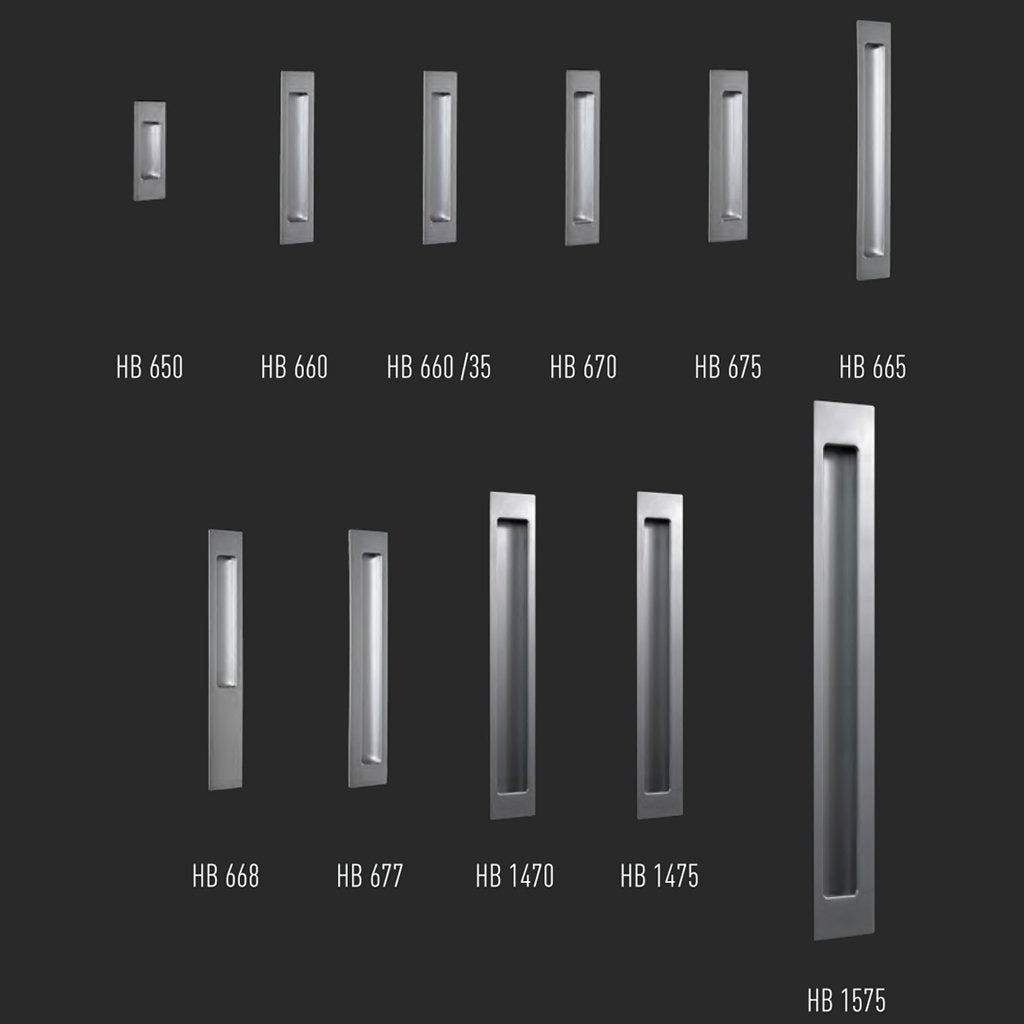

Models & Specifications
- HB 650 — L 105 mm (4.1") × W 36 mm (1.4") × D 14 mm (0.5") — small sliding windows and built-in joinery
- HB 660 — L 170 mm (6.7") × W 36 mm (1.4") × D 14 mm (0.5") — standard pocket door pull, pairs with HB 680
- HB 660/35 — L 170 mm (6.7") × W 36 mm (1.4") × D 12 mm (0.4") — shallower depth for 35 mm doors
- HB 665 — L 250 mm (9.8") × W 36 mm (1.4") × D 14 mm (0.5") — longer pull for overheight doors
- HB 668 — L 250 mm (9.8") × W 36 mm (1.4") × D 14 mm (0.5") — asymmetrical, for bi-parting or passage sliding doors
- HB 670 — L 170 mm (6.7") × W 36 mm (1.4") × D 18 mm (0.7") — deeper grip for heavy sliders
- HB 675 — L 170 mm (6.7") × W 46 mm (1.8") × D 18 mm (0.7") — for bi-fold/pivot doors (handed: specify LH or RH). Contact us to order
- HB 677 — L 250 mm (9.8") × W 46 mm (1.8") × D 17 mm (0.67") — larger bi-fold/pivot pull (handed: specify LH or RH). Contact us to order
- HB 1470 — L 310 mm (12.2") × W 50 mm (2") × D 15 mm (0.6") — proportioned for large sliding doors
- HB 1475 — L 310 mm (12.2") × W 50 mm (2") × D 15 mm (0.6") — bi-fold variant with deeper grip (handed: specify LH or RH). Contact us to order
- HB 1575 — L 510 mm (20") × W 70 mm (2.7") × D 17 mm (0.7") — largest pull for tall pivot/bi-fold doors (handed: specify LH or RH). Contact us to order
- HB 630 — L 155 mm (6.1") × W 25 mm (1") × D 75 mm (3") — privacy sliding door with keyed locking
- HB 640 — L 250 mm (9.8") × W 36 mm (1.4") × D 11 mm (0.4") — narrow backset variant of HB 630
Suitable for timber or aluminium doors. All models install without adhesives or silicone.
Materials
Diecast zinc (standard models). HB 1470, HB 1475, and HB 1575 are solid brass.
Finishes
- SC — Satin Chrome
- PC — Polished Chrome
- BN — Brushed Nickel
- WHT — Powder Coat White
- EBA — Powder Coat Electro Black Ace
- EMB — Powder Coat Electro Medium Bronze
- KC — Matte Black Chrome
- ORB — Oil Rubbed Bronze
- EFW — Electro Flat White
- EDB — Electro Dark Bronze
See full Halliday Baillie Finish Guide.
Related Products
Product Downloads
For the complete collection, download the catalogue here.
Product Sheets
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
