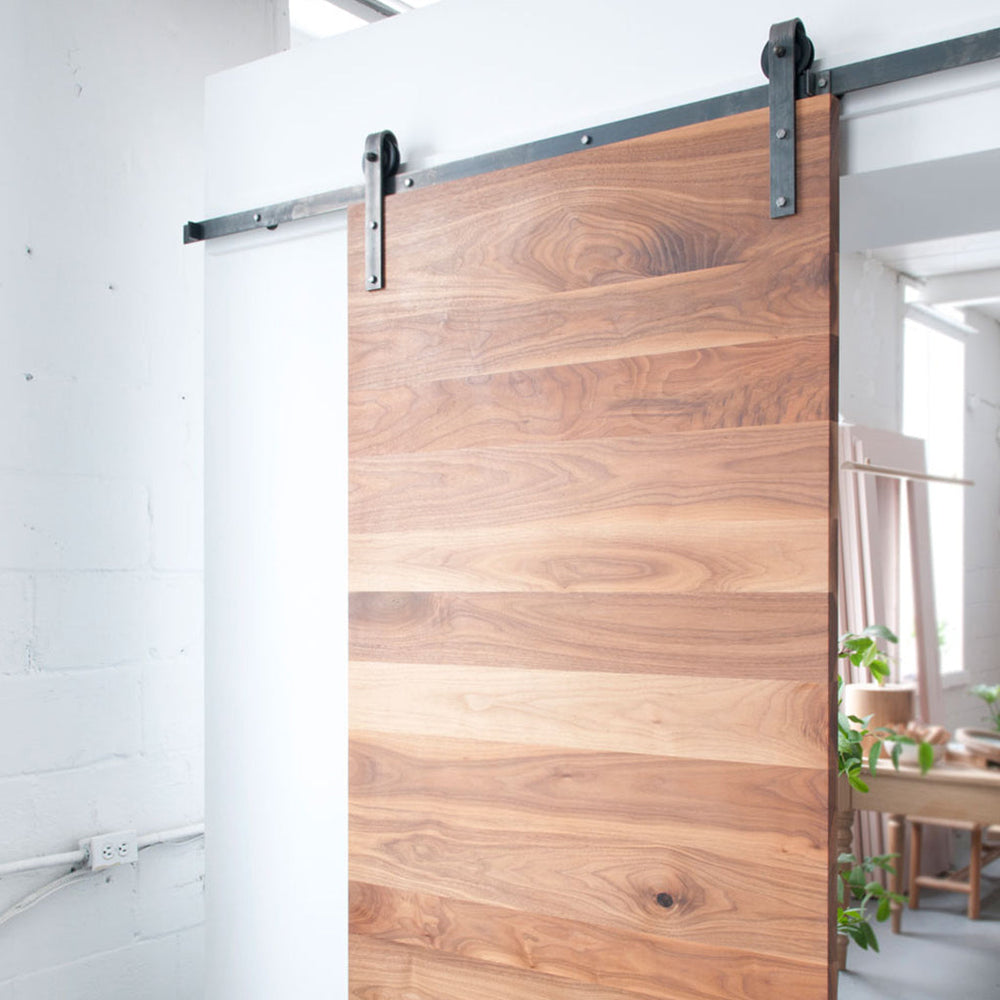

Face Mounted Barn Door Hardware

This elegant top mounted barn door hardware is functional and showcases heritage craftsmanship and premium materials. Available in a variety of finishes, this hardware highlights the beauty of exposed mechanisms while offering smooth, durable performance.

The track can be customized to your exact length.

Please contact us and answer the below questions for a customized detailed quote:

Style: Top Mount / Face Mount / Bi-Part
Finish: Brass / Raw Steel / Stainless Steel / Black
Length:
Pre-drilled or Not drilled:
***PLEASE NOTE: if you choose NOT PRE-DRILLED, there will still be a hole 1.5″ in from each end so the track can be hung up for powder coating.

Made and designed in Toronto by the local maker studio 1925Workbench.

Pre-Drilled vs. Non Pre-Drilled Holes

• Pre-drilling available — please specify when ordering. Select if the track should be pre-drilled or not pre-drilled. If you will be drilling on site, select not pre-drilled.
• Pre-drilled holes are spaced evenly every 14.75” – 17.25” along the track.
• Pre-drilled tracks must be mounted on a backing piece to ensure the door clears baseboards or moldings.
• Not pre-drilled tracks require drilling on site and can be installed directly to the wall if baseboards are flush and there is adequate blocking within the wall.
• Please Note: For Black Powder Coated “Not Pre-drilled” orders, a 1.5″ hole will still be drilled in from each end for hanging during the powder coating process.

Track Length & Measuring

• To establish the track length: order at least twice the width of the door plus a minimum 2" on either side for overlap.
• The width of the door should be 4" wider than the opening to overlap by 2" on each side. The door should be large enough to cover any frames or casing if applicable.
• Tracks over 93" are shipped in two pieces.
• Recommended headroom (distance between the top of the opening and the ceiling) is 8"-10". Minimum required headroom is 6".

Weight Capacity

• Rated for doors up to 200 lbs. This is the maximum recommended weight for each pair of hangers. Actual capacity will vary depending on how the track is fastened to the wall.

Custom Finishes

• For custom powder coating options, a small hole (5/16" diameter) will be drilled at either end of the track for fabrication. This applies to both “Drilled” and “Non-Drilled” orders. For the Single Track Bypass, these holes are 1" from the end; for other hardware, 1.5" from the end.

Additional Components

• Door guides (Floor Guide or Wall Guide options) are included in the kit. If you need extra floor guides, you can order them separately.
• The Floor Guide is a small bracket mounted on the floor at the bottom of the door to keep it in place.
• The Wall Guide mounts to baseboards, or directly to the wall if no baseboards are present.

*Price includes hardware only. Door and header piece not included.
*Suitable for outdoor applications; however, finishes will patina more quickly over time.

Crafted from high-quality, authentic materials with minimal treatment to highlight their natural character.

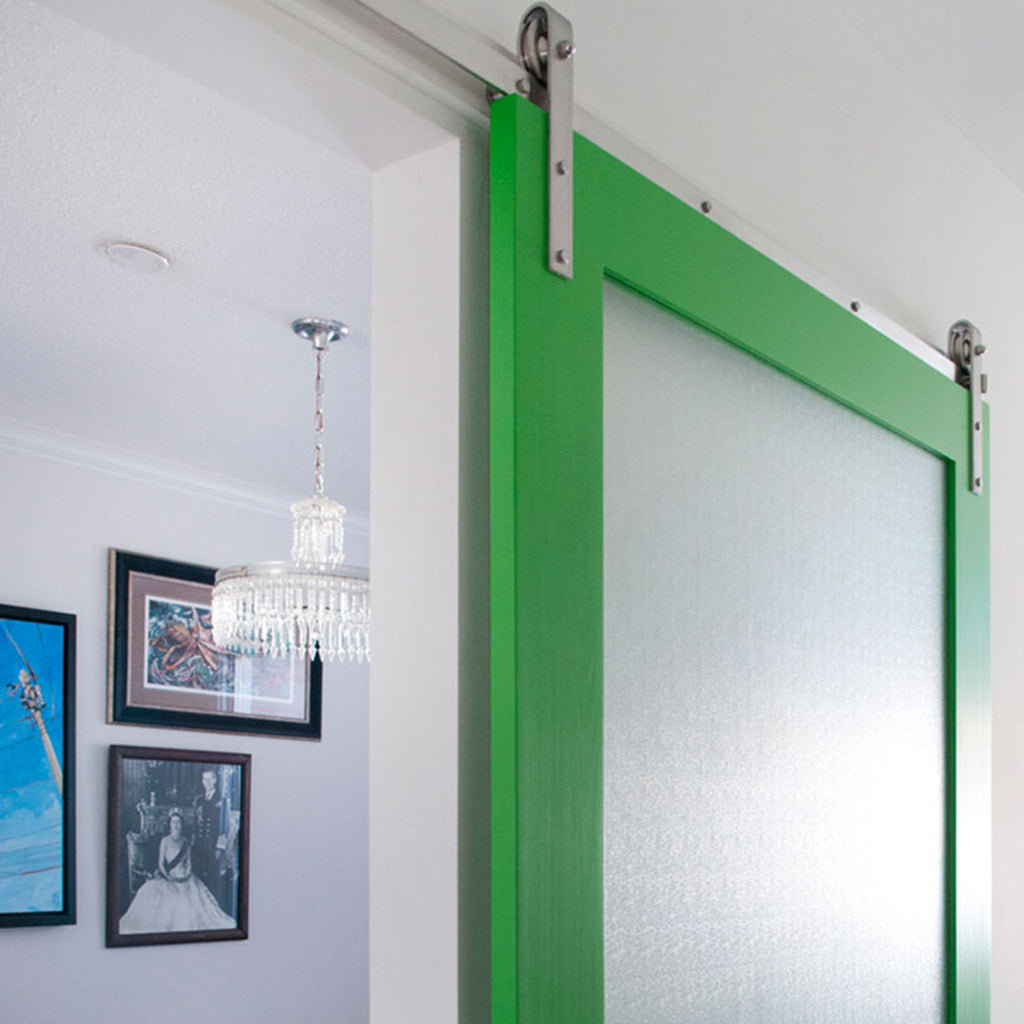

• Stainless Steel – Hand-brushed finish, left largely untreated to showcase its raw beauty.

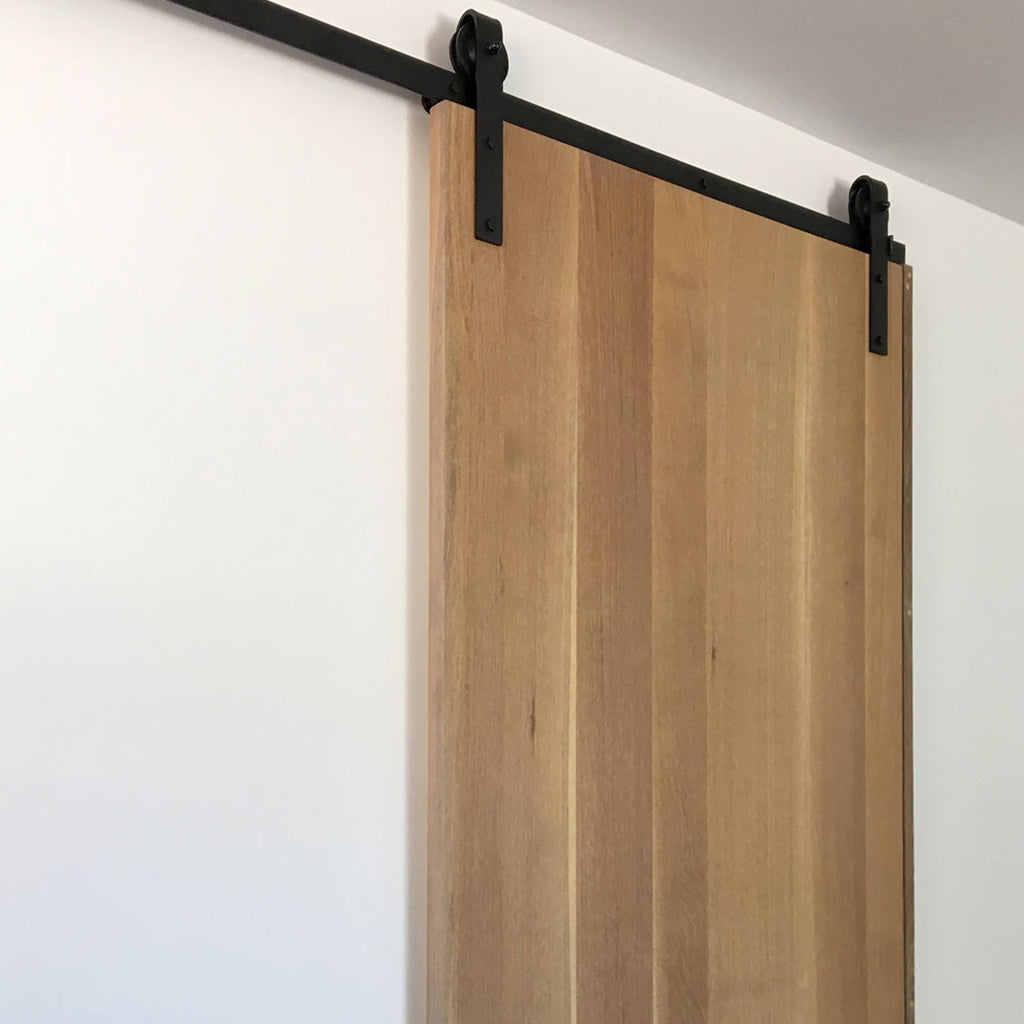

• Matte Black Metal – Durable powder-coated finish for a refined, modern look.

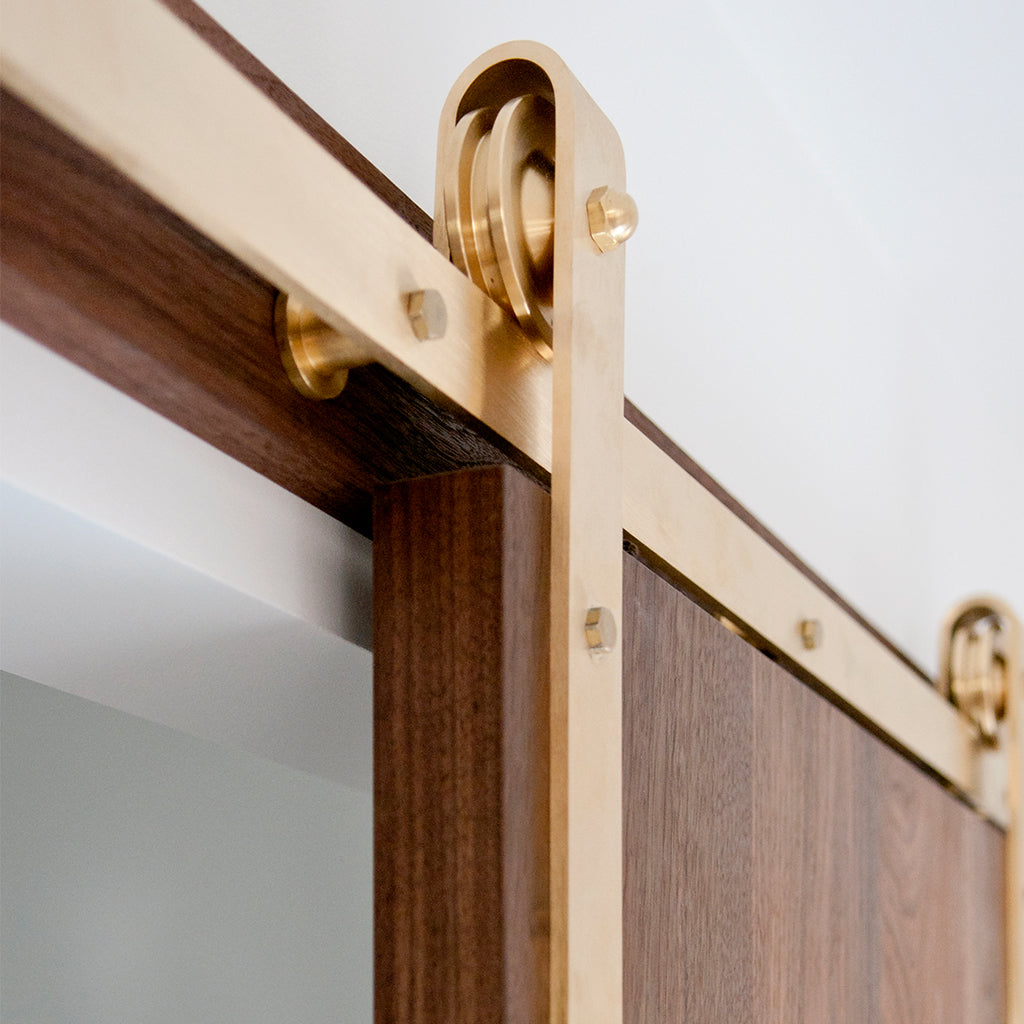

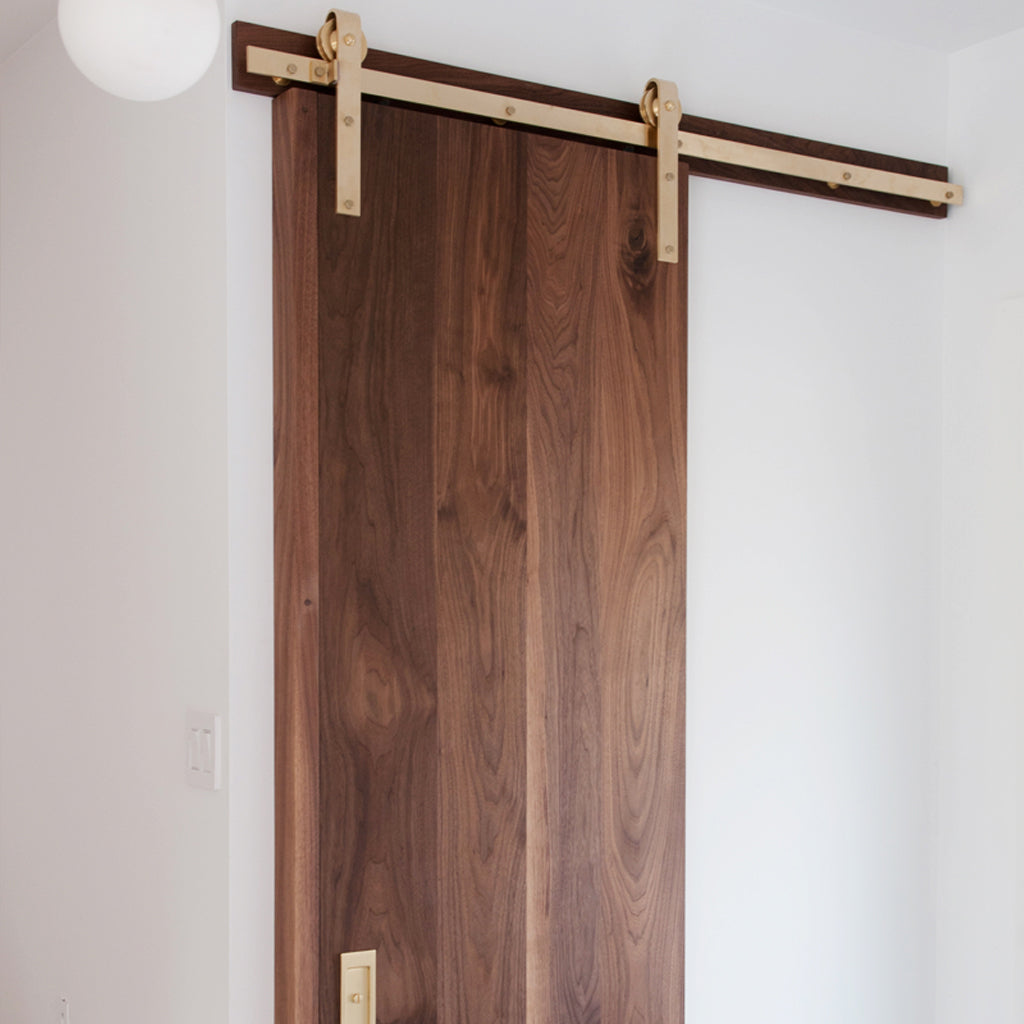

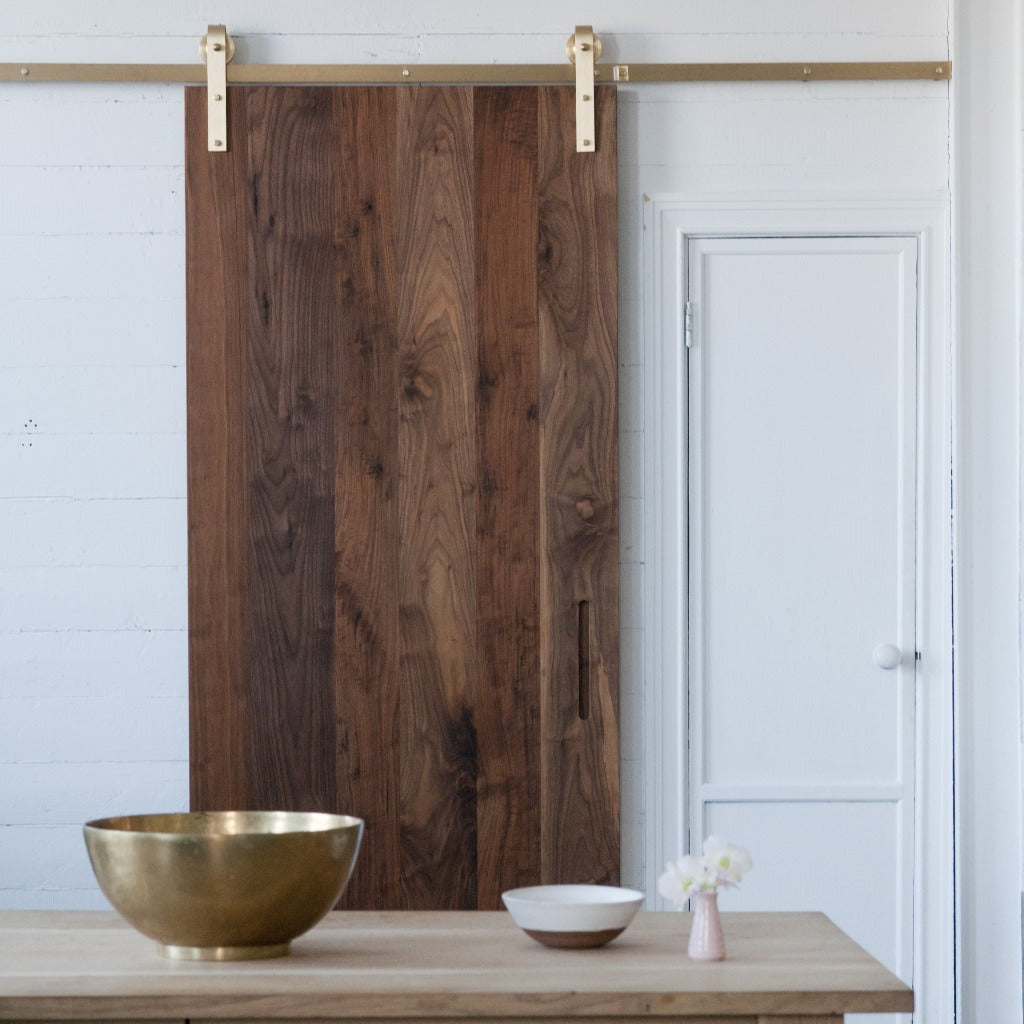

• Solid Brass – Brass-plated steel bolts for added strength. Finished with a light oil coat to preserve patina and extend longevity. Suitable for outdoor use, though patina will develop faster.

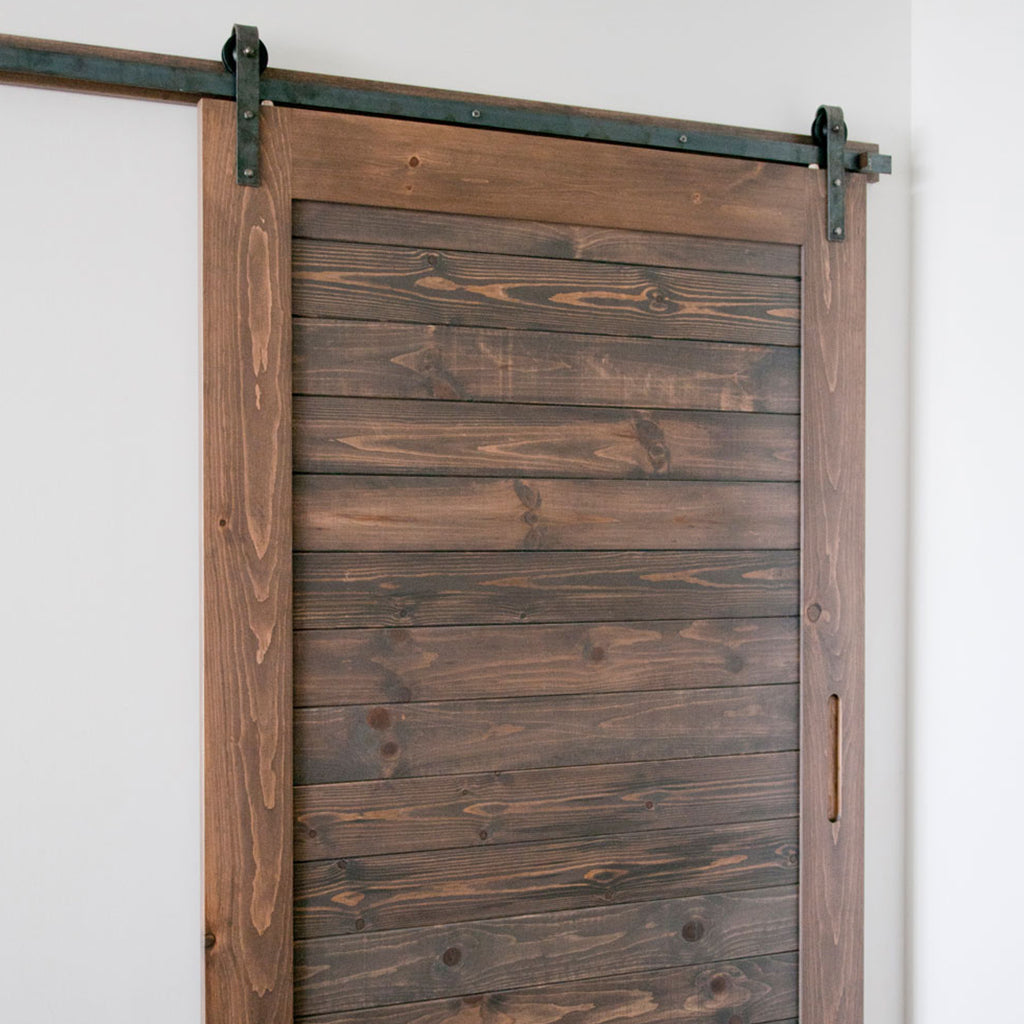

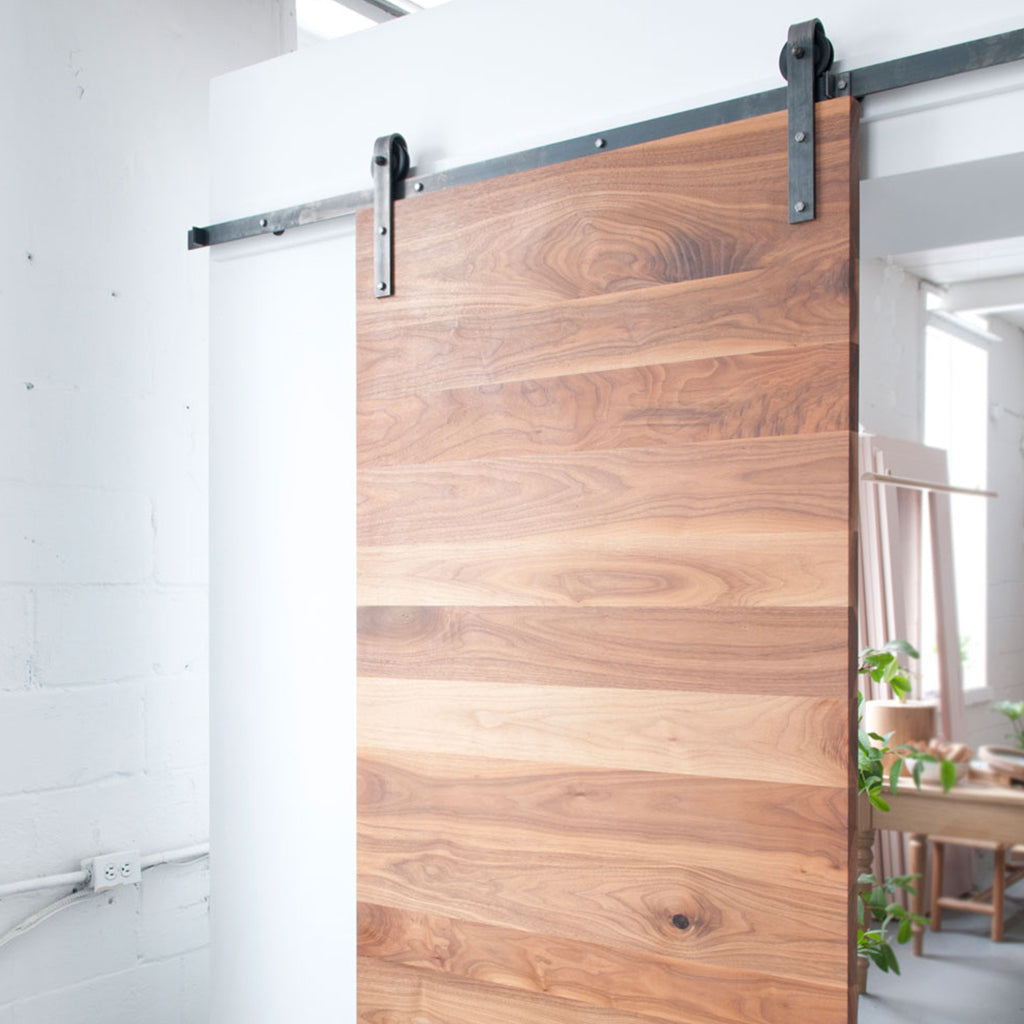

• Hot Rolled Steel – Naturally dark finish with minimal treatment, celebrating the material’s inherent depth and texture.

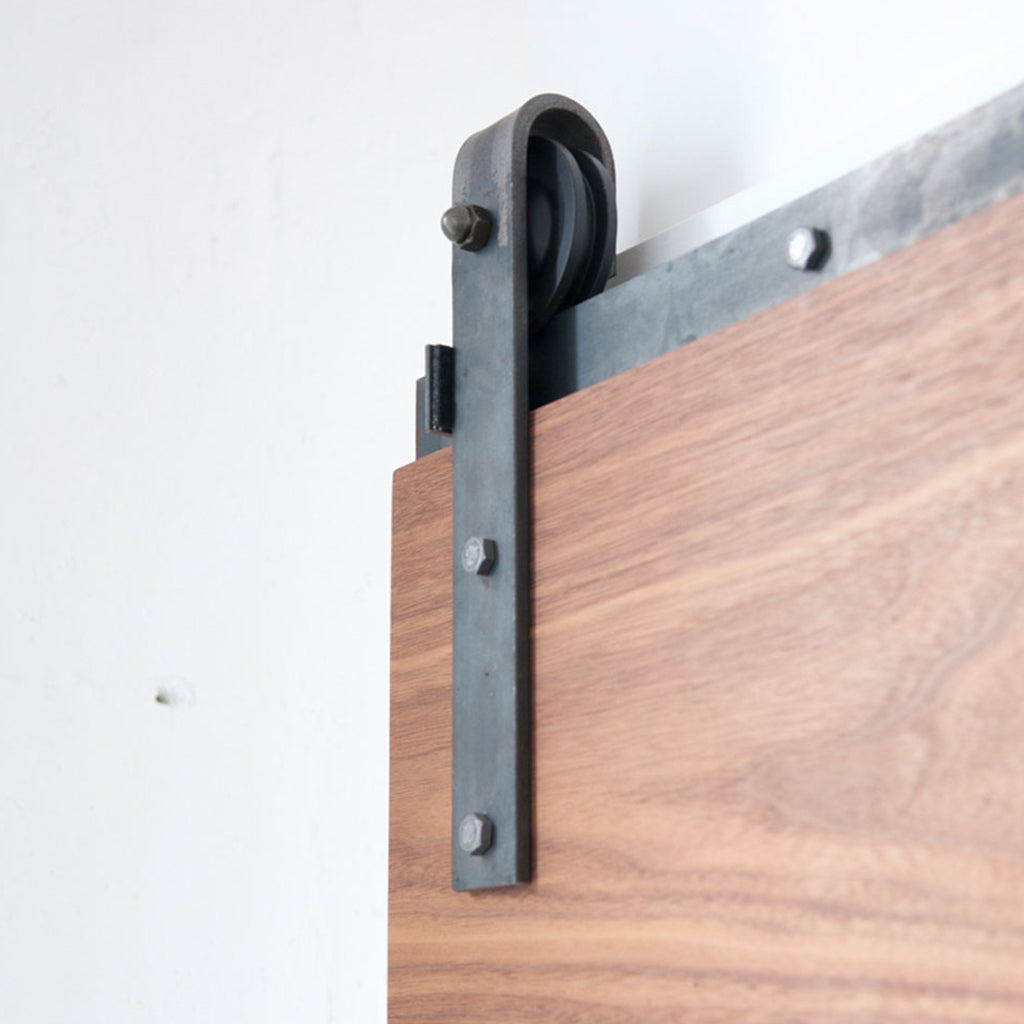

High-quality solid metal rollers with double built-in ball bearings ensure smooth, quiet motion.
