Bi-Part Barn Door Hardware FACE MOUNT
- Estimated Ship Date: 3-6 weeks | Made to Order
Optional Accessories
- Description
- Specifications
- Material(s)
- Product Downloads

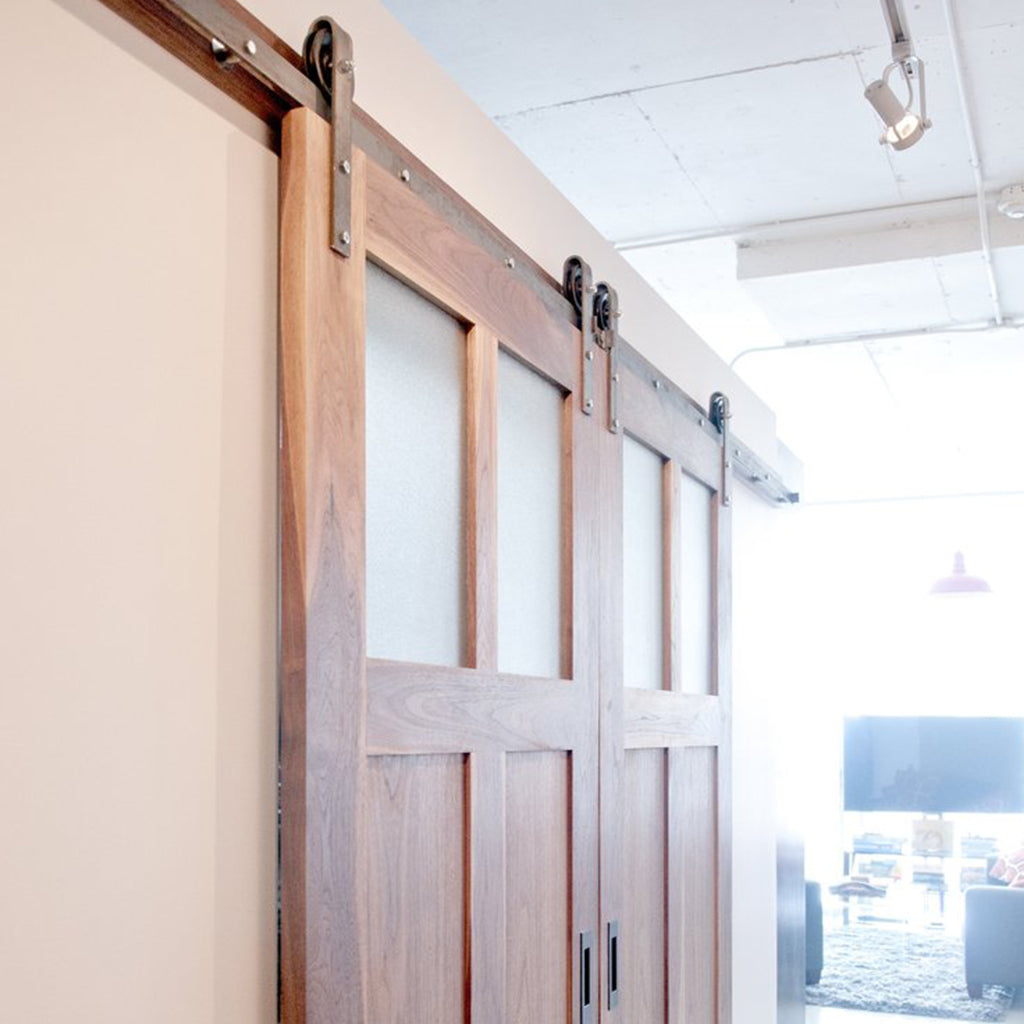

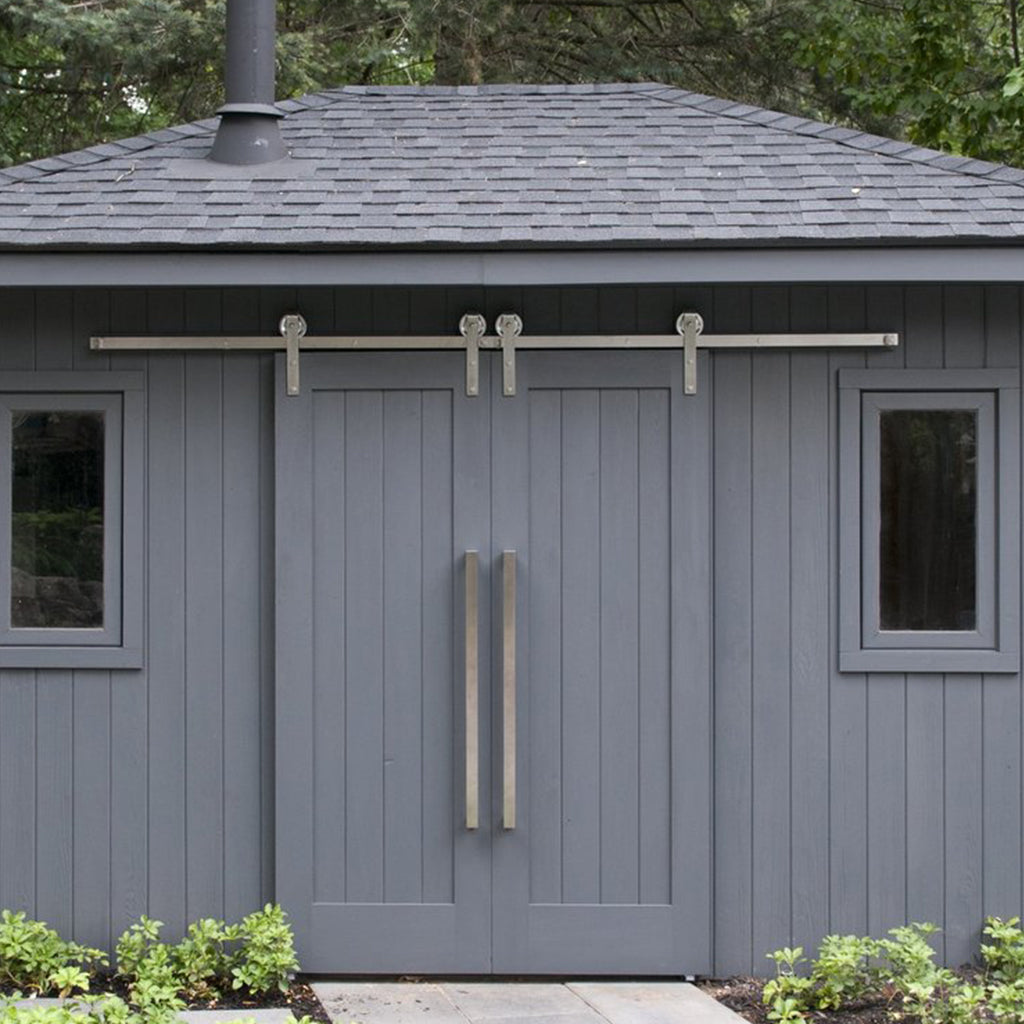

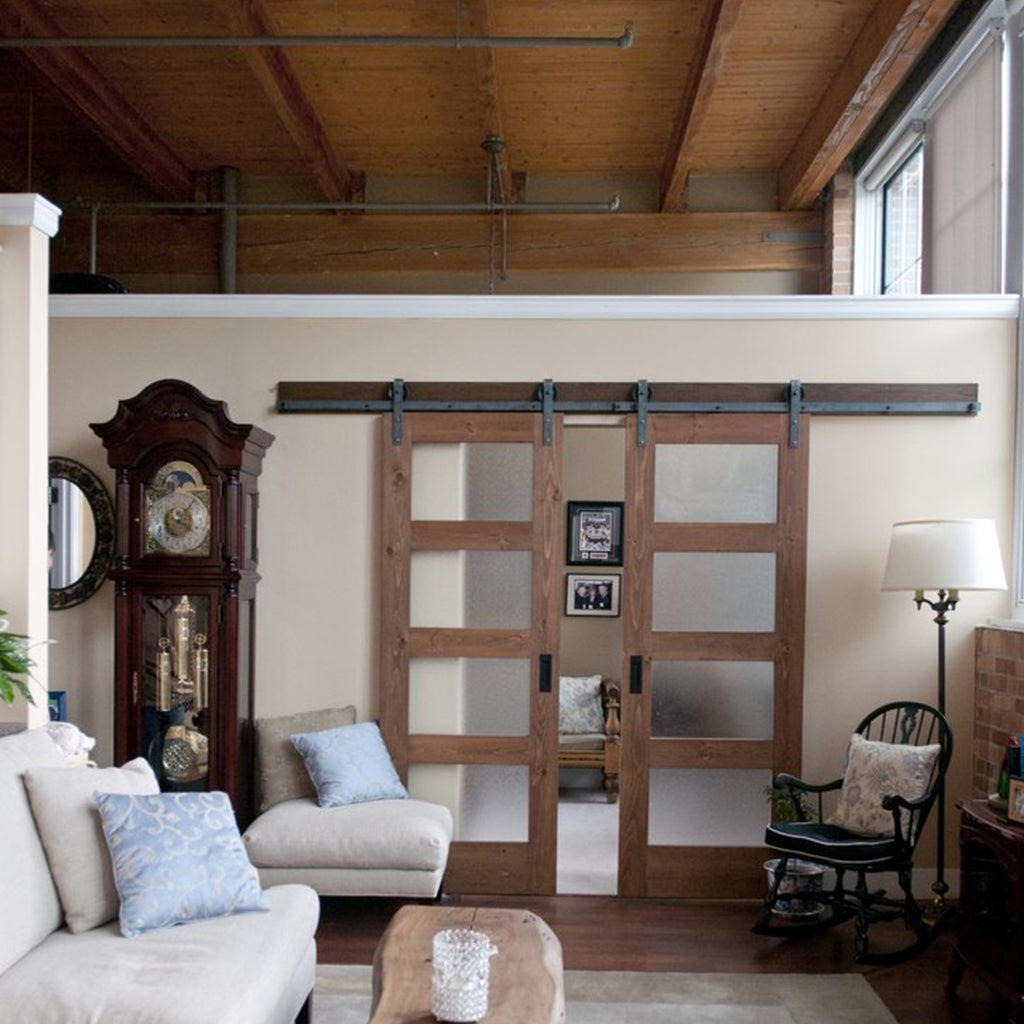

This barn door hardware features a bi-part mechanism, offering a practical solution for space optimization and efficient door management. This system incorporates a dual-door mechanism along a singular track, enabling two doors to move in opposite directions for opening and converge for closing.
Engineered from durable materials like brass and steel, the hardware is designed for longevity and consistent performance. Available finishes include Brass, Raw Steel, Stainless Steel, and Black, catering to various design requirements.
For specific spatial configurations, a By-Pass option is also available.
Customization is a cornerstone of our offering. We provide track length tailoring to meet exact dimensional needs. To proceed with a customized order, please specify:
- Style: Top Mount, Face Mount, or Bi-Part
- Finish: Brass, Raw Steel, Stainless Steel, or Black
- Required Length
- Drilling Option: Pre-drilled or Not drilled
This barn door hardware combines technical precision with functional design, ensuring a seamless integration into your space.
Made and designed in Toronto by the local maker studio 1925Workbench.
Pre-Drilled vs. Non Pre-Drilled Holes
- Pre-drilling available, please specify when ordering. Please select if the track should be pre-drilled, or not pre-drilled. If you will be drilling on site, select not pre-drilled.
- Pre-drilled is 14.75” – 17.25” spaced evenly along the track.
- Pre-drilled tracks must be mounted on a backing piece to ensure the door clears baseboards or moldings.
- Not pre-drilled tracks require drilling on site and can be installed directly to the wall if baseboards are flush and there is adequate blocking within the wall.
Track Length & Measuring
- To establish the track length: order at least twice the width of the door plus min 2" either side for overlap.
- The width of the door should be 4" wider than the opening to overlap by 2" on each side. The door should be large enough to cover any door frames or casing if applicable.
- Track over 93" are shipped in 2 pieces.
- Recommended headroom (distance between the top of the opening and the ceiling) is 8"-10". Minimum required headroom is 6".
Weight Capacity
- Rated for doors up to 200 lbs. Please note, this is the maximum recommended weight for each pair of hangers. The actual weight bearing capacity will vary depending on how the track has been fastened to the wall.
Custom Finishes
- For custom powder coating option, a small hole (5/16" diameter) will be drilled at either end of the track for fabrication techniques. This hole is applicable to all "Drilled" or "Non-Drilled" orders. For the Single Track Bypass, these holes are 1" from the end. For other hardware, the holes are 1.5" from the end.
Additional Components
- The Floor Guide is a small bracket that is mounted on the floor at the bottom of the door to keep the door in place.
- The Floor Guide is not required but highly recommended to ensure stability.
- The Floor Guide can be mounted in two ways:
- The slot guide
- The clamp guide
Solid Brass, stainless steel, and/or heavy metal.
High quality solid brass rollers with double built-in ball bearings are used for the quiet motion.
Note: Solid Brass/ For strength, bolts are brass plated steel.
The brass is largely untreated except with an oil top coat to preserve the patina and longevity of the metal, because we believe in the beauty and authenticity of the original material. These can be used outdoors but will patina more quickly than indoors.
High quality solid brass rollers with double built-in ball bearings are used for the quiet motion.
