AHI 103 Door Lever Set — Privacy

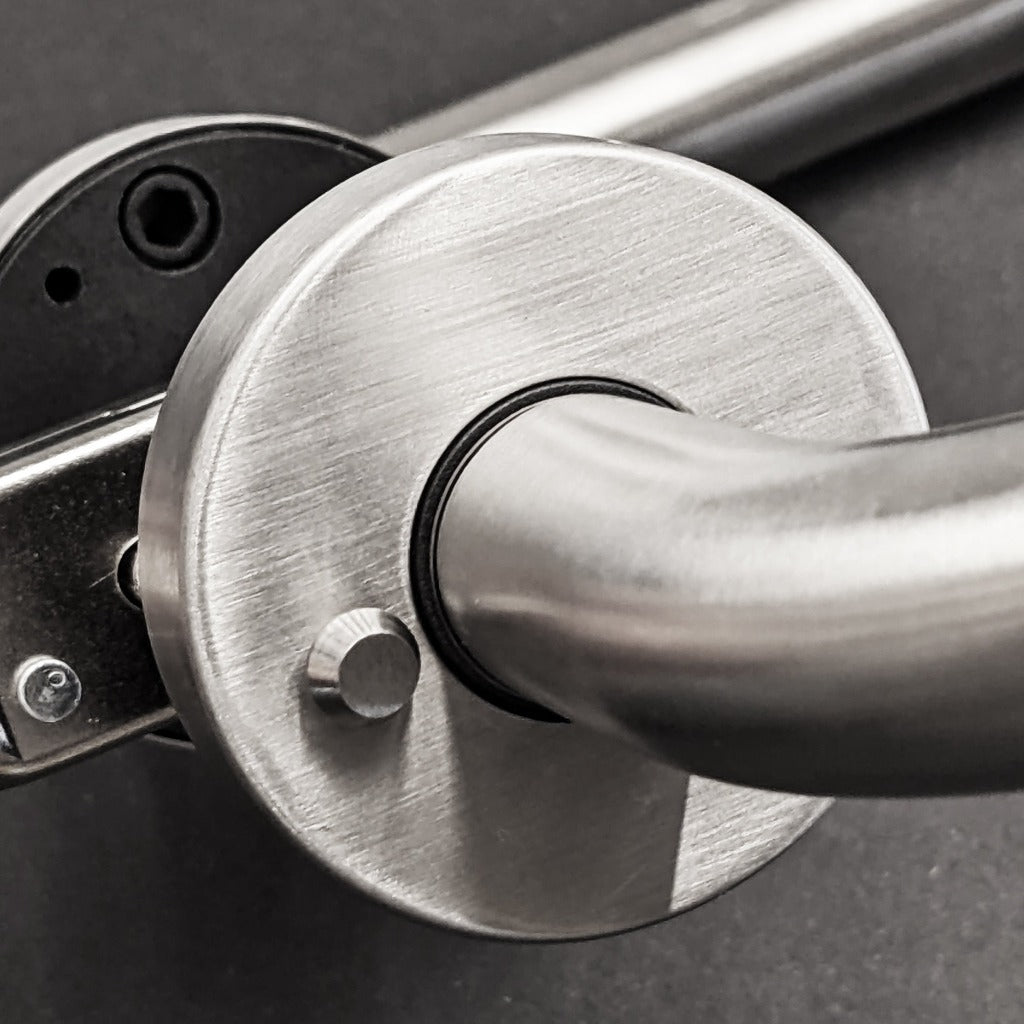

The AHI 103 Door Lever — Privacy by AHI is a hollow stainless steel lever set in privacy configuration, featuring a push/pull pin lock on the interior rose with an accessible key release on the opposite side. Suited to bathrooms, bedrooms, and any interior door requiring single-sided locking.

Includes a pair of levers, privacy bolt, and strike plate. Four rose styles accommodate standard and oversized bore preparations.

• Lever Dimensions: L 140 mm (5.5") × W 19 mm (0.75")
• Door Thickness: 1 3/8" – 2"
• Rose Options:
  • Rose 200 (Circle SM): Ø 52 mm (2 1/16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 201 (Circle LG): Ø 62 mm (2.44") × D 10 mm (0.3") · Fits Ø 53.97 mm (2.12") bore hole
  • Rose 203 (Square SM): 55 mm × 55 mm (2.16") × D 11 mm (0.4") · Fits Ø 19 mm (0.75") bore hole
  • Rose 204 (Square LG): 64 mm × 64 mm (2.5") × D 10 mm (0.5") · Fits Ø 53.97 mm (2.12") bore hole

Hollow stainless steel construction.

Available Finishes

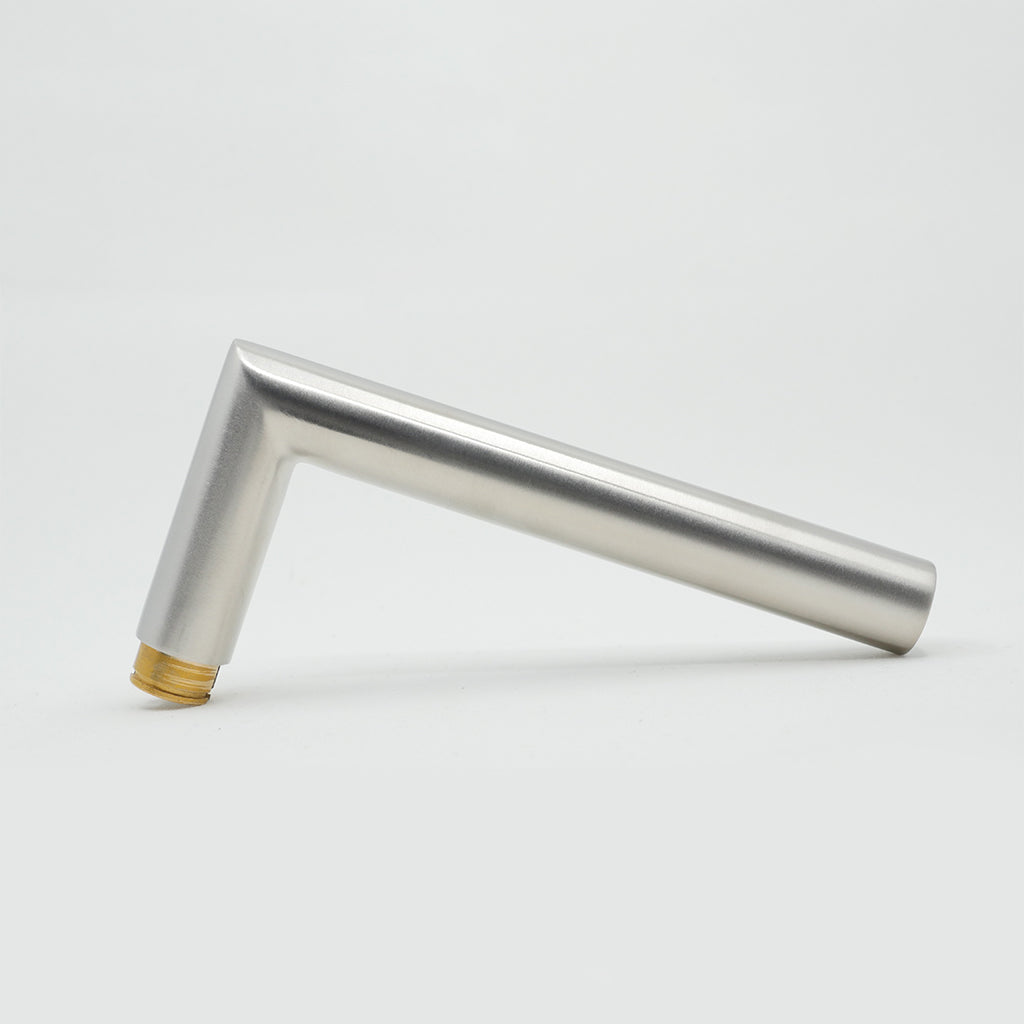

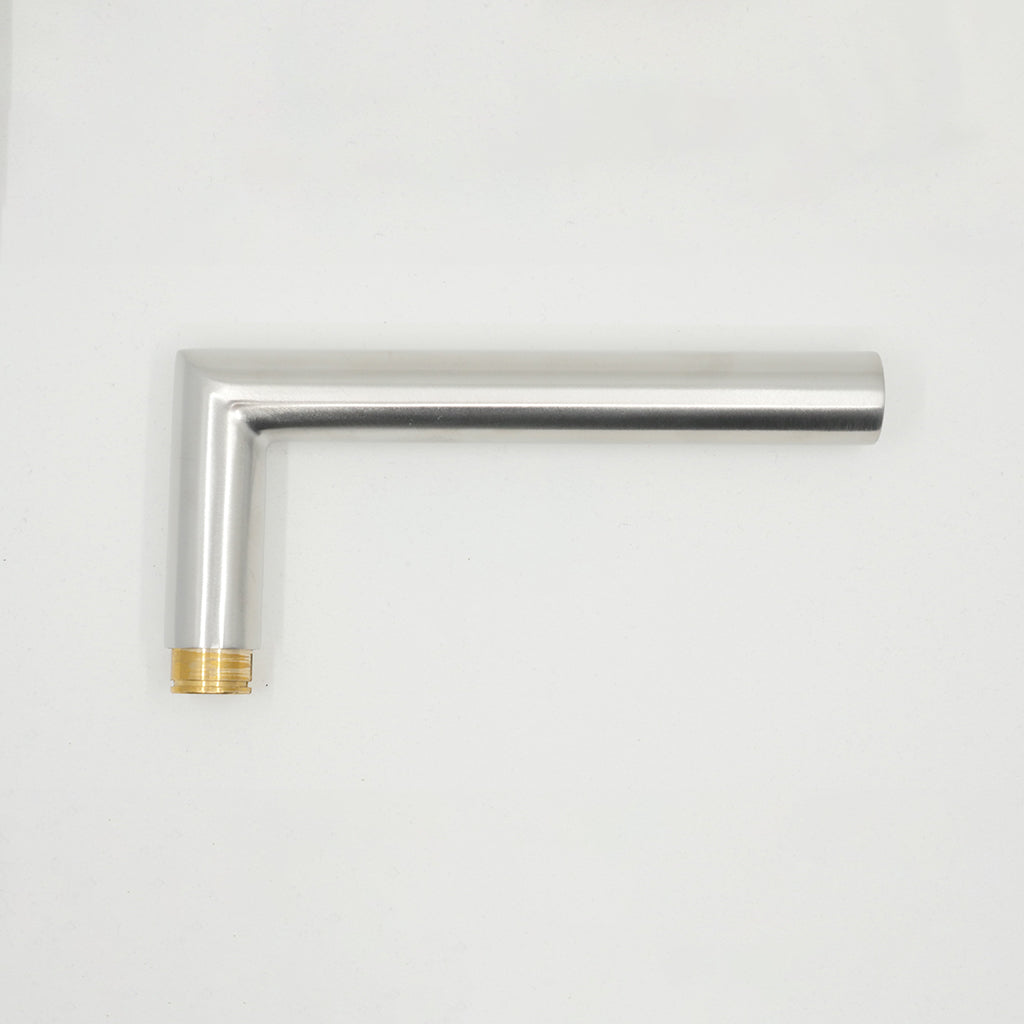

• Satin Stainless Steel

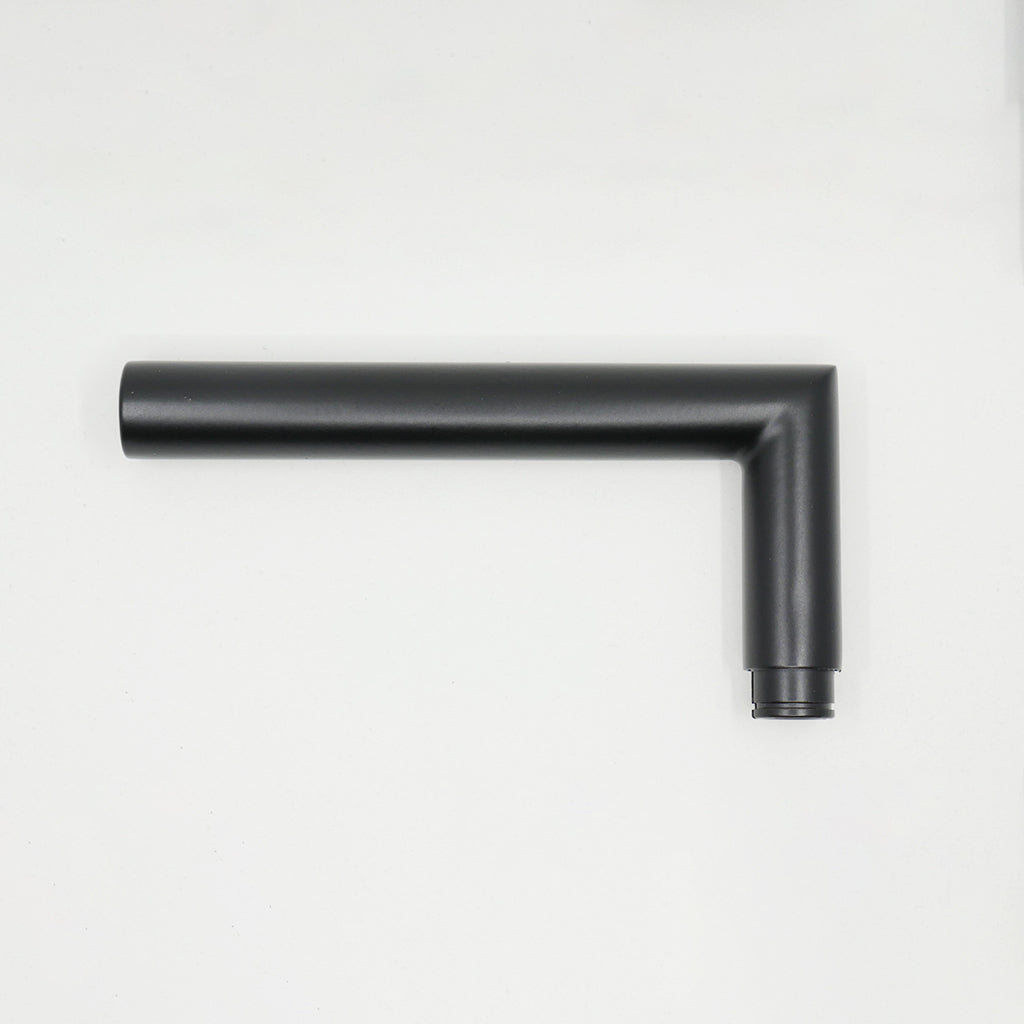

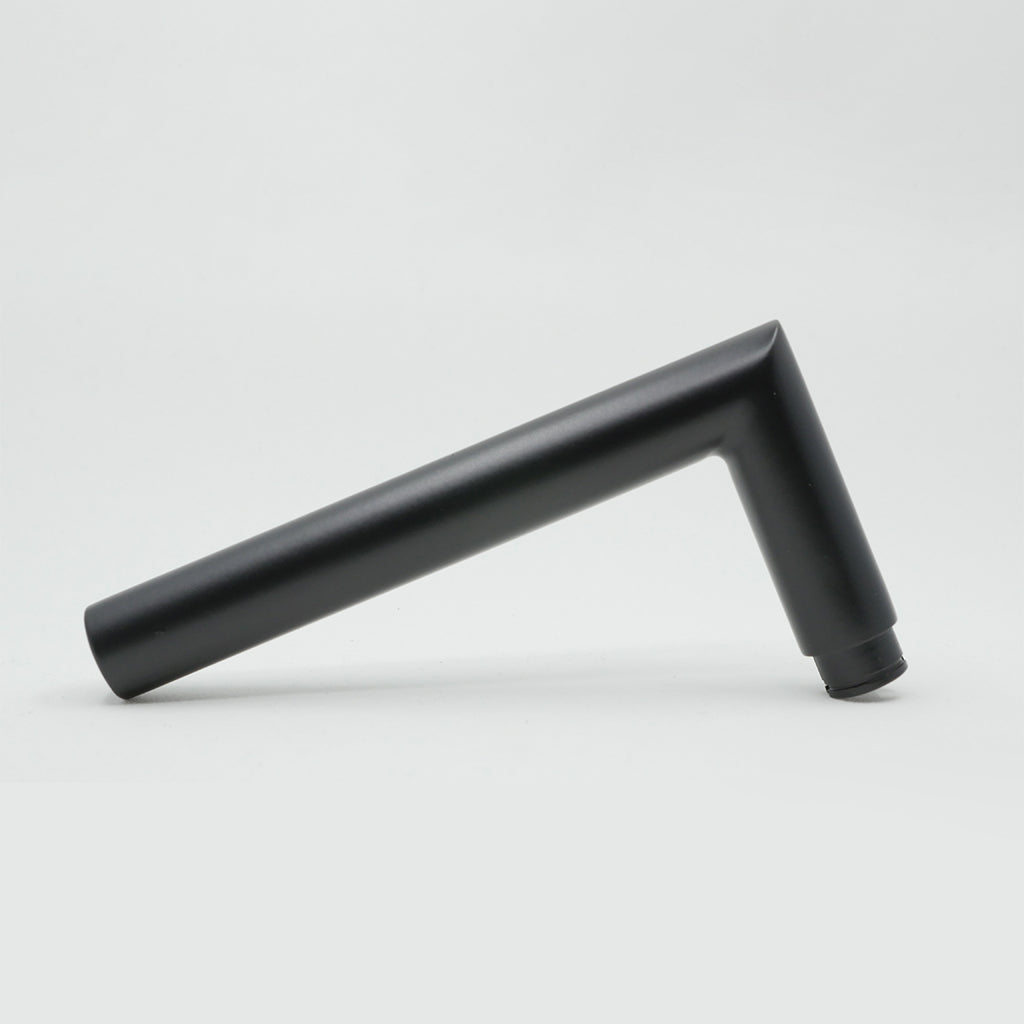

• Powder Coated Black
• Custom finishes available — contact us for details

Product Sheets

• Door Lever No. 103 Drawing
• Rose 200
• Rose 201
• Rose 203
• Rose 204

Installation & Care

• Door Lever No.103 Installation Guide
• Door Lever No. 103 Heavy Duty Installation Guide

Other

• Door Lever No.103 Product Sheet

Sold as a complete tubular latch set — all components required for installation are included. AHI door hardware is compatible with standard pre-bored doors.

Function

Passage — interior doors that latch but do not lock (hallways, closets, pantries).

• Pair of levers
• Tubular latch
• Strike plate

Privacy — doors that lock from one side with a push/pull pin and emergency release (bathrooms, bedrooms).

• Pair of levers with push/pull pin lock
• Privacy bolt
• Strike plate

Dummy — decorative or push/pull applications (closets, pantry doors). Available as half or full set:

• Half Dummy — a single lever installed on one side of the door, surface-mounted using a dummy mount. Non-operating. Two half dummy sets may be combined to create a double dummy configuration on doors without a bore hole.
• Full Dummy — a pair of levers installed on both sides for a symmetrical look. Through-mounted using the existing bore hole. Non-operating.

Dummy components included: lever(s) and dummy adapter. Compatible with the Sugatsune Magnetic Latch.

Door compatibility: Installs into standard pre-bored doors using a tubular latch.
