Description

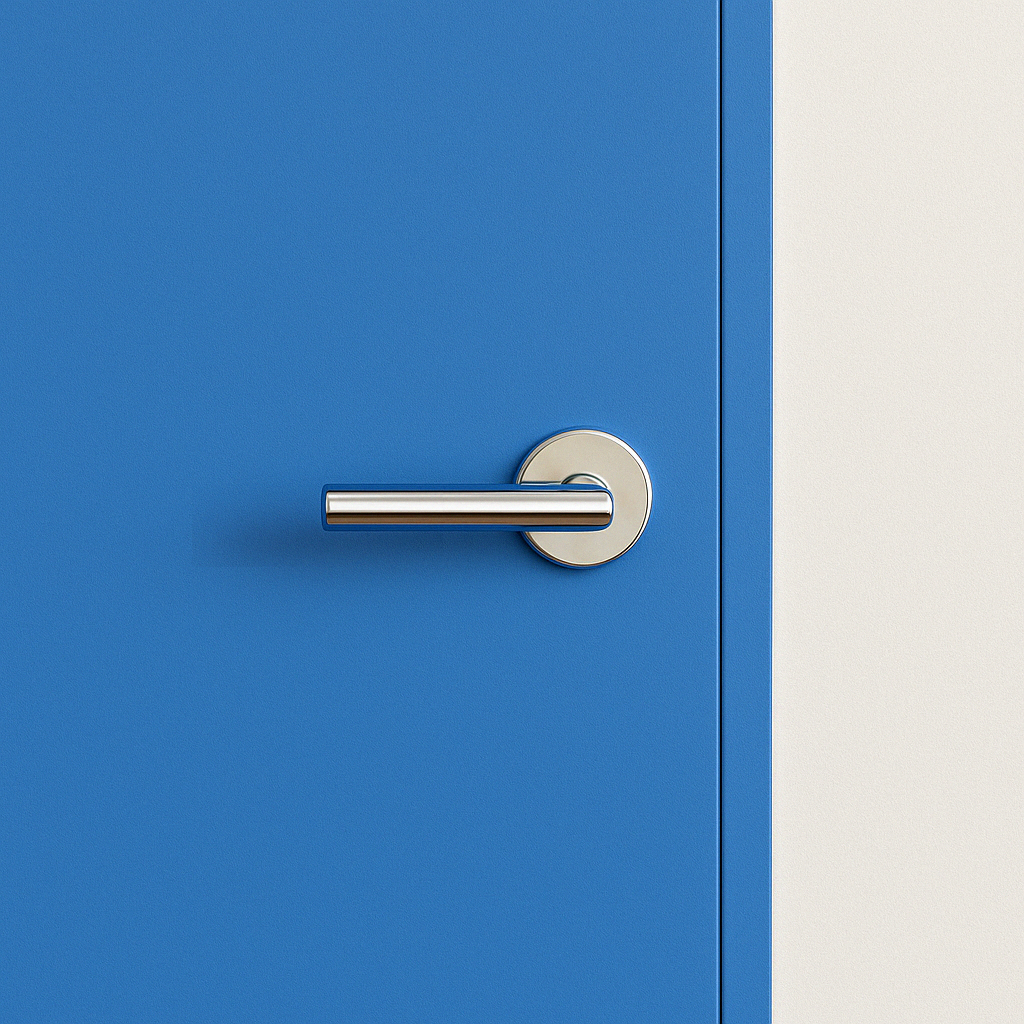

The 104 Lever features a slim cylindrical form with clean, minimal lines. A larger version of the 103, it’s crafted from hollow stainless steel and balances refined utility with understated design. Available for interior door functions, this lever suits both residential and commercial settings.
Specifications
- Lever Dimensions: L 141 mm (5.56") x W 22 mm (0.87")
- Door Thickness: Suitable for 1 3/8" - 2"
- Thumb Turn: Push/Pull Pin on Rose
-

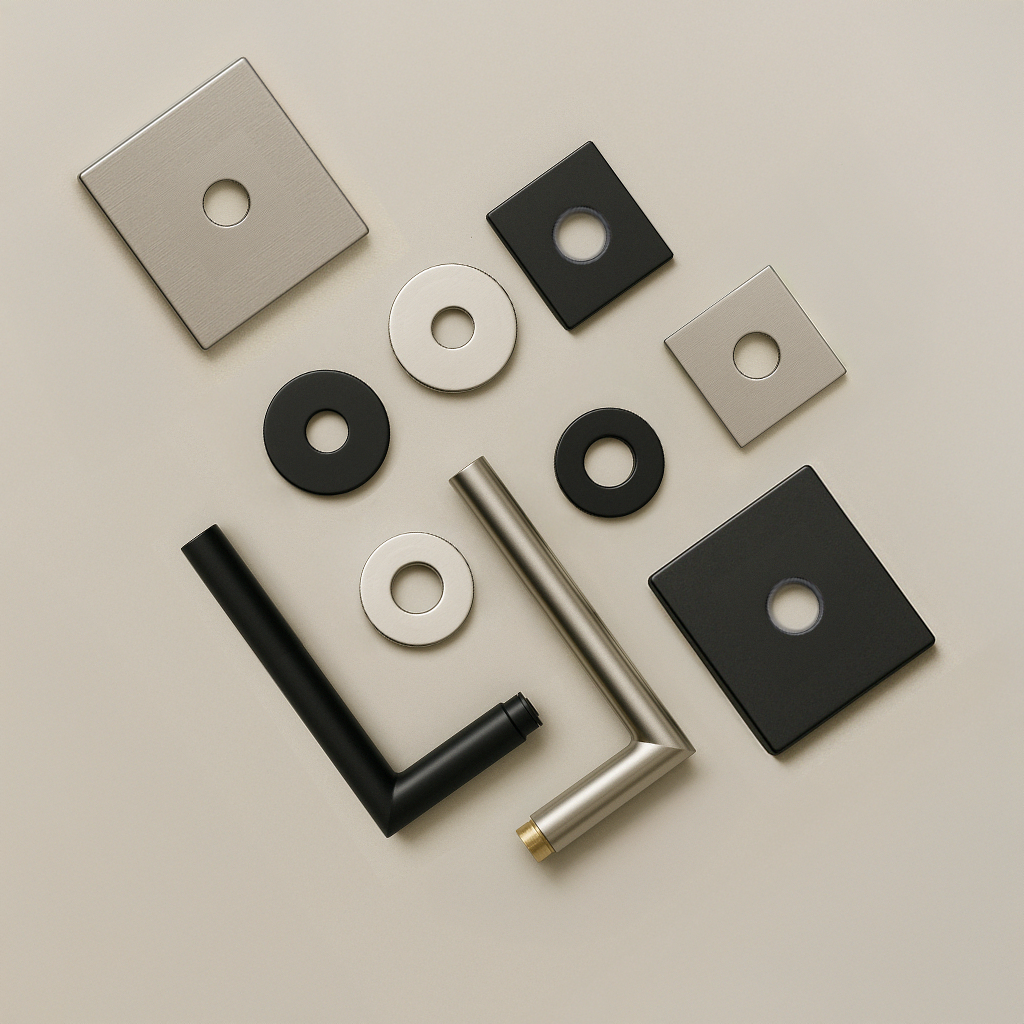

Rose Style:
-
Circle SM
Ø 52 mm (2 1/16") X D 11 mm (0.4")
Suitable for Ø 19 mm (0.75") bore hole. -
Circle LG
Ø 62 mm (2.44") X D 10 mm (0.3")
Suitable for Ø 53.97 mm (2.12") bore hole. -
Square SM
L 55 mm (2.16") X W 55 mm (2.16") X D 11 mm (0.4")
Suitable for Ø 19 mm (0.75") bore hole.
-
Square LG
L 64 mm (2.5") X W 64 mm (2.5") X D 10 mm (0.5")
Suitable for Ø 53.97 mm (2.12") bore hole.
-
Circle SM
Materials

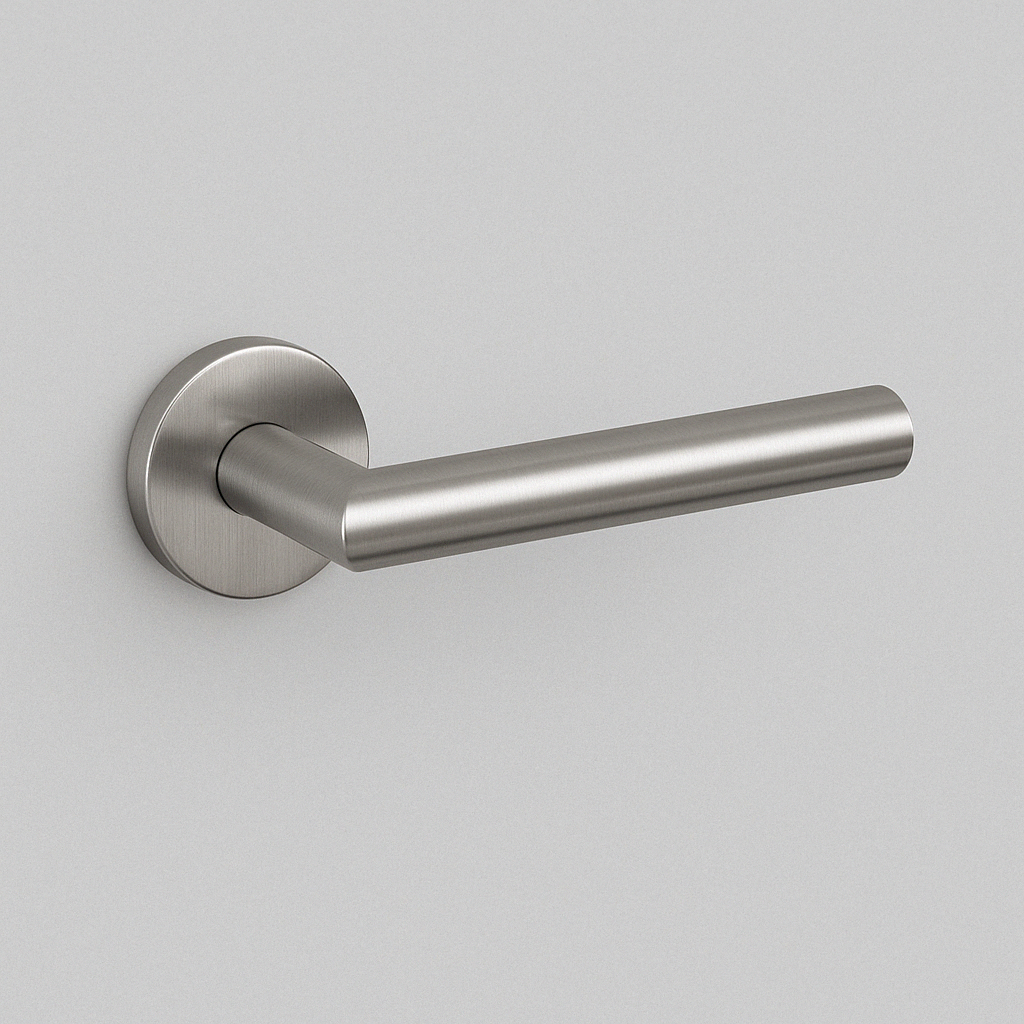

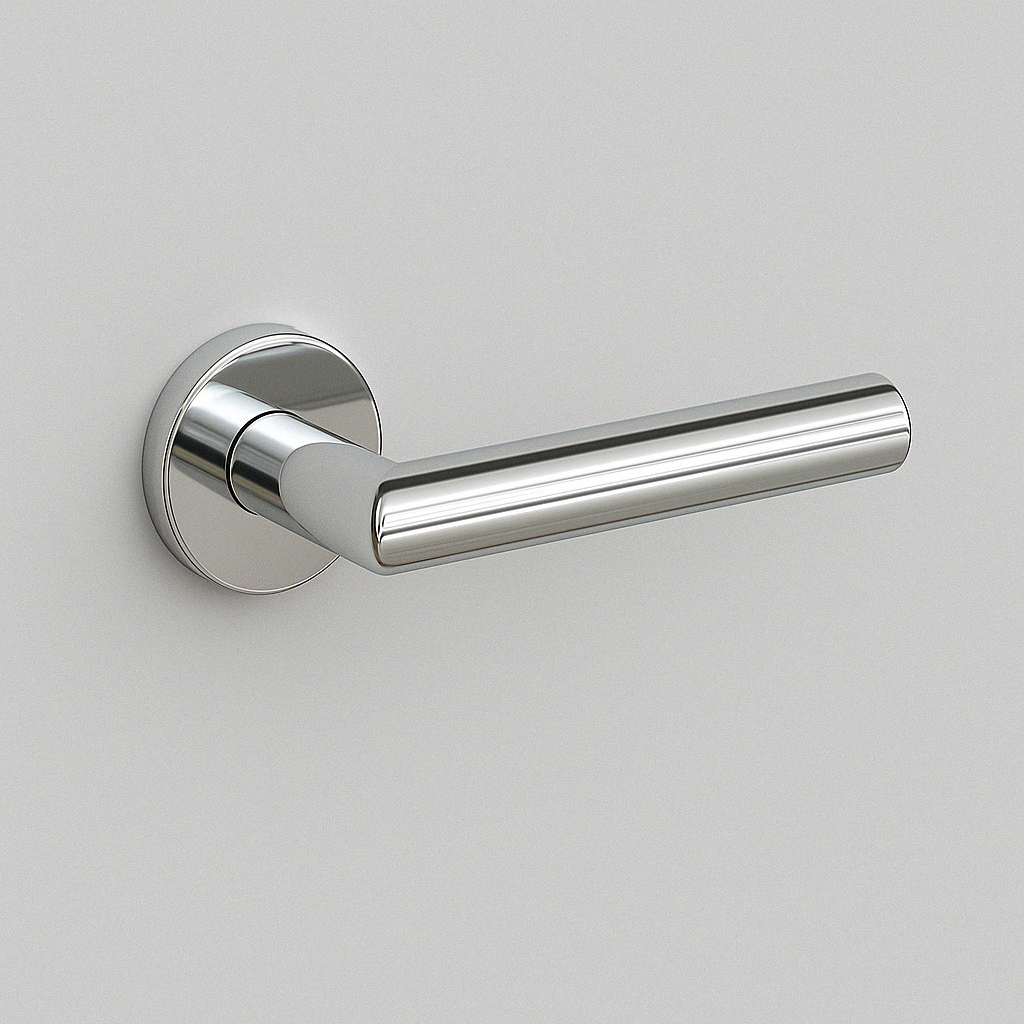

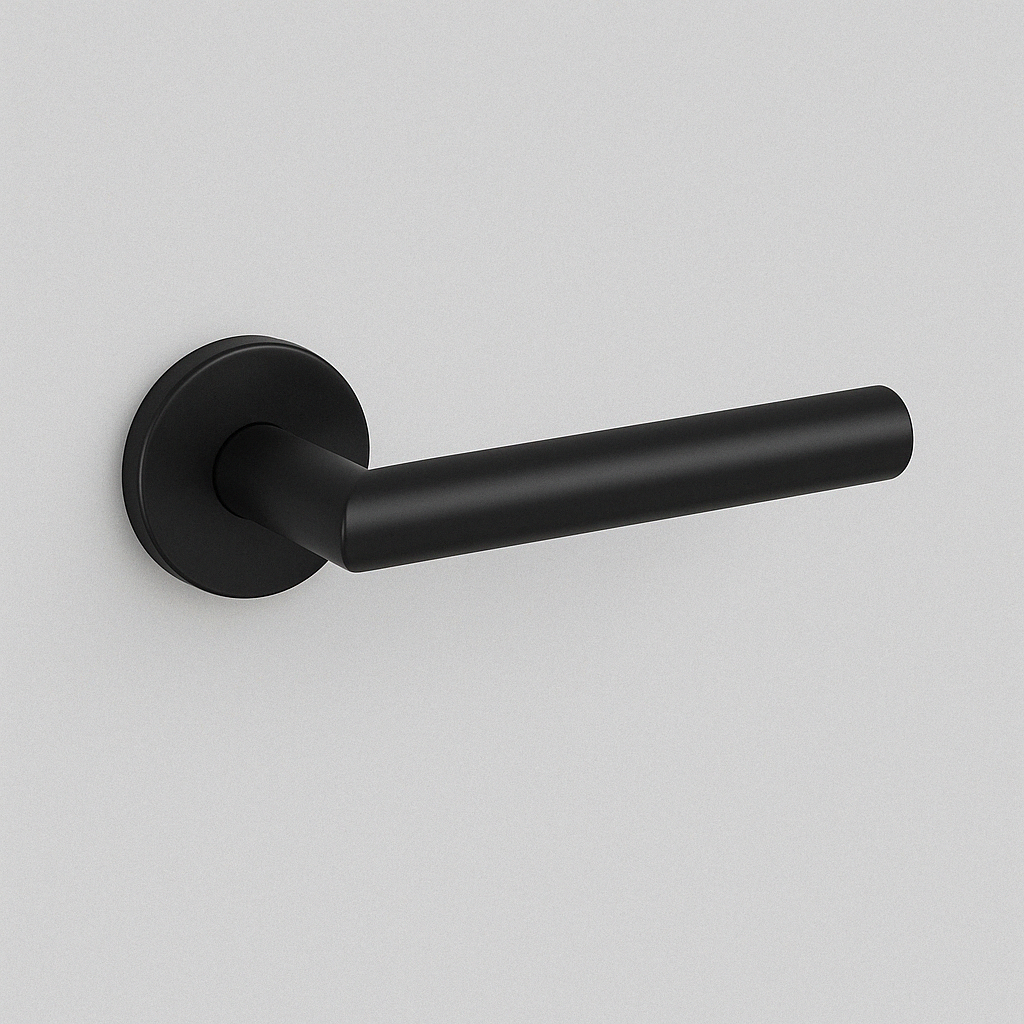

Available in satin stainless steel, mirror-polish stainless steel and powder coated black.
Product Downloads
Ordering Guide
Sold as a complete tubular latch set — all components required for installation are included. AHI door hardware is compatible with standard pre-bored doors.
Function
Passage — interior doors that latch but do not lock (hallways, closets, pantries).
- Pair of levers
- Tubular latch
- Strike plate
Privacy — doors that lock from one side with a push/pull pin and emergency release (bathrooms, bedrooms).
- Pair of levers with push/pull pin lock
- Privacy bolt
- Strike plate
Dummy — decorative or push/pull applications (closets, pantry doors). Available as half or full set:
- Half Dummy — a single lever installed on one side of the door, surface-mounted using a dummy mount. Non-operating. Two half dummy sets may be combined to create a double dummy configuration on doors without a bore hole.
- Full Dummy — a pair of levers installed on both sides for a symmetrical look. Through-mounted using the existing bore hole. Non-operating.
Dummy components included: lever(s) and dummy adapter. Compatible with the Sugatsune Magnetic Latch.
Door compatibility: Installs into standard pre-bored doors using a tubular latch.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
