AHI 104 Door Lever Set — Double Dummy

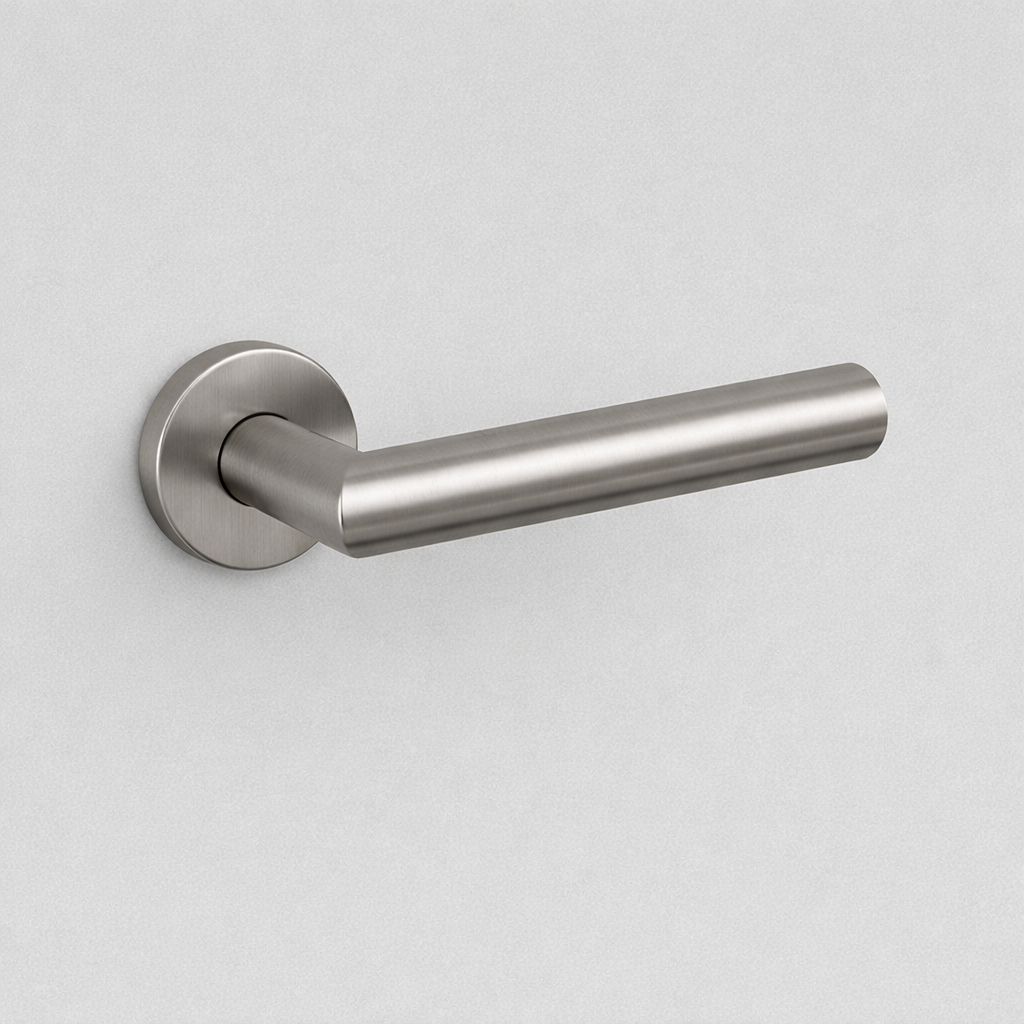

The AHI 104 Double Dummy Lever by AHI is a hollow stainless steel door lever with clean, minimal cylindrical lines, configured as a double dummy — levers on both sides of the door with no latch or locking function. Ideal for closets and pantry doors. Part of the Premium collection.

AHI dummy levers are surface-mounted. The dummy plate is secured with two concealed screws, and the rose and lever install over the plate for a clean finish. Optional magnetic closures sold separately — see the Sugatsune Magnetic Latch.

Also available in passage, privacy, and single dummy configurations.

• Lever Dimensions: L 141 mm (5.56") × W 22 mm (0.87")
• Door Thickness: 1 3/8" – 2"
• Rose Style:
  • Circle SM: Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG: Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole
  • Square SM: 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG: 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Casson is not responsible for damages resulting from improper installation.

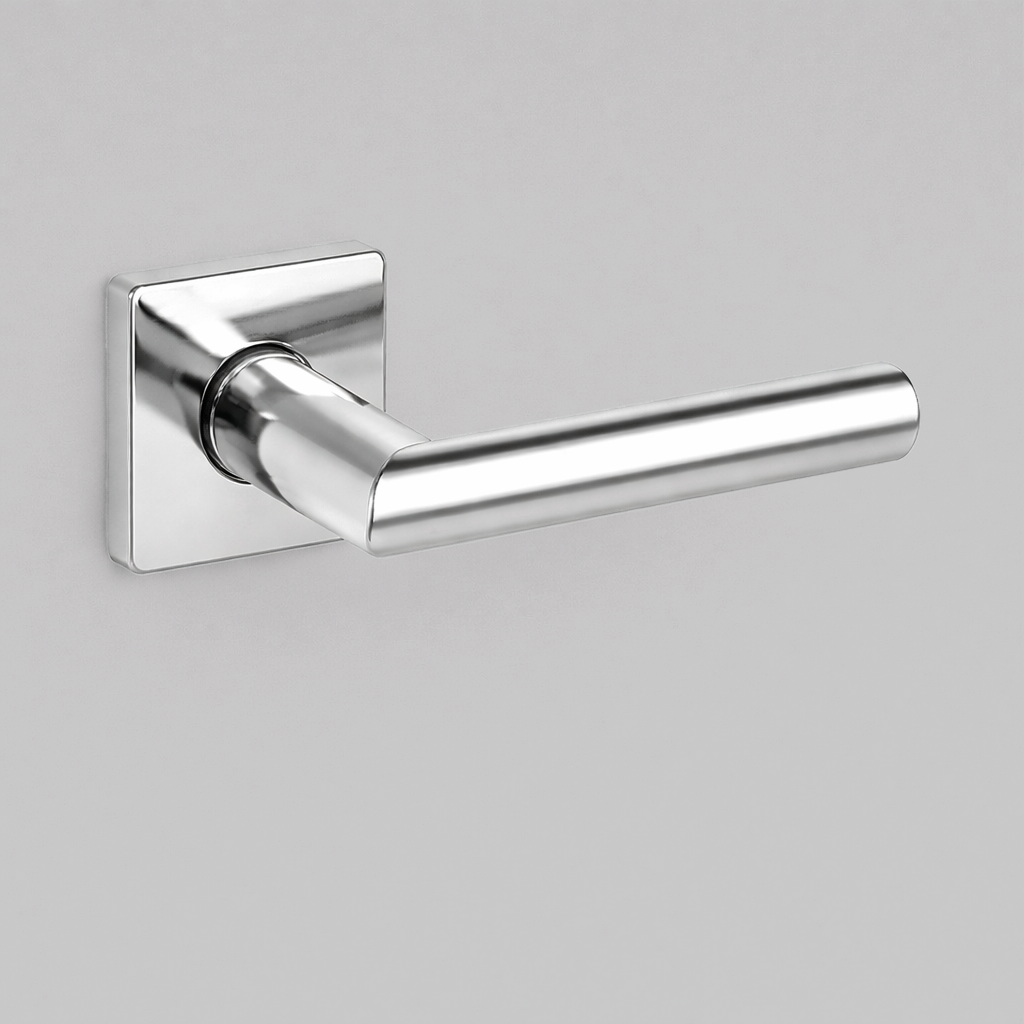

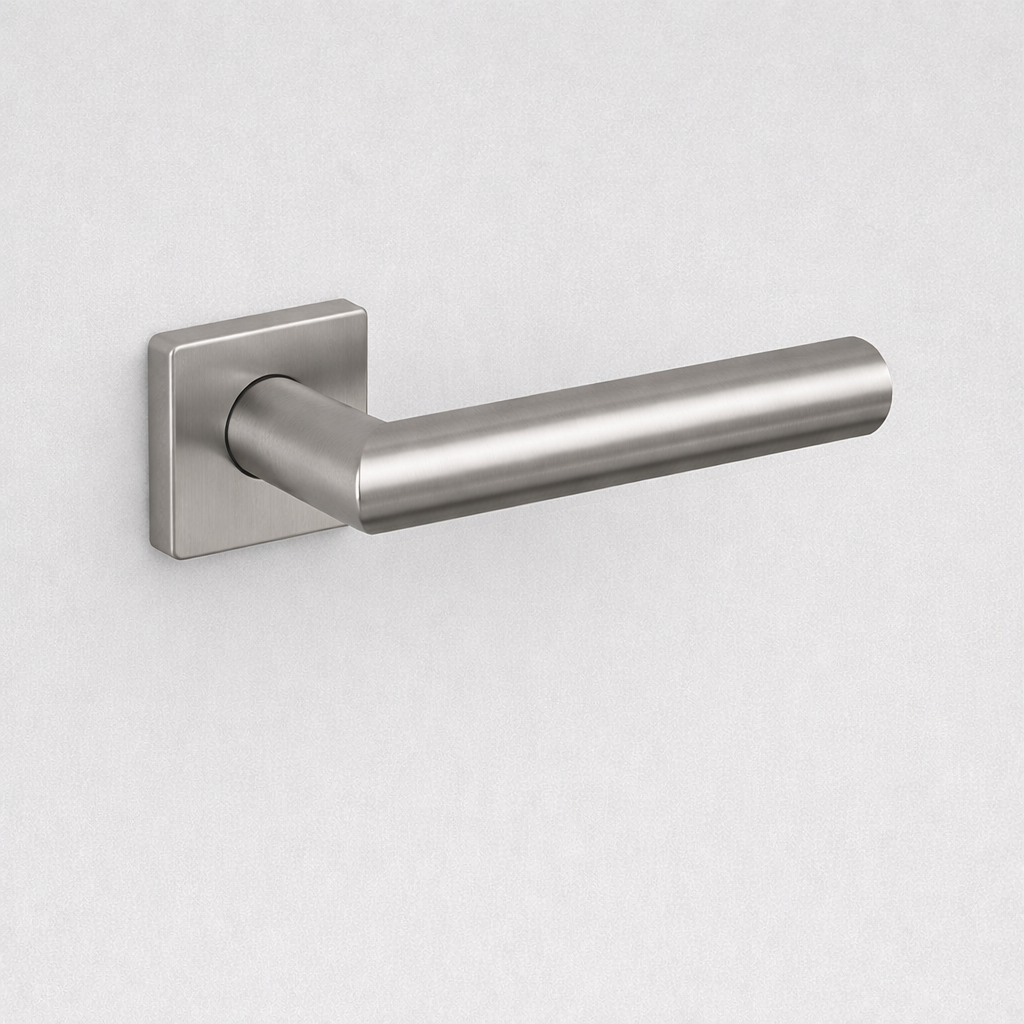

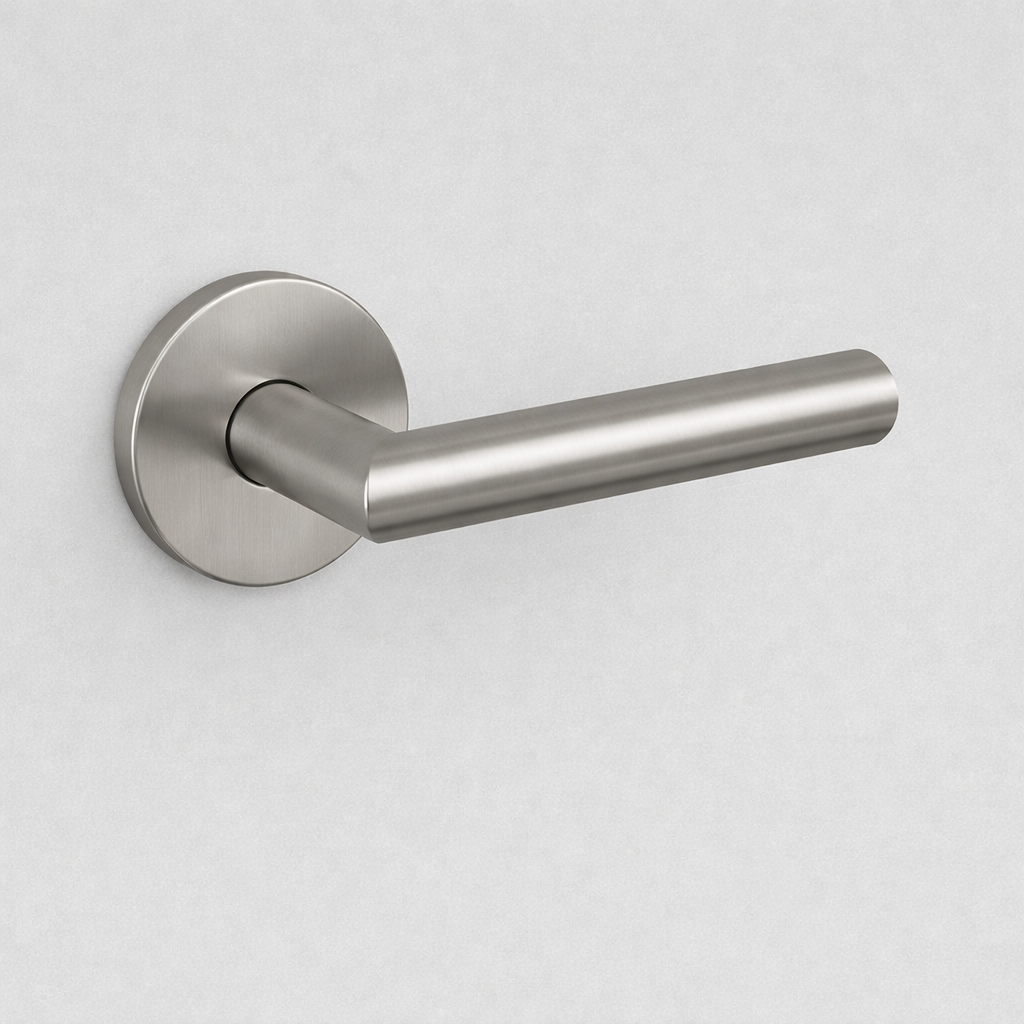

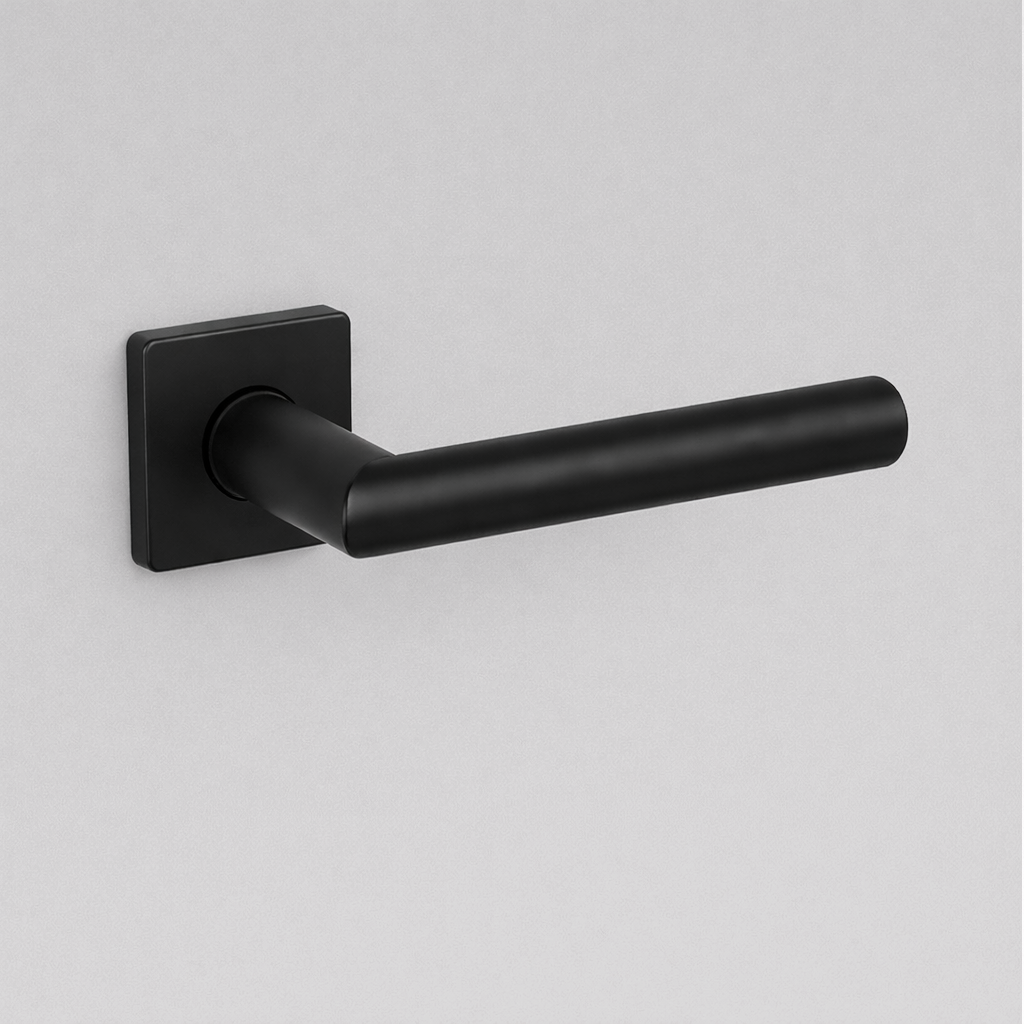

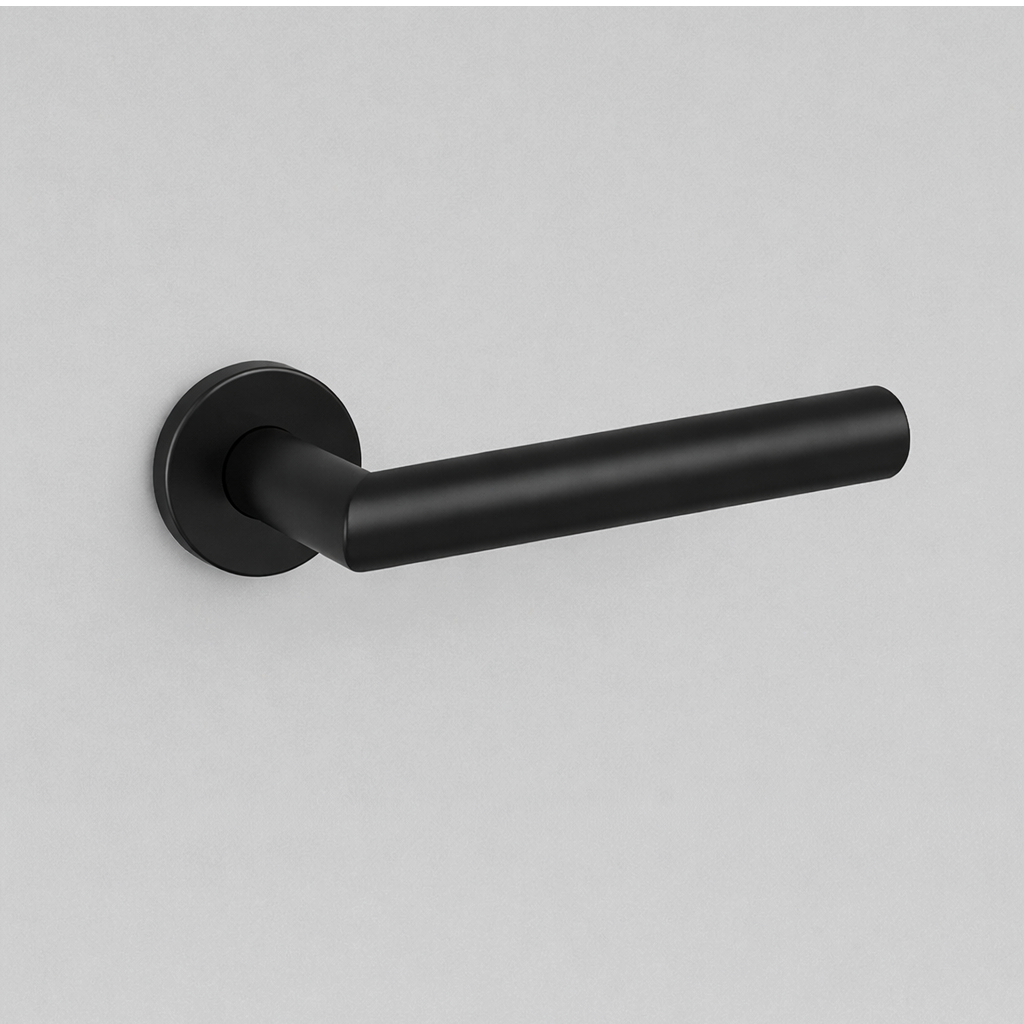

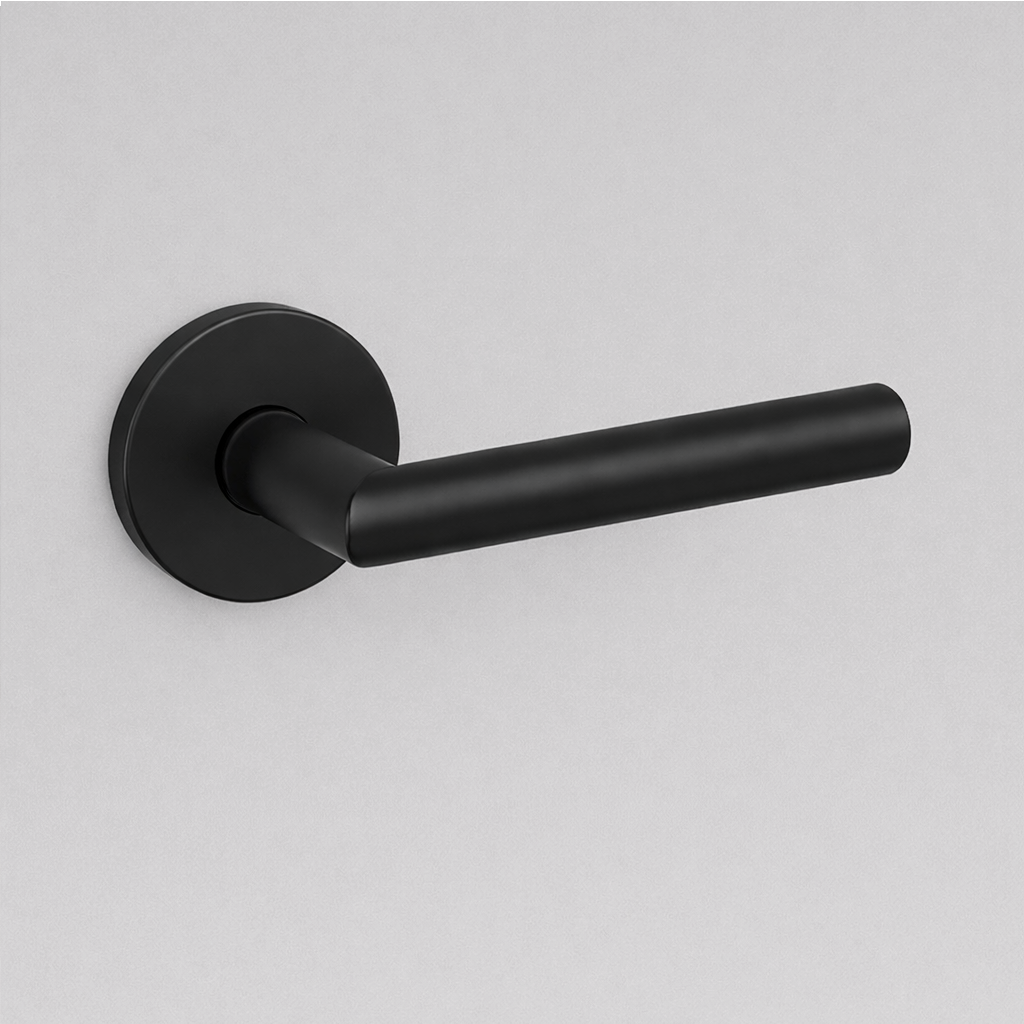

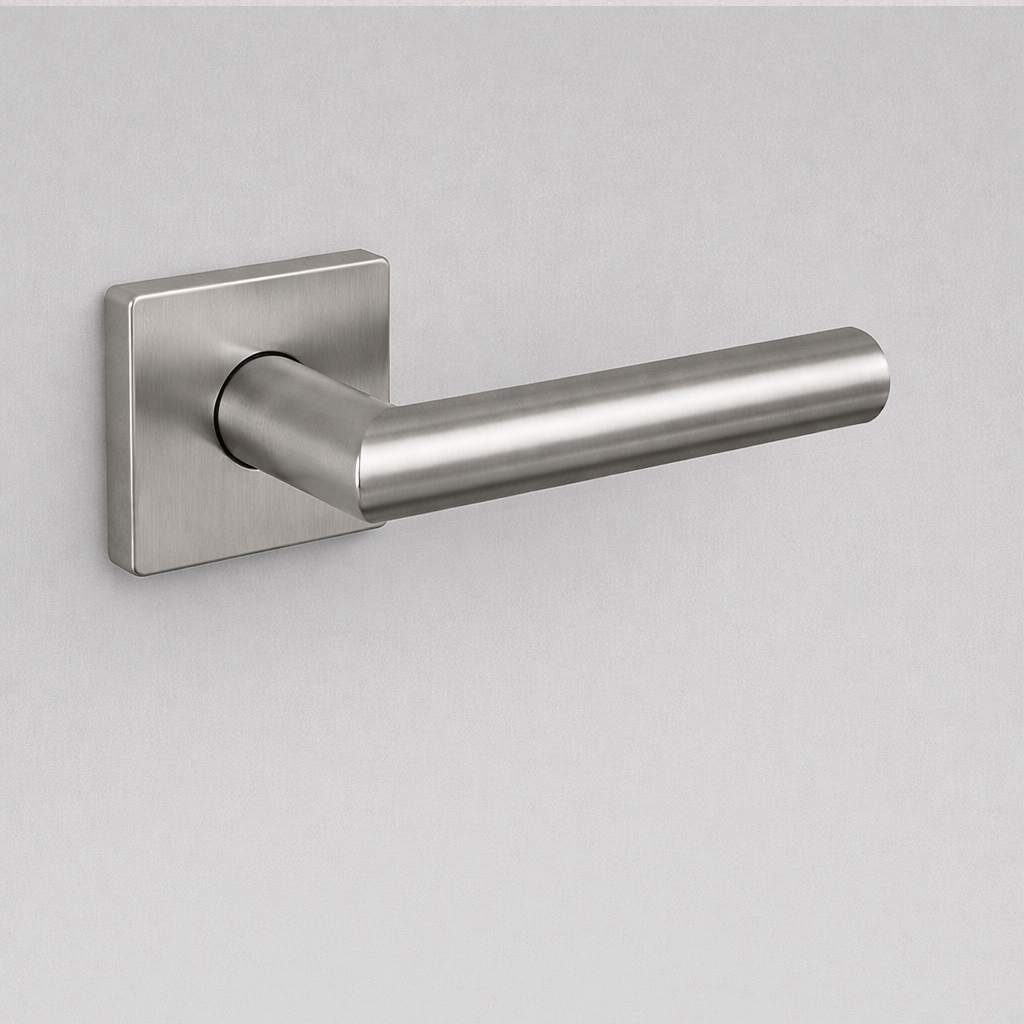

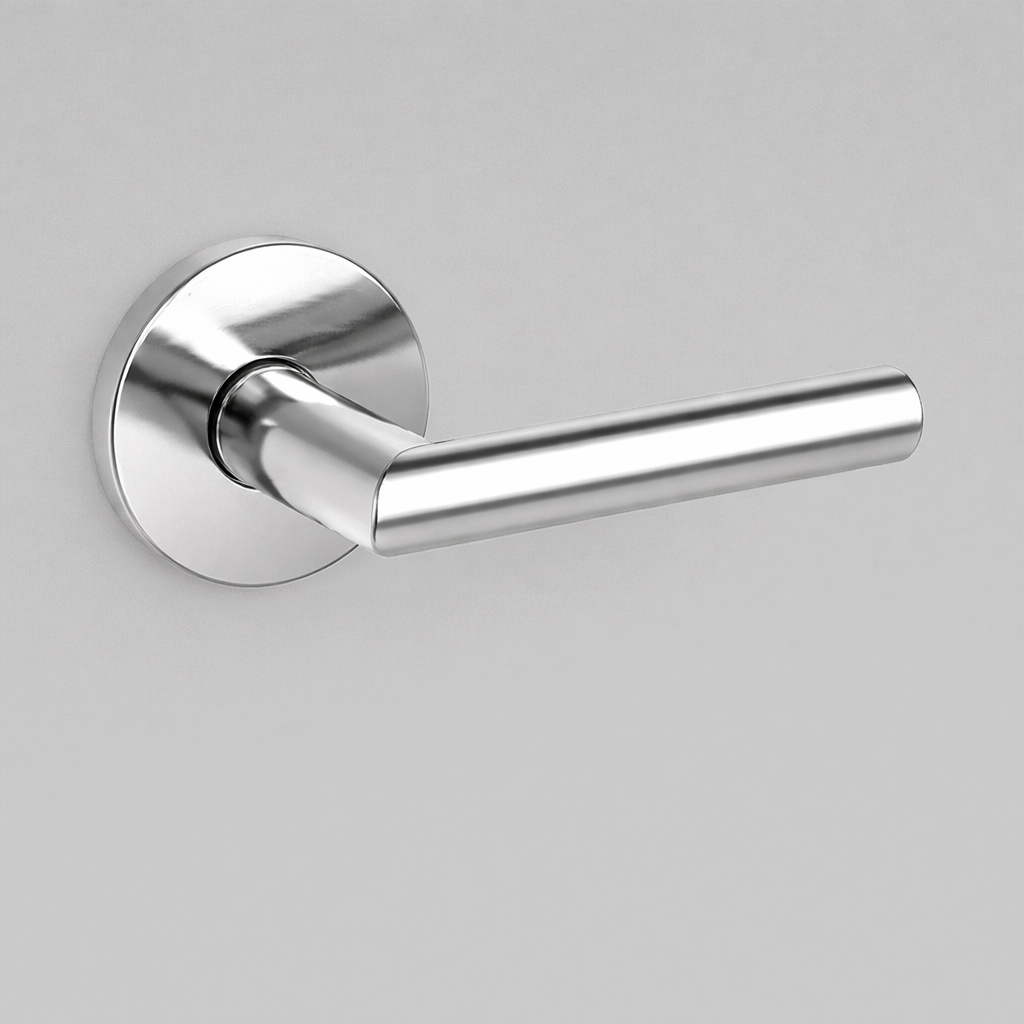

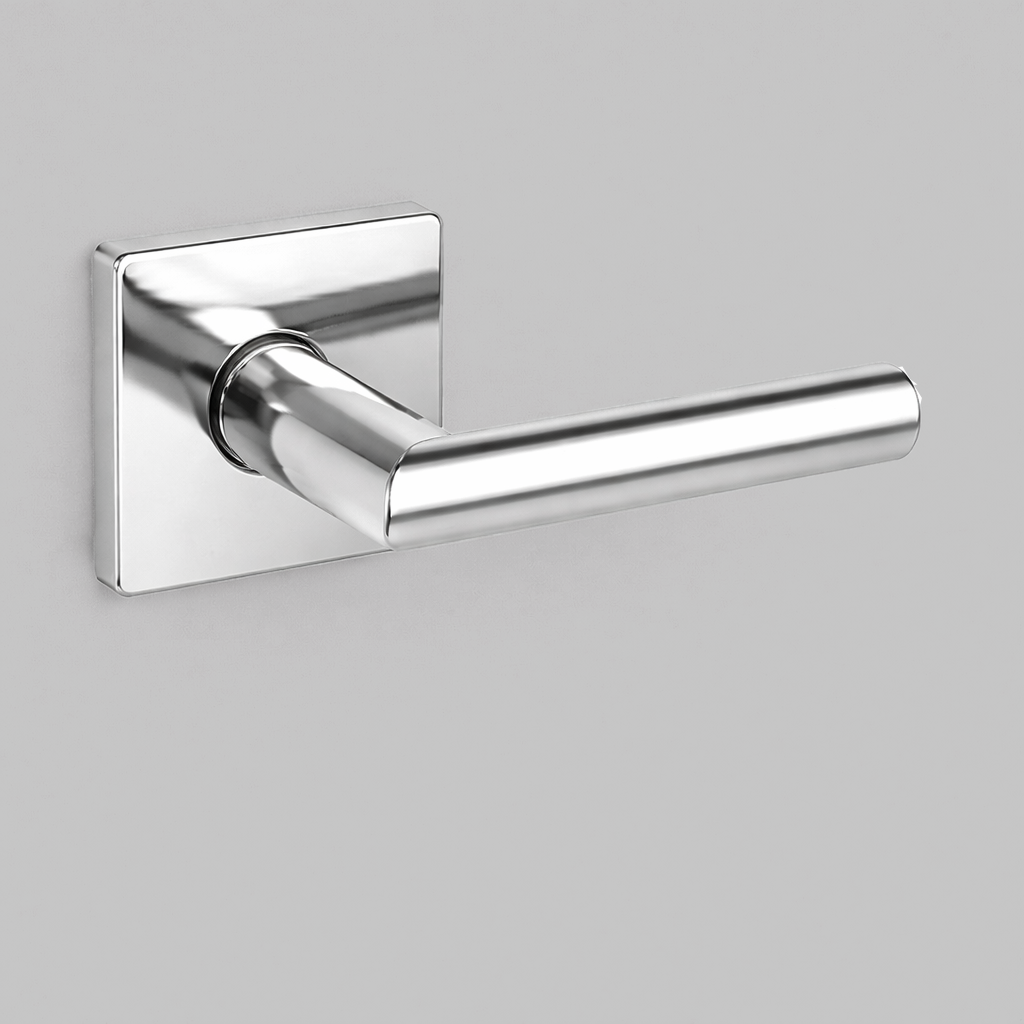

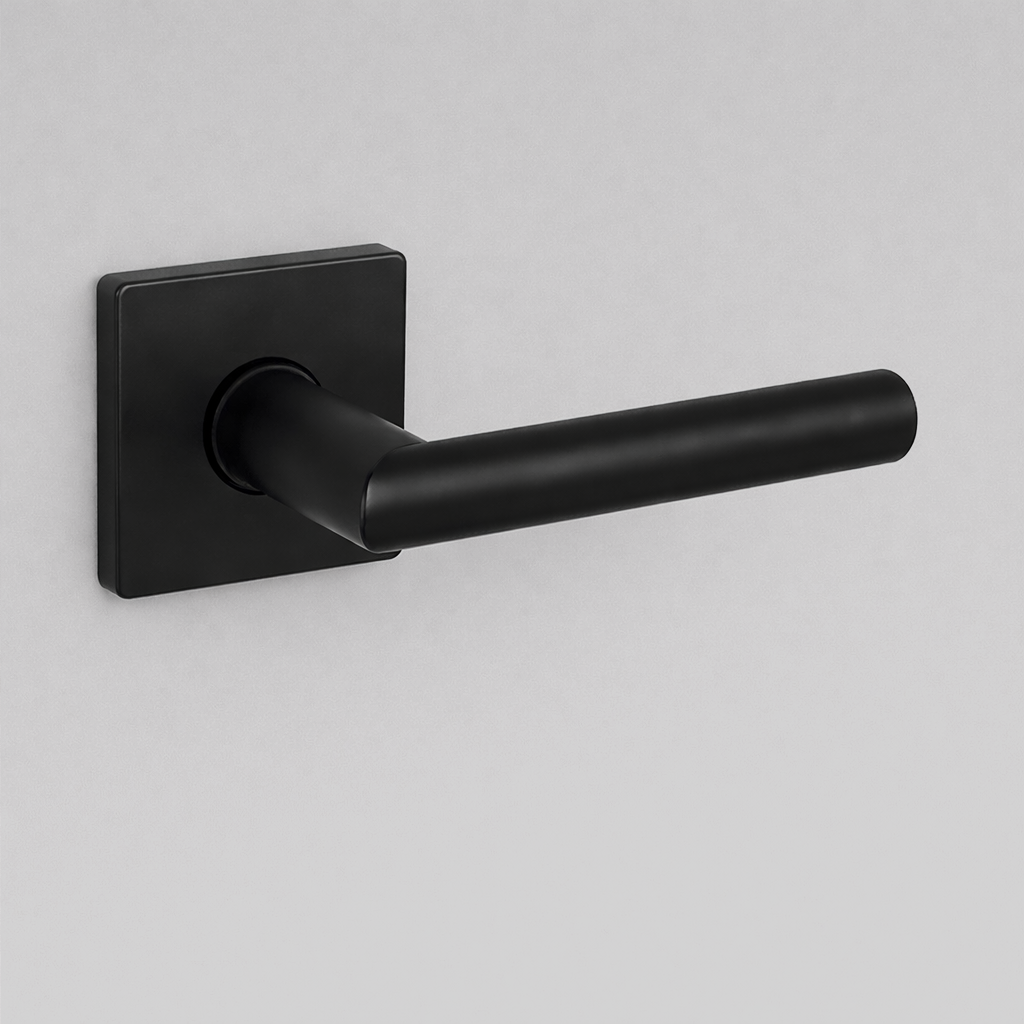

Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

• Door Lever No. 104 Product Sheet (PDF)
• Rose 200 Drawing (PDF)
• Rose 201 Drawing (PDF)
• Rose 203 Drawing (PDF)
• Rose 204 Drawing (PDF)

Sold as a complete tubular latch set — all components required for installation are included. AHI door hardware is compatible with standard pre-bored doors.

Function

Passage — interior doors that latch but do not lock (hallways, closets, pantries).

• Pair of levers
• Tubular latch
• Strike plate

Privacy — doors that lock from one side with a push/pull pin and emergency release (bathrooms, bedrooms).

• Pair of levers with push/pull pin lock
• Privacy bolt
• Strike plate

Dummy — decorative or push/pull applications (closets, pantry doors). Available as half or full set:

• Half Dummy — a single lever installed on one side of the door, surface-mounted using a dummy mount. Non-operating. Two half dummy sets may be combined to create a double dummy configuration on doors without a bore hole.
• Full Dummy — a pair of levers installed on both sides for a symmetrical look. Through-mounted using the existing bore hole. Non-operating.

Dummy components included: lever(s) and dummy adapter. Compatible with the Sugatsune Magnetic Latch.

Door compatibility: Installs into standard pre-bored doors using a tubular latch.
