AHI 110 Door Lever Set — Single Dummy

The AHI 157 Single Dummy Lever by AHI is a solid stainless steel door lever from the Elite collection, configured for single dummy function — a decorative lever mounted on one side of the door with no operating latch. Ideal for closet doors and other openings where appearance matters but no latching is required.

The rounded pull surface with an angular mount expresses utilitarian minimalism suited to residential and commercial interiors. Optional magnetic closures are sold separately — see the Sugatsune Magnetic Latch.

AHI dummy levers are surface-mounted. The dummy plate is secured to the door using two concealed screws, and the rose and lever install over the plate for a clean, seamless finish.

Note: This product listing handle references model 110, but the body content and all product downloads reference model 157. Please verify.

• Lever Dimensions: L 132 mm (5.2") × W 23 mm (0.87")
• Door Thickness: 1 3/8" – 2"
• Rose Style:

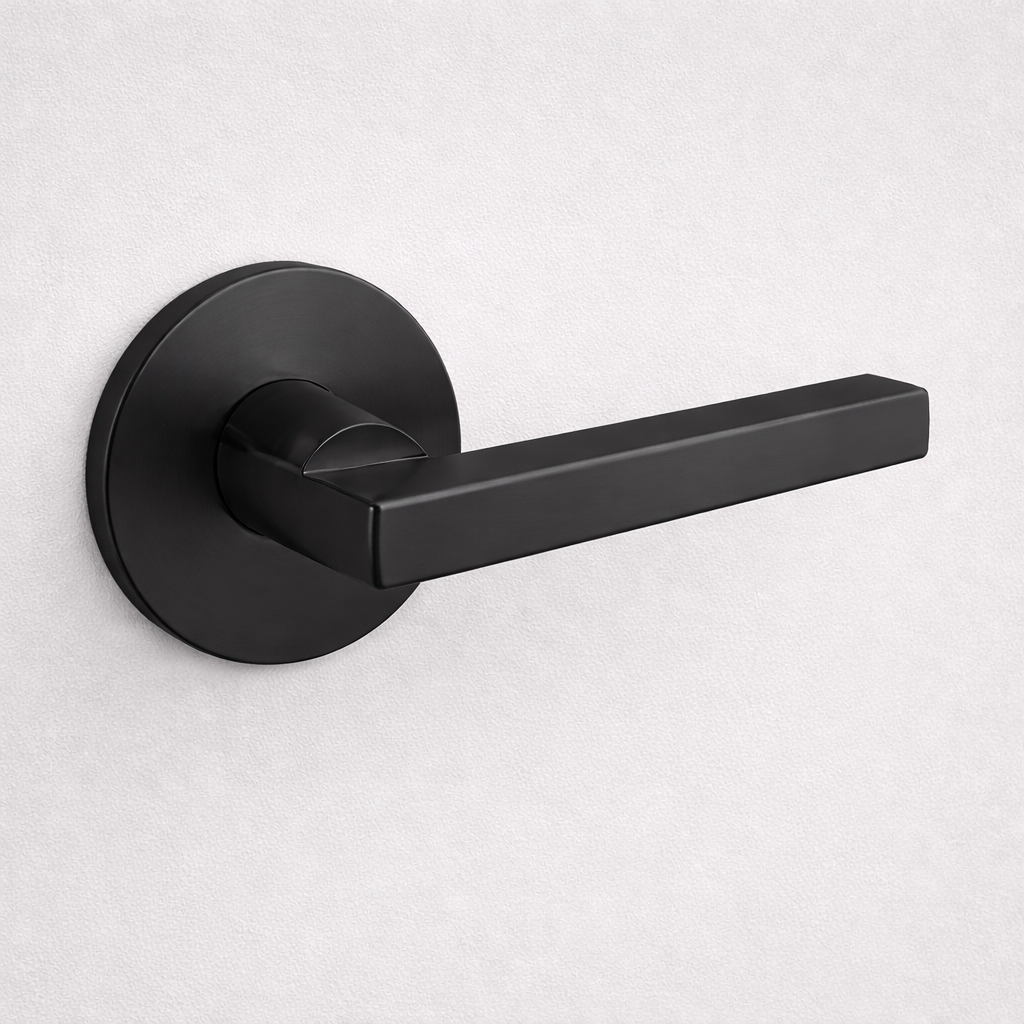

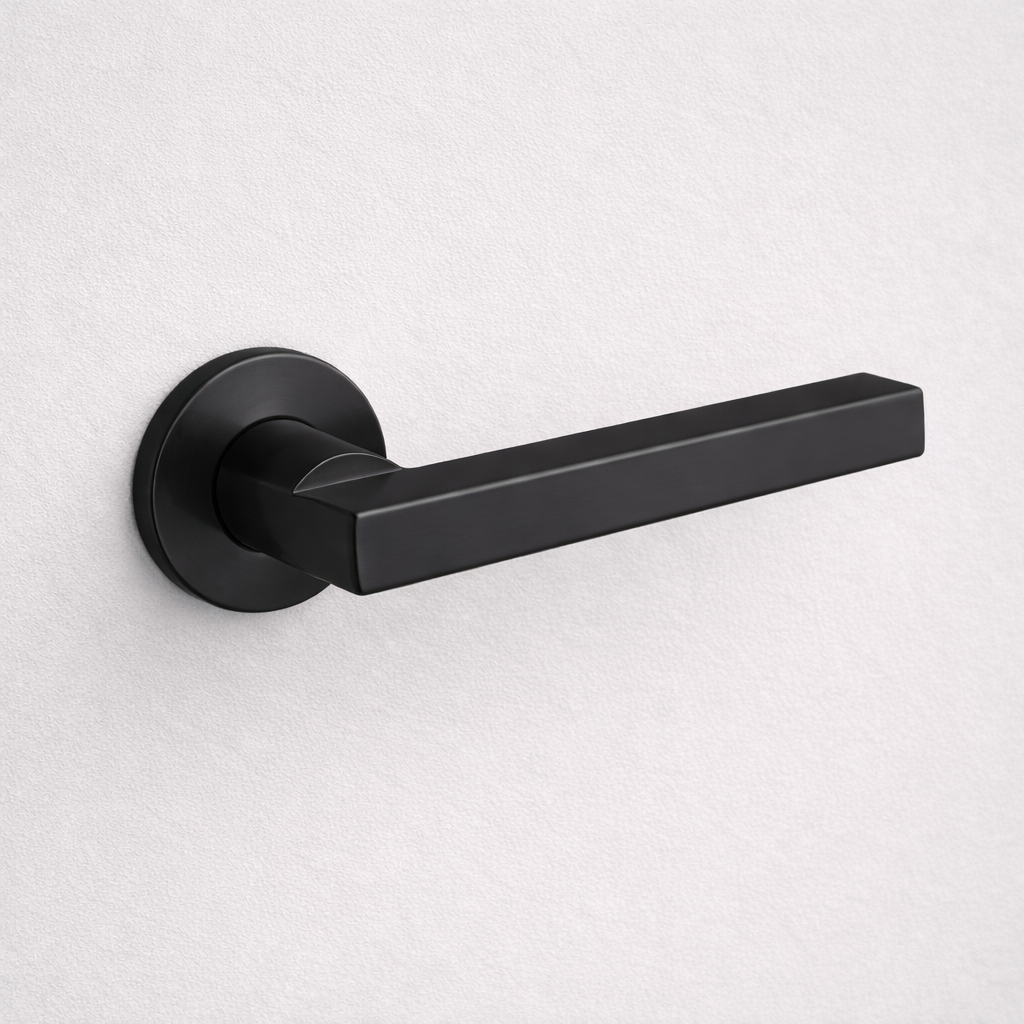

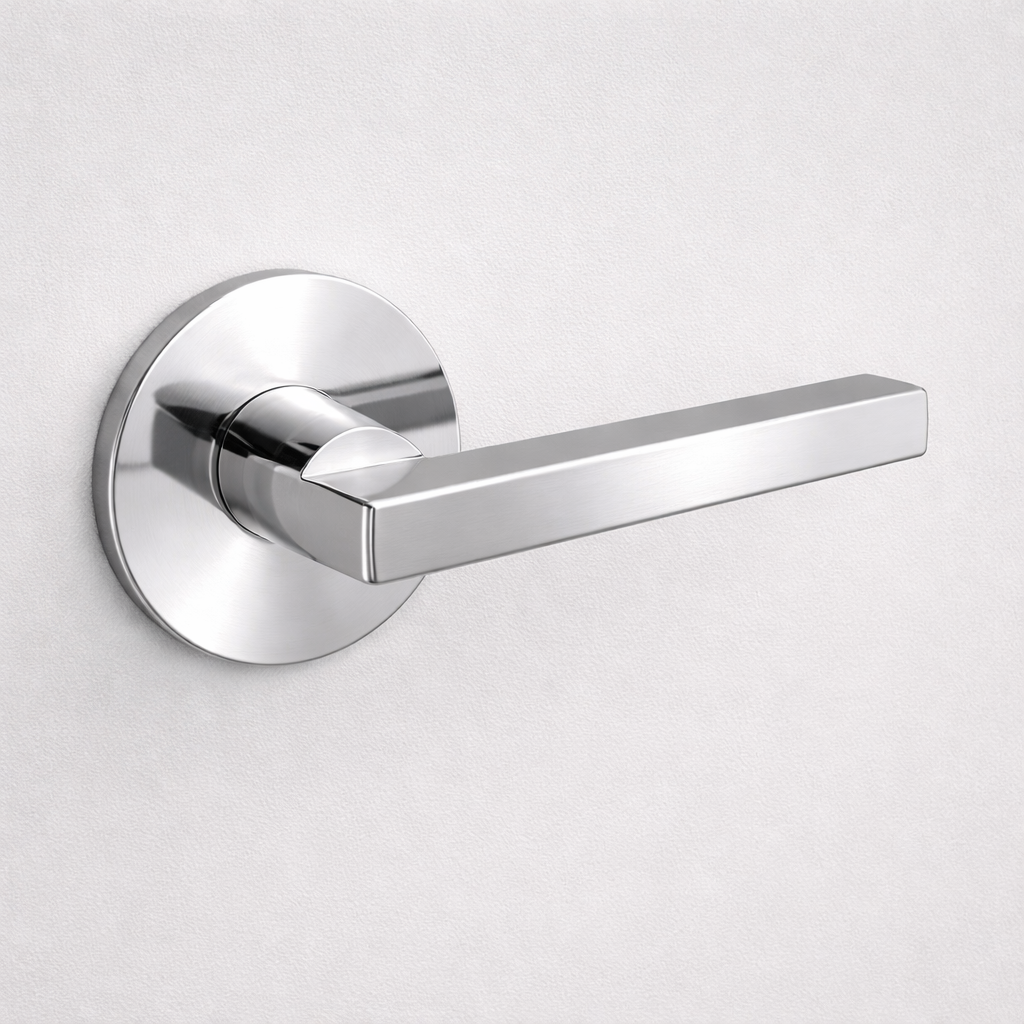

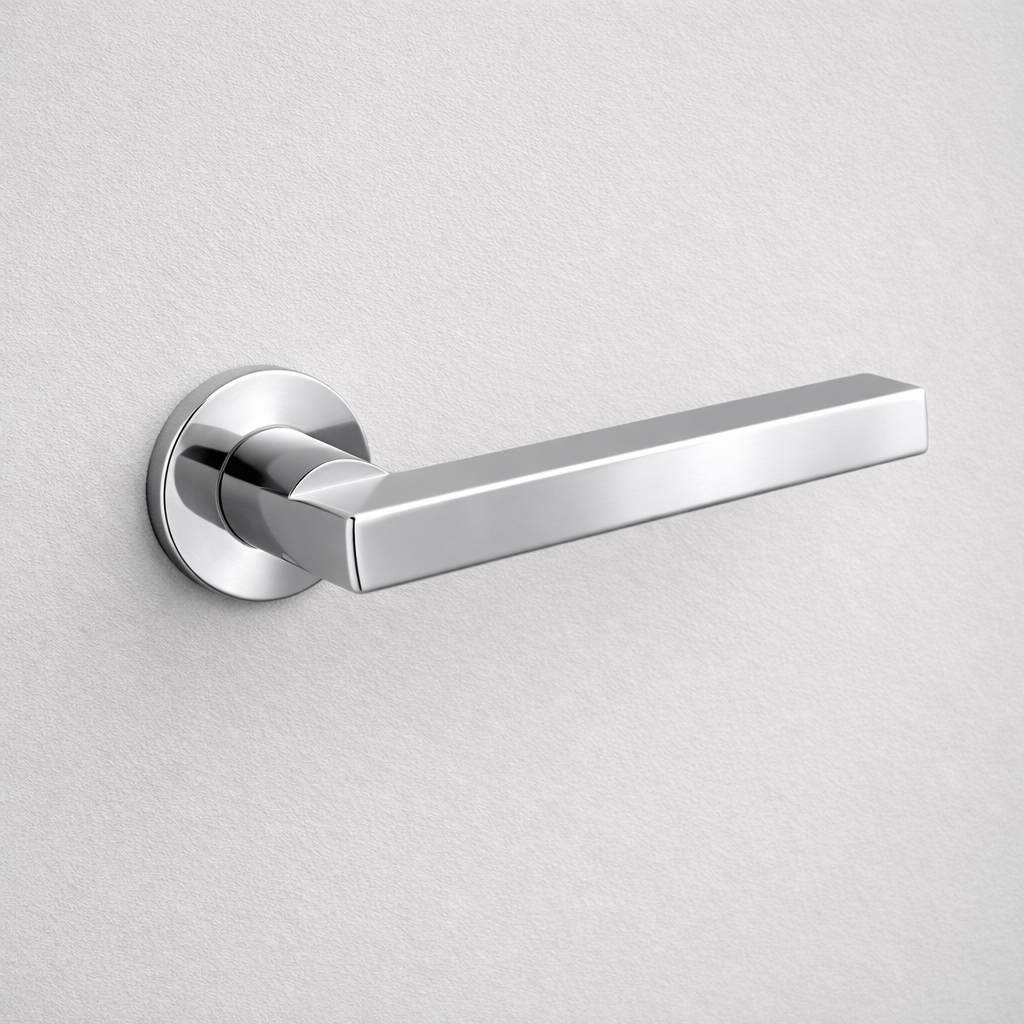

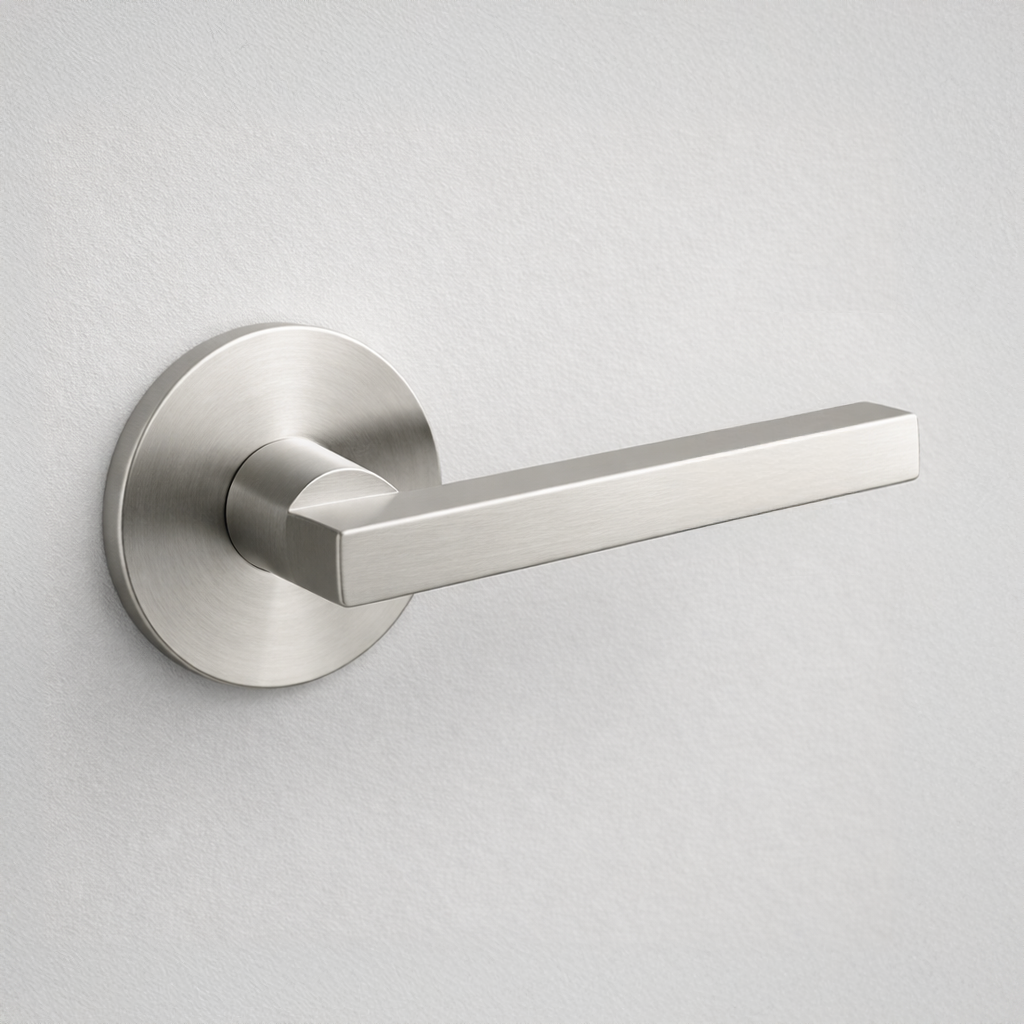

  • Circle SM (AHI Rose 200): Ø 52 mm (2 1/16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Circle LG (AHI Rose 201): Ø 62 mm (2.44") × D 10 mm (0.3") — fits Ø 53.97 mm (2.12") bore hole

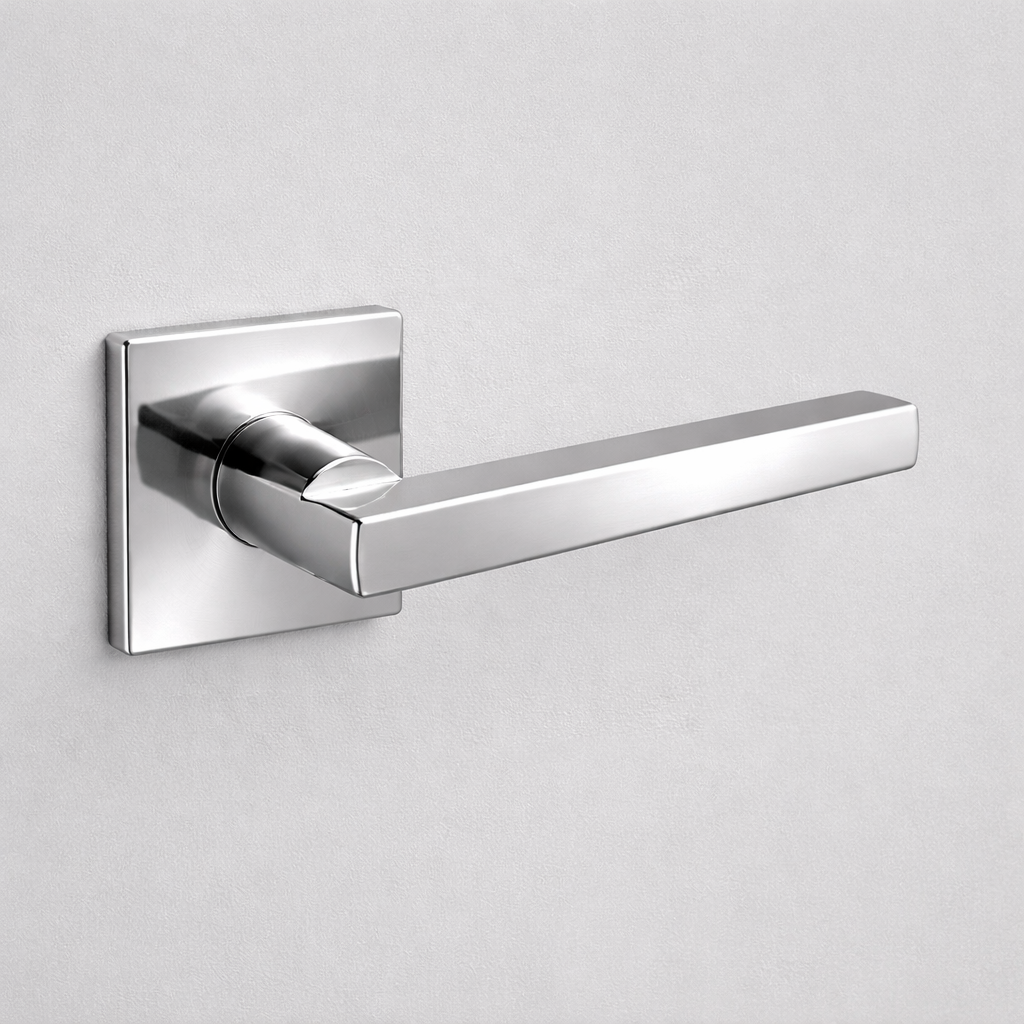

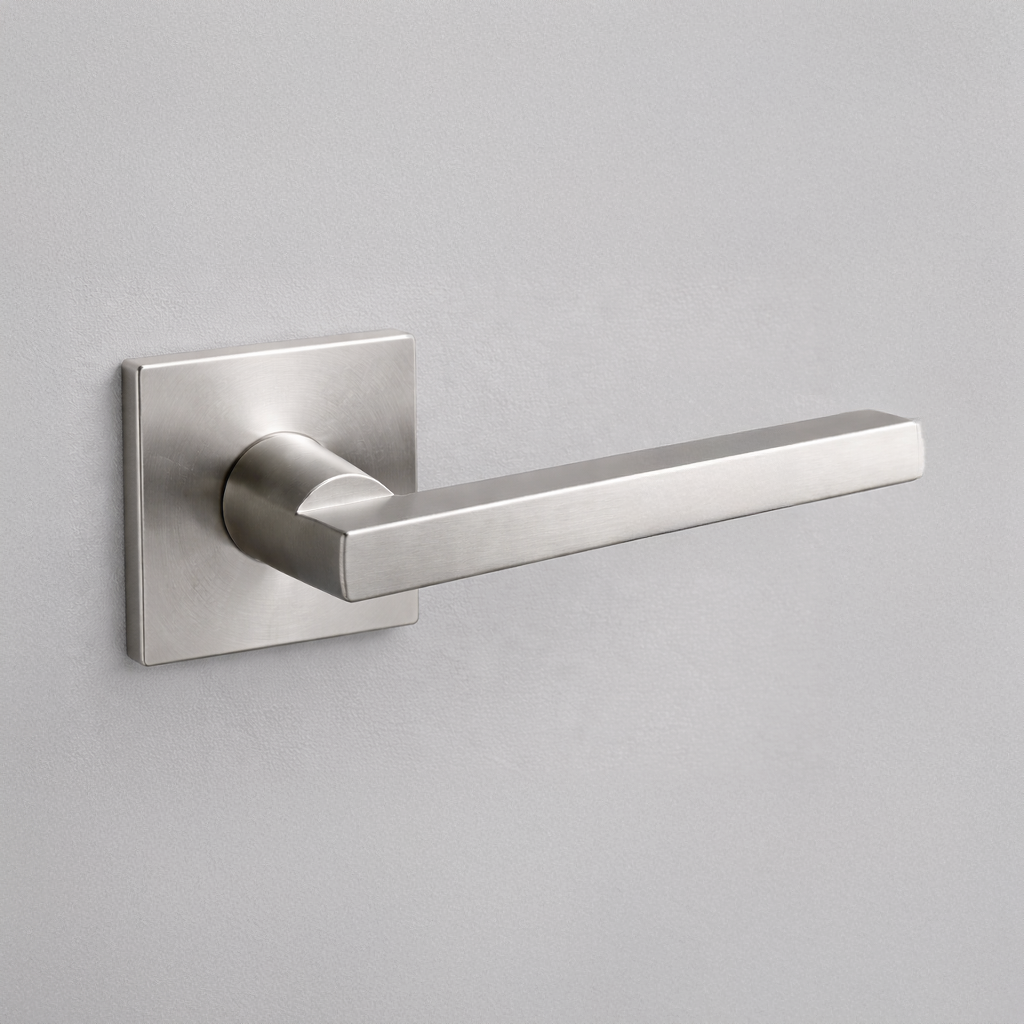

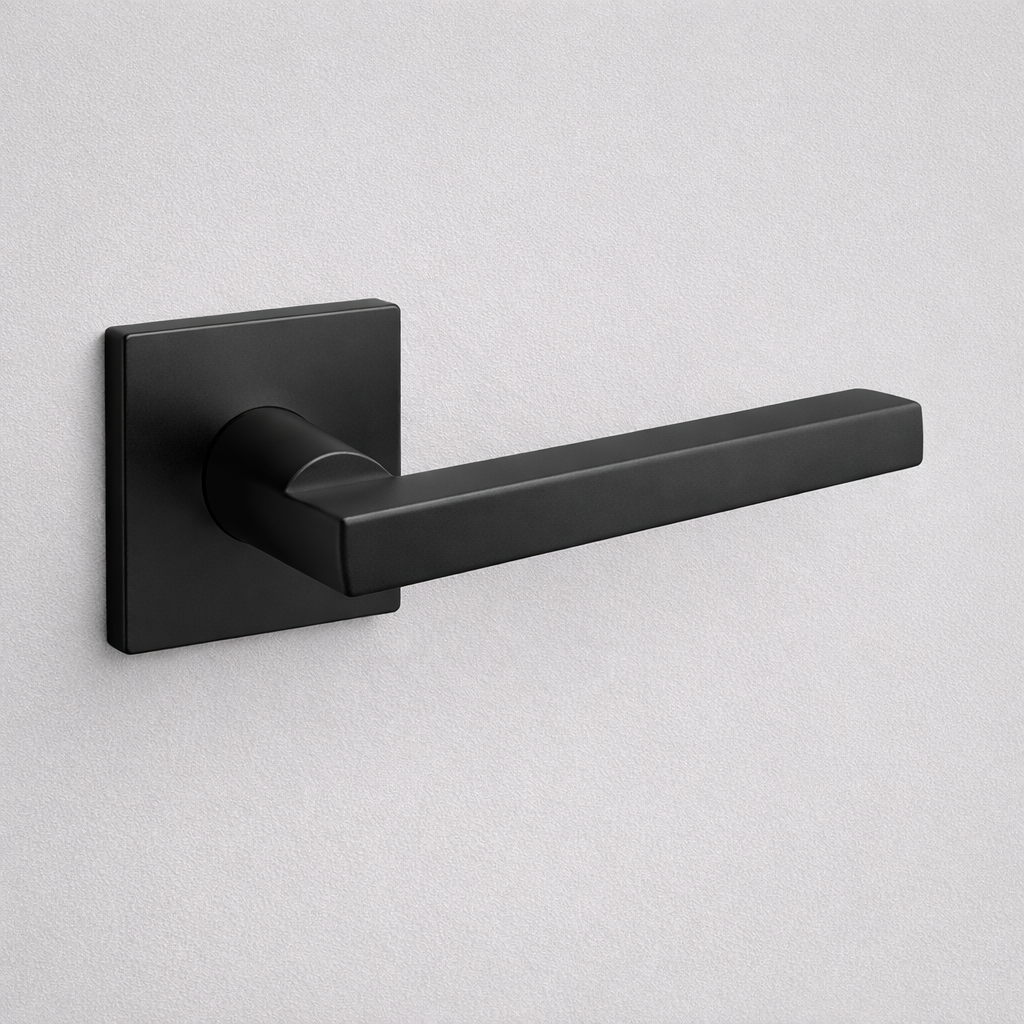

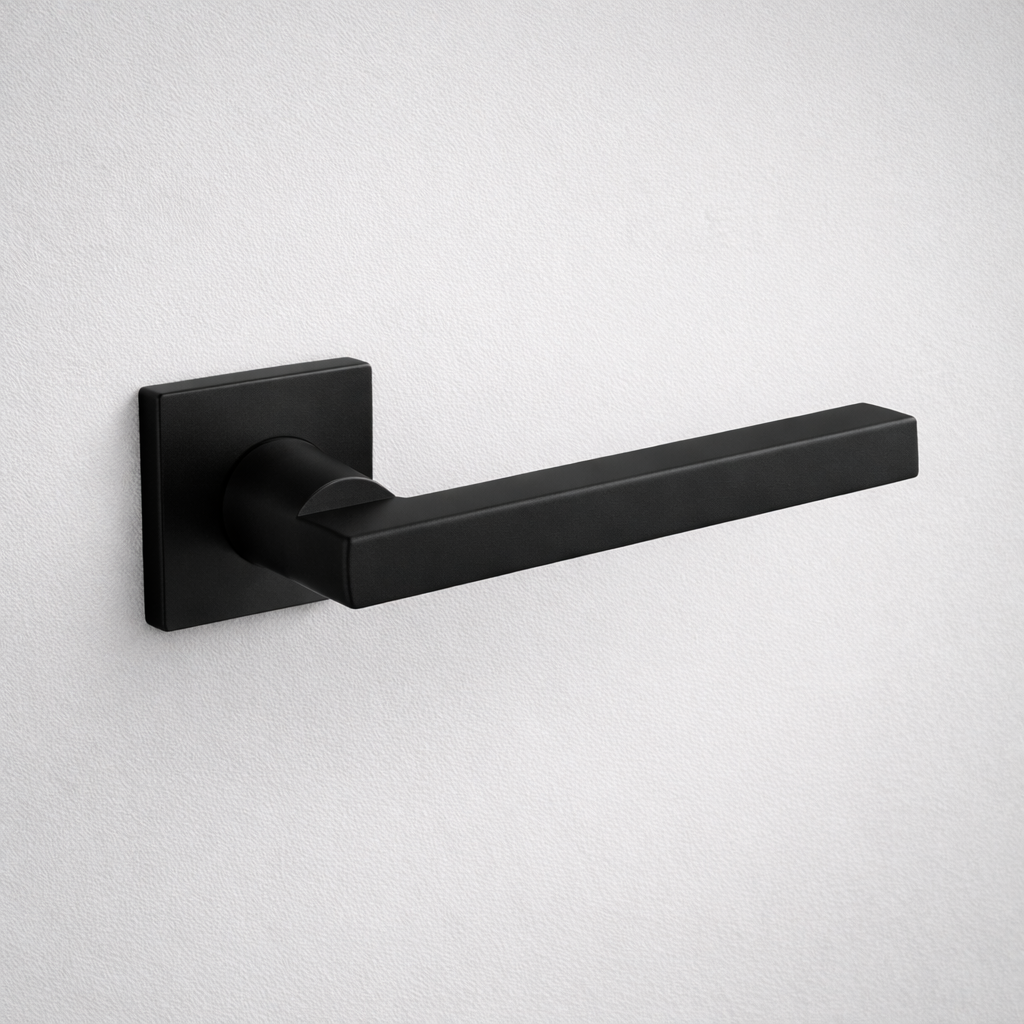

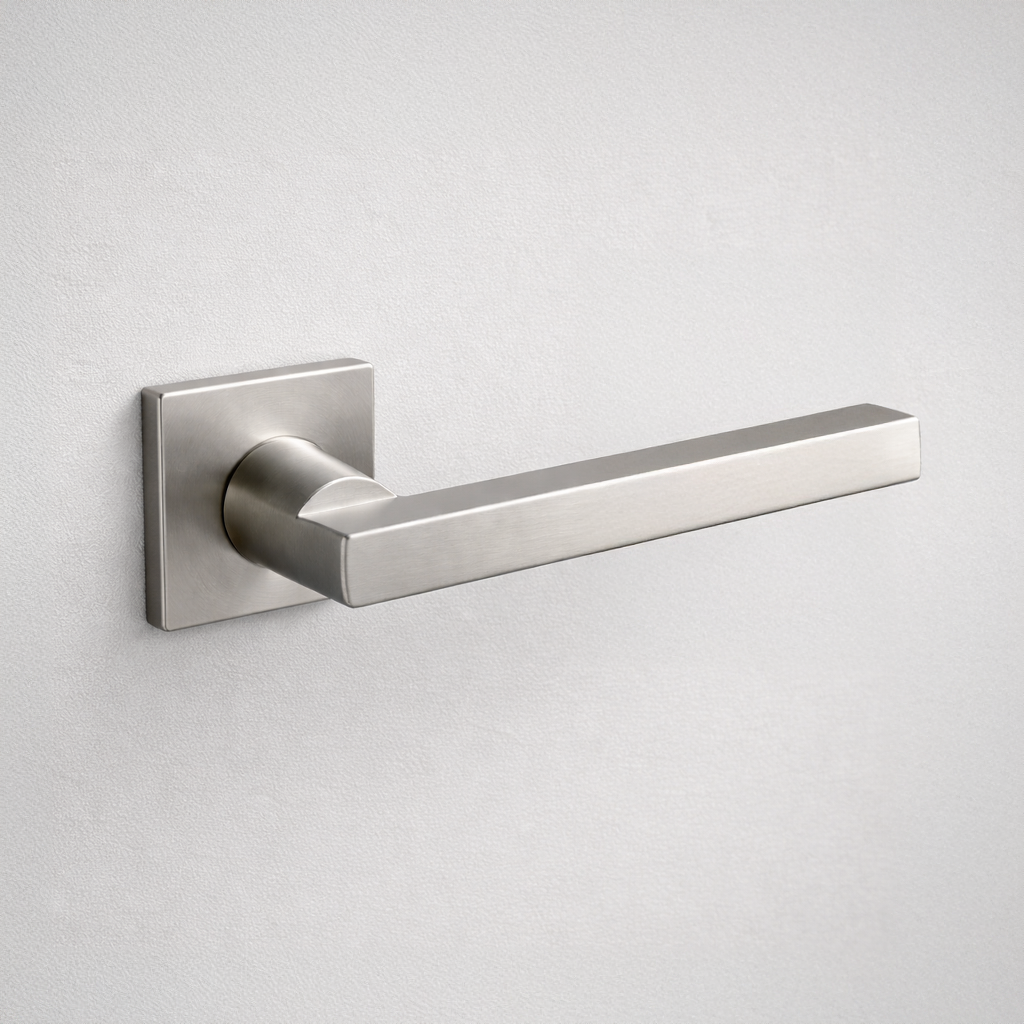

  • Square SM (AHI Rose 203): 55 mm × 55 mm (2.16") × D 11 mm (0.4") — fits Ø 19 mm (0.75") bore hole
  • Square LG (AHI Rose 204): 64 mm × 64 mm (2.5") × D 10 mm (0.5") — fits Ø 53.97 mm (2.12") bore hole

Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Casson is not responsible for damages resulting from improper installation.

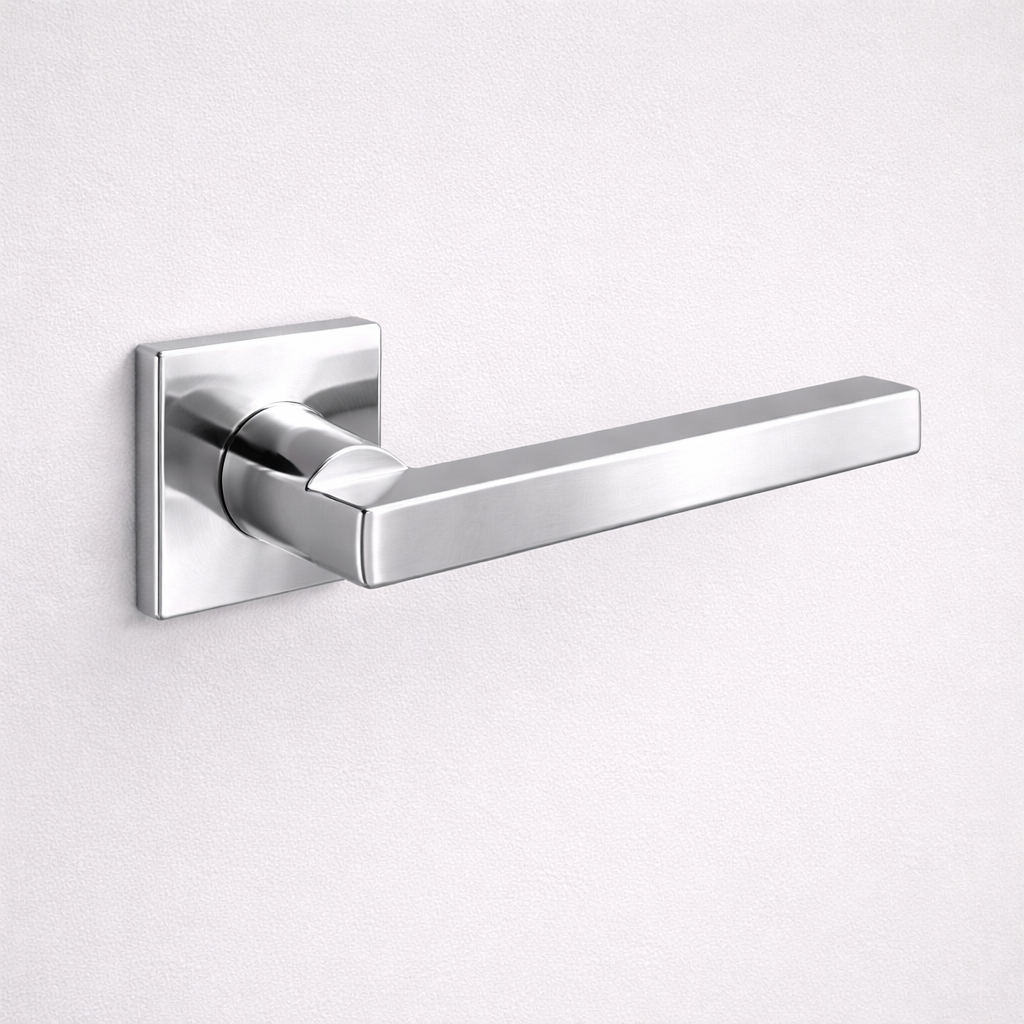

Solid stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Sheets

• Door Lever No.157 Drawing
• Rose 200
• Rose 201
• Rose 203
• Rose 204

Other

• Door Lever No.157 Product Sheet

Sold as a complete tubular latch set — all components required for installation are included. AHI door hardware is compatible with standard pre-bored doors.

Function

Passage — interior doors that latch but do not lock (hallways, closets, pantries).

• Pair of levers
• Tubular latch
• Strike plate

Privacy — doors that lock from one side with a push/pull pin and emergency release (bathrooms, bedrooms).

• Pair of levers with push/pull pin lock
• Privacy bolt
• Strike plate

Dummy — decorative or push/pull applications (closets, pantry doors). Available as half or full set:

• Half Dummy — a single lever installed on one side of the door, surface-mounted using a dummy mount. Non-operating. Two half dummy sets may be combined to create a double dummy configuration on doors without a bore hole.
• Full Dummy — a pair of levers installed on both sides for a symmetrical look. Through-mounted using the existing bore hole. Non-operating.

Dummy components included: lever(s) and dummy adapter. Compatible with the Sugatsune Magnetic Latch.

Door compatibility: Installs into standard pre-bored doors using a tubular latch.
