Name: AHI Ball Bearing Hinge
Brand: AHI
SKU: 779-3030-P22-Phoenix
Price: 18.0 CAD
Availability: InStock

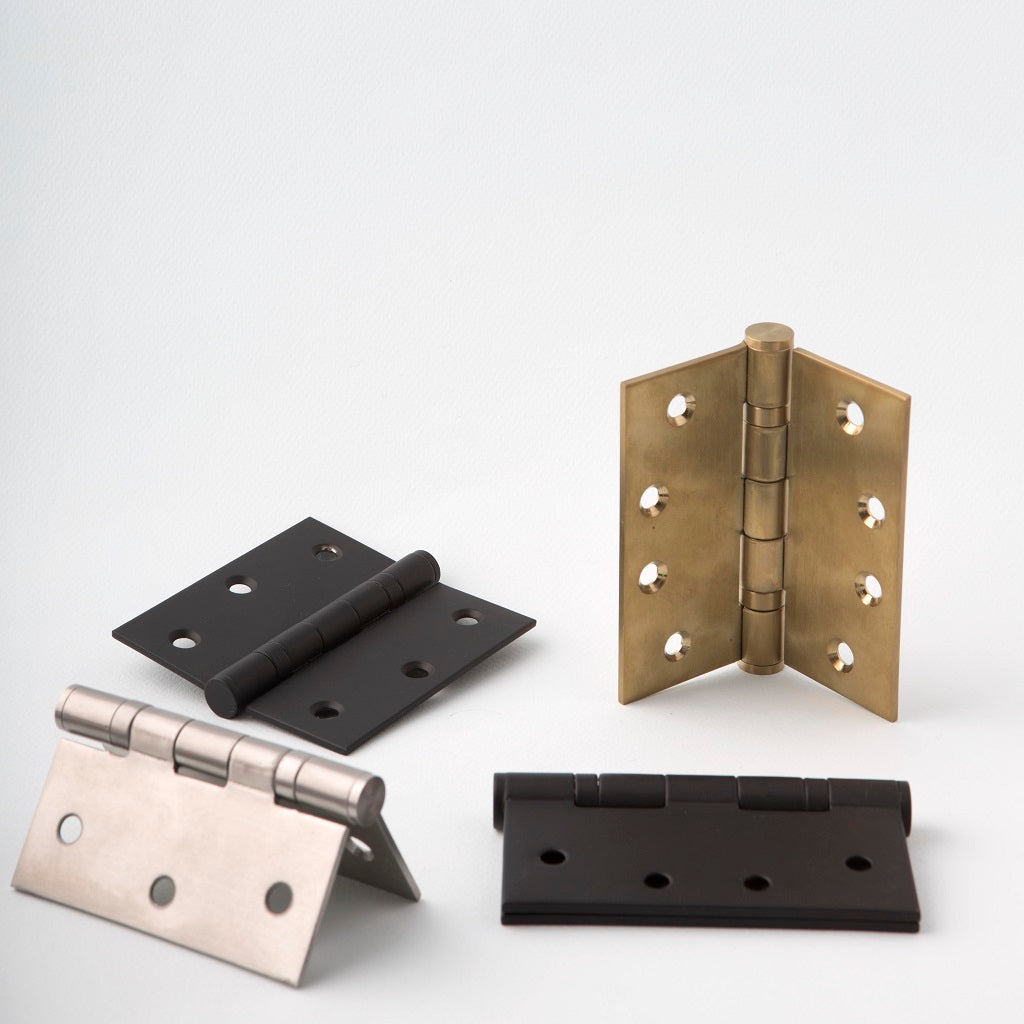

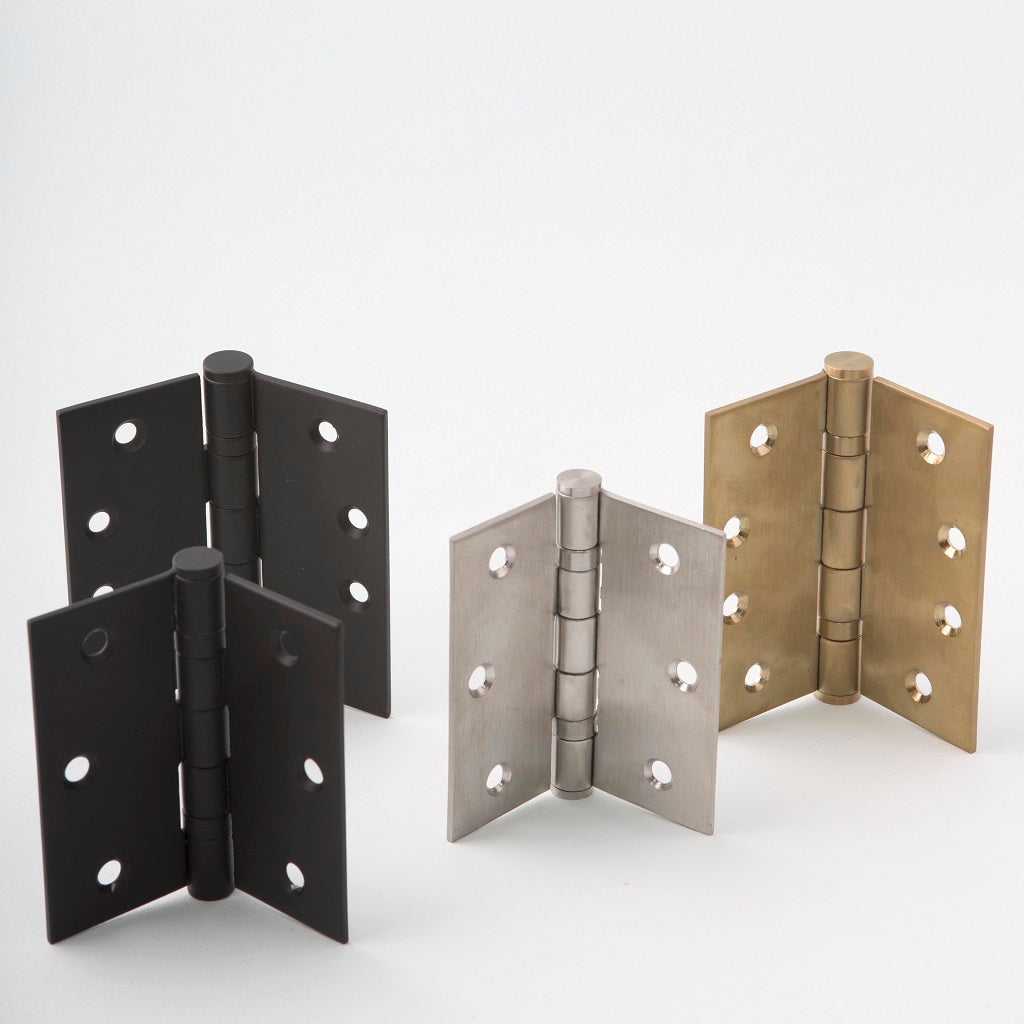

Group of 4 door hinges together in brass, steel, and black finishes. In different positions.

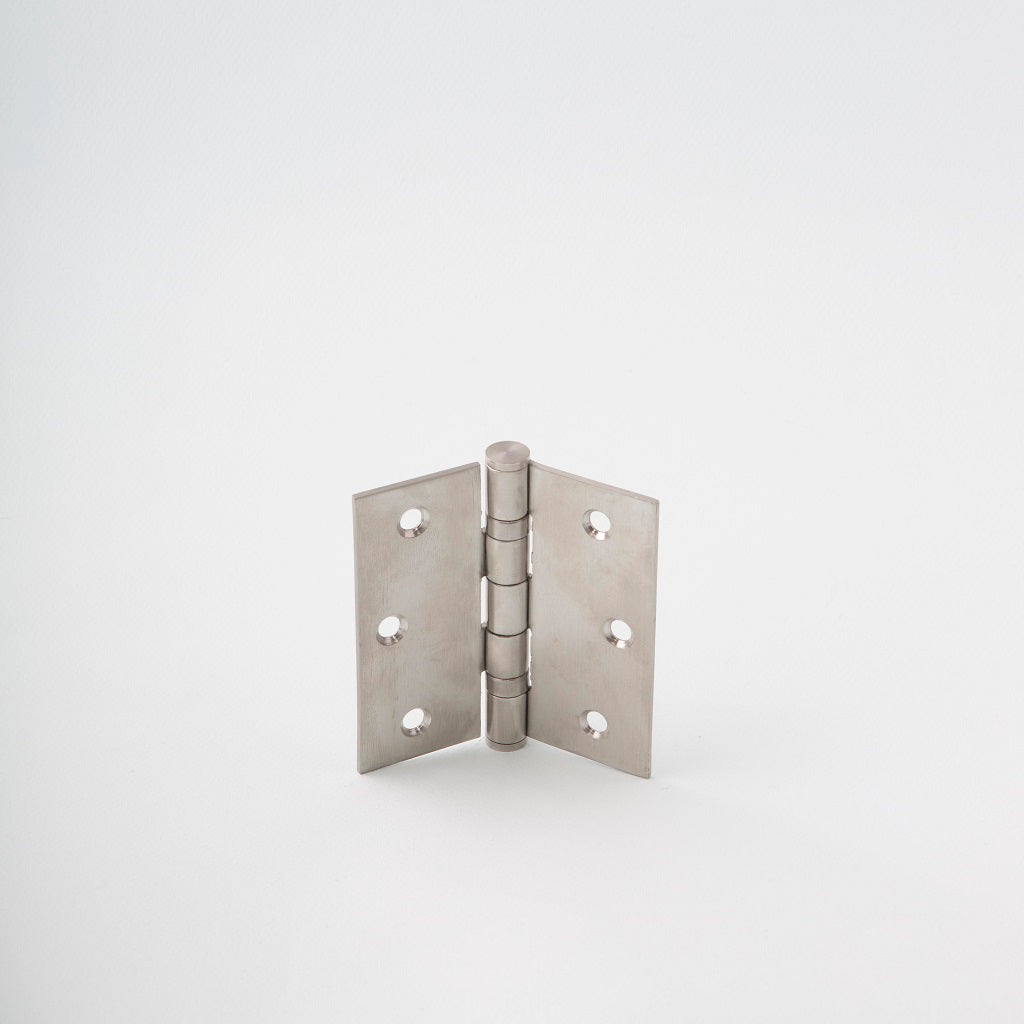

Classically designed stainless steel door hinge.

$18.00

Shipping calculated at checkout.

1. Size: 3030

3030

3535

4040

2. Finish: Matte Black

Matte Black

Satin Stainless Steel

Satin Brass

Quantity

Pairs With

The AHI Ball Bearing Hinge by AHI is a residential and light commercial door hinge available in multiple sizes and finishes. Available in 3000 series (3 screw holes) and 4000 series (4 screw holes). Sold individually.

3000 Series (3 Screw Holes)
3030: L 76 mm (3") x H 3 mm (0.125") x W 76 mm (3")
3535: L 89 mm (3.5") x H 3 mm (0.125") x W 89 mm (3.5")
4000 Series (4 Screw Holes)
4040: L 102 mm (4") x H 3 mm (0.125") x W 102 mm (4")

Stainless steel. Standard finishes: Satin Stainless Steel and Matte Black Stainless Steel.

White Gloss and Satin Brass are custom powder coated (sent to refinisher). Not available in solid brass. See downloads for additional finishes.

AHI Ball Bearing Hinge Spec Sheet (PDF)

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
