Charlie Bar Pull
Installation guidance: due to slight variations in hand-finished pieces, we recommend pre-drilling only after items are received. Learn more
Confirm all dimensions, hole spacing, and door preparation against the actual hardware before drilling. Casson is not responsible for damages resulting from improper installation.
Optional Accessories
Description

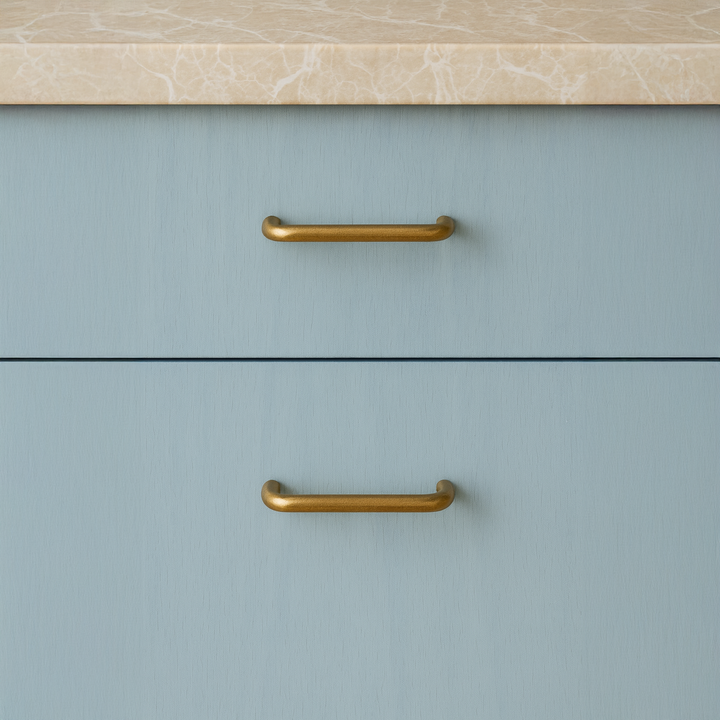

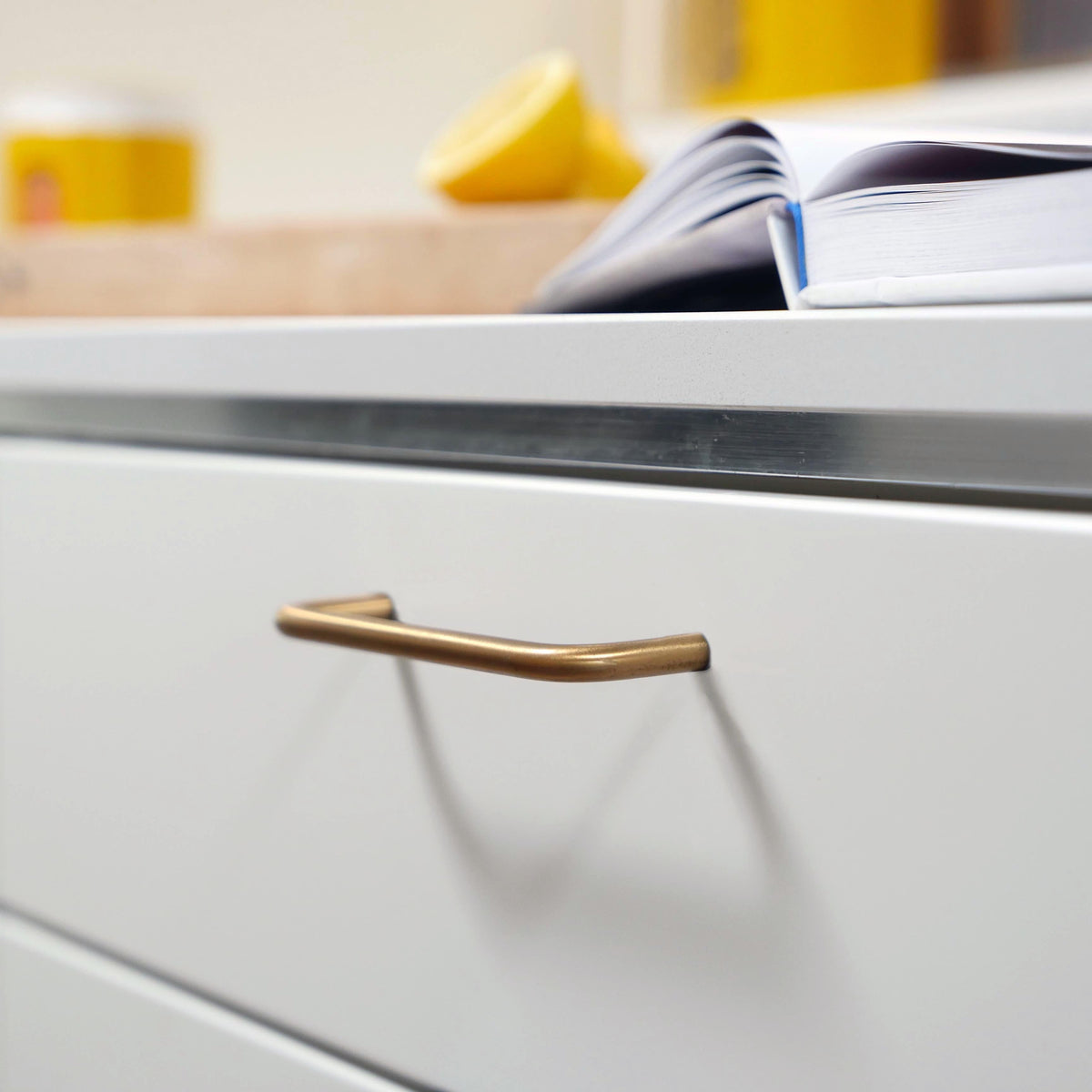

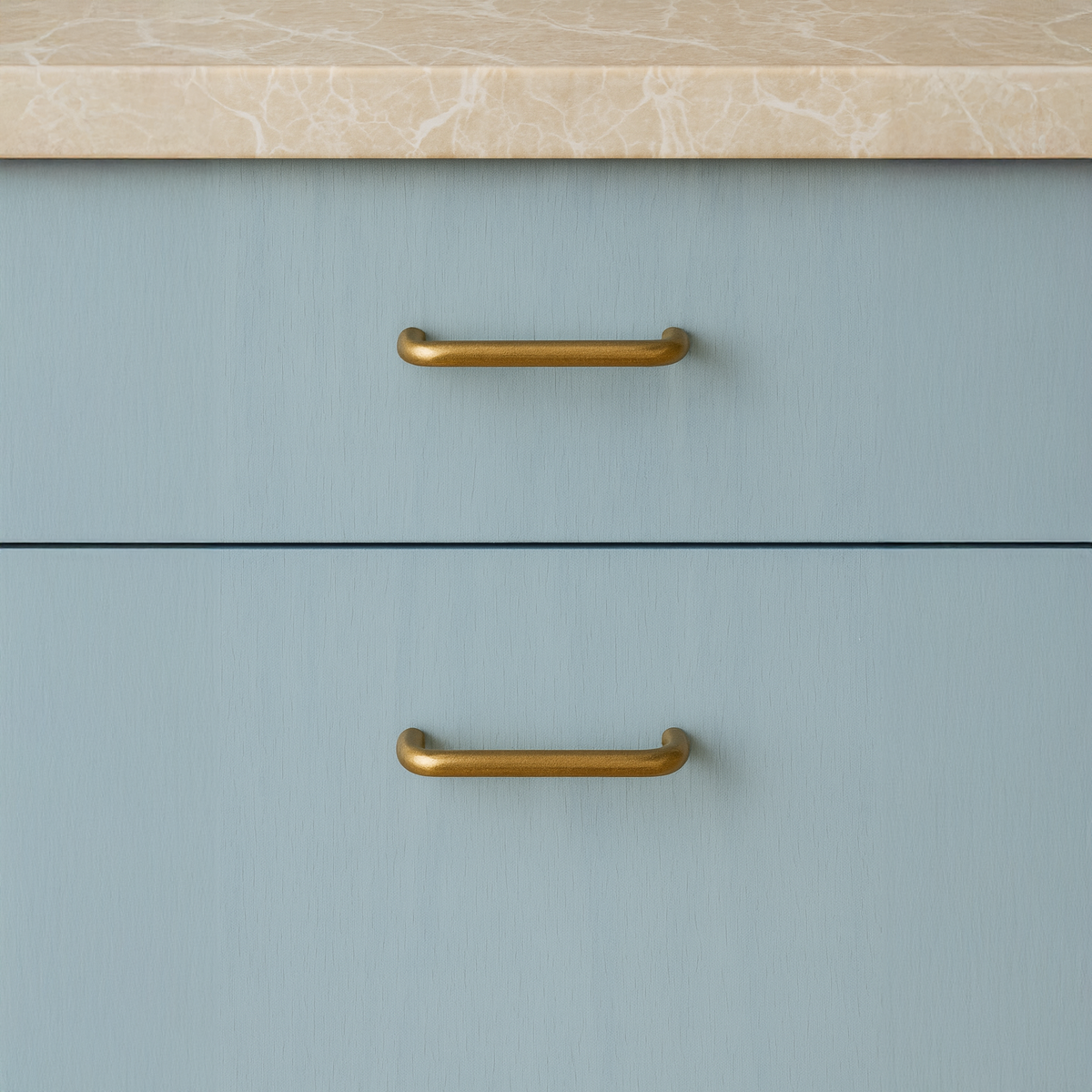

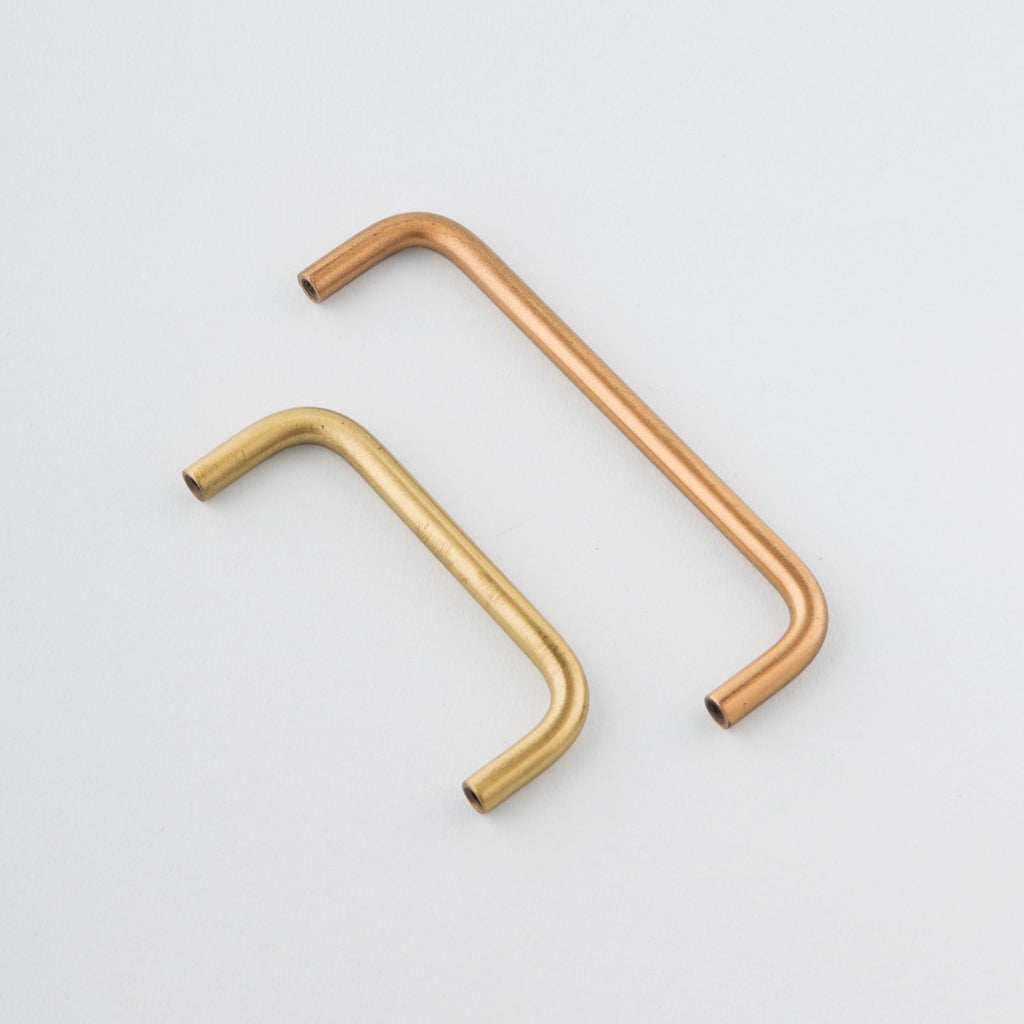

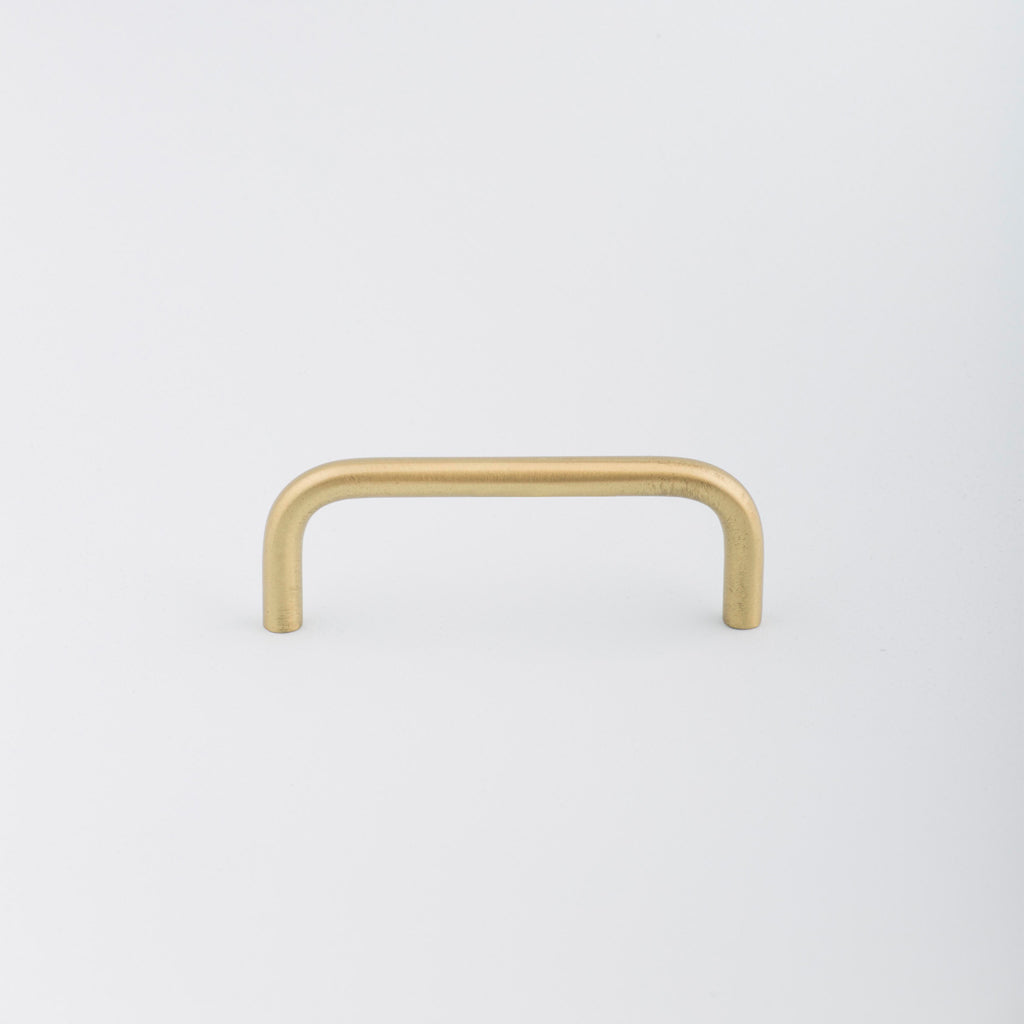

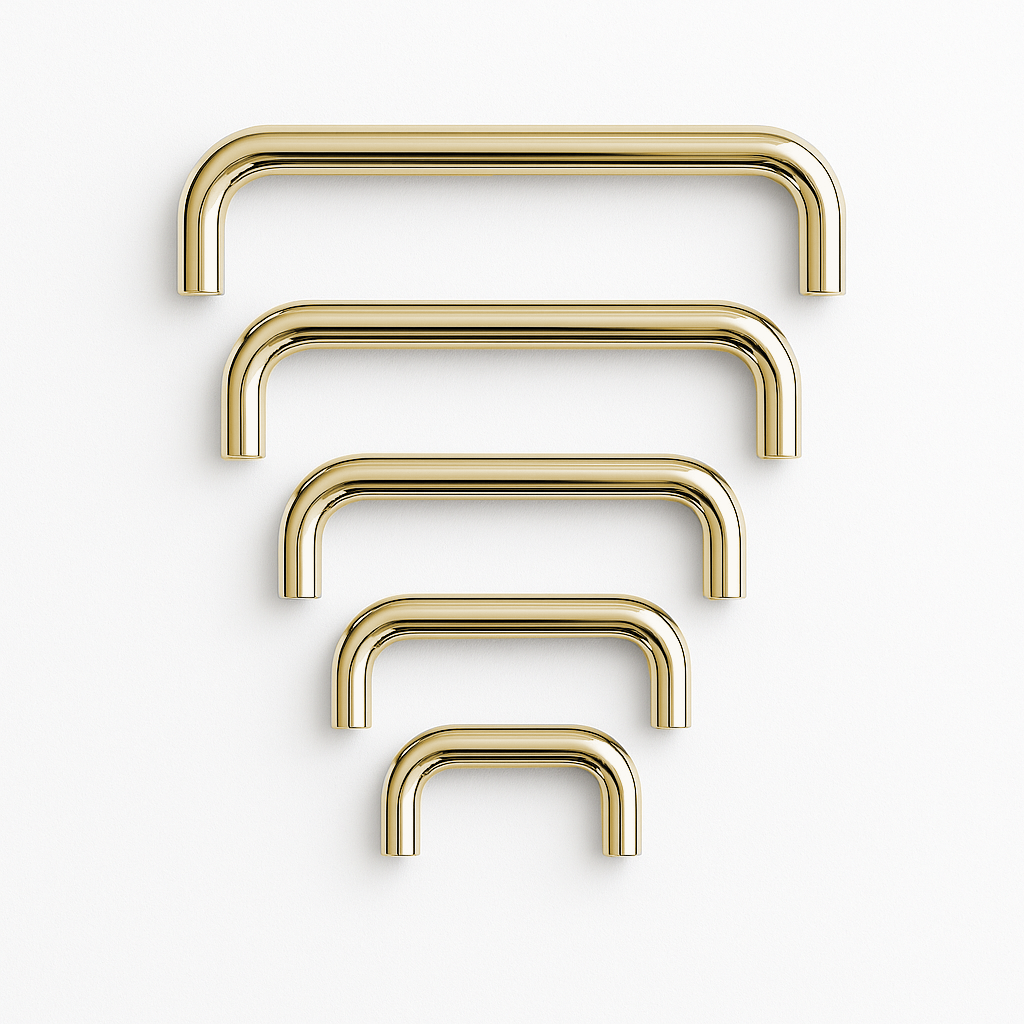

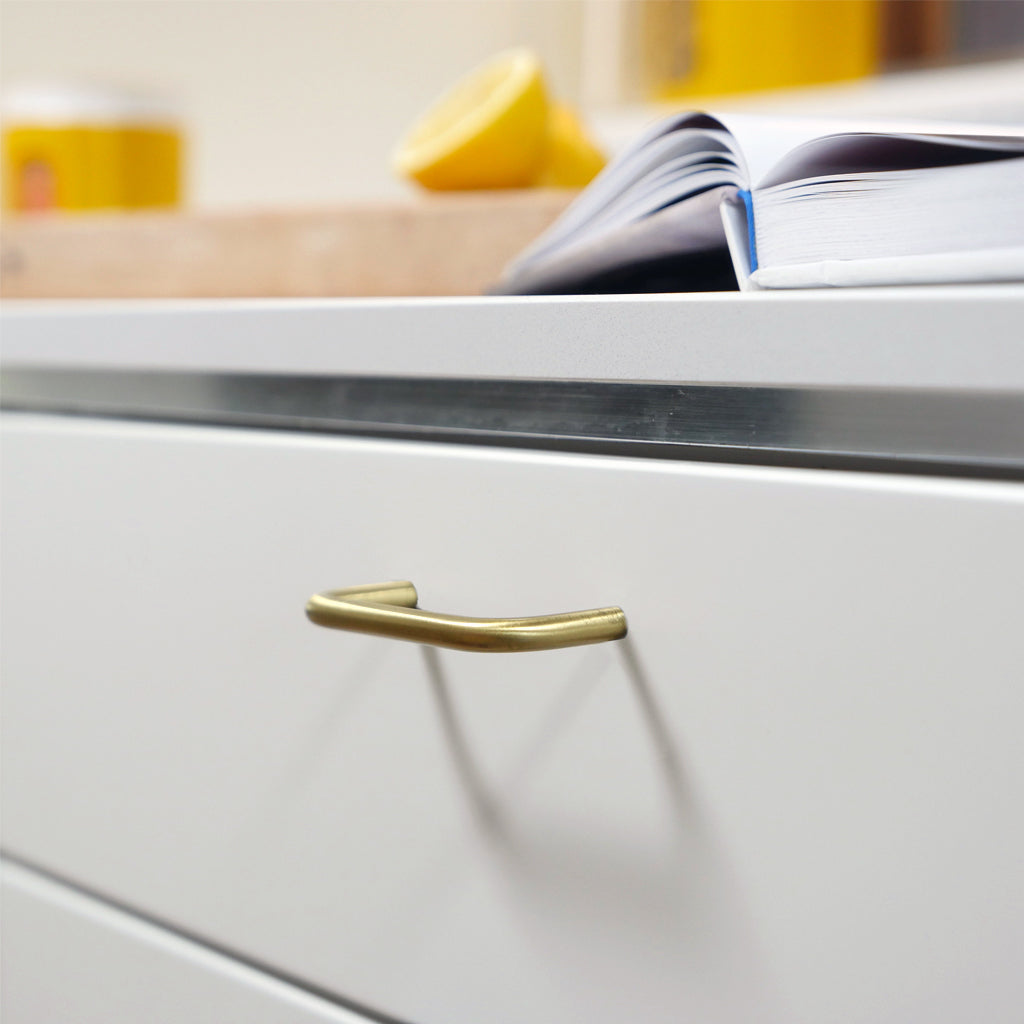

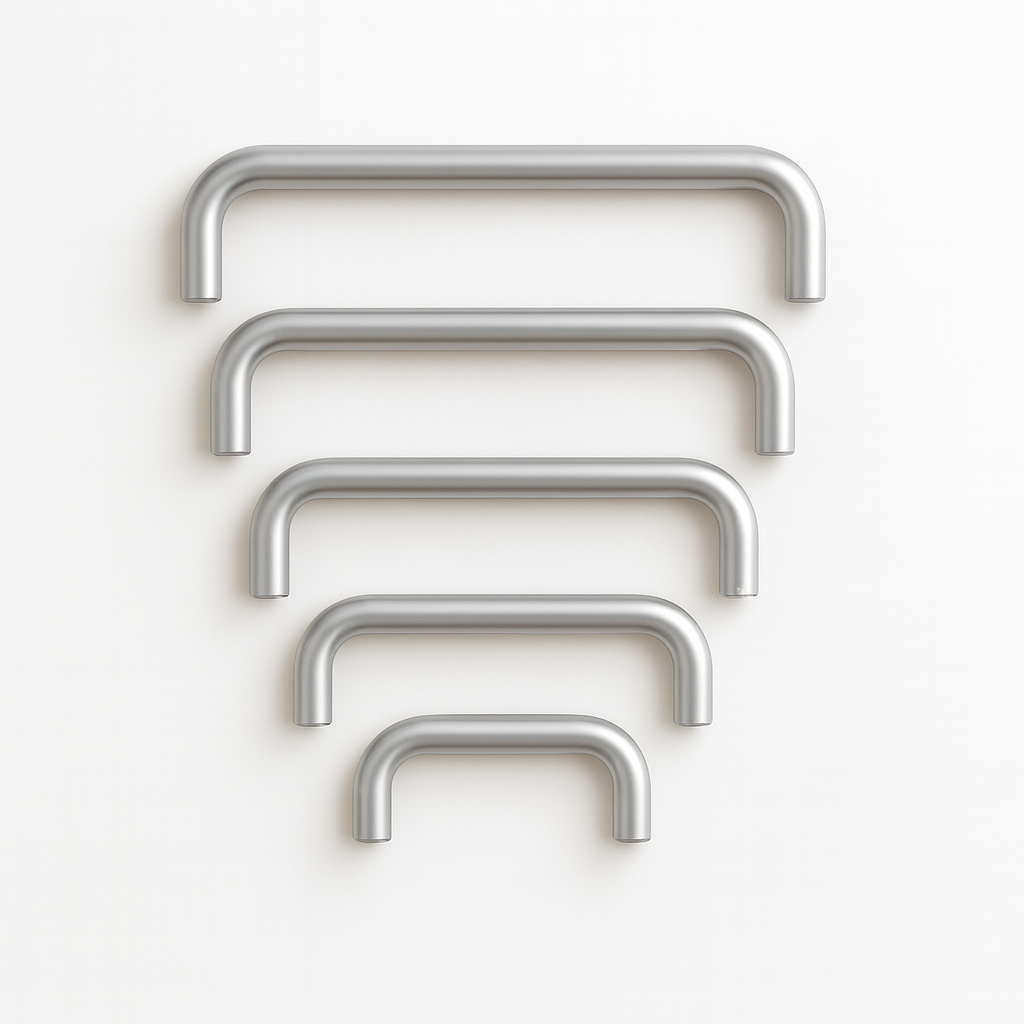

The Charlie Bar Pull by CBH is a tubular cabinet pull handle with a simple, timeless form. Available in five standard lengths — suited for kitchen cabinets, drawers, and furniture in modern and traditional interiors. Mounting hardware included.

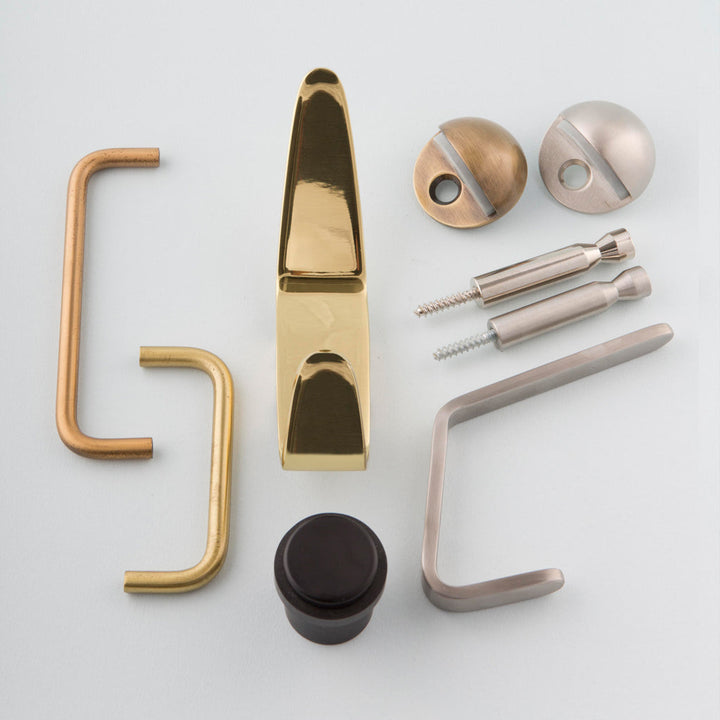

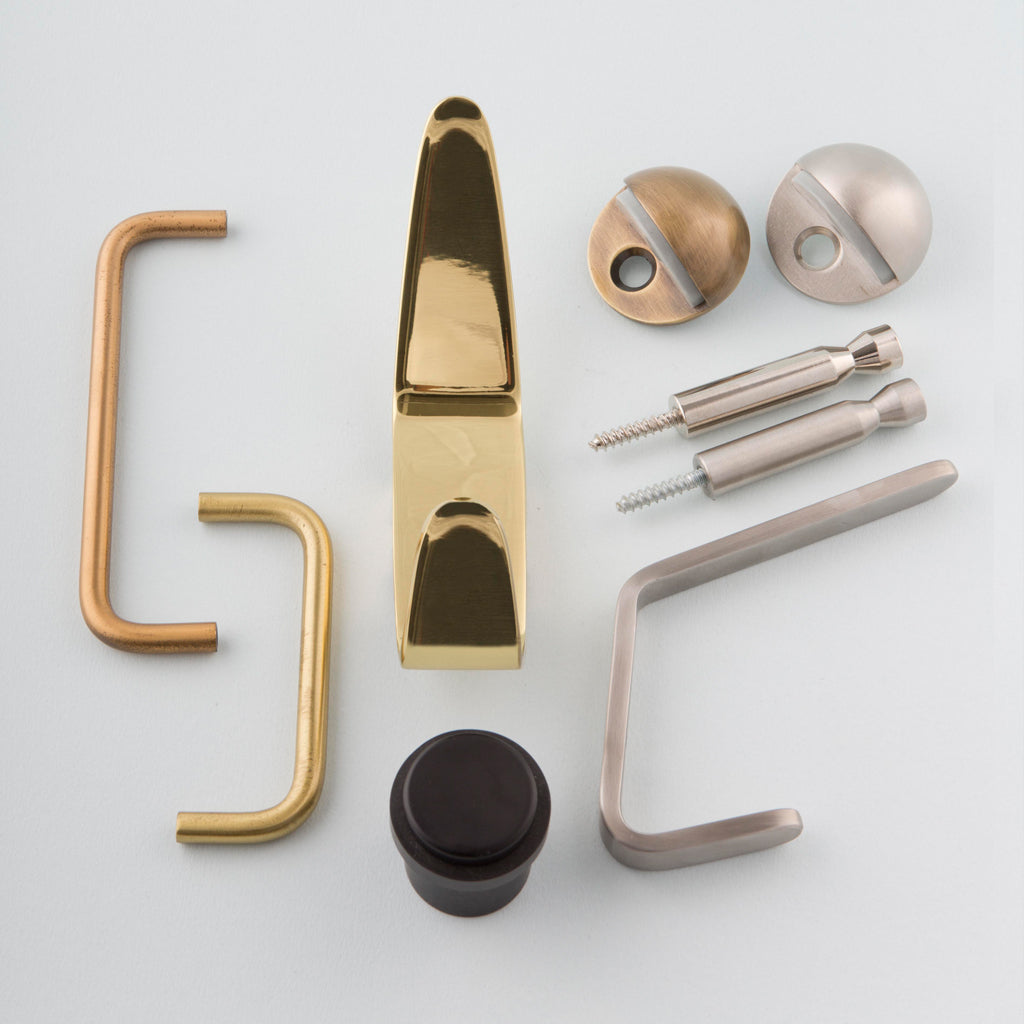

Part of the Charlie collection by CBH — a full line of architectural hardware designed and manufactured in Canada.
Specifications

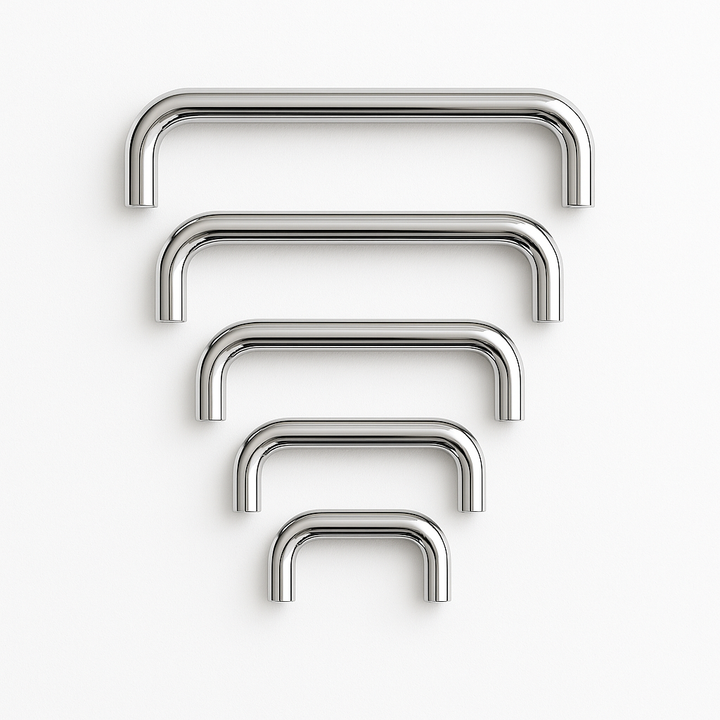

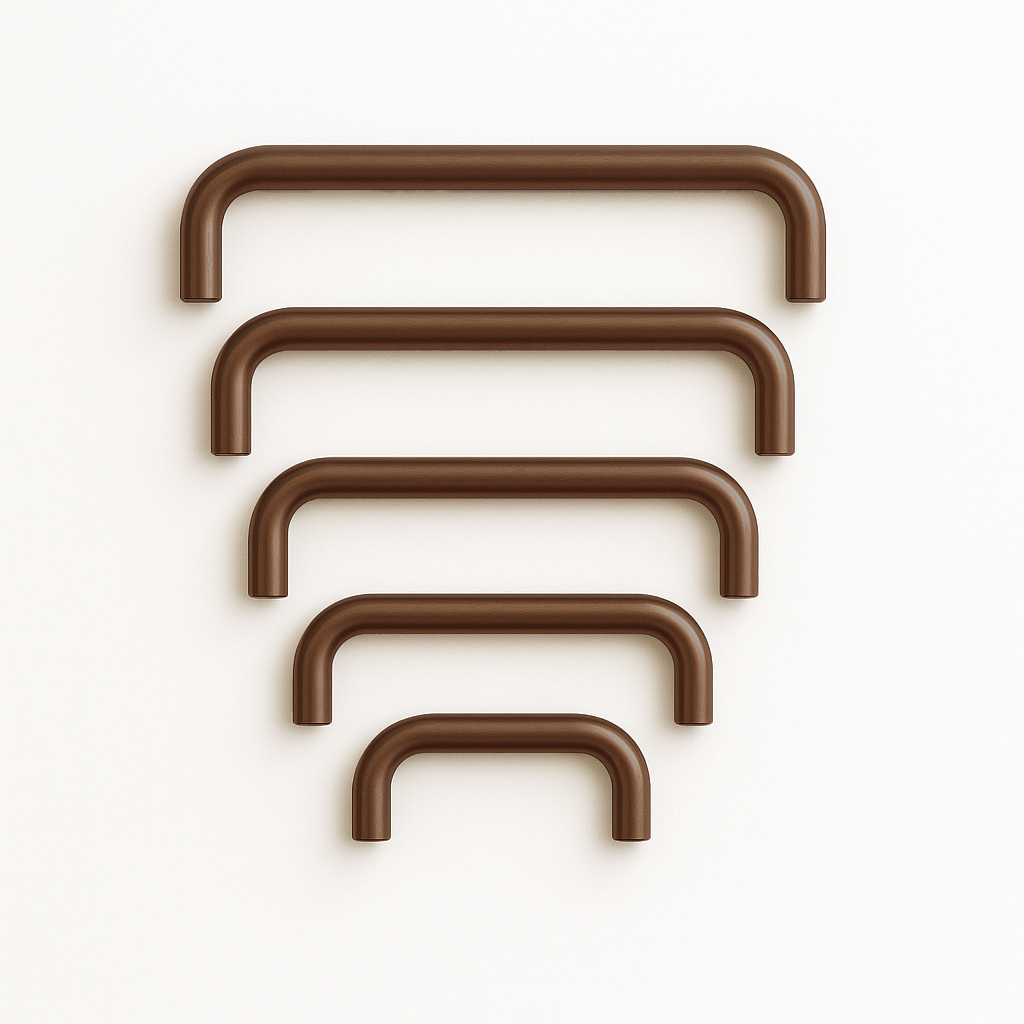

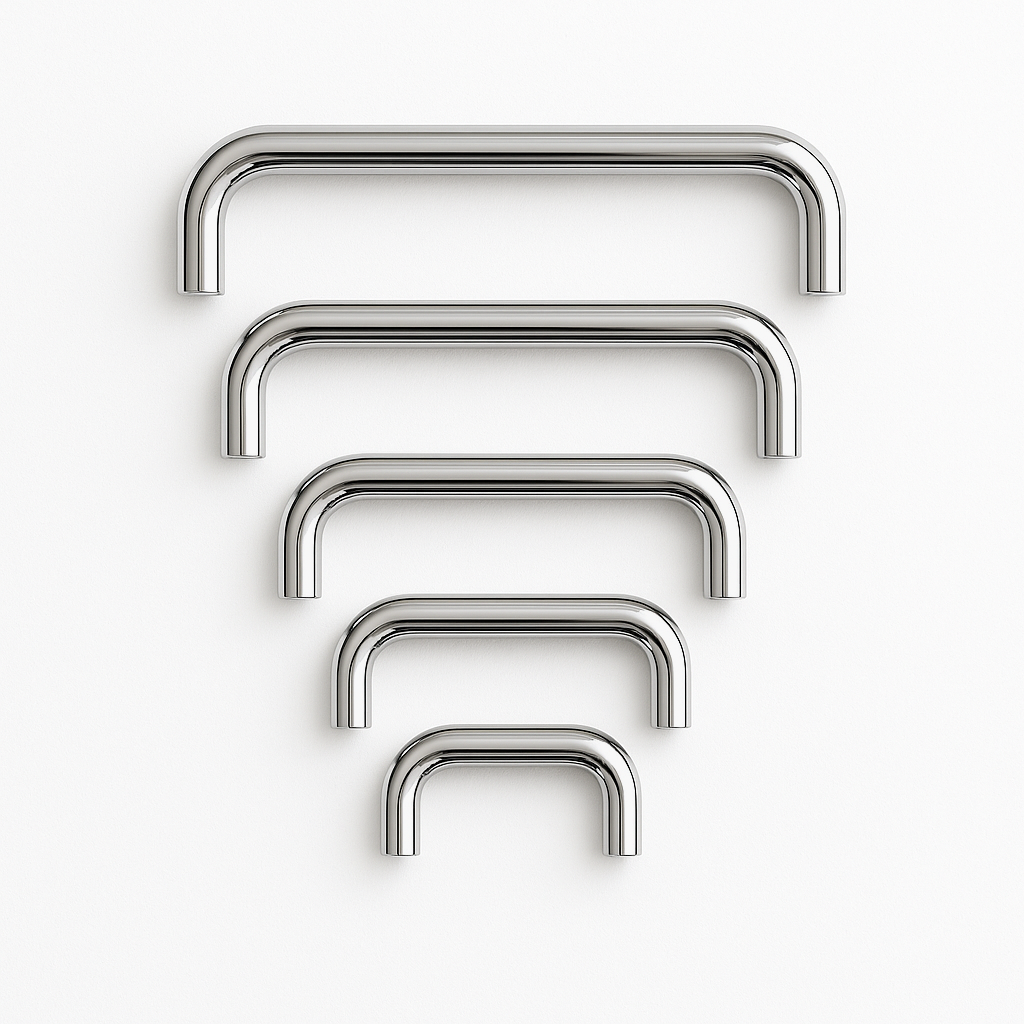

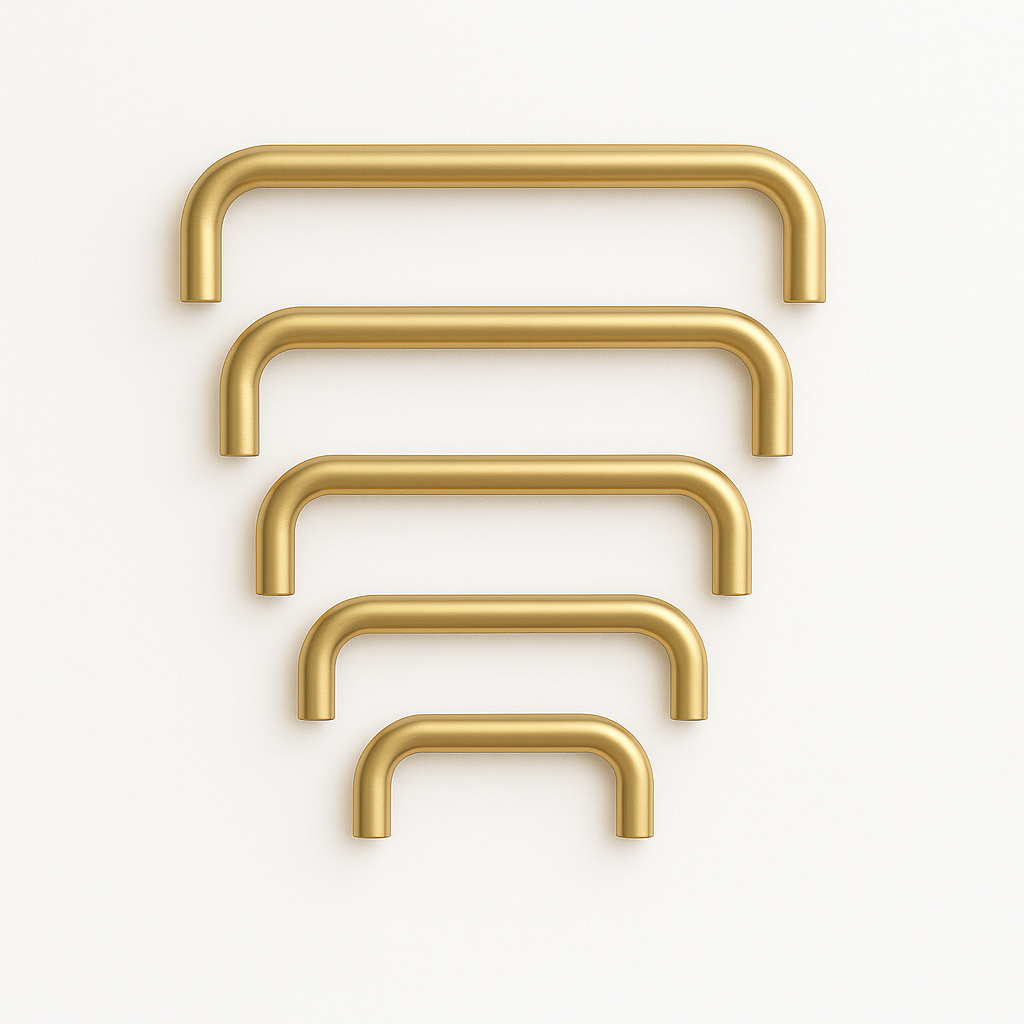

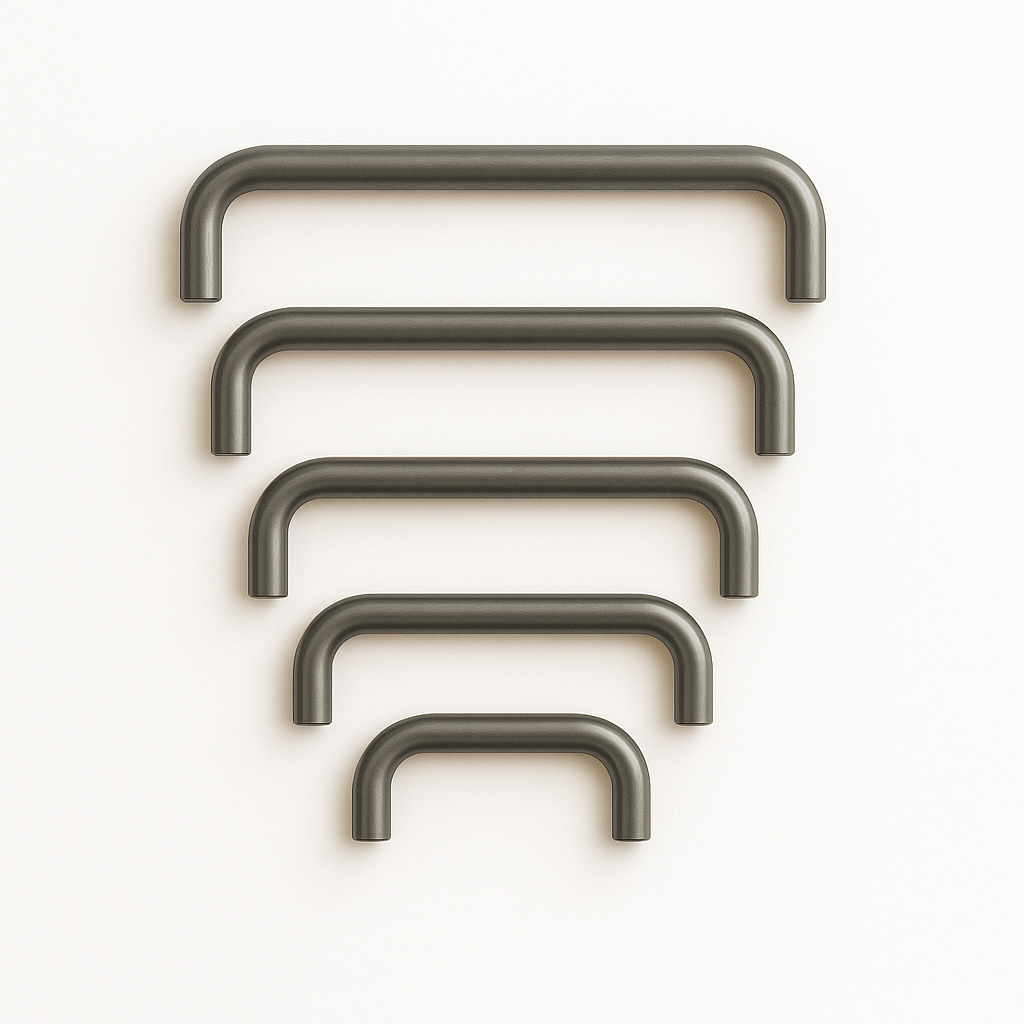

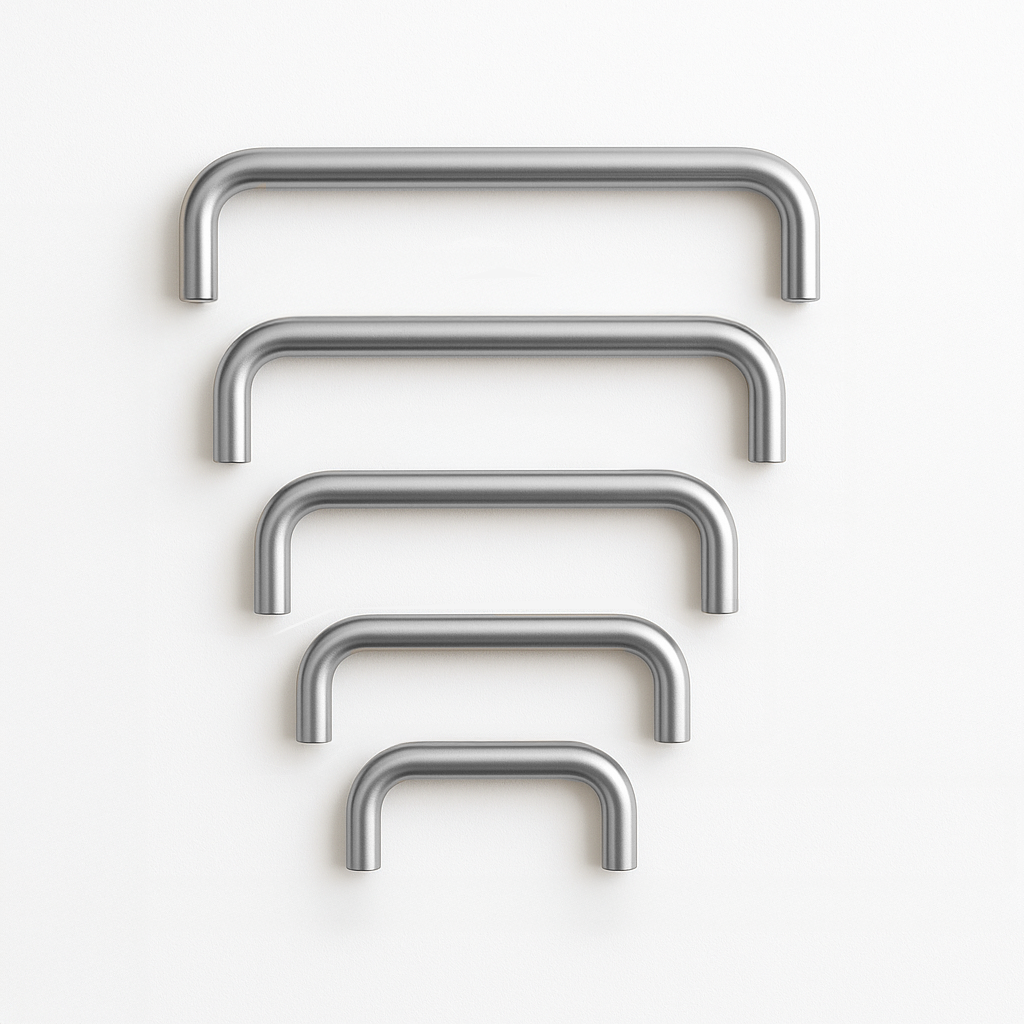

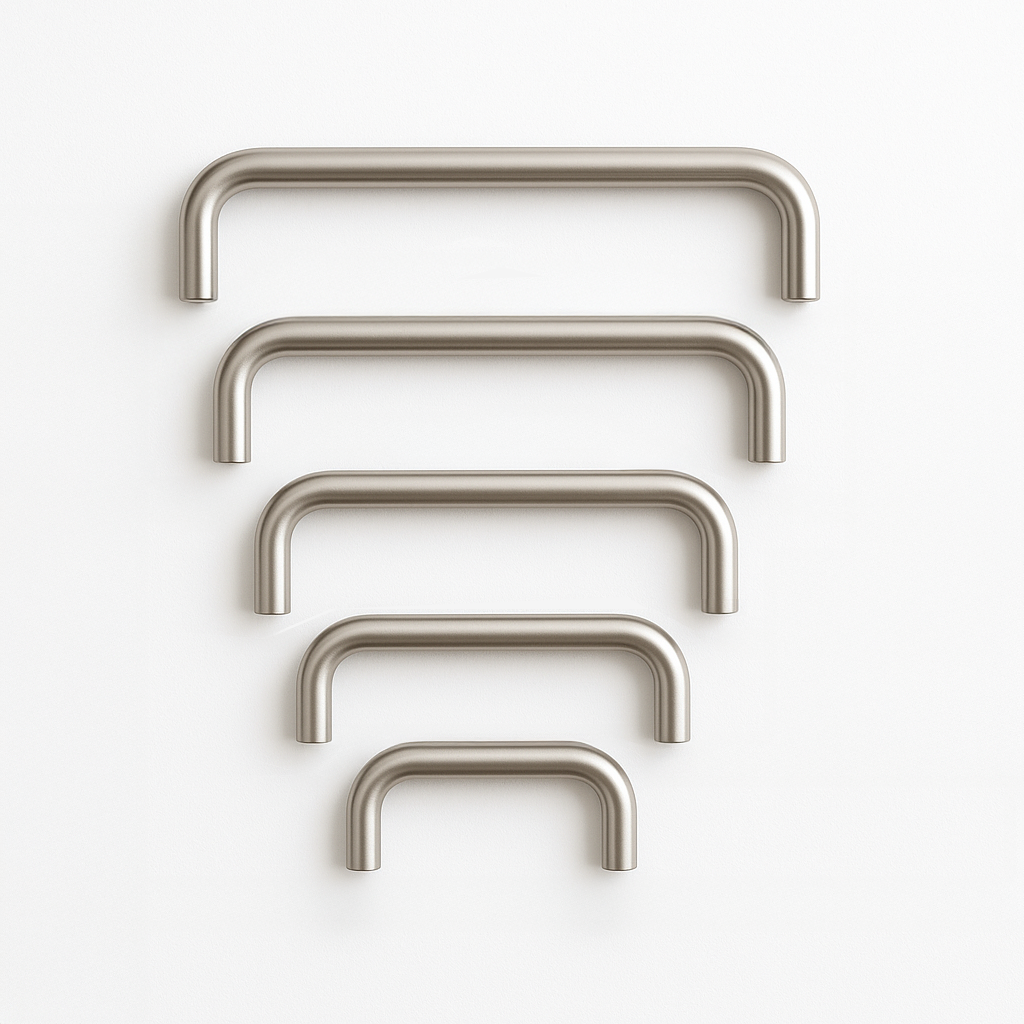

- 3" Pull — L 84 mm (3.3") x D 29 mm (1.125") x Ø 8 mm (0.3125") — CC: 76 mm (3")
- 3.5" Pull — L 97 mm (3.8") x D 29 mm (1.125") x Ø 8 mm (0.3125") — CC: 89 mm (3.5")
- 4" Pull — L 110 mm (4.3") x D 29 mm (1.125") x Ø 8 mm (0.3125") — CC: 102 mm (4")
- 5" Pull — L 135 mm (5.3") x D 29 mm (1.125") x Ø 8 mm (0.3125") — CC: 127 mm (5")
- 6" Pull — L 157 mm (6.2") x D 29 mm (1.125") x Ø 8 mm (0.3125") — CC: 152 mm (6")
Material(s)

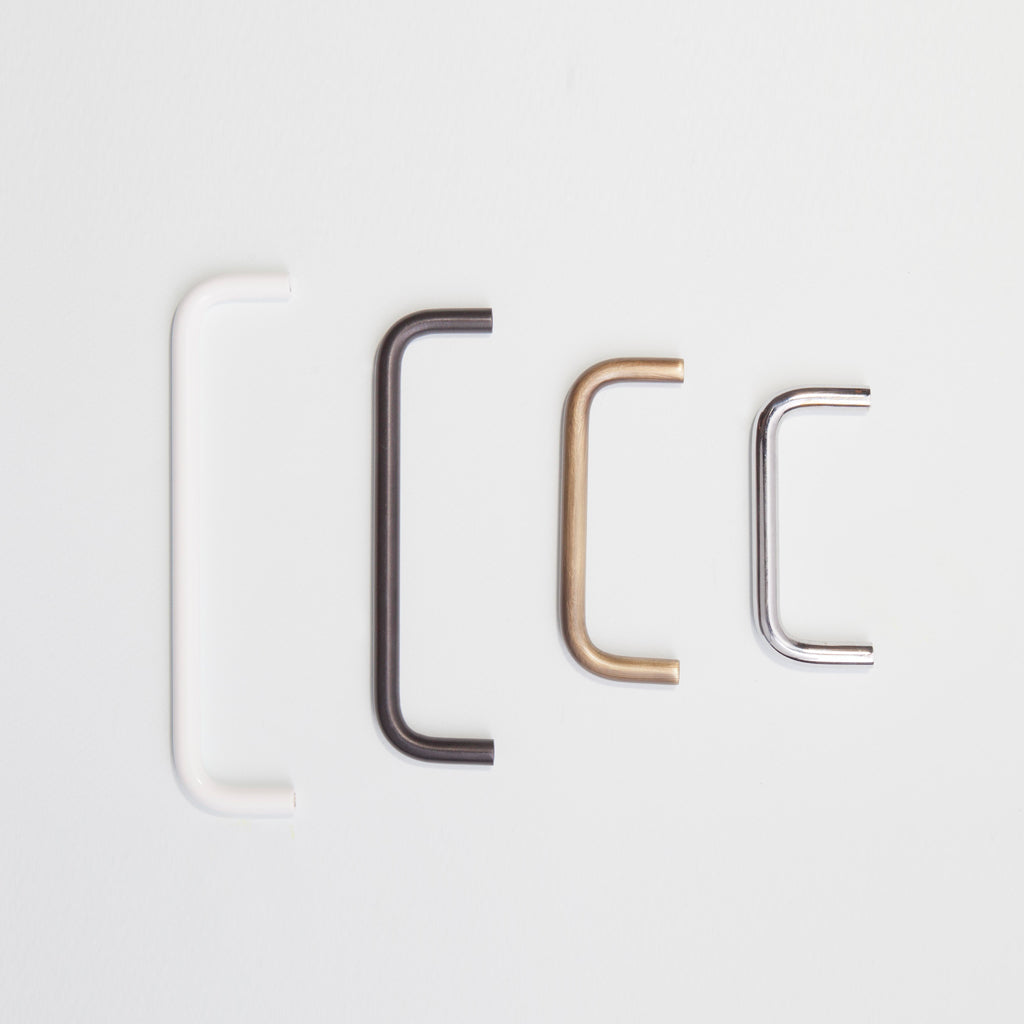

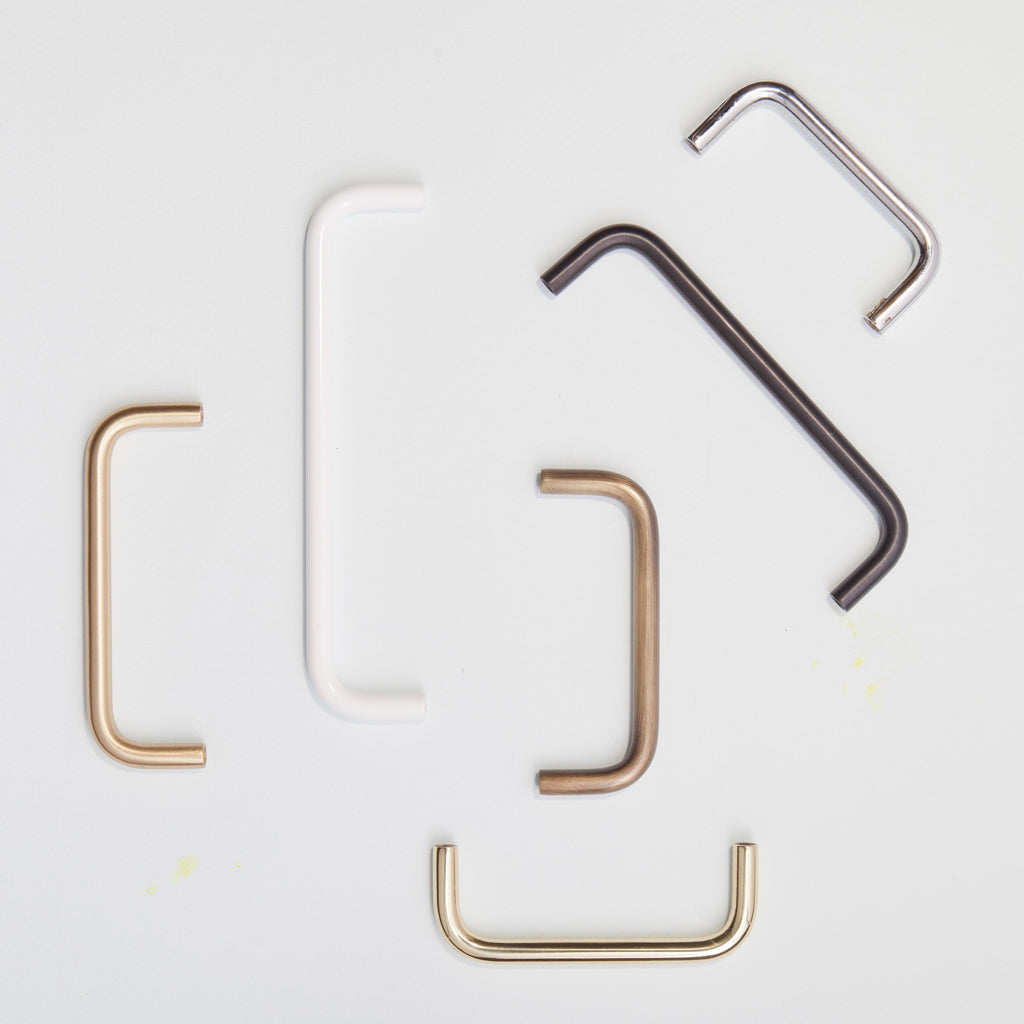

Available Finishes
- Satin Stainless Steel
- Polished Stainless Steel
- Satin Chrome

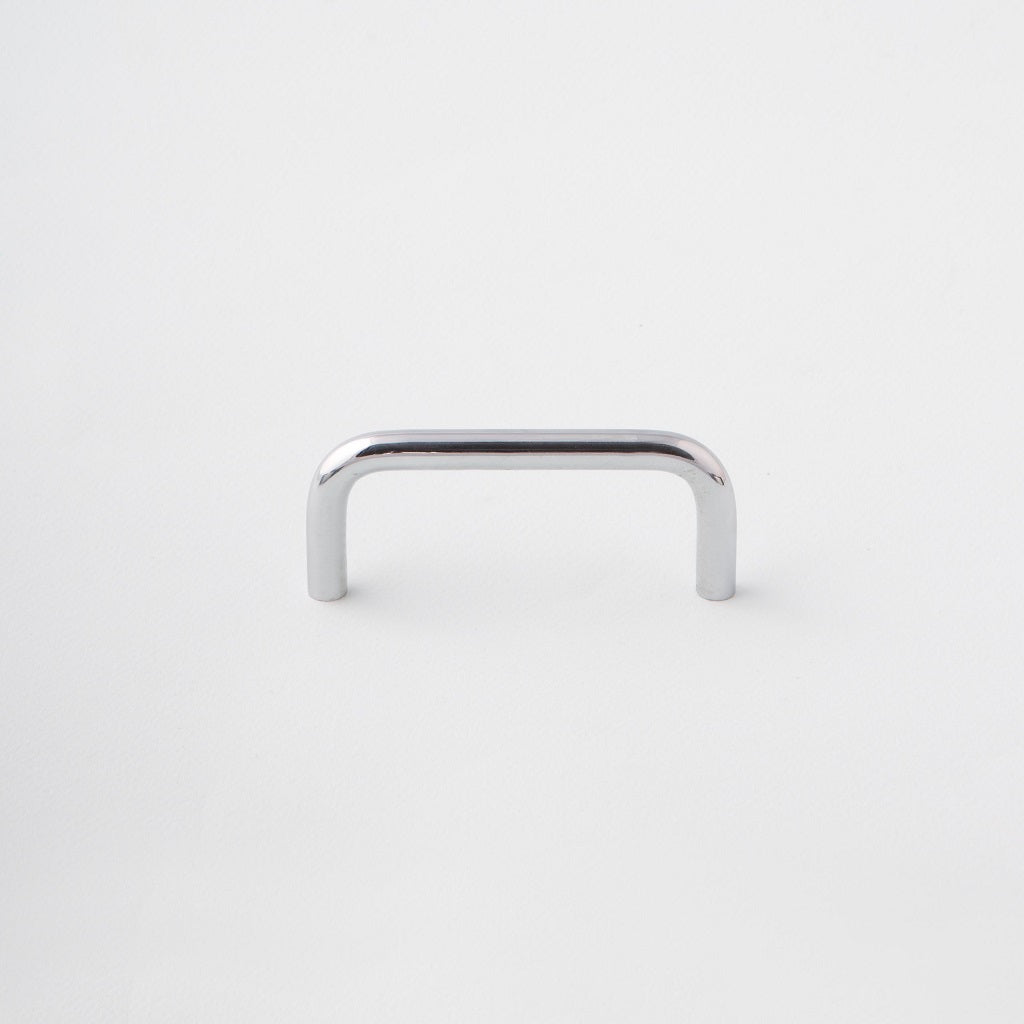

- Polished Chrome
- Satin Aluminum
- Satin Nickel
- Polished Nickel
- Lacquered Satin Brass
- Unlacquered Satin Brass

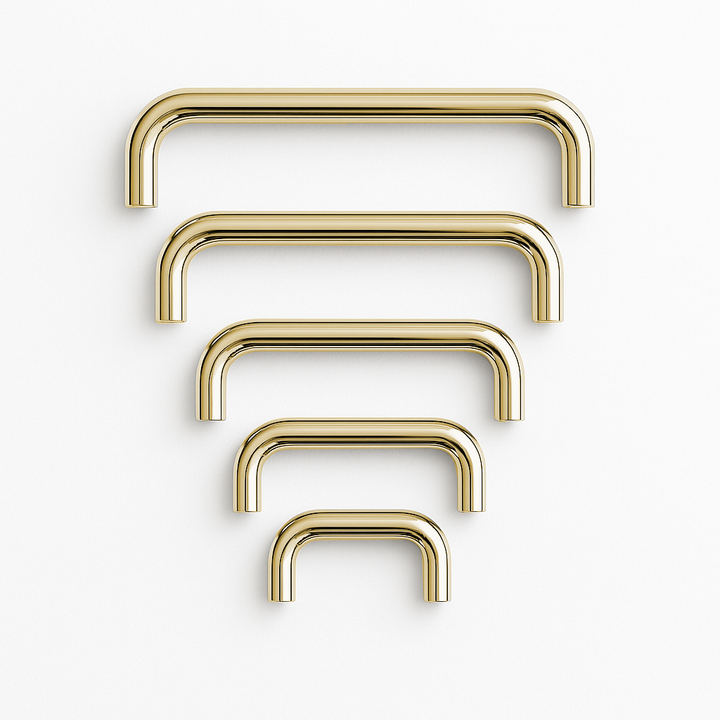

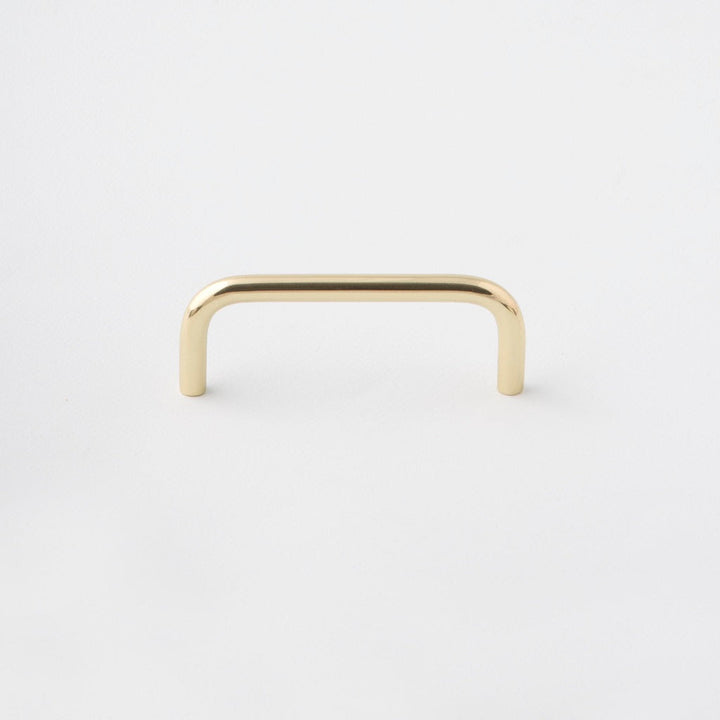

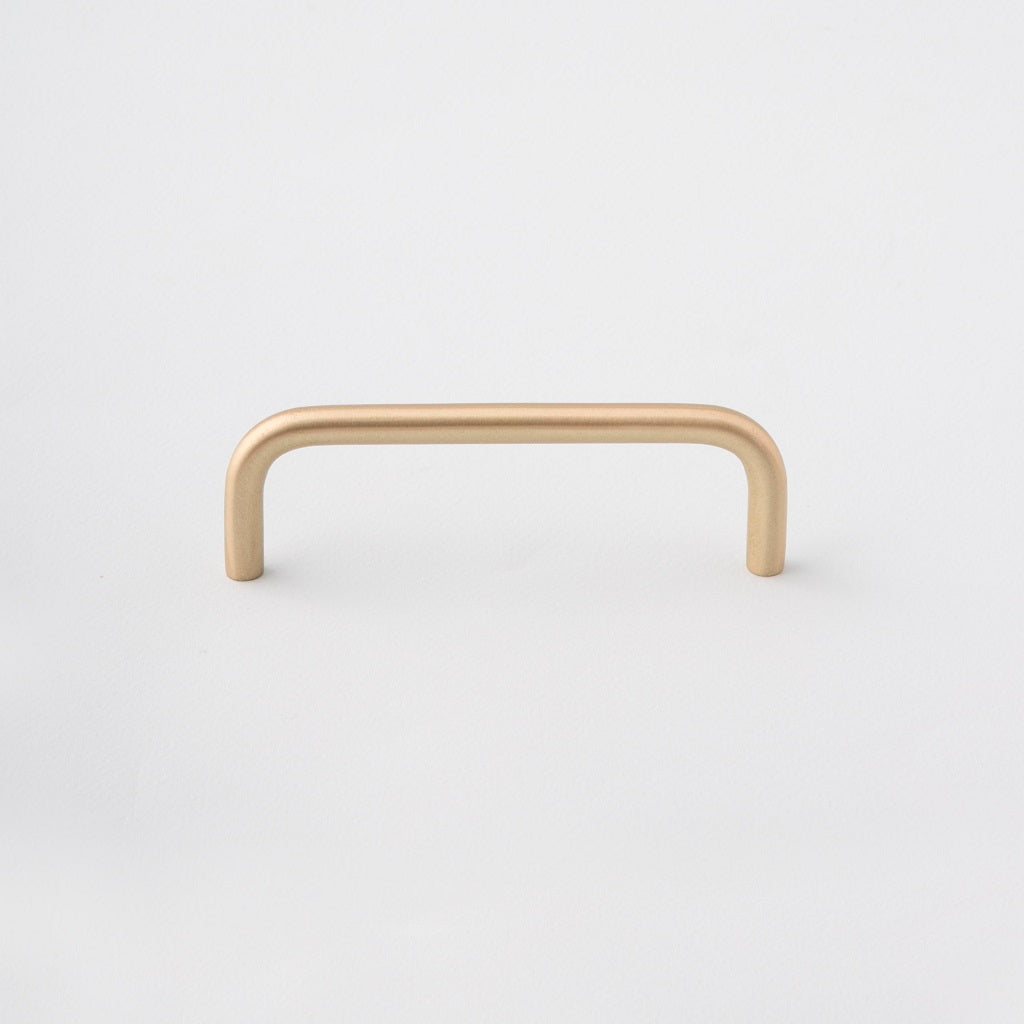

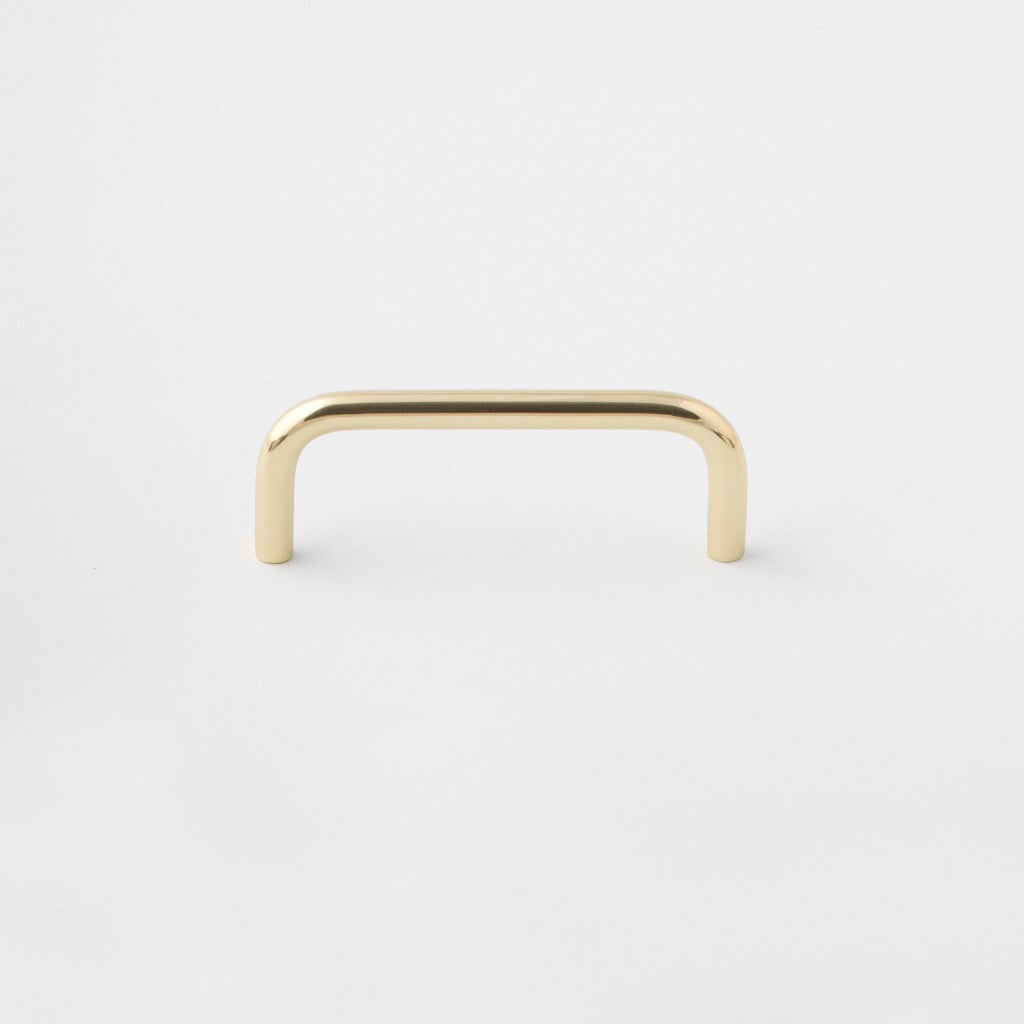

- Lacquered Polished Brass
- Unlacquered Polished Brass
- Satin Bronze
- Polished Bronze
- Oxidized Bronze

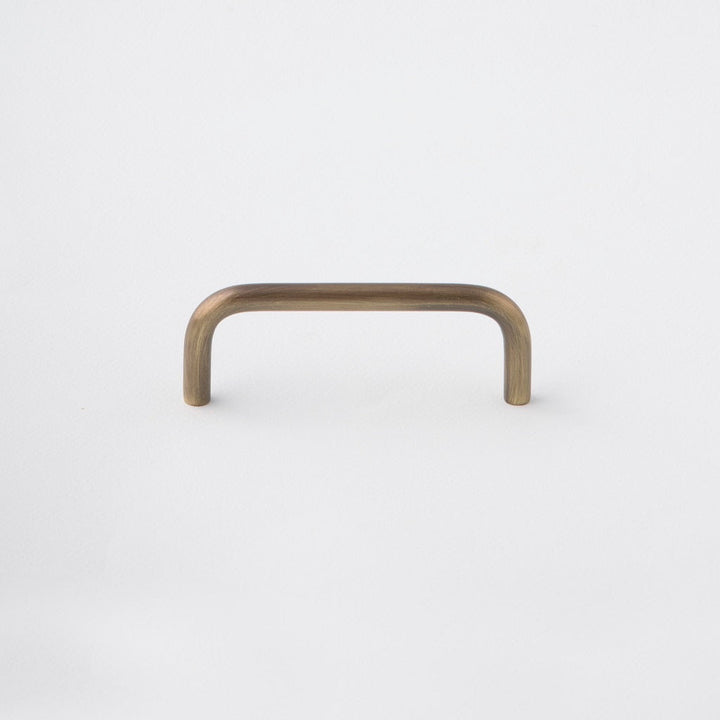

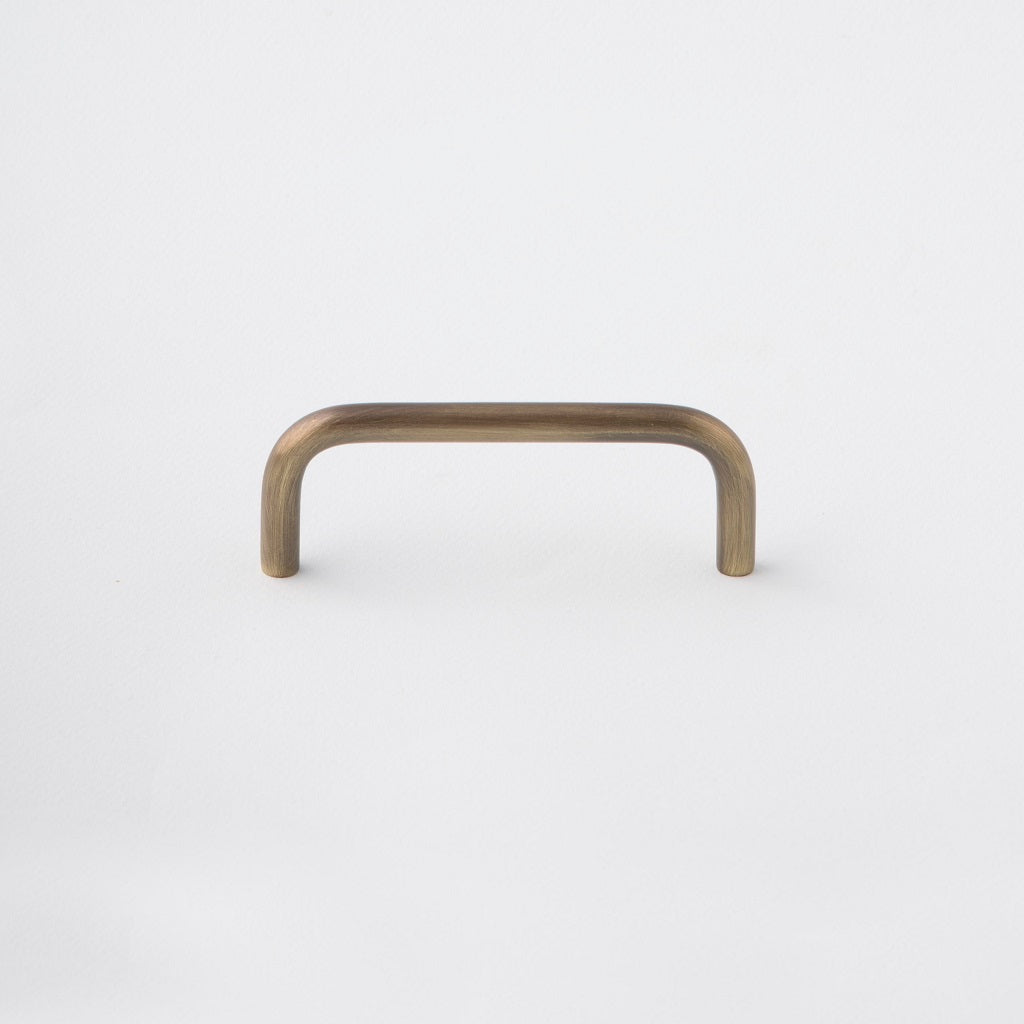

- Antique Brass
- Antique Bronze
- Antique Nickel
- Antique Copper

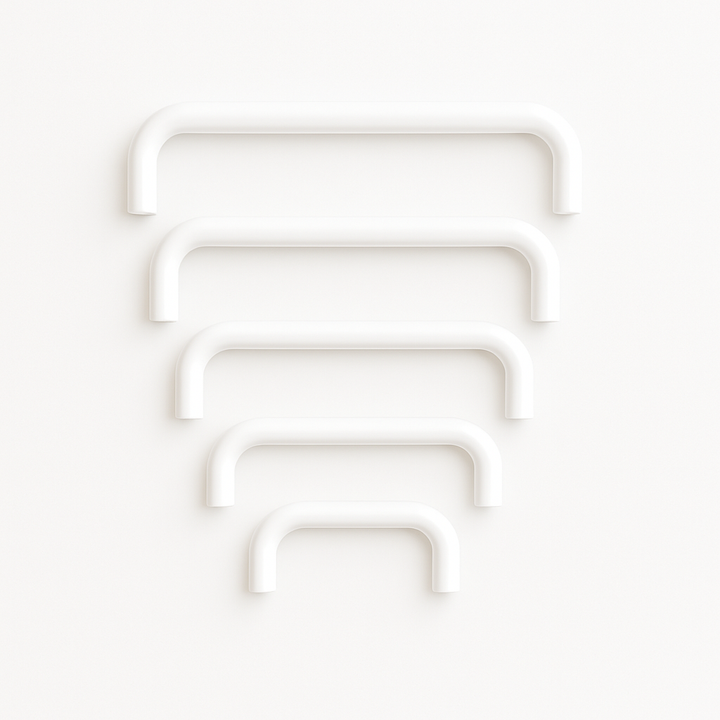

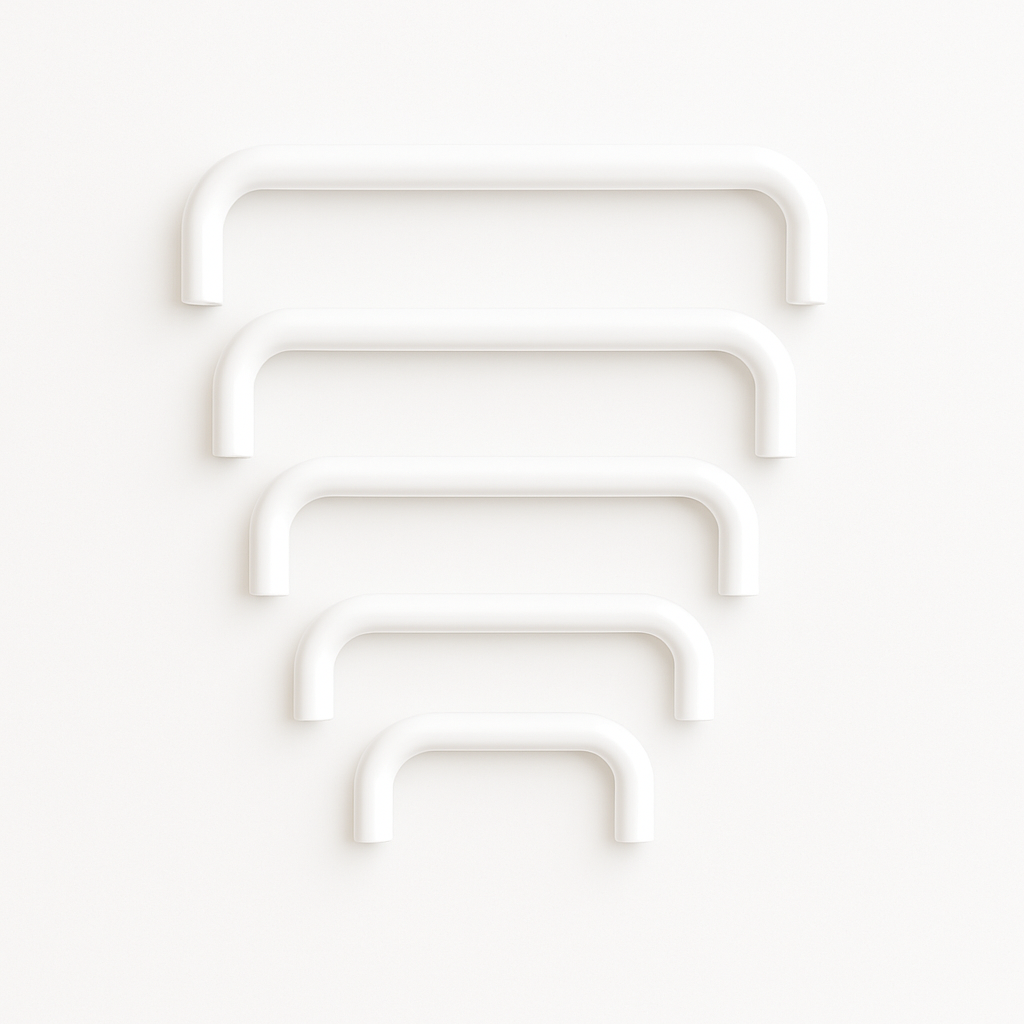

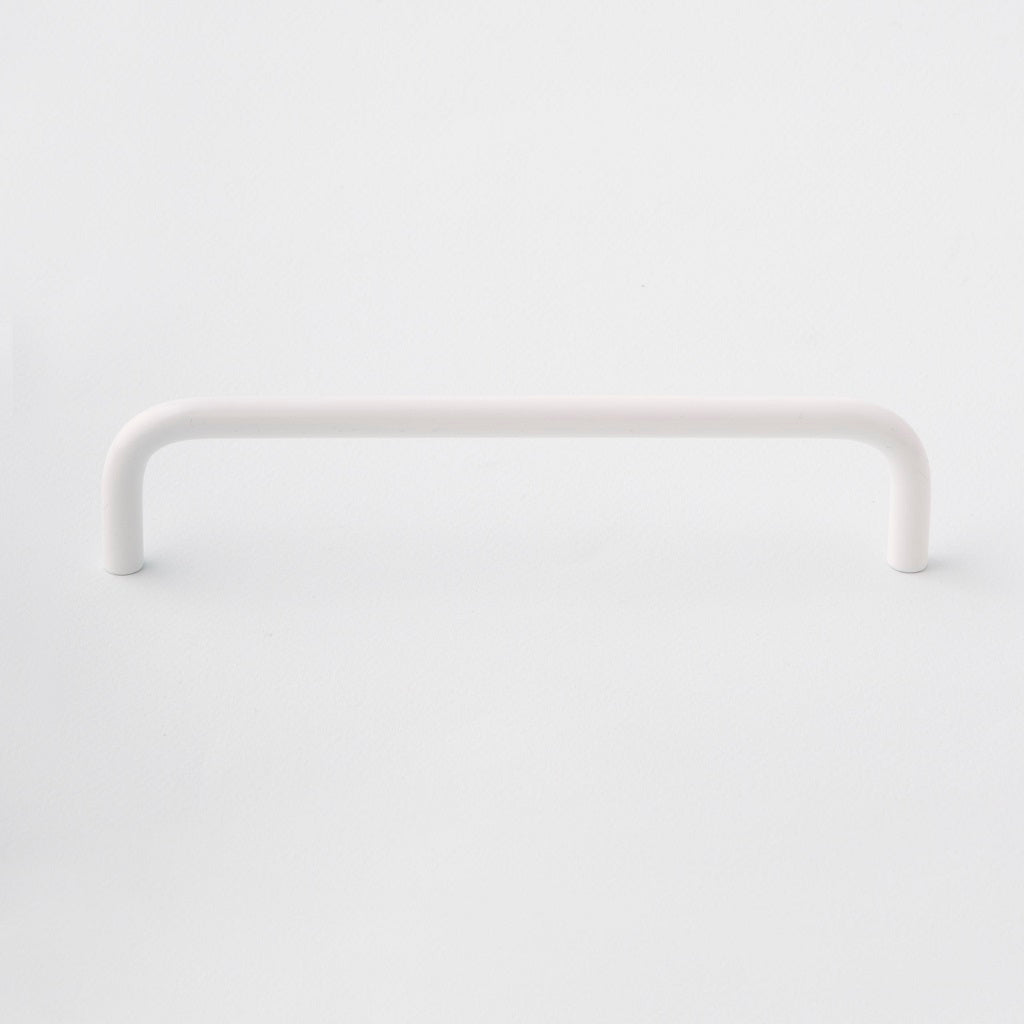

- Gloss White

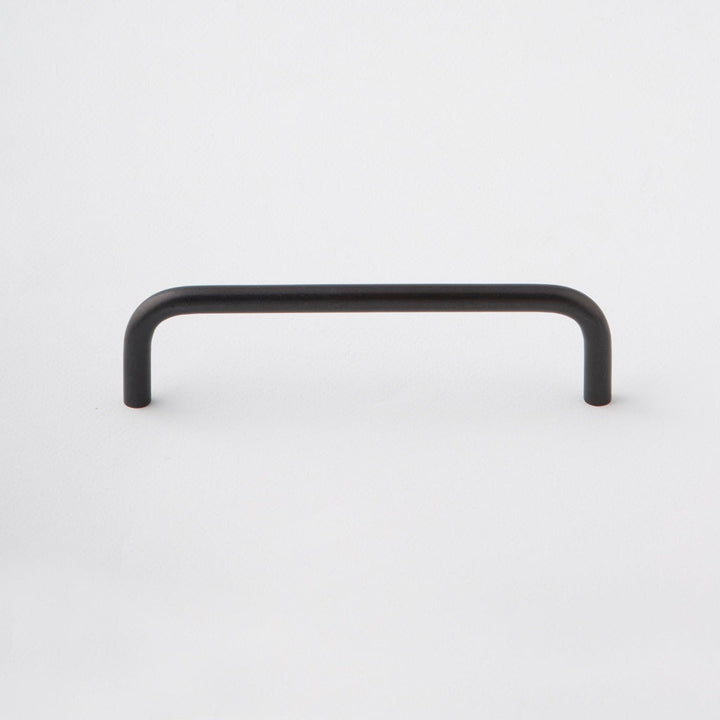

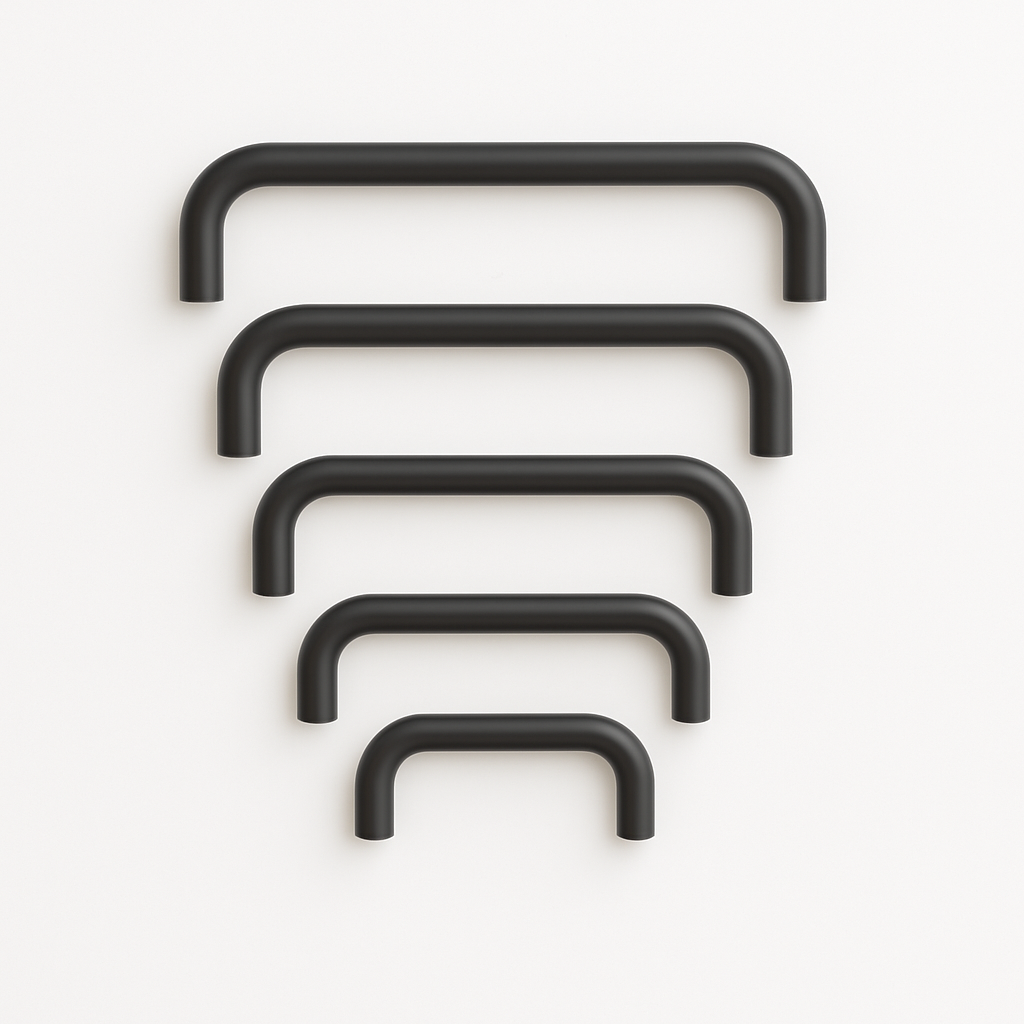

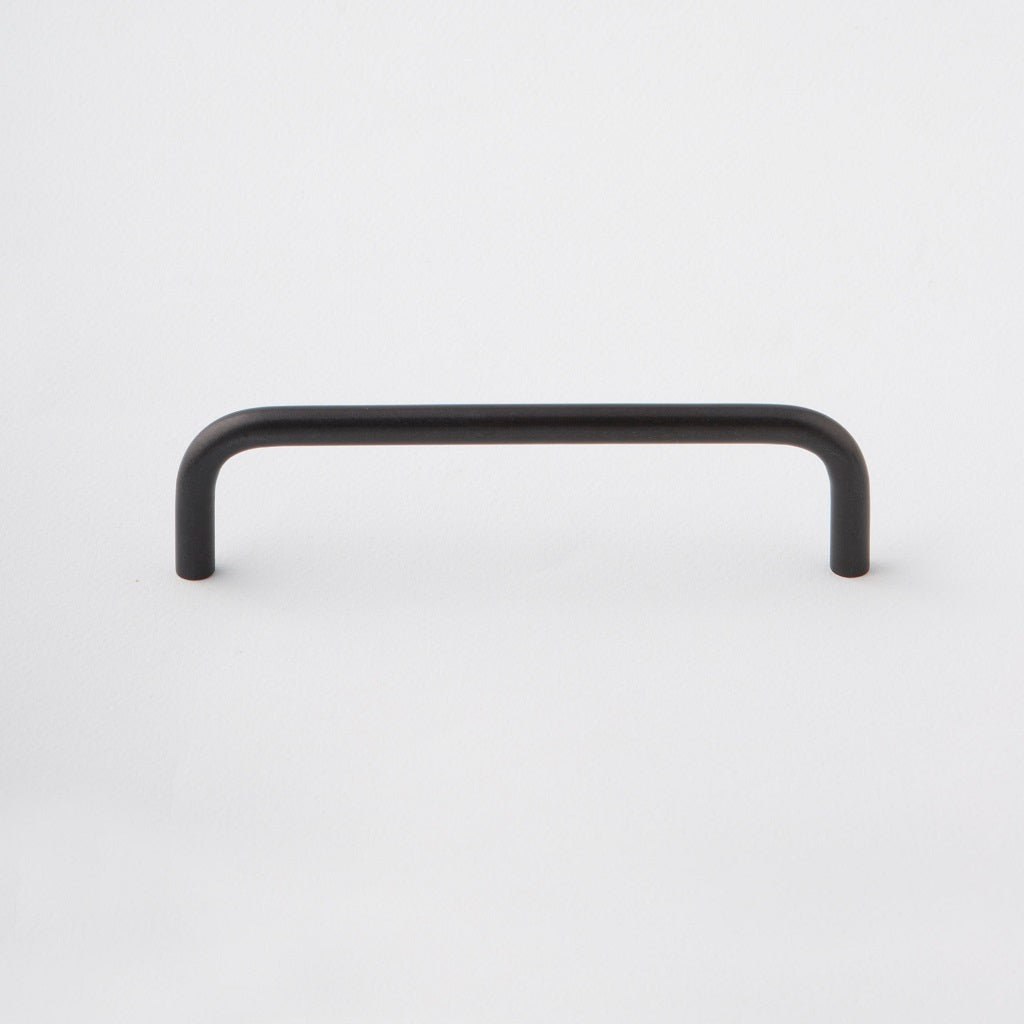

- Matte Black
Custom finishes available upon request, including antimicrobial clear coating.
Material Notes
- Antique and oxidized finishes are hand-applied, resulting in unique, organic surface variations.
- Lacquered finishes maintain a consistent appearance over time. Unlacquered finishes will naturally age and develop a patina.
- Most finishes are lacquered by default. Satin Nickel, Satin Chrome, and Satin Stainless Steel are unlacquered. Oxidized Bronze is lacquered unless requested otherwise.
- See the Care & Maintenance Guide.
Product Downloads
Finish Overview & Samples
CBH offers a range of finishes as part of their standard Charlie collection. Most finishes are coatings applied over a base material, such as brass, bronze, stainless steel, or aluminum. Base material may vary by product type.
See Base Material Chart
| Finish | Base Material |
|---|---|
| Satin Stainless Steel | Stainless Steel |
| Polished Stainless Steel | Stainless Steel |
| Satin Aluminum | Aluminum |
| Satin Chrome | Brass |
| Polished Chrome | Brass |
| Satin Nickel | Brass |
| Polished Nickel | Brass |
| Lacquered Satin Brass | Brass |
| Unlacquered Satin Brass | Brass |
| Lacquered Polished Brass | Brass |
| Unlacquered Polished Brass | Brass |
| Satin Bronze | Bronze / Brass |
| Polished Bronze | Bronze / Brass |
| Oxidized Bronze | Bronze / Brass |
| Antique Brass | Brass / Bronze |
| Antique Bronze | Bronze / Brass |
| Antique Nickel | Brass |
| Antique Copper | Brass |
| Gloss White | Stainless Steel |
| Matte Black | Stainless Steel |
Antique finishes are hand-applied and may show variation in tone and texture. Finish availability may vary by item — refer to the product variant selection for details.
Most finishes are sealed with a clear protective coat. To maintain finish quality, clean with a soft cloth and water or mild ammonia-based cleaner. Avoid acid-based cleaners. For full care details, visit our Finish Care Guide.
Installation Disclaimer
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
Casson is not responsible for any damages or inconveniences resulting from the improper installation of the hardware.
