Name: d line Euro Mortise Passage Latch
Brand: d line
SKU: 14921402600
Price: 60.0 CAD
Availability: InStock

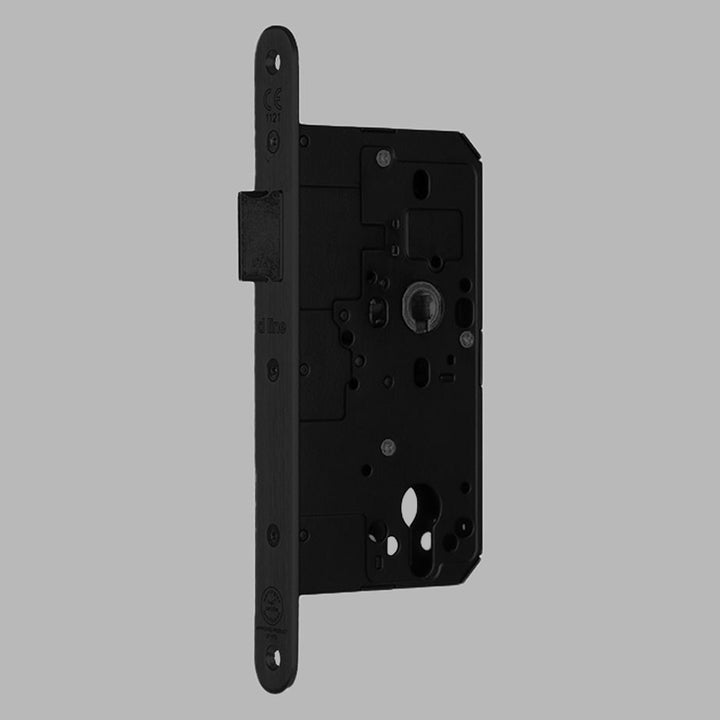

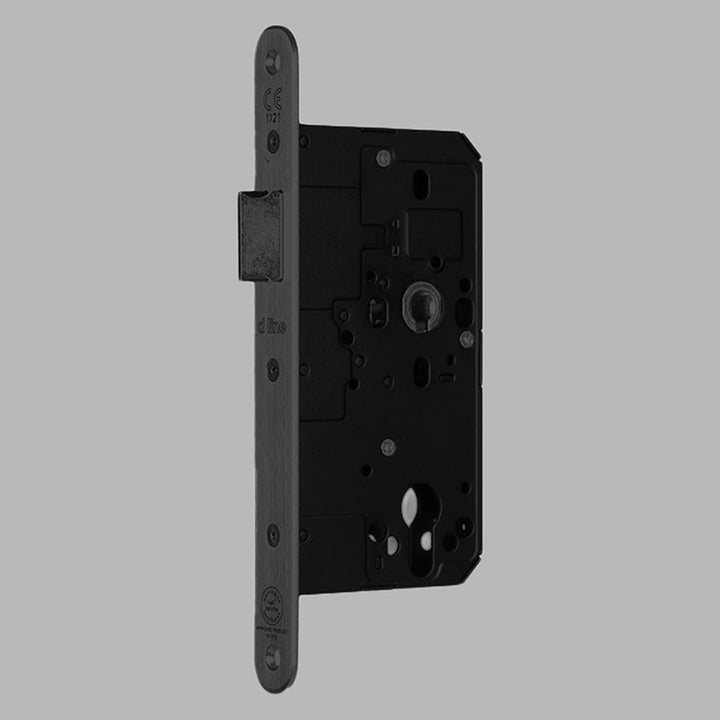

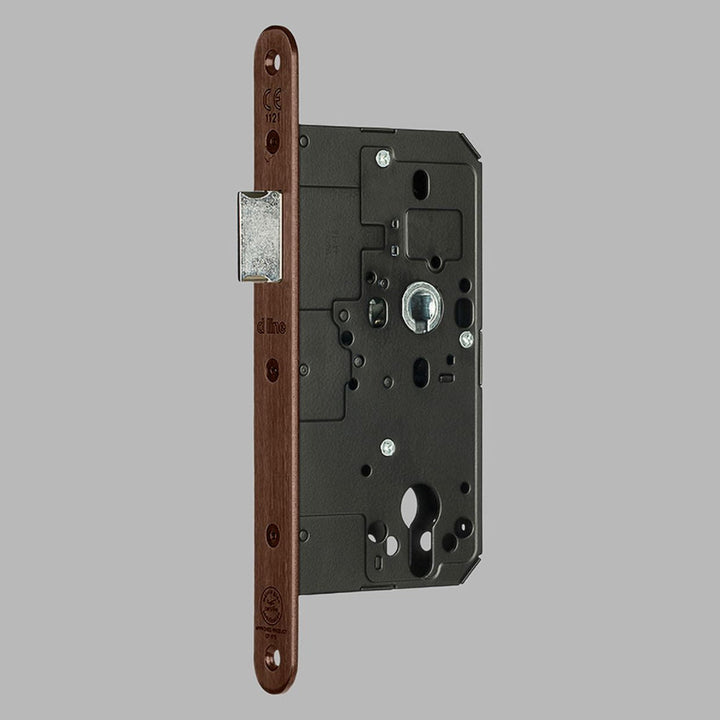

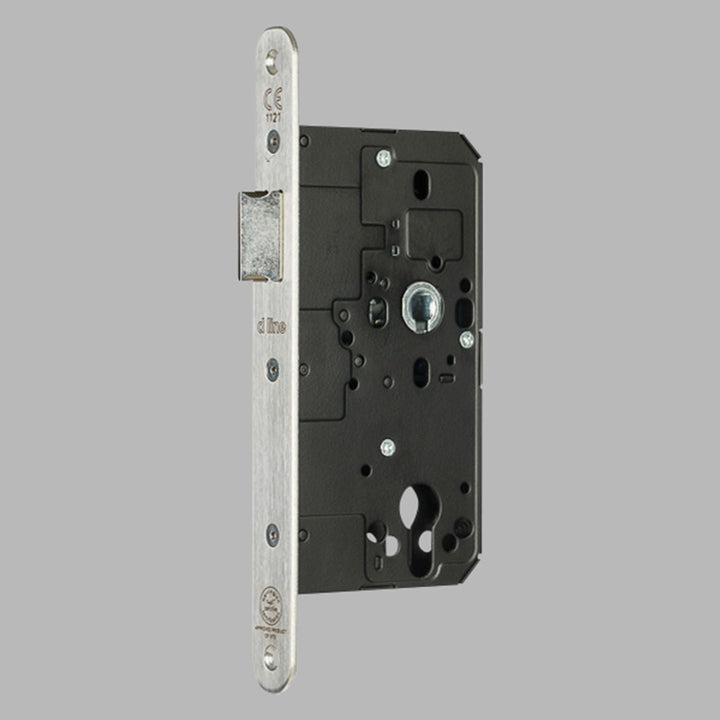

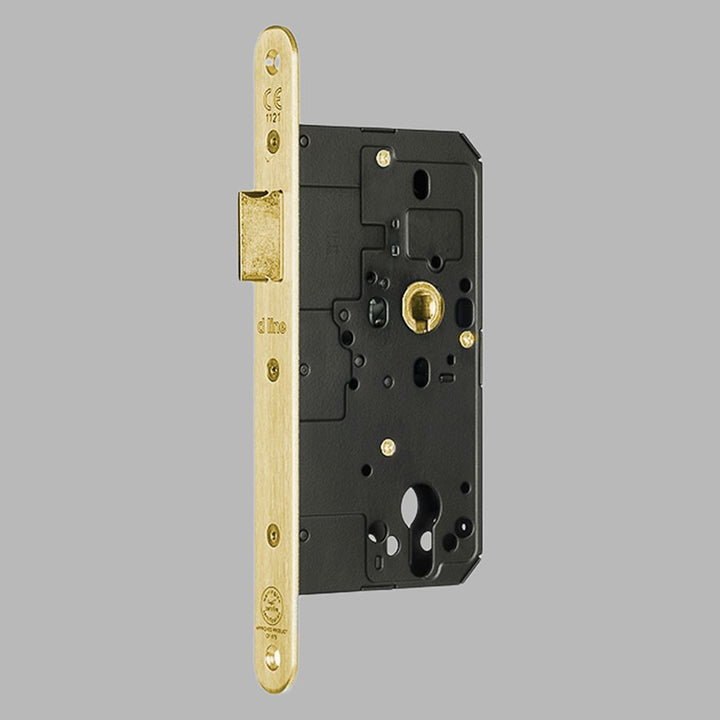

d line latch lock with rounded part, strong spring and strike plate

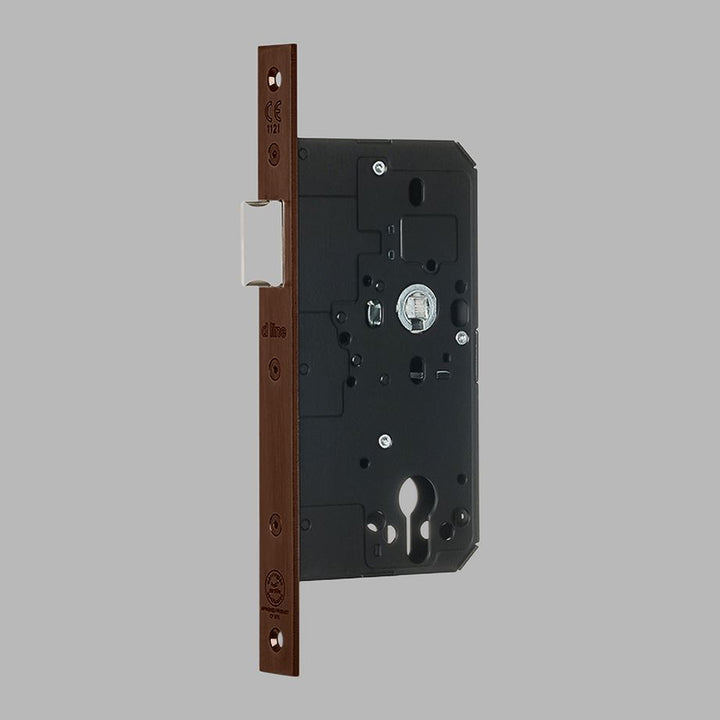

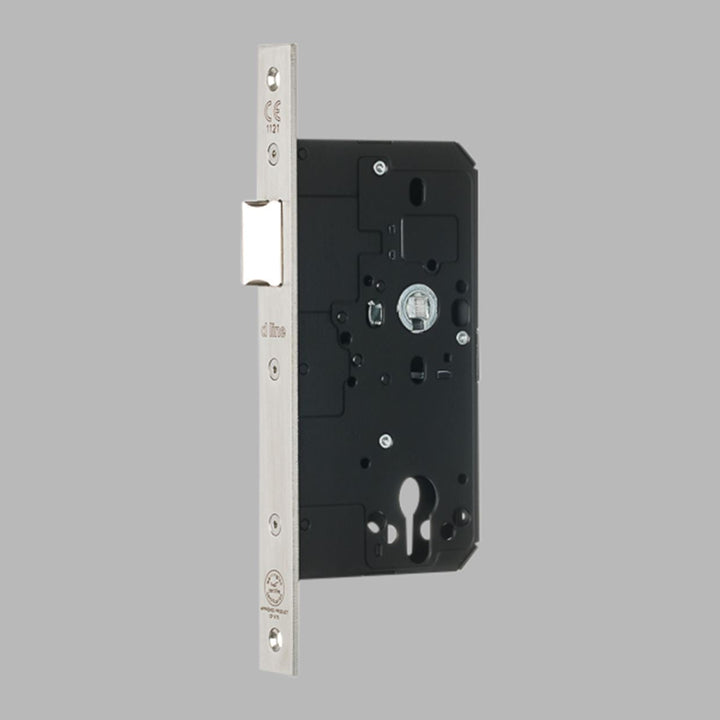

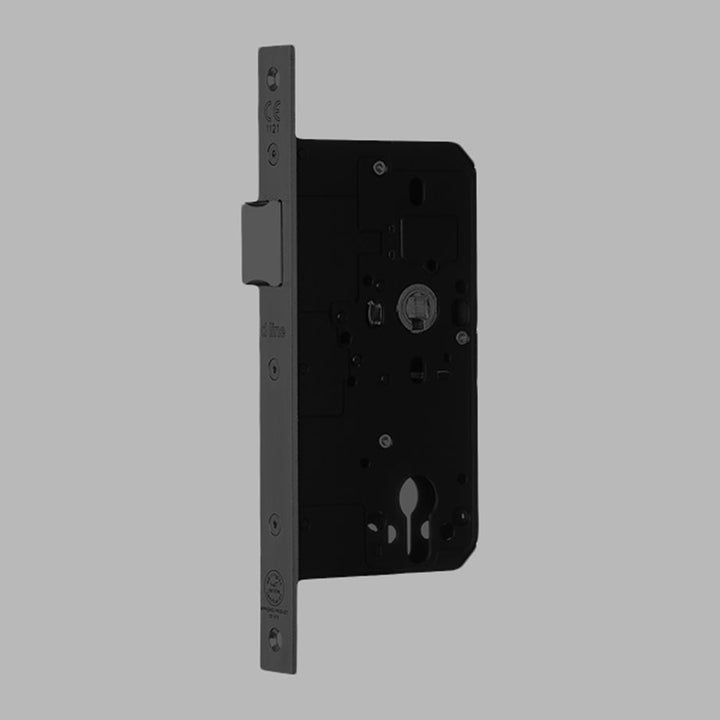

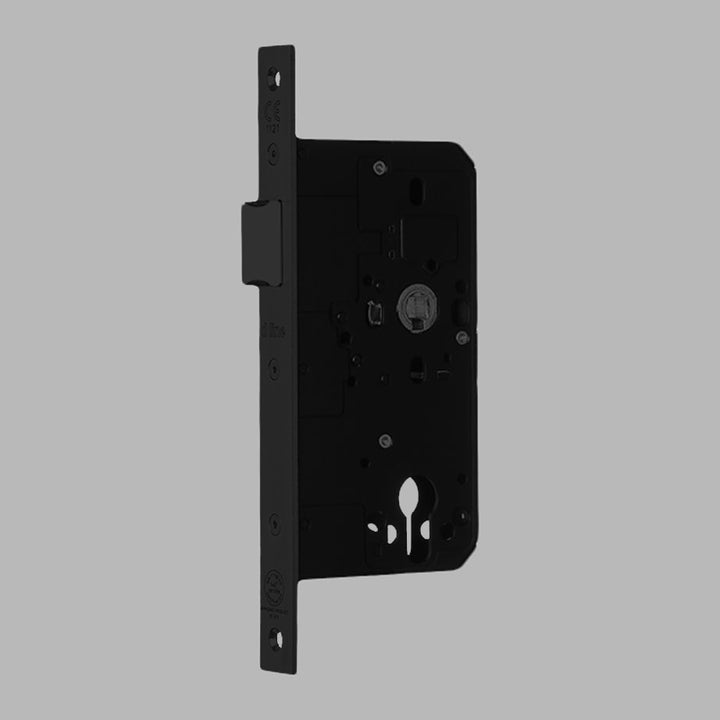

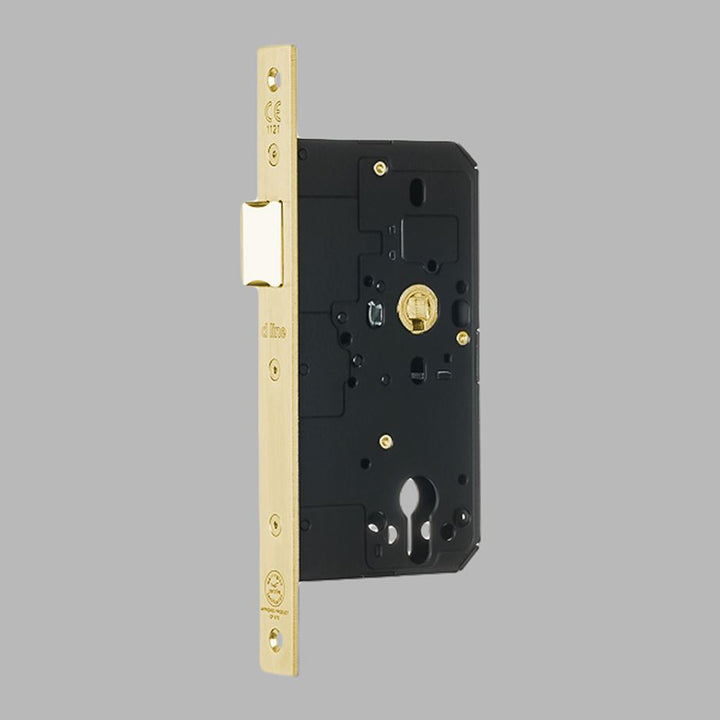

d line latch lock with square part, strong spring and strike plate

Please fill out the form below and a member of our team will prepare a customized quote.

To help us assist you, please include:

Product options (finish, size, or similar details)
How it will be used or installed
Quantities per style or configuration

For enquiries about lead time, please review Estimated Ship Date below.

Name

Shipping address Message Send

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Inventory status

Estimated ship date

Stainless Steel 4-8 weeks | PVD 16 weeks

Description
Specifications
Material(s)
Product Downloads
Finish Overview & Samples

Description

The Latch Lock from the Knud Holscher collection by d line is a classic Danish design, crafted for internal doors without locking mechanisms—ideal for passage doors in homes and commercial spaces. Featuring a strong spring and strike plate, it ensures smooth operation and is available in round or square shapes with various finishes.

Made from AISI 316 stainless steel, a marine-grade, non-corrosive material, each piece is rigorously tested for durability and performance. Combining cutting-edge engineering with expert craftsmanship, d line hardware balances form and function for enduring quality.

Specifications

W 24 mm (0.9") X H 235 mm (9.2") X D 88 mm (3.4")

Part Shape: Round or Square
Backset: 60 mm
Centers: 78 mm
Suitable for sprung and most unsprung lever furniture

Spindle range available from 33 – 111 mm door thicknesses. For larger door thickness, please contact us for more information.

Material(s)

Satin Stainless Steel (AISI 304 with satin grain 320 finish)
Polished Stainless Steel
PVD coated Brass, Bronze, or Black on Stainless Steel
X-BAC antimicrobial coating and finishes available upon request

* Please note, RAL 9016 White is an outgoing finish and will be unavailable for purchase after remaining orders have been processed.

Product Downloads

Data Sheet for 60 mm, Square, strong spring + strike plate

Data Sheet for 60 mm, Round, strong spring + strike plate

Passage Latch Lock Spec Sheet

Euro Mortise Mounting Instructions

Finish Overview & Samples

2025 Updated d line Finish Swatches

AISI 316 Satin Stainless Steel
AISI 316 Polished Stainless Steel
PVD Satin Brass
PVD Satin Black
Powder Coated RAL Black 9005

Shop Finish Samples
