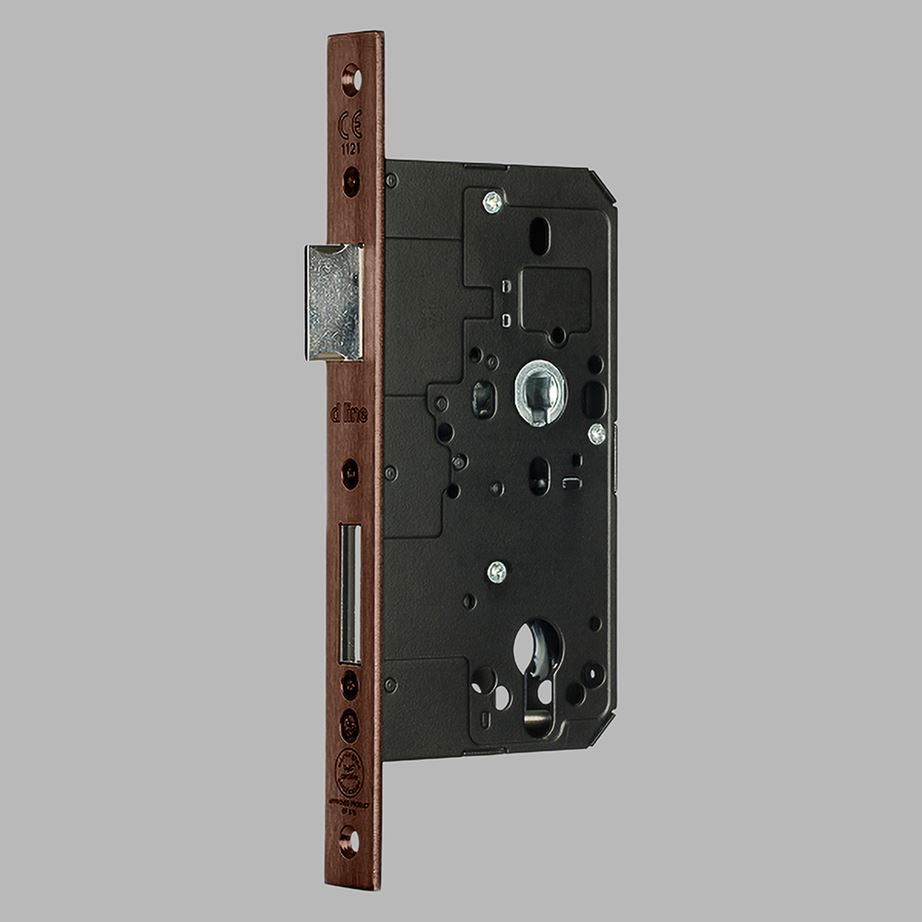

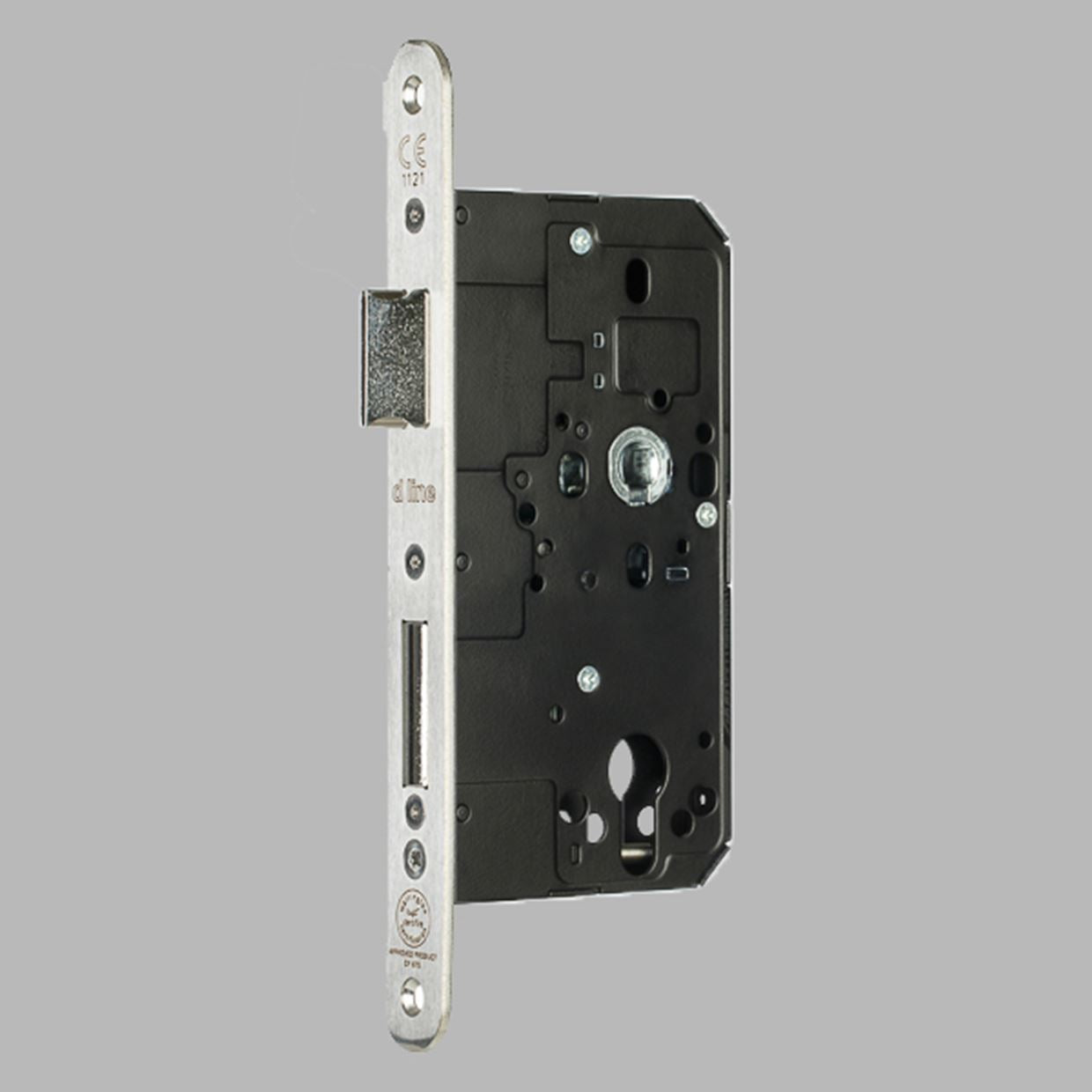

Name: d line Euro Mortise Keyed Entry Sash Lock
Brand: d line
SKU: 14921002600
Price: 60.0 CAD
Availability: InStock

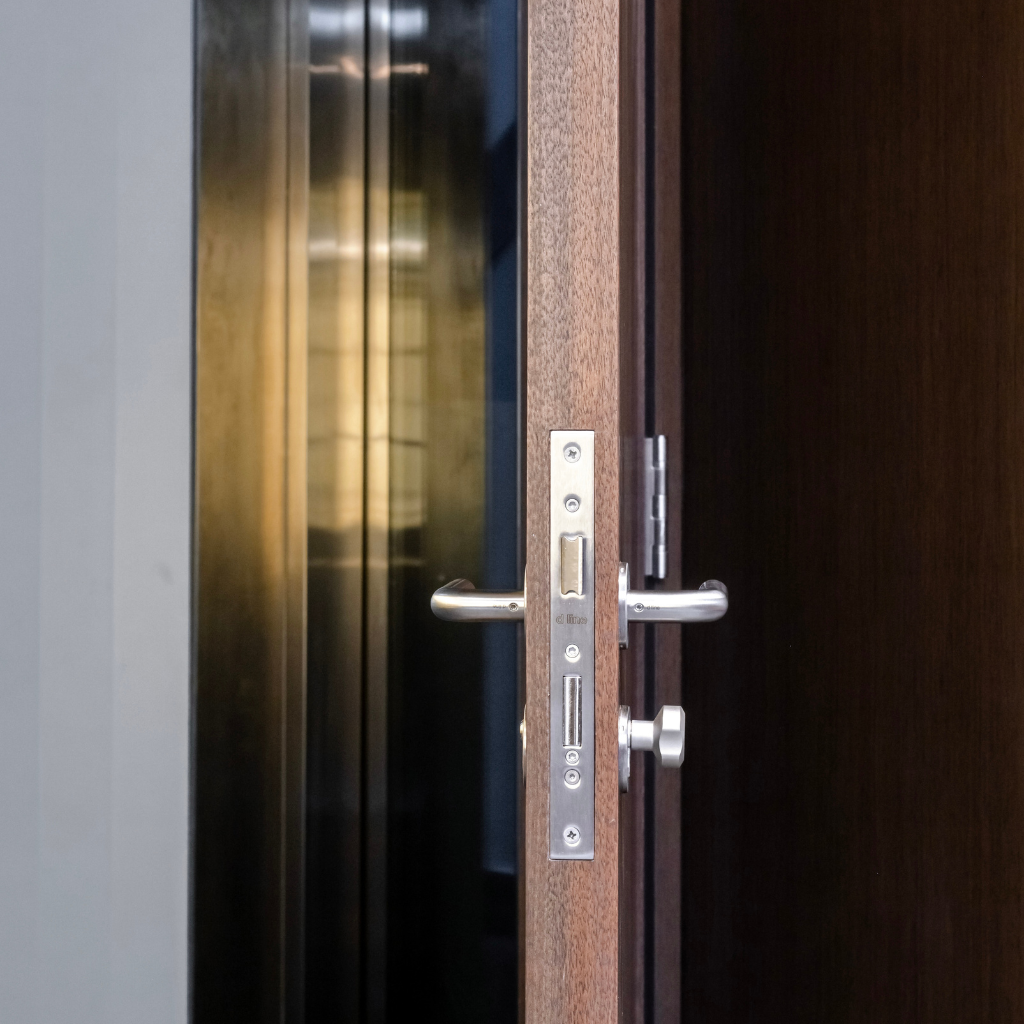

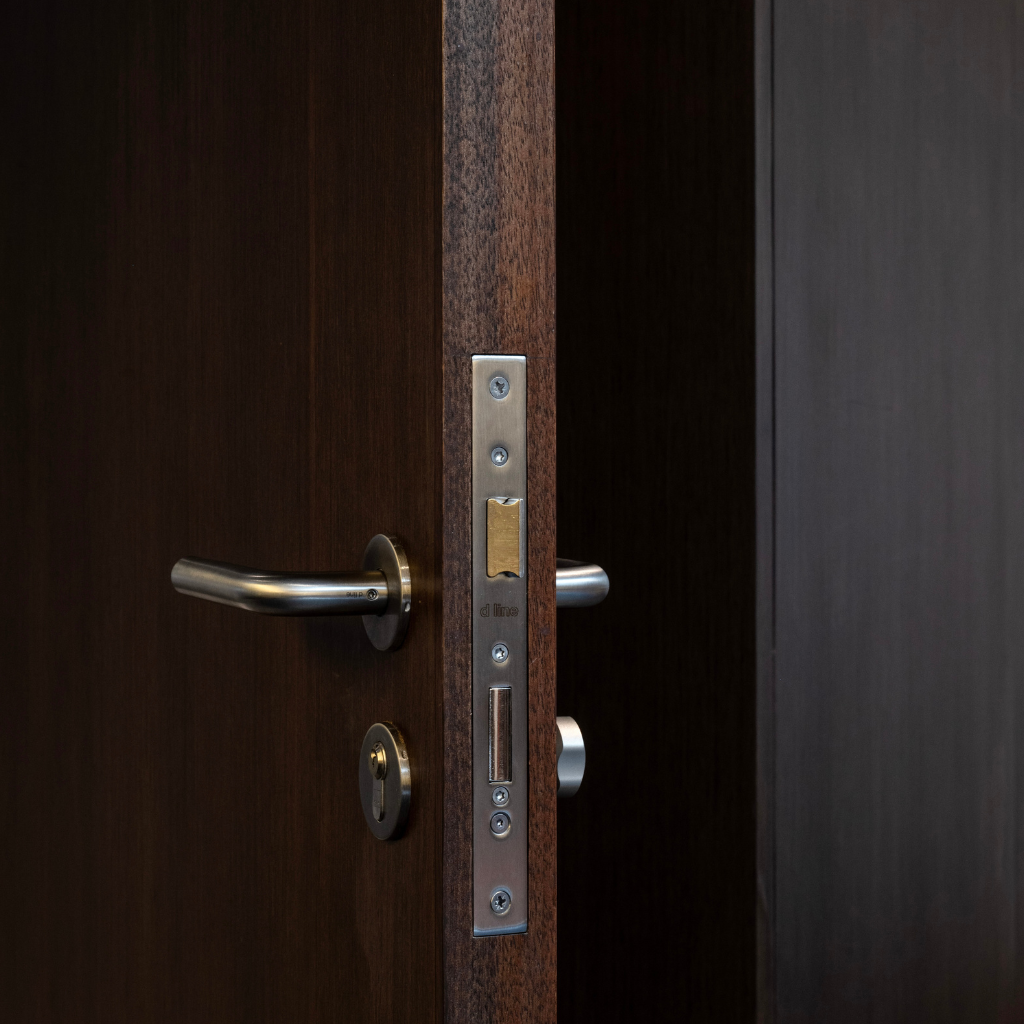

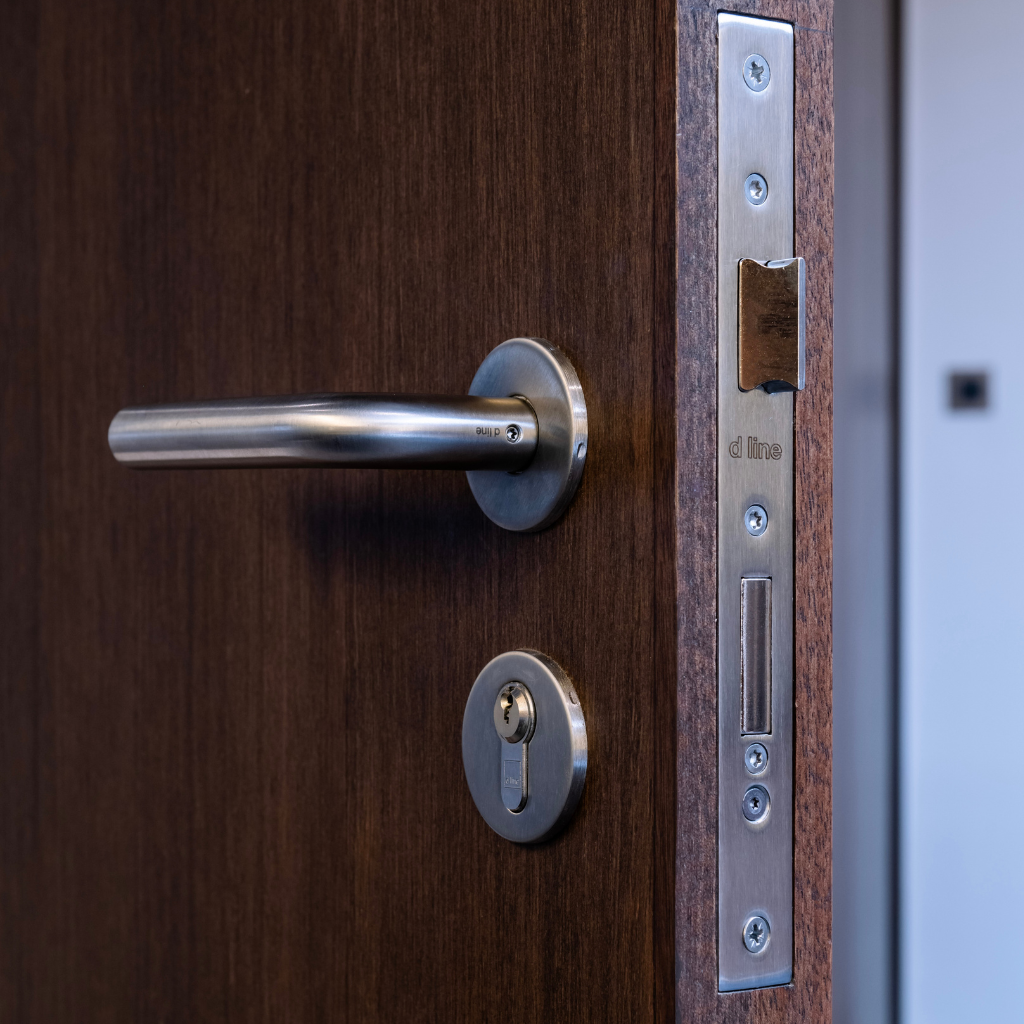

A close up of a d line Euro Mortise Keyed Entry Sash Lock on a door.

$60.00

Shipping calculated at checkout.

Finish — Satin Stainless Steel

Satin Stainless Steel

Polished Stainless Steel

PVD Satin Brass

PVD Satin Copper

PVD Satin Charcoal

Black RAL 9005

Style

Round

Square

Quantity

CONTACT TO REQUEST QUOTE

Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.

Estimated Ship Date: Stainless Steel 5-8 weeks | Other finishes 8-12 weeks

Optional Accessories

Description

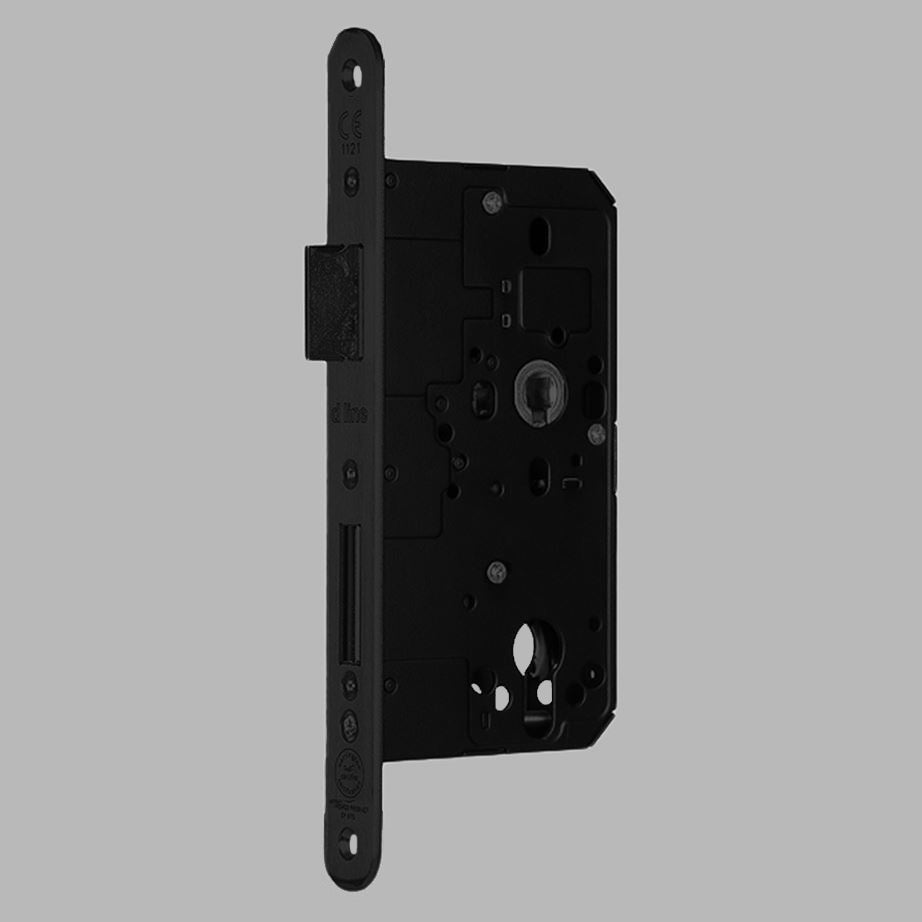

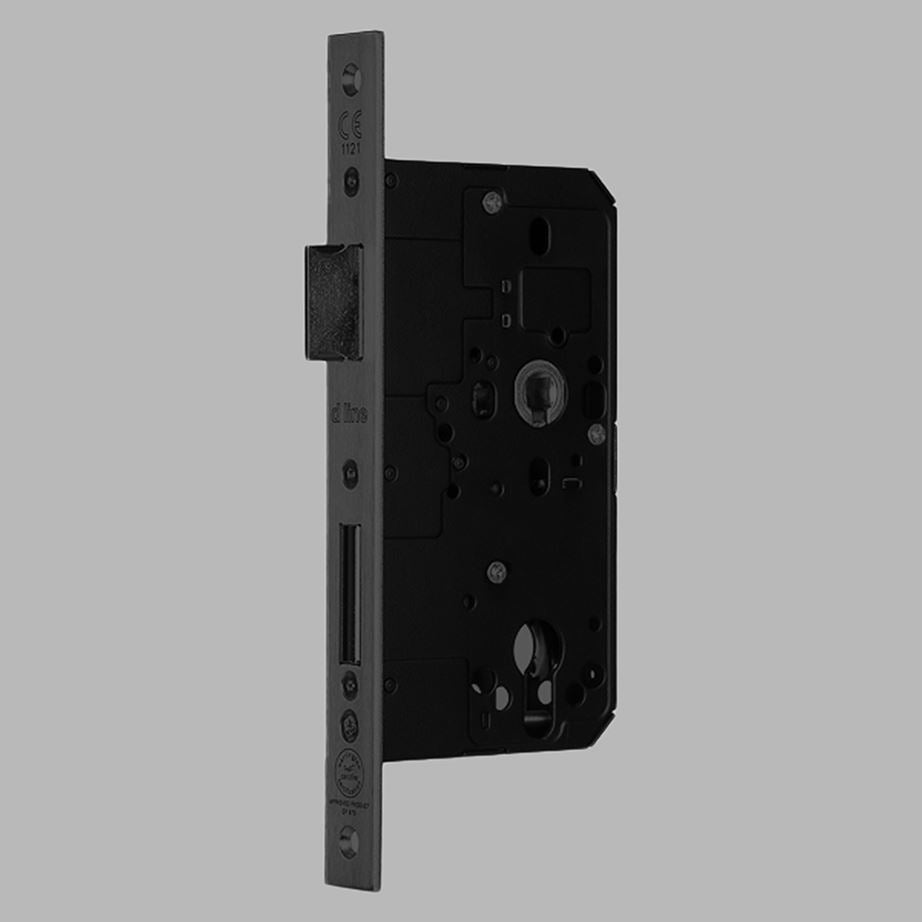

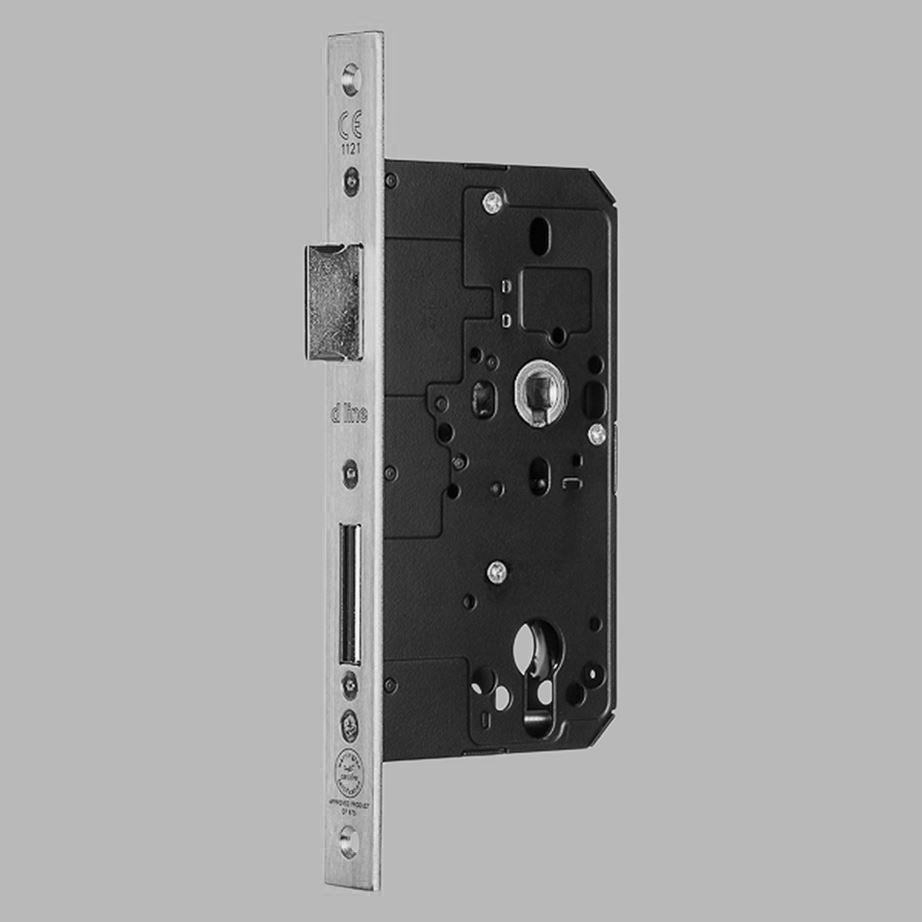

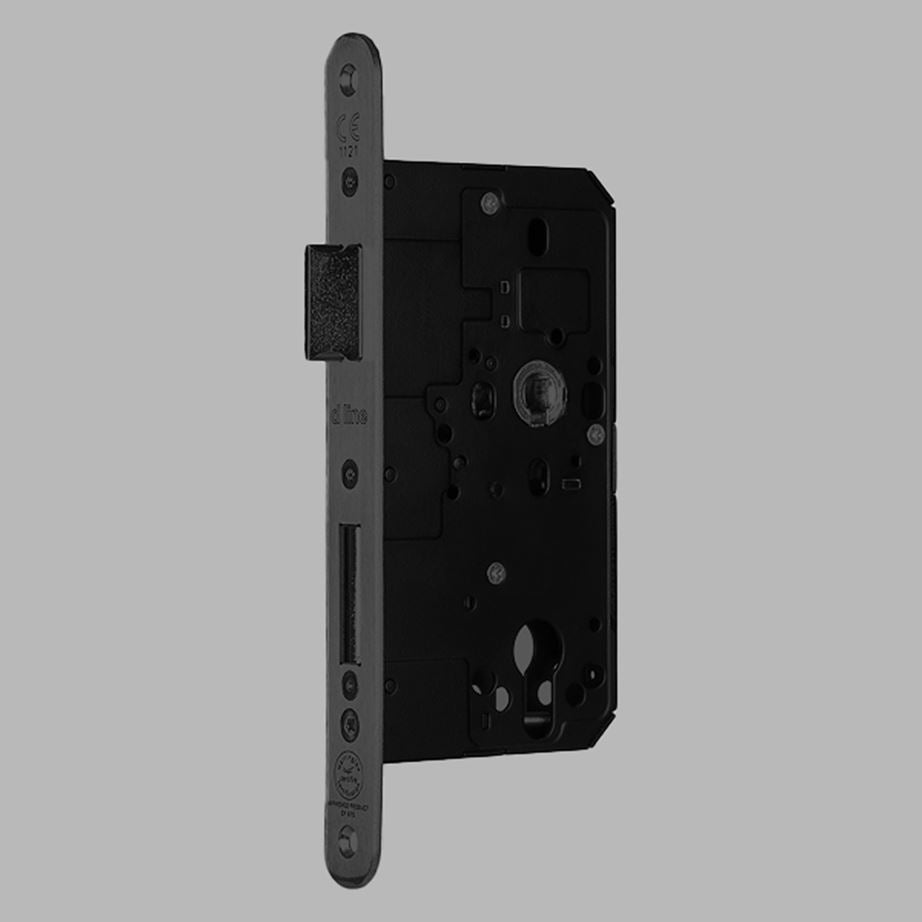

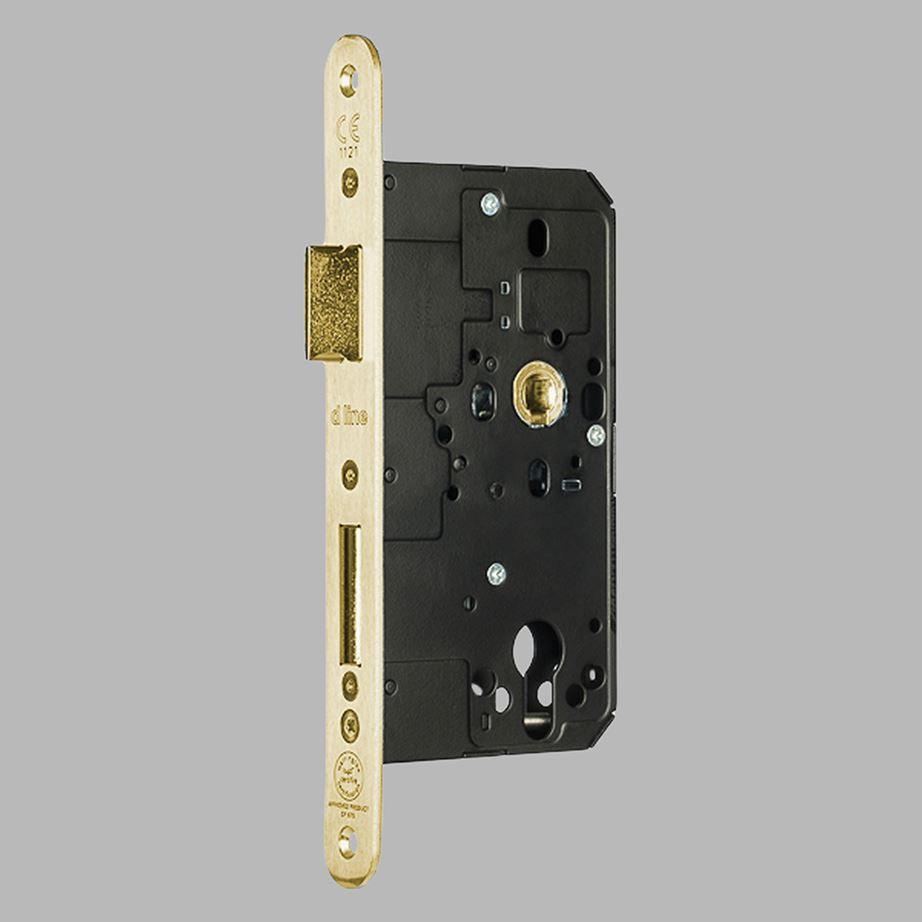

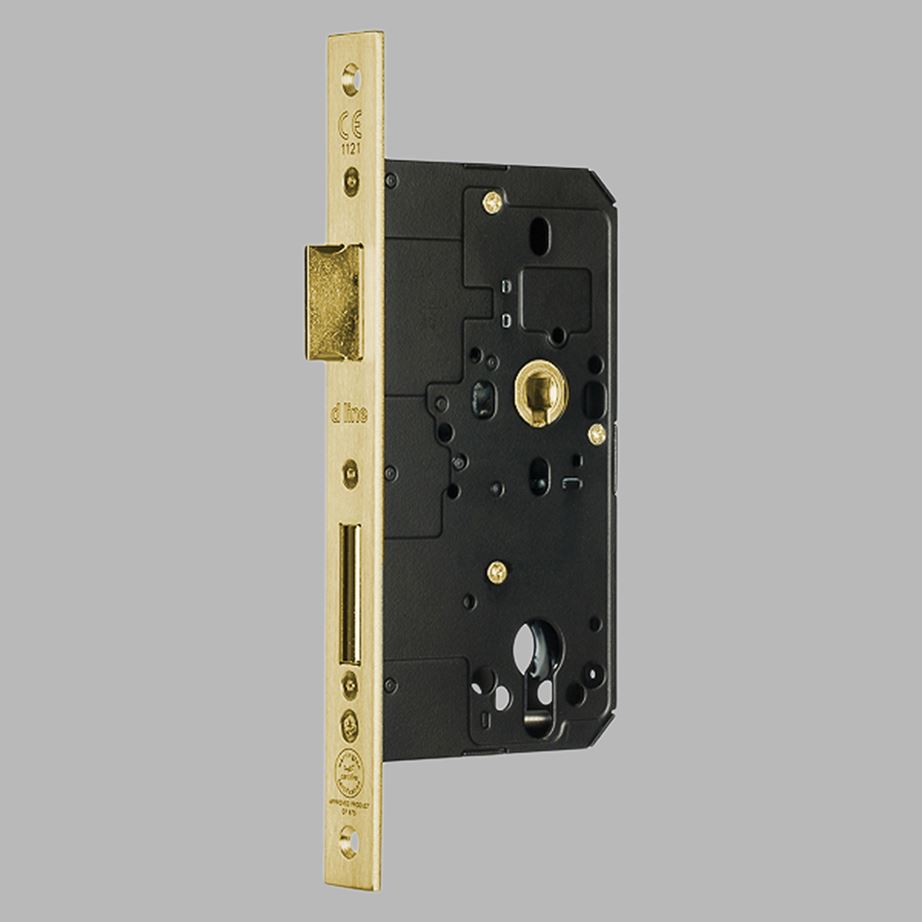

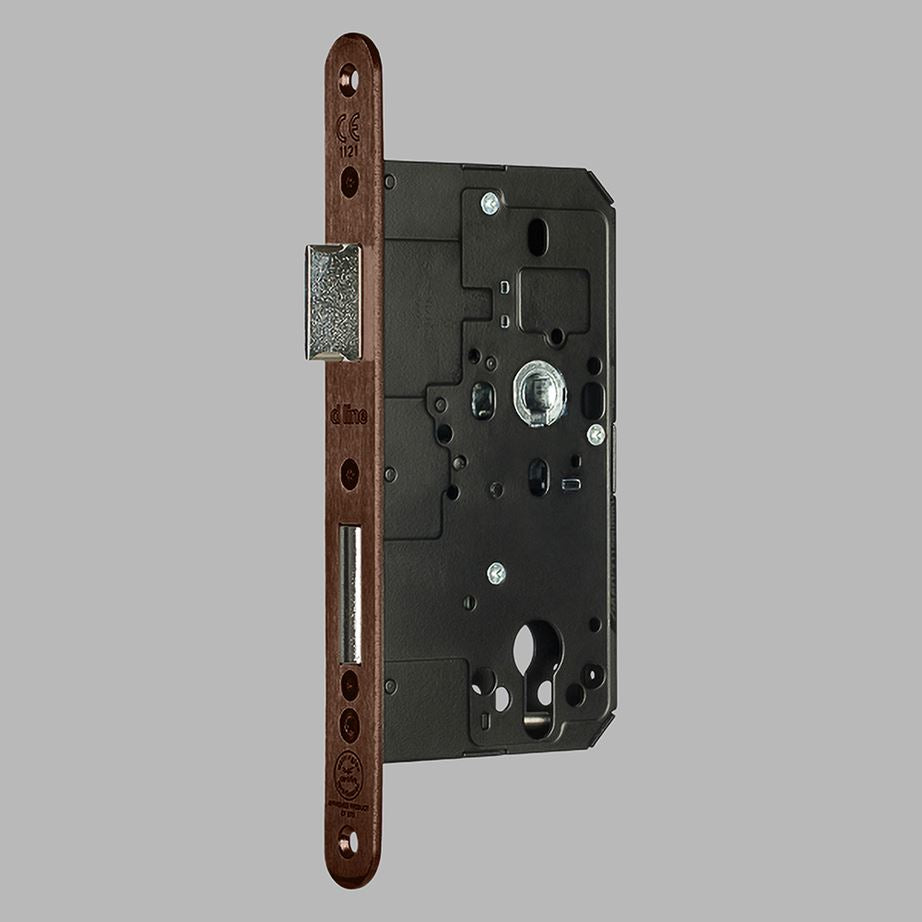

This sash lock with strong spring and strike plate is part of the Knud Holscher collection from d line and has a built-in mechanism that combines two functions: a regular latch to close the door and a dead bolt for added security. It works with a CES key cylinder and locking turn, providing secure key entry and a smooth locking experience. This system is often paired with additional hardware, such as a lever and a euro profile cylinder escutcheon (the decorative plate around the euro profile cylinder), which can be chosen to match the door's design. Available with the option of a round or square part shape and in a variety of finishes, this mortise sash lock is suitable for sprung and most unsprung lever door hardware.

Every hardware piece in the Knud Holscher collection is made in AISI 316 steel. AISI 316 is an acid-proof, non-corrosive, marine quality stainless steel – a robust, raw, sustainable substance that is resilient to environmental factors and use.

Specifications

W 24 mm (0.9") X H 235 mm (9.2") X D 88 mm (3.4")

Part Shape: Round or Square
Backset: 60 mm
Centers: 78 mm

Spindle range available from 33 – 111 mm door thicknesses. For larger door thickness, please contact us for more information.

Material(s)

Satin Stainless Steel (AISI 304 with satin grain 320 finish)
Polished Stainless Steel
PVD coated Copper, Brass, or Charcoal on Stainless Steel
Powder coated RAL 9005 Black on Stainless Steel
X-BAC antimicrobial coating and finishes available upon request

Product Downloads

Data Sheet for 60 mm, Square, strong spring + stike plate

Data Sheet for 60 mm, Round, strong spring + strike plate

d line Material Maintenance Guide

Keyed Entry Sashlock Spec Sheet

Euro Mortise Mounting Instructions

Finish Swatches

2023 Updated d line finish swatches:

d line finish swatch examples

Finish Samples

Shop finish samples HERE.

Additional Components

Keyed entry Euro mortise mechanisms are designed to provide secure access for exterior doors.

To ensure full functionality, the following components are required:

Lever / Knob + Key Escutcheon + CES Key Cylinder + Turn.

Choose from our wide selection of customizable levers and knobs from our Lever & Knob Collection.
For secure key access, make sure to pair it with the CES Key Cylinder and a Key Escutcheon to complete your setup.

Select CES Key Cylinder
Select Key Escutcheon
Explore Lever & Knob Collection
