HB 697 Pocket Door Strike Body

pocket door end pull

pocket door end pull

HB 697 Pocket Door Strike Body

$830.00

Shipping calculated at checkout.

Finish — Satin Chrome

Satin Chrome

Polished Chrome

White

EBA Black

EMB Medium Bronze

Matte Black Chrome

Oil Rubbed Bronze

Electro Flat White

Electro Dark Bronze

Quantity

CONTACT TO REQUEST QUOTE

Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.

Estimated Ship Date: 4-8 weeks

Optional Accessories

Description
Specifications
Material(s)
Product Downloads
Finish Samples

Description

The HB 697 sliding door full body receiver with integrated end pull for bi-parting sliding doors. Often used where two sliding doors meet and a Halliday + Baillie Lock Set holds the two doors together. The advantage of the HB 697 over a standard strike plate is to allow for a matching push button pop out pull with exactly the same dimensions as the opposing lock set.

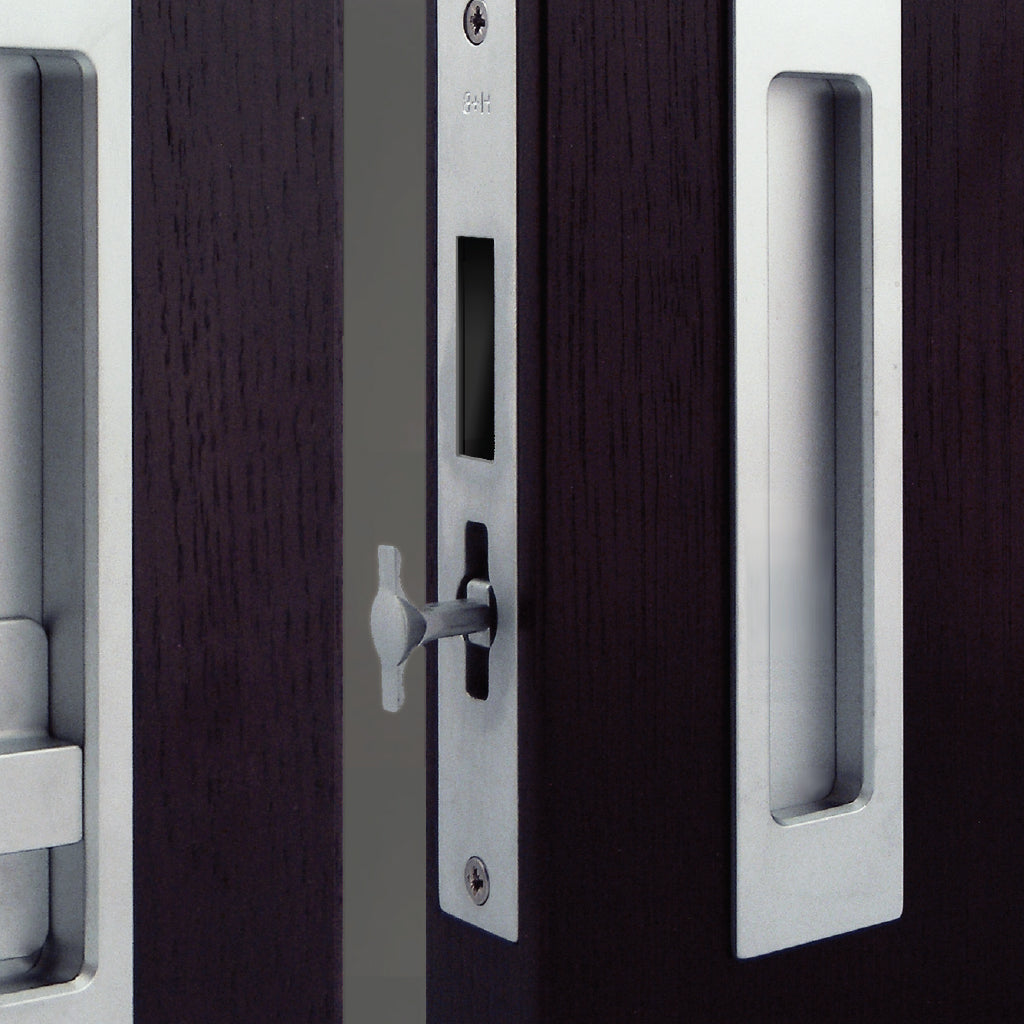

(Shown with the HB690 Flush Pulls)

Specifications

Suitable for timber or aluminium doors

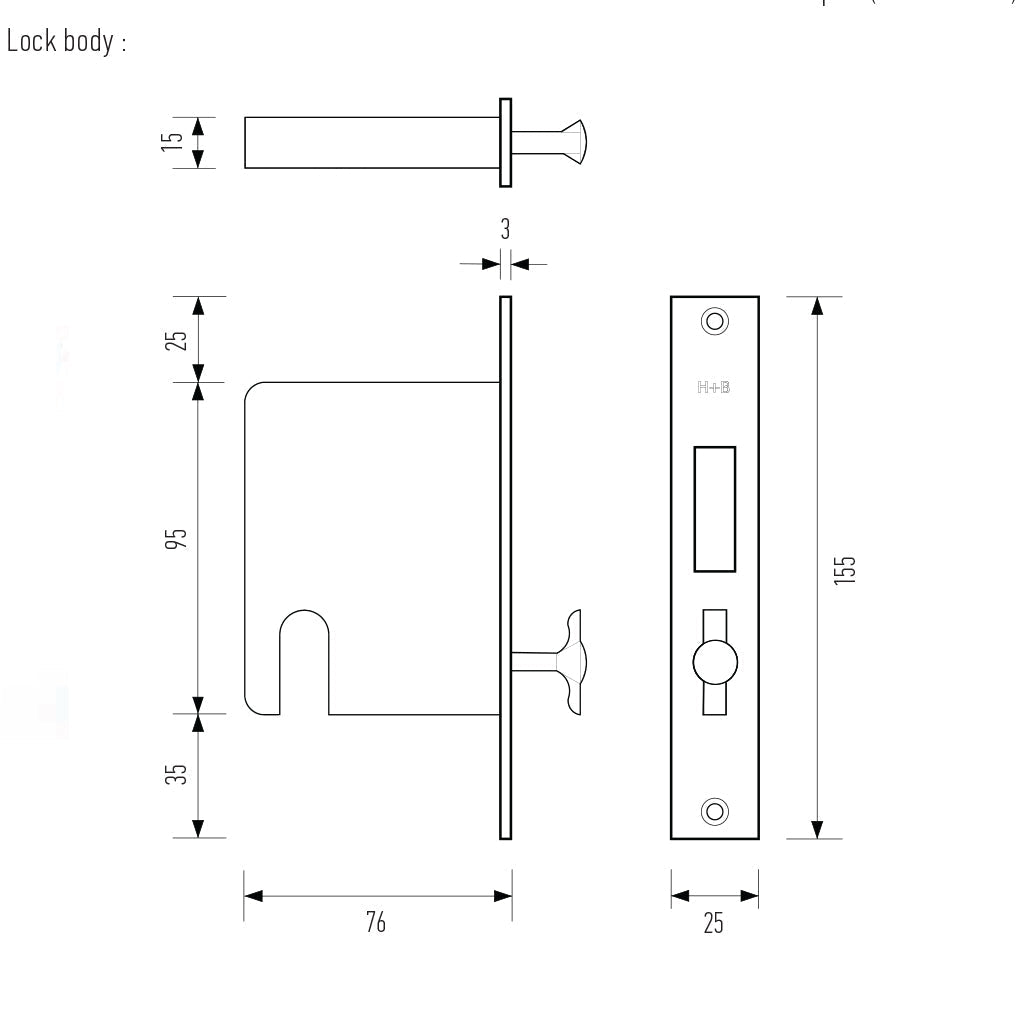

Case dimensions:
H 155 mm (6.1") x W 76 mm (3") x D 25 mm (1")

Glue, epoxy, silicone products etc are not required or recommended for installation.

Material(s)

Diecast zinc and brass

Finishes:

SC: Satin Chrome
BC: Brushed Chrome
PC: Polished Chrome
WHT: Powder Coat White
EBA: Powder Coat Electro ™ Black Ace
EMB: Powder Coat Electro ™ Medium Bronze
KC: Matte Black Chrome
ORB: Oil Rubbed Bronze
EFW: Electro Flat White
EDB: Electro Dark Bronze

Complete Finishes List and here

Product Downloads

HB697 Cut Sheet
HB Full Catalogue

Finish Samples

Shop finish sampler HERE.
