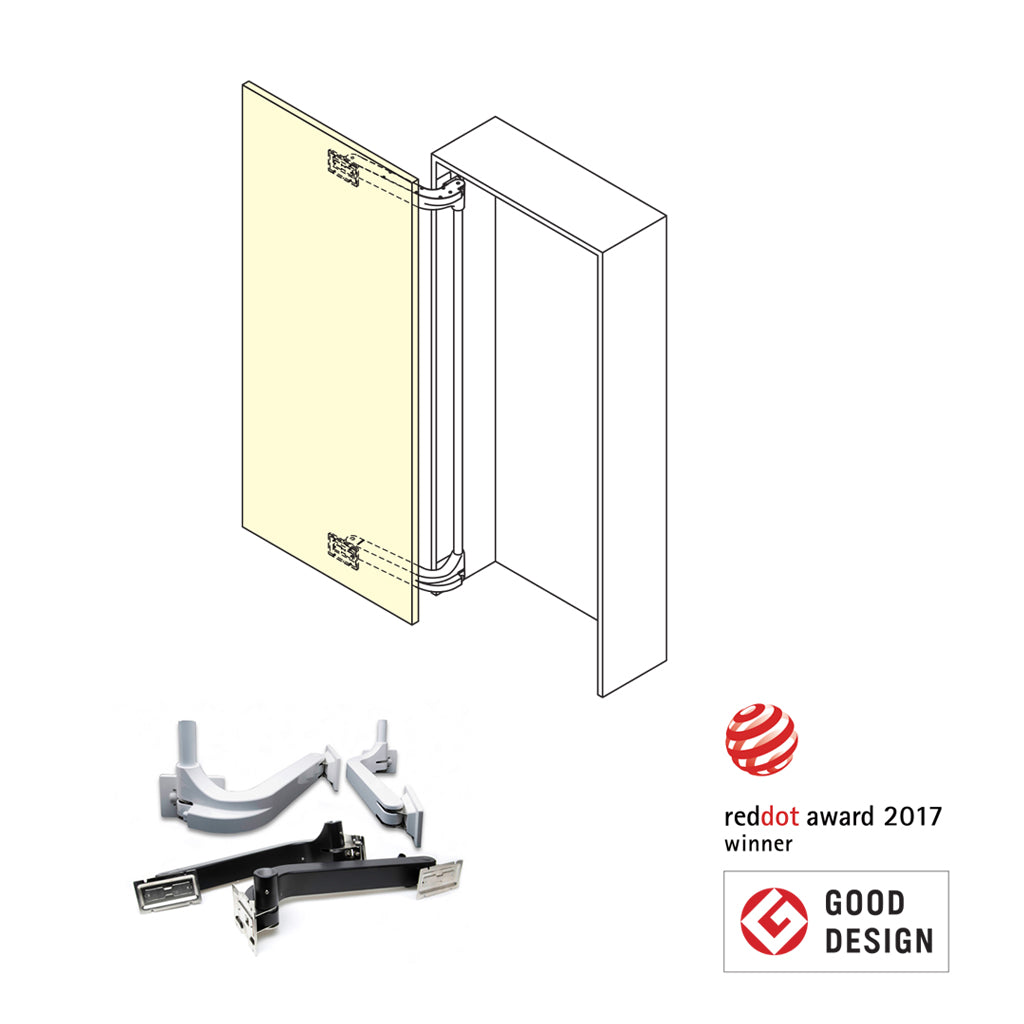

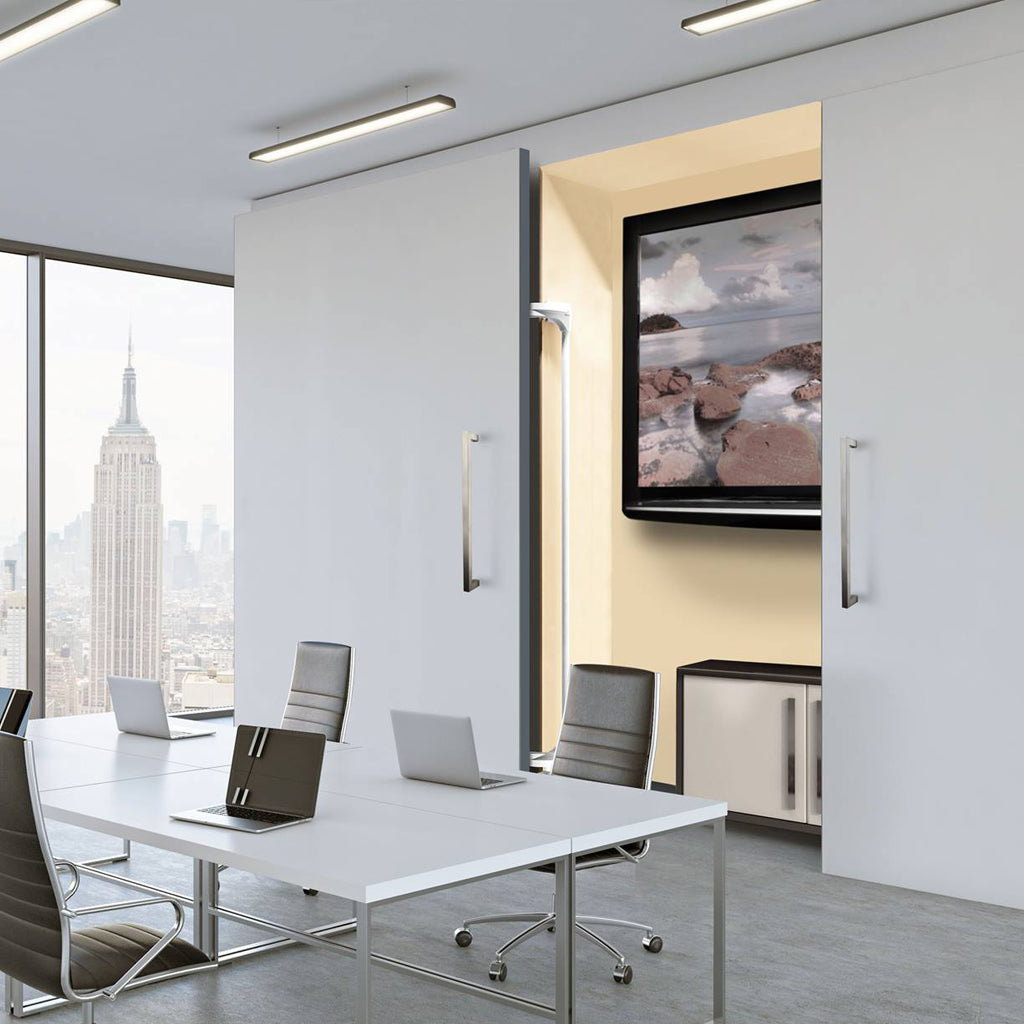

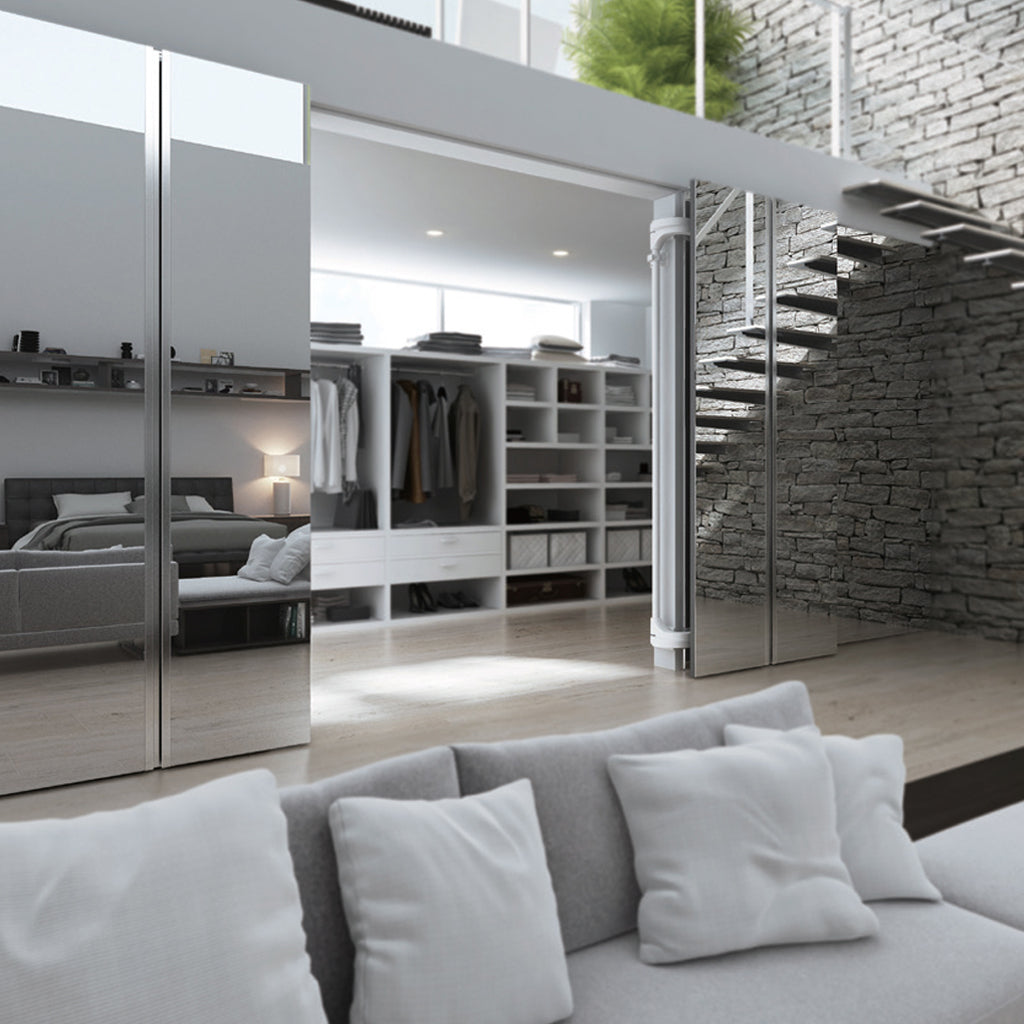

This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.
This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.
This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.

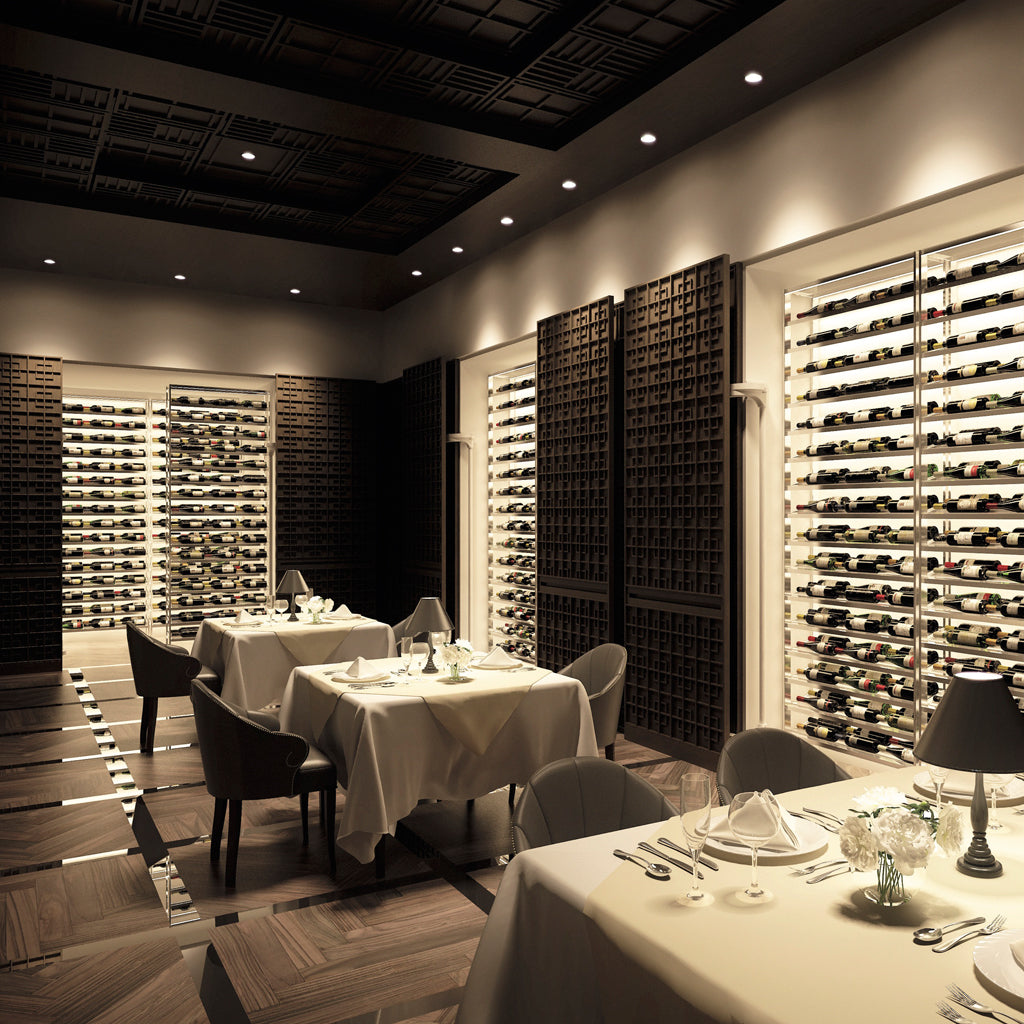

The door in the open position

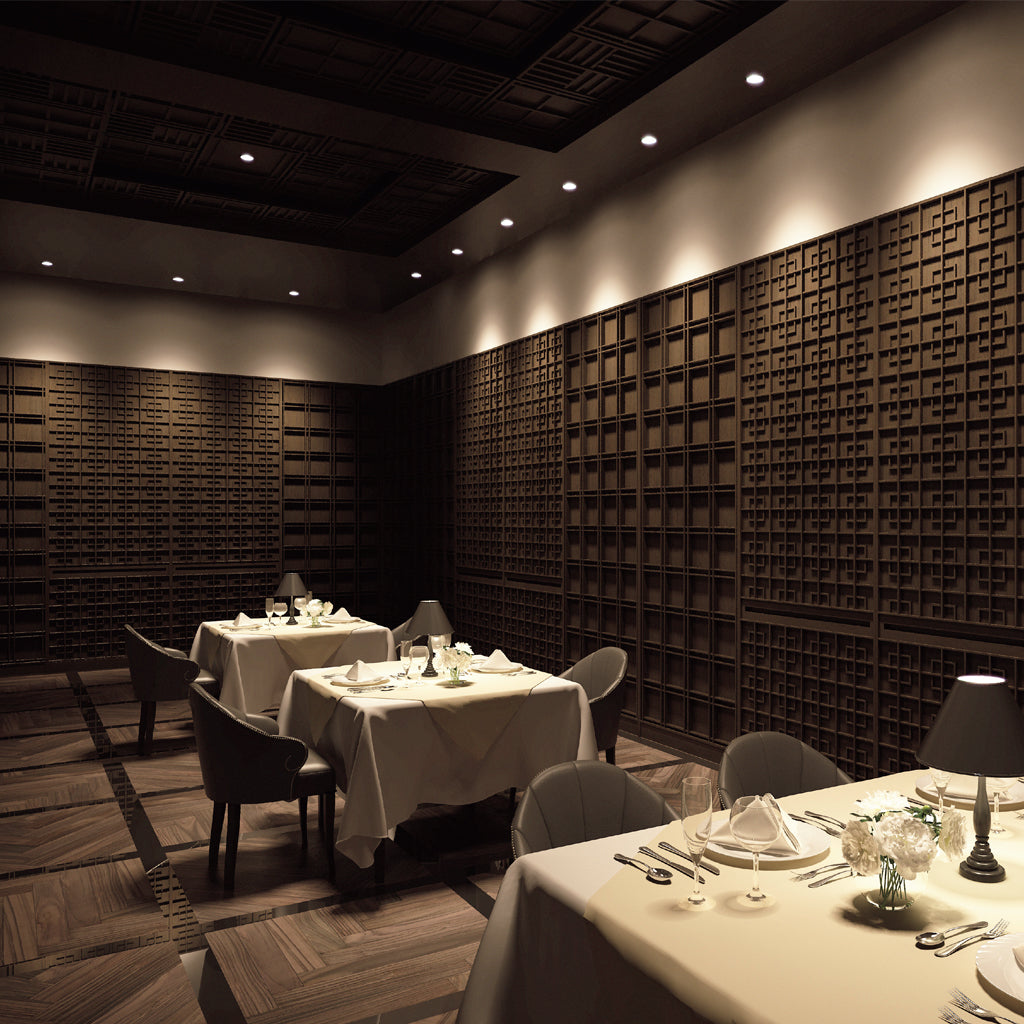

The LIN-X1000 in the closed position. Doors are able to sit flush
This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.
This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.
This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.
The door in the open position
The LIN-X1000 in the closed position. Doors are able to sit flush
Sugatsune

Mono Flat LIN-X Hinge

$3,400.00
/
Shipping calculated at checkout.
Finish
  • Estimated Ship Date: 2-4 weeks

Optional Accessories

This soft close door hinge allows the door to smoothly swing out laterally in a tight radius. It is ideal for applications where space in front of the door opening is limited. The door sits flush to the wall which gives it an exceptional, minimal look.

The Mono Flat LIN-X1000 Hinge was awarded the reddot award in 2017.

  • Lateral swing mechanism that moves and opens door smoothly.
  • Allows doors to swing out laterally in a small radius, ideal for tight front space application.
  • Door will not get in the way when fully opened providing full access to the cabinet/opening.
  • Unique Design & Easy Installation.
  • Only 6 parts needed to install a lateral door.
  • Handle can be installed in any position of door.
  • Free Stop & Soft-close
  • Door can be stopped in any position and closes softly.
  • 4-Way Adjustable to ensure a proper fit.
  • Adjustment in vertical (±7 mm), horizontal (±7 mm), depth (±5 mm) and
    • parallel (±3°).
  • Door Width: 750 - 1100 mm (29.5 - 43.3")
  • Door Height Max.: 2980 mm (117.3")
  • Door Thickness: 24 - 40 mm (15/16 - 1.57")
  • Door Weight Max.: 90 kg (198 lbs) / Door

    • Steel and aluminum. Finish: White or Black.
