Painted Range Combination Rotary Dimmers and Toggle Switches by Forbes & Lomax
Pairs With
Description
The Painted Range by Forbes & Lomax provides primed, ready-to-paint plates that sit flush to the wall. Each plate can be painted onsite to match the wall colour for a subtle, unobtrusive look, while the switch mechanism is supplied in the finish of your choice.

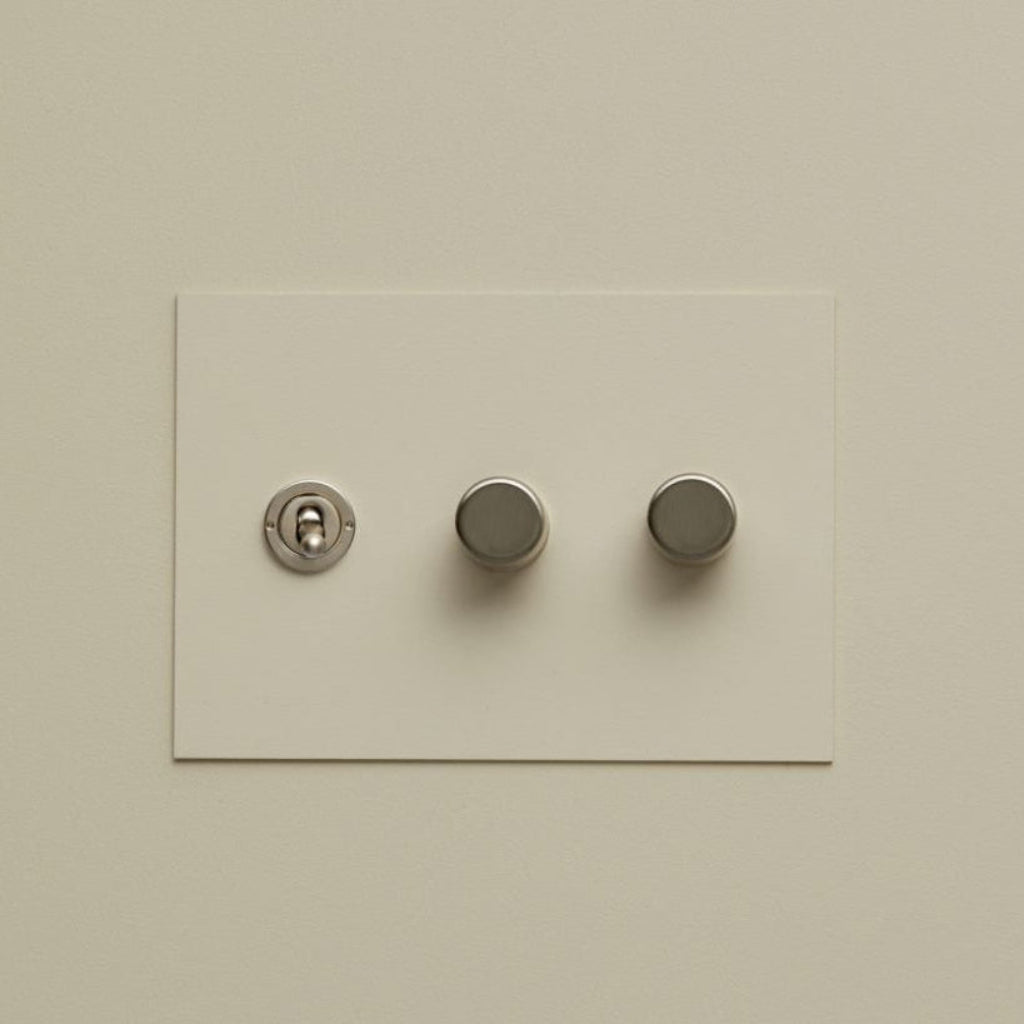

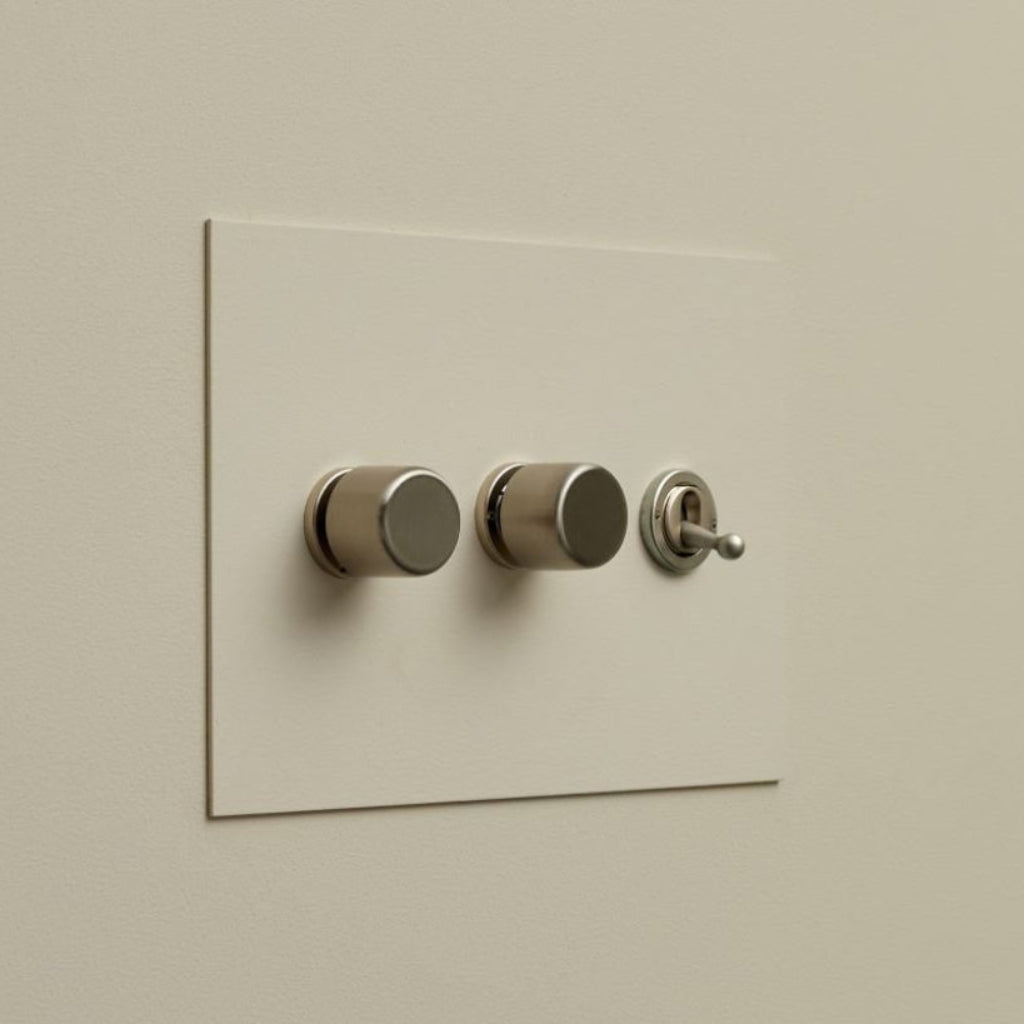

The painted combination plate pairs a rotary dimmer with one or more toggle switches on a single primed plate. The rotary dimmer manages up to 120 W of LED lighting (or 300 W incandescent/halogen); toggle switches are 3-way, 15 A (can be wired single-pole). In 3-way or 4-way circuits, dimming is possible from one location only — remaining positions function as non-dimming toggles. For personalized configurations, email contact@cassonhardware.com.
Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.
Specifications
- Switch diameter: Ø 20 mm (0.79")
- Knob diameter: Ø 20 mm (0.79")
Plate Sizes
- 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")
- 2 Gang: 115 mm (4.53") x 115 mm (4.53")
- 3 Gang: W 162 mm (6.38") x 115 mm (4.53")
- 4 Gang: W 210 mm (8.27") x 115 mm (4.53")
Electrical Ratings
- Line voltage — for conventionally wired installations
- Toggle: 3-way, 15 A (also works as single-pole)
- LED dimmer: Max 120 W LED or 300 W incandescent/halogen
Important Notes
- TRIAC dimmer is compatible with LED and incandescent
- Toggle switches conform to UL 20 / CSA C22.2 No.111; rotary dimmers conform to UL 1472 / CSA C22.2 No.184
- Junction boxes must be recessed below the finished wall surface by at least 1/8"
- Must be installed by a licensed electrician
Application: light-duty commercial, residential.
Materials
Available Switch Finishes
- Unlacquered Polished Brass
- Antique Bronze
- Brushed Stainless Steel
- Nickel Silver
- Matte Brass
- Lacquered Brushed Brass
Unlacquered Polished Brass is a living finish that changes colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
