Painted Range Toggle Switches by Forbes & Lomax
Description

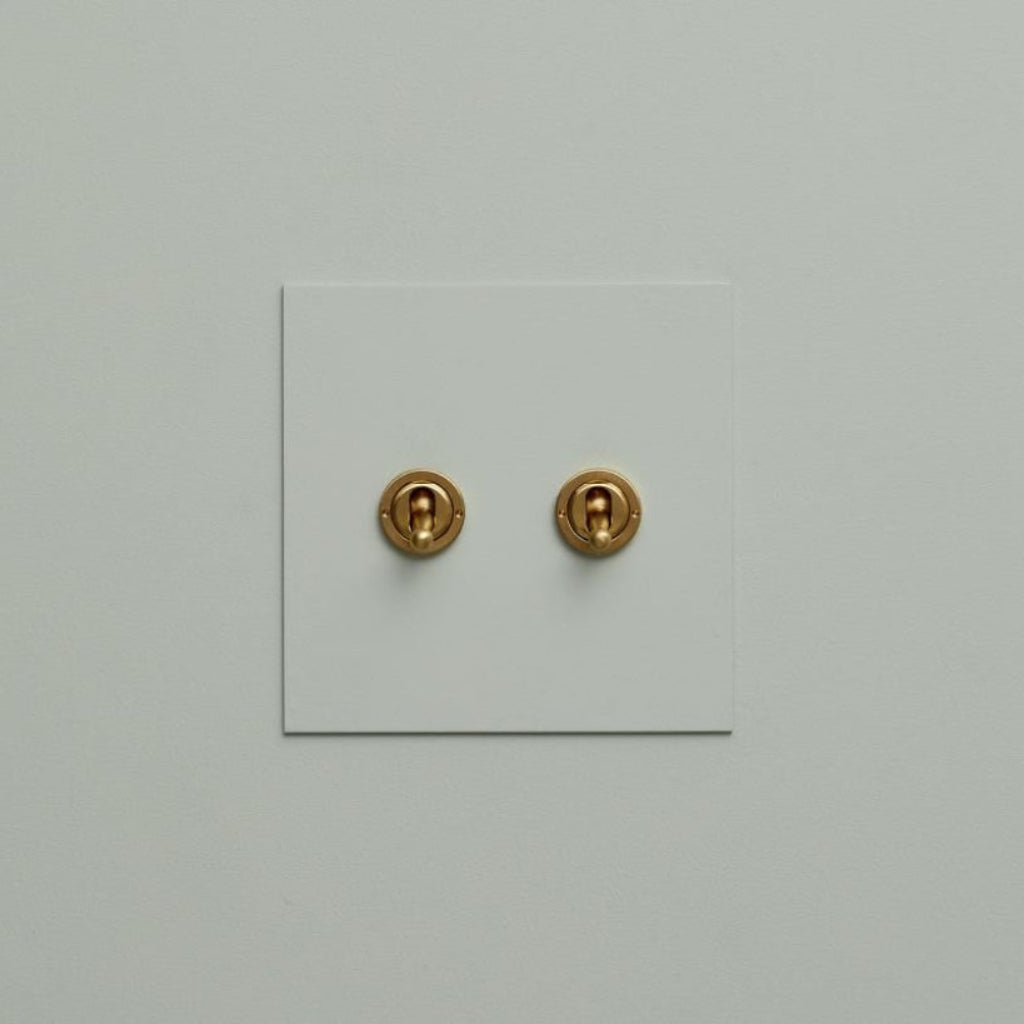

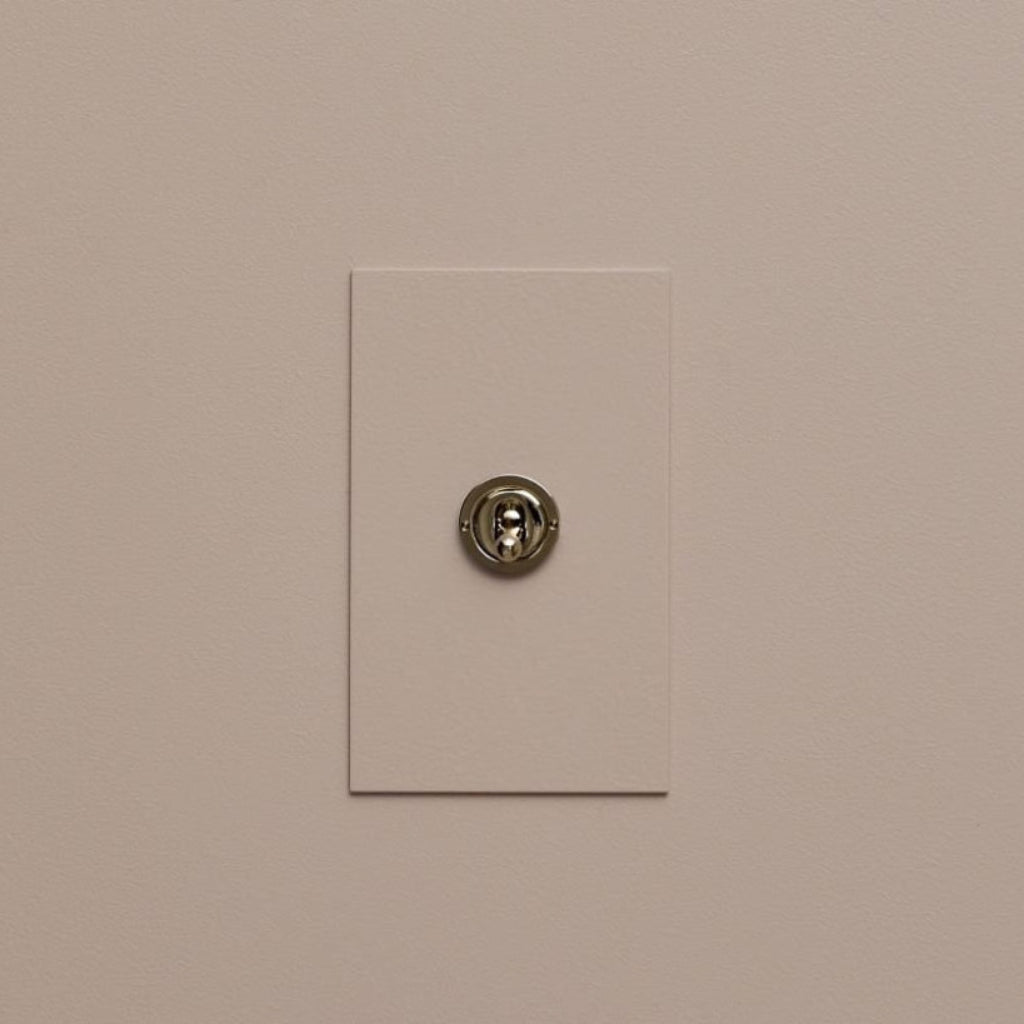

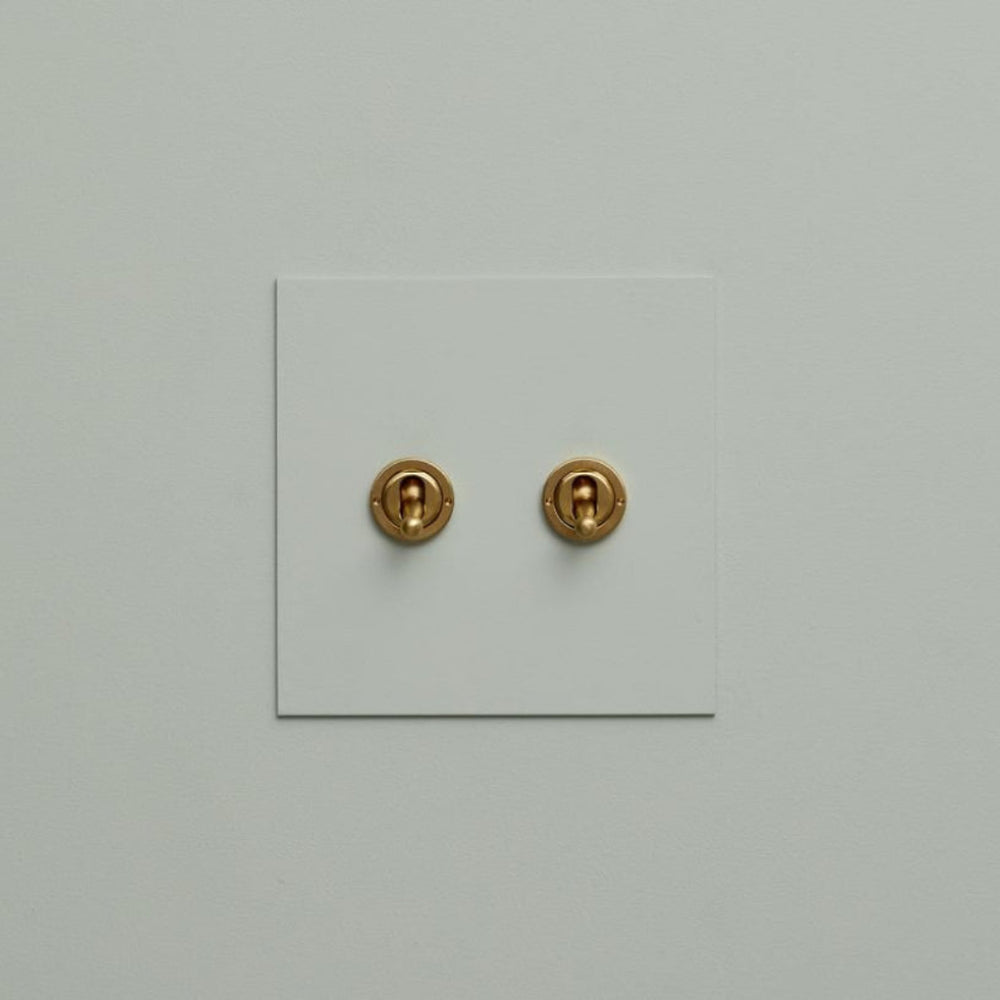

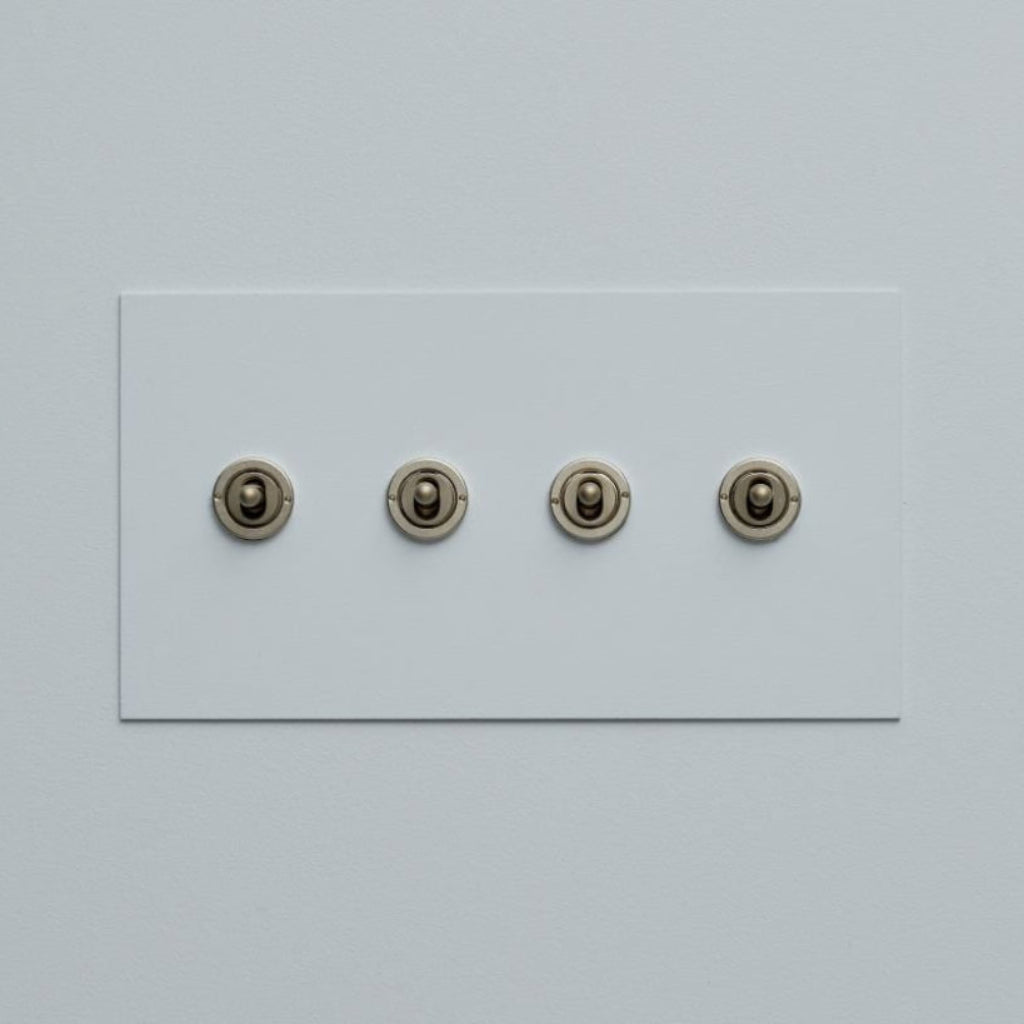

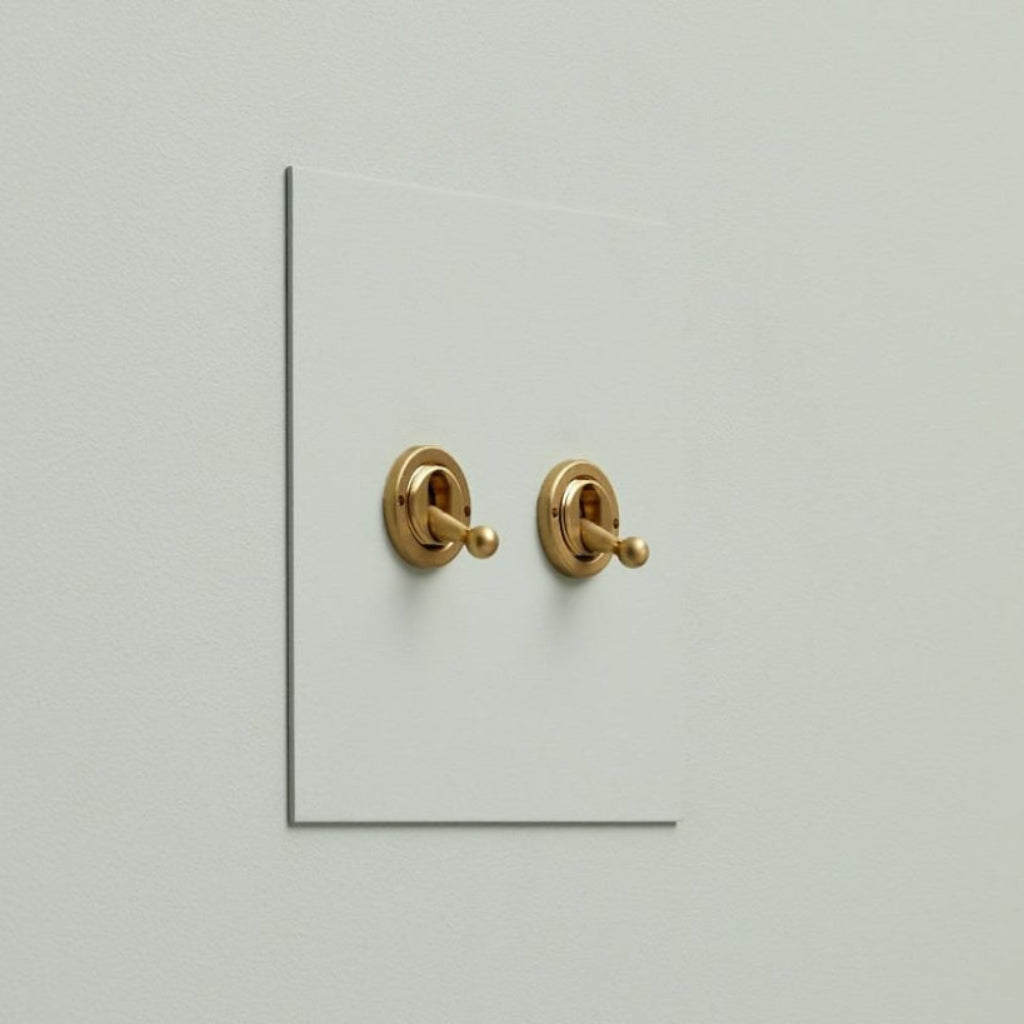

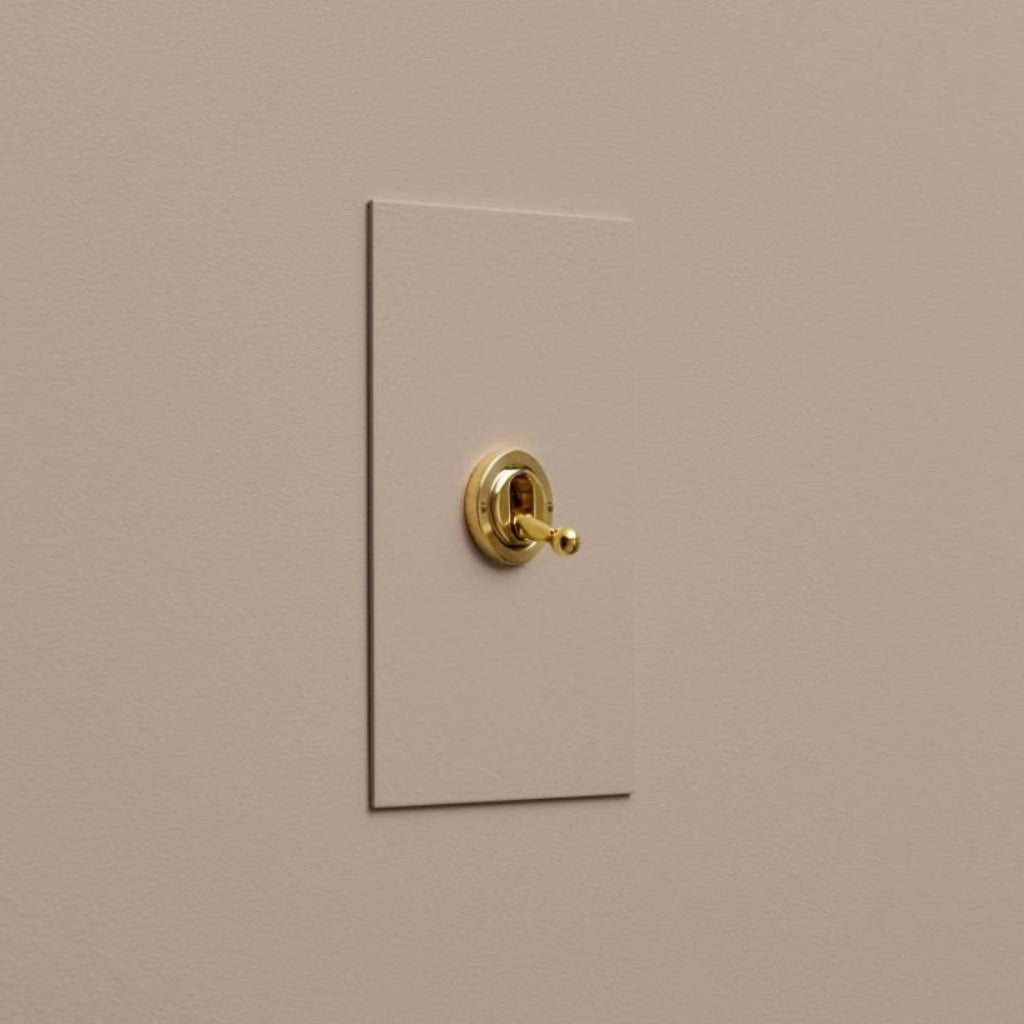

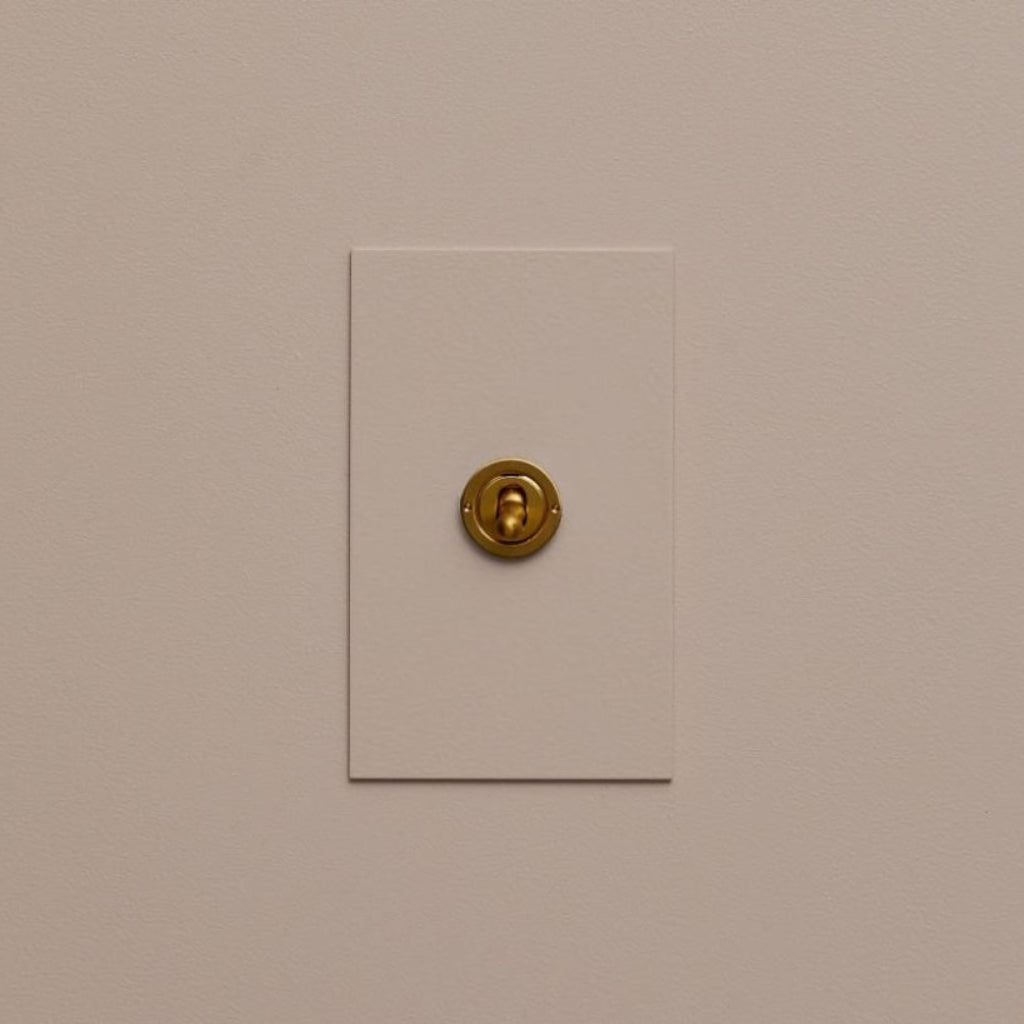

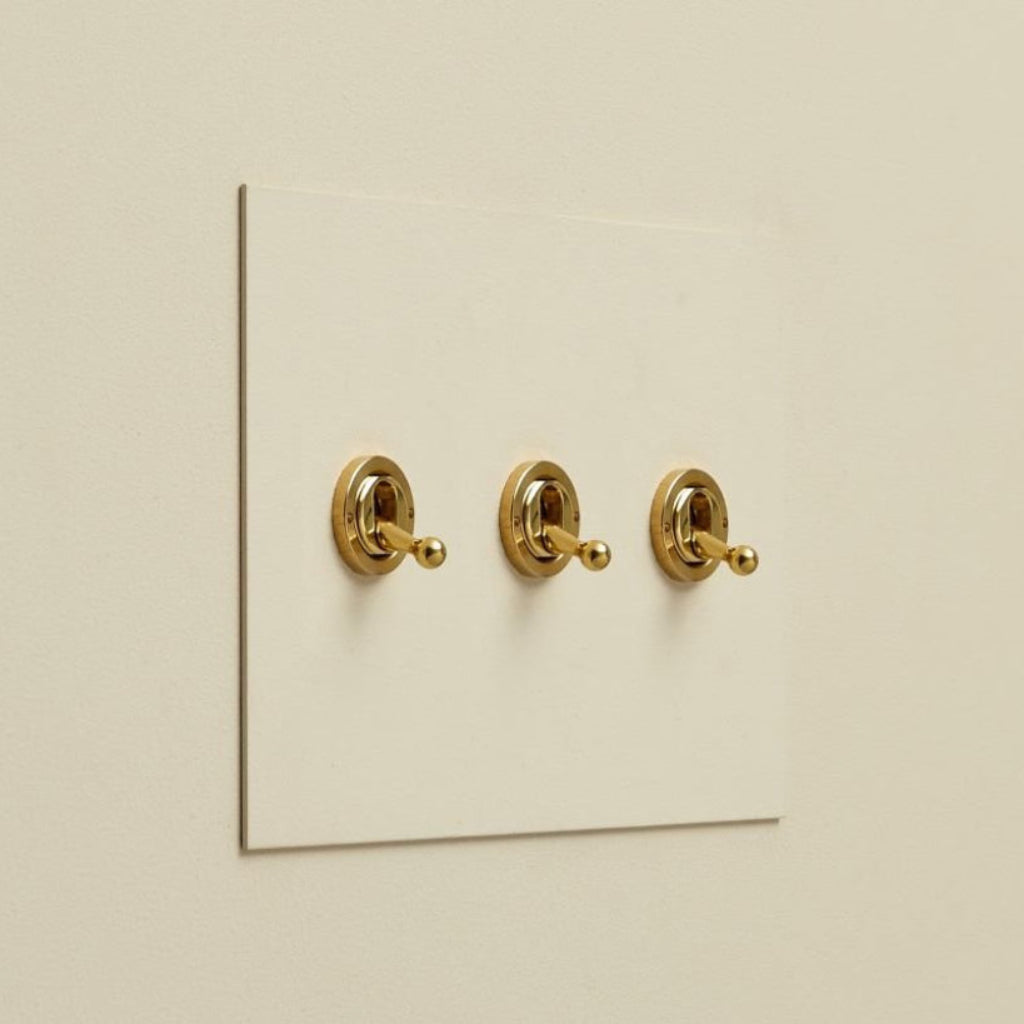

The Painted Range by Forbes & Lomax provides primed, ready-to-paint plates that sit flush to the wall. Each plate can be painted onsite to match the wall colour for a subtle, unobtrusive look, while the switch mechanism is supplied in the finish of your choice.
Painted toggle switches are line-voltage switches based on the elegant nickel and brass switches of the 1930s. Available in 3-way and 4-way versions (3-way can also be used as single pole). Can be mixed with Rotary Dimmers and push buttons on the same plate. 1–4 gang configurations.
Established in 1987, Forbes & Lomax is a UK-based heritage electrical brand recognized by architects and designers for refined switch and outlet design.
Specifications
- Switch: Ø 20 mm (0.79")
Plate Sizes
- 1 Gang: W 70 mm (2.76") x H 115 mm (4.53")
- 2 Gang: 115 mm (4.53") x 115 mm (4.53")
- 3 Gang: W 162 mm (6.38") x 115 mm (4.53")
- 4 Gang: W 210 mm (8.27") x 115 mm (4.53")
Available Configurations
- 3-way, 15 A (also works as single pole)
- 4-way, 15 A
Installation Notes
- Toggle switches conform to UL 20 and are certified to CSA C22.2 No. 111
- Must be installed by a licensed electrician
- Junction boxes must be recessed below the finished wall surface by at least 1/8"
Areas of application: light-duty commercial, residential.
Materials
Available Switch Finishes
- Unlacquered Polished Brass
- Antique Bronze
- Brushed Stainless Steel
- Nickel Silver
- Matte Brass
- Lacquered Brushed Brass
Unlacquered Polished Brass is a living finish that changes colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
