Qtoo Wall Mounted Sensor Tap System
Pairs With
Description

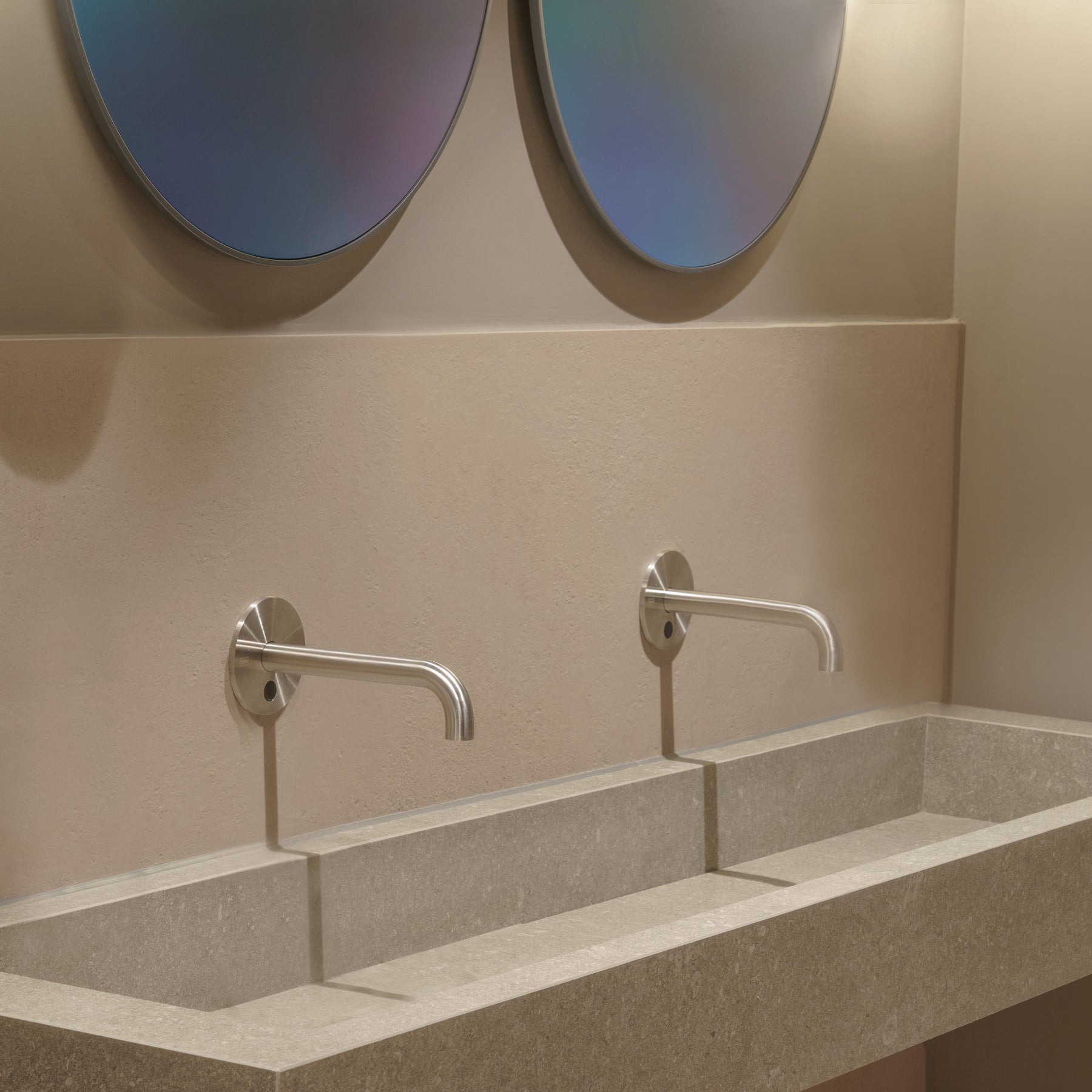

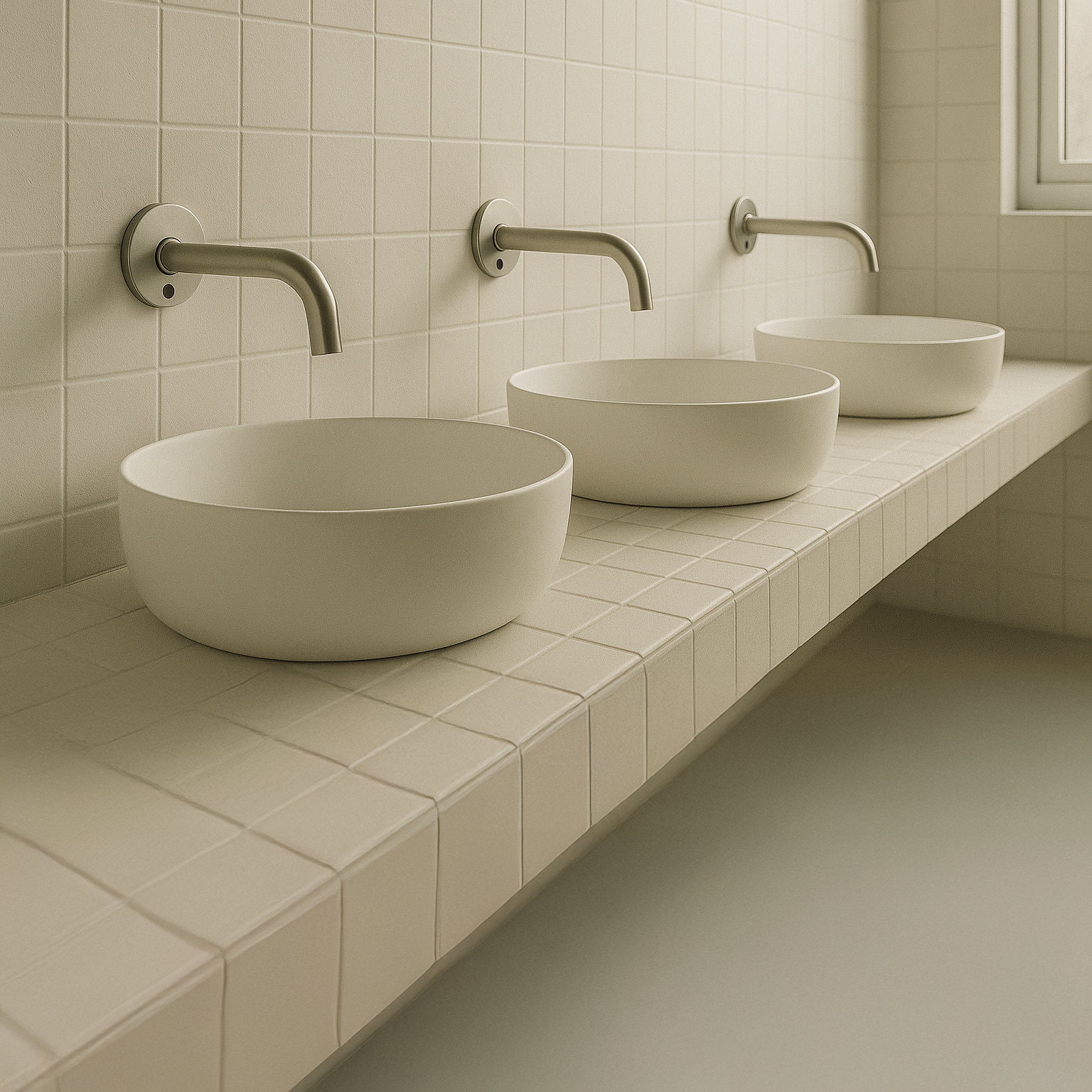

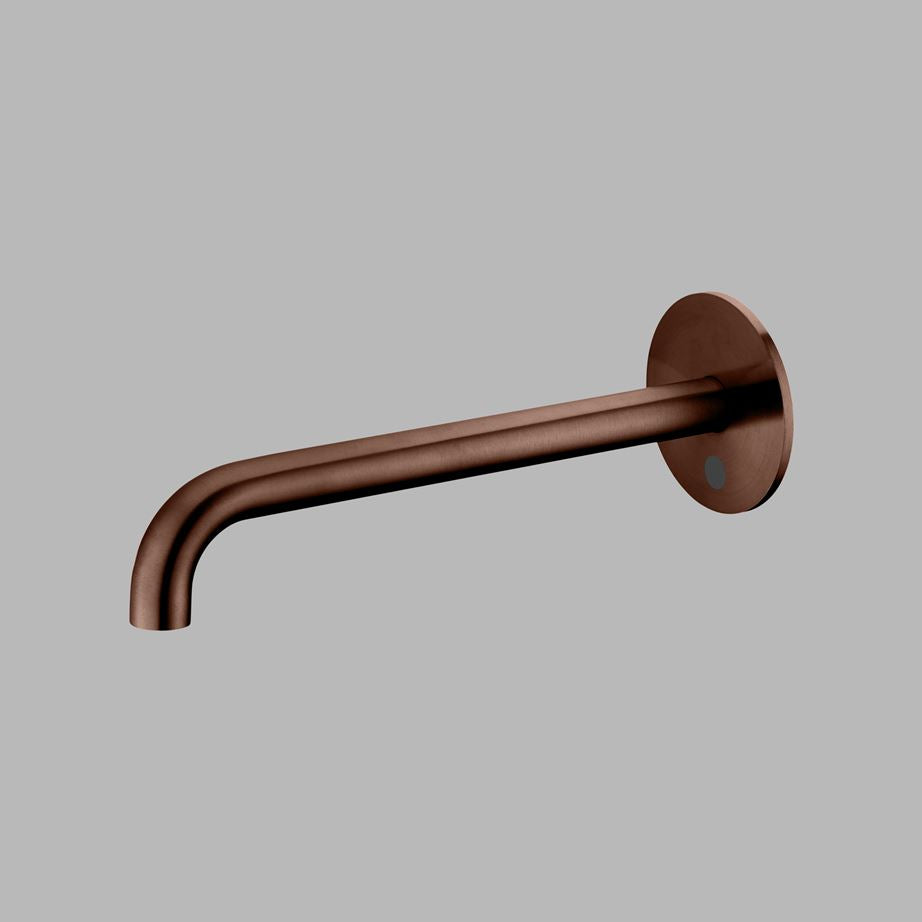

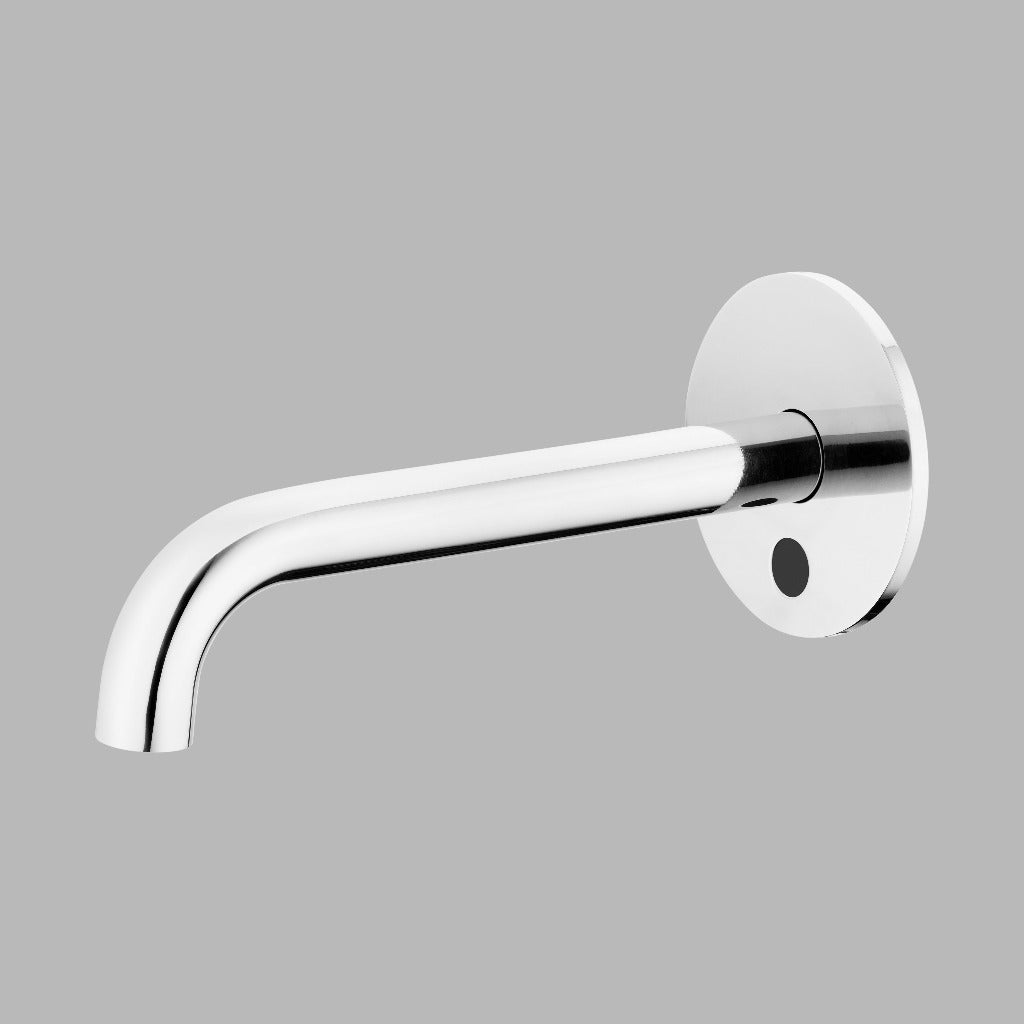

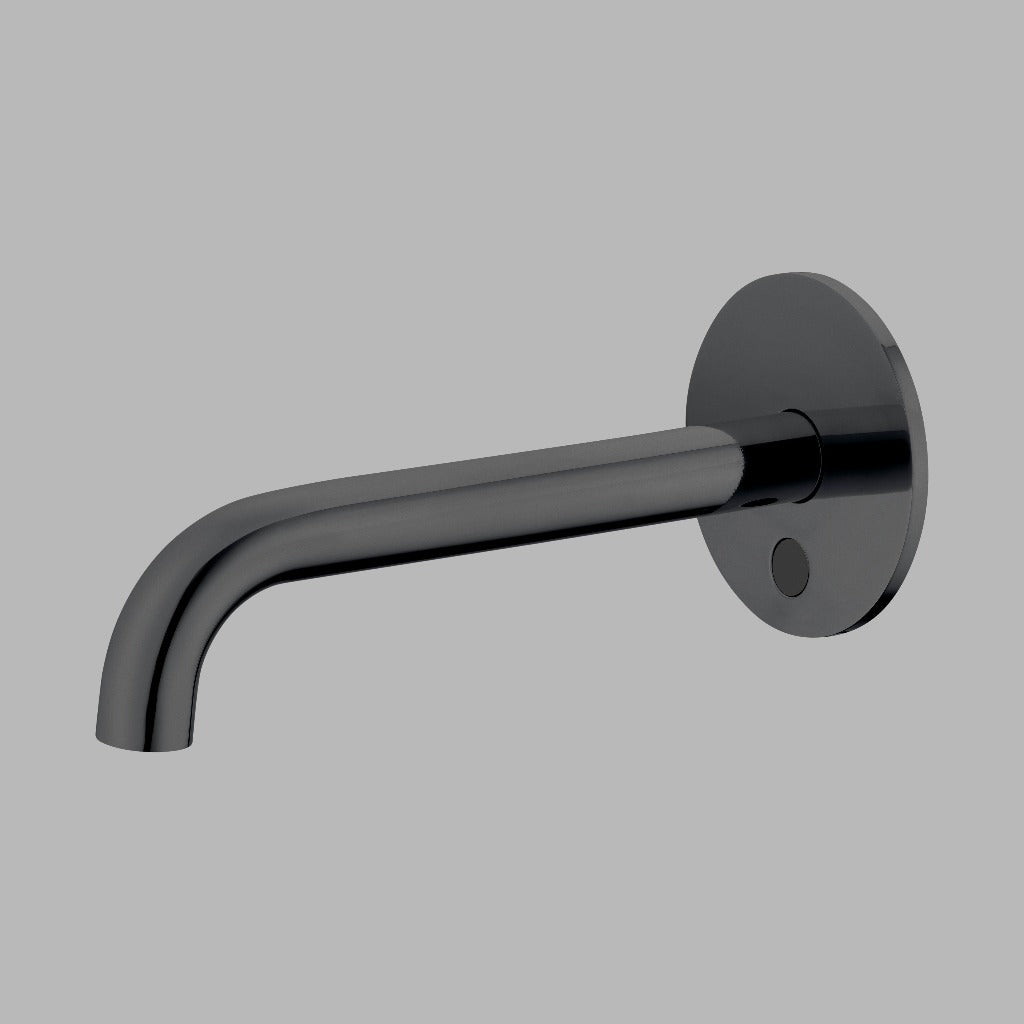

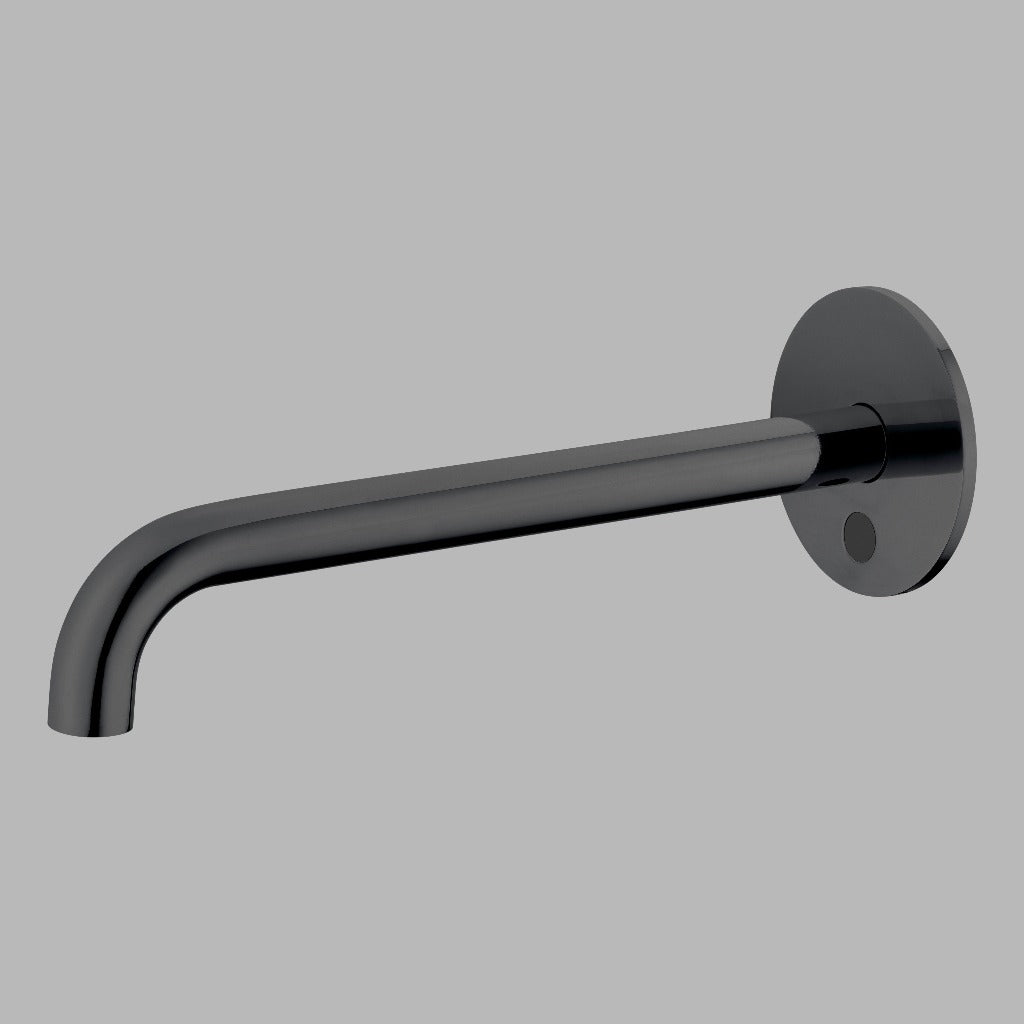

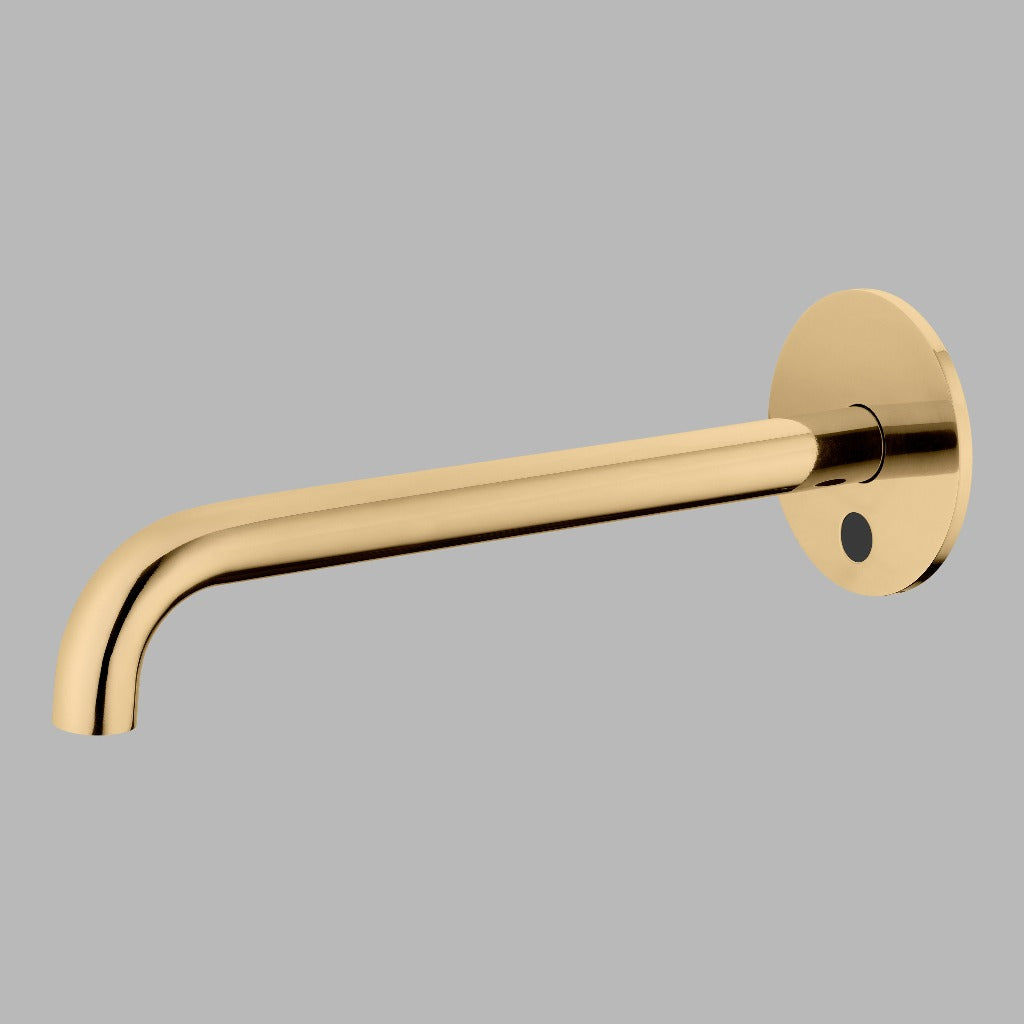

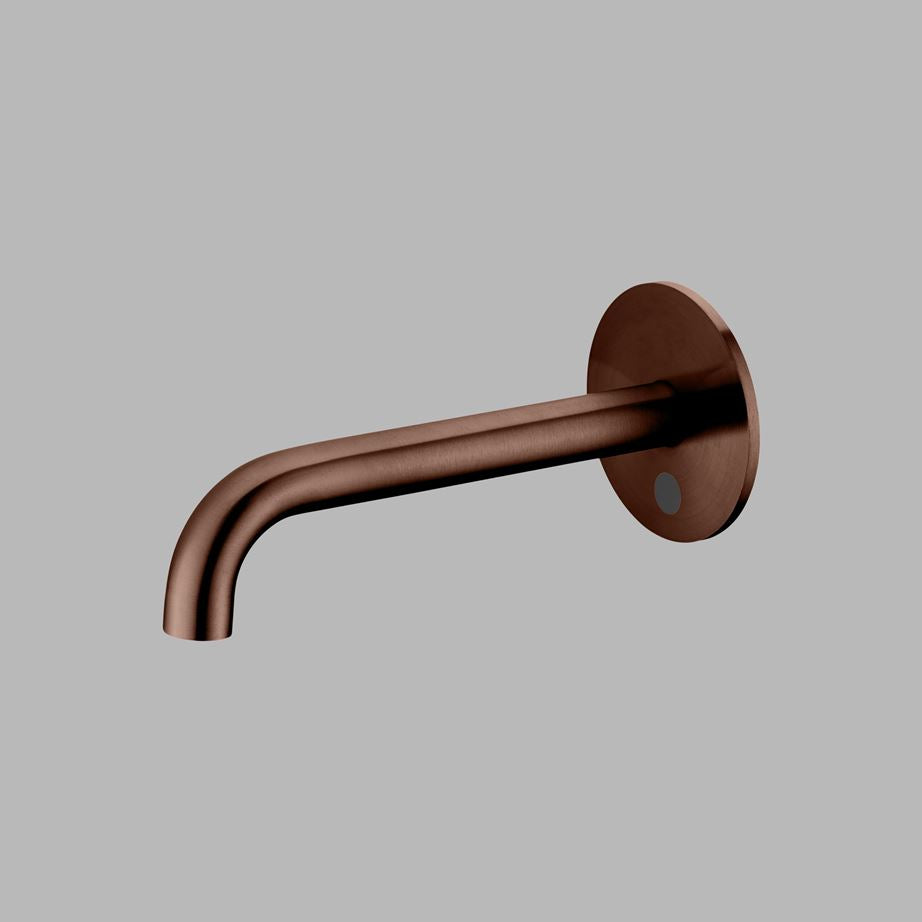

The Qtoo Wall-Mounted Sensor Tap by d line is a touchless, wall-mounted faucet system crafted from AISI 316 marine-grade stainless steel. An integrated infrared sensor is housed within a Ø 90 mm rose for a fully built-in aesthetic. Available in 190 mm and 250 mm projections. Engineered for high-use environments — corrosion-resistant, lead-free, and NSF/ANSI 61 certified.
Each system includes a concealed Flexbox control module and can be paired with optional matching drain and siphon components. Designed by Hans Thyge & Co for d line. Backed by a 10-year warranty. Made in Europe.
Included Components
- Sensor Spout – Ø 90 mm rose with 190 mm or 250 mm projection
- QSF01 – Flexbox (sensor control module)
- QS3400 – 1/2" Rough-In Connector
- 2 × BD8002GN – 1/2" NPT to GN Adapters (for North American supply lines)
Optional Components
- QA1150 – Hygiene+ Push Drain: Sealed, side-diverting drain that reduces water pooling and bacterial buildup.
- QA1250 – Hygiene+ Fixed Open Drain: Fixed horizontal grate-style drain with removable cover.
- QA1100 – Standard Push Drain: Classic push-to-open/close mechanism with vertical flow.
- QA1200 – Standard Fixed Drain: Fixed vertical grate-style drain with removable cover.
- QA1400 – P-Trap: Chrome-plated brass bottle trap, recommended for exposed plumbing.
Specifications
- Projections: 190 mm (7.5") or 250 mm (9.8")
- Rose Diameter: Ø 90 mm (3.5")
- Fixed spout with built-in aerator
- Recommended Clearance: Min. 140 mm (5.5") from aerator to basin waste
- Sensor Detection Distance: 50–250 mm
- Flow Rate: Max. 1.3 gpm (5.0 L/min)
- Comfort Timeout: 2 seconds
- Security Timeout: 30 seconds
- Automatic Rinse: Deactivated by default
- Battery Life (6 × AA): 20 activations/day ≈ 8.4 years; 150 activations/day ≈ 4.6 years
- Low Battery Warning: LED blink every 5 seconds (10-day alert)
- Max Working Pressure: 8 bar
Materials
Marine-grade stainless steel (AISI 316). Lead-free and antibacterial.
Available Finishes

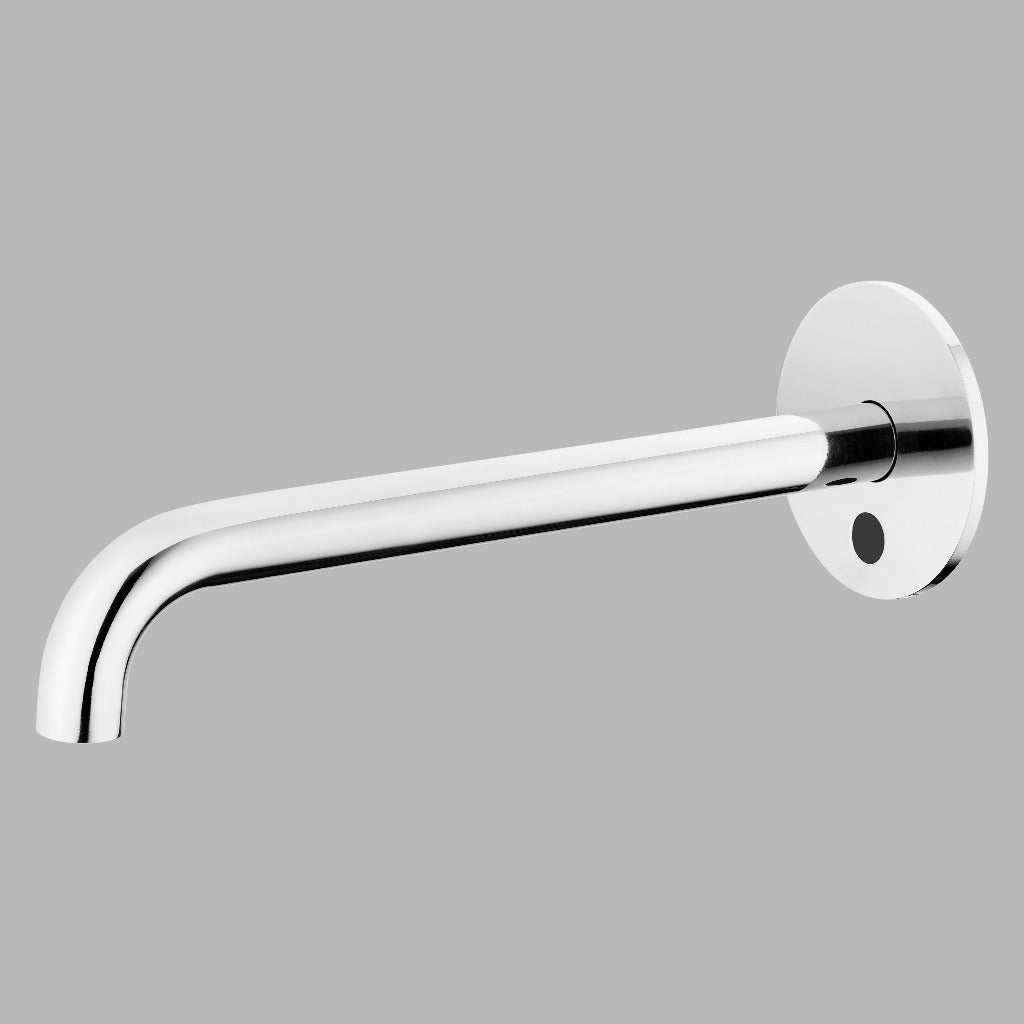

- Polished Stainless Steel

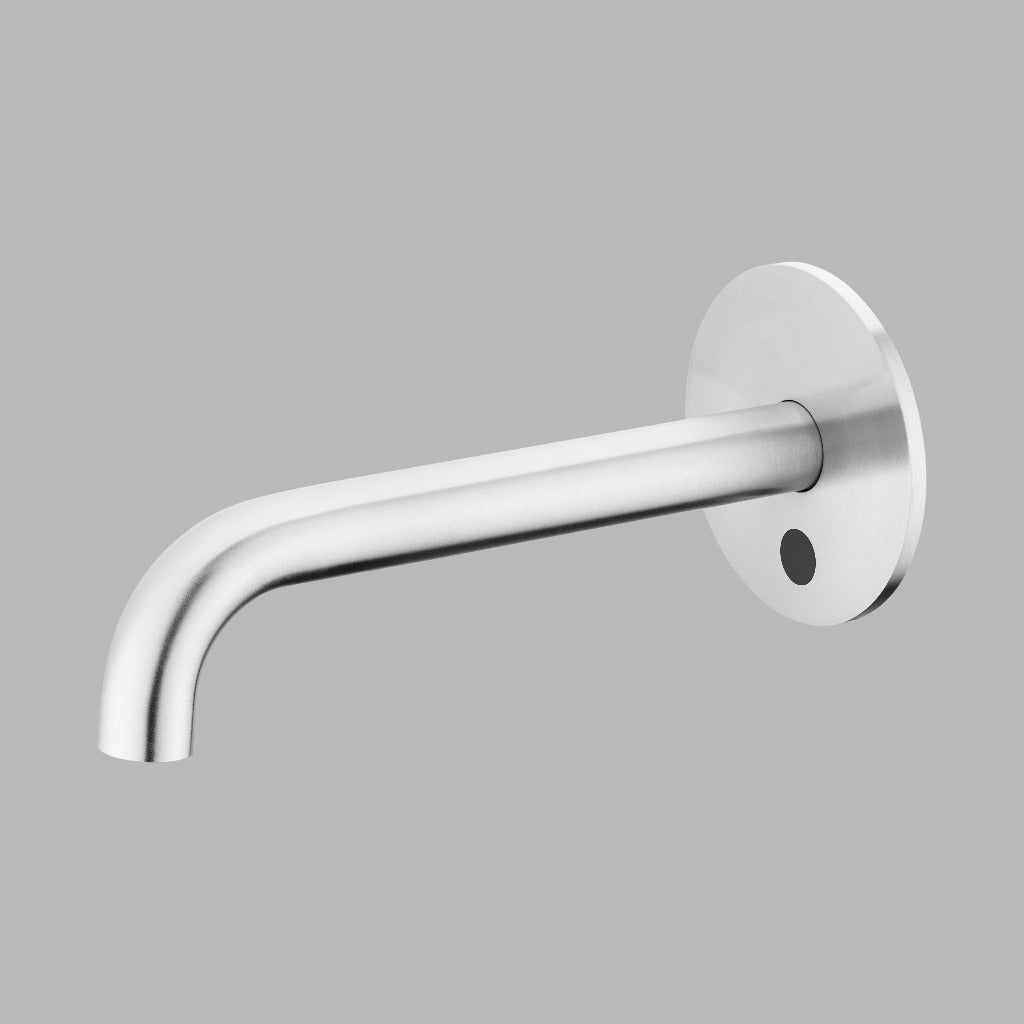

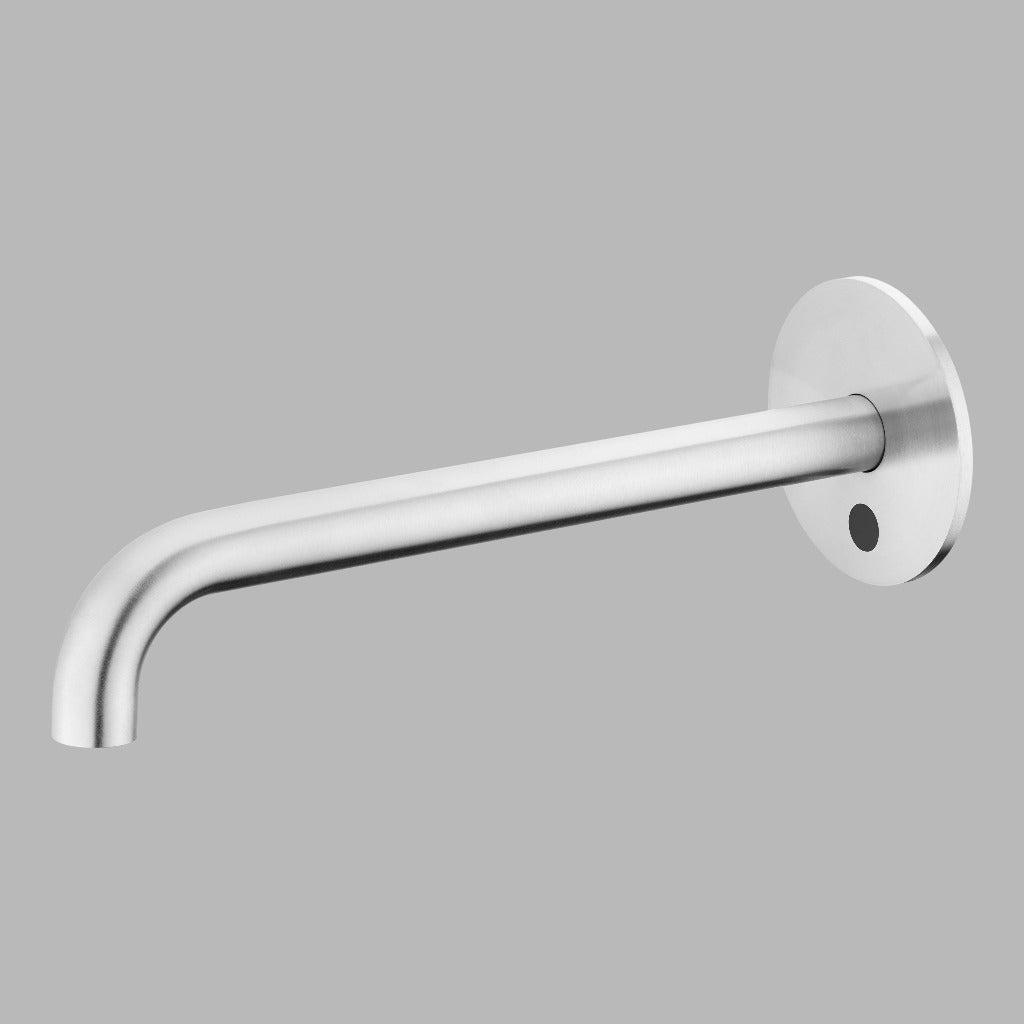

- Satin Stainless Steel

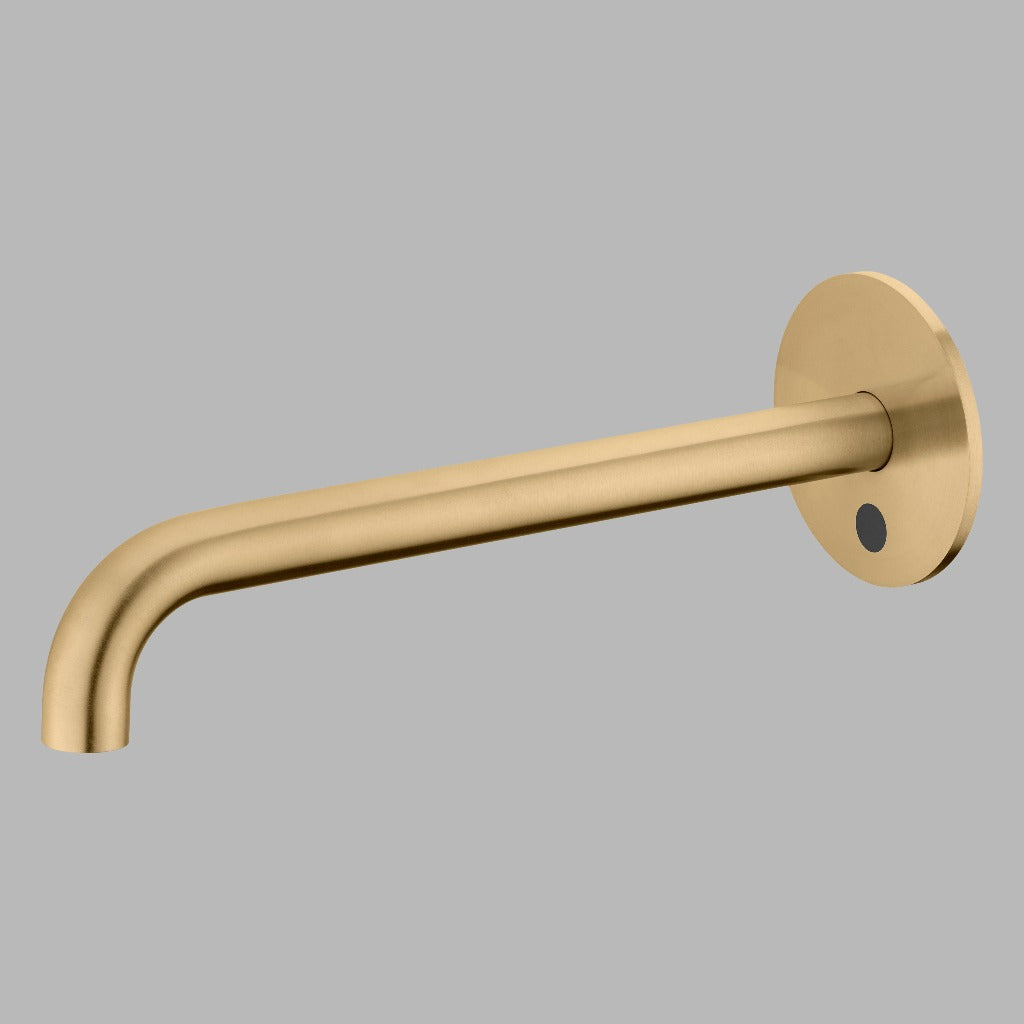

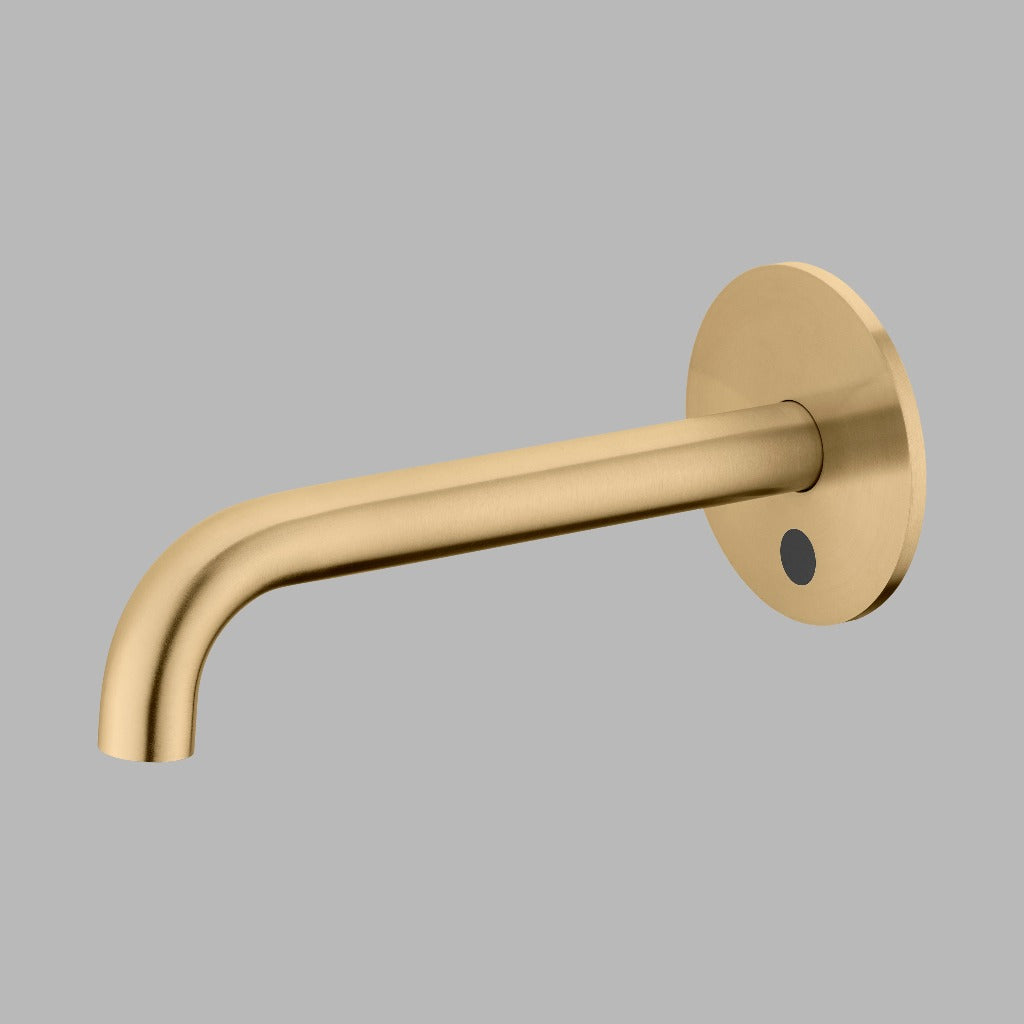

- PVD Satin Brass

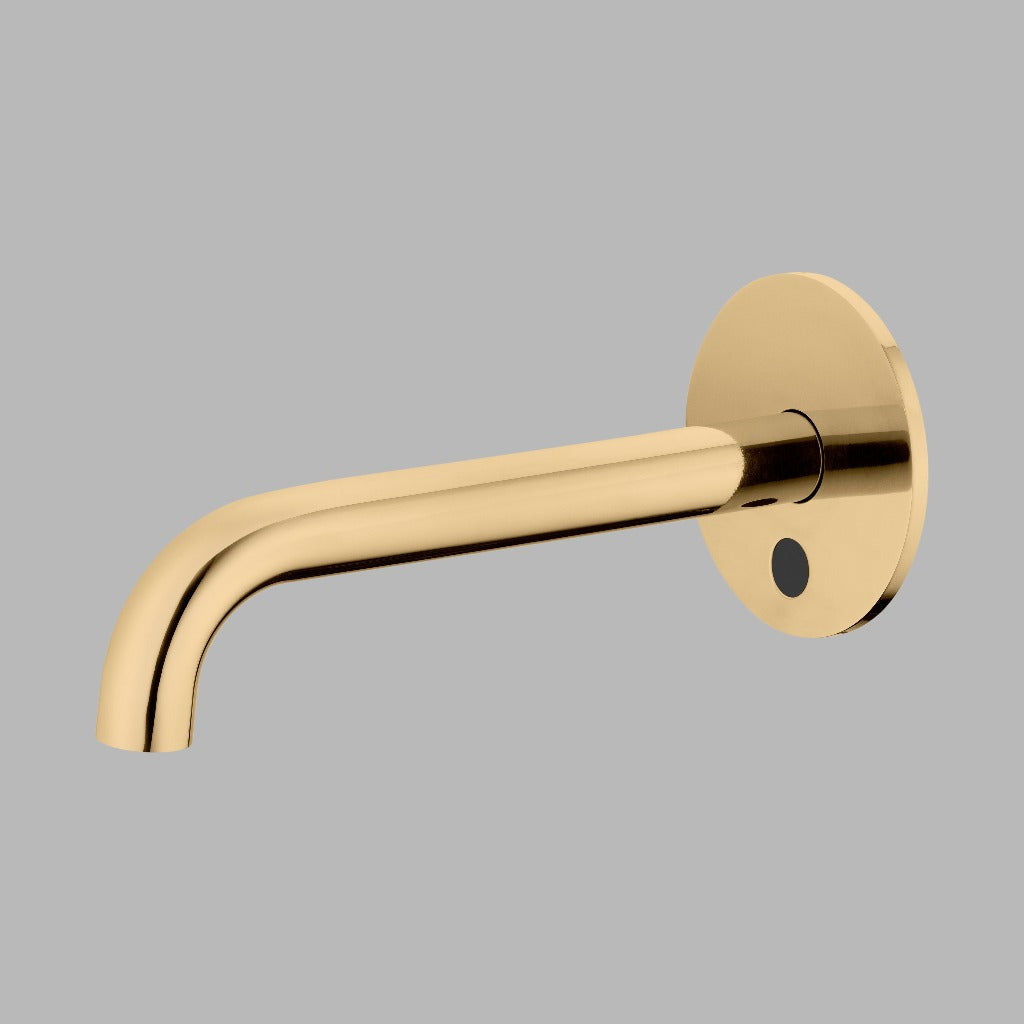

- PVD Polished Brass
- PVD Satin Black
- Matte Black
Certifications
- NSF/ANSI 61 Certified for Water Purity
- CSA B125.1 (2018) and ASME Compliant
- Leakage-tested to 15 bar
- 10-Year Product Warranty
- 5-Year PVD Finish Warranty
Product Downloads
Finish Swatches & Samples
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
