Qtoo Wall Mounted Tap System

Original price$3,125.00
/
Shipping calculated at checkout.
Qtoo Wall Mounted Tap System (1. Finish)
Qtoo Wall Mounted Tap System (2. Spout Projection)
Qtoo Component: Circle Mixer for Bath & Shower (Finish)
Description

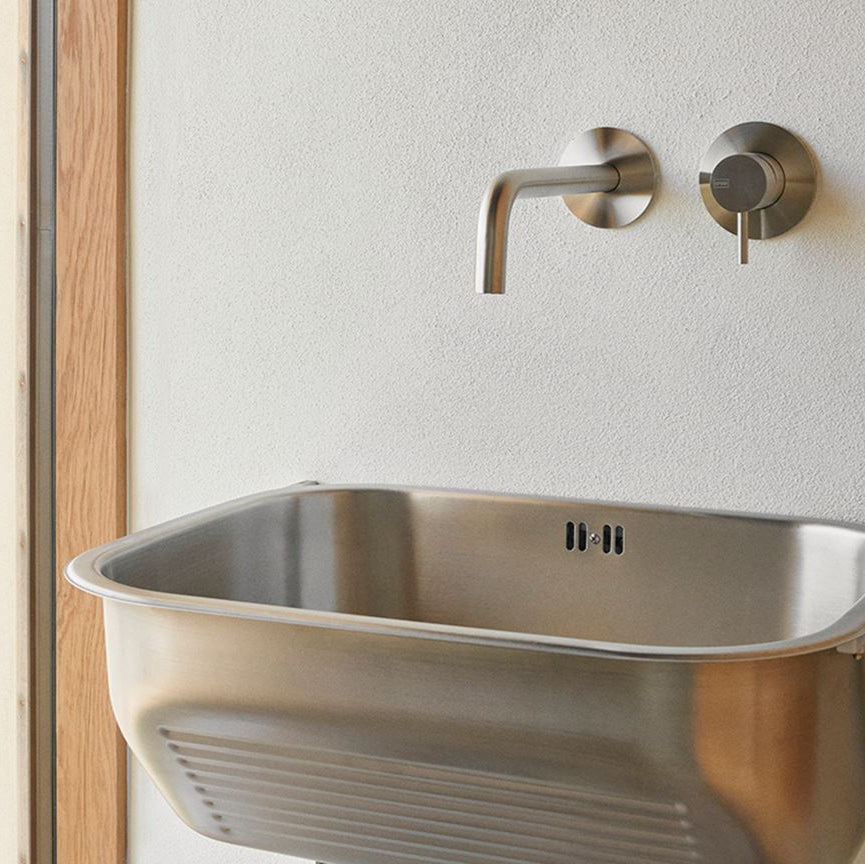

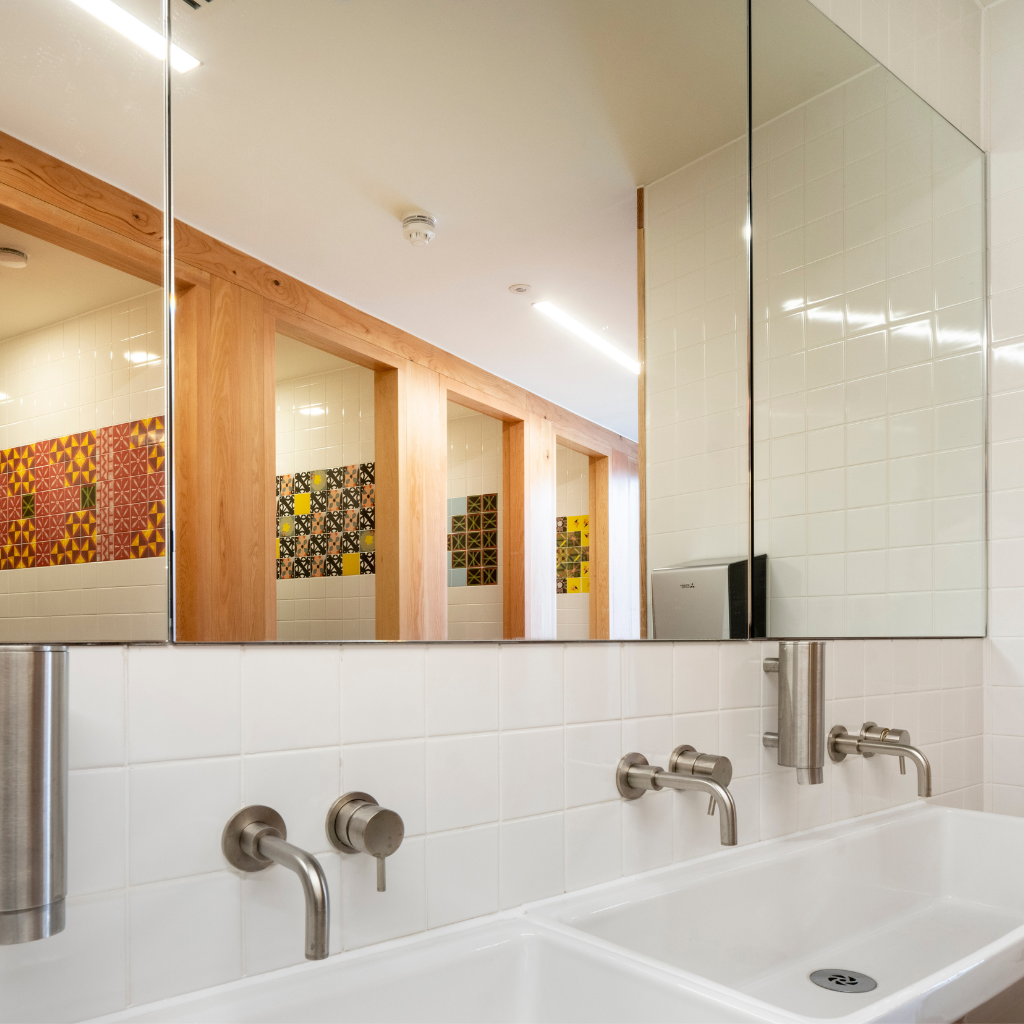

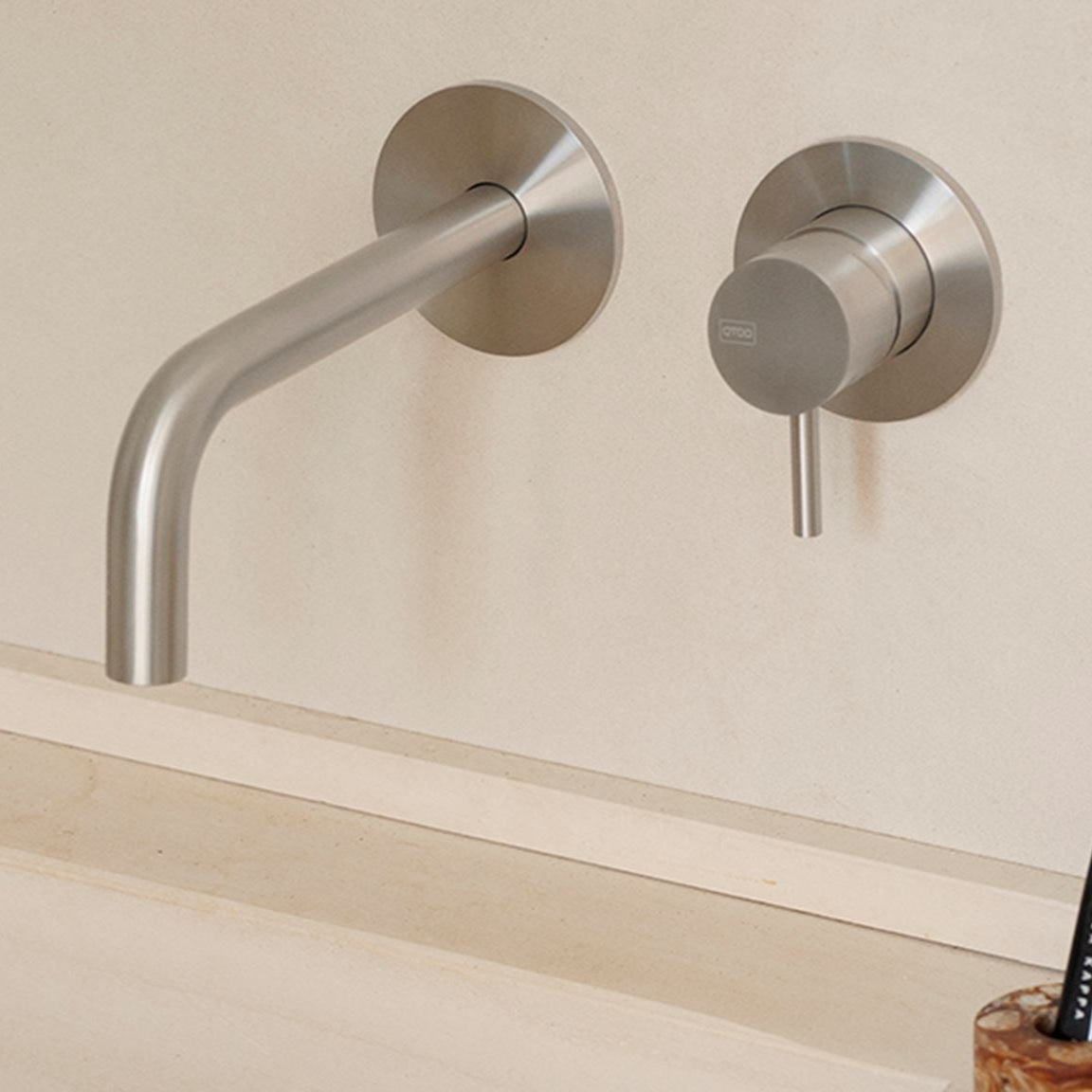

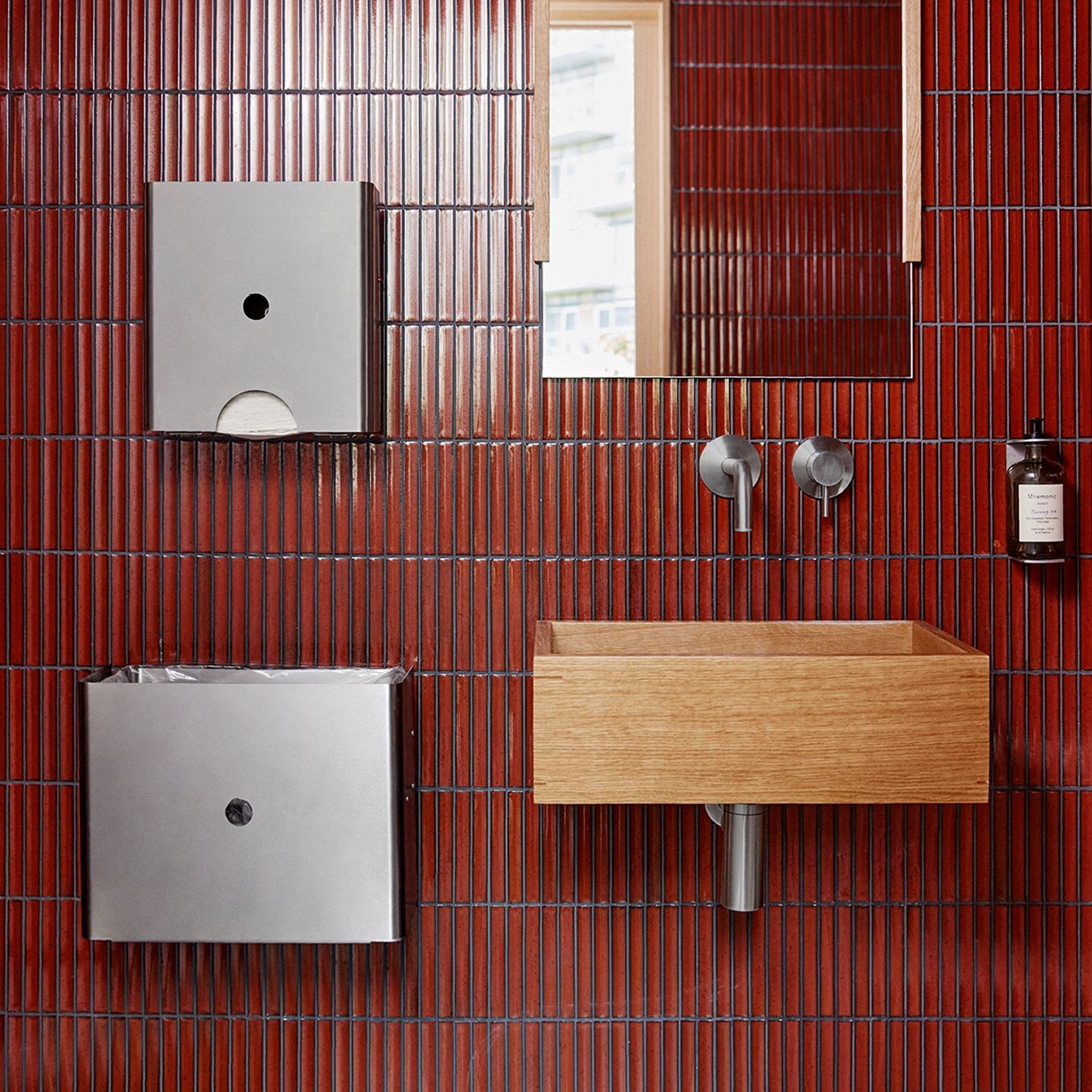

The Qtoo Wall-Mounted Washbasin System by d line is a built-in sink tap system crafted from AISI 316 marine-grade stainless steel. A minimalist, architectural solution for residential and commercial bathrooms — featuring a clean cylindrical spout and signature rose detail. NSF/ANSI 61 certified, lead-free, and corrosion-resistant.

Each set includes a mixer, spout, and in-wall valve with NPT adapters for North American plumbing. Optional matching drain and siphon components complete the installation. Designed by Hans Thyge & Co for d line. Backed by a 10-year warranty. Made in Europe.

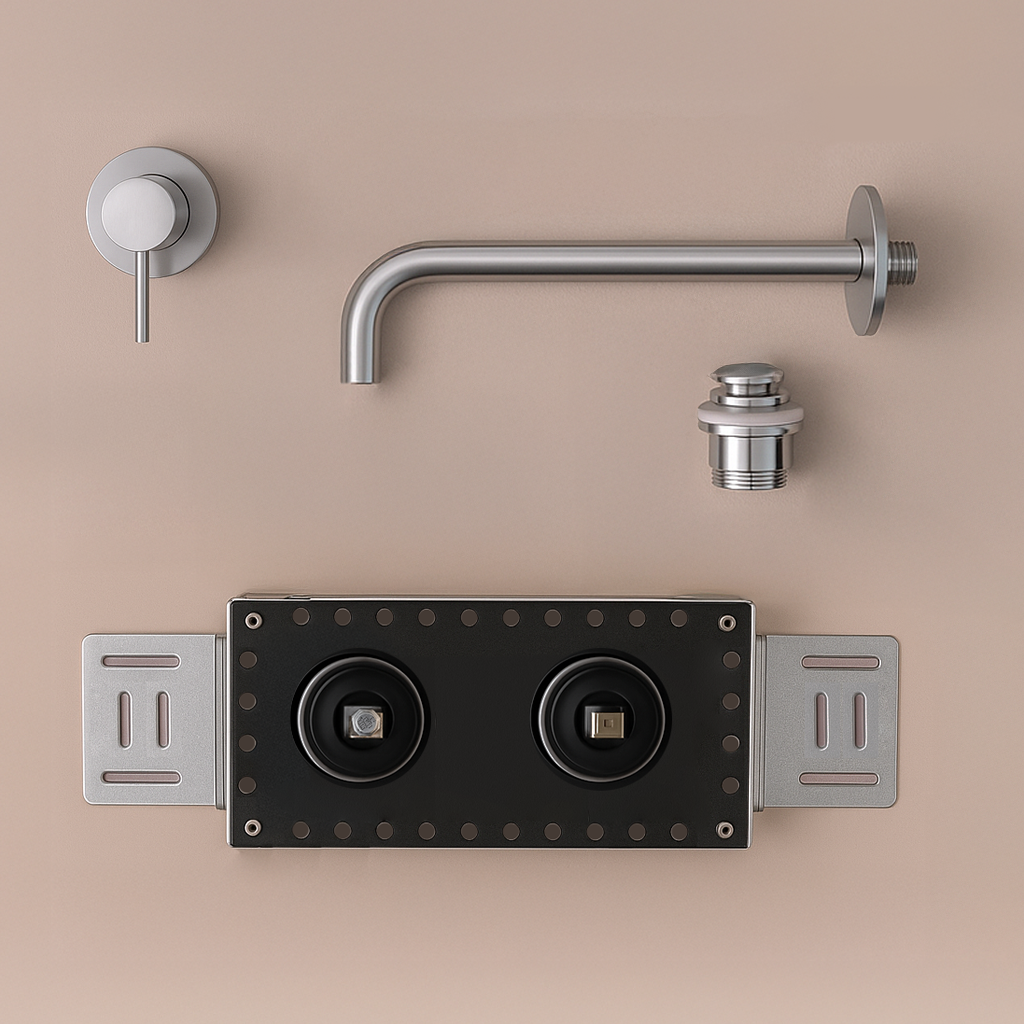

Included Components

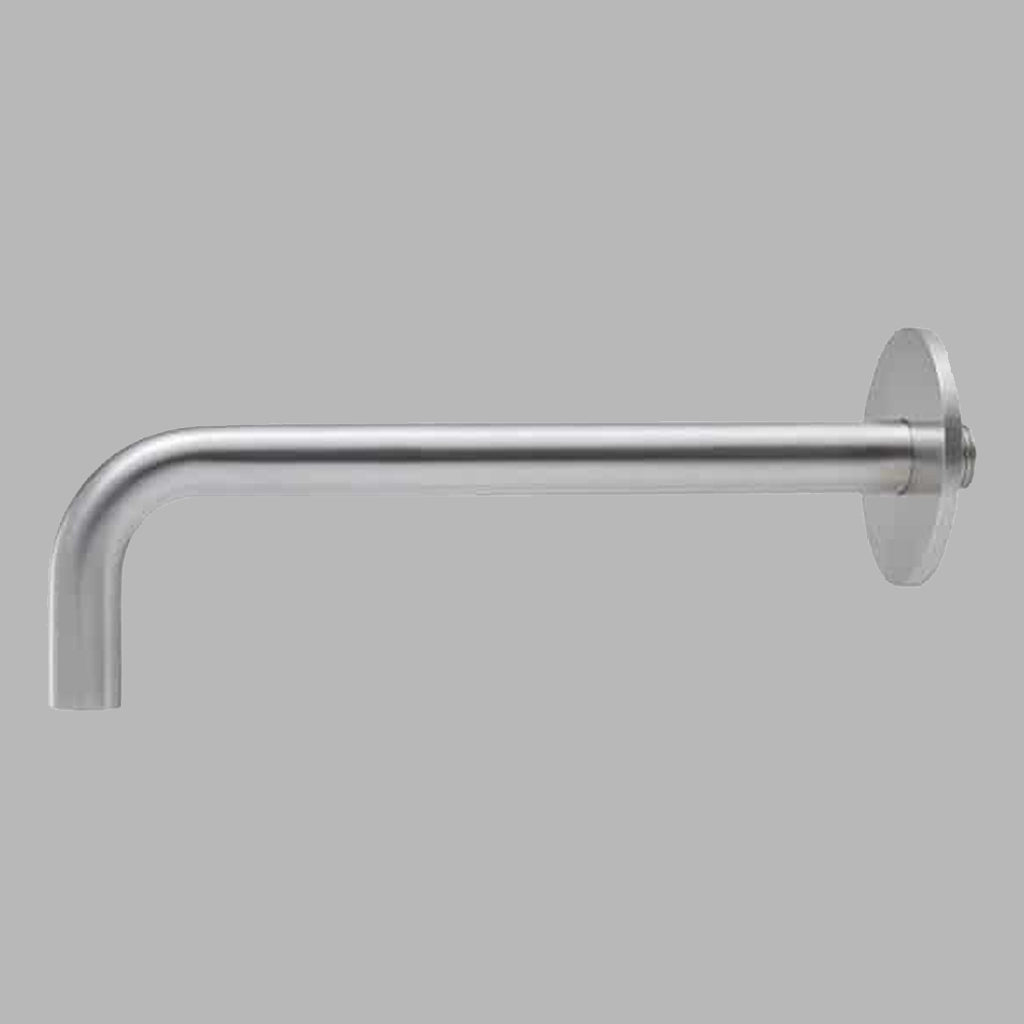

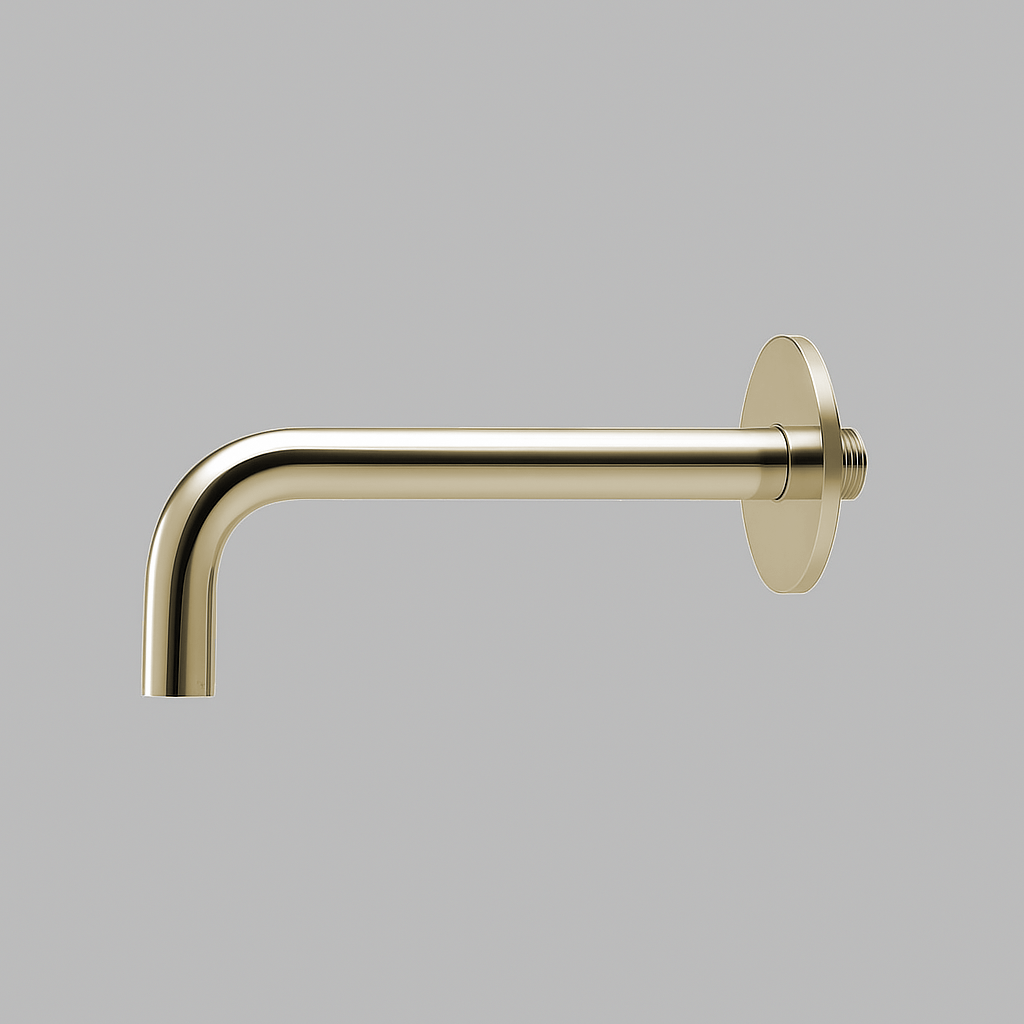

  • QA3080 / QA3180 / QA3280 – Wall-Mounted Spout (115 mm, 190 mm, or 250 mm projection)
  • QA2180 – Wall-Mounted Mixer Control
  • QT3100 – In-Wall Valve Mixer
  • 2 × BD8002GN – NPT 1/2" to GN Adapters (for North American plumbing)
Optional Components
  • QA1150 – Push Drain: Hygienic, push-to-open basin drain with horizontal seal and overflow compatibility.
  • QA1400 – Siphon: Chrome-plated brass bottle trap for exposed installations (adjustable height and length).

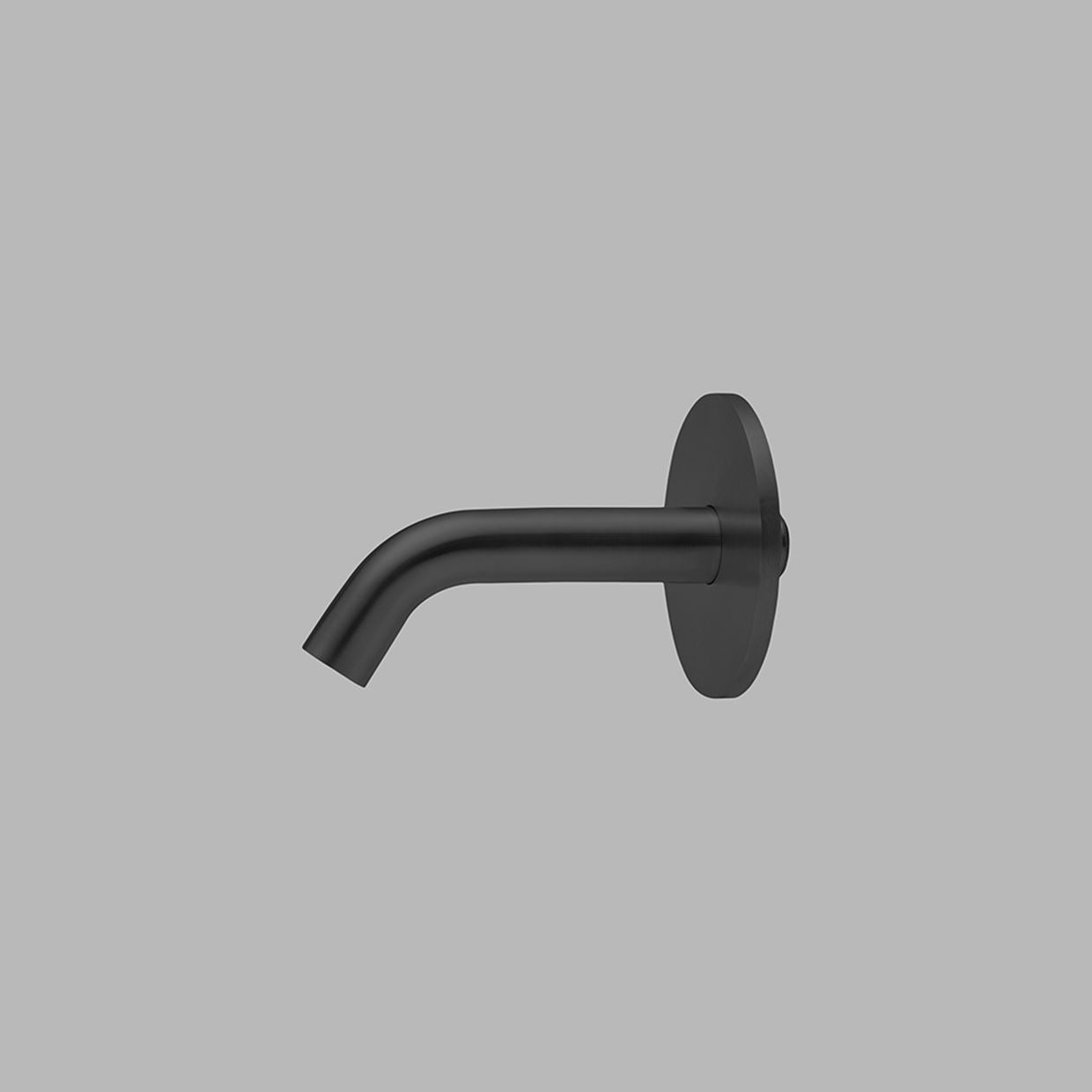

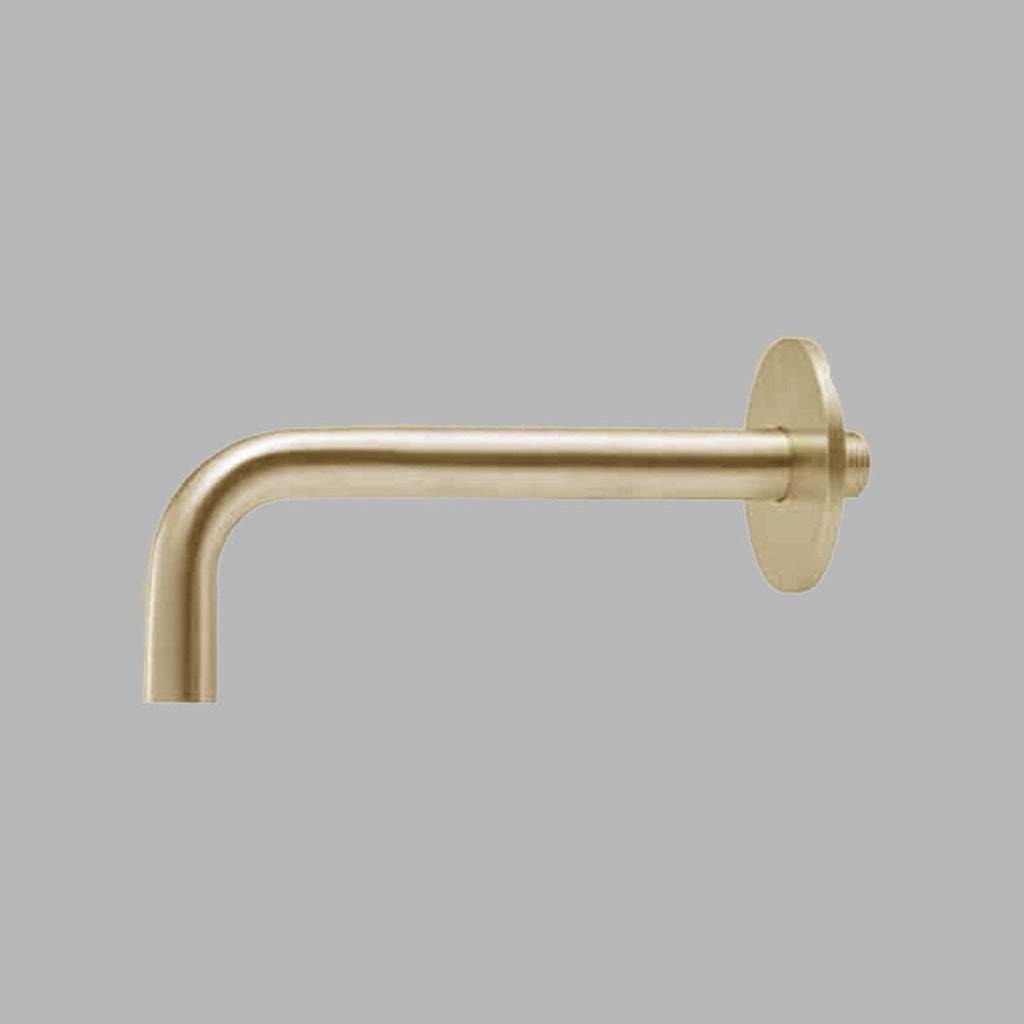

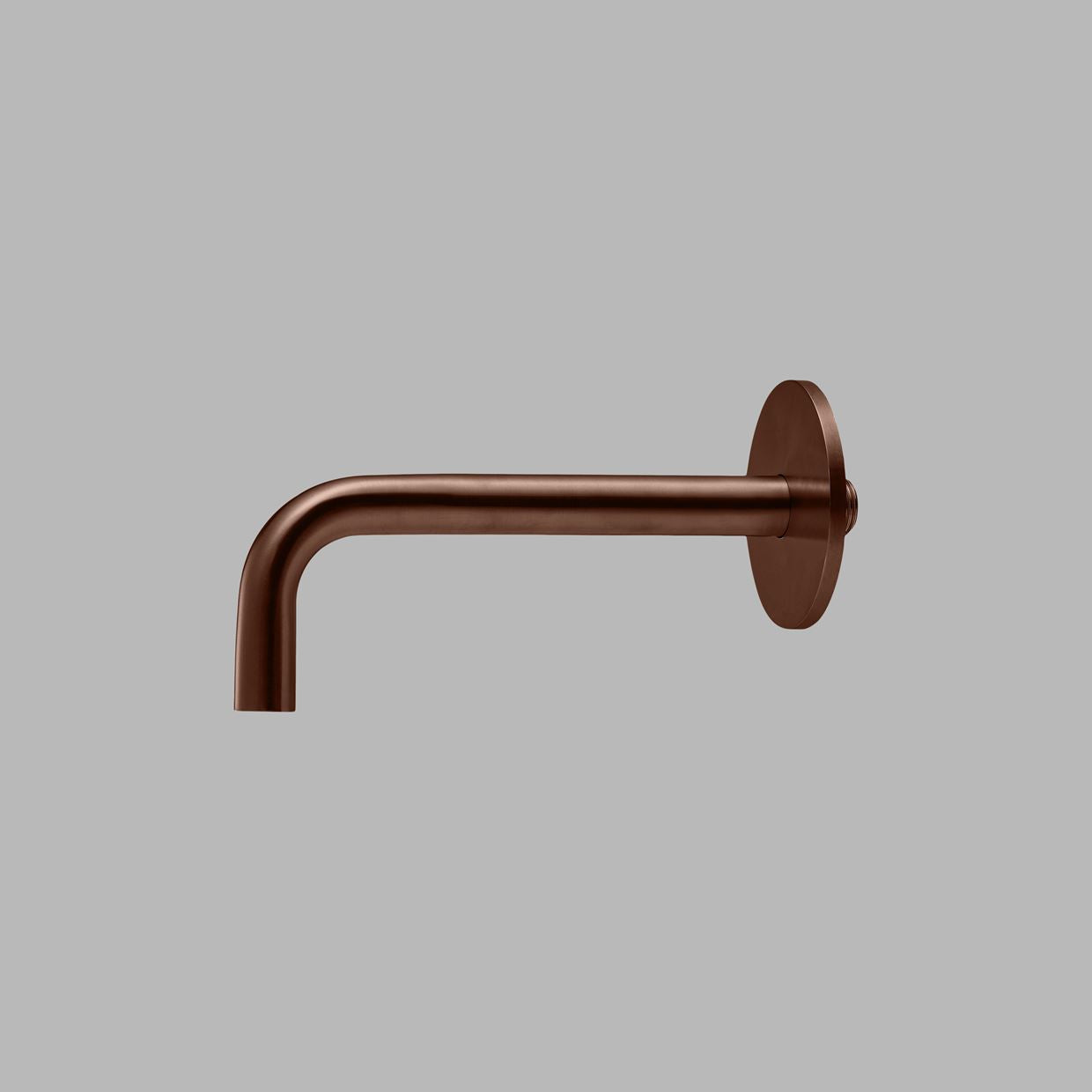

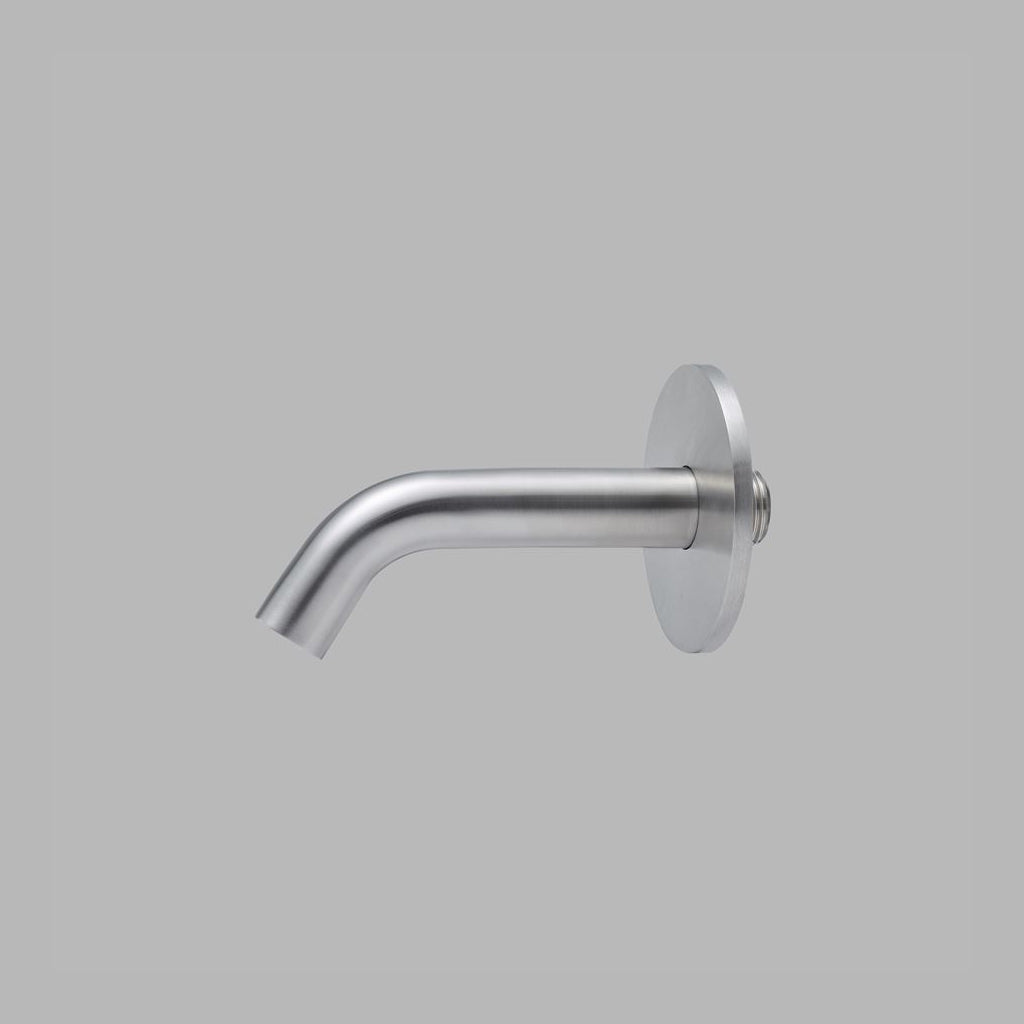

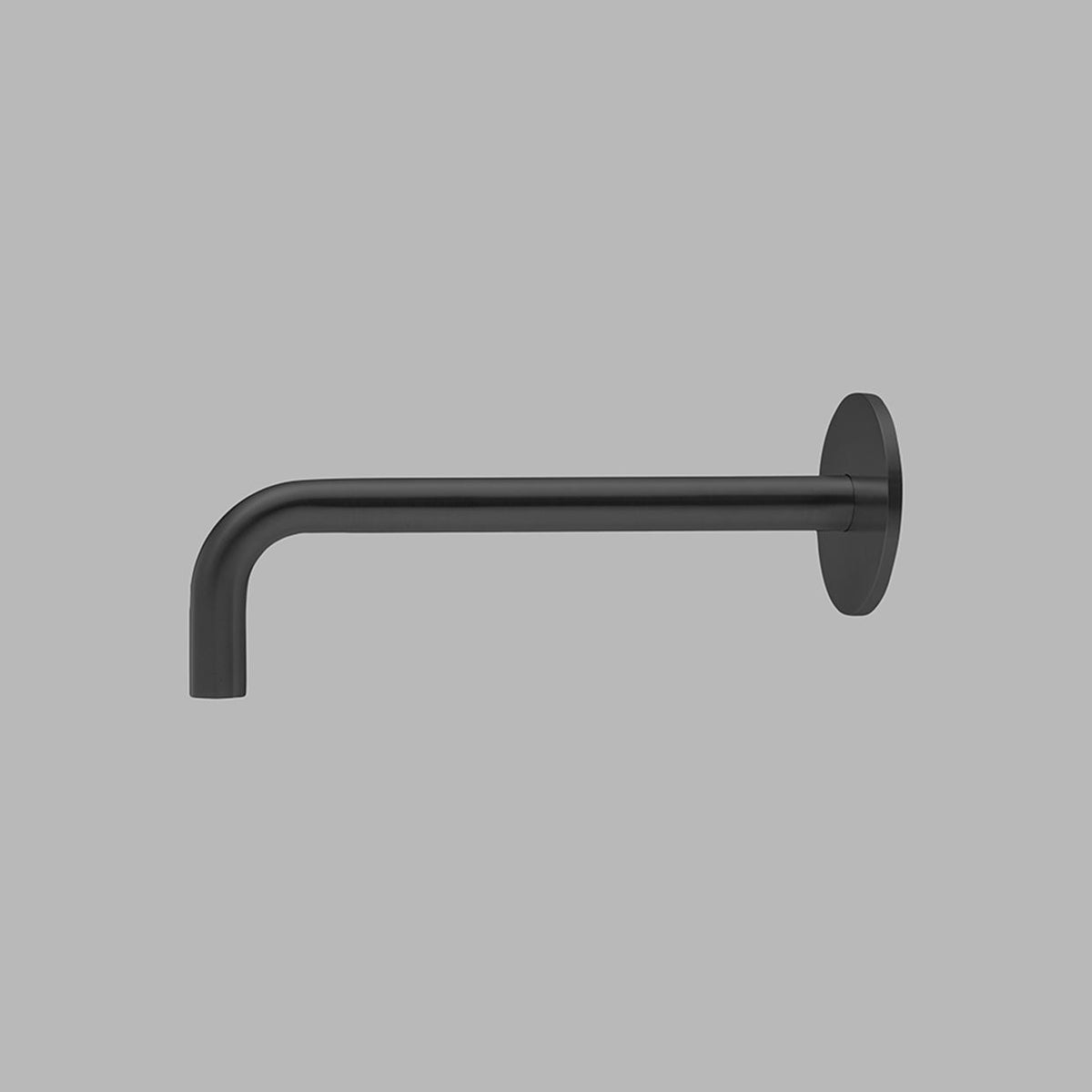

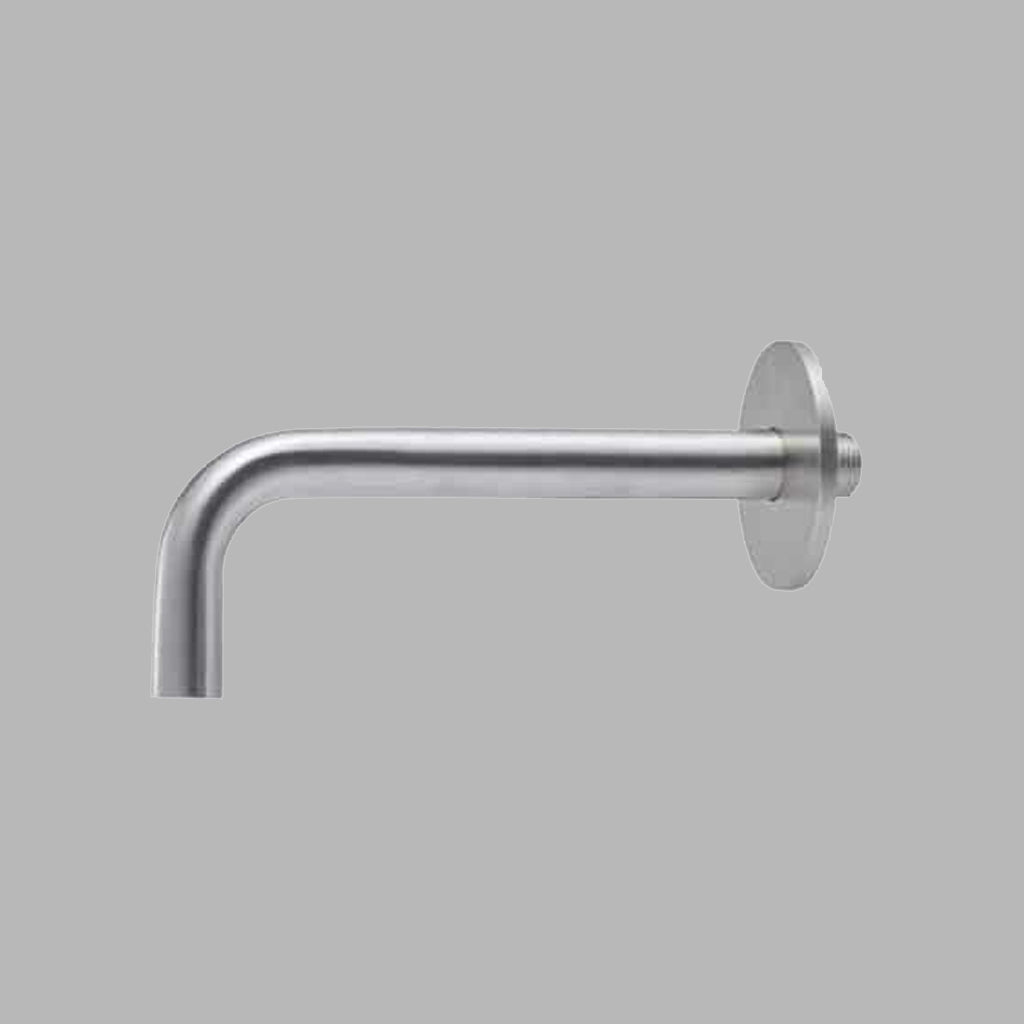

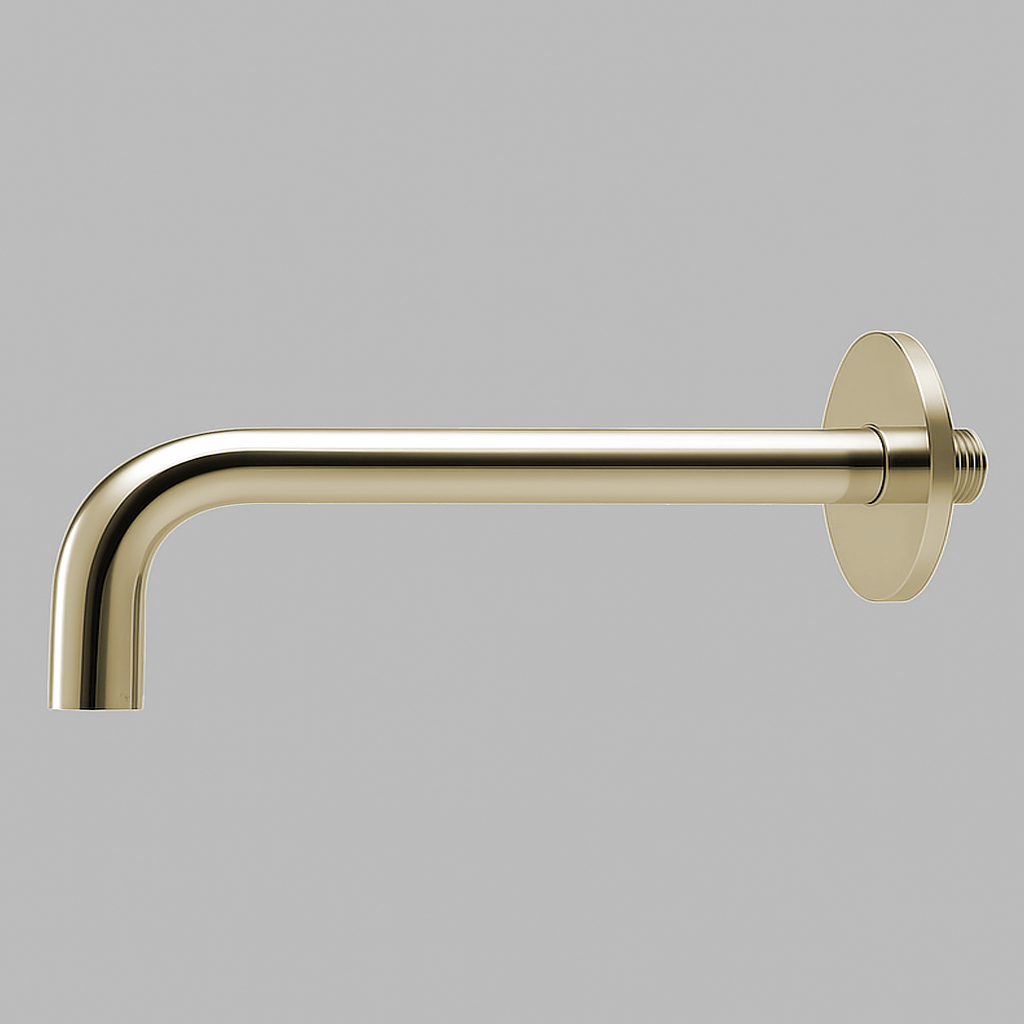

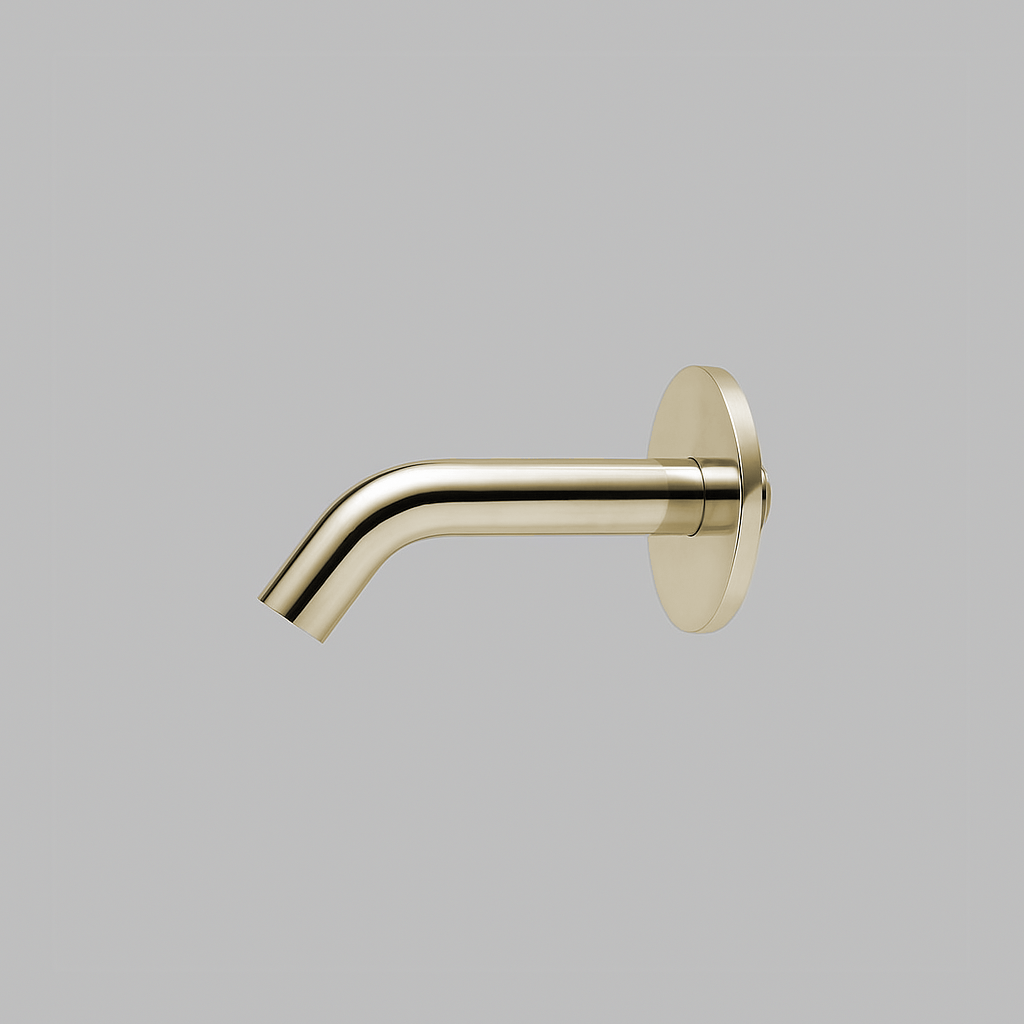

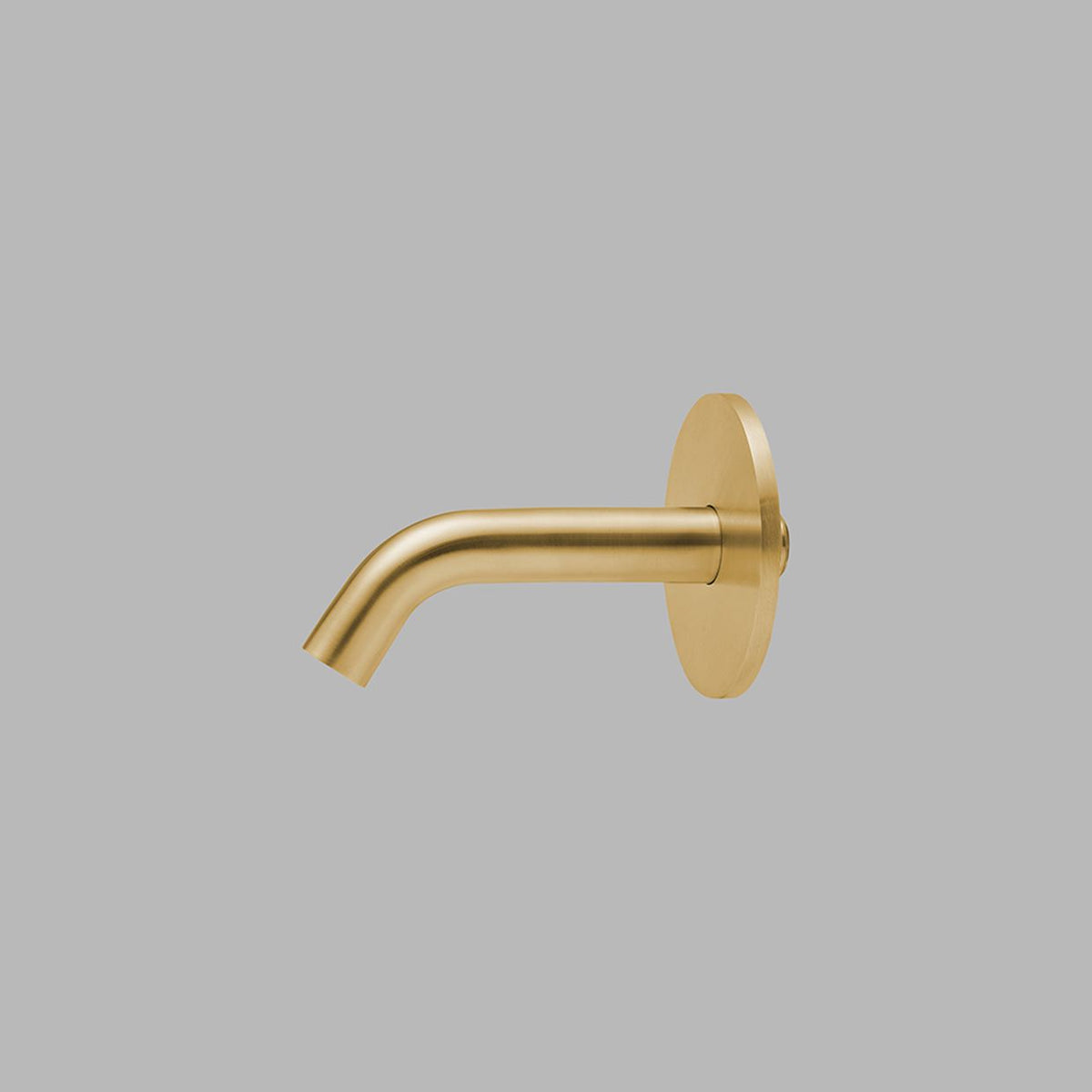

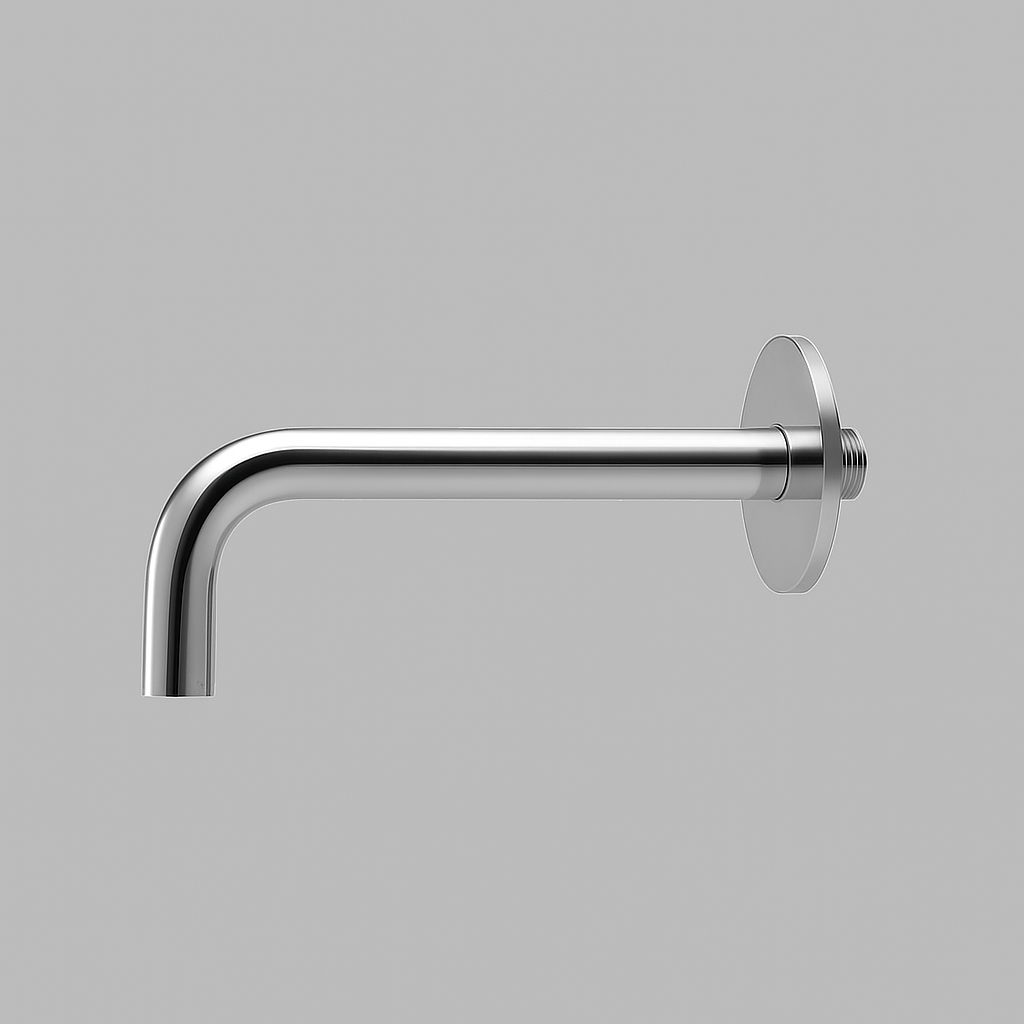

Spout Specifications
  • Projection Options: 115 mm, 190 mm, 250 mm
  • Spout Diameter: 22 mm
  • Flange Diameter: 80 mm
  • Connection: 1/2" Standard
  • Flow Rate: Max. 5.0 L/min
  • Aerator: Built-in, with spare free-flow aerator included
Drain Specifications (QA1150)
  • Dimensions: Ø 62 mm × H 75 mm
  • Function: Push to open/close
  • Features: Easy-clean, antibacterial, overflow-compatible
  • Certifications: CSA B125.1 (2018)
Siphon Specifications (QA1400)
  • Diameter: Ø 70 mm
  • Length: Adjustable 100–350 mm
  • Height: Adjustable 30–120 mm
  • Material: Chrome-plated brass
  • Finishes: Polished Stainless, Satin Stainless, Matte Black
  • Certifications: CSA B125.1 (2018)

Speak with your plumber or designer to determine whether a siphon is required for your installation.

Mixer Valve Specifications (QT3100)
  • Built-in Depth: 69 mm (2.75")
  • Flow Rate: 7.5 gpm @ 65 psi / 23.0 L/min @ 3 bar
  • Material: AISI 304 Stainless Steel
  • Includes: Two 1/2" NPT to GN adapters
Materials

Marine-grade stainless steel (AISI 316) throughout. Lead-free and antibacterial.

Finishes

  • Brushed Stainless Steel
  • Polished Stainless Steel

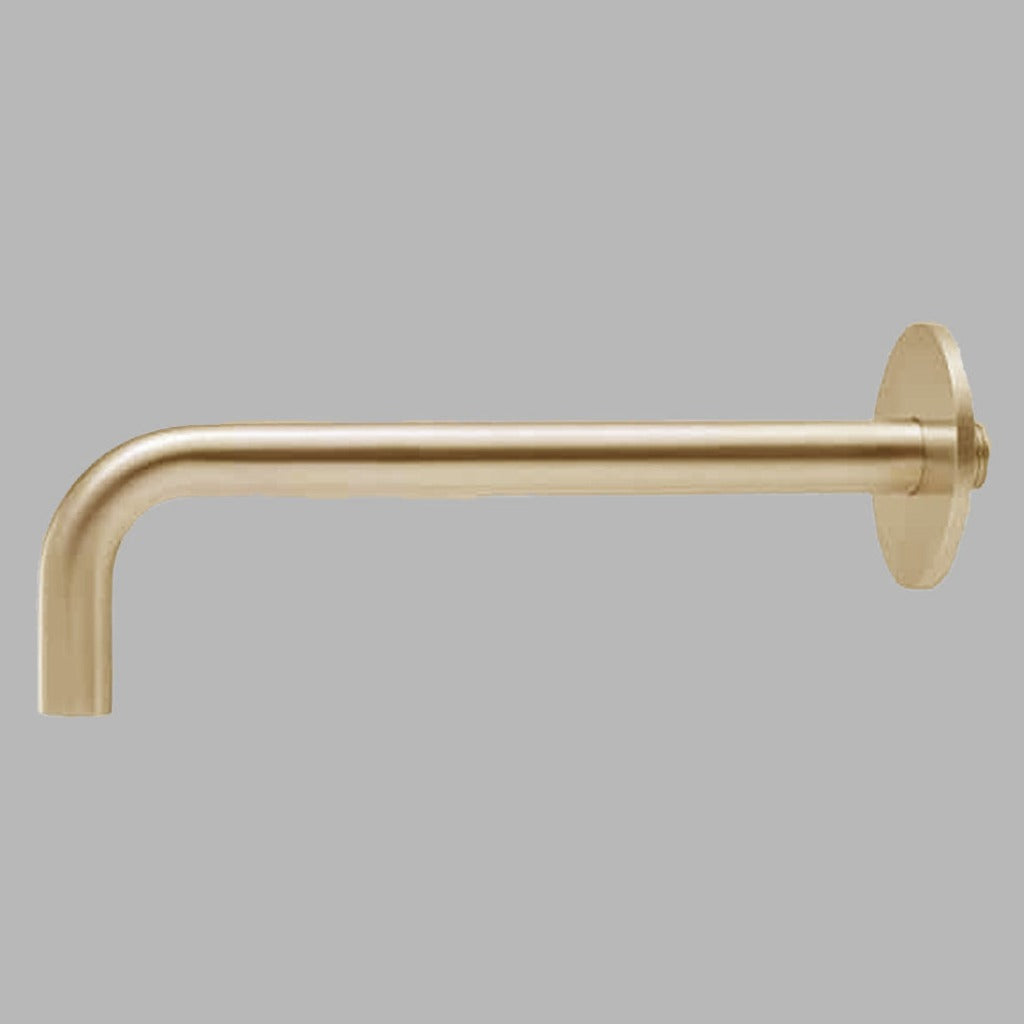

  • PVD Satin Brass
  • PVD Satin Black
  • PVD Satin Bronze
  • RAL 9016 Matte Black (Powder Coated)
Certifications
  • NSF/ANSI 61 Certified for Water Purity
  • CSA B125.1 (2018) and ASME Compliant
  • Tested to 15 bar pressure
  • 10-Year Product Warranty
  • 5-Year PVD Finish Warranty
Product Downloads

Finish Swatches & Samples

Shop Finish Samples

Finish Swatches

d line 2025 Finish Swatches

Installation Notes

Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.

There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.

View Installation Policy
