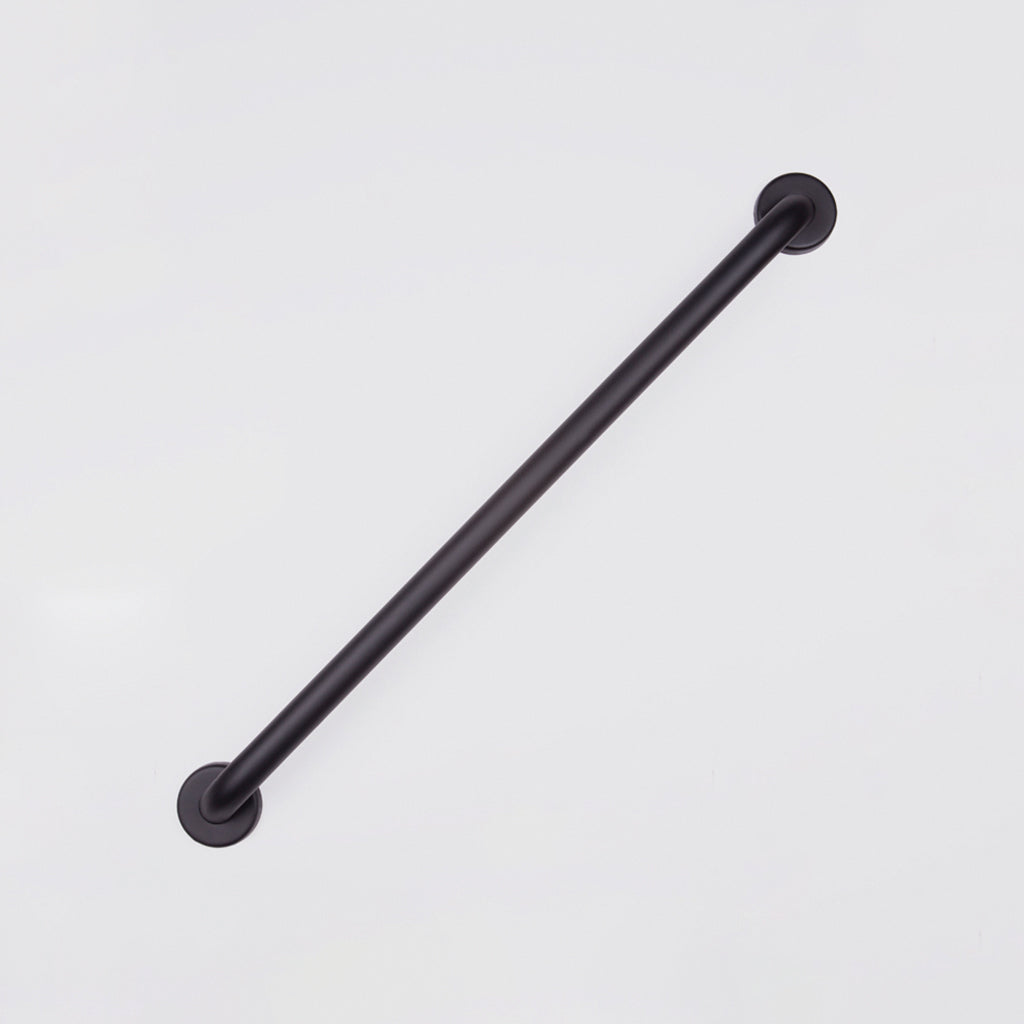

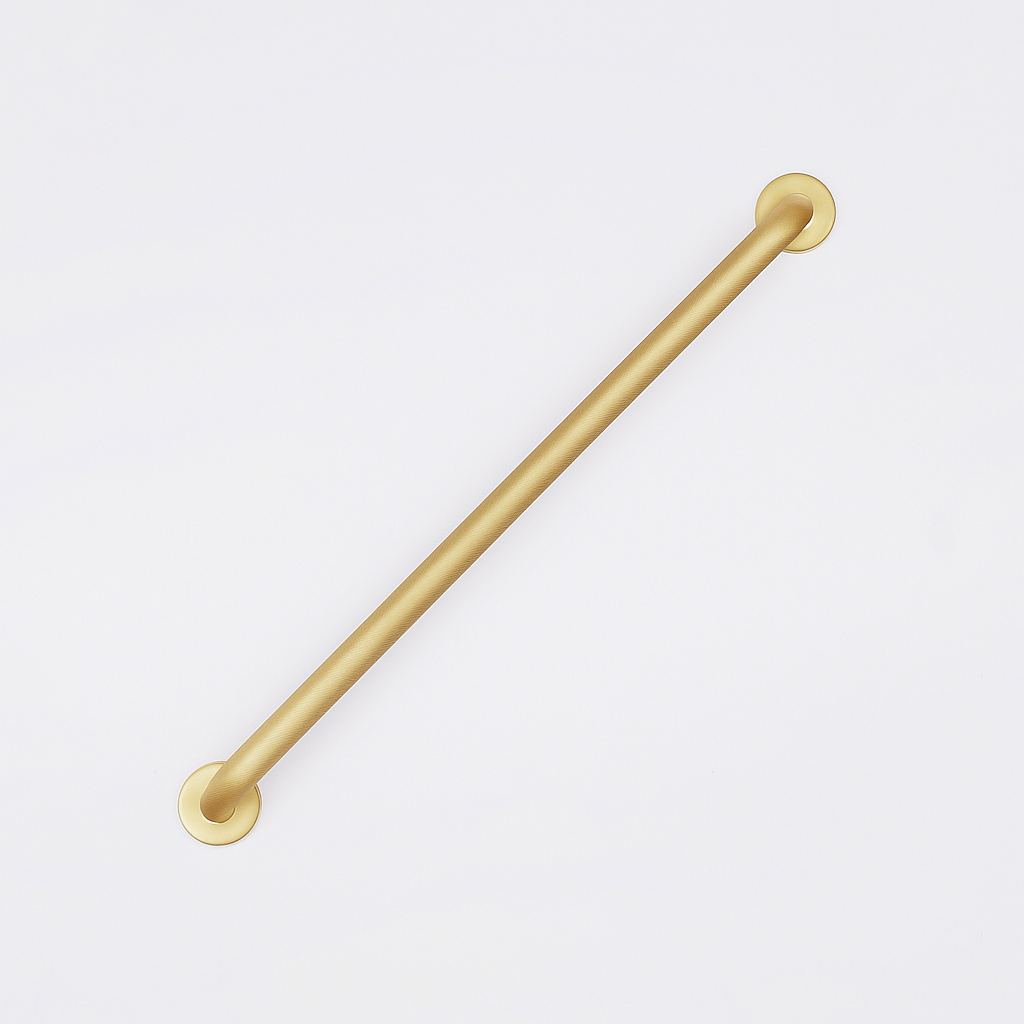

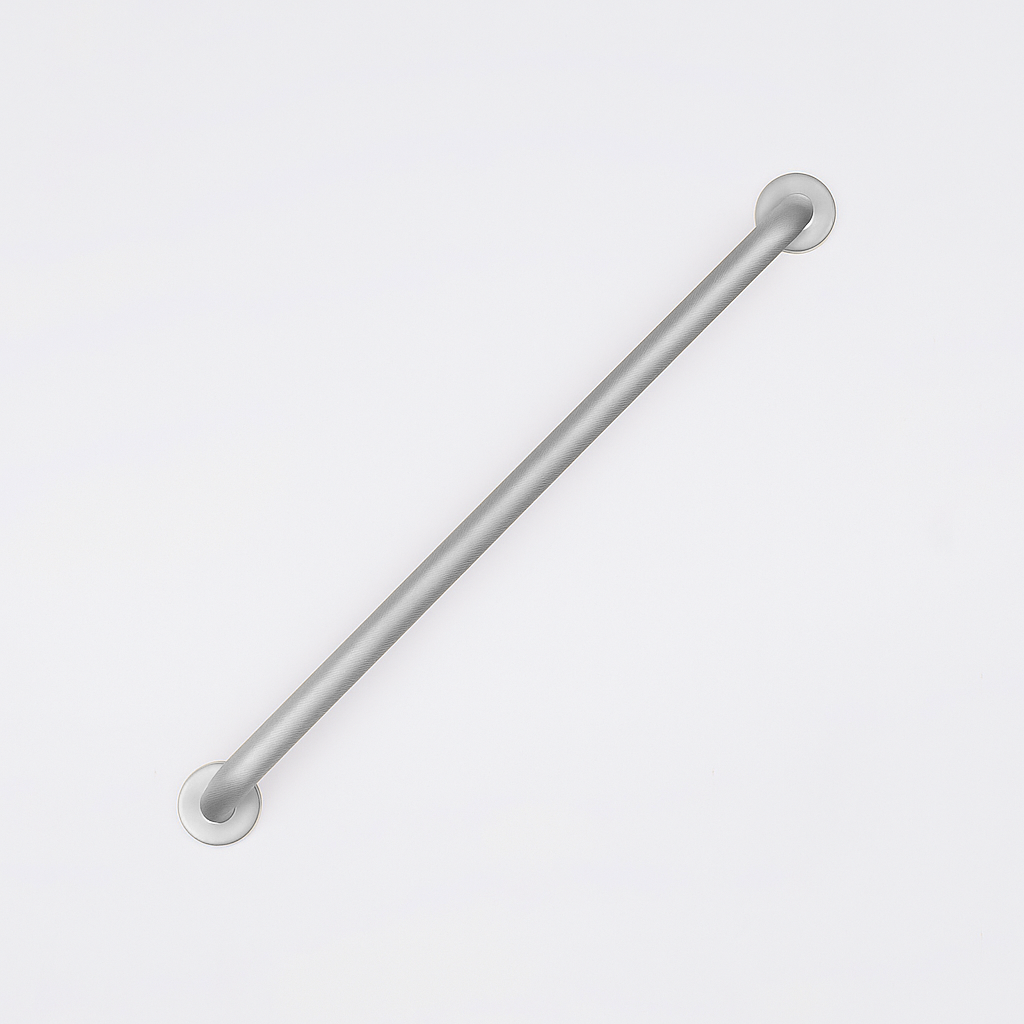

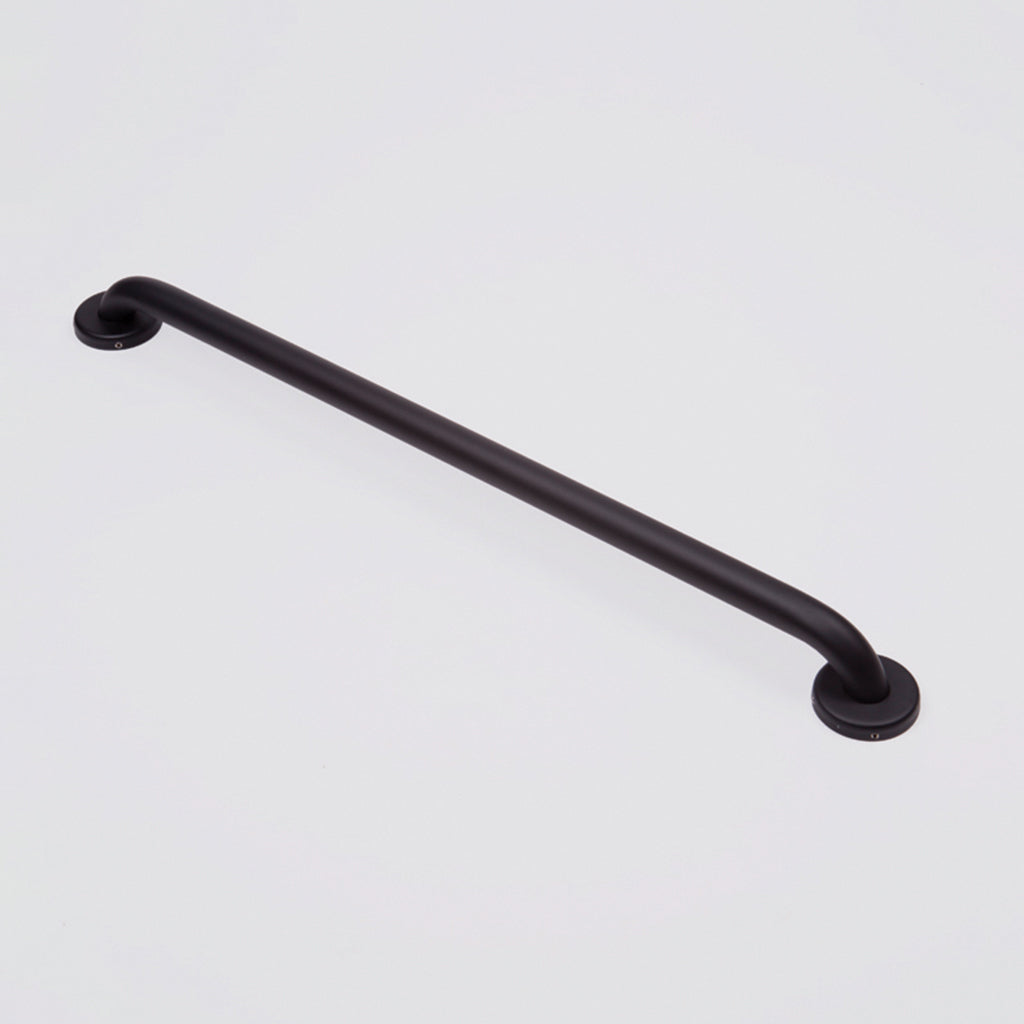

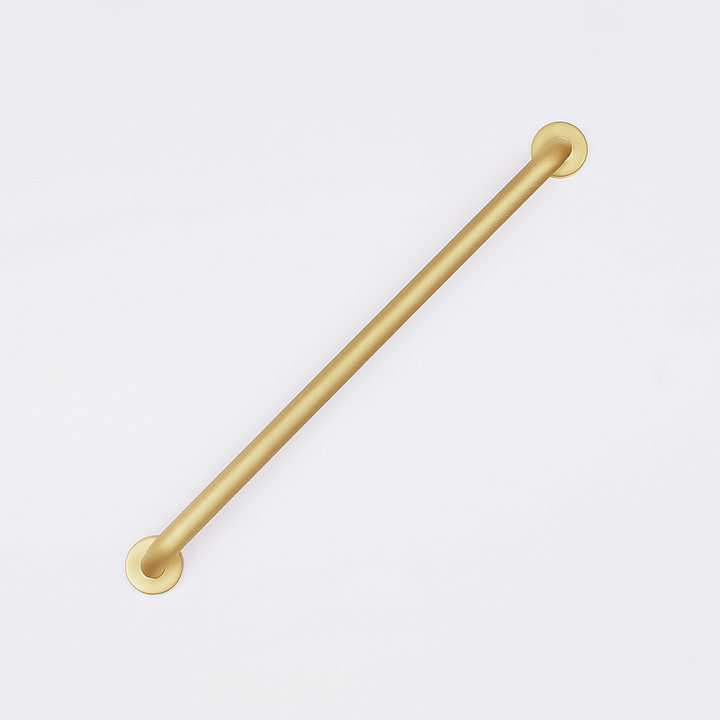

A bunch of different CBH Charlie Straight Smooth Grab Bars in different colors.
Charlie Grab Bar is available in custom lengths and finishes

Charlie Straight Smooth Grab Bars

Original price$155.00

Flange Style
  • LEAD TIME: 3-6 weeks | Made to Order | +1 week for Powder Coated finishes


Indicate finish, size, quantity and shipping address to receive quote.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The Charlie Straight Smooth Grab Bar is a classic and streamlined security bar that can be integrated into a variety of settings. This bar is fully customizable and is available in a variety of lengths, finishes, and configurations.

Find other components in the Charlie collection here.

Made in Canada.

Diameter: 31.75 mm (1.25")

Custom Diameter Available Upon Request:

  • 25.4 mm (1")
  •  38 mm (1.5") - CODE COMPLIANT OBC/ ADA

Standoff : H 38 mm (1.5") - from wall to inside surface of grab bar

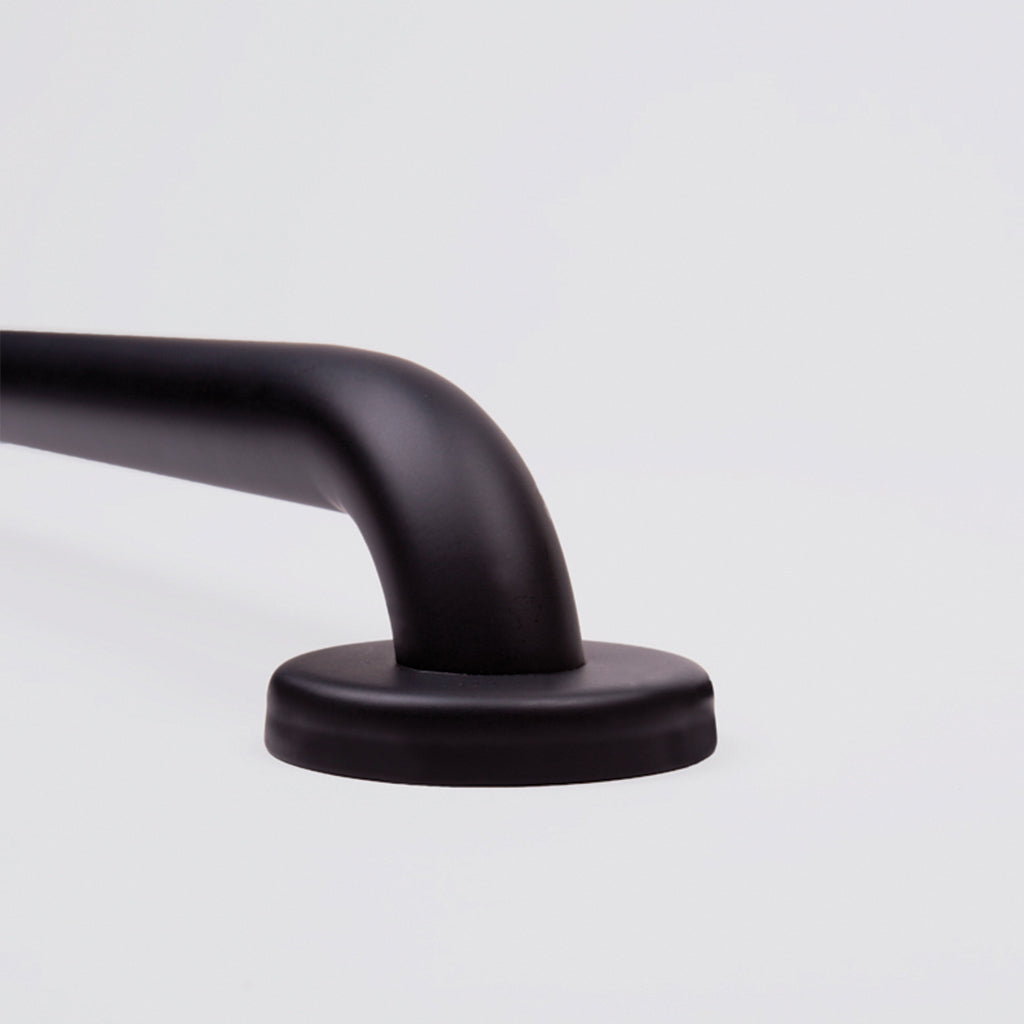

Flange Options:

  • Concealed - only available for 21.75 mm (1.25") diameter options
  • Exposed

Mounting hardware included.

Refer to Downloads for further configuration options.

For Custom Orders provide the following:

Configuration / Length:
Finish: Stainless Steel / Black
Diameter: 1" / 1.25" / 1.5"
Flange: Exposed / Concealed - only available for 1.25" diameter grab bars
Stand off: 1.5" or Other

**For all other sizes, configurations, finishes, and discounted volume pricing, please contact us.

  • Standard finishes: Satin Stainless Steel, Flat Black
  • Available in custom finishes: Gloss white, polished stainless steel
  • Maximum 36" length finishes: Polished brass, satin brass, antique brass

Material Notes:

  • Antique and oxidized finishes are fabricated by hand and result in inconsistent and organic surface textures.
  • Lacquered materials have a protective coating to maintain their shine, while unlacquered materials will naturally age and develop a unique patina over time. For maintenance tips, refer to our care guide.

CBH offers the below finishes as their standard collection. Finish samples available here.

  • Polished Brass - C3
  • Satin Brass - C4
  • Antique Brass - C5
  • Polished Bronze - C9
  • Satin Bronze - C10
  • Oxidized Bronze - C20
  • Polished Nickel Plated - C14
  • Satin Nickel Plated - C15
  • Antique Nickel - C15A
  • Pewter - C15L
  • Polished Chrome - C26
  • Satin Chrome - C26D
  • Polished Stainless Steel - C32
  • Satin Stainless Steel - C32D
  • Antique Bronze
  • Polished Copper
  • Antique Copper
  • Powder Coated Matte Black
  • Powder Coated Gloss White

Please note, Antique finishes are fabricated by hand and may result in inconsistent and organic surface textures.

Finish options for Charlie products are detailed in the variant selection. The availability of finishes depends on the base material and may vary across different items in the Charlie range.

Metal finishing enhances the substrate's appearance and durability through processes like electroplating, which deposits metal ions onto the part, or electroless plating, a chemical method commonly using metals like nickel or copper.

Charlie plated finishes are protected with a clear coat to prevent oxidation. To maintain the beauty and integrity of these finishes, clean them gently with a soft cloth and water or a mild ammonia-based cleaner. Please avoid using acid-based cleaners. For specific material care, please consult our Finish Care Guide.

Charlie Collection Finish Swatches

Shop finish samples HERE.
