Knud M Door Lever
CONTACT TO REQUEST QUOTE
Indicate finish, size, quantity, function or mounting type, and shipping address to receive a quote.
- Estimated Ship Date: Stainless Steel 5-8 weeks | Other finishes 8-12 weeks
Optional Accessories
- Description
- Specifications
- Material(s)
- Product Downloads
- Finish Swatches
- Finish Samples
- Additional Components by Function

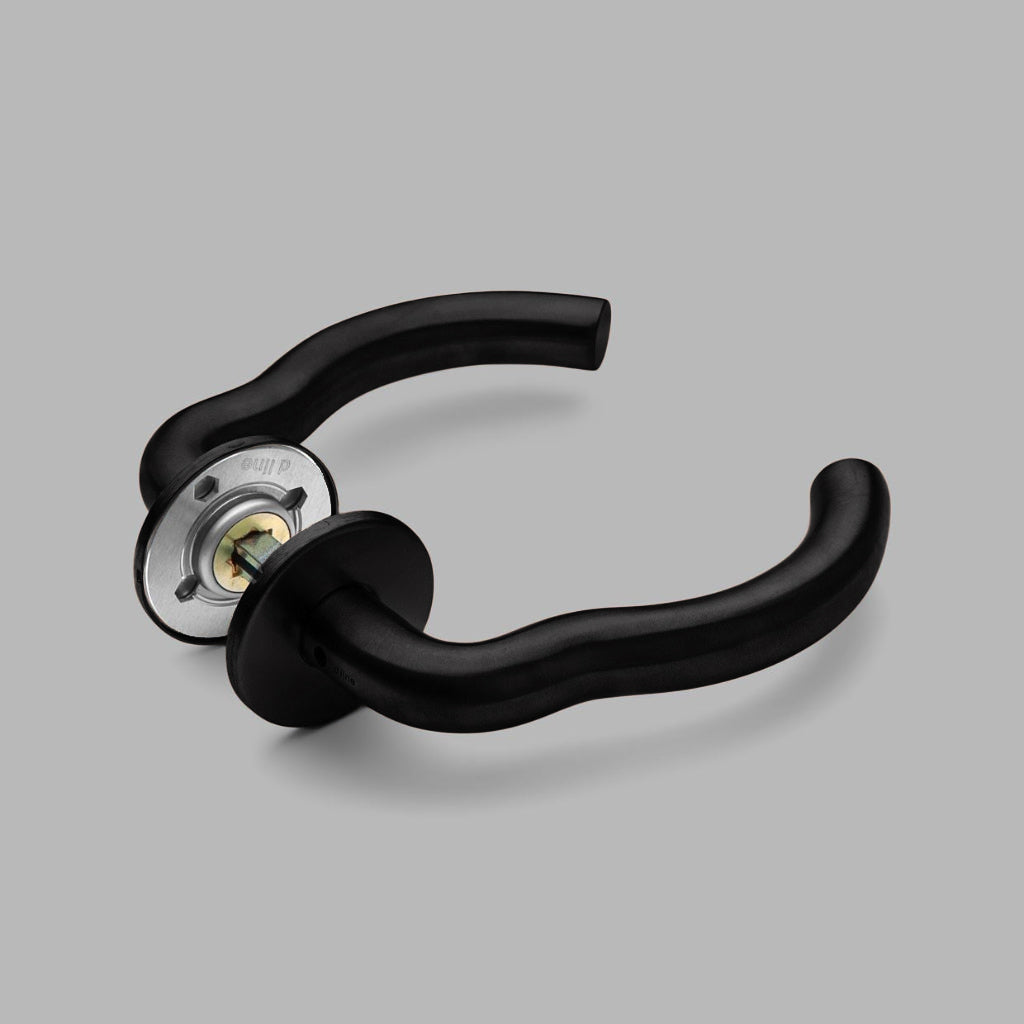

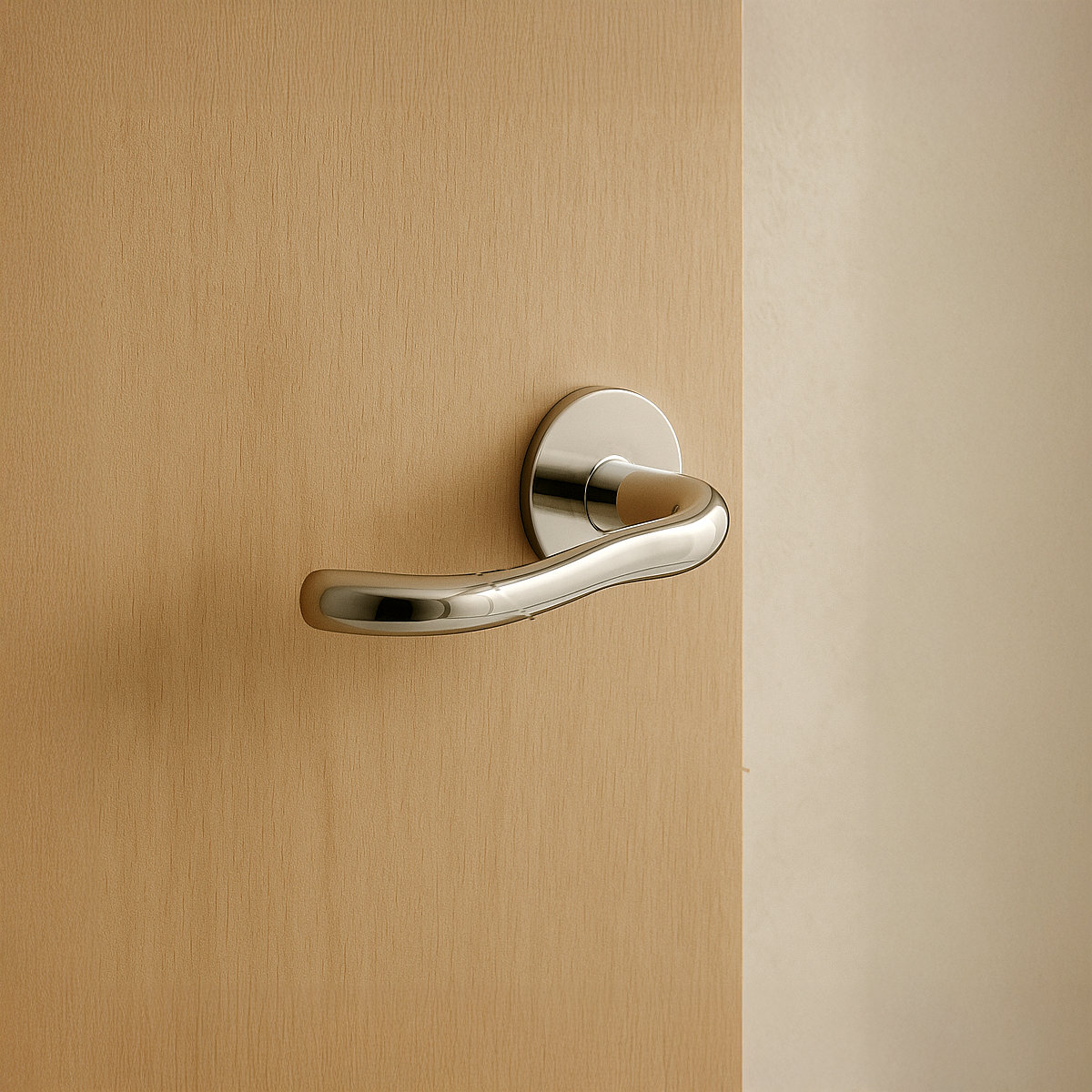

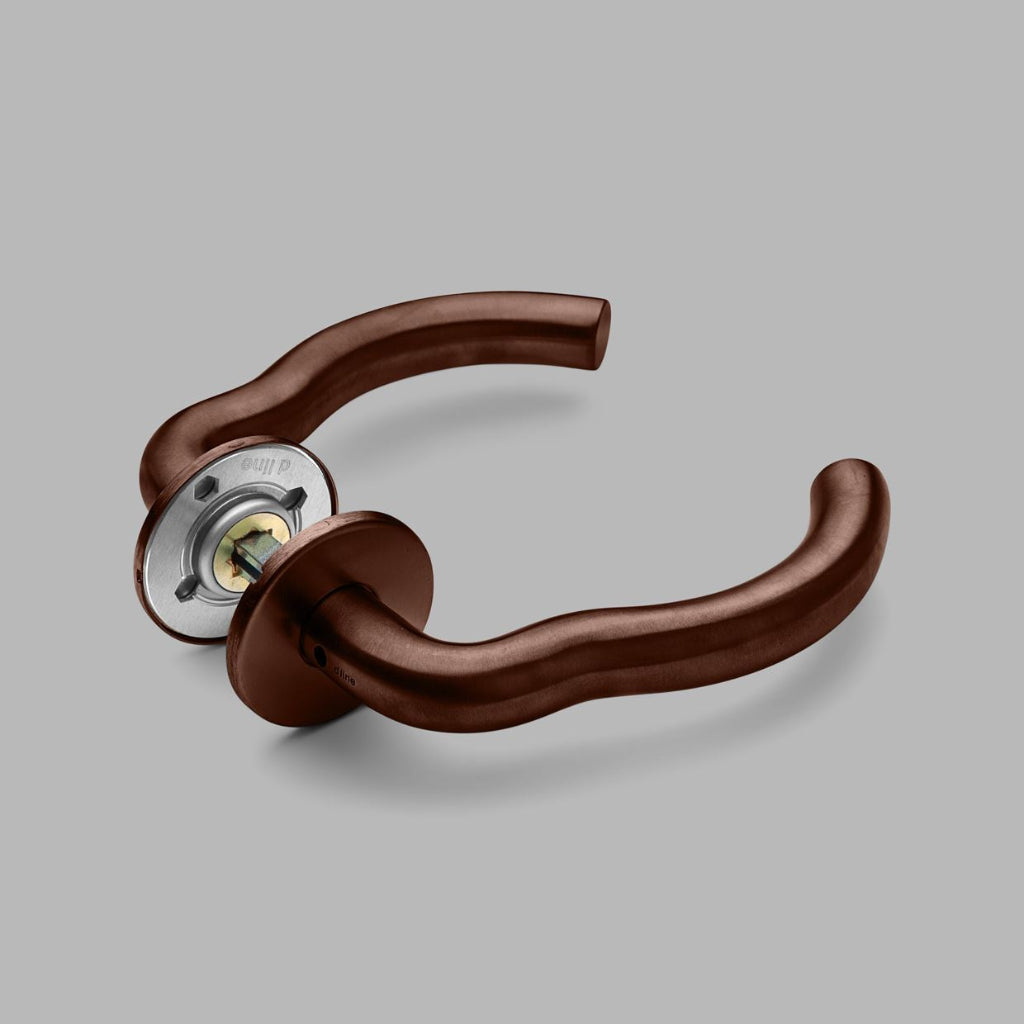

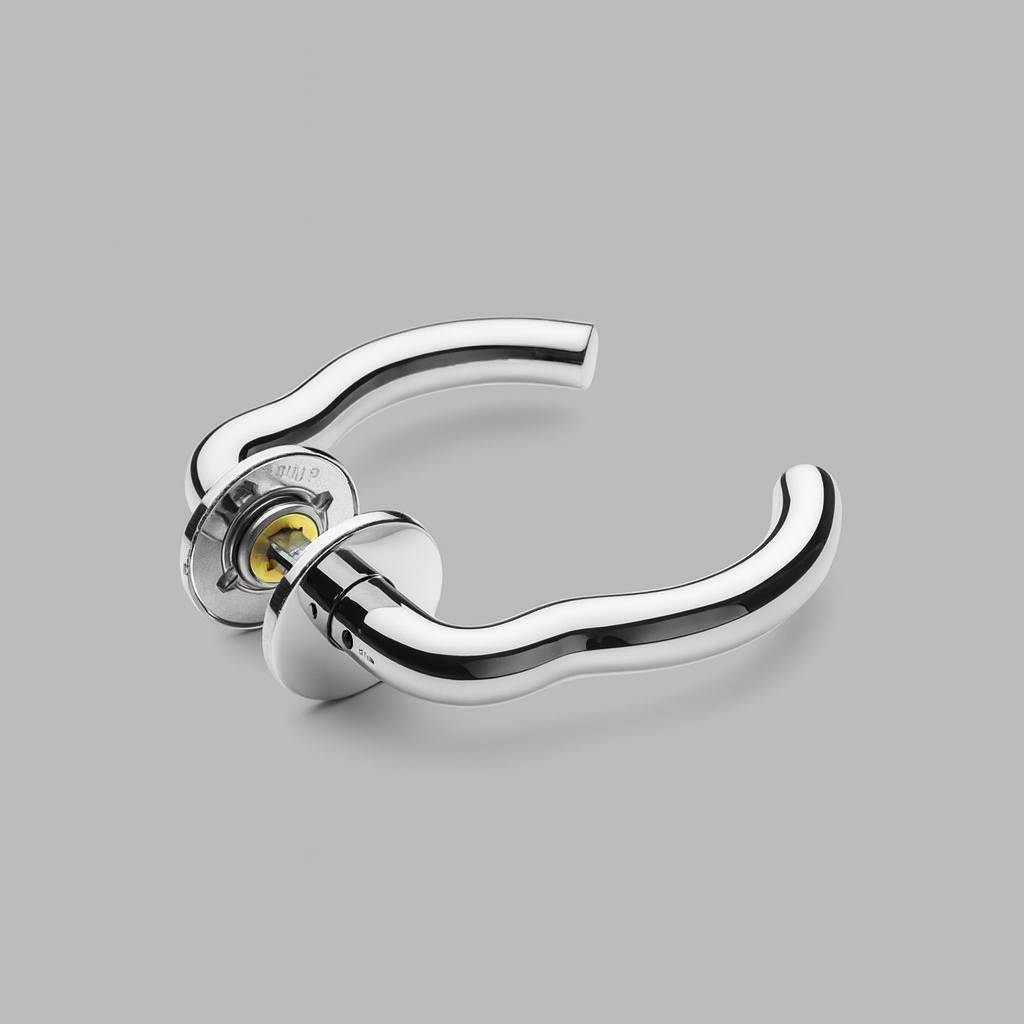

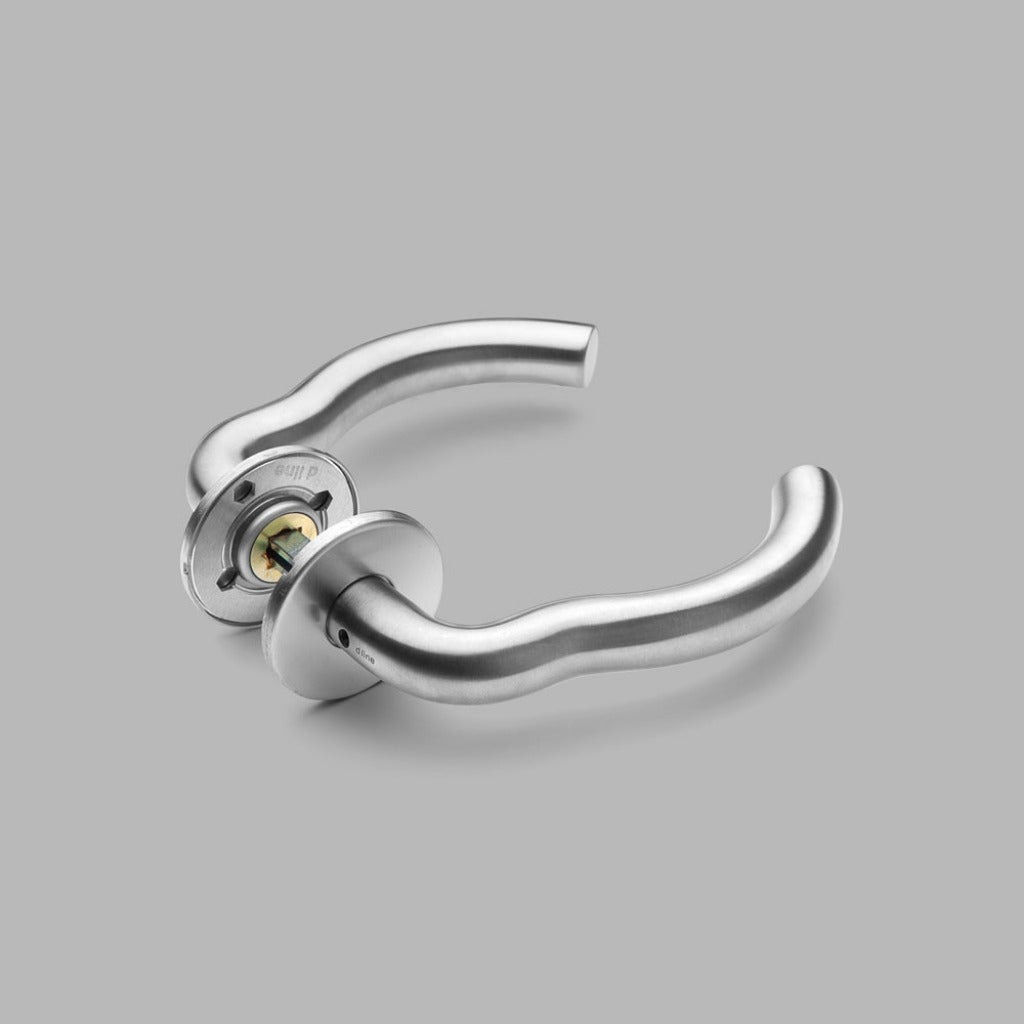

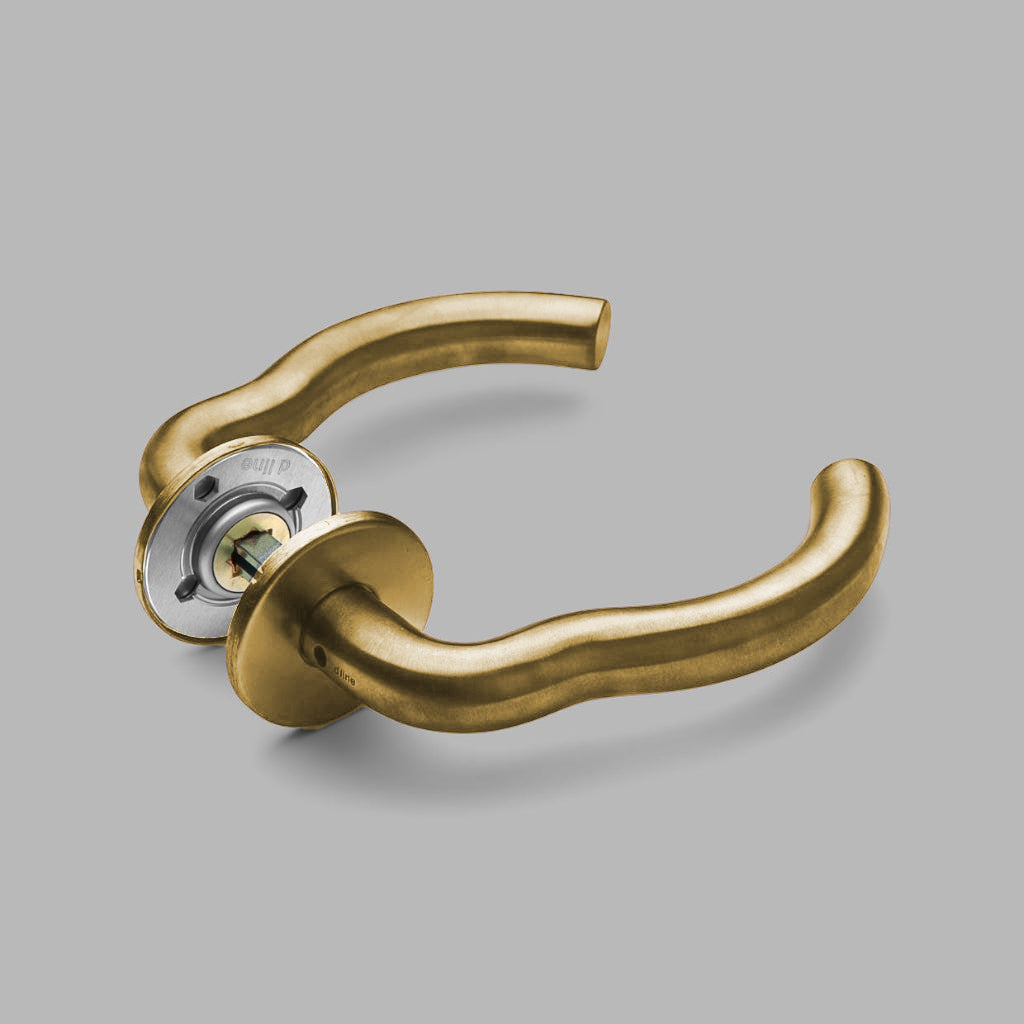

The M Lever was designed by Danish architect and industrial designer Knud Holscher who studied under Arne Jacobsen. The simple, soft bend of the M Lever gives it a tactile grip.
Holscher designed the entire Knud Collection, a series of award-winning, minimalist architectural hardware. d line levers are designed for constant use. They are rigorously tested and use the most cutting-edge machinery in the field. Each piece is expertly crafted by hand.
Made in Europe.
Size: Ø 19 mm (3/4") / Ø 16 mm (5/8") lever handle
Door Thickness: 33 - 44 mm (1.3 - 1.73")
Rose: Available with or without
Cover Plate: Available with or without
Bore Hole: Ø25 mm
Certifications: Tested and certified according to EN1906 and EN1634-1
Privacy/Lock Options:
Knud Toilet Indicator
Knud Toilet Indicator Long
Areas of application: Commercial, Residential
NOTE: European roses are smaller than standard North American models. Please ensure all dimensions are carefully reviewed as these may not fit existing or pre-bored door holes.
- Satin Stainless Steel (AISI 304 with satin grain 320 finish)
- Polished Stainless Steel
- PVD coated Copper, Brass, or Charcoal on Stainless Steel
- Powder coated RAL 9005 Black on Stainless Steel
- X-BAC antimicrobial coating and finishes available upon request
2023 Updated d line finish swatches:
- AISI 316 Satin Stainless Steel
- AISI 316 Polished Stainless Steel
- PVD Brass
- PVD Copper
- PVD Charcoal
- Powder Coated RAL Black 9005
Shop finish samples HERE.
Ensure your lever handle functions seamlessly with the essential components listed below.
Passage Door
Passage doors do not have an internal locking mechanism, making them ideal for bedrooms, kitchens, and living rooms.
Our custom built sets require:
Lever / Knob + Euro Mortise Passage Latch Lock (60mm backset) + Spindle.
For tubular latch sets, we offer the Baton Tubular Passage Latch in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the
AHI Hardware collection.
Privacy Door
Privacy doors provide additional security with interior latches that lock without a key, perfect for bathrooms.
Our custom built sets require:
Lever / knob + thumb turn + Euro Mortise Bolt (60mm backset) + Spindle.
For tubular lock sets, we offer the Baton Tubular Latch and bolt in 2 3/8" or 2 3/4" backset options. Ready-to-buy sets are available from the
AHI Hardware collection.
Select Thumb Turn
Keyed Entry Door
Keyed entry door hardware is designed for exterior doors, providing secure access to buildings and homes.
Our custom built sets require:
Lever / Knob + Euro Mortise Keyed Lock (60mm backset) + 2 x Key Escutcheon + CES key cylinder + Spindle.
Select CES Key Cylinder
Select Key Escutcheon
