FritsJurgens Pivot Hinge System FX: Lightweight Internal Doors with Hold

System FX is a compact, double-acting pivot hinge system engineered for lightweight interior doors and partition panels that are frequently kept open throughout the day. With extremely strong hold positions and a slim profile, it's an ideal solution for high-traffic environments like offices, galleries, and residential interiors.

At just 38 mm tall and 32 mm wide, System FX supports side or middle placement with minimal visual impact. The hinge offers strong hold positions at 0°, 90°, 180°, and 270°, and automatically returns to the nearest hold position when released from within ±10°.

Unlike self-closing systems, System FX is free-swinging between 10° and 80°, giving users complete control of the door's movement while maintaining elegant, frictionless motion. System FX is offered in two installation formats: 40 mm side placement and 70 mm to center placement, each with Class A or Class C configurations based on door weight.

Manufactured in the Netherlands.

• Extremely strong hold positions at 0°, 90°, 180°, and 270°
• Free-swinging functionality between 10°–80°
• No self-closing or damping
• Available in 40 mm and 70 mm pivot points
• Minimalist design with easy installation

• Dimensions: 210 x 32 x 38 mm
• Placement: Side to middle
• Pivot Point: 70 mm to center
• Cover Plates: Not included
• Weight Capacity:
  • Class A: 20 – 119 kg
  • Class C: up to 209 kg
• Door Acting:
  • 360° revolving
  • 180° double-acting
  • 90° single-acting
• Minimum Door Thickness: 40 mm
• Top Gap: 4 – 10 mm
• Bottom Gap: 7 – 11 mm
• Return to hold position from ±10°

• Dimensions: 188 x 32 x 38 mm
• Placement: Side only
• Pivot Point: Fixed at 40 mm
• Cover Plates: Included
• Weight Capacity:
  • Class A: 20 – 119 kg
  • Class C: up to 209 kg
• Door Acting:
  • 360° revolving
  • 180° double-acting
  • 90° single-acting
• Minimum Door Thickness: 40 mm
• Top Gap: 4 – 10 mm
• Bottom Gap: 7 – 11 mm
• Return to hold position from ±10°

Please provide the following details for accurate ordering:

• Desired Pivot Location: 40 mm or 70 mm
• Door Width (Unlimited)
• Door Height
• Door Thickness
• Door Material
• Door Weight (up to 209 kg)
• Interior or Exterior Application
• Finish: Stainless Steel or PVD Black

Some configurations may require additional accessories. Contact our sales team for guidance.

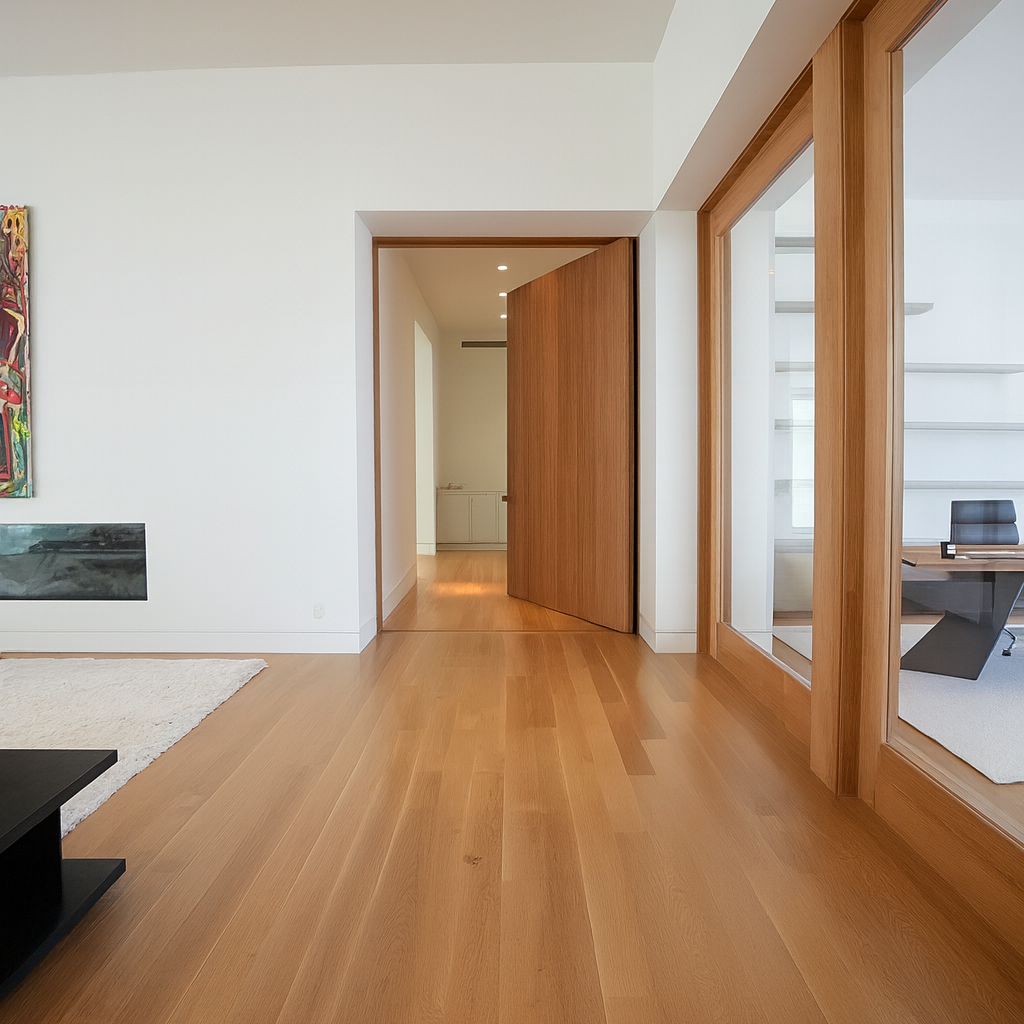

System FX is best suited for interior pivot doors, double doors, or partition panels in both residential and commercial settings — especially where the door is intended to stay in a hold position most of the time.

Read the Pivot Hinge Guide
View Collection Here

• System FX Spec Sheet
• 40 mm Class A Manual
• 40 mm Class C Manual
• 70 mm Class A Manual
• 70 mm Class C Manual
• 3D STEP – 40 mm
• 3D STEP – 70 mm
• DWG – 40 mm
• DWG – 70 mm
• FritsJurgens Systems Brochure
