Description

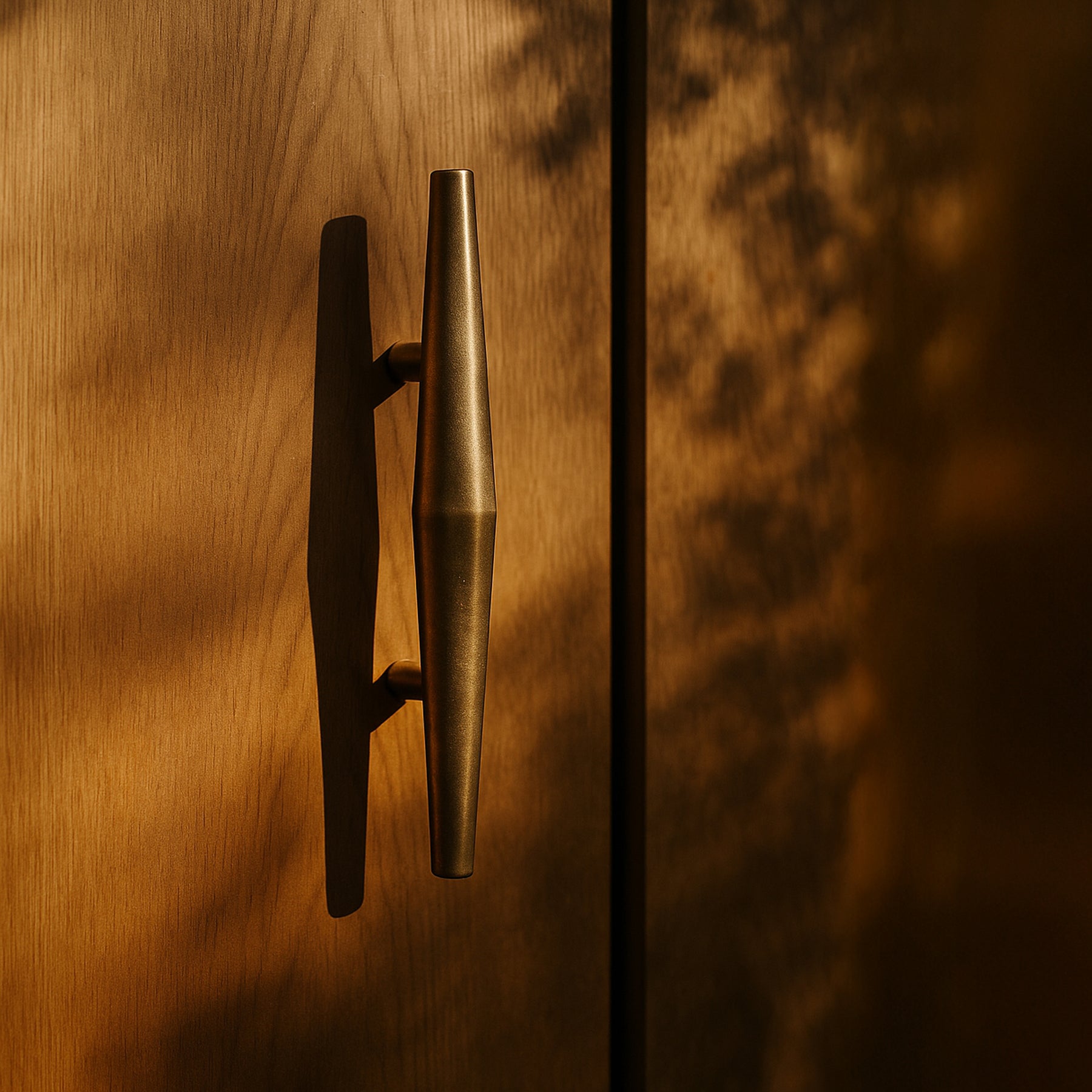

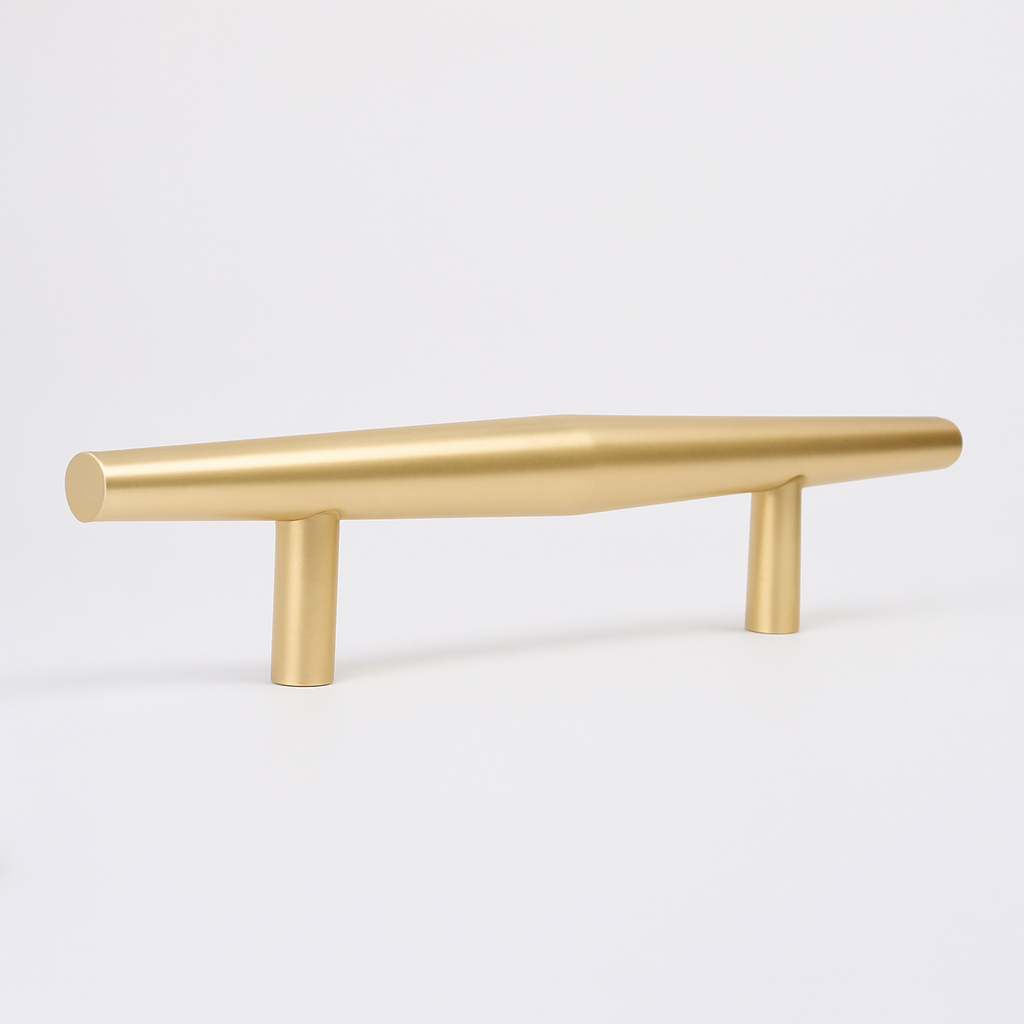

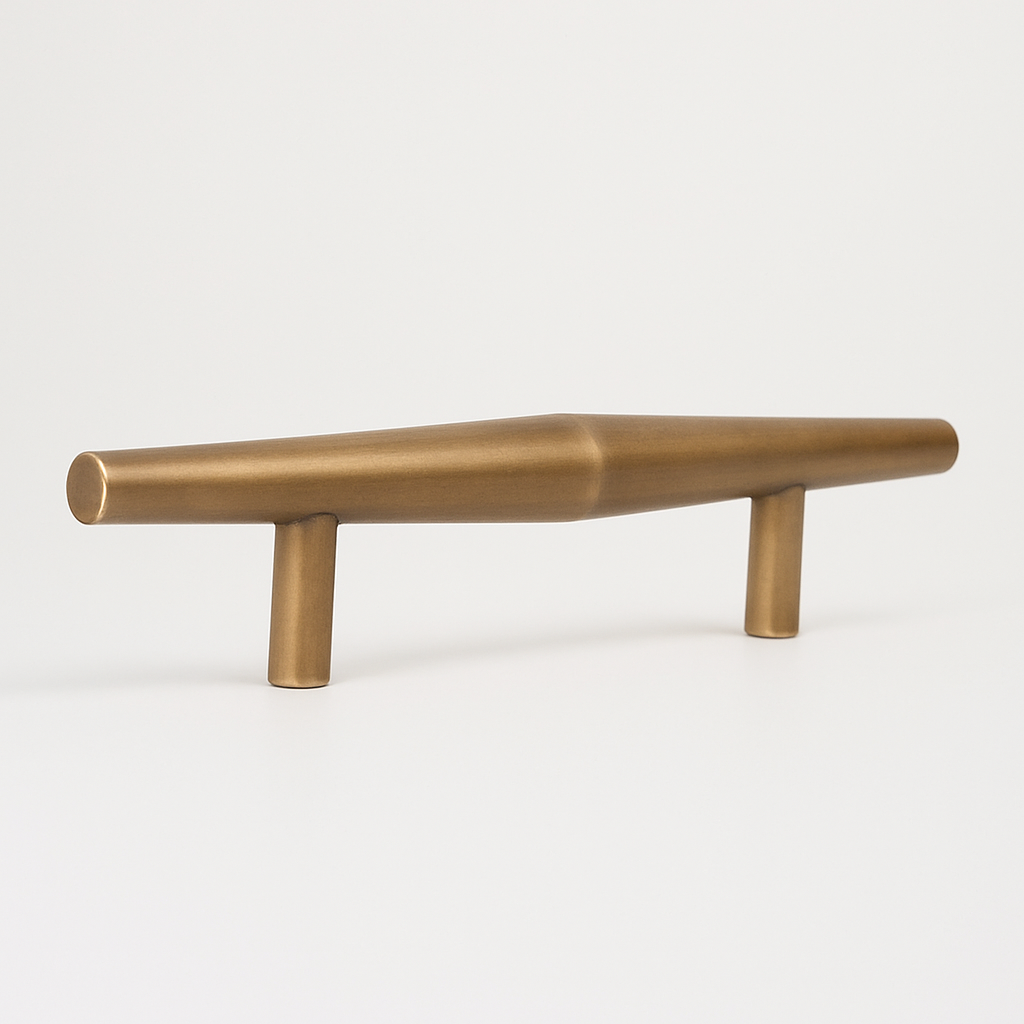

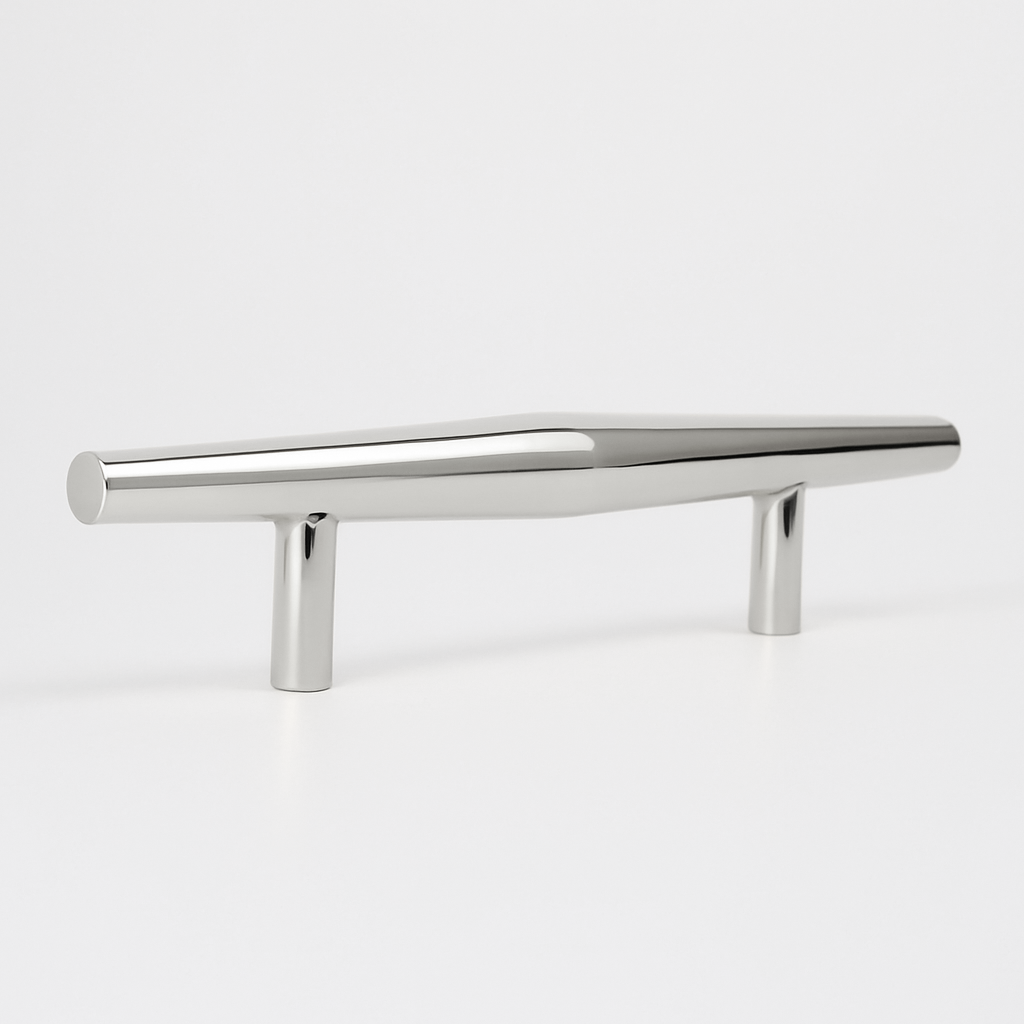

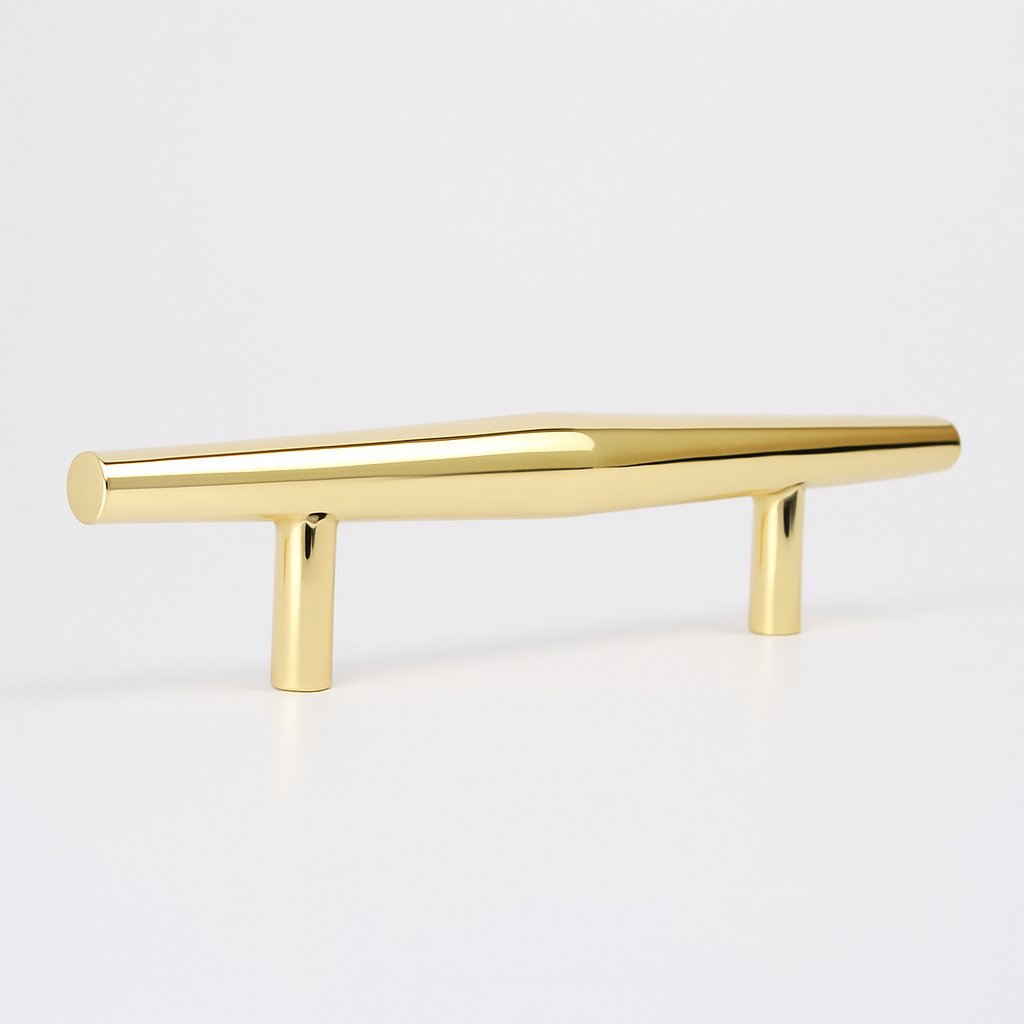

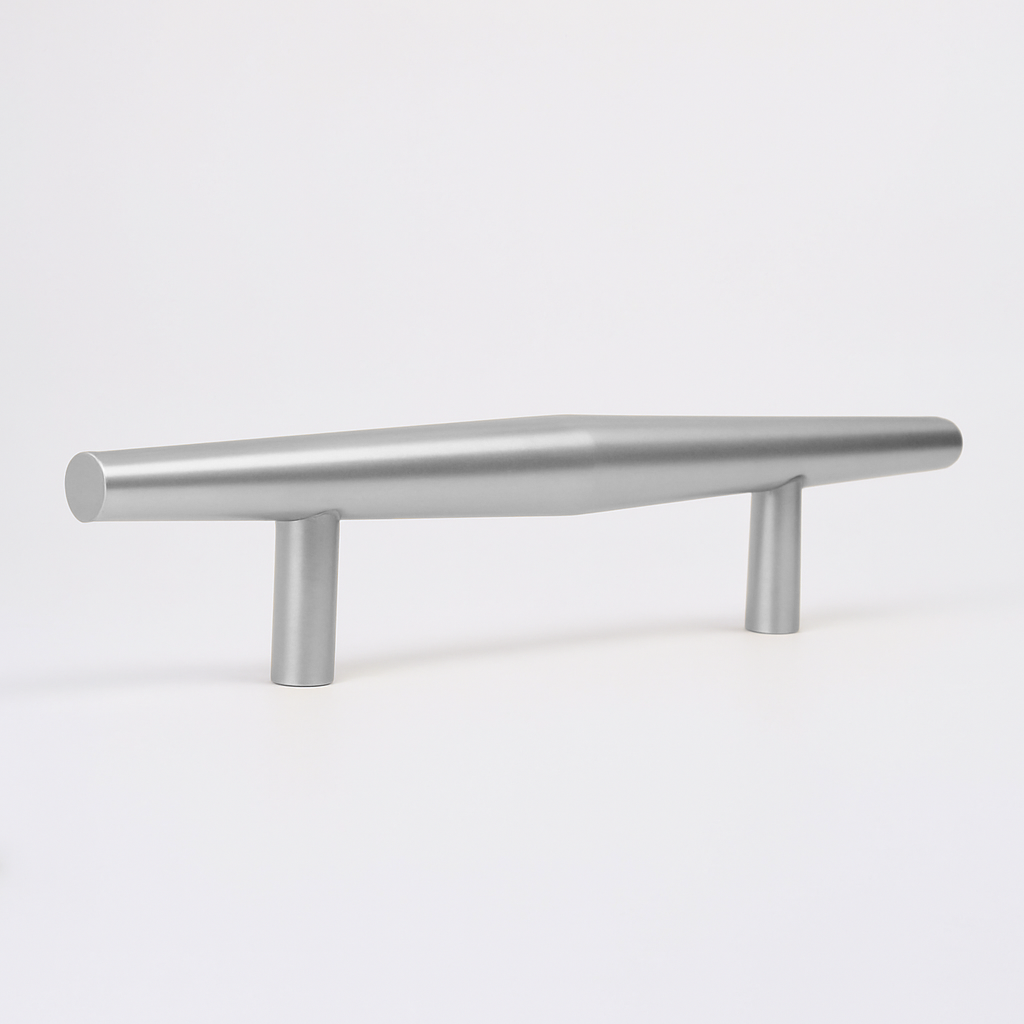

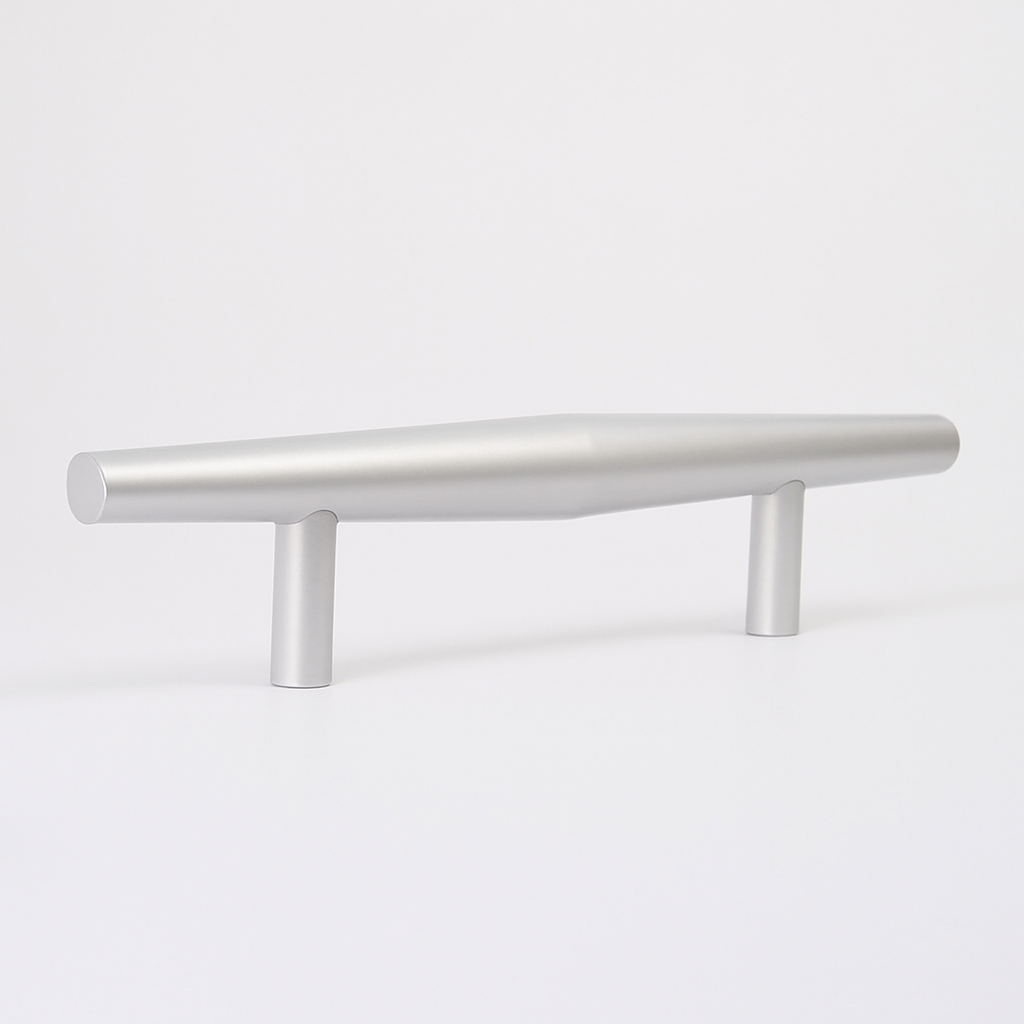

The Charlie Bicone Door Pull by CBH is a solid brass door pull with a classic bicone geometric form. Available in two lengths with single-sided and back-to-back mounting options for wood, metal, and glass doors. See more from the Charlie collection.
Made in Canada.

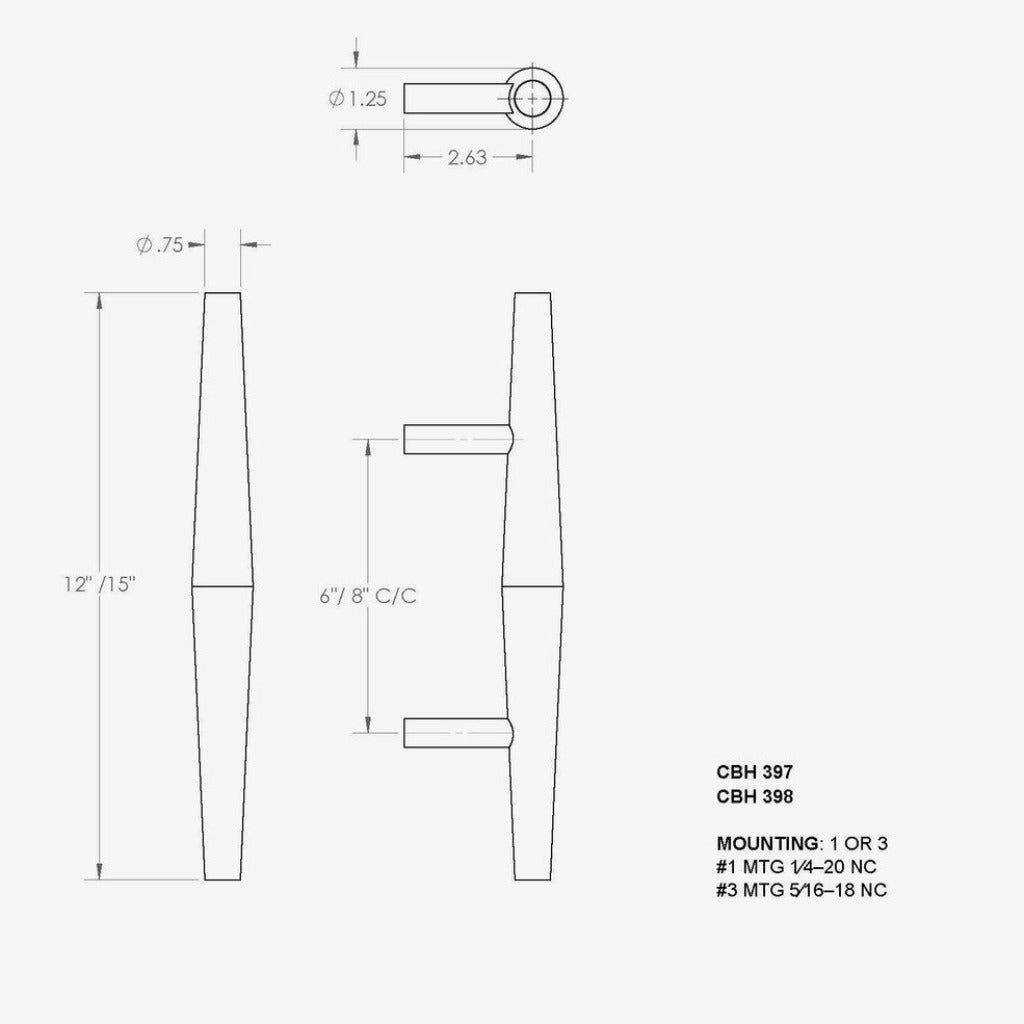

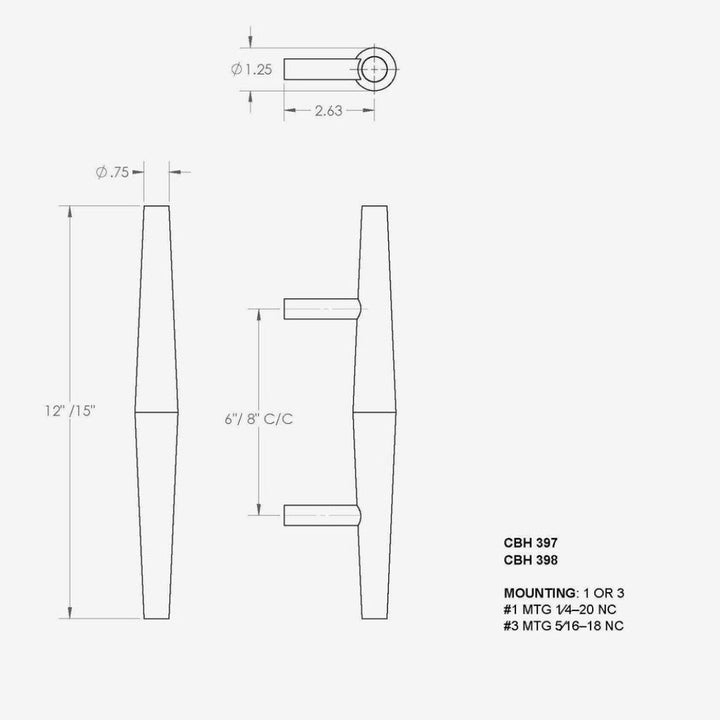

Specifications
- Size Options
- 12": Ø 32 mm (0.75") x D 76 mm (2.6") — Centre to Centre: 152.4 mm (6")
- 15": Ø 32 mm (0.75") x D 76 mm (2.6") — Centre to Centre: 203.2 mm (8")
- Mounting Options
- Single Pull — single-sided wood or metal door: 44 mm (1-3/4") thickness
- Double Pull — back-to-back wood or metal door: 44 mm (1-3/4") thickness
- Single Pull — single-sided glass door: 13 mm (1/2") glass thickness

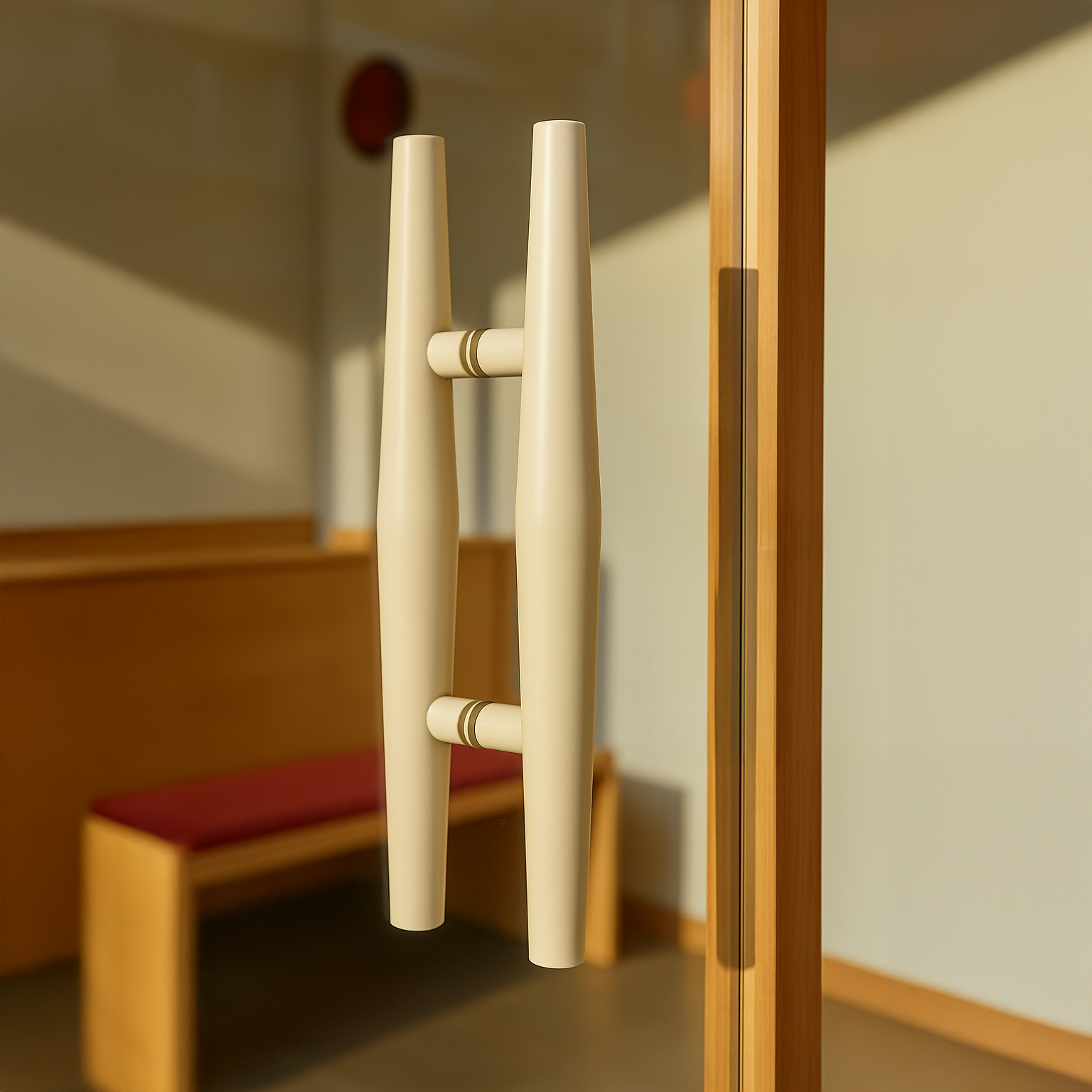

- Double Pull — back-to-back glass door: 9.5 mm (3/8")–12.7 mm (1/2") glass thickness
- Glass hole prep: Hole cannot be less than the thickness of the glass. Typically prepped at 1/2" or 5/8" — the included washer covers the hole and serves as a stop for the mounting bolt.
- Custom lengths and back-to-back options available — contact us. Mounting hardware included.
Materials

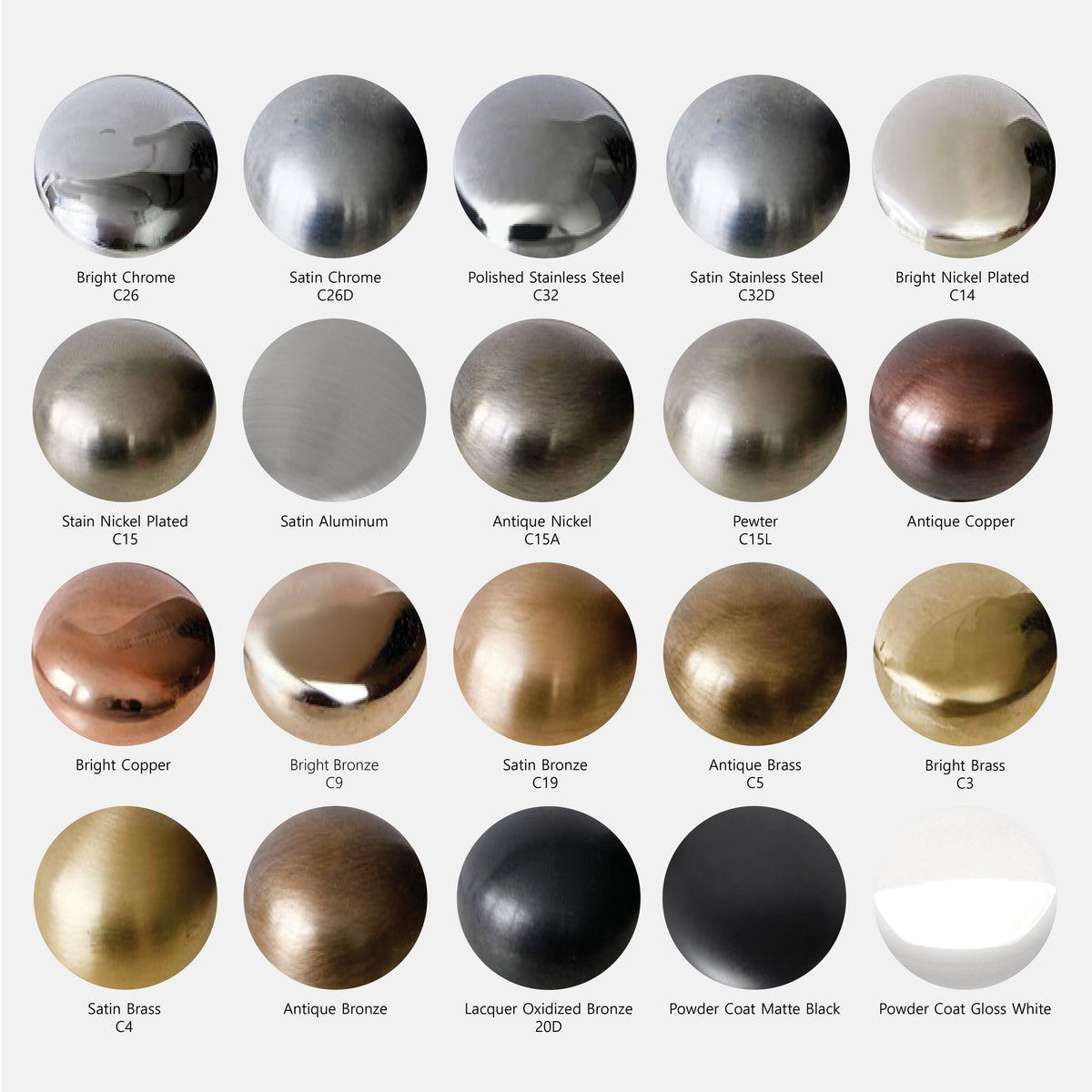

Available Finishes
- Satin Stainless Steel
- Polished Chrome
- Satin Aluminum
- Lacquered Satin Brass
- Unlacquered Satin Brass
- Lacquered Polished Brass
- Unlacquered Polished Brass
- Antique Brass
- Powder Coat Matte Black
- Powder Coat Gloss White
- Powder Coat Ivory
- Custom finishes available upon request, including antimicrobial clear coating
Material Notes
- Antique and oxidized finishes are hand-applied, resulting in unique, organic surface variations.
- Lacquered finishes maintain a consistent appearance over time. Unlacquered finishes will naturally age and develop a patina.
- Most finishes are lacquered by default. Satin Nickel, Satin Chrome, and Satin Stainless Steel are unlacquered. Oxidized Bronze is lacquered unless requested otherwise.
- See the Care & Maintenance Guide.
Product Downloads
N/A
See more about CBH Charlie finishes
CBH offers a range of finishes as part of their standard Charlie collection. Most finishes are coatings applied over a base material, such as brass, bronze, stainless steel, or aluminum. Base material may vary by product type.
See Base Material Chart
| Finish | Base Material |
|---|---|
| Satin Stainless Steel | Stainless Steel |
| Polished Stainless Steel | Stainless Steel |
| Satin Aluminum | Aluminum |
| Satin Chrome | Brass |
| Polished Chrome | Brass |
| Satin Nickel | Brass |
| Polished Nickel | Brass |
| Lacquered Satin Brass | Brass |
| Unlacquered Satin Brass | Brass |
| Lacquered Polished Brass | Brass |
| Unlacquered Polished Brass | Brass |
| Satin Bronze | Bronze / Brass |
| Polished Bronze | Bronze / Brass |
| Oxidized Bronze | Bronze / Brass |
| Antique Brass | Brass / Bronze |
| Antique Bronze | Bronze / Brass |
| Antique Nickel | Brass |
| Antique Copper | Brass |
| Gloss White | Stainless Steel |
| Matte Black | Stainless Steel |
Antique finishes are hand-applied and may show variation in tone and texture. Finish availability may vary by item — refer to the product variant selection for details.
Most finishes are sealed with a clear protective coat. To maintain finish quality, clean with a soft cloth and water or mild ammonia-based cleaner. Avoid acid-based cleaners. For full care details, visit our Finish Care Guide.
Installation Notes
Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured.
There may be slight variations that could affect the installation of your hardware as many pieces are hand finished / fabricated.
